Livenza DT3021 - Watch Detomaso - Free user manual and instructions
Find the device manual for free Livenza DT3021 Detomaso in PDF.
| Product type | Wristwatch |
| Brand | Detomaso |
| Model | Livenza DT3021 |
| Movement | Quartz (battery-powered) |
| Water resistance | 10 ATM (tested, not suitable for swimming, showering, bathing, diving) |
| Main functions | Time, date, day of the week, chronograph (minutes and seconds), split time measurement |
| Power source | Battery (replacement recommended every 1 to 1.5 years) |
| Crown | Screw-down (unscrew to adjust) |
| Warranty | 24 months (manufacturing defects and material defects) |
| Care | Protect from shocks, magnetic fields, high heat, water, chemical products; remove for sleeping |
| Cleaning | Clean with a soft dry cloth |
| Battery replacement | Have it done by a specialist |
| Seal check | Annual to maintain water resistance |
| Battery life | Approximately 1 to 1.5 years |
| Spare parts | Available for several years |
| Repairability | Repair guaranteed for a long period |
| Warranty conditions | Batteries, wear, accidental damage excluded |
| Precaution | Do not change the date between 9:00 PM and 0:30 AM |
| Condensation | Bring immediately to a specialist |
| Crown in use | Always pushed in when the watch is worn |
Frequently Asked Questions - Livenza DT3021 Detomaso
User questions about Livenza DT3021 Detomaso
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Watch in PDF format for free! Find your manual Livenza DT3021 - Detomaso and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Livenza DT3021 by Detomaso.
USER MANUAL Livenza DT3021 Detomaso
LIVENZA
Inhaltsverzeichnis
Vorwort 4
Wasserdichtigkeit 5
Pflegehinweise 6
Caring instructions 14
Operating instructions 15
Calibration (reset) of the Chronograph 17
24 months warranty 18
EN
Foreword
Congratulations on the purchase of your new DETOMASO watch. You are now the new owner of a high precision time keeper characterised by its innovative design.
We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.
In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.
Waterproof properties
The water resistance of your DETOMASO watch has been tested to be 10 ATM.
This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it but it is not suitable for diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use. The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing.
Your DETOMASO watch has been tested and has a water resistance of 10 ATM. The specification „10 ATM” is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 10 ATM is reached at a depth of 100 m. You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.
Watches are at particular risk when the wearer dives into water after sun-bathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.
EN
Instructions for care
Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.
Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.
If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.
Batteries should be replaced by a specialist at regular intervals of approx. 1 – 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.
In the event of condensation forming underneath the glass (misting), the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.
The crown should always be firmly pressed in or screwed tight during use.

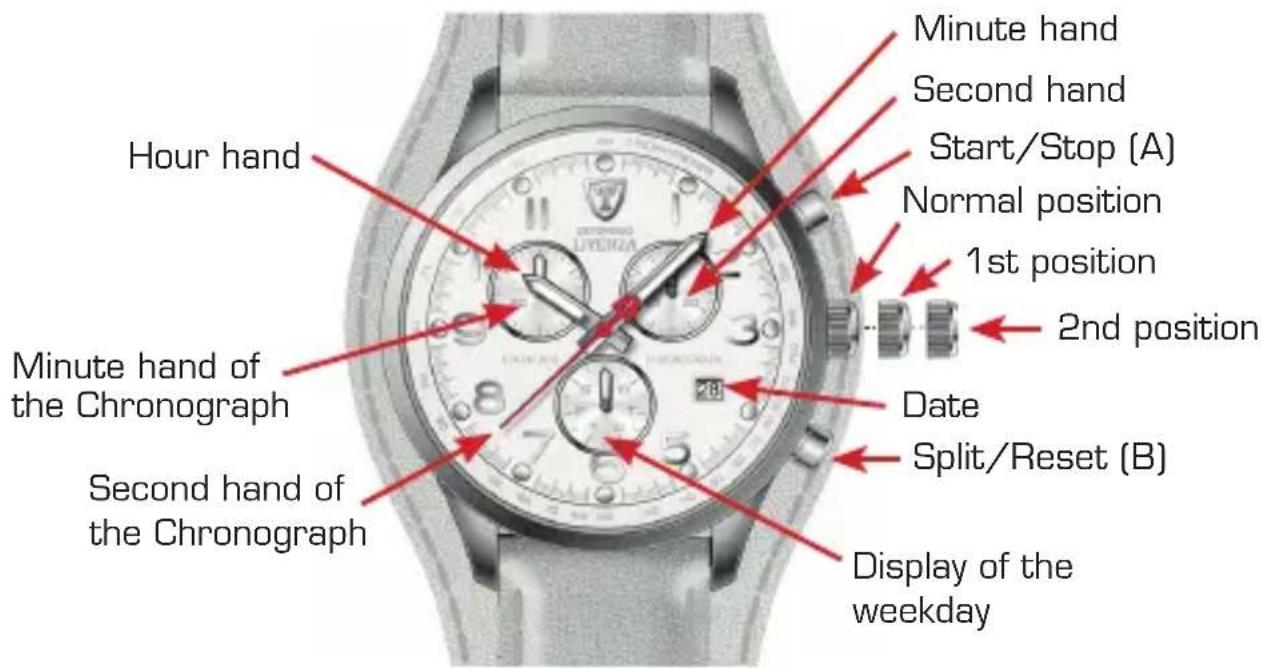

Operating instructions
Setting the weekday
- Pull out the crown into the 2nd position
- Set the weekday by turning the crown clockwise
- Push back the crown into the normal position after the weekday has been adjusted.
Setting the time
- Pull out the crown into the 2nd position
- Move the hour and minute hand by turning the crown clockwise
- Push back the crown into the normal position.
Setting the date
* Do not set the date between 9 pm and half past midnight
1. Pull out the crown into the 1st position
2. Set the date by turning the crown clockwise.
3. Push back the crown into the normal position after the date has been adjusted.
EN
Chronograph - simple use of the stop watch
- Push button A to start the Chrono (stop watch)
- Repush button A to stop the function
- Push button B to reset to zero
Taking split time and total time
-
Push button A to start the Chrono (stop watch)
-
Push button B to measure the split time
-
Repush button B for split release. Now the second hand advances rapidly to catch up on the elapsed time since the split time.
-
Repush button A to stop the Chrono
-
Push button B to reset to zero.
Calibration (reset) of the Chronograph
(only after battery change or faulty handling)
- Pull out the crown to position 2. If button B is pressed and held, you will get to the calibration mode of the chronograph function.
- Press button B to set the minute hand to the zero position. A short push will give you a step by step advance whereas the hand can be advanced rapidly by continuously pushing this button.
- Press button "A" to set the second hand of the chronograph to the zero position. A short push will give you a step by step advance whereas the hand can be advanced rapidly by continuously pushing this button.
Attention: When calibrating the minute hand the second hand will also move. In order to calibrate both hands it is crucial to stick to the sequence stated which is minute before second. - Push the crown back into its normal position. The chronograph has now been successfully calibrated.
EN
24 month warranty
We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.
Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.
We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).
We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.
To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.
Table des matières
Préambule 20
Etanchéité 21
Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)
The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.
This product shall be handed over to your local community waste collection point for the recycling of the-product. For more information, please contact your Government Waste-Disposal department in your country. Incorrect waste handling could possibly have a bad effect on the environment and human health due to potential dangerous substances. With your cooperation in the correct disposal of this product, you contribute to reuse, recycle and recover the product and our environment will be protected. Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only). For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.
Service Center
MAX Trader GmbH
www.facebook.com/DetomasoWatches
