Product type	Decorative fireplace surround
Brand	FABER
Model	Peca large
Category	Natural stone fireplace
Main material	Marble or limestone
Available colors	Multiple shades (not listed)
Dimensions	Varies by model (e.g., Wirdum 840, 770, etc.)
Weight	Varies by size (not specified)
Power supply	None (does not produce heat)
Usage	Surround for wood, gas or electric stove
Assembly	Wall-mounted or in front of stove, with possible recessed installation
Included accessories	Universal plate, special stone adhesive or silicone sealant
Maintenance	Clean with a clean, dry cloth or vacuum cleaner
Safety	Do not modify the construction; check floor levelness
Installation	Requires a flat, stable surface; bonding with non-acidic silicone sealant
Disassembly	Possible if silicone sealant used (nylon thread); difficult with special adhesive
Warranty	Keep proof of purchase; defects after assembly not covered
Spare parts	Connection elements (1000x90x30) in stock; others on order

Frequently Asked Questions - Peca large FABER

How do I clean my Faber Peca large fireplace?

Clean the marble or natural stone parts with a clean, dry cloth or vacuum cleaner. Avoid liquid products that may stain the stone.

Can I use liquid products to clean the stone?

It is not recommended to use liquid products as they may stain natural stone. If necessary, ask your supplier for advice.

How do I assemble the fireplace without adhesive?

It is recommended to dry-assemble the fireplace first to check the fit of the blocks. This allows easy disassembly in case of problems.

What should I do if an element is damaged on delivery?

Check each element before assembly. Any defect or damage reported after assembly is not covered by the warranty.

Can I disassemble the fireplace after bonding?

If you used non-acidic silicone sealant, disassembly is possible with a nylon thread. With special marble adhesive, disassembly requires a rubber mallet.

What type of adhesive should I use for assembly?

Use the provided special natural stone adhesive or non-acidic silicone sealant. Silicone sealant dries more slowly and allows easier adjustment.

How do I compensate for floor irregularities?

Place a layer of felt under the base plate or use plastic shims to resolve height differences. The surface must be flat and stable.

Can the fireplace be installed in front of a gas stove?

Yes, but ensure that all gas connections are in good condition and that the stove operates correctly before completing the assembly.

What are the risks if I modify the construction?

Do not modify the construction of the appliance, as this may compromise the stability and safety of the fireplace.

Where can I find spare parts?

Contact your supplier or the manufacturer FABER (www.faber.nl). Standard assembly parts (1000x90x30) are in stock; larger elements need to be ordered.

USER MANUAL Peca large FABER

INSTALLATIONSVORSCHRIFT

LUD

MANUAL D'INSTALLATION

BEF

Schouw - Surround - Fassade - Cadres

NL

2.1 Introduction 7
2.2 SAFETY PRECAUTIONS 7
2.3 PREPARATION. 8
2.4 Assembly of the Surround 9
2.5 Cleaning and maintenance 9

Your fireplace is made of marble or limestone, a natural material. So it is quite normal that there may be variations in colour and structure from one piece to another and from one product to another. Guarantee: keep the guarantee certificate in a safe place, together with your proof of purchase.

Despite our rigorous quality control, there is still a small chance that your fireplace may have been damaged in transit.

Check all parts for damage before commencing installation. Damages and/or discolours have to be reported before installing the surround otherwise the guarantee will be void "an installed surround means an accepted surround".

Filler pieces (1000 × 90 × 30 ~mm) are available from stock in all colours. Larger fireplace parts usually have to be ordered.

2.1 Introduction

These installation instructions contain information about the assembly and maintenance of your ambience fireplace, and also advice about safety during installation.

If you read this instruction manual carefully, you will soon find out how to install your fireplace properly.

2.2 SAFETY PRECAUTIONS

The appliance must not be altered in any way
- Make sure that there is sufficient insulation between the appliance and the natural stone fireplace
- When installing the natural stone fireplace, always make sure that the base is level (preferably, perfectly horizontal), clean and, above all, stable
- Before starting on the installation, check that the supplied materials are complete and undamaged
- It is strongly recommended that, if possible, you first conduct a 'dry run' of the fireplace assembly. Among other things, this will allow you to see how the various parts fit together
- The fireplace components may be glued together using marble adhesive or acid-free silicone paste. The latter has the advantage that it allows for later dismantling (as long as it is only applied at certain points)

2.3 PREPARATION

The heater can be installed in a range of positions in relation to the fireplace:

• The heater can be installed immediately behind the fireplace. In this case, the back of the fireplace is the front of the heater
• The heater can be installed further behind the fireplace. For example, 8cm if the mantle or column is made of Durox blocks or stones. The rear of the fireplace is 8cm from the front of the heater. This means that you must order wider filler pieces in order to bring the rear of the fireplace or uprights flush with the heater
• The heater can be installed in the fireplace. In this case, it is important to know how far inside the fireplace the heater is installed, since different filler pieces will be needed. The location of the heater is in turn dependent upon the location of this heater's smoke outlet or flue and the thickness of the mantle
• When installing the natural stone fireplace, always make sure that the base is level (preferably, perfectly horizontal), clean and, above all, stable.
• Carefully remove the fireplace from the wooden crate in which it is delivered.
• Check that all the parts supplied in the crate are complete and undamaged. Lay them out in a safe place, so that you have a clear idea of what the various parts are.
• As far as possible, measure the dimensions using the drawing of the fireplace (see Appendices).
• Smooth the floor using a suitable screed. Be careful with limestone fireplaces, you may have to seal the hearth or lay plastic sheet underneath to reduce the risk of staining. Grey cement will stain the natural stone, use only white cement. When using Knauff (for example, to insert a plate), blistering may occur in some dark types of natural stone. An alternative is to apply a decelerator to the plaster.
• With a parquet floor, it is advisable to cut away the parquet to the size of the hearth, less 2 cm (left, right and front). If the parquet has not yet been fitted, you can place the hearth above it, so that the parquet can be fitted approximately 2 cm underneath.
• We recommend that you first conduct a 'dry run' of the fireplace assembly. Among other things, this will allow you to see how the various parts fit together.
• It is also recommended that you fit the fireplace first and then, if necessary, plaster around it.
• If necessary, you can smooth out the fireplace components using stainless steel rings.

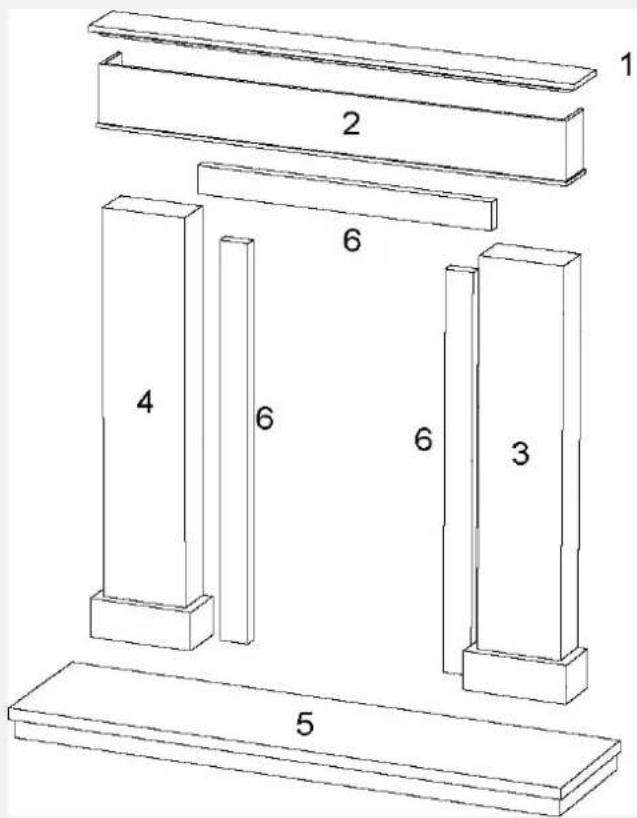

2.4 Assembly of the Surround

• Establish the central point of the fireplace and mark this on the backing wall.
• Establish the distance between the heater and the backing wall.
• If the backing wall is not level, you can fill it later.
• Lay the hearth so that it is level in all directions (from front to rear and left to right).
• Install the heater in terms of its heating function (see instructions supplied with the appliance).
• Put the left- and right-hand uprights/sidepieces in position. These have already been glued together. They should fit on the left- and right-hand side of the hearth. The heater must be clear of the fireplace to allow for expansion and contraction with heat. Any gaps can be sealed with a ceramic rope or similar.
• Fill the space between the uprights and the backing wall with brickwork or Promatec, to allow further assembly. The uprights may be attached to this structure. The structure must also be able to absorb pressure at right angles onto the backing wall. We therefore recommend a brickwork structure.
• Saw the filler pieces to the right size. The size depends upon the way in which the hearth is fitted in relation to the fireplace.
• The components may be fastened together using acid-free silicone paste or two-component marble adhesive. Silicone paste takes longer to set, and so gives you more time to match the pieces exactly. It is also easier to remove (for example, using fishing line), if the pieces need to be disassembled.
  After this, you can fill the seams with the special coloured fitting kit.
• Left-over filler pieces can be stored in the upper section.
• Check that all the connections are gas-tight and test the operation of the appliance.
• Add the finishing touches to the fireplace.

2.5 Cleaning and maintenance

Clean the fireplace using a dry non-scratch cloth or a vacuum cleaner. Do not use cleaning agents.

Be careful! The use of cleaning agents may cause discoloration of the stone. Also be careful when placing vases or flower pots on the fireplace.

If you do wish to use a cleaning agent, consult your retailer first. Your retailer can advise about special cleaners for natural stone.
