USER MANUAL CIR7003.6 FRACARRO

Exterior view of a white FRACARRO surveillance camera (no text or symbols visible on body)

CIR700-922

Varifocal 9-22 mm

36 Maxi Led - 40m

Exterior view of a white CRACARRO surveillance camera (no visible text or symbols on body)

CIR700-49

Varifocal 4-9 mm

36 Led - 30m

Exterior view of a white surveillance camera (no visible text or symbols)

CIR700-3.6

Fixed 3,6 mm

24 Led - 15 m

CIR700-3.6 CIR700-49 CIR700-922 Italiano

Three identical white surveillance cameras with metallic blades, shown from different angles (no text or symbols visible)

Close-up of a black electrical plug with labeled buttons (L, UP, DOWN) and wires, no readable text beyond symbols

Waterproof varifocal camera series with IR leds high resolution

Main features

• Day & Night (electronic IR filter)
• IR led for night vision
• External varifocal adjustment
• 700 TVL
• Automatic Gain Control
- IP66 protection
• DSP Sony Effio with OSD
• ATR 128x, HLC, 2DNR
• Privacy, Motion, Mirror, Flip
- Bracket with internal cable passage

Three identical white surveillance cameras with circular headsets and metallic blades, shown against a plain white background (no text or symbols visible)

Package content:

• Camera with bracket
• Tool for bracket adjustment
• Fixing screws
• Mini screw driver for zoom/focus adjustment (only varifocal version)

Technical specs:

	CIR700-3.6 CIR700-49 CIR700-922
Code 918163 918164 918165
Video specs
Standard video PAL
Image sensor 1/3" Color CCD Sony Super HAD II
DSP Sony Effio-E
Pixel 976 (H) x 582 (V)
Resolution 700 TVL
Minimum illumination @ F1.2 0.01 Lux (Day), 0.003 Lux (Night), 0.0003Lux (DSS), 0 (IR led on)
Signal to Noise ratio (S/N) >50 dB (AGC Off)
Synchronization Internal
Video output	Composite video signal, 1 Vpp 75Ω su BNC
Functions
Wide Dynamic Range	On / Off (Level adjustable), Auto detection
Digital Noise Reduction	2D-DNR
Electronic Shutter	1/50 ~ 1/100,000 include Flickerless (1/120)
Digital Slow Shutter (DSS)	Off, 2~20, 40, 80, 160, 256 FLD
White Balance	Auto / Indoor / Outdoor / Manual / Push Auto
Gain Control	Auto / Manual
Back Light Comp.	On / Off (7 Areas & Smart Area, Level:0~255)
Special features
On-Screen-Display (OSD)	8 Languages
Motion Detection	4 Detection Blocks
Camera Title	Up to 16 characters
Mirror	Horizontal
Lens
Focal	Fixed 3.6 mm	Adjustable 4 ~ 9 mm	Adjustable 9 ~ 22 mm
Lens adjustment	Fixed	External manual adjustment	External manual adjustment
IR filter Electronic
Infrared
Number and type of led 24 (∅ 5mm)	36 (∅ 5mm) 36 (∅ 8mm)
Projection distance	10 – 15 m indoor5 – 10 m outdoor	20 – 30 m indoor15 – 20 m outdoor	30 – 40 m indoor25 – 30 m outdoor
Checking ignition Light sensor CDS, con hysteresis 3,5 ~ 10 lux
General data
Level of protection	IP66
Power	12 Vdc +/- 10%
Absorption maximum	100 / 350 mA	100 / 400 mA	100 / 450 mA
Temperature and humidity of operation	-10 ~ +50 °C (Ur 85% max)
Size (WxHxD)	175 x 69 x 55 mm 228 x 97 x 82 mm 295 x 120 x 103 mm
Weight net/gross	300 / 830 g 550 / 880 g 950 / 1500 g

Warnings

Not orient the camera toward the sun

Direct exposure to the sun or other light sources could damage the device CCD. Handle with care - Shock improper could damage the camera

Water protection and moisture.

The camera can not be open for not reduce the seal. The plastic caps (used on the varifocal versions) should be removed only during adjustments to be immediately replaced and sealed. The cable with all its parts (Joystick OSD and connectors Video and Power) is not waterproof and must be protected from the elements in a waterproof junction box.

Power - Be sure to respect the positive and negative polarity, as 12V from symbol, in the wiring of taking power

12V

Normative - In conformity with standard EN 50130-4(European directives 2004/108/EC - EMC).

In accordance with the European Directive 2004/108/EC (EMC), the product shall be installed using devices, cables and accessories that allow to comply with this directive requirements for fixed installations

Qualified persons

The product must be installed only by qualified persons, according to the local safety standards and regulations.

Only instructed and authorized persons can open the product. In case of failure, do not try to repair it otherwise the guarantee will no longer be valid.

Installation instructions

Camera mounting

• Fix the bracket by screws and adjust the camera direction using the dedicated tool for bracket screws.
- Protect the cable, the OSD joystick and the connectors (Video and Power) from the water. A waterproof box is highly recommended to protect from sun, rain and humidity all the parts aotside the bracket.

Lens adjustment (only Varifocal version)

• Remove the rubber protections and adjust the zoom/focus by the relative screws
  • See the table of different field of view (widht) for different target distance (D).

Field of view (width) [m]		D = Target distance
		D=5 m	D=10 m	D=15 m	D=20 m	D=25 m	D=30 m	D=35 m	D=40 m
CIR700-3.6	3,6 mm	6,7m	13,3m	20m	26,7m	33m	40m	46,7m	53,3m
CIR700-49	4 - 9 mm	6–2,7m	12–5,3m	18–8m	24–10,7m	30–13,3m	36–16m	42–18,7m	48–21,3m
CIR700-922	9 - 22 mm	2,7–1,1m	5,3–2,2m	8–3,3m	10,7–4,4m	13,3–5,5m	16–6,5m	18,7–7,6m	21,3–8,7m

• Select the field of view by ZOOM screw by mini screw driver
• Adjust the FOCUS
• Apply the rubber protection to guarantee the water and humidity protection.

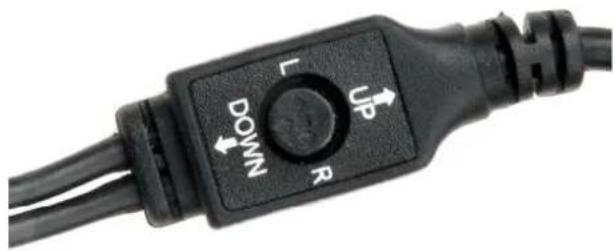

OSD MANAGEMENT

Advanced settings are available by joystick on the cable

Up	Move up / increase values
Down	Move down / decrease values
Left	Open sub-menu
Right	Close sub-menu
Enter	Enter menu and confirm selection

Close-up of a black electrical plug with labeled buttons (L, UP, DOWN) and wires, no readable text beyond symbols

Setup item Description
LENS	Manual Lens & Auto Iris Lens Setting
MANUAL	This function is for normal lens or vari-focal lens like this camera serie.
AUTO	System automatically adjusts the iris level to control the brightness. This function is valid only for Auto Iris lens and not available with this camera series.
SHUTTER / AGC	Shutter speed & AGC setting, it determines the image brightness under low lux or bright condition
AUTO	Mode and brightness setting of the HIGH / LOW LUMINANCE
MANUAL	Parameter of the mode, shutter and AGC
WHITE BAL	White balance mode setting, it determines the way the color is produced
ANTI CR	Color Rolling suppress
MANUAL	Manually adjust the white balance
PUSH LOCK	Press OSD ENTER button to lock the current white balance, once it is locked, the white balance will not operate even when light temperature is changed.
ATW	Auto Trace White
PUSH	Similar to ATW, but system will force to track white balance continuously
USER1	User define white balance #1
USER2	User define white balance #2
BACKLIGHT	Backlight setting
OFF	Default Setting
BLC	Back light compensation
HLC	High light compensation
PICT ADJUST	Basic image adjustment such as hue, saturation, contrast, sharpness
MIRROR	ON/OFF, Flip image horizontally
BRIGHTNESS	0-255, Brightness (Default: 0)
CONTRAST	0-255, Contrast (Default: 128)
SHARPNESS	0-255, Sharpness (Default: 128)
HUE	0-255, Color Hue (Default: 102 for NTSC, 108 for PAL)
GAIN	0-255, Color Saturation (Default: 128)
ATR	Adaptive tone reproduction, software WD setting
MOTION DET	Motion detect function, sense area, sensitivity setting
PRIVACY	Privacy mask, color, transparency setting
DAY / NIGHT	Color / Mono / Auto Mode setting
AUTO	Auto Mode
COLOR	Color mode
B/W	Black and White mode
NR	Noise Reduction setting
NR MODE	Noise reduction mode adjustment
Y LEVEL	Luminance noise reduction (Default: 4)
C LEVEL	Color noise reduction (Default: 4)
CAMERA ID	Camera ID Setting
CHR1/CHR2	Default characters and User define characters (maximum of 40)
←→↑↓	Move the location of the cursors
CLR	Clear the highlight character & move to next character
POS	Use OSD UP/DOWN/LEFT/RIGHT button to adjust the ID locations
LANGUAGE	OSD Language Setting, total of 8 languages available
CAMERA RESET	Reset OSD setting
EXIT	Leave OSD Menu

CIR700-3.6 CIR700-49 CIR700-922 Français

Three identical white surveillance cameras with black lens designs, shown from different angles (no text or symbols visible)

Close-up of a black electrical plug with labeled buttons (L, UP, DOWN) and wires, no readable text beyond symbols

Three identical white surveillance cameras with black lenses, shown from different angles (no text or symbols visible)

Close-up of a black electrical plug with labeled buttons (L, UP, DOWN) and wires, no readable text beyond symbols

OSD Menu - English User manual

Press Enter to open the OSD menu:

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL_ATW<
BACKLIGHT	OFF
PICT ADJUST	<
ATR	OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

SETUP MENU

PRIVACY	OFF
DAY/ NIGHT	AUTO<
NR	<
CAMERA ID	OFF
SYNC	INT
LANGUAGE	ENGLISH
CAMERA RESET
BACK	<
EXIT<	SAVE ALL<

→LENS

Select "LENS" and confirm with Enter to open the sub-menu Autoiris. Select mode in MANUAL or AUTO.

AUTO IRIS

TYPE	DC
MODE	AUTO
SPEED 0 - 80
RETURN <J

Sub-Menu

Main Menu

AUTOIRIS

When AUTO is selected the following parts can be selected:

Function Options Meanings
TYPE DC	The camera uses a DC Lens
MODE OPEN / CLOSE / AUTO		OPEN: The mechanical iris is fixed to open.CLOSE: The mechanical iris is fixed to close.AUTO: The mechanical iris is controlled automatically.
SPEED 000 – 255 Select to set the convergence speed of the mechanical iris.

→ SHUTTER/AGC

SETUP MENU

LENS	AUTO<↓
SHUTTER/AGC	AUTO<↓
WHITE BAL_ATW<↓
BACKLIGHT	OFF
PICT ADJUST	<↓
ATR	OFF
MOTION DET
NEXT	<↓
EXIT<↓	SAVE ALL<↓

From main OSD menu, select SHUTTER/ AGC e press Enter:

Function Options Meanings
SHUTTER/ AGC	AUTO<↓MANUAL<↓	Press ENTER to open the sub-menu

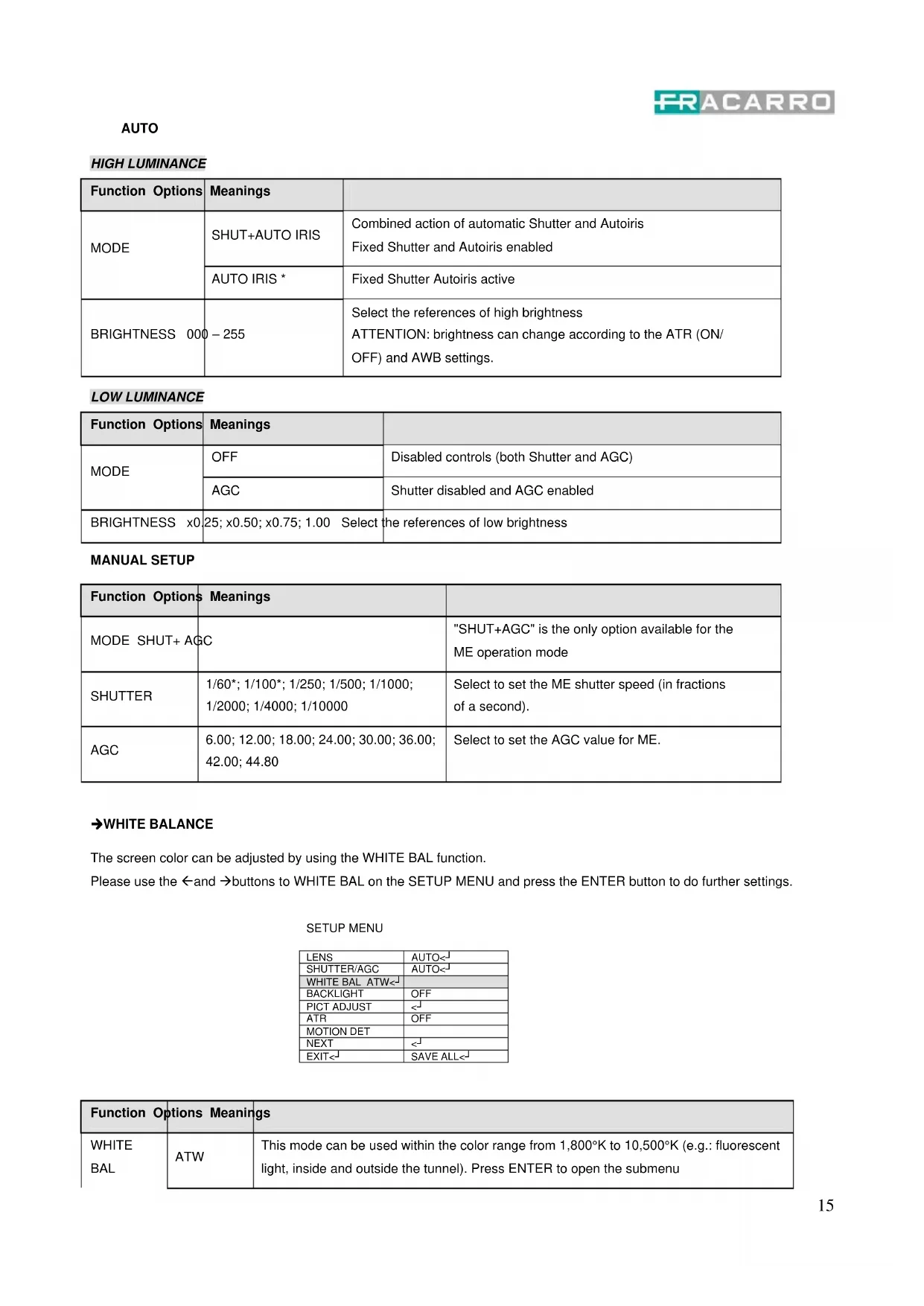

HIGH LUMINANCE

Function Options	Meanings
MODE	SHUT+AUTO IRIS	Combined action of automatic Shutter and AutoirisFixed Shutter and Autoiris enabled
	AUTO IRIS *	Fixed Shutter Autoiris active
BRIGHTNESS 000	-255	Select the references of high brightnessATTENTION: brightness can change according to the ATR (ON/OFF) and AWB settings.

LOW LUMINANCE

Function Options	Meanings
MODE	OFF	Disabled controls (both Shutter and AGC)
	AGC	Shutter disabled and AGC enabled
BRIGHTNESS x0	25; x0.50; x0.75; 1.00 Select the references of low brightness

MANUAL SETUP

Function Options	Meanings
MODE SHUT+ AGC		"SHUT+AGC" is the only option available for the ME operation mode
SHUTTER	1/60*; 1/100*; 1/250; 1/500; 1/1000; 1/2000; 1/4000; 1/10000	Select to set the ME shutter speed (in fractions of a second).
AGC	6.00; 12.00; 18.00; 24.00; 30.00; 36.00; 42.00; 44.80	Select to set the AGC value for ME.

→WHITE BALANCE

The screen color can be adjusted by using the WHITE BAL function.

Please use the ← and → buttons to WHITE BAL on the SETUP MENU and press the ENTER button to do further settings.

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL ATW<
BACKLIGHT	OFF
PICT ADJUST	<
ATR	OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

Function Options Meanings
WHITE BAL	ATW	This mode can be used within the color range from 1,800°K to 10,500°K (e.g.: fluorescent light, inside and outside the tunnel). Press ENTER to open the submenu

PUSH The camera will find the best settings in any condition.
USER1	Adjust the color temperature to 3,200°K for indoor spaces lit with neon lights.Press ENTER to open the submenu and select the R and B settings manually
USER2	Adjust the color temperature to 6,300°K for shooting outdoors.Press ENTER to open the submenu and select the R and B settings manually
ANTI CR Enable Color Rolling blanking mode
MANUAL	Press ENTER to open the submenu and select the R and B level.When regulating R, the B component will also be automatically updated (color range from 1,800°K to 10,500°K).
PUSH LOCK	For a proper setting, point the camera to a white piece of paper and press ENTER.Select PUSH LOCK when it is dark or the color temperature is high around the object or when there is a fluorescent light around the object or when the light is constantly changing.

ATW

Function Options	Meanings
SPEED 000-255	Select to adjust the pull-in speed of ATW.
DELAY CNT 000-255	Select to set the time-based hysteresis of ATW.
ATW FRAME x0.50	x1.00; x1.50; x2.00 Select to set the pull-in frame magnification.
ENVIROMENT INDOOR/OUTDOOR		Select to set the pull-in frame (indoor/outdoor) of ATW.

→ BACKLIGHT (Back light Compensation)

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL	ATW<
BACKLIGHT	OFF
PICT ADJUST	<
ATR OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

Select to set BACKLIGHT to OFF, BLC or HLC.

By selecting the BLC, normal BLC is enabled; the light level in areas too luminous is compensated while the HLC is used to cover those overly luminous image parts with black.

→ PICT ADJUST

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL	ATW<
BACKLIGHT	OFF
PICT ADJUST	<
ATR OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

Function Options	Meanings
MIRROR OFF / ON	OFF: Normal output ON: Horizontally flipped output
BRIGHTNESS 000-255	Select to set the screen brightness
CONTRAST 000-255	Select to set the screen contrast
SHARPNESS 000-255	Select to set the screen sharpness
HUE 000-255 Select to adjust the hue
GAIN 000-255 Select to adjust the gain

→ATR (Adaptive Tone Reproduction)

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL	ATW<
BACKLIGHT_OFF
PICT ADJUST	<
ATR	OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

Function Options Meanings
LUMINANCE LOW - MID - HIGH		Select to set the extent of the luminance compression
CONTRAST	LOW – MIDLOW – MID – MIDHIGH - HIGH	Select to set the extent of the contrast enhancement.

→ MOTION DET (Motion Detection)

This item is used to set the Motion Detection function on 4 areas

SETUP MENU

LENS	AUTO<
SHUTTER/AGC	AUTO<
WHITE BAL	ATW<
BACKLIGHT OFF
PICT ADJUST	<
ATR	OFF
MOTION DET
NEXT	<
EXIT<	SAVE ALL<

Function	Options	Meanings
DETECT SENSE	000-127 Select	to set the motion detection sensitivity
BLOCK DISP	OFF / ON	Disable the area exclusion / Set the areas to be excluded in the movement detection / Enable the signalization of movement on the image (the areas will be highlighted by luminous squares)
MONITOR AREA	OFF / ON	OFF: The monitoring frames are not used.ON: The monitoring frames are used
AREA SEL	1/4 ; 2/4 ; 3/4 ; 4/4	Select to deinfe the monitoring frame to be set

TOP 000-244	Upper limit of the selected area in AREA SEL
BOTTOM 000-244	Lower limit of the selected area in AREA SEL
LEFT 000-474	Left limit of the selected area in AREA SEL
RIGHT 000-474	Right limit of the selected area in AREA SEL

→ PRIVACY

This item is used to set up to 8 privacy masks. When monitoring frames are used for motion detection, the maximum number of masks which can be used is four.

SETUP MENU

PRIVACY	OFF
DAY/ NIGHT	AUTO<
NR	<
CAMERA ID	OFF
SYNC	INT
LANGUAGE	ENGLISH
CAMERA RESET
BACK	<
EXIT<	SAVE ALL<

Function Options	Meanings
AREA SEL	1/8 ; 2/8 ; 3/8 ; 4/8 ;5/8 ; 6/8 ; 7/8 ; 8/8	If the first 4 masks are used for MOTION, they will have to be used again in the same form/position. The other 4 areas can be programmed freely.
TOP 000-288 (PAL)	Upper limit of the selected area in AREA SEL
BOTTOM 000-288	(PAL) Lower limit of the selected area in AREA SEL
LEFT 000-468 Left	limit of the selected area in AREA SEL
RIGHT 000-468 Right	limit of the selected area in AREA SEL
COLOR	1-8	Select to set the colors of the mask frames
TRANSP	0.00 ; 0.50 ; 0.75 ; 1.00	Select to set the transparency ratio of the mask frames
MOSAIC OFF / ON	OFF: Mosaic function OFF ON: Mosaic function ON

→DAY/NIGHT

SETUP MENU

PRIVACY	OFF
DAY/ NIGHT	AUTO< ^
NR	< ^
CAMERA ID	OFF
SYNC	INT
LANGUAGE	ENGLISH
CAMERA RESET
BACK	< ^
EXIT< ^	SAVE ALL< ^

Select to set DAY/NIGHT choosing from:

COLOR: The Day/Night function is set to OFF.

B&W: The NIGHT mode is established forcibly, and chroma is set to OFF.

When B/W is selected, click ENTER to bring up the B/W sub-menu for further settings.

AUTO: Day or Night is automatically identified and controlled accordingly. When AUTO is selected, click

ENTER to bring up the DAY/NIGHT sub-menu for further settings.

Function Options	Meanings
BURST ON / OFF	ON: Burst signal	ON OFF: Burst signal OFF
DELAY CNT 000-255	Select to set	the Night/Day identification transfer time
DAY->NIGHT 000-255	Select to set	the threshold for identifying the Night status from the Day status
NIGHT->DAY 000-255	Select to set	the threshold for identifying the Day status from the Night status

→ Digital Noise Reduction

SETUP MENU

PRIVACY	OFF
DAY/ NIGHT	AUTO<↓
NR	<↓
CAMERA ID	OFF
SYNC	INT
LANGUAGE	ENGLISH
CAMERA RESET
BACK <↓
EXIT<↓	SAVE ALL<↓

Select to bring up the NR sub-menu for further settings.

Function Options Meanings
NR MODE	OFFYCY/C	Select to set the 2D NR filter mode.OFF: Y and C filters OFFY: Y filter ONC: C filter ONY/C: Y and C filters ON
Y LEVEL 000-015 Select to set the Y filter strength
C LEVEL 000-015 Select to set the C filter strength

→CAMERA ID

Select ON and press ENTER to activate the submenu:

SETUP MENU

PRIVACY	OFF
DAY/ NIGHT	AUTO< ^J
NR	< ^J
CAMERA ID	OFF
SYNC	INT
LANGUAGE	ENGLISH
CAMERA RESET
BACK < ^J
EXIT< ^J	SAVE ALL< ^J

CAMERA ID
CAMERA

ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789 - " # $ % & '() _ ', ¥: ; <=>?@\ ^ * . x+/
	CHR1	CHR2
	←→↑↓	CLR POS
RETURN<

→SYNC - Select the synchronization internal/external.

→LANGUAGE - Select the language choosing from: ENGLISH, 日本語, DEUTSCH, FRANCAIS, РУССКИЙ, PORTUGUÊS, ESPAÑOL:

→CAMERA RESET - Click to restore all the settings to the default values.
→SAVE ALL - Click to save all the settings made. NOTICE: There will be no prompt windows while the settings are being saved.
→ EXIT - Click to exit the OSD menu.

NOTICE: Before exit the OSD menu, please click SAVE ALL to save all the settings made.

Fail to do that, all the settings will not take effect once the power is reconnected

Garantito da/ Guaranteed by/ Garanti per/ Garantizado por/ Garantido por/ Garantiert durch/ Zajamičena od/ Garantirano od/ Garantovano od/ Gwarantowane przez / Eyyunjuévo otto/ Гарантировано Fracarro Radioindustrie S.p.A., Via Cazzaro n. 3, 31033 Castelfranco Veneto (Tv) - Italy

FRACARRO

Fracarro Radioindustrie S.p.A. - Via Cazzaro n.3 - 31033 Castelfranco Veneto (TV) ITALIA - Tel: [phone] - Fax: [phone] Società a socio unico.

Fracarro France S.A.S. - 7/14 rue du Fossé Blanc Bâtiment C1 - 92622 Gennevilliers Cedex - FRANCE - Tel: [phone] - Fax: [phone]

Fracarro Ibérica S.A.U. - Parque Empresarial Táctica C/2A, Nave 4 - 46980 Paterna - Valencia - ESPAÑA - Tel. [phone] - Fax [phone]

Fracarro (UK) - Ltd, Unit A, Ibex House, Keller Close, Kiln Farm, Milton Keynes MK11 3LL UK - Tel: [phone] - Fax: [phone]

Fracarro Tecnologia e Antenas de Televisao Lda - Rua Alexandre Herculano, n°1-1°B, Edifício Central Park 2795-242 Linda-a-Velha PORTUGAL

Tel: [phone] - Fax[phone]
