USER MANUAL Firenze 16.1 DVR FRACARRO

DVR FIRENZE
Video	Input 16 BNC with loop out
	Output	VGA / S-Video / 2 BNC (monitor e spot)
	Standard NTSC/PAL manual selection
	Signal 1.0Vp-p, 75 W unbalanced typo BCN
	Input 4	n°
	Output		2 Audio
	Signal 100mV - 2Vrms
Functions Recording, Live, Playback, Control, Backup and Network
Recording
Frame rate (adjustable for each camera)	NTSC	Fps	480 (360×240), 240 (720×240), 120 (720×480)
	PAL		400 (360×288), 200 (720×288), 100 (720×576)
Quality			Adjustable for each camera with 9 levels
Modality			Manual / Scheduling / Motion / Alarm / Pre and Post alarm (0-60 sec)
Scheduling			Time and frame rate adjustable for each camera
Compression	video	std	H264
	audio		ADPCM
Search			Date / time / motion / video loss / Camera / Smart Search
Hard disk	Type		SATA, internal mount and eSATA external
	Capacity max	GB	4 disks with 2TB each one (8TB max)
	Overwrite		Full disk stop / Full disk overwrite / Time adjustable overwrite (Privacy)
	Partition		Double partition size adjustable for alarm and normal recording
	Security		Failure event detection
Estimated Recording time CIF (352x288) with medium quality (5)	160 GB	days	2 (200 fps)
	750 GB		9.4 (200 fps)
	2 TB		25.2 (200 fps)
Display
Resolution	NTSC	pixels	720×480
	PAL		720×576
Speed			Real time
Mode		Full screen / Quad / 7 / 9 / 10 / 13 / 16 Sequential
Zoom			X2 and x4 on live
Motion detection	Detection areas and sensitivity adjustable for each camera
Network
Connection			RJ45, Ethernet 10/100 baseT Mbit
Communications	Protocols		TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP
	Ports		Independent configuration for data and Control
Functionalities			Remote control, Live view with PTZ facility, Backup, fw upgrade
Event management			Mail notification and ftp recording
Users			Max 8 users simultaneously
User interface
Protection		Multilevel Password (3) and multi-user (18)
Local			Frontal keyboard, USB mouse, remote control (up to 4 dvr), optional control keyboard with 3-axis joystick (up to 256 DVR)
Remote	PC	Browser	Full management (up to 4 DVR) by ActiveX control
		CMS	Full management (up to 4 DVR) with interactive graphic maps

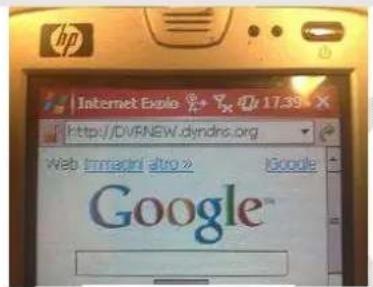

	Mobile		Live (Quad/Full screen) with adjustable resolution, input alarms
	phone/ Smartphone/ PDA		status monitoring, output relay activation (home automation facility)
Event management
Detected events Type Motion detection, video loss, input alarms
Alarms (TTL/CMOS selectable polarity)	Input 16	n.°
	Output		2 NO, 2 NC
Buzzer Programmable for each event
Connections
Serial communication		RS485 (D+, D-), RS-232
PTZ control			Pelco D, Pelco P, Samsung SCC-641P, Kalatel Cyber Dome, Bosch AutoDome and other protocols...
Backup			USB 2.0 (Pendrive, external hard disk self-powered, External DVD burner self-powered, SD-MMC Card) / eSATA for external hard disk / Internet Explorer / CMS / Internal DVD burner (optional)
Generals
Power supply ~	ON/OFF switch	V, Hz	220 Vac 50Hz
Power		W	110 W
Operating Temperature		°C	0 - 45
Operating Humidity		Ur %	<80
Dimensions (w×l×h)		mm	430 x 330 x 88
Weight		kg	5 (without hard disk)

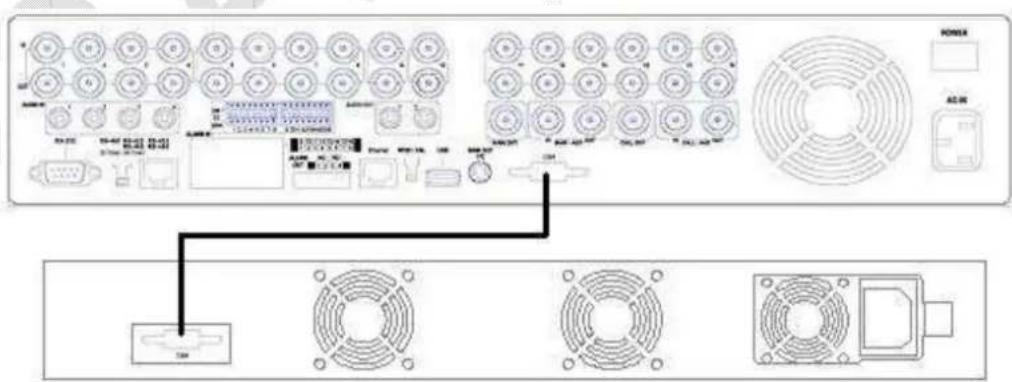

1 Pannello frontale - Frontal Panel - Panneau frontal Panel delantero - Painel dianteiro - Πρόσουψη - Panel Czołowy - Voorpaneel

2 Pannello posteriore - Back Panel - Panneau arriffe Panel trasero - Painel traseiro - Πίσω ὄψη - Panel Tylny - Achterpaneel

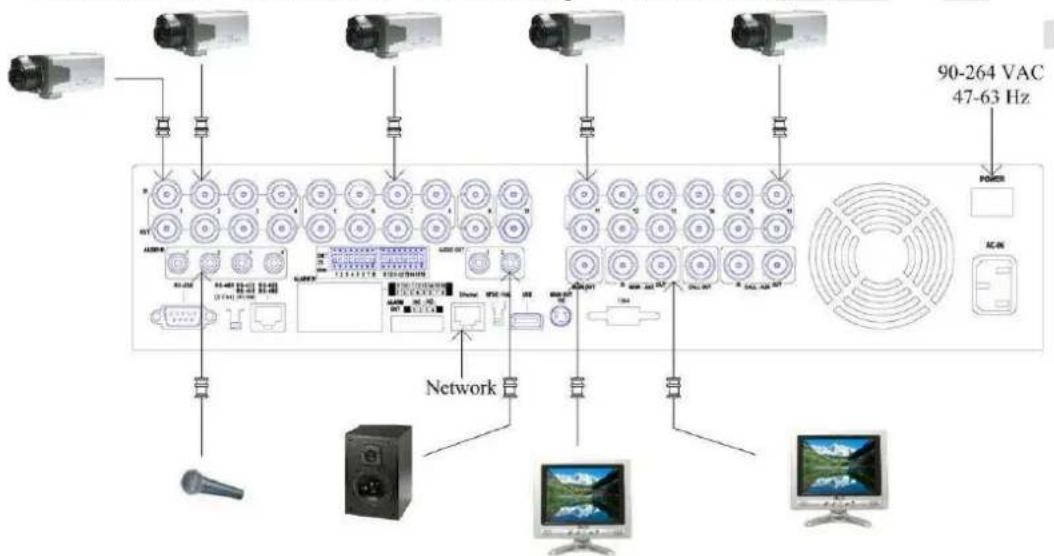

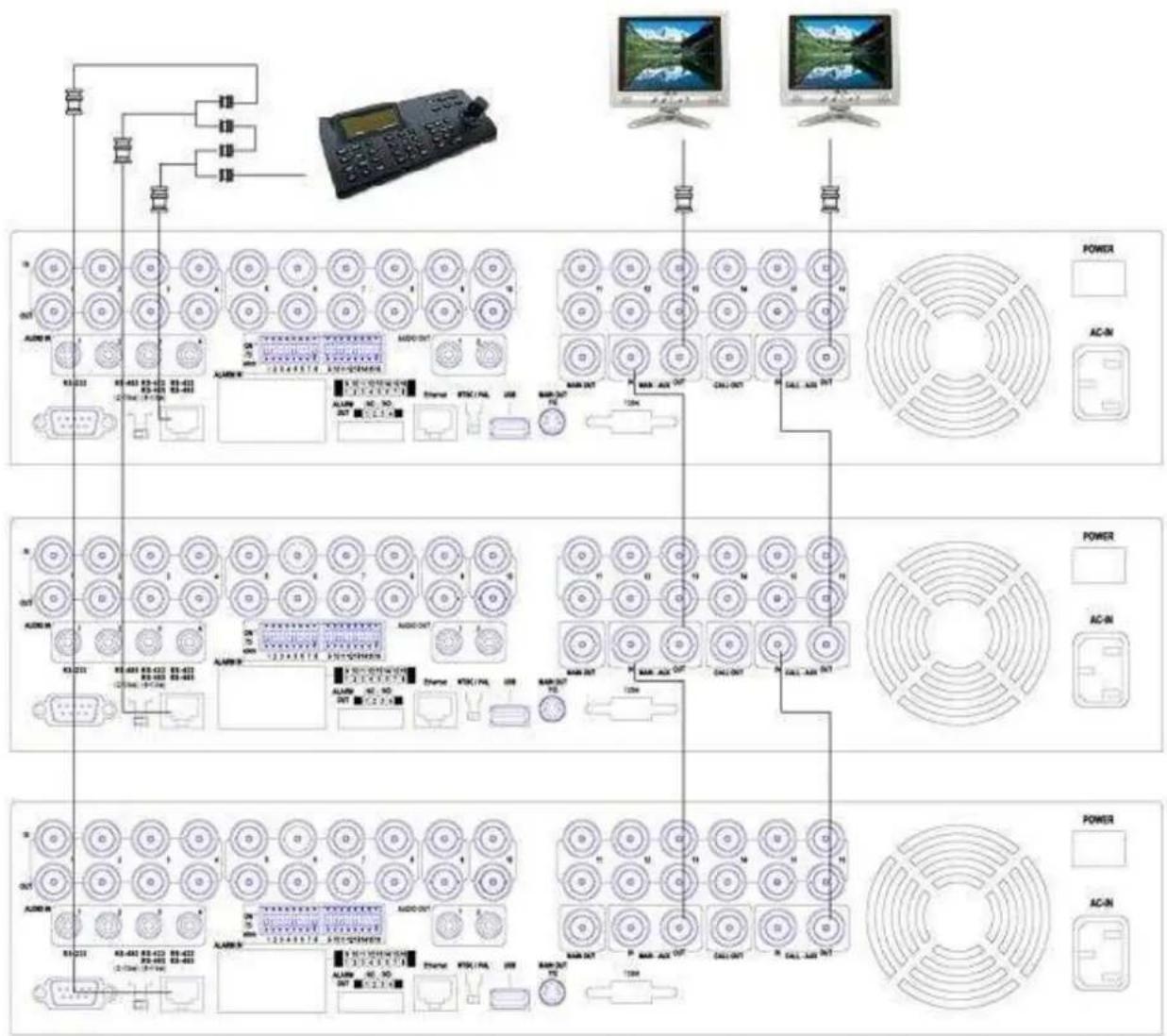

3 Connessioni - Connections - Connexions Conexiones - Conexoes - - Connecties
Fig.1

Fig.2
Fig.3

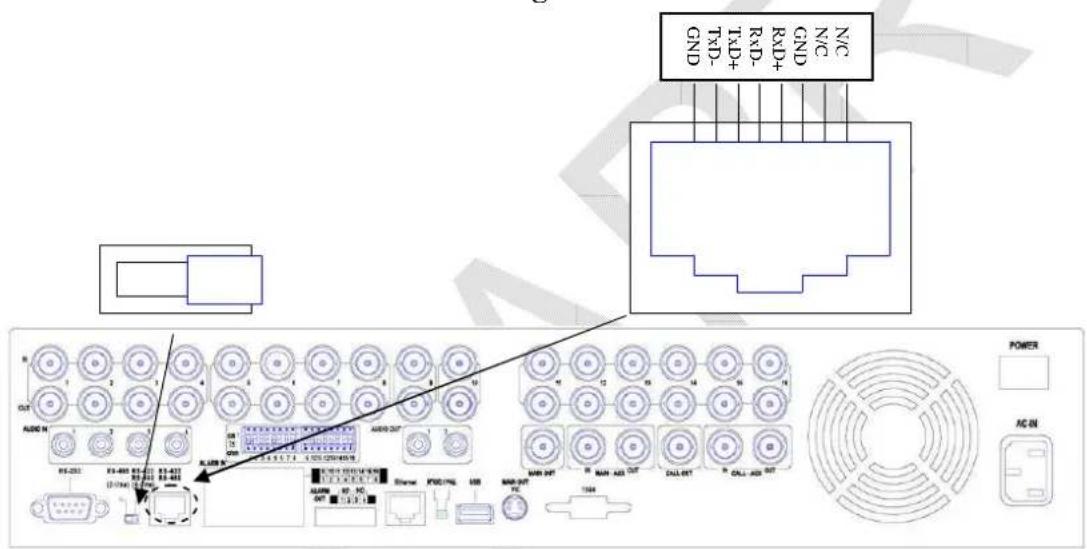

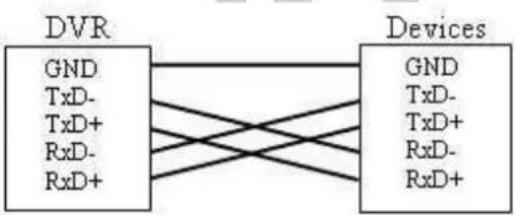

For 4-line devices (such as keyboard)

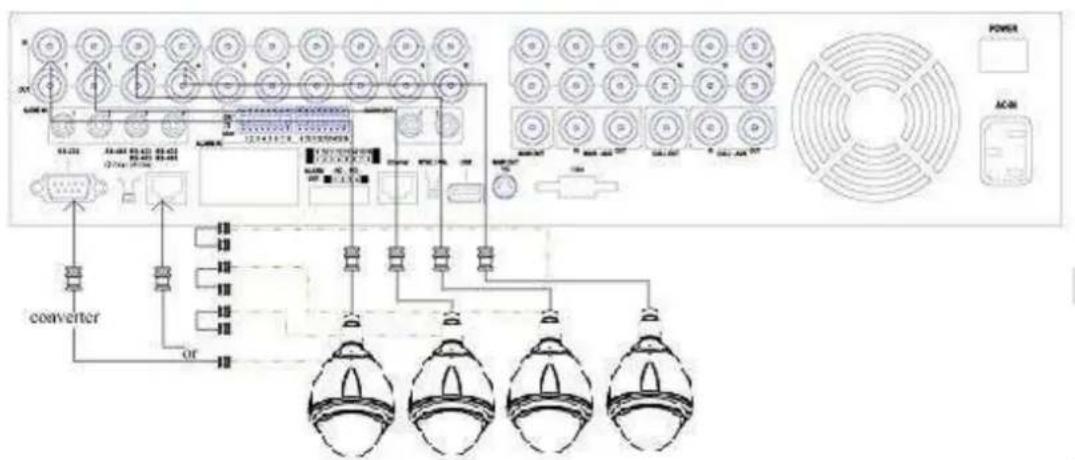

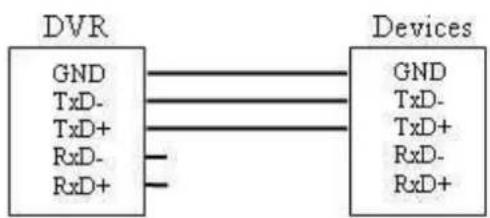

For PTZ cameras
Fig.4

Fig.5
Fig.6

4 Telekomando - Remote control - Telekomande

Mando a distancia - Controlo remoto - Tηλεχειριστήριο - Pilot Zdalnego Sterowania - Afstandsbediening

Note: This currently doesn't have any active Dynamic R2010 updates in your database. It cannot cause some of our most service features. Firing it in an Old R2010 R2010 Upgrade will make this form fully functional and we hold several other features.

Instructions Picture

RS-232/ 422 /485 Setup
COM Port	RS-232	RS-422/485
Device Type		PTZ
Model		Pelco (D-Type)
Baud Rate		4800
Data Bit		8
Stop Bit		1
Parity		None
DVR/Camera ID		0
Pre-Camera Setup
REC Resolution 720x288
Watermar√ Group
Camera Installed PTZ ID		1 2 3 4 5 6 7
1	√ N/A
2	√ 1
...	...	...

ATTENTION: This user manual is a quick guide for the first installation of the DVR please refer to the user manual to know the complete information of all the single functions.

Table of contents:

1- Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1-ContentPackage .pag.23
2- Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3- Panels and remote controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1-Front Panel . pag.24
3.2-BackPanel .pag.24
3.3 - Remote controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 - Mouse . .25

4- Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1-Power on and off . 25
4.2-HDD setup . pag.25
4.3-First access to the DVR . .pag.26

5- Basic use of the DVR. pag.29

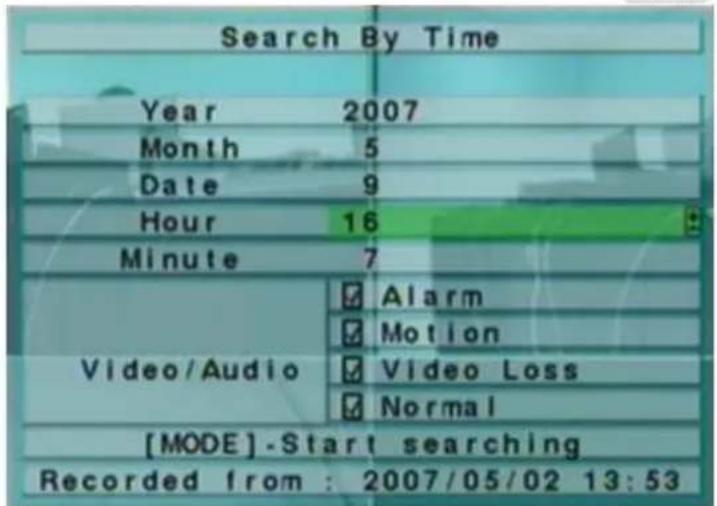

5.1-Search . pag 29

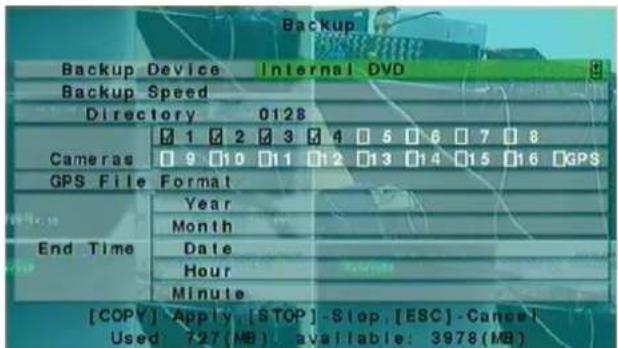

5.2-Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3-Viewing the images . pag.30

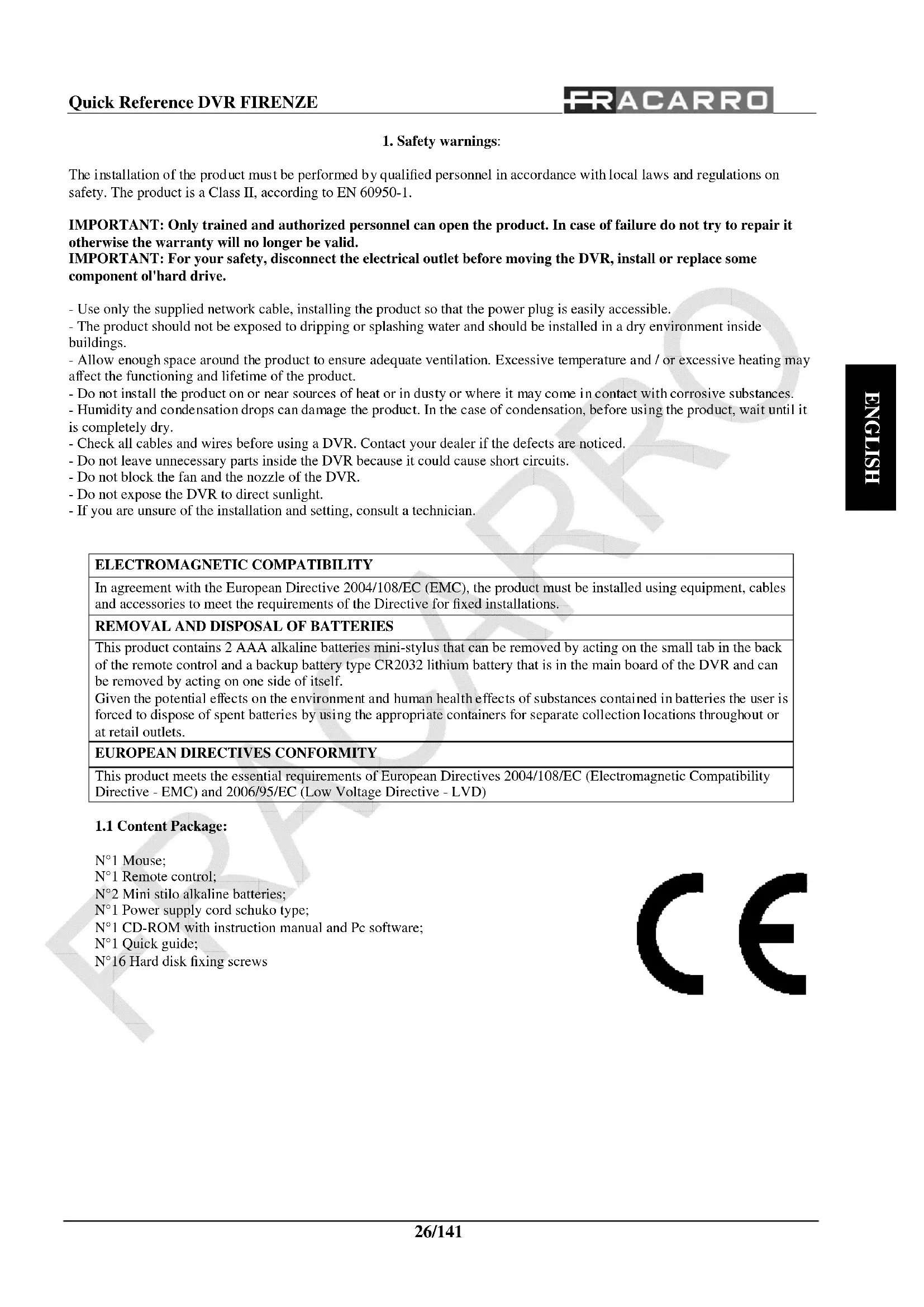

The installation of the product must be performed by qualified personnel in accordance with local laws and regulations on safety. The product is a Class II, according to EN 60950-1.

IMPORTANT: Only trained and authorized personnel can open the product. In case of failure do not try to repair it otherwise the warranty will no longer be valid.

IMPORTANT: For your safety, disconnect the electrical outlet before moving the DVR, install or replace some component of 'hard drive.

• Use only the supplied network cable, installing the product so that the power plug is easily accessible.
• The product should not be exposed to dripping or splashing water and should be installed in a dry environment inside buildings.
• Allow enough space around the product to ensure adequate ventilation. Excessive temperature and / or excessive heating may affect the functioning and lifetime of the product.
• Do not install the product on or near sources of heat or in dusty or where it may come in contact with corrosive substances.
• Humidity and condensation drops can damage the product. In the case of condensation, before using the product, wait until it is completely dry.
• Check all cables and wires before using a DVR. Contact your dealer if the defects are noticed.
• Do not leave unnecessary parts inside the DVR because it could cause short circuits.
• Do not block the fan and the nozzle of the DVR.
• Do not expose the DVR to direct sunlight.
• If you are unsure of the installation and setting, consult a technician.

ELECTROMAGNETIC COMPATIBILITY

In agreement with the European Directive 2004/108/EC (EMC), the product must be installed using equipment, cables and accessories to meet the requirements of the Directive for fixed installations.

REMOVAL AND DISPOSAL OF BATTERIES

This product contains 2 AAA alkaline batteries mini-stylus that can be removed by acting on the small tab in the back of the remote control and a backup battery type CR2032 lithium battery that is in the main board of the DVR and can be removed by acting on one side of itself.Given the potential effects on the environment and human health effects of substances contained in batteries the user is forced to dispose of spent batteries by using the appropriate containers for separate collection locations throughout or at retail outlets.

EUROPEAN DIRECTIVES CONFORMITY

This product meets the essential requirements of European Directives 2004/108/EC (Electromagnetic Compatibility Directive - EMC) and 2006/95/EC (Low Voltage Directive - LVD)

1.1 Content Package:

N^1 Mouse;
N^o1 Remote control;
N^2 Mini stilo alkaline batteries;
N^1 Power supply cord schuko type;
N^1 CD-ROM with instruction manual and Pc software;
N^ 1 Quick guide;
N^16 Hard disk fixing screws

C E

2. Product Overview:

The DVR FIRENZE is digital video/audio recorders designed to realize a powerful and secure surveillance system that can be interfaced with different kind of monitors, pc and smartphones. The new type of compression and the configurable quality guarantee a long time recording on the Hard Disk and a good quality of the images during the playback.

The new processor allows the DVR to do six different operation like: simultaneous record, realtime live display, playback, backup, control & remote access.

The high number of frame for recording allow REALTIME recording.

It can be managed by the front panel, mouse, remote control, external keyboard, virtual keyboard and web interface with a Pc or a smartphone.

The two output relay can be activated by input alarm, motion, video loss, system event or directly with the mobile phone or the web interface.

3. Panels and Remote Controller:

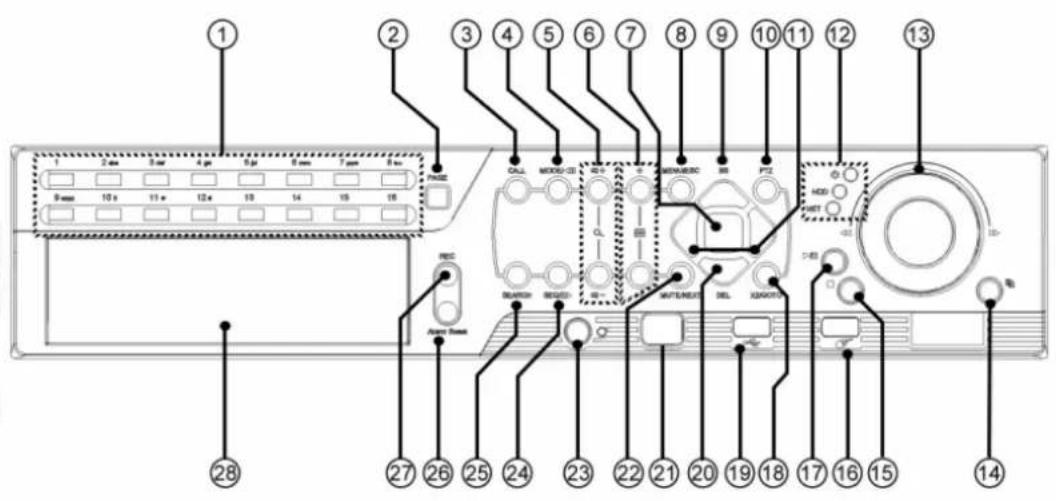

3.1 Front Panel (refer to figure 1):

N°	Button Function	N°	Button Function
1	Alpha-numeric Buttons	Used for enter text 15 STOP Stop the playback
2	PAGE Display in	multi-split-windows 16 USB Mouse	USB mouse connector
3	CALL Switch to or return from full screen display	17 PLAY/ PAUSE	Play or pause the playback
4	MODE	Toggle between live and playback mode	18 X2/ GOTO PTZ management
5	Vol/ Zoom +/-	Adjust volume and zoom	19 USB USB connector
6	SPLIT Windows +/-	Previouss/ next split window	20 DOWN / DEL Move the cursor or Tilt down the camera or Delete
7	ENTER Enter Key	21 Remote IR sensor	IR detector
8	MENU / ESC Display or ESC the menu	22 MUTE/ NEXT	Mute audio, ptz management
9	UP / BS Move the cursor or Tilt up the camera or Backspace	23 DVR IR Switch	Set ID DVR for remote control
10	PTZ PTZ management	24 SEQ	Start SEQ mode
11	LEFT / RIGHT Move the cursor or Pan the camera	25 SEARCH Start search mode
12	LEDs Indicators for Power, Hdd, net	26 Alarm reset	Alarm reset button
13	Jog/ Shuttle Playback management	27 REC	Rec button
14	COPY Start or stop backup	28 DVD optional	DVD burner optional

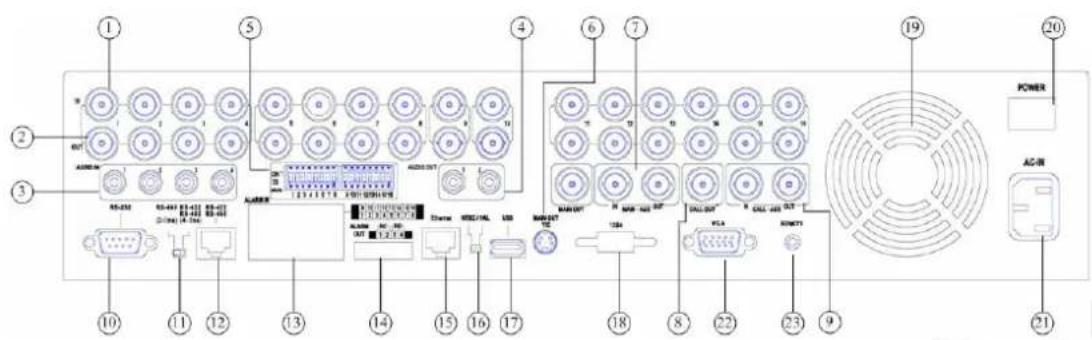

3.2 Back Panel (refer to figure 2):

N°	Connector	N°	Connector
1	Video BNC input connector	13	Alarm Input Connectors
2	Video BNC output connector	14	Alarm Output Connectors
3	4 Audio input RCA connector	15	Ethernet Connector
4	2 Audio output RCA connector	16	NTSC/PAL Selector Switch
5	75Ω termination	17	USB Connector
6	Main Monitor Output Connectors	18	eSata Connector
7	MAIN-AUX Connectors	19	Cooling Fan
8	Call Monitor Output Connector	20	Power Switch
9	CALL-AUX Connectors	21	Power Cord Inlet
10	RS-232 Connector	22	VGA Connector
11	RS-422/485 Selector Switch	23	Remote sensor connector
12	RS-422/485 Connector

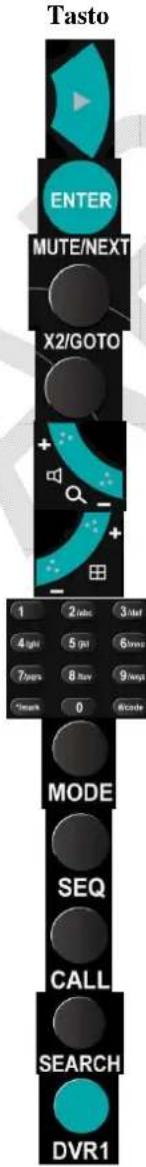

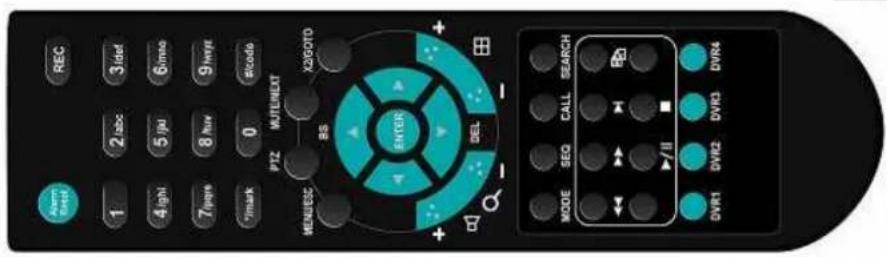

3.3 Remote Controller (refer to figure 3):

The remote controller is an optional accessory to ease the user's operations. You can do all the operations by the remote controller instead of the buttons on the front panel. The effective distance is about 10 meters without any obstacle.

N°	Key Function		N°	Key Function
1	Alarm Reset				ENTER		Right
2	REC		Start/Stop Recording 15				Enter
3			Rewind 16		MUTE/NEXT		Enable or disable audio/Next
4			Forward 17		X2/GOTO		Level of zoom/Goto preset
5			Play step by step 18		+ Q-		Adjust the volume or the zoom level
6			Start backup or copy informations	19			Change the division of the screen
7			Play/pause 20		1 2woc 3woc 4woc 5woc 6woc 7woc 8woc 9woc 10woc 0 mode		Insert text, numbers or code
8			Stop 21		MODE		Toggle between Live andPlayback mode
9	MENU/ESC		Enter menu 22		SEQ		Switch or return to sequence mode
10	PTZ		Esc or start PTZ mode 23		CALL		Switch or return to full screen mode
11	BS		Up/Backspace	24	SEARCH		Display the search menu
12	DEL		Down/Delete	25	DVR1		Select the DVR to be controlled by remote controller
13			Left

3.4 Mouse:

The DVR can be easily managed by the mouse. Please connect the mouse before connecting the power supply and then move the cursor on the bottom of the screen to view the setup menu.

4. Installation:

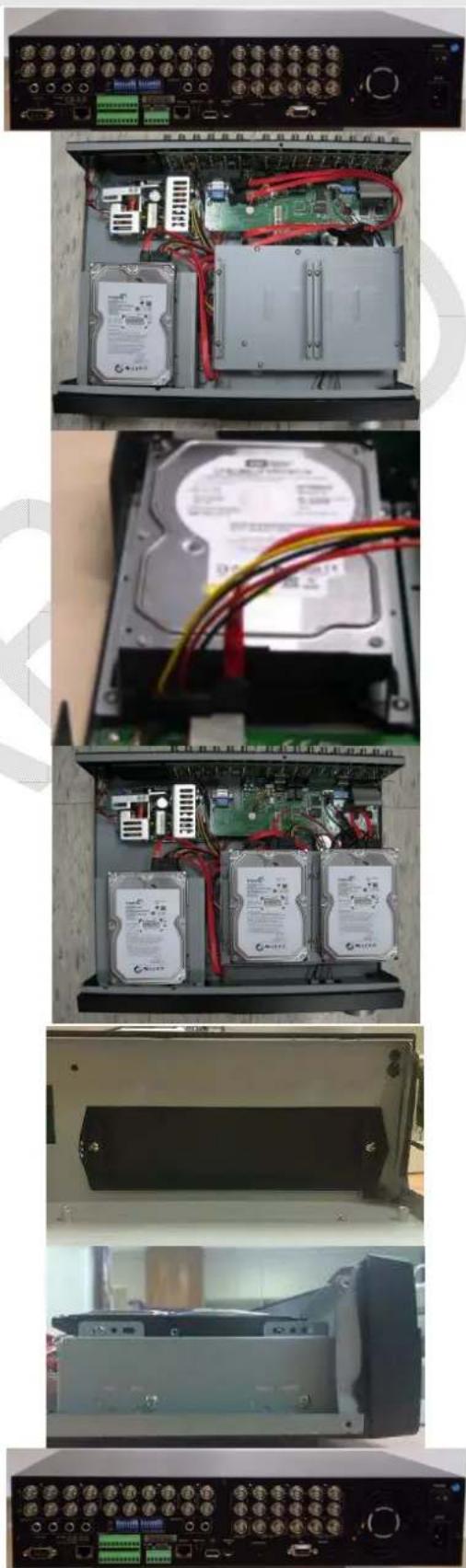

4.1 HDD Setup:

Please follows the steps below for a correct installation of the HDD and the DVD Writer on the DVR.

N Instructions Picture

1 Take the DVR and disconnect all the cables.
2 Remove all the screws (7) on the rear (3) and lateral panel (2 + 2) .

3 Remove the cover as shown.
4 From the bag of DVR accessories take the 2 brackets and fix them on the HDD using the 4 screws.

5 From the bag of DVR accessories take the 4 screws and fix the HDD on the DVR and connect the data and power cables.
6 Return to the step number 4 to install the other 3 optional HDD.
7 It is possible to install, as optional, a DVD writer that will be placed in the housing of the third HDD. To install this device remove the 2 screws and the plastic cap.
8 From the bag of DVR accessories take the 2 brackets, fix them on the DVD writer and install the device on the DVR connecting the cables.
9 Using all the screws close the cover, connect the monitor and the power supply. Now the DVR is installed and ready to use. Please refer to the manual to setup the time and format all the HDDs.

10 Turn On the DVR using the apposite buttom on the rear panel of the DVR. The DVR will show the message: "Unformatted HDDs found. Do you want to format now? [ENTER]: Yes, [ESC]: Cancel". Press the [ENTER] button to format the hard disk.

4.3 First access to the DVR:

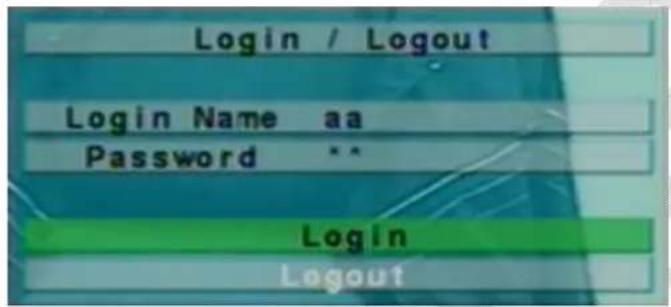

• Login

After turning on the DVR, press the "MENU" button and then move the cursor on the icon called "Login/Logout" and press "ENTER".

Now enter the name and password. Parameters from the factory's installer has a user name: "aa" and password "11". Move the cursor on "Login" and confirm by pressing "ENTER".

There are three password levels in the system, including: Administrator (highest), Supervisor, and Operator (lowest). The Operator can operate live video display, the Supervisor live video display, image playback and archive, and the Administrator everything.

CAUTION: The factory setting of the DVR takes only one user configured as an administrator. In order to increase the level of security you should use that user for only the first access and change the password as soon as possible.

WARNING: In case of loss of the system password please contact your local distributor who will contact Fracarro Radioindustrie S.p.A.

• Setting Language

Faithfully follow the steps below to configure the language of the DVR:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the "SYSTEM" and confirm by pressing "ENTER";
4. Using the arrow keys move the cursor to the "LANGUAGE" and press the keys +/- to set the desired language;
5. Press the "MENU" button to return to the previous menu, the DVR will be prompted to save the settings by pressing the "ENTER";
6. Press "ENTER" to confirm the change of language. The system will restart with the new settings.

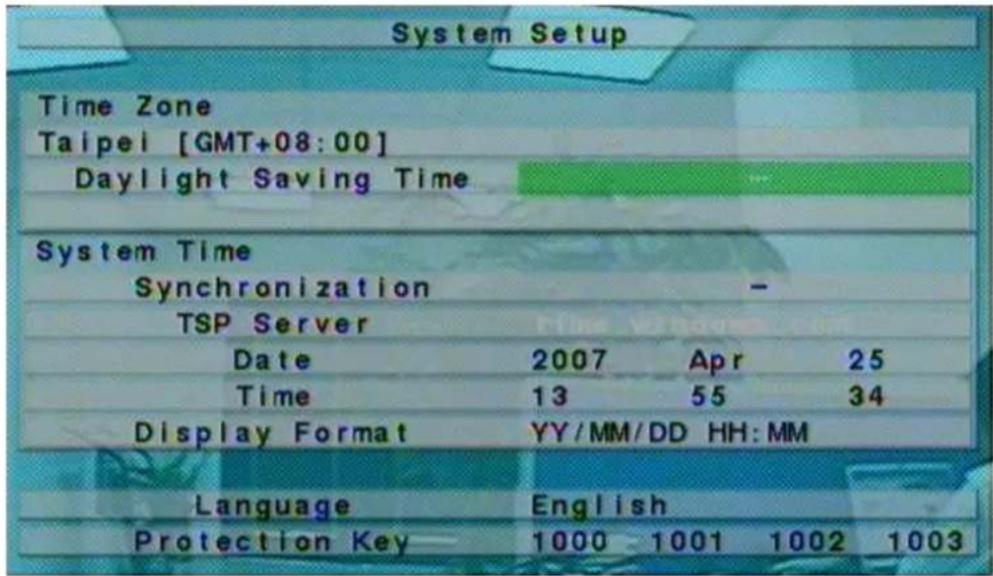

• Adjust Date / Time:

Faithfully follow the steps below to adjust the date / time:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the "SYSTEM" and confirm by pressing "ENTER";
4. Using the arrow keys move the cursor to the "DATE" and, using the keys "+" set the year, month and day;
5. Using the arrow keys move the cursor on "TIME" and, using the keys "+" set the time;
6. Press the "MENU" button to return to the previous menu, the DVR will be prompted to save the settings by pressing the "ENTER";

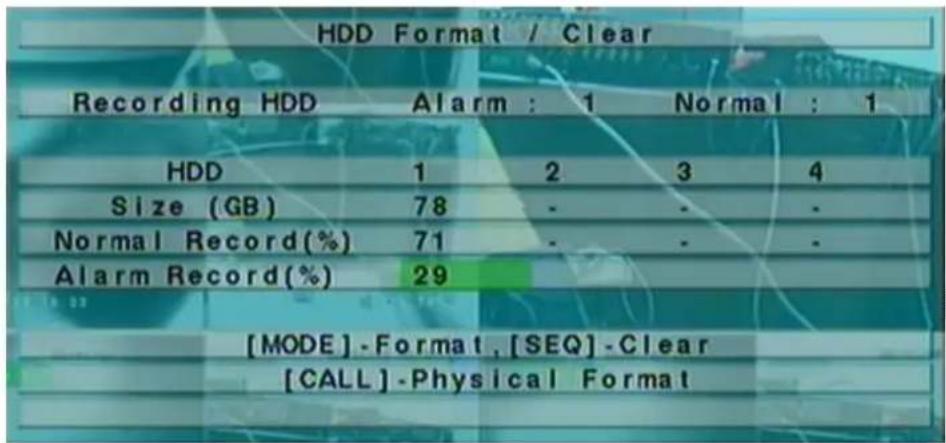

• Formatting the hard disk:

Faithfully follow the steps below to format the hard disk:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER"; Move the cursor to the heading "HDD" and confirm by pressing "ENTER";
3. Press the "MODE" button;
4. Press the "CALL" button to format the entire hard drive;
5. Press "ENTER" to confirm the operation;
6. Press the "MENU" button to return to the previous menu.

• Setting the record:

The DVR allows different recording modes: alarm, motion, continuous or scheduled. Using the last mode, the system administrator can define, for each hour of the week, the type of registration.

In order to customize the recording schedule every day is divided into a maximum of 16 segments (T1, ..., T16) which can be configured in 3 different recording modes to choose from: recording video, audio+video recording or absence of registration.

NOTE: The DVR is factory programmed to record continuously during the whole week.

Faithfully follow the steps below to set the schedule:

1. Press the "MENU" button to access the configuration menu;
2. Move the cursor to "SETUP" and confirm by pressing "ENTER";
3. Move the cursor to the heading "SCHEDULE RECORDING" and confirm by pressing "ENTER";
4. Press "MODE" button;

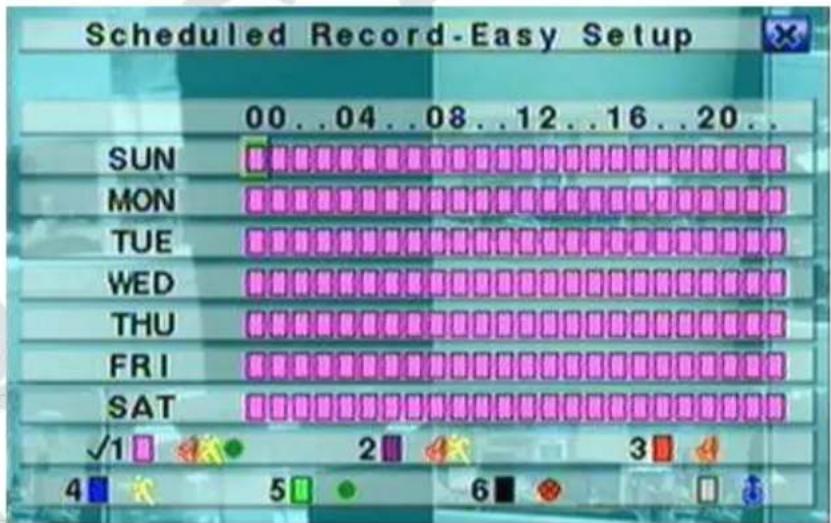

5. The following screen will appear:

This screen allows the administrator an easy and fast way to program the schedule recording. It is possible, for each hour of the week, to set the way of recording from: Alarm+Motion+Normal, Alarm+Motion, Alarm, Motion, Normal, and no Recording. It will be recorded both audio and video.

Button description:

Press these button to move the cursor.

Numeric 1-6 (Mouse: Left click)

Press these buttons to select the recording mode. Press ENTER button to activate the mode. Recording modea are: "1" - Alarm+Motion+Normal, "2" - Alarm+Motion, "3" - Alarm, "4" - Motion, "5" - Normal, "6" - No Recording.

+/- (Mouse: Left click)

Press these buttons to select the desidered time interval. Press ENTER button to activate the recording mode on the selected time interval.

ESC (Mouse: Right click)

Press these buttons to esc the screen and return to the previous. Time segment will be updated..

5 Basic use of the DVR:

5.1 Search:

The DVR allow 4 different ways to search the image like: search by time, search by event, smart search or search on archived files.

The screen for "SEARCH BY TIME", on the bottom, shows the date when the recording started so it is possible to know how long is the recording and select a specific date for search the image. It is possible to reduce the searching time by selecting the type of recording like Alarm, Motion, Video loss or Normal.

Faithfully follow the steps below to make an image search:

1. Press the "SEARCH" to enter the Search menu;
2. Move the cursor on "SEARCH BY TIME" and confirm by pressing "ENTER";
3. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the start date of research using the keys +/-;
4. Move the cursor over the headings "ALARM", "MOTION", "VIDEO LOSS" and "NORMAL" to select the type of recording you want to search using the buttons +/-;
5. Press "PLAY" to start the playback;
6. Press the " " and "▶" to increase or decrease the speed of display and the button "▶ / ]] " to pause or play the video;
7. Press the "STOP" to exit the playback mode.

5.2 Backup:

The DVR permits to backup the video/audio recording on different type of external USB devices like pendrive, self-powered HDD or DVD Writable. Please refer to the previous section to know how to install and connect all the devices:

1. Press the "SEARCH" button;
2. Move the cursor on "SEARCH BY TIME" and confirm by pressing "ENTER";
3. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the start date of research using the keys +/-;
4. Move the cursor over the headings "ALARM", "MOTION", "VIDEO LOSS" and "NORMAL" to select the type of recording you want to search using the buttons +/-;

5. Press the "COPY" button;

6. Move the cursor on "BACKUP SPEED" and select the value of the backup rate from 1 (slow) to 9 (fast) using the keys "+"

7. Move the cursor on "CAMERAS" to select the camera that you want to backup using the keys "+"
8. Move the cursor over the heading "YEAR", "MONTH", "DATE", "HOUR" and "MINUTE" to select the time and date of end of backup using the keys +/-;
9. Press the "COPY" to start the backup.

Throughout the backup process will receive an icon and a message indicating the progress of the procedure. Once the procedure is necessary to disconnect the device acting on the appropriate menu:

1. Press the "MENU" button to access the system menu;

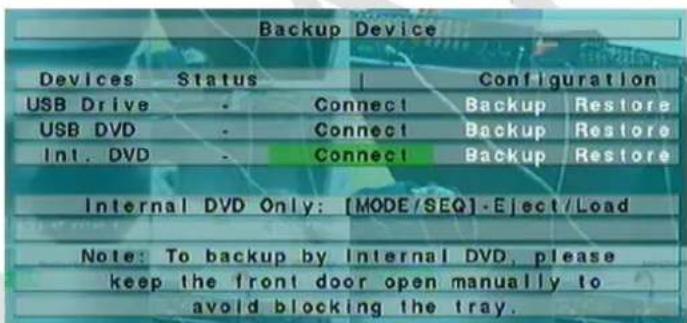

2. Move the cursor on "BACKUP DEVICE" and confirm by pressing "ENTER";
3. Move the cursor over the headings "USB DRIVE", "USB DVD" or "SD CARD" to select the type of connected device and press "ENTER" to disconnect;
4. At this point you can physically disconnect the backup device from the DVR.

CAUTION: Do not remove the DVD until the backup process is not completely finished to prevent damage to the optical drive.

CAUTION: Do not remove the USB device until the backup process is not completely finished.

5.3 Viewing the images:

During the backup the DVR creates two folders on the device, one containing the backup files and the other containing the display of images (SelfPlayer). Follow the steps below to view images:

1. Connect the backup device used on a PC;
2. Start the software "Selfplayer" contained in the folder "SELFPlayer";
3. Press the "FILE" then "OPEN";
4. Select the file you want to display (in the folder "00001") and confirm with the button "OPEN".

The DVR backup splits the video into multiple files of maximum size of 100Mb which can subsequently be joined to form a single file "avi" using the software "AVIConverter" provided.

6 Shut down:

Before turning off the DVR, press the "MENU" button and then "SHUTDOWN" and confirm by pressing "ENTER". Press "ENTER" again to request for confirmation of the command. Only when the DVR displays the message "Shutdown complete. Now you can turn off the system, you can turn off the DVR using the appropriate key on the back panel of the DVR.

7.1 Recording table:

7 Appendix:

In order to choose the correct size of hard disk to install on the DVR is a table showing the maximum recording time at CIF resolution (360x288) and maximum quality (9) for each type of DVR and hard drive size:

250 1.6

500 3.1

1000 6,3

2000 12.6

ATTENTION: The DVR divide the HDD in two different partitions, the largest one (70% of the maximum capacity of the HDD) is used for the normal recording and the other one (30%) for pre-alarm and pre-motion recording.

Please wait the complete start of the DVR before entering the menu, then press "MENU" in split-window display to call up Menu display, than press login/loginout to access to the function of the DVR.

Please before shutting down the system press "MENU" in split-window display to call up Menu display and press

"Shutdown" then, when the DVR shows "Shutdown completed. You may turn off the system now", it will be possible to power off the DVR with the apposite switch on the rear panel.

7.2 PC Network connection:

The DVR can be connect to a Ethernet or Internet network. In both case it is possible to manage more DVRs from the same PC and the same CMS (Central Monitoring System) or view the image and manage the output relay directly from a mobile phone or a Web browser also different from Internet Explorer.

The first type of connection is made by a cross Ethernet cable that connect the DVR (Fig.A) and the PC or by switch, hub or a router (Fig.B):

Fig.A

Fig.B

In both case please refer to the following steps to configure the connection:

Instructions Picture

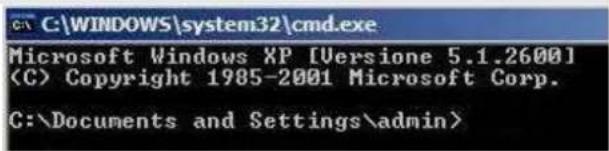

First of all go to a pc, connected to the same network of the DVR, access to start/run then enter "cmd" and press Enter. The DOS prompt will appear.

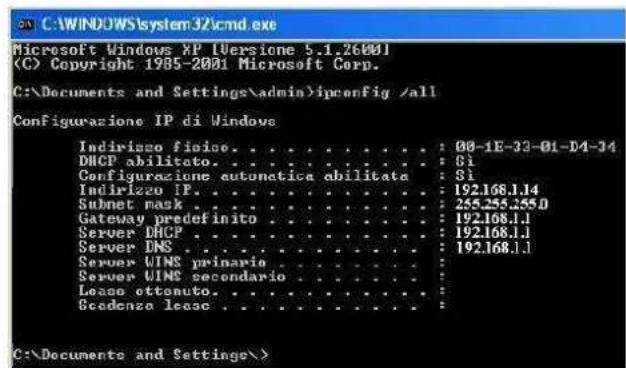

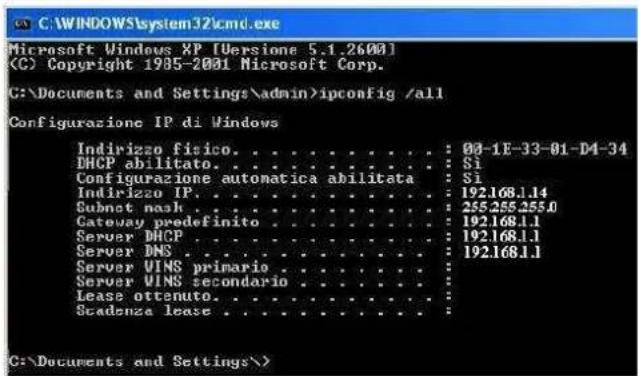

On the screen enter "ipconfig /all" and press Enter. The screen will show all the PC Network information so it is possible to know which are the Gateway (Ex. 192.168.1.1) and the PC IP Address (Ex. 192.168.1.14).

Please return to the DVR, press MENU than SETUP and NETWORK SETUP to access to the "Network Setup" menu. In this screen enter an IP address (Ex. 192.168.1.15) that isn't used by other network devices and the same Gateway

HDD (GB) DVR FIRENZE (days)

Net type	Static IP E-mail	FTP Adv.
	IP Address	192.168.1.15
Static IP	Net Mask	255.255.255.0
	Gateway	192.168.1.1
	DNS

(Ex.192.168.1.1) and Net mask (Ex. 255.255.255.0) of the PC.

ATTENTION: The IP Address that will be assigned to the DVR must be different from the PC one only in the last number.

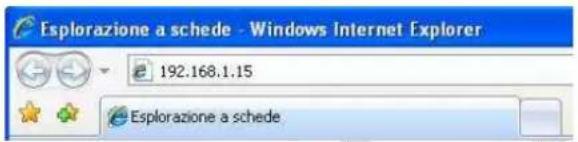

Please enter the IP address of the DVR (Ex. 192.168.1.15) in the search bar of Internet Explorer and press Enter.

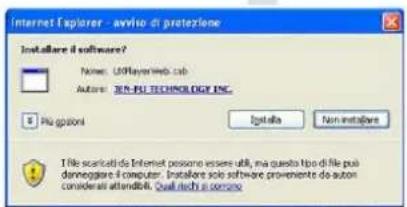

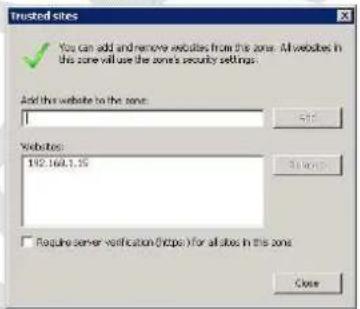

The Browser will ask to install the ActiveX control, please confirm all the request. The connection could be interrupt by the firewall or the antivirus so please be sure that they aren't active.

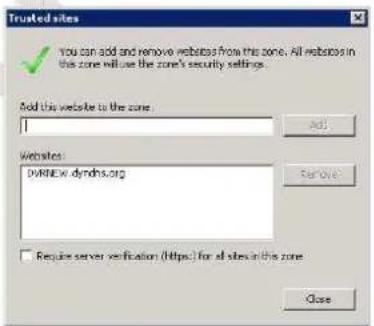

If the browser won't show the image please insert the IP address of the DVR in the "Trusted sites" menu.

Please insert the User ID and password of the user that will access to the DVR.

ATTENTION: The default user is the administrator and he has user ID: aa and password:11

Now, using Internet Explorer is it possible to view the image and manage until 4 different DVRs.

Using Firefox or other Web browser it is possible to view the image, the state of the input alarm and manage the output alarm of the DVR.

ATTENTION: If the connection is made by a cross cable please don't insert the Gateway IP address.

Now the DVR is correctly connect to the Ethernet network, if the connection is made using a router it is possible to connect the DVR through Internet and view the same information all over the world (Fig. C).

Please follow the steps below to configure the connection:

Instructions Picture

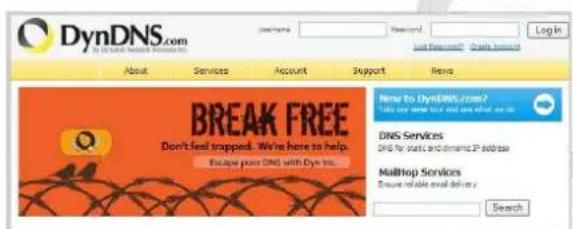

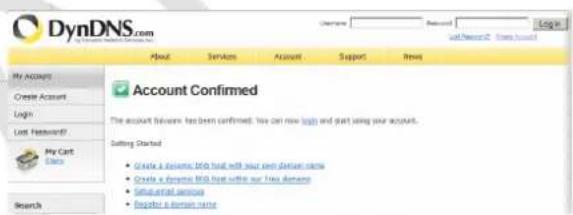

Please access to the website www.dyndns.org and press "Create Account".

An E-mail with all the informations will be sent to the E-mail address inserted. Please follow the instructions to activate the new account.

Insert the username and password of the new dyndns account.

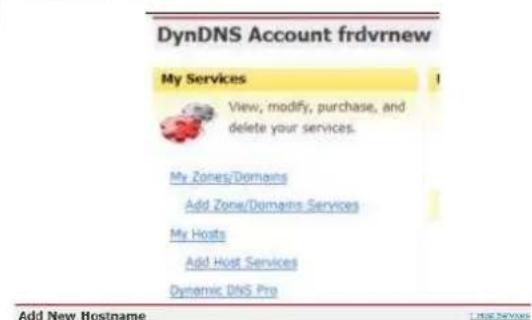

Click on "Add Host Services"

Select a new Hostname of the DVR, click on "Use auto detect IP Address" and confirm all the requests to activate the new Host.

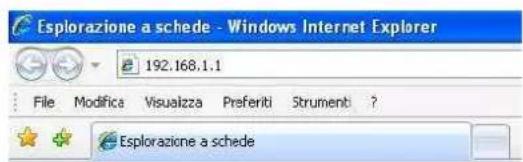

Using Internet Explorer enter the IP Address of the router (Gateway) and press Enter, a screen will ask to enter the user ID and password of the router, please find this information on the instruction manual of the device.

Note: Your currently does not have any active Dynamic file extensions in your account. You cannot use one of our Host Service features. Paying for an dynamic DNS Plus upgrade will make this form fully functional and will add several other features.

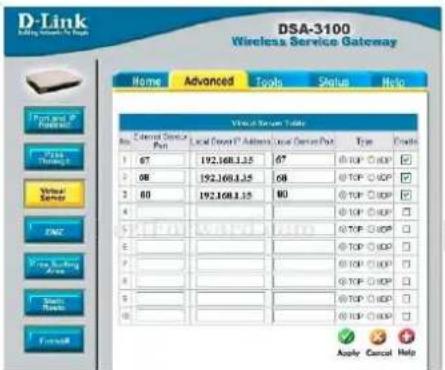

Please follow the installation manual of the Router to create a rule for the 67, 68 and 80 port for the DVR IP Address and TCP protocol.

NOTE: Please refer to the www.portforwarding.com website to know the correct way to configure the router

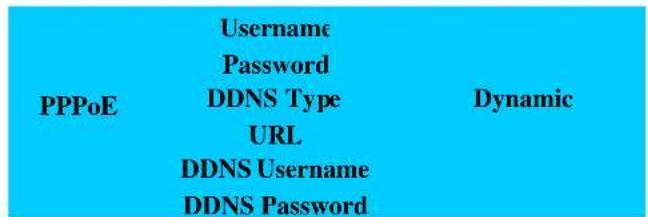

Please follow the installation manual of the Router to insert the DDNS information like username, password and hostname of the DVR.

Now the DVR is correctly connected to the network. Please make sure that the IP Address of the DVR is inserted on the "Trusted sites" of Internet Explorer

Enter the Hostname of the DVR on the search bar of Internet Explorer and it will be possible to view all the cameras.

7.3 Mobile phone network connection:

The image of the DVR can be viewed using a mobile phone, smartphone or PDA connected to the internet network. Follow the steps below to create the connection:

Instructions Picture

Enter the Hostname of the DVR on the search bar of the browser of the mobile phone or PDA.

The DVR will ask the user to enter his User ID and Password. Please select the best image resolution for the mobile phone or PDA than press "OK".

Now it will be possible to view the image on the mobile phone or PDA, manage the output relays and know the state of the input alarm directly by the interface.

7.4 PTZ Camera connection:

The DVR can be used for manage until 4-9-16 PTZ cameras using the RS-485 cable. (Fig D:)

For Keyboard

For PTZ Device

Please follow the steps below to connect a PTZ camera to the DVR:

Instructions Picture

Please follow the instruction manual of the Camera to configure it with Pelco-D (or Pelco-P) Protocol, Baud Rate of 4800 bps and a ID Address (from 1 to 255) that will be different for each camera.

Connect the BUS RS-485 of the camera to the back panel of the DVR.

Press "MENU", than "SETUP" and "RS-232/422/485 Setup" on the DVR for enter to the BUS configuration and enter the same Protocol (Model) and Baud Rate of the PTZ camera.

Press "MENU", than "SETUP" and "Pre-Camera Setup" on the DVR and enter the ID Address of the single PTZ camera.

ATTENTION: Please be sure that all cameras have different ID Address.

RS-232/ 422 /485 Setup
COM Port	RS-232	RS-422/485
Device Type		PTZ
Model		Pelco (D-Type)
Baud Rate		4800
Data Bit		8
Stop Bit		1
Parity		None
DVR/Camera ID		0
Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Group
Camera	Installed	PTZ ID	12345678
1	√	N/A
2	√	1

Now the camera it is correctly connected to the DVR and is possible to manage it using the remote controller, mouse or the PC software.

RS-232/ 422 /485 Setup
COM Port RS-232		RS-422/485
Device Type		PTZ
Model		Pelco (D-Type)
Baud Rate		4800
Data Bit		8
Stop Bit		1
Parity		None
DVR/Camera		0
Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Groun
Camera	Installed	PTZ ID 12345678
1	√	N/A
2	√	1

C:\Documents and Settings\admin>

For Keyboard
For PTZ Device

5,3 Visualizing as imagens:

For Keyboard
For PTZ Device

Pre-Camera Setup
REC Resolution		720x288
Watermark	√	Group
Camera	Installed	PTZ ID	1 2 3 4 5 6 7 8
1	√	N/A
2	√	1
...	...	...

5-Kopia xipion too DVR. .0eA.92

5.1-Avaxnno
5.2-Backup.. 6
5.3-PiopoBolnovEikovov 93

6-Papaprtnua. 0eλ.93

7-Παρτημα. 0ελ.93

Tópa to DVR eíva σωστα συνδεδεμένο με το δικτο internet. Eióáyéte tncy διεύθουνη web που δημουργήθηκε με το side www.dyndns.org (“hostname”.dyndns.org) στον κατάλογο με τα αξίπστα side του Internet Explorer	Trusted sites You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websitesfrom this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone’s security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website To the zone You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websitestudies from this zone. All sites will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settingss. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to thezone You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove websites from this zone. All websites in this zone will use the zone's security settings. Add this website to the zone: You can add and remove www.dyndns.org or www.dyndns.org or www.dyndns.org or www.dyndns.org
Προσθέστε ητη διεύθουνη web που δημουργήθηκε με το side www.dyndns.org στην σειρά αναζήτηρος του Internet Explorer για να μπορείτεν αν εχετε πρόσβαση στο interface web dRV

7.3 Evb0e0n 1e KnuTn o6kaon:

N	Button Function		N	Button Function
1	Alpha-numeric Buttons	Used for enter text	15	STOP	Stop the playback
2	PAGE	Display in multi-split-windows	16	USB Mouse	USB mouse connector
3	CALL	Switch to or return from full screen display	17	PLAY/ PAUSE	Play or pause the playback
4	MODE	Toggle between live and playback mode	18	X2/ GOTO	PTZ management
5	Vol/ Zoom +/-	Adjust volume and zoom	19	USB	USB connector
6	SPLIT Windows +/-	Previouss/ next split window	20	DOWN / DEL	Move the cursor or Tilt down the camera or Delete
7	ENTER	Enter Key	21	Remote IR sensor	IR detector
8	MENU / ESC	Display or ESC the menu	22	MUTE/ NEXT	Mute audio, ptz management
9	UP / BS	Move the cursor or Tilt up the camera or Backspace	23	DVR IR Switch	Set ID DVR for remote control
10	PTZ	PTZ management	24	SEQ	Start SEQ mode
11	LEFT / RIGHT	Move the cursor or Pan the camera	25	SEARCH	Start search mode
12	LEDs	Indicators for Power, Hdd, net	26	Alarm reset	Alarm reset button
13	Jog/ Shuttle	Playback management	27	REC	Rec button
14	COPY	Start or stop backup	28	DVD optional	DVD burner optional

Esc of start PTZ mode 23

11

Naar beneden/Delete 25

13

Links

3.4 Muis:

Funzione

Rechts

Enter

Audio activeren of deactiveren/ Volgende

Zoom-niveau / Gaaar preset

"Unformatted HDDs found. Do you want to format now? [ENTER]: Yes, [ESC]: Cancel".

7.4 PTZ Camera connectic:
