USER MANUAL CompactTrend Baby-Plus

Assembly – and instruction manual

CHASSIS UNFOLD AND ASSEMBLE

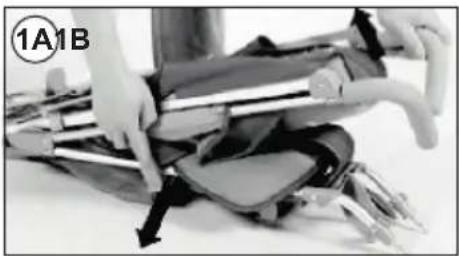

1A Release the hook.
Hold handle grip by one hand, push forward away the front leg unit more than half has been unfolded. Step down the plastic pedal on cross bars and lift up handle grips and now the pushchair is fully unfolded.

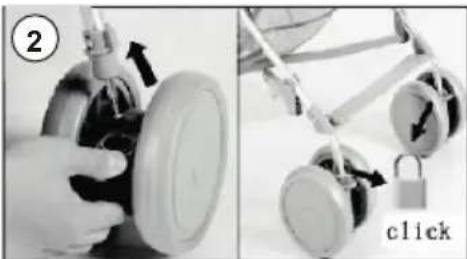

2 Make the parts of the front wheels inserted in the support, the block flipping out.

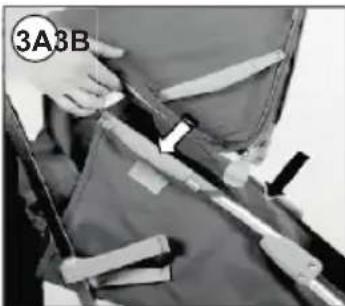

3A Please mount the both sides plastic parts onto the frame.
3B Then use velcro to connect rear canopy.

(1) Disassemble front wheels:

Press the block pull the front wheels out, the wheels removed.

(2) Brake:

Step down brake levers and the pushchair is braked; lift up brake lever and the braking is released.

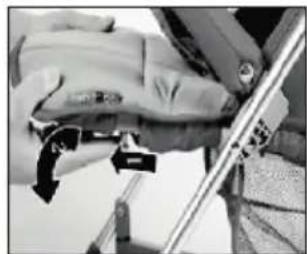

(3) Footrest adjustable:

squeeze both levers and press down footrest to adjust the rest to lower position; lift up footrest to set up the rest to higher position.

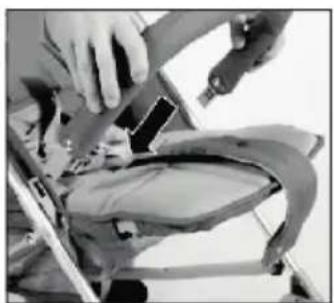

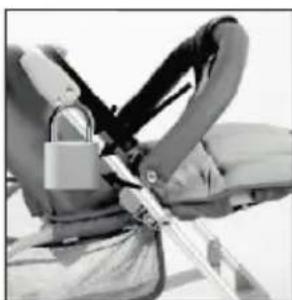

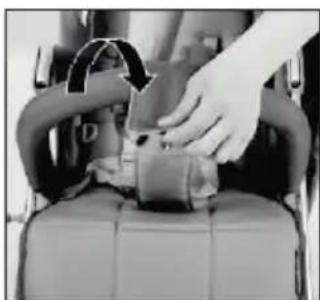

(4) To assemble/disassemble the front bumper bar:

Align front bumper pegs with the holes on bumper adaptors, slide and press into unit hear " clicks"; press down both buttons to disassemble bumper from adaptors.

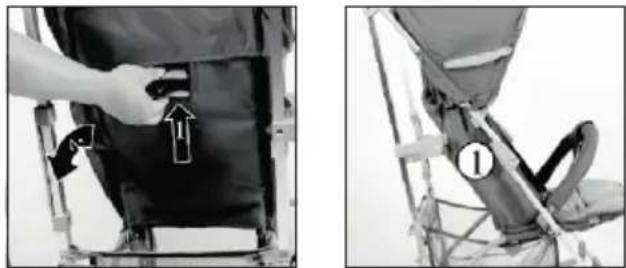

(1) To use reclining back rest:

Pull up recline button, the backrest will rise to desired height; press down the recline button, the backrest will down, total four step.

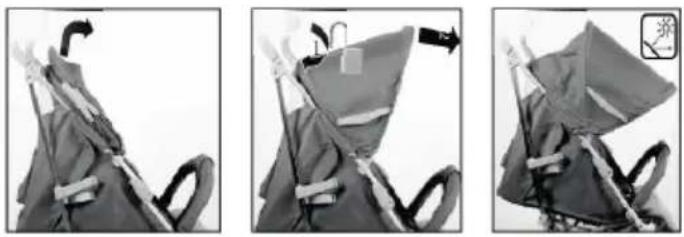

② Canopy:

Press down brackets to unfold the canopy; pull up the brackets to fold the canopy.

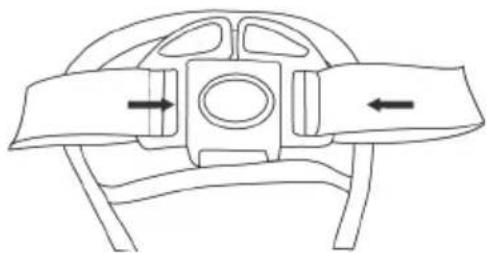

③ Safety belt:

To unlock buckle, press in on center button and pull harness out from each side. To lock buckle, push each side of harness back into buckle unit each clicks in place.

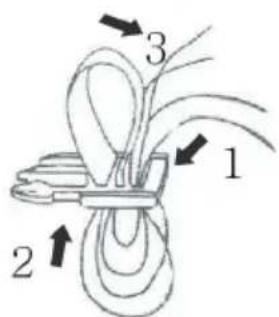

(4) To adjust the harness length::

As picture, shorten: draw to top clitellum the draw the end belt, locked, enlongate: pull the top clitellum the shorten the end belt, locked.

WARNING: Always use the crotch strap in combination with waist belt!

To fold:

NOTE:The backrest should always be in the upright position and the hood foked away prior to folding.

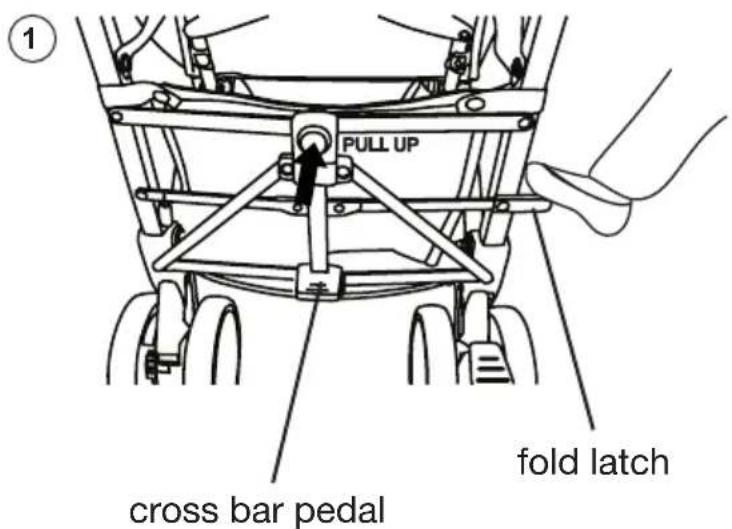

① Lift upward the plastic cross pedal with the toe of your shoe. Then press down the secure lock lever gently until the lock has released.

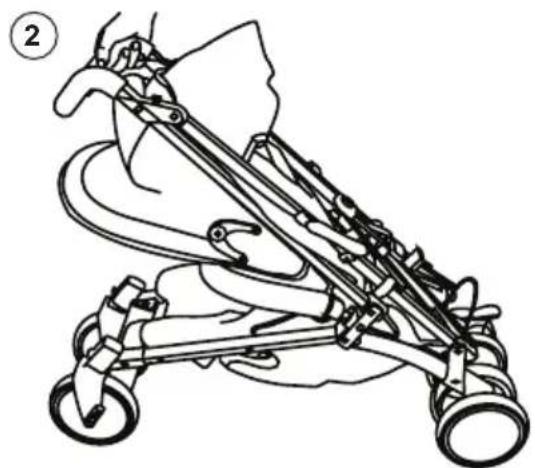

Push the handles over and the pushchair will naturally close.

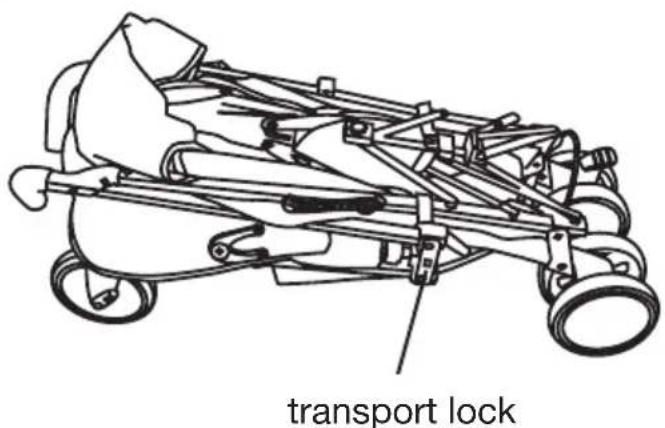

③ Ensure the transport latch is locked.

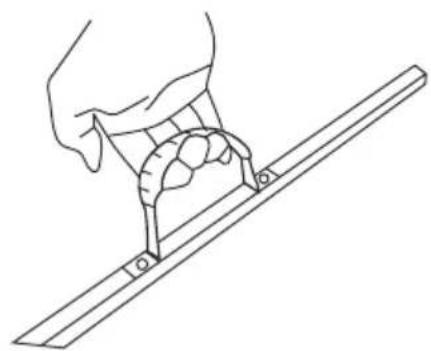

4 With the transport handle on the side you can easily travel with your buggy.

3

(4)

Please follow this advice to guarantee the safety of the child. This product is exclusively designed for carrying babies and toddlers. Each unintended use may cause damage to the product, which in turn will compromise the safety of your child. You should explain to every person using this buggy and the entertaining accessories, how to operate this buggy in detail. Parents are liable for their children.

In case individual parts of the instructions are incomprehensible and require further explanations, or in case you have further questions on the product, please contact the expert trader, where you bought the buggy.

• Before use, read the instructions carefully and keep them in a safe place. By not observing this advice, technical faults may occur at your product and subsequently jeopardise the safety of your child.
• The buggy is suitable for children between 6 months and 36 months and up to a maximum weight of 15kg .
• The carrycot is to be used for children younger than 6 months.
• Do not use any mattresses other than the one supplied, as far as included in the delivery extent.
• Be extremely careful when unfolding and folding down the buggy. Only adults should carry out this action and be careful that all parts to be assembled engage audible before carrying out the next step.
• Overloading, folding up the buggy unprofessionally or using not approved accessories may damage the buggy or destroy it.
• The foot rest is not suitable to transport children or objects.
• The foot rest is neither suitable for lifting up the buggy nor for carrying the buggy.
  WARNING: Danger of suffocation caused by the plastic bag! Take care that none of the plastic bags used for wrapping up the buggy are in reach of children.
• WARNING: Never leave your child unattended in the buggy!
• WARNING: Make sure before use that all locking devices at the buggy have engaged and that the carrycot mounting or the seat have engaged properly and are thus connected with the frame.
  WARNING: Always use the safety belt as soon as your child is able to sit by him/herself. Always use the belt between the legs in connection with the lap belt.
• The buggy is no toy and should be kept in a place inaccessible to children.
  WARNING: Loads attached to the handles influence the stability of the buggy. Therefore, do not use a shopping bag but use the transport basket beneath the seat (max. extra load 3 kg).
• If available, the bag for utensils of a max. of 1kg can be attached to the back of the roof. Never deposit anything on the hood.
• WARNING: Always use the brake, when parking the buggy. The brake is only effective and develops its full strength on an even surface. Never leave the buggy with applied brakes unattended. Avoid parking the buggy on a slope.
  WARNING: This product is not suitable for jogging or skating.
• Do not allow your child to get into or leave the buggy by itself.
• Check the handles and the floor regularly for damage and signs of wear.
• Never mount an additional children's seat other than explicitly recommended by the manufacturer.
• When using steps or stairs or in case the buggy has to be lifted up or carried, always take your child out of the buggy.

ATTENTION: SAFETY ADVICE

• With regard to the permissible loading of the buggy, observe the manufacturer's advice or consult your expert trader.

• Observe your buggy's cleaning- and care advice as described in this operating instructions.

• Keep these instructions at a safe place over the whole time of using the buggy and in case the buggy is handed over to a third person, also include these instructions.

• Only use original spare parts respectively accessories, recommended explicitly by the manufacturer.

• Should your buggy have an additional retarding brake, this should always be set such that the tyre to which the brake is applied does not block.

• Should your buggy have pneumatic tyres, check the air pressure regularly! (ADVICE: slight pressing with the thumbs). The maximum pressure is written on the tyre. ADVICE: Pneumatic tyres can leave marks on laminated-, parquet-, or plastic flooring, which cannot be removed!

CARE AND MAINTENANCE OF THE PRODUCT

• Observe the manufacturer's washing instructions for textiles that can be removed and washed.
• Never use aggressive or abrasive cleaning agents for cleaning the textile cover but only soapy water or a special textile cleaning agent.
• Clean the buggy's plastic parts as well as the chassis also with soapy water.
• If used in rain and damp conditions, always clean and wipe the buggy's chassis dry after use. In case the textile cover has become damp, leave the buggy to dry in its unfolded condition.
• Remove the tyres regularly and treat the axle as well as all joint connections and suspension with an acid-free oil (sewing machine oil, WD40 or a grease-free lubricant). Thus your buggy will run easily and quietly and you reduce the risk of an early wear and tear.
• Check the locking devices, tyres, brakes, safety belts, buckles and seat adjustments regularly to ascertain that they are safe and function properly.
• By maintaining your buggy properly make sure that there is no rust film settling, as this is no reason for a complaint.

ATTENTION: The textiles used are most of the time cotton resp. a cotton-mix material complying with the applicable legal regulations.

In case of being used often over a longer period of time (e.g. intensive exposure to sunlight) the natural material may fade in colour, this is, however, no reason for a complaint.

Should you have any questions concerning the CompactTrend or accessories, ask the specialist trader, from whom you bought the CompactTrend.

This product meets the requirements of DIN EN1888: 2012

Produced for:

BABY-PLUS eG • Tiefe Gasse 11-13 • D-97084 Würzburg
Telefon: [phone] • www.baby-plus.de
