AirMotion - Stroller Baby-Plus - Free user manual and instructions

Product type	Stroller
Brand	Baby-Plus
Model	AirMotion
Recommended age (seat)	6 to 36 months
Recommended age (carrycot)	Up to 6 months
Maximum child weight	15 kg
Maximum basket weight	3 kg
Main materials	Textile (cotton and cotton blend), plastic, metal
Safety harness	5-point harness with release buckle
Brake	Rear brake pedal
Front wheels	Swivel with lockable steering
Hood	Adjustable by pulling on the tube
Footrest	Angle adjustable via side buttons
Bumper bar	Removable via push-button
Reversible seat	Yes, forward-facing or parent-facing
Backrest recline	Adjustable via strap at top of seat
Folding system	Compact with automatic lock
Safety standard	DIN EN1888:2012
Maintenance	Clean with soapy water, oil axles every 4 weeks
Included accessories	Carrycot, foot cover, sun visor

Frequently Asked Questions - AirMotion Baby-Plus

How to fold the AirMotion stroller?

To fold the stroller, pull the handle straps on both sides and lower the tube until the locking system engages. Make sure the child is removed before folding.

How to install the carrycot on the frame?

Insert the carrycot into the frame until it clicks. To remove it, press the release buttons on the sides.

How to adjust the footrest?

Press both side buttons on the footrest and push down to the desired angle. Release the buttons to lock.

How to remove the front wheels?

Press the release button on the front wheel, then pull to remove it. To lock the wheel in fixed position, push the lever upward.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg. The basket can support up to 3 kg. Never exceed these limits.

How to clean the AirMotion stroller?

Clean plastic parts and the frame with soapy water. For the fabric hood, use a mild detergent. Avoid abrasive cleaners. Always dry the stroller after use in rain.

Is the stroller suitable for jogging?

No, this product is not intended for jogging or rollerblading. It is designed for walking.

How to use the brake?

To engage the brake, press the pedal at the rear. To release it, lift the pedal. Always use the brake when the stroller is parked on a flat surface.

Can I use an additional car seat on this stroller?

No, it is prohibited to attach any additional child seat other than the one recommended by the manufacturer. Use only accessories approved by Baby-Plus.

Where to find spare parts for the AirMotion stroller?

Use only original spare parts and accessories recommended by Baby-Plus. Contact your specialized retailer or Baby-Plus customer service.

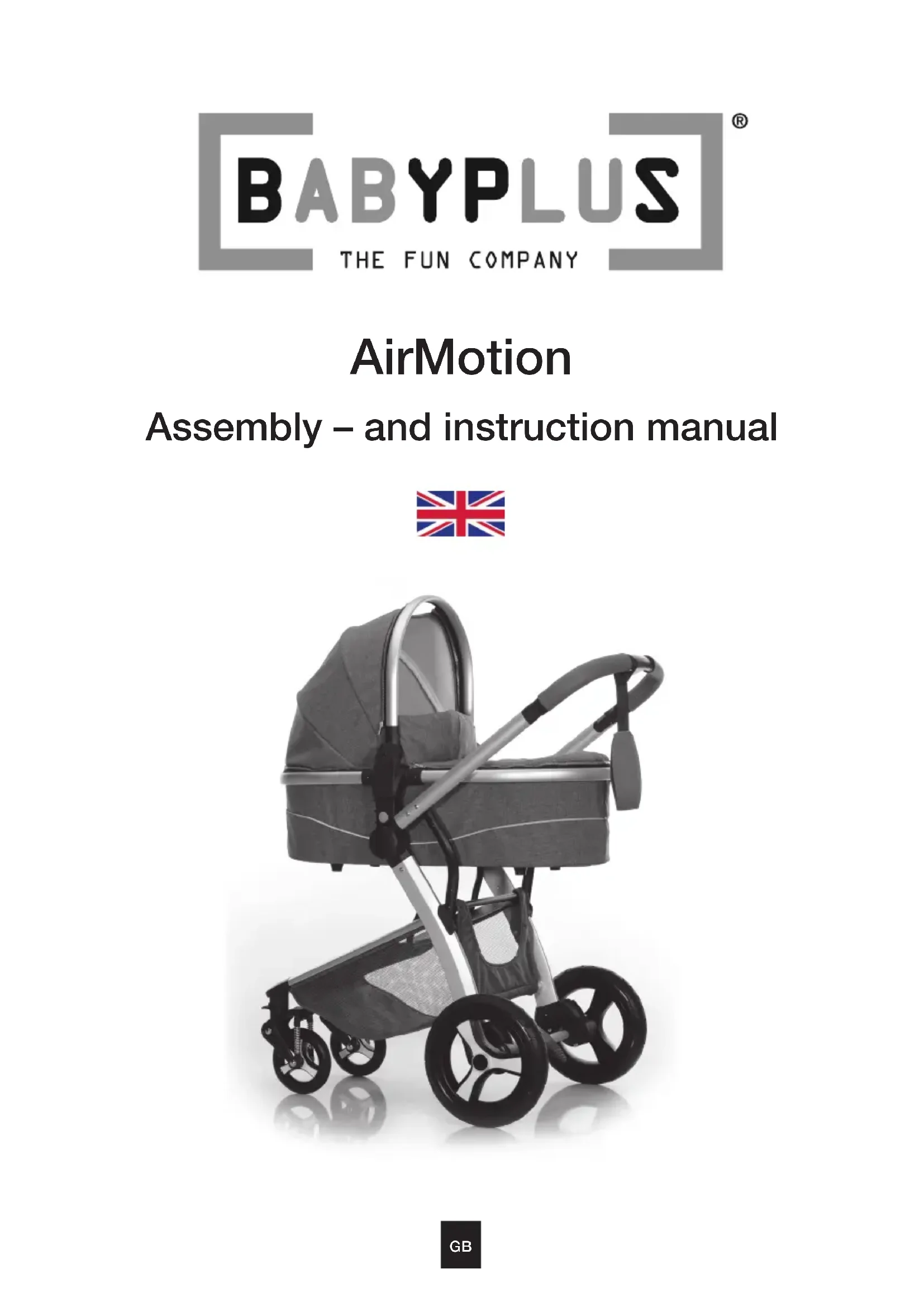

USER MANUAL AirMotion Baby-Plus

Assembly – and instruction manual

CHASSIS UNFOLD AND ASSEMBLE

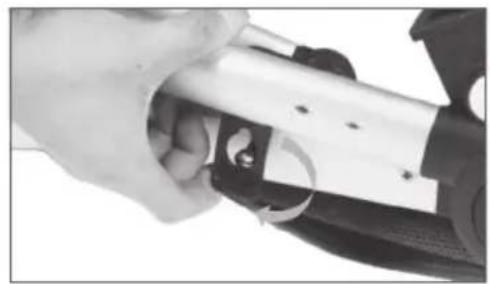

(1) Release the hook.

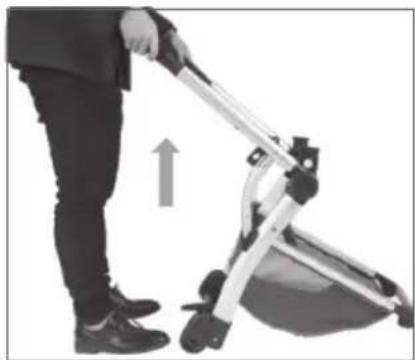

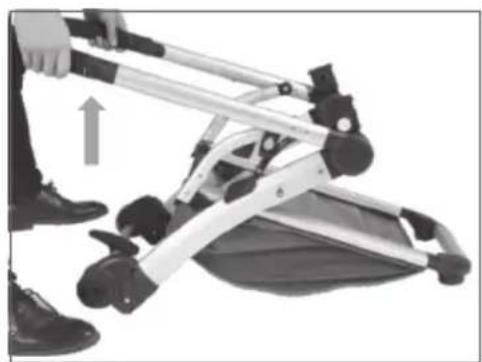

2 Unfold the chassis until a, dick' sounded.

Fit the rear brake assembly onto chassis.

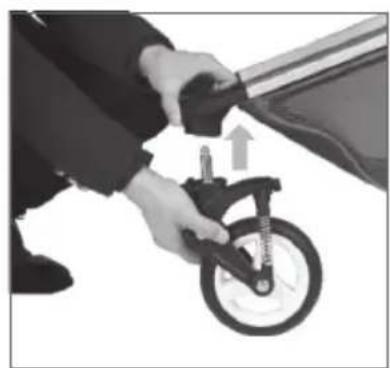

Add the front wheels into the front wheel hole.

Put the seat unit onto the chassis until a, dick' sounded.

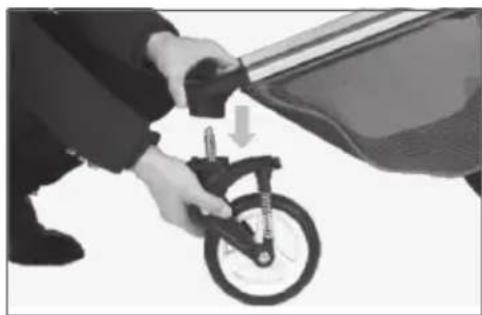

① Front wheel take off:

Push the release button, to drop off the front wheel.

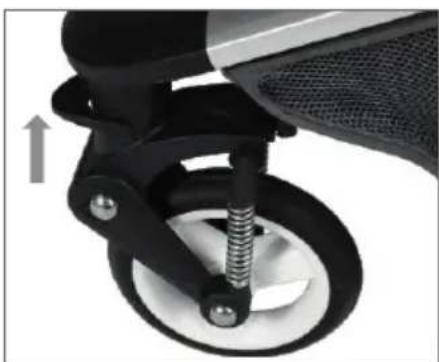

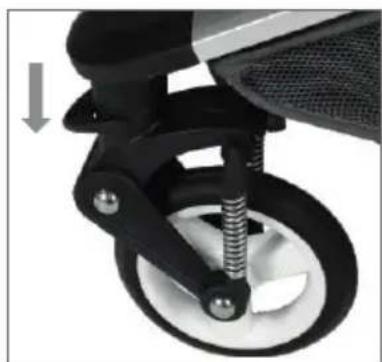

② Front wheel lock:

switch up to lock the front wheel, down to swivel.

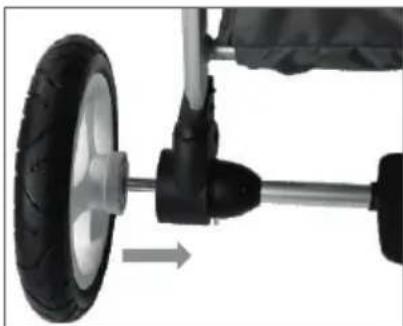

(3) Rear wheel take off:

Push the release button and pull out the rear wheel.

(4) Brake:

Step on the pedal to brake. Pull up the pedal to release the brake.

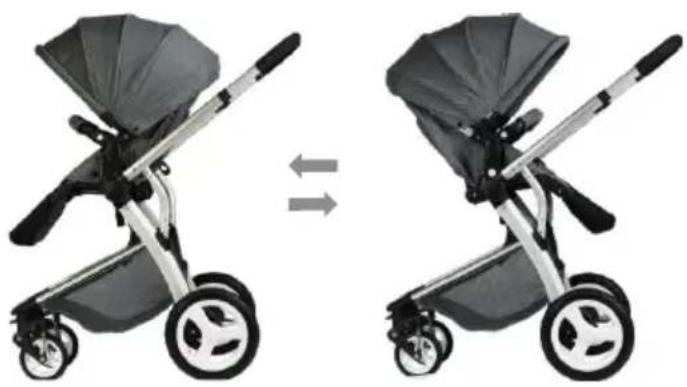

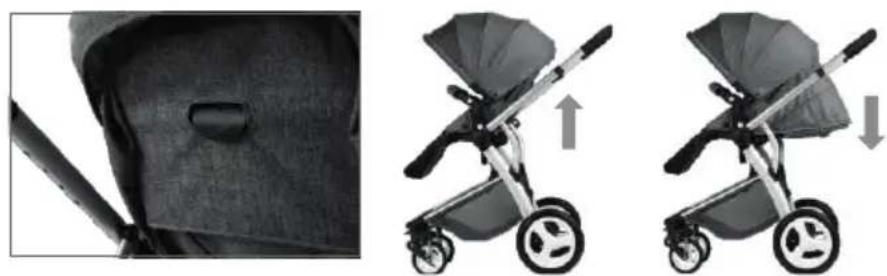

(5) Seat function:

A) Push the button on both sides to release the seat, then pull up the seat to reverse it.

B) Seat angle adjustment by lifting up the flap at top of the seat.

(6) Footrest adjustable:

Push the 2-side buttons and push the footrest downward into the desired angle.

(7) Bumper remove:

Push the button and pull off the bumper. oad the bumper until a „dick“ sounded.

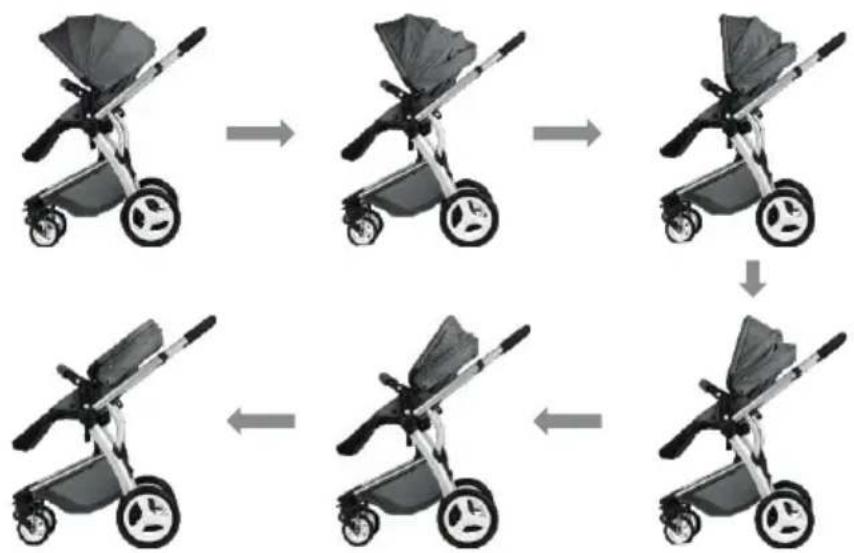

Canopy adjustable:

Adjust the canopy by pulling the canopy tube directly.

9 Safety belt:

Unlock by pushing the button.

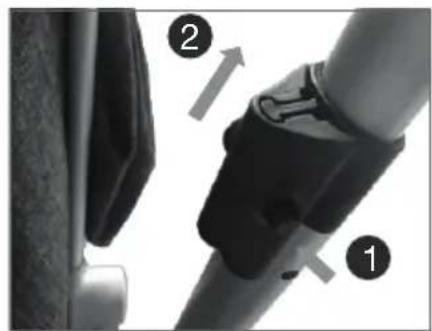

10 Function operation:

Pull the both sides handle pullers and push down the handle tube to fold the chassis slowly, until the folding lock fitted.

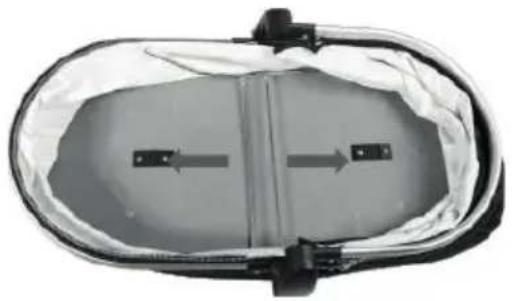

Push frame wires out until the stop is reached to the holder.

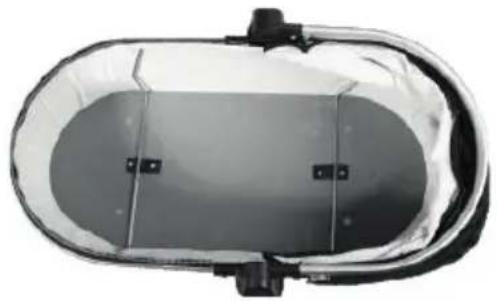

(2) Fit the inner pad to the carry cot, then zip the both end (lang match lang, and short match short).

3 Open the canopy: press the button, then pull up the canopy.

(4) To cover assembly:

zip the foot cover on the carry cot. Snap the blinker on the canopy tube

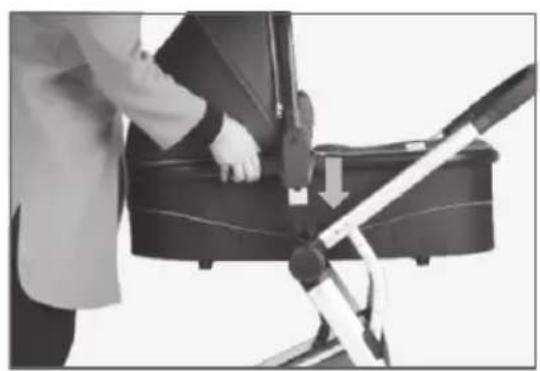

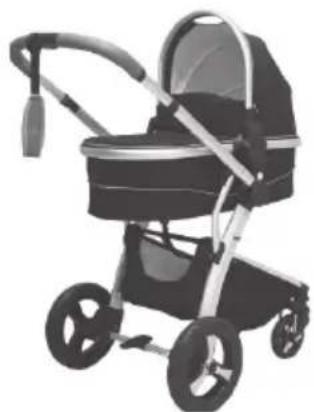

(5) Insert the carry cot:

Insert the carry cot into the frame.

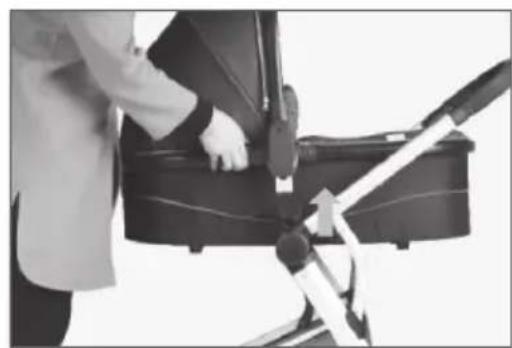

Ta unload the carry cot:

press the buttons to release the carry cot, then pull up.

Please follow this advice to guarantee the safety of the child. This product is exclusively designed for carrying babies and toddlers. Each unintended use may cause damage to the product, which in turn will compromise the safety of your child. You should explain to every person using this buggy and the appertaining accessories, how to operate this buggy in detail. Parents are liable for their children.

In case individual parts of the instructions are incomprehensible and require further explanations, or in case you have further questions on the product, please contact the expert trader, where you bought the buggy.

• Be extremely careful when unfolding and folding down the pram. Only adults should carry out this action and be careful that all parts to be assembled engage audible before carrying out the next step.
• Ensure stroller is completely erected and check all locks are engaged before placing a child in the stroller.
• WARNING: Danger of suffocation caused by the plastic bag! Take care that none of the plastic bags used for wrapping up the pram are in reach of children.
• This stroller is designed for one child only. Do not carry additional children, bags, goods or accessories in stroller except as recommended In the manufacturer's Instructions.
• Do not leave the child unsupervised in the stroller. this might be dangerous.
• Overloading, folding up the pram unprofessionally or using not approved accessories may damage the buggy or destroy it.
• Before making adjustments to stroller ensure that chi d's body is clear of any moving parts.
• To avoid serious injury from falling or sliding out, always use the harness restraints provided. Always use the crotch strap in combination with the waist belt.
• Do not allow child to stand on the seat extender.
• The foot rest is not suitable to transport children or objects.
• The foot rest is neither suitable for lifting up the pram nor for carrying the buggy.
• Do not hang bags from handles as this may cause the product to become unstable.
• Any goods carried in the basket are not to exceed 3 kgs.
• Den Wagen nicht überladen, da er sonst instabil werden konnte. Das maximale Gewicht eines Kindes im Wagenarf 15 kg nicht überschreiben.
• Do not overload as stroller may become unstable. Maximum weight of any child using
• this stroller must not exceed 15 kgs.
• The carrycot is to be used for children younger than 6 months.
• Do not add a mattress thicker than 10mm .
• Do not use one escalator or stairs. Feld stroller and carry.
• When using steps or stairs or in case the pram has to be lifted up or carried, always take your child out of the buggy.
• WARNING: Always use the brake, when parking the pram. The brake is only effective and develops its full strength on an even surface. Never leave the pram with applied brakes unattended. Avoid parking the pram on a slope.
• Never mount an additional children's seat other than explicitly recommended by the manufacturer.
• Do not use stroller near open fire, exposed flame, BBQ or heater.
• Do not use the stroller if any screws, nuts bolts, etc. are missing or any component is damaged.
• WARNING: This product is not suitable for jogging or skating.
• Please ensure that you complete regular routine inspections, maintenance, cleaning of this stroller.

SAFETY ADVICE:

• Regularly care of all metal parts on the stroller is necessary to keep the premium looking. The ends of the axles have to be cleared and oiled, around all 4 weeks.
• Please do not place the stroller on a parquet-,laminate-,linoleum- or carpet fl oors. The wheels may cause stains on the floor, which can not be removed.
• Note that the fabric patterns, color pictures and stroller accessories on the stroller in this instruction manual may vary from that of the product that you have purchased.
• Observe your pram cleaning- and care advice as described in this operating instructions.
• Keep these instructions at a safe place over the whole time of using the pram and in case the pram is handed over to a third person, also include these instructions.
• Only use original spare parts respectively accessories, recommended explicitly by the manufacturer.

CARE AND MAINTENANCE OF THE PRODUCT:

• Observe the manufacturer's washing instructions for textiles that can be removed and washed.
• Never use aggressive or abrasive cleaning agents for cleaning the textile cover but only soapy water or a special textile cleaning agent.
• Clean the buggy's plastic parts as well as the chassis also with soapy water.
• If used in rain and damp conditions, always clean and wipe the pram chassis dry after use. In case the textile cover has become damp, leave the pram to dry in its unfolded condition.
• Remove the tyres regularly and treat the axle as well as all joint connections and suspension with an acid-free oil (sewing machine oil, WD40 or a grease-free lubricant). Thus your pram will run easily and quietly and you reduce the risk of an early wear and tear.
• Check the locking devices, tyres, brakes, safety belts, buckles and seat adjustments regularly to ascertain that they are safe and function properly.
• By maintaining your pram properly make sure that there is no rust film settling, as this is no reason for a complaint.

ATTENTION: The textiles used are most of the time cotton resp. a cotton-mix material complying with the applicable legal regulations.

In case of being used often over a longer period of time (e.g. intensive exposure to sunlight) the natural material may fade in colour, this is, however, no reason for a complaint.

Should you have any questions concerning the AirMotion or accessories, ask the specialist trader, from whom you bought the AirMotion.

This product meets the requirements of DIN EN1888:2012

Produced for:

BABY-PLUS eG • Tiefe Gasse 11-13 • D-97084 Würzburg

Telefon: [phone] • www.baby-plus.de
