USER MANUAL MID7127 COBY

 Page 3 Thank You Engli sh  Thank You Congratulations on your purchase of a Coby® Kyros™ Internet Tablet. This guide is provided to help you get started quickly with your player; please read it carefully and save it for future reference. For detailed instructions, up-to-date information, and helpful tips, please visit the Coby website at www.cobyusa.com. Themanualisavailablefordownloadfromthe CobywebsiteasaPDFle. ToviewPDFdocuments,downloadandinstall thefreeAdobeAcrobatreaderfromtheAdobe websiteatwww.adobe.com. package Contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you pur- chased this product. Coby® Kyros™ Internet Tablet Protective pouch USB cable USB host/keyboard adapter Professional stereo Earphones Power adapter Thispackagemaycontainplasticbagsorother materials that pose a hazard to children. Be suretosafelydisposeofallpackingmaterials afteropening.Page 4 Thank You Engli sh features Browse the Web. Visit your favorite websites Check your e-mail Keep in touch with friends and family Watch YouTube™ videos Browse the world’s most popular video-sharing com- munity Read your favorite books Download thousands of books with the included E-book reader * Discover thousands of apps for Android™ Games, applications, and more with the installed marketplace Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g networking HDMI™ output to your TV ** Enjoy videos, photos and more in the comfort of your living room Enjoy your media library anywhere Portable powerhouse plays popular music, video, and photo formats microSD memory card reader Increase your storage capacity (up to 32 GB sup- ported) Built-in camera Convenient front-facing camera Automatic orientation detection Read any way you want; the display adjusts auto- matically!

• Reading books in the ePub format requires the included E-book reader application. ** Requires optional HDMI cable (Type A-to-Type C). 1080p HD video playback requires a video le encoded at 1080p. Streaming video quality will be affected by the source, and the quality and condition of your network connection.Page 5 Getting To Know The Coby Kyros Engli sh

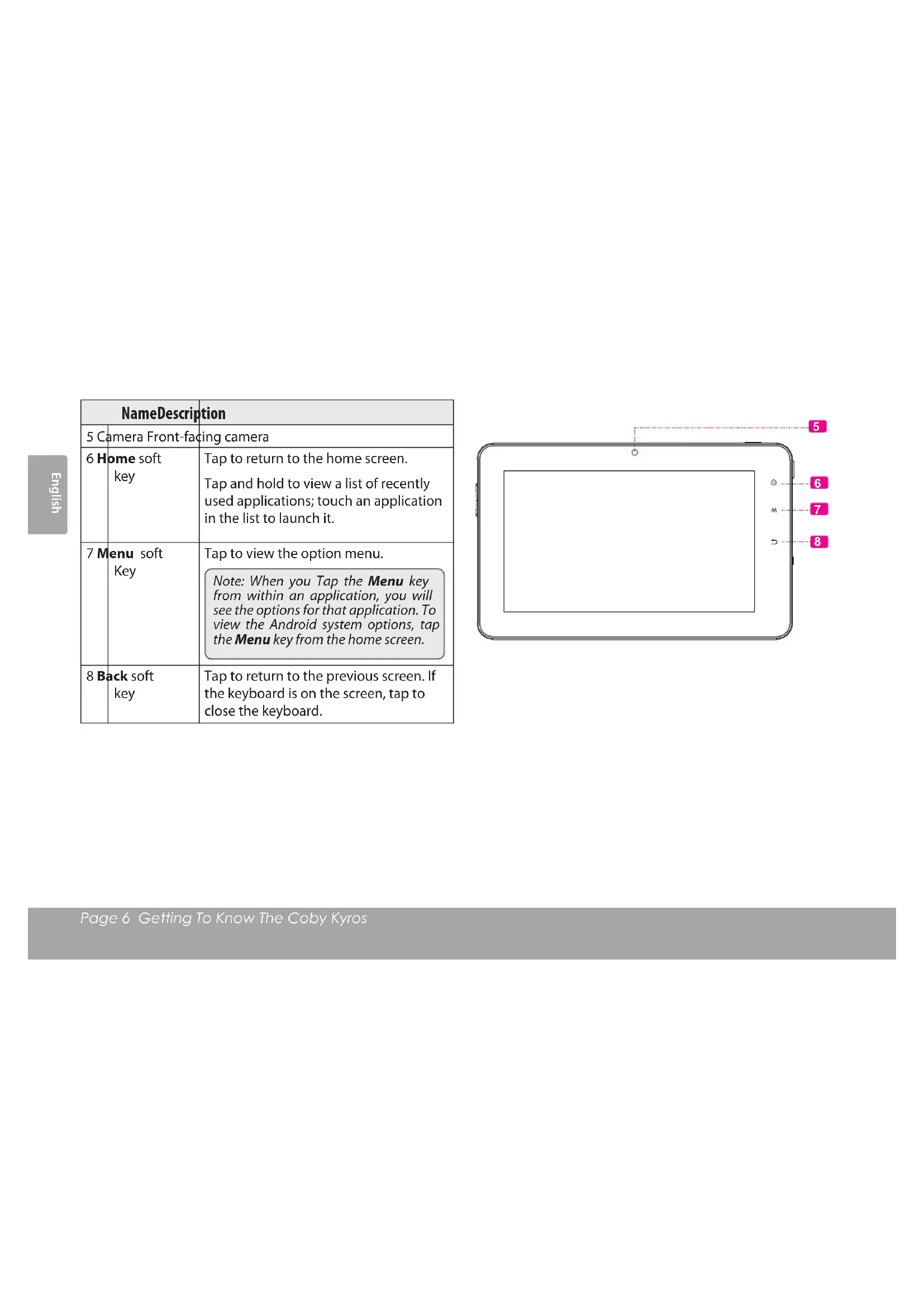

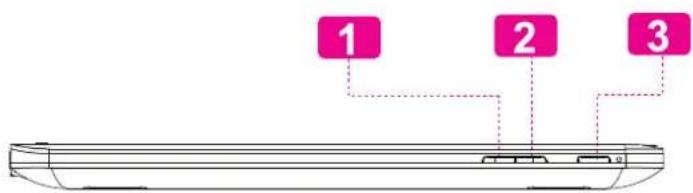

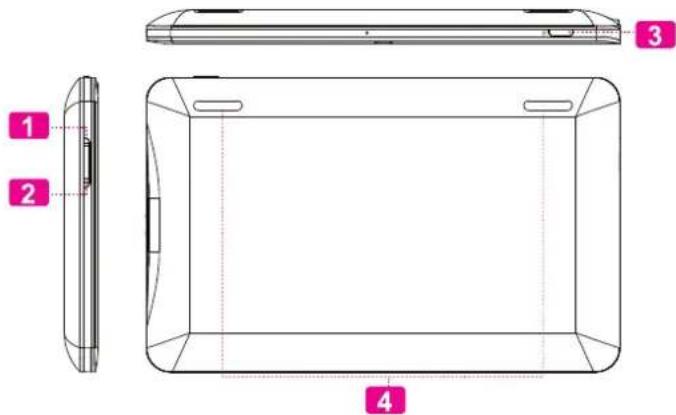

Name Description 1 Volume + key Press to increase the volume level. 2 Volume – key Press to decrease the volume level. 3 Power key Press to turn the unit on, or to turn the screen on and o. Press and hold to access the Power O menu. 4 Speakers Stereo speakers.Page 6 Getting To Know The Coby Kyros Engli sh Name Description 5 Camera Front-facing camera 6 Home soft key Tap to return to the home screen. Tap and hold to view a list of recently used applications; touch an application in the list to launch it. 7 Menu soft Key Tap to view the option menu. Note: When you Tap the Menu key from within an application, you will see the options for that application. To view the Android system options, tap the Menu key from the home screen. 8 Back soft key Tap to return to the previous screen. If the keyboard is on the screen, tap to close the keyboard.

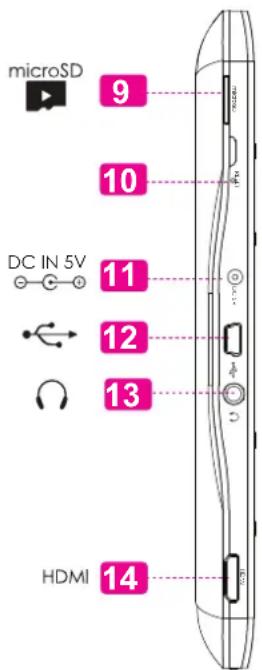

8Page 7 Getting To Know The Coby Kyros Engli sh Name Description 9 microSD card slot Load external microSD memory cards here. 10 Reset key Press to reset the tablet if it freezes or otherwise behaves abnormally. (Use a paperclip or other small object to gen- tly press this key.) 11 Power jack (DC input) Charge and power the tablet with the included power adapter. 12 USB 2.0 Hi- speed port Connect to a computer to transfer data (e.g., music, videos, photos, les). 13 Headphone jack Audio output connection for head- phones. Note: Speaker output is automatically disabled when headphones are con- nected to the player. 14 HDMI jack (mini Type C) Connect to a TV or other display.

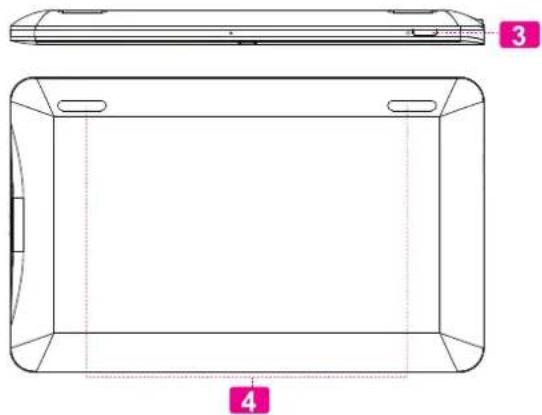

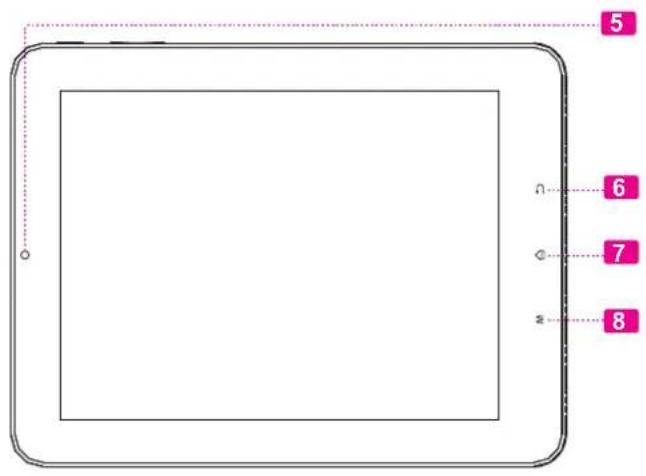

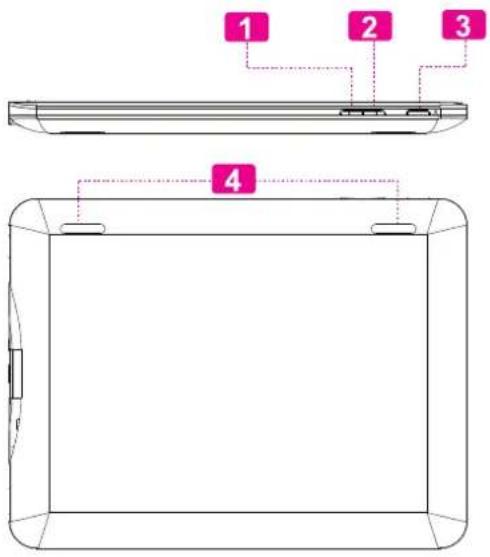

DC 5VRESET HDMI microSDPage 8 Getting To Know The Coby Kyros Engli sh Mid8127 Name Description 1 Volume – key Press to decrease the volume level. 2 Volume + key Press to increase the volume level. 3 Power key Press to turn the unit on, or to turn the screen on and o. Press and hold to access the Power O menu. 4 Speakers Stereo speakers.Page 9 Getting To Know The Coby Kyros Engli sh Name Description 5 Camera Front-facing camera 6 Home soft key Tap to return to the home screen. Tap and hold to view a list of recently used applications; touch an application in the list to launch it. 7 Menu soft Key Tap to view the option menu. Note: When you Tap the Menu key from within an application, you will see the options for that application. To view the Android system options, tap the Menu key from the home screen. 8 Back soft key Tap to return to the previous screen. If the keyboard is on the screen, tap to close the keyboard.

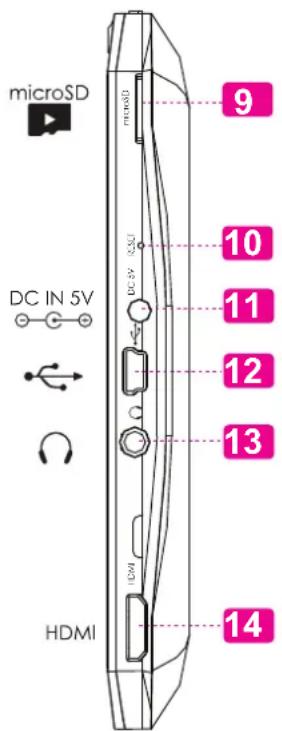

8Page 10 Getting To Know The Coby Kyros Engli sh Name Description 9 microSD card slot Load external microSD memory cards here. 10 Reset key Press to reset the tablet if it freezes or otherwise behaves abnormally. (Use a paperclip or other small object to gen- tly press this key.) 11 Power jack (DC input) Charge and power the tablet with the included power adapter. 12 USB 2.0 Hi- speed port Connect to a computer to transfer data (e.g., music, videos, photos, les). 13 Headphone jack Audio output connection for head- phones. Note: Speaker output is automatically disabled when headphones are con- nected to the player. 14 HDMI jack (mini Type C) Connect to a TV or other display.

microSDDC 5VRESET HDMIPage 11 Getting To Know The Coby Kyros Engli sh about the Touchscreen Your tablet comes equipped with an easy-to-use touch- screen. Our capacitive multi-touchscreen requires gentle ngertip touch on the glass screen to activate tablet’s functions. Multiple ngers may be used to perform gestures (e.g. 2-nger picture zoom). Please note: Your nger tips must not be covered. Toavoiddamagingthescreen,donottouchit with excessive force or with any object other thanyournger.Forbestresponse,makesure yourhands are clean beforeusingthe touch- screencontrols. Protective Film A thin lm has been applied to the touchscreen to protect it during shipping. The protective lm should be removed before use. To remove it, simply take a corner of the lm and peel it away from the screen. Touchscreen Actions You can control the functions of the tablet by using the touchscreen in combination with the three touch keys located on the bezel. To control the tablet with the touchscreen, use your ngertip to manipulate icons, buttons, menu items, the on-screen keyboard, and other items displayed on the screen. You can perform the following actions on the touchscreen using your ngertip. Touch: To activate an on-screen item (e.g., application icons, buttons, menu items, and the letter/symbols of the on-screen keyboard), simply touch them with your ngertip. Touch and Hold: Some on-screen items have an alternate action if you touch and hold it (e.g., opening an alternate menu, or to activate the drag function). To touch and hold an item, touch the item and do not lift your ngertip until the action occurs.Page 12 Getting To Know The Coby Kyros Engli sh Drag: Drag an on-screen item to change its position (e.g., an application icon on the home screen). To drag an item, touch and hold it for a moment, then without lifting your ngertip, move your ngertip on the screen until the item reaches its target destination. Swipe: Swipe up/down on the screen to scroll through a list. On some screens, you may be able to swipe left/right to change the view. To swipe, touch the screen and then quickly move your ngertip across the screen without lifting your ngertip. Do not pause on the screen with your ngertip at the initial point of contact or you may accidentally drag an item instead. Double-tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the application must support the double-tap/zoom function). Within the browser, double-tapping a web- page section will cause the browser to zoom and t that section to the width of the screen.

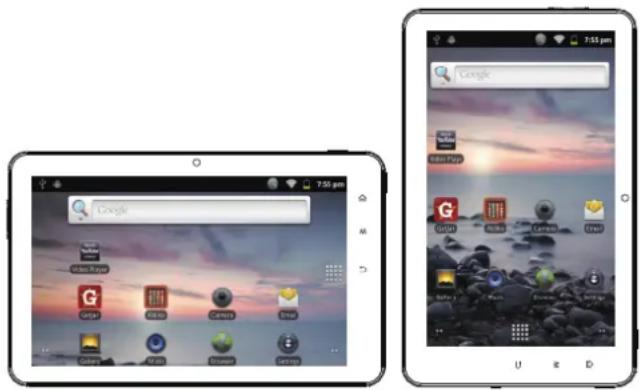

The tablet contains a sensor that will automatically change the orientation of most screens as you rotate the tablet. The sensor works best when the tablet is rotated perpendicular to the ground (i.e., when the tablet is held upright and not fat on its back). The orientation sensor can be turned on and off in the Display settings menu.Page 13 Getting To Know The Coby Kyros Engli sh

The tablet comes with a built-in rechargeable lithium- polymer battery. Before using the tablet, the battery should be charged fully. The Status Indicator will light blue when the battery is charged fully. To charge the battery:

1. Plug one end of the included power adapter into an

2. Plug the other end of the included power adapter into

the Power jack on the tablet.

3. Disconnect the power adapter when the tablet is fully

The tablet accepts microSD memory cards. Insert a memory card into the microSD card slot to: Increase the memory capacity of your tablet Play media les stored on the memory card (e.g., music, video, or photo les). To insert a memory card:

1. Align the memory card with the card slot. The metal

contacts of the memory card should face down away from the LCD screen.

2. Slide the card into the spring-loaded slot. Push the

card in until it clicks into place. Do not attempt to insert objects other than a microSD memory card into the card slot. A compatiblememorycardshouldteasilyinto thecardslot;ifyouencounterresistance,check the alignment of the card. Do not attempt to forcethecardin. Avoidtouchingthegoldcontactsofthememory card.Page 14 Getting To Know The Coby Kyros Engli sh To release and remove a memory card:

1. UNMOUNT the memory card.

a. From the home screen, tap the Menu key, and then touch Settings to show the settings menu. b. Touch SD card & Device storage to show the SD card & device storage settings. c. Touch Unmount SD card to prepare the memory card for safe removal.

2. Push the card further into the slot until you hear a

click. The card will spring out of the slot.

3. Grasp the card by its edge to remove it.

Toavoiddamage and data corruption, do not remove a memory card while data is being writtentoorreadfromthecard.Forexample, donotremoveacardwhileplayingamusicle storedonthecard.Page 15 Getting Started Engli sh  Getting started Turning the Tablet on and off To turn the tablet on: Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off:

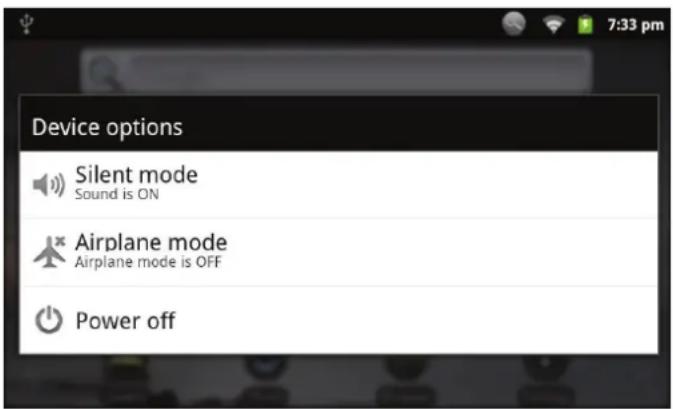

1. Press and hold the Power key until the Device

Options menu appears.

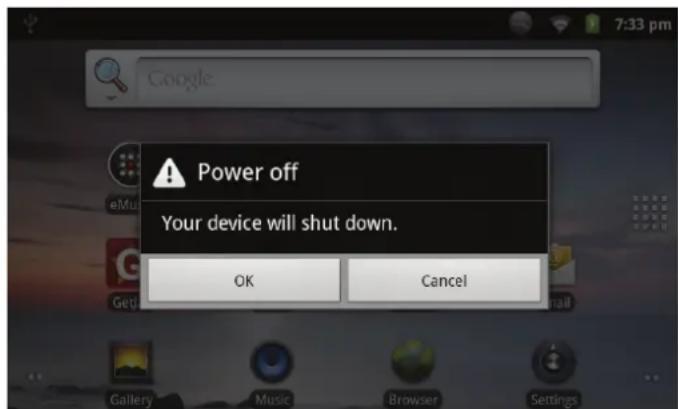

2. Touch Power off on the screen. A confrmation mes-

3. Touch OK to turn off the tablet.Page 16 Getting Started

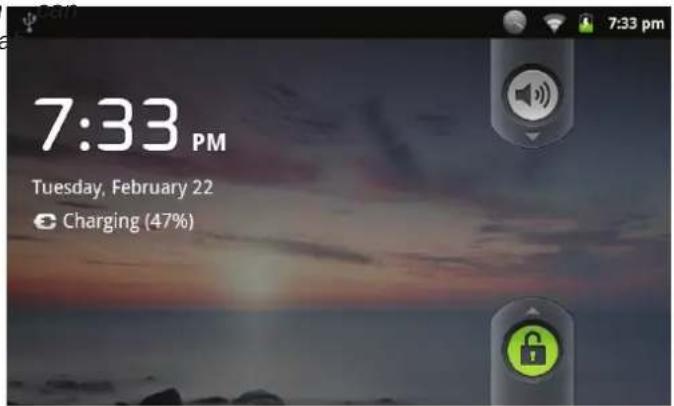

Engli sh Turning the Screen On and Off (Standby) When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. To conserve battery power, the screen can be set toturn off automaticallywhenthetab- letisnot inuse(between15secondsand30 minutes).ThisScreen timeoutoptioncanbe foundintheDisplay settingsmenu. Unlocking the Screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, drag the lock icon across the screen towards the speaker icon.Page 17 Getting Started Engli sh If a password has been set, enter the password to nish unlocking the screen. The Screen Unlock password can be set in the Location and security settings menu. home screen at a Glance The home screen is the starting point for all of the features of your tablet.

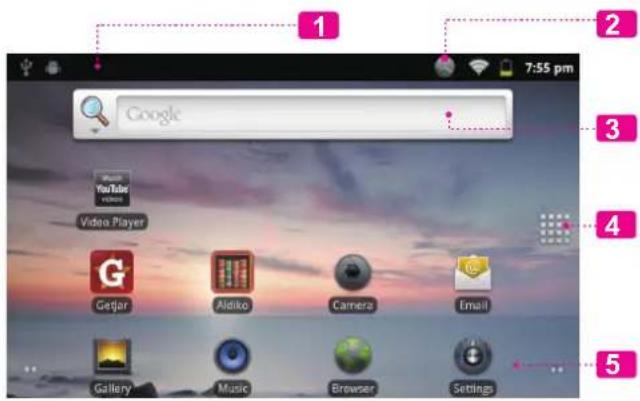

Name Description 1 Notication bar Shows notication icons such as new mes- sages and alarms; drag the bar down to the bottom of the screen to open the full Noti- cations panel. The right side of the bar also shows status information such as the time, battery level, and network signal strength. Note: You can press the Menu key and then touch Noti cations to open the full Notications panel from the Home screen. 2 Search icon Touch to search with Google.Page 18 Getting Started Engli sh Name Description 3 Widgets Widgets are small applications that you can use directly from the home screen. To add widgets to the home screen, touch and hold an empty spot on the home screen; the Add to Home screen menu will appear. Touch Widgets; then choose a widget from the menu. 4 Launcher Tab Open the Launcher to view a list of all applications installed on the tablet. Touch the Launcher tab to open the Launcher. Note: You can swipe left and right to view additional screens. 5 Icons Touch an icon to open an application or folder

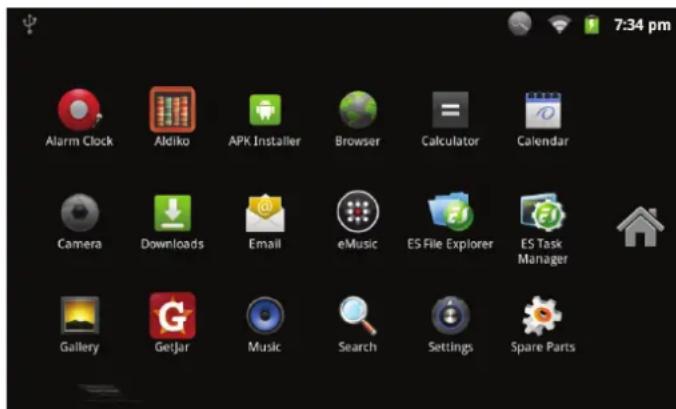

To open an application, touch the application icon on the home screen or in the Launcher. Launcher screen: The screen shown above is for illustrative purposes only. Coby reserves the right to modifyandimprovethenallistofapplications availableonthetablet.Page 19 Getting Started Engli sh Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: View the current time, or set an alarm. Download and read thousands of e-books. Supports the ePub standard. Find and display app installation les (APKs) on your tablet. Access to thousands of apps with GetJar Marketplace. Browse the web. Get $10 of music from eMusic. Perform simple mathematical operations. Take pictures or videos with the front- facing camera. Check your e-mail. View and manage les stored on the tablet. Visit http://www.estrongs.com/en/products/ le-explorer.html for more information. Turn o background apps to conserve bat- tery power. Visit http://www.estrongs.com/en/products/ task-manager.html for more information.Page 20 Getting Started Engli sh View photos and play videos. Play music. Access the Settings menu to adjust the tablet’s options. Launch the mobile YouTube™ browser page to watch internet videos. Installing Applications You can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu. YourCobyMobileInternetDevicemayinclude accessto,orinformationon,content,products, applications and services from third parties. Youruseofsuchthirdpartycontent,products, applicationsandservicesisatthediscretionof suchthirdpartyandexpresslygovernedbysuch third party’s terms of use, including any such third party’sprivacypolicies, forsuch content, products, applications and services. Coby Electronics Corporation is not responsible for and expressly disclaims all warranties of any kindwithrespecttoallsuchthirdpartycontent, products, applications and services. Coby ElectronicsCorporationwillnotberesponsible foranyloss,costs,ordamagesincurreddueto your access to or use of third party content, products,applicationsorservices.Page 21 Getting Started Engli sh about Menus There are two types of menus used by the tablet.

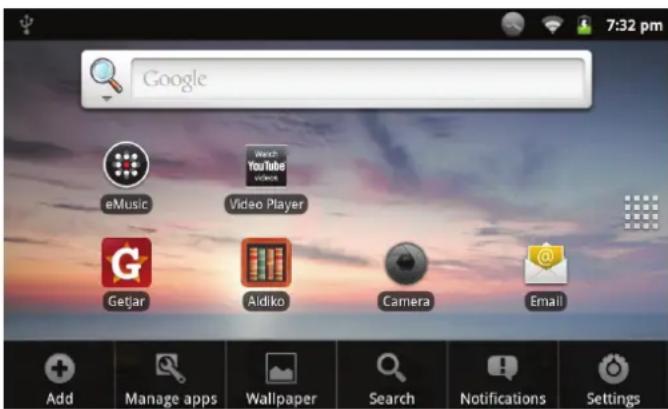

Option menus contain items related to the current screen or application. To view an option menu, press the Menu key. Notallscreensorapplicationshaveanoption menu; if a menu does not exist, nothing will happenifyoupresstheMenukey.

The icons that appear in the Notication bar at the top of the screen alerts you when new messages arrive or alarms or other application events occur. View and respond to the notications by opening the full Notications panel. Drag the Notication bar down to the bottom of the screen to open the Notications panel from any screen, or; On the Home screen, press the Menu key and then touch Notications to open the Notications panel. To respond to a notication:Page 23 Getting Started Engli sh Touch a notication in the list; the Notifcations panel will close and the application associated with the notication will launch.

2. To clear all notications:

Touch the Clear button at the top right of the Notications panel; the panel will close and all notications will be cleared.

3. To close the Notications panel:

Drag the handle at the bottom of the Notications panel to the top of the screen, or; Press the Back key.Page 24 Connecting To The Internet Engli sh

This tablet can utilize Wi-Fi data networks to connect to the Internet. Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be affected by your surrounding environment and Wi-Fi router.

In order to connect to the Internet, you will need the following:

1. A wireless router or access point with a broad-

band Internet connection The wireless router must support Wi-Fi 802.11b/g connec- tions. If the router supports 802.11n, make sure that it has been congured to acc qept 802.11b/g connections as well. Aminimumconnectionspeedof64Kbpsisrec- ommended.Fasterspeedswillenableabetter Internetexperience.

2. The wireless router network settings

You will need to know the name of your network (SSID), as well as the password or other credentials if your network is secured. These settings can usually be found on the administration webpage of your wireless router. Please refer to your wireless router’s documentation for help, or ask your network administrator for details. YoumayencounteropenWi-Finetworks,or“hot spots.” Thesenetworksare usuallycongured sothatyoucansimplyconnecttothemwithout needingtoknowitssettings;thetabletwillob- tainalltheinformationitneedsfromtherouter automatically.Page 25 Connecting To The Internet Engli sh

The Notication bar displays icons that indicate your tablet’s Wi-Fi status. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

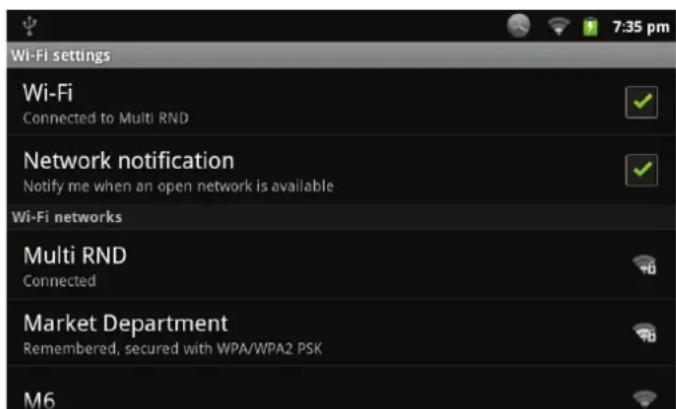

1. Turn on the Wi-Fi radio if it is not already on. To

turn on Wi-Fi: b. Go to the Home screen: Press the Home key. c. Open the Settings menu: Tap the Menu key, then touch Settings. d. Open the Wireless & networks menu: Touch Wireless & networks. e. Open the Wi-Fi settings menu: Touch Wi-Fi settings. f. Make sure that the Wi-Fi option box is checked: Touch Wi-Fi. When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. Ifanetworkthatyouhaveconnectedtoprevi- ouslyisfound,thetabletwillconnecttoit. If you don’t see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan.Page 26 Connecting To The Internet Engli sh

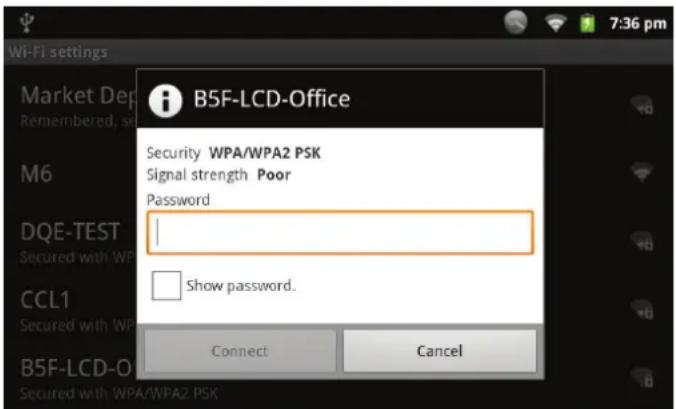

2. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above, touch a network in the list. If the network is open, the tablet will prompt you to conrm connection to the network. Touch Connect to conrm. If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to conrm. When you have successfully connected to a Wi-Fi network, the Notications bar at the top of the screen will show a Wi-Fi signal indicator. TolearnabouthowtoaddaWi-Finetworkwhen itisnotinrangeorwhentherouterissettoob- scure the network name (SSID); or to cong- ureadvancedWi-Fioptions,pleaserefertothe manual.Page 27 Browsing The Web Engli sh

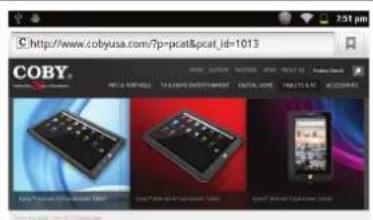

The Browser application lets you visit webpages and nd information on the web. Keep up with the news, your friends, or enjoy video from YouTube™, the world’s most popular video-sharing community. To use Browser, the tablet must be con- nected to the Internet. Read the section “Connecting to the Internet” to learn how to connect to the Internet. To open Browser, touch the Browser icon on the Home screen or in the Launcher.

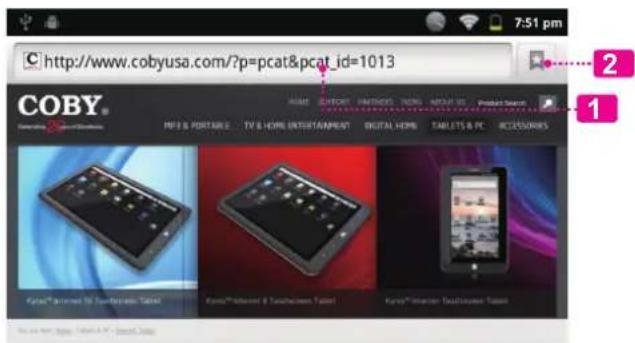

Name Description 1 Address bar Displays the address (URL) of the current page. Touch the bar to enter a new address or to search the web. 2 Bookmark icon Touch the Bookmark icon to add or view bookmarks, to view your most visited sites, or to view your browser history.Page 28 Browsing The Web Engli sh Some common Browser actions are described below. To go to a webpage.

1. Touch the Address

bar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.)

2. Use the keyboard to

enter the ad-dress (URL) of the webpage (e.g., m.youtube.com.

3. Touch Go to open the

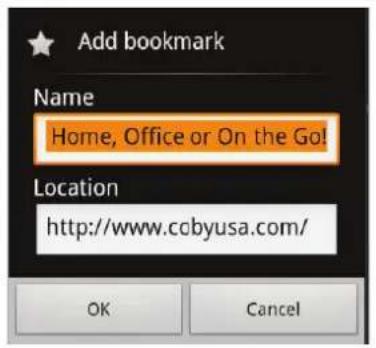

webpage. To bookmark a webpage. Bookmark your favorite webpages in order to visit them quickly without entering a URL.

page that you want to bookmark

mark icon to the right of the Ad-dress bar.

modify the name of the bookmark or its location (URL address). Otherwise, touch OK to nish adding the book- mark. To go to a bookmarked webpage.

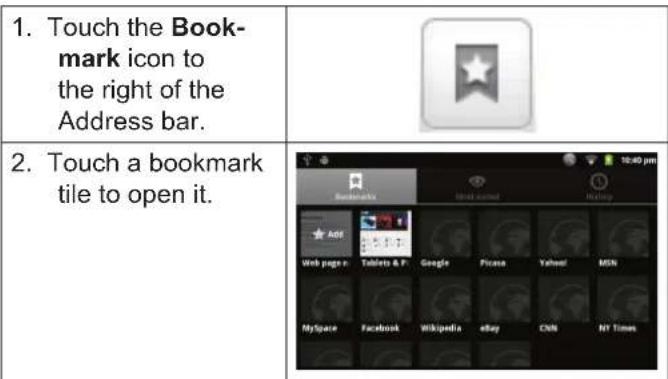

mark icon to the right of the Address bar.

tile to open it. To open a new browser window.

dow to open a new browser window.Page 30 Browsing The Web Engli sh To switch between browser windows.

to show a list of open browser windows.

of a window to switch to it, or touch the “x” to close the window.Page 31 Managing Applications Engli sh

Downloading and installing new applications to your tablet can extend its functionality in many ways. You can download and install applications from the included Applications store. To open the Applications store:

1. Touch the Launcher icon.

2. Touch the Apps Marketplace icon.

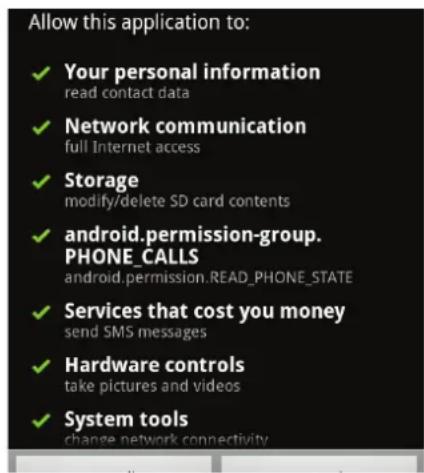

When installing an application, it will tell you what func- tions of the phone it needs to control and if it needs access to your data. Make sure you review these access requirements carefully before completing the installation. Be especially cautious with applications that request access to many functions or to a signicant amount of your data. You are responsible for the results of applications installedonyourtablet.Page 32 Managing Applications Engli sh You can learn more about GetJar, and browse for ap- plications by visiting their website at www.getjar.com. Somedevelopersallowyoutodownloadandin- stallapplicationsdirectlyfromtheirwebsite. Your Coby Mobile Internet Device may include accessto,orinformationon,content,products, applicationsandservicesfromthirdparties.Your use of such third party content, products, applicationsandservicesisatthediscretionof suchthirdpartyandexpresslygovernedbysuch thirdparty’stermsofuse,includinganysuchthird party’s privacy policies, for such content, products, applications and services. Coby ElectronicsCorporationisnotresponsibleforand expresslydisclaimsallwarrantiesofanykindwith respecttoallsuchthirdpartycontent,products, applications and services. Coby Electronics Corporationwillnotberesponsibleforanyloss, costs,ordamagesincurredduetoyouraccessto oruseofthirdpartycontent,products,applications orservices. To uninstall an application:

1. From the Home screen, tap the Menu key.

2. Touch Settings to open the Settings menu.

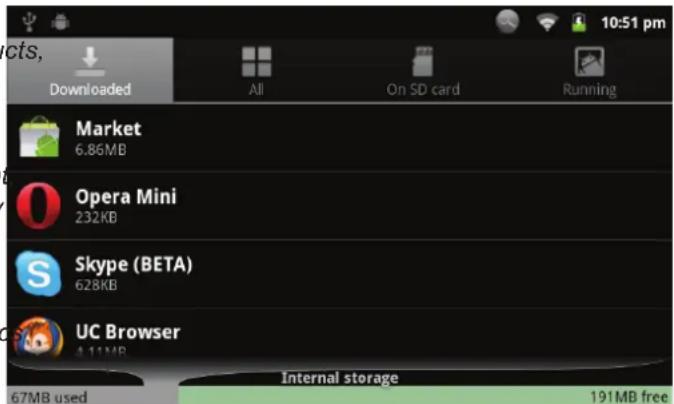

3. Touch Applications, and then touch Manage ap-

plications to show a list of all applications installed on the tablet.Page 33 Managing Applications Engli sh

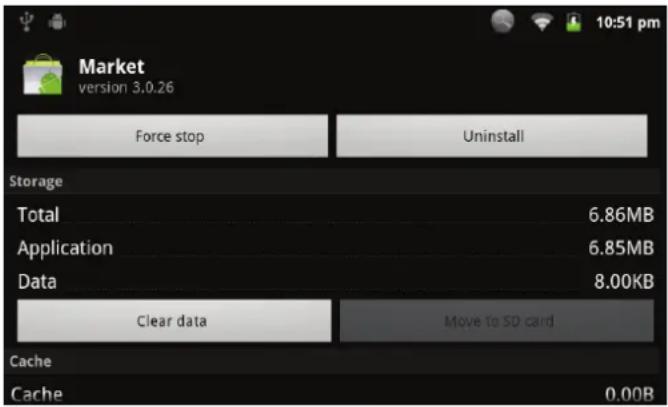

4. Touch the name of the application you want to

uninstall; the Application Info screen will open.

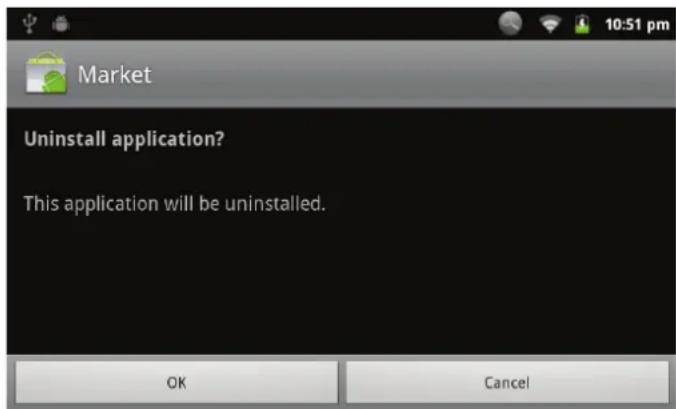

5. Touch Uninstall. The tablet will prompt you to

6. Touch OK to uninstall the application.Page 34 Optional Connections

Connect the tablet to a computer to transfer les.

1. Connect your tablet to the computer.

With the included USB cable: Plug the small end of the cable into the USB 2.0 Hi- speed connector of the tablet. Plug the large end of the cable into an available USB

2.0 Hi-speed port on the computer.

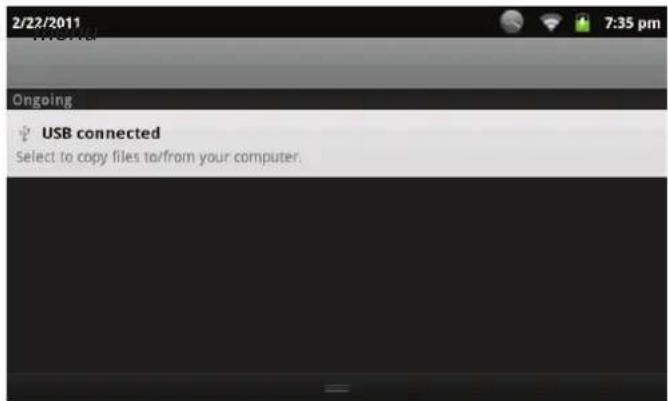

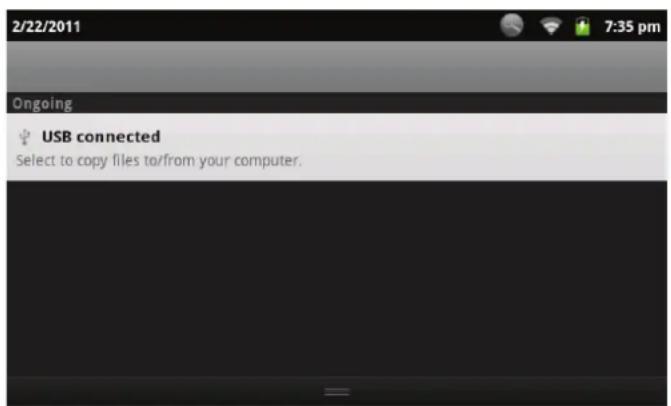

2. When your tablet is connected, a USB icon will

appear in the Notication bar. Drag the Notication bar down to open the notications panel.Page 35 Optional Connections Engli sh

3. Mount the storage drive.

Touch USB connected (Internal) to mount the tablet’s built-in storage, then touch Mount when prompted to conrm. When mounted, you can copy les to/from your computer to it. If a memory card is installed, touch USB connected (External) to mount the card, then touch Mount when prompted to conrm. When mounted, you can copy les to/from the computer to it. Your tablet will be recognized by the computer as a Removable Storage drive. Drag and drop les between your tablet and the computer. To learn more about copy- ing les, please refer to the documentation included with your computer or operating system. Connecting to a TV Connect to a TV to enjoy your tablet from the comfort of your living room. An HDMI cable (Type A-to-Type C) is required to connect the tablet to a TV. Before connecting the tablet to the TV, you will have to adjust a few display settings on the tablet. Make sure that the tablet is set to output over HDMI For optimal visual performance, make sure that the video output resolution of your tablet matches the capabilities of the TV. To adjust the display settings:

1. From the home screen, press the Menu key, and

then touch Settings to show the settings menu.

2. Touch Display to show the Display settings.

3. Touch HDMI, and then touch a resolution option that

matches the display capabilities of the TV: a. Choose 1080P if your TV is capable of displaying 1080p video. b. Choose 720P if your TV is capable of displaying 720p or 1080i video.Page 36 Optional Connections Engli sh To connect the tablet to the TV:

1. Plug the small end of the HDMI cable into the mini

HDMI connector of the tablet.

2. Plug the large end of the HDMI cable into the HDMI

3. Turn on the TV, and set its display mode to the HDMI

port that the tablet is connected to. The tablet’s display will be output to the TV screen. Ifyouneedhelpsettingthedisplaymodeofthe TV,pleaserefertothedocumentationprovided bytheTVmanufacturer. IfthereisnosoundfromthetabletonyourTV, you may need to setthe HDMI switch sound settings.

Connect a pair of headphones (or earphones) to the tablet to enjoy media in private. Lower the volume level of the tablet before connecting headphones, and then slowly raise the volume to a comfortable listening level. The headphones must have a 3.5 mm (1/8 in) plug. When headphones are connected, speaker output will be disabled automatically. Hearing experts advise against the constant useofpersonalstereosplayedathighvolume. Constantexposuretohighvolumescanleadto hearingloss.Ifyoushouldexperienceringing intheearsorhearingloss,discontinueuseand seekmedicaladvice.Page 37 Optional Connections Engli sh

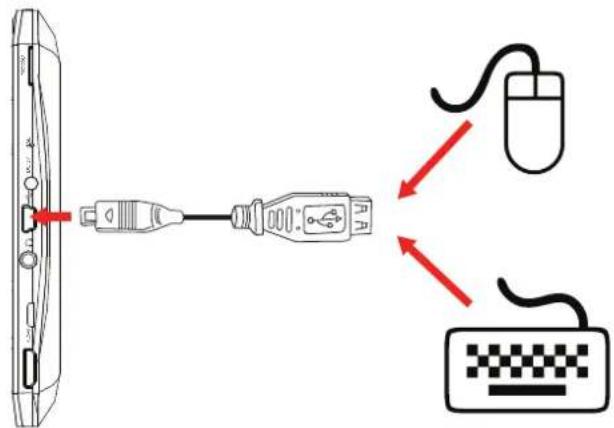

The USB full-size adapter can be used to connect and use USB devices with the tablet. The adapter converts the mini USB port on the tablet into a USB On-the-Go (OTG) connector. Connecting a Keyboard For times when you want to type for an extended period of time, you may want to connect a full-size keyboard to the tablet. Use the included USB full-size (Type A) adapter to con- nect a keyboard to the tablet. DC 5V RESET HDMI microSD You may also use this connection to add a mousetothetablet. Theadaptersupportsoneconnectionatatime. Touseakeyboardandmousesimultaneously, youwillneedtoaddanexternalUSBhub. Connecting a Storage Device Use the included USB full-size (Type A) adapter to connect a storage device to the tablet (e.g., a USB ash memory drive). Thisconnectionsupportsamaximumstorage sizeof4GB.Foradditionalstoragecapacity,a microSDcardcanbeaddedtothetablet.Page 38 Setting The System Options Engli sh

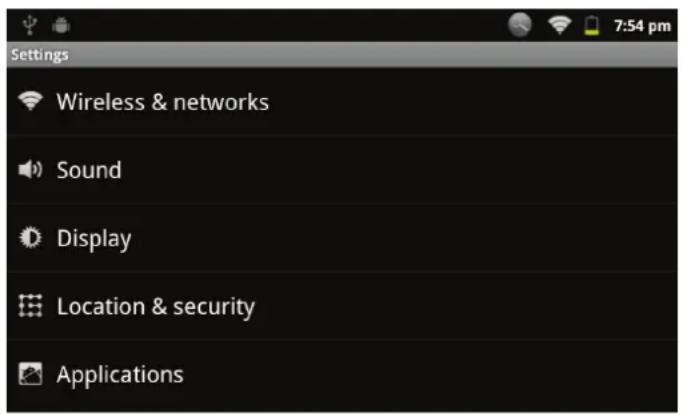

Open the system settings menu to adjust how the tablet looks and functions. Manyapplications willhavetheir ownsettings; refertothedocumentationprovidedbytheap- plicationdevelopertolearnmore. To open the Settings menu:

1. From the Home screen, press the Menu key.

2. Touch Settings to open the Settings menu.

The settings are grouped by category. Touch a category to open and adjust its settings. Pleaserefer tothemanualfor adescriptionof theitemsintheSettingsmenu.Page 39 Specications Engli sh

Please visit www.cobyusa.com for the latest product information. Design, specications, and manual are subject to change without notice. Processor Cortex A8 (1 GHz)

Storage 4GB ash built-in microSD card slot (max. 32GB sup- ported) Display MID7127: 7.0” TFT LCD (800 x 480), capacitive touchscreen MID8127: 8.0” TFT LCD (800 x 600), capacitive touchscreen Wi-Fi Networking IEEE 802.11 b/g Video Output Mini HDMI, type C (1080p and 720p supported) Audio Output 3.5 mm headphone PC Interface USB 2.0 Hi-speed Additional Fea- tures Front-facing camera (0.3 MP) Built-in microphone Stereo speakers Operating Sys- tem Android™ 2.3 Power Rechargeable Li-poly battery Power Adapter (DC 5V) Playback Time (hours) * MID7127: Up to 14 hours music,

4.5 hours video, 6 hours

web browsing MID8127: Up to 15 hours music,

4.5 hours video, 6 hours

If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical Support.

Email: techsupport@cobyusa.com Web: www.cobyusa.com Phone: For US Residents: 877-302-2629, Monday-Friday (9:00AM-9:00PM EST) For Canadian Residents: 855-542-8917, Monday-Friday (8:00AM-8:00PM EST)Page 41 Safety Notices Engli sh

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance. For recycling or disposal information about this product,pleasecontactyourlocalauthoritiesorthe ElectronicsIndustriesAlliance:www.eiae.org. For Customer Use: Enter below the serial number that is located on the rear of the unit. Retain this information for future reference. Model No. Serial No.

WARNING: To prevent re or shock hazard, do not expose this

device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. Protect your hearing: Hearing experts advise against the con- stant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice. Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery:

• Turn o the unit by pushing and holding the slide button at the right (Power o position) for 15 seconds.

• Turn on the unit againPage 42 Safety Notices Engli sh fCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modications to the equipment unless otherwise specied in the manual. If such changes or modications should be made, you could be required to stop operation of the equipment.Page 43 Safety Notices Engli sh

1. Read Instructions: All the safety and operating instruc-

tions should be read before the product is operated.

2. Retain Instructions: The safety and operating instruc-

tions should be retained for future reference.

3. Heed Warnings: All warnings on the product and in

the operating instructions should be adhered to.

4. Follow Instructions: All operating and usage instruc-

tions should be followed.

5. Cleaning: Unplug this product from the wall outlet be-

fore cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments: Use only attachments recommended by

the manufacturer. Use of other attachments may be hazardous.

7. Water and Moisture: Do not use this product near

water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).

8. Ventilation: Slots and openings in the cabinet are

provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installa- tion such as a bookcase or rack unless proper ventila- tion is provided or the manufacturer instructions have been adhered to.

9. Power Sources: This product should be operated only

from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from bat- tery power or other sources, refer to the operating instructions.

10. Overloading: Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in a risk of re or electric shock.

11. Object and Liquid Entry: Never push objects of any

kind into this product through openings as they may touch dangerous voltage points or shout-out parts that could result in a re or electric shock. Never spill liquid of any kind on the product.

12. Servicing: Do not attempt to service this product your-

self as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servic- ing to qualied service personnel.

13. Damage Requiring Service: Unplug this product from

the wall outlet and refer servicing to qualied service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) ifPage 44 Safety Notices Engli sh the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualied techni- cian to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.

14. Replacement Parts: When replacement parts are re-

quired, be sure that your service technician has used replacement parts specied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in re, electric shock, or other hazards.

15. Safety Check: Upon completion of any service or

repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.

16. Heat: The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other products (including ampliers) that produce heat.

Coby and Kyros are trademarks of Coby Electronics Corporation. Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. Portions of the artwork used for this package are modications based on work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. HDMI, the HDMI Logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. microSD is a registered trademark of the SD Card Association. USB is a registered trademark of USB Implementers Forum, Inc. YouTube™ is a trademark of Google, Inc. All other trademarks and logos are property of their respective owners unless indicated otherwise.Page 45 Safety Notices Engli shEspa ñol Page 46 Índice De Contenidos
