USER MANUAL 355W Elite Cat Mate

Pet Mate Ltd. guarantees your product for a period of 3 years from the date of purchase, subject to the registration of your purchase details on our website www.pct-mate.com within 14 days of purchase. (If you do not have access to a computer, please send details of your purchase with copy of receipt along with your name and address). In the event of a fault developing contact Pet Mate customer services for a returns authorisation number. The guarantee is limited to any defect arising due to faulty materials or manufacture. Any defective defect is not caused by an replacement free of charge at the manufacturer's discretion, provided that the defect has not been caused by neglect, misuse or normal wear and tear. Your statutory rights are not affected.

D GARANTIE

1. This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
   (1) This device may not cause harmful interference.
   (2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
   NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
   These limits are designed to provide reasonable protection against harmful interference in a residential installation.
   This equipment generates uses and can radiale radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
   However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
   • Reorient or relocate the receiving antenna.
3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

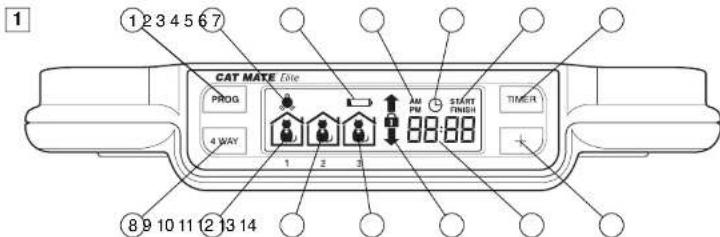

1 2 3 4 5 6 7 CAT MATE File PROG 4 WAY AM PM START FINISH 88:88 TIMER 8 9 10 11 12 13 14

1. PROG' (PROGRAM) button

2. Microchip / I.D. Disc search indicator

3. Low battery indicator

4. AM/PM indicators

(12Hr clock mode)

1. TIMER function indicator

2. TIMER mode 'Start:Finish' indicators

3. TIMER button

4. 4 WAY button

9 - 11. CAT 1 - 3 location symbols

1. "4 WAY" look indicators

2. Alphosomia spionu (normally

states time

1. 'ADVANCE' button

Diagram of a hand holding a device with an arrow pointing upward (no text or symbols present)

3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

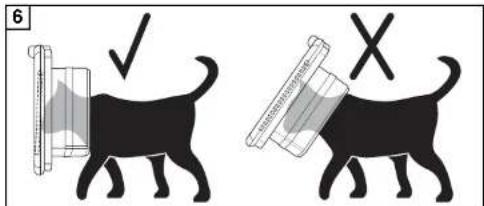

6 ✓ X

Illustration of a hand using a tool to interact with a black cat (no text or symbols present)

Line drawing of a hand inserting a small circular component into a rectangular device (no text or symbols)

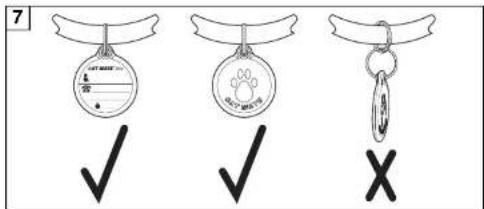

7 ✓ ✓ ✓ X

IMPORTANT - READ BEFORE USE

1. Zocinatalcy microchip I.D. also

9 - 17. IGT 1 - 2 locaticsymbol

1. Lape Anterior Indicator

17.4 WAY CAMPIONALNATATO

1. AMPS indicator (12-wms index)

(2) Unusual design scheme (cell powertrain)

1. TMSE (activator)

No. 107

© 19450: State Farm industry

14 ADVANCE

1. THERK

8a 150mm (6")

8b 5mm (3/18)

12	t	[IMAGE]
	0 - 12mm ( 0^-1/2 ")	25mm ( 1" )
	12 - 25mm ( ^1/_2 - 1" )	38mm ( 1^1/_2 ")
	25 - 38mm ( 1 - 1/_2 ")	50mm ( 2" )*
	38 - 50mm ( 1^1/_2 - 2" )	65mm ( 2^1/_2 ")
		* Not supplied

9a Metal doors only 150mm (6")

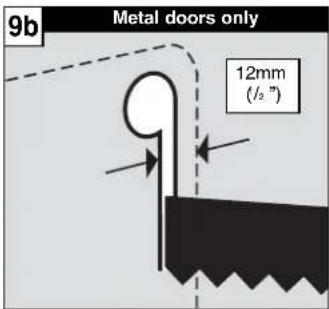

9b Metal doors only 12mm (/2")

Diagram of a container with internal flow arrows and circular patterns, no text or symbols present

14

10 t

11 S S4 S3

Technical line drawing of a mechanical assembly with a tool interacting with a component (no text or symbols)

16

1. Introduction

Thank you for choosing the Cat Mate Elite Microchip Cat Flap with Timer Control.

CAREFULLY READ THESE INSTRUCTIONS AND PROGRAM / TEST THE CAT FLAP BEFORE YOU INSTALL IT.

The Cat Mate Elite Microchip Cat Flap with Timer Control allows entry for up to 9 cats into your property. It also allows you to control the exit of all your pets using a timer or 4 way lock. Furthermore, it will allow you to monitor the movement of up to 3 individual cats - showing when your cat last entered or left the house, and how many hours since your cat last used the flap.

The cat flap is suitable for all popular microchips. Alternatively it may be operated by a Cat Mate I.D. Disc (available separately). You may wish to use an I.D. Disc for cats without a microchip or in the event that your cat's microchip is faulty or poorly positioned.

To ensure that your chosen settings cannot easily be tampered with, we have made the control buttons so that they need to be pressed firmly to operate.

If you wish to stop any task (except programming) at any stage, the system will time out after 60 seconds.

Settings will not be saved unless you press the 'PROG' button.

2. Fitting the Batteries

2.1 Remove the battery cover by pushing the battery cover upwards (see Fig. 2). The cover will snap off.
2.2 Insert 4 x AA (R6) batteries as shown (Fig. 3), by sliding the 2 end batteries in first.
2.3 The cat flap will self-check for up to 60 seconds after which only the 'IN & OUT' arrows will be visible on the LCD display. The flap is ready to program.

You may use all popular batteries including rechargeable and lithium batteries but the 'BATTERY INDICATOR' will only work correctly with alkaline batteries. Good quality alkaline batteries should last approximately 12 months (depending on number of cats and usage).

3. Programming

The next step is to program the microchip (or I.D. Disc) belonging to each cat.

NOTE: The programming sequence is time sensitive and the LCD will revert to the normal display if each step is not completed within approximately 15 minutes.

In order for the flap to recognise your cat(s) microchip you need to do the following:

3.1 Press and hold the 'PROG' button for 5 seconds (1, Fig. 1) until the search indicator (2), Fig. 1) appears.
3.2 'CAT 1' and the number '1' will flash - there will be lines moving around the first 'TWO ZEROS'.

3.3 To program your cat's microchip, encourage your cat to slowly pass through the tunnel by holding the flap open as shown in Fig. 4. Alternatively, to program your cat's I.D. Disc, place the front of the I.D. Disc in the tunnel opening (Fig. 5).
3.4 When programmed, the 'TWO ZEROS' will disappear and 'Pr1' will flash.
3.5 Press the 'PROG' button to save the setting.
For additional cats, up to a maximum of 9, repeat steps 3.1 to 3.5.

4. Fitting Instructions (see Figs. 8a to 16, pages 4 and 5)

IMPORTANT:

• Do not cut tunnel of cat flap.
• To check that your cat's microchip is correctly positioned and functioning, we strongly recommend you program the cat flap for all your cats before installation (see Section 3). Then check the cat's microchip operates the lock when the cat's head is pushed gently against the flap as shown in Fig. 6.

4.1. Wooden Doors 0-50mm (0-2") Thick

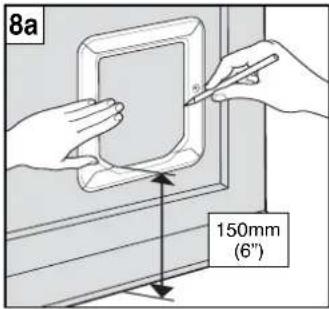

4.1.1 Place exterior frame in desired position on door. We recommend the bottom of the aperture is approximately 150mm (6") above ground level. (Fig. 8a). If you must fit higher consider providing a step to help your cat enter.
4.1.2 Draw around the aperture (Fig. 8a), then using an electric jigsaw cut 5mm ( ^3 / _10 ) outside of the line. (Fig. 8b). Be careful to cut hole square to the door, particularly with thicker doors. Ensure interior frame is free fitting in hole.

4.1.3 Determine thickness of door panel, (t). (Fig. 10).

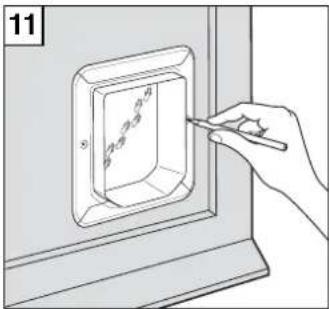

4.1.4 Holding the interior frame and the exterior frame in position, mark the 2 screw holes. (Fig. 11).
4.1.5 Remove the frames and drill screw clearance holes in panel to 6mm (1/4") diameter.
4.1.6 Position interior frame on inside of door and screw exterior frame to it by using appropriate screws for panel thickness, (t), as shown in Fig. 12. If necessary, cut supplied screws to length. Finally fit two screw caps.

4.2 UPVC / Metal Doors 0-50mm (0-2") Thick

Doors constructed with metal panels may reduce the range of the microchip reader. You may test for metal panels by drilling a small trial hole in the middle of the intended cat flap location.

For UPVC / metal doors it is essential to cut a larger hole than for wooden doors and to retune the cat flap as below:

4.2.1 Place exterior frame in desired position on door. We recommend the bottom of the aperture is approximately 150mm (6") above ground level. (Fig. 9a). If you must fit higher consider providing a step to help your cat enter.

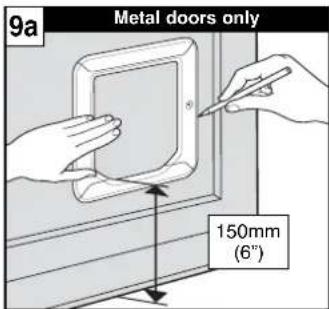

4.2.2 Draw around the OUTSIDE of the frame. (Fig. 9a). Using an electric jigsaw cut 12mm ( ^1/2 ) INSIDE the line (Fig. 9b).
4.2.3 Determine thickness of door panel, (t). (Fig. 10).
4.2.4 Position interior frame on inside of door and screw exterior frame to it by using appropriate screws for panel thickness, (t), as shown in Fig. 12. If necessary, cut supplied screws to length. DO NOT OVERTIGHTEN SCREWS which may prevent the flap from closing properly - use a manual screwdriver. Finally fit two screw caps.
4.2.5 Remove batteries for a minimum of 2 minutes after installation. This will enable the cat flap to retune itself to its new location.

4.3 Glass Panels

4.3.1 We recommend that you ask a glazier to cut a hole of 232mm (9 ^1/_s ) diameter in the position required and then install the cat flap as detailed below. Alternatively, you may prefer to replace the glass panel with a clear plastic panel and install as instructions 4.1.1 to 4.1.6.
Note: It is not possible to cut a hole in double glazed or toughened glass. You will need a new glass panel with the hole already cut from your glazier.
4.3.2 Determine thickness of panel, (t). (Fig. 10).
4.3.3 The black foam seal is not suitable for fitting to glass and should be removed. If desired, the exterior frame may be sealed to the glass panel using silicone sealant.
4.3.4 Position interior frame on inside of panel, screw exterior frame to it by using appropriate screws for panel thickness, (t), as shown in Fig. 12. If necessary, cut supplied screws to length. DO NOT OVERTIGHTEN SCREWS which may prevent the flap from closing properly - use a manual screw driver. Finally fit two screw caps.

4.4 Wall Fitting

If you are installing your cat flap in a wall, you will need to purchase Cat Mate Elite Wall Liners. You will need 1 wall liner for every 50mm (2") of wall thickness over 100mm (4").
4.4.1 Create a rectangular hole in your wall 205mm (8") high by 180mm (7") wide.
4.4.2 Remove interior frame battery cover by pushing up as shown (Fig. 2).

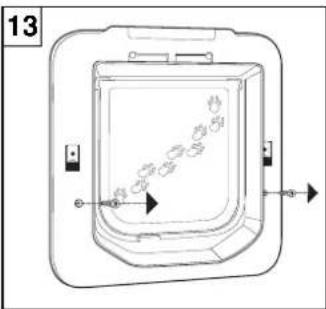

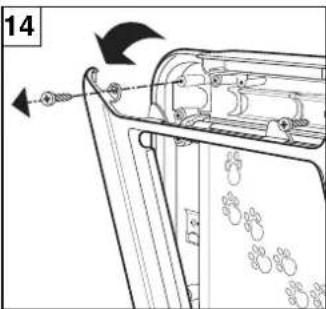

4.4.3 Remove interior frame cover by unscrewing 2 screws in rear of interior frame (Fig. 13). (Note: these screws may be discarded as it will be impossible to refit them). Next remove the outermost 2 screws under the battery cover and remove the interior frame by pivoting down (Fig. 14).

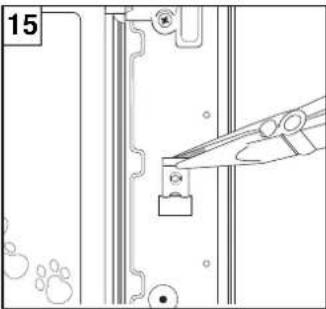

4.4.4 Carefully remove 2 screw clips with pliers. (Fig. 15).

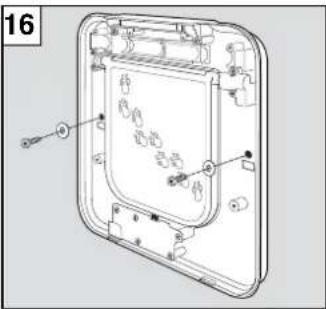

4.4.5 Fit interior frame assembled with requisite number of wall liners to interior wall securing in position with 2 suitable screws as shown in Fig. 16. (Note: you will need to fit a washer (not supplied) under the head of the screws). If required, the wall liners may be glued in place, although a firm push fit will usually suffice.

4.4.6 Refit interior frame cover with 2 screws under battery cover, taking great care not to trap electrical wires. Replace the battery cover.
4.4.7 Fit exterior frame using 2 off 25mm (1") screws supplied and finally, fit 2 screw caps.

5. Training Your Cat to Use the Cat Flap (or if Your Cat Has Lost its I.D. Disc)

It may take a little time for your cat to get used to its new cat flap. To help your cat get used to entering and exiting the flap, the flap can be set to 'TRAINING MODE' by pressing and holding the 'PROG' button and within 3 seconds briefly pressing the '4 WAY' button.

After 5 seconds the lock will unlock and the 'PROG' button should then be released. The 'IN & OUT' symbol will remain flashing.

Please be aware that in 'TRAINING MODE' your cat flap will allow access for other animals.

To exit the 'TRAINING MODE', press and hold the 'PROG' button and within 3 seconds briefly press the '4 WAY' button. After 5 seconds the flap will re-lock and the 'PROG' button should then be released.

For very hesitant cats, whilst in the 'TRAINING MODE', use food to encourage the cat to enter and exit the flap.

NOTE: We do NOT recommend that cats, particularly kittens, are left alone to use their cat flap until you are satisfied that they are completely familiar with its operation.

6. Viewing Your Cat's Location

The LCD shows at a glance, the location of up to three cats (1-3).

The cat last went through the The cat last went through the flap, coming into the house. flap, going out of the house.

Please note this display is only a guide to your cats' location. The cat flap determines the location of your cat by recording its last movement through the cat flap. The results may be misleading if the cat has an alternative entrance/exit to the house or if the cat has followed another cat through the cat flap; if it only puts its nose out of the cat flap etc.

7. To View How Long Since the Cat(s) Last Used the Cat Flap

7.1 To view how many hours and minutes since cats 1, 2 or 3 last used the cat flap, press the '+' button.
7.2 The display will show the symbol for 'CAT 1' and how many hours and minutes ago 'CAT 1' used the flap up to a maximum of 99 hours.
7.3 Press '+' again for similar information on Cats 2 and 3.
7.4 Press '+' a fourth time (or leave for 20 seconds) and the normal display will be resumed.

8. Access Options

The access options available are shown below.

'In & Out' Your cat(s) can come in and out of the flap

'In Only' Your cat(s) can come in through the flap but cannot leave through the flap

'Out Only' Cat(s) can go out through the flap but cannot enter through the flap

'Locked' Cat(s) cannot use the flap

Select an access option as follows:

8.1 Press and hold the '4 WAY' button for 5 seconds until the display flashes.
8.2 Repeatedly press the '4 WAY' button to scroll through the available access options, until you come to the one you want.
8.3 Press the 'PROG' button to save the setting.

8.4 Setting Timer Control/Clock for ALL Cats

If you wish to set your cat flap to ensure that ALL cats have a particular access option, over a selected timed period, e.g. to keep your cat(s) in at night between 19:00 and 06:00, you will first need to decide:
a) Which lock setting should apply DURING the timed period, (in the above example 'IN ONLY' will apply). Outside the timed period, the lock setting made in 8.1 to 8.3 will apply.
b) When the timed period should 'START' (In the above example 19:00hrs).
c) When the timed period should 'FINISH' (in the above example 06:00hrs).
d) You will also need to know the current time.

Proceed as follows:

NOTE: if you do not press a button for more than 60 seconds the display will revert to normal and you will need to start again.

8.4.1 Press the 'TIMER' button for 5 seconds until the Timer function indicator flashes.
8.4.2 Repeatedly press the '4 WAY' button to select the required access options from: 'IN & OUT', 'IN ONLY', 'OUT ONLY', 'LOCKED' or 'OFF'.
8.4.3 Press the 'PROG' button to save the setting.
8.4.4 The display will show time with the Minute symbol flashing. Repeatedly press the '+' button until the current Minutes setting is shown (i.e. 10 if the current time is 12:10).

8.4.5 Press the 'PROG' button to save the setting.
8.4.6 The display will now show the time with the Hour symbol flashing. If you wish to change between a 24 hour clock and AM/PM setting, press the 'TIMER' button.
8.4.7. Repeatedly press the '+' until the correct Hour setting is shown (e.g. 12 if the current time is 12:10).
8.4.8. Press the 'PROG' button to save the setting.
8.4.9. The display will show the word 'START' and the minutes will flash. Press the '+' button until the desired minutes setting is shown, (in the above example '00'). Press the 'PROG' button to save the setting.
8.4.10 Then set the hours in the same way (in the above example 19:00).
8.4.11 The display will show the 'FINISH' time. Set in the same way as the 'START' time. Remember to press 'PROG' to save the setting.

When the Timer is set, the Timer function indicator (⑤, Fig. 1) will be shown on the display.

When the timed lock is active, the access option symbol chosen at 8.2 will flash slowly.

To check the time settings, briefly press the 'TIMER' button and release. The display will show the timed access option selected and the 'START' time. Press the 'TIMER' button again to show 'FINISH' time. The display will revert to current time after 5 seconds.

To cancel timer control and revert back to the normal access option:

8.4.12 Press the 'TIMER' button for 5 seconds.
8.4.13 Press the '4 WAY' button and go back through the options until you come to 'OFF'.
8.4.14 Press the 'PROG' button 3 times to keep the current clock time and return to the normal display.

9. Battery Replacement

When the 'BATTERY INDICATOR' comes on (③, Fig. 1), alkaline batteries should be replaced. (See Section 2).

Please note, after fitting new batteries:

• 'BATTERY INDICATOR' may remain on for up to 15 minutes.
• Flap will remember all microchip(s) and I.D. Disc(s), Lock Settings and Lock Times but CURRENT TIME WILL NEED RESETTING. (See section 8.4).

10. Reprogramming a Microchipped Cat or I.D Disc

10.1 Press the 'PROG' button for 5 seconds, the next unused Cat number will flash and there will be lines moving around the first 'TWO ZEROS'.

10.2 Press the '+' button to select the appropriate Cat number you wish to reprogram or select the next available Cat number. (A 'P' next to the Cat number indicates that it has already been programmed, although you may reprogram as follows).

10.3 To program your cat's microchip, encourage your cat to slowly pass through the tunnel by holding the flap open as shown in Fig. 4. Alternatively, to program a replacement I.D. Disc, place the front of the I.D. Disc in the tunnel opening (Fig. 5).

10.4 When programmed, the 'TWO ZEROS' will disappear and 'Pr' will flash.

10.5 Press the 'PROG' button to save the setting.

For additional cats, up to a maximum of 9, repeat steps 10.1 to 10.5.

11. Factory Reset

To reset the cat flap back to the setting when you first bought it, press and hold the '+' button for about 30 seconds until all symbols show on LCD. After a period of self checking, the 'IN & OUT' symbol will be all that is visible on the LCD display. This procedure will erase all I.D. Disc(s) / microchip(s) and all other settings. You will then need to re-program the I.D. Disc(s) / microchip(s) (See Section 3).

12. High Security Mode

This cat flap is supplied with high security mode disabled as this makes it easy for your cat to get used to its new flap. In this mode the flap has the quickest possible response time to the cat's microchip.

Once the cat has become accustomed to using the cat flap it is recommended that high security mode is enabled. This gives improved security against entrance by raccoons and persistent neighbourhood cats and longer battery life.

You can switch the flap to high security mode ('Eon') as follows:

12.1 Press and hold 'PROG' button and within 3 seconds briefly press the '+' button. When the display shows 'EOFF' or 'Eon' release the 'PROG' button.

12.2 You may toggle between 'EOFF' and 'Eon' by pressing the '4 WAY' button. Press 'PROG' to save the desired setting.

13. Troubleshooting

13.1 Cat will not use the flap

It may take time for timid cats to learn how to use the cat flap - even if they have used another cat flap before.

- First try using 'TRAINING MODE' (See Section 5).

- Check the high security mode is disabled so your cat will find it easier to use the flap (See Section 12).

13.2 Cat's microchip will not program

- Your cat's microchip might be faulty or poorly positioned. Contact Pet Mate Customer Services or fit a Cat Mate I.D. Disc.

13.3 Flap does not open in response to programmed microchip or I.D. Disc

• Check the cat's microchip or I.D. disc operates the lock when the cat's head is pushed gently against the flap as shown in Fig. 6.
• If fitted in UPVC / metal door, ensure correct cut out size has been made (See Section 4.2).
• When fitted to UPVC / metal door check the unit has been retuned by removing batteries for a minimum of 2 minutes.
• Check '4 WAY' lock is programmed to permit access in the chosen direction (See Section 8).
• Ensure a timed lock is not activated, (evident by flashing '4 WAY' lock setting). If required, cancel the timed lock (See Sections 8.4.12 to 8.4.14).
• The high security mode may have been activated (denoted by 'Eon' on the display). Do not move the flap until 'Eon' disappears.
• Check batteries are correctly orientated (Fig. 3) and the low battery symbol (③, Fig.1) does not show.
• If using an I.D. Disc, check it is correctly fitted to cat's collar (Fig. 7).
• If possible, try operation with another programmed I.D. Disc / microchip to ascertain if there is a fault with a particular I.D. Disc / microchip.
• Check that the cat flap is mounted at correct height (See Section 4).
• If all else fails, remove batteries and wait a minimum of 5 minutes. Refit batteries and then perform a 'FACTORY RESET' (See Section 11).

13.4 Flap has not fully closed

• Check that the cat flap frame is not overtightened with the 2 fixing screws. Try loosening screws slightly.
• Very occasionally this will be due to an unusual event in which the electronics will normally self correct within 30 minutes. If problem persists remove batteries for 5 minutes before replacing when correct lock action should be resumed.

13.5 Difficulty in setting required functions/times

• Buttons need to be pressed firmly.
• Remember to press the 'PROG' button after making any change to save the setting.

13.6 Display locks up

• Remove batteries for 5 minutes, then replace.
• If the display is still locked perform a 'FACTORY RESET' (See Section 11).

13.7 Flap does not lock

• Check flap not in 'TRAINING MODE' (slowly flashing arrows).
• Wait 30 minutes for self correction.

D

1. Einführung
