USER MANUAL 490060 Cilio

- WERDEN SIE KREATIV!

Operating and Care Instructions

Please keep the operating instructions!

cilio

Thank you for choosing this high-quality chocolate fountain. To ensure that you have lots of enjoyment using your new fountain, please take note of the following information and keep the operating instructions in a safe place for future users.

Important Advice

Please read through these operating instructions carefully prior to operating the fountain for the first time and pay attention, in particular, in your own interest, to the safety advice in order to avoid accidents and malfunctions. Safety may be compromised by using it for a purpose for which it is not intended, through improper use or through inadequate cleaning and care. Considerable risks can arise for the user as a result of this. cilio cannot accept any liability for damage, injuries or losses that are attributable to improper use.

Intended Use

The chocolate fountain is solely intended for delivering premelted chocolate and cheese. Any other use, or any other use which goes beyond this, is regarded as not being intended. We are not liable for losses, damage or injuries arising from this. The user alone bears the risk.

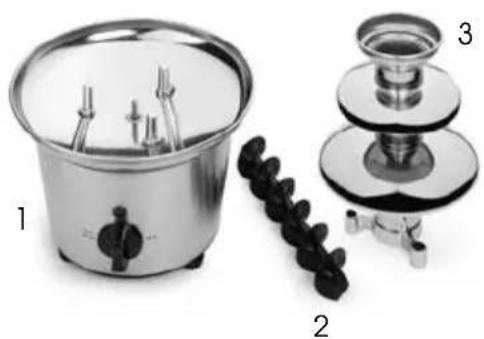

Unpacking and Items Supplied

After unpacking, check the items supplied:

motor block with bottom dish (1)
- worm screw (2)
tower (3)
- instructions for use

General Safety Advice

Caution!

Never touch the worm screw or other moving parts whilst in operation.

Caution!

There is a slight risk of burns. The appliance is operated using a heating device. Allow the appliance to cool down before cleaning and pull out the plug.

• NEVER operate the appliance unattended. This applies particularly if children are around.
• NEVER immerse the power cable, the plug or the motor block (1) in water or other liquids. The appliance would be ruined by doing so.
• Pull the plug out before inserting or removing the worm screw.
• Only use accessories recommended by the manufacturer.
• The appliance is not suitable for outdoor operation.
• Repairs to the appliance may only be carried out by the customer service department authorised by us. The right to make a claim under the warranty ceases to apply in the event of actions to the contrary.

Operation

The operation of the chocolate fountain appliance is arranged on a step-by-step basis. Do not, under any circumstances, carry out the operating steps in the „setting up and switching on“ section, for example, before carrying out the operating steps in the „preparation of appliance“ section.

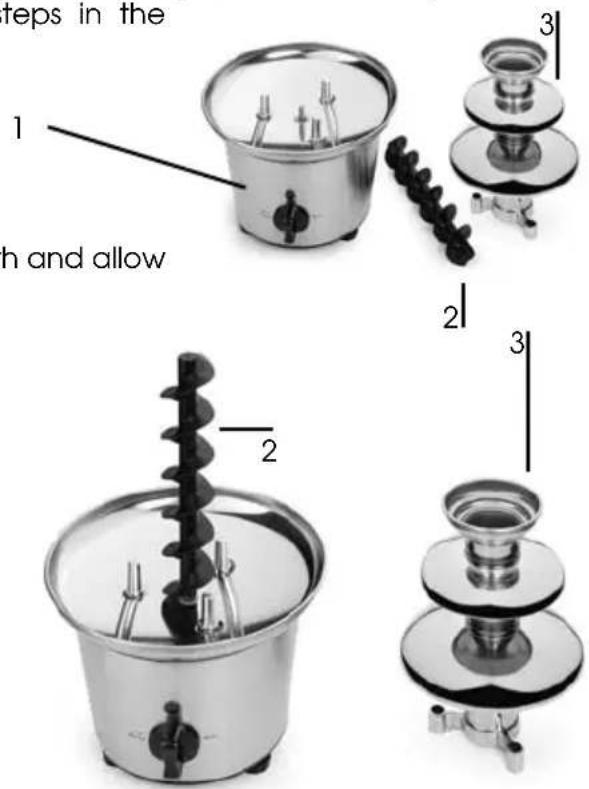

Preparation of Appliance

1. Wipe the bottom dish (1) clean with a damp cloth and allow it to dry.
2. Preclean the worm screw (2) and the tower (3) using washing-up liquid and rinse with clean water. Then wipe it dry.
3. Insert the worm screw (2).

cilio

1. Insert the tower (3) and press down until it stops.

Setting Up and Heating Up

CAUTION!

• Keep the appliance and the power supply (mains cable or extension cable) away from water sources and sources of heat.
• Only use suitable extension cables.

• Arrange the power supply in such a way that people cannot trip over it inadvertently or that the latter cannot be reached by children.

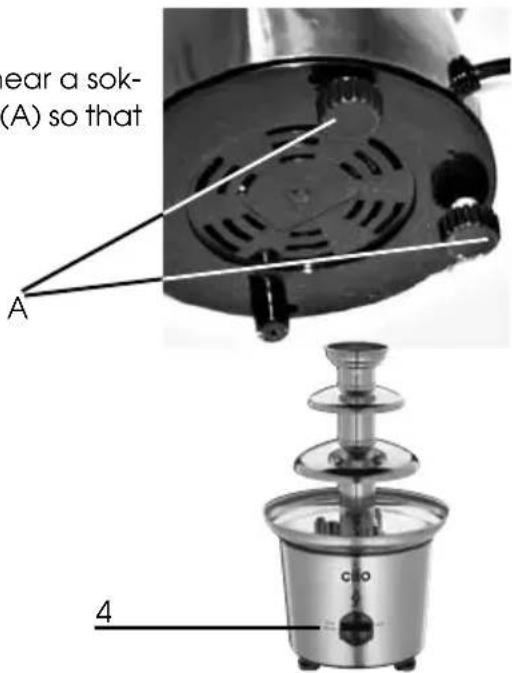

• Set up the appliance on a stable and even base near a Sokket. Adjust the appliance using the adjustable legs (A) so that it is horizontally straight.

1. The switch (4) must be in the "OFF/AUS" position.

2. Plug the power cable into a socket.

CAUTION!

• Liquid chocolate must only be poured into the bottom dish of the appliance once the heating up period has come to an end.
  The heating up time is approx. 3-5 minutes.

• Set the switch (4) to the "HEAT/WärME" position (the heating up period begins). In the meantime, you can prepare the chocolate.

Preparing the chocolate

CAUTION!

• Do not use any chocolate containing ingredients such as nuts, almonds or cracknel. This can jam the worm screw (2).
• The smaller the pieces of chocolate, the faster the melting process.
• Premelt approximately 600g of chocolate.

TIP!

• There are various options for premelting the chocolate.

Melting in the microwave

• preparation time approx. 10 minutes
• break up the chocolate into small pieces and premelt it for a maximum of 2 minutes at 600W in a container that is suitable for microwaves. Then add the desired amount of oil and stir thoroughly
• start the chocolate fountain prior to filling it and allow it to warm up for approx. 5 minutes

Melting in a saucepan (directly with the oil)

• Preparation time approx. 20 minutes
• Heat up the desired amount of oil/fat in small stages in a coated saucepan (do not apply too strong a heat). Add the chocolate, which has previously been broken up into small pieces, and allow it to melt stirring continuously. A smooth mixture must be produced.
• Start the chocolate fountain prior to filling it and allow it to warm up for approx. 5 minutes.

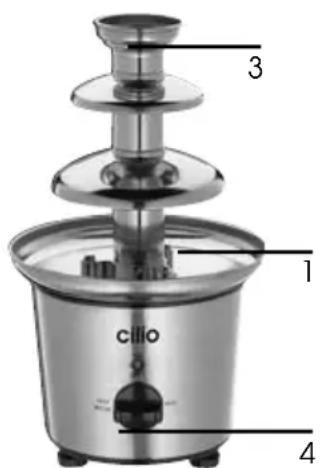

Melting in the appliance

• Preparation time approx. 60 - 120 minutes.

• Set the switch (4) to the "HEAT/WÄRME" position and allow the appliance to warm up for approx. 5 minutes.

• Place the chocolate, which has previously been broken up into small pieces, in the bottom dish (1).
• The chocolate is now slowly and gently melted.
• When all of the chocolate has melted, stir in the required amount of vegetable oil using a teaspoon.

TIPI!

In the event of the chocolate mixture not running evenly over the tower (3), briefly switch off the appliance and allow it to cool down a little. Then restart the appliance.

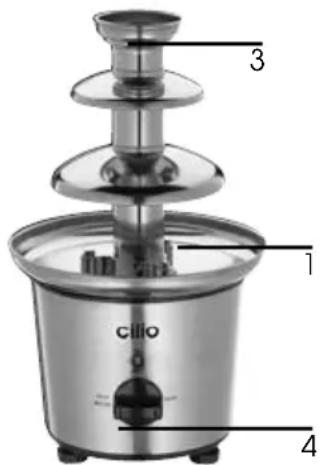

Starting the worm screw and producing the fountain effect

1. Set the switch (4) to the "HEAT/WärME" position and allow the appliance to warm up for approx. 5 minutes.
2. A mixture is ready to be poured in if the chocolate has completely melted and it has a runny consistency.
3. Place the heated mixture in the bottom dish (1).
4. Now set the switch (4) to the "MOTOR & HEAT/WÄRME" position (the worm screw starts).
5. The chocolate mixture is sucked in below the tower (3) and comes out again at the top end of the tower (3).

TIP!

• If the mixture has been properly prepared, this results in a continuous fountain flow and the tower is completely covered.
• More liquid chocolate can be added at any time whilst in operation
• If you are expecting a lot of guests, it is recommended that you have a certain amount of chocolate at the ready.

Applying the chocolate

TIP!

Interruptions or a halt to the fountain flow can be avoided, if you::

• do not allow any pieces of food to fall into the chocolate.

• never add cool or cold liquids.

• skewer the desired food with a wooden skewer or a fondue fork, for example, and hold it in the flowing chocolate.

Ending the operation

CAUTION!

1. Set the switch (4) to the "OFF/AUS" position.
2. Disconnect the appliance from the power supply (remove the power cable).

Cleaning

CAUTION!

• There is slight risk of burns. The appliance is operated using a heating device. Allow the appliance to cool down before cleaning and pull out the plug.
• Please be particularly careful if you are moving the appliance whilst the contents are hot.

CAUTION!

• Do not pour excess chocolate down the drain or the toilet (risk of blockage). Use other disposable containers or plastic bags and put them in with the household waste.
• The motor block (1) contains all the electrical components. NEVER immerse the motor block in water or clean it in the dishwasher.
• NEVER use scouring sponges or scouring cloths.

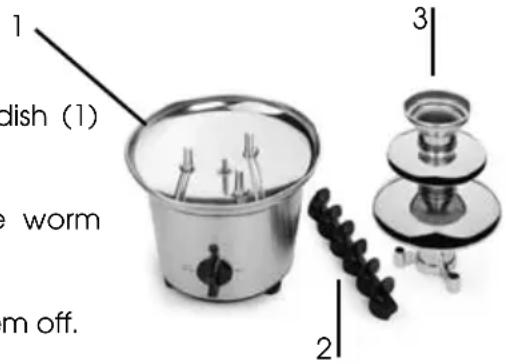

TIP!

We recommend cleaning the bottom dish, the tower and the worm screw by hand. The use of a dishwasher should be avoided.

1. Disassemble the appliance.
2. Wipe the motor block clean along with the bottom dish (1) using a damp cloth and allow them to dry.
3. Prepare some hot washing-up water and place the worm screw (2) and the tower (3) in it for approx. 5 minutes.
4. Then clean them, rinse them with clean water and dry them off.

Basic Recipes for 6-10 people

Milk Chocolate Fountain

• Ingredients:

600 g of milk chocolate / 85 ml of vegetable oil (with a neutral taste)

Preparation:
Melt the chocolate. As soon as the chocolate has completely melted, add the oil and stir it in.
- TIP: An interesting variation is mixing 300g of milk chocolate with 300g of plain chocolate.

Cheese Fountain

• Ingredients:

500g of creamy cream cheese spread / 200 ml of full-cream milk (3.5%)

• Preparation:

Heat up the milk in a saucepan. Then stir in the cheese until the cheese has completely melted. Then remove the saucepan from the hotplate and allow the mixture to stand for approximately 5 minutes. In the meantime, preheat the chocolate fountain appliance.

• TIP: Instead of milk use a medium dry white wine or season the cheese mixture with curry, chilli or pepper as desired.

cilio

Breakdown Support Guide

This breakdown support guide does not claim to be complete but confines itself to the most commonly identified sources of failure in our experience.

Failure	Cause	Remedy
The chocolate drips and does not flow evenly	The liquid chocolate is too thick.	Dilute with cooking oil.
	The appliance is not in a horizontal position.	Straighten up appliance, see section “Setting up and Heating Up”.
The chocolate flows unevenly and does not create a “fountain effect”.	The appliance is not in a horizontal position.	Straighten up appliance, see section “Setting up and Heating Up”
The chocolate flow is being constantly interrupted.	Food residues have fallen into the chocolate	Remove the food residues. As a rule, they are to be found in the bottom dish at the suction slot on the tower.
The chocolate flow is interrupted after adding more chocolate or other ingredients.	The ingredients are too cold.	Wait until the ingredients are warmed up. NEVER add ingredients that are cold.
The appliance does not start up.	The plug is not in the socket.	Insert the plug into the socket.
	The switch (4) is in the “OFF/AUS” position.	Switch the appliance on.

cilio
