USER MANUAL Skyracer Breitling

INSTRUMENTS FOR PROFESSIONALS

SKYRACER

FRANÇAIS

MISE EN SERVICE 5

PARTICULARITÉS 8

ENTRETIEN 11

ENGLISH

PREPARING THE WATCH FOR USE 15

SPECIAL CHARACTERISTICS 18

MAINTENANCE 21

DEUTSCH

INBETRIEBNAHME 25

BESONDERHEITEN 28

WARTUNG 31

ITALIANO

REMONTAGE-MISEA L'HEURE

A chronometer is a high-precision instrument that has successfully passed the entire battery of tests imposed by the COSC (Swiss Official Chronometer testing Institute), a neutral and independent body which individually tests each movement according to the prescriptions in force.

the certification test for wristwatches with sprung balance oscillators, according to the ISO 3159 norm, consists of observing each movement for 15 days and 15 nights, in 5 positions and at 3 different temperatures (8^,23^, 38^) . In order to earn the prestigious chronometer label, a movement's performances must meet 7 very strict criteria, including a daily variation in rate ranging between only -4 / + 6 seconds.

The term "chronometer" should not be confused with that of "chronograph", which is a complicated watch fitted with an additional mechanism enabling the measurement of the duration of an event. A chronograph is not necessarily chronometer-certified, but all BzElling chronographs carry the much-coveted title of "chronometers".

PREPARING THE WATCH FOR USE

WINDING-TIME-SETTING

Notea bene: mechanical watches endowed with a date, day, month or moon-phase indicator are equipped with a complex mechanism that is set into motion between 8 pm and 3 am. It is therefore vital to avoid adjusting the calendar or moving the time backwards during this period.

1. Unscrew the water-resistant crown in an anti-clockwise direction. Wind the watch by 40 clockwise turns of the crown.
2. Pull the crown out to position 2, turn it anti-clockwise to adjust the calendar to the day prior to the date when it is set into operation.
3. Pull the crown out to position 3. turn the hands so as to make the calendar jump once when the hands pass through midnight. Then adjust the hour and minute.
4. Push the crown back to position 1. Press it gently, turning it gently in a clockwise direction, then tighten it again until you feel some resistance. Do not force!

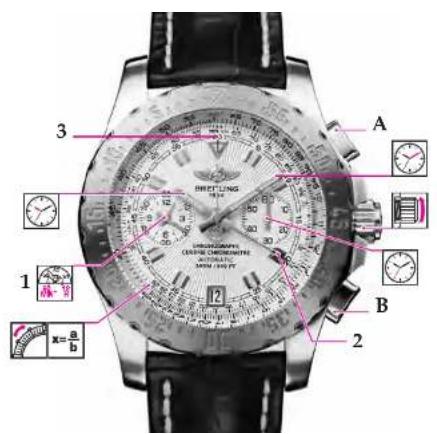

USING THE CHRONOGRAPH

I. MEASURING A SINGLE SHORT TIME

1. Press pushpiece A to start the chronograph. Hand 3 allows you to follow the measurement in seconds.
2. Stop the measurement by pressing pushpiece A once more. The measurement is performed in hours and minutes (totalizer 1), in minutes only (hand 2) and in seconds and 14 of a second (hand 3).
3. reset the chronograph to zero by pressing pushpiece B.

II. MEASURING AN INTERRUPTED SHORT-TIME

1. Press pushpiece A to start the chronograph. Hand 3 allows you to follow the measurement in seconds.
2. to interrupt the measurement, press pushpiece A once more. to restart the time measurement, press pushpiece A. this procedure makes it possible to add several short times.
3. t he chronograph is reset to zero by pressing pushpiece B, once the final measurement has been stopped.

SPECIAL CHARACTERISTICS

TIMER BEZEL

This type of bezel comprises a minute scale graduated from 60 down to zero. It enables one to visualize a countdown by lining up the time to be counted off opposite the minute hand.

COMBINED 60-MINUTE/12-HOUR TOTALIZER AND ADDITIONAL CENTER 60-MINUTE TOTALIZER

Your chronograph is equipped with a combined 60min / 12H totalizer, which is read off in the same way as a classic time display. This considerably simplified reading is complemented by a precise indication of the minutes on the main dial (hand 2).

SUN COMPASS

Your Bre li Ling chronometer may be used as a sun compass, thus enabling you to determine the n ortherly-Southerly direction. For regions that have instated daylight saving time, subtract one hour when directing the watch.

In the Northern hemisphere

Point the hour hand precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock indicates the South, the n orth being exactly opposite.

In the Southern hemisphere

Point the hour-marker located at 12 o'clock on the dial precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock indicates the n orth, the South being exactly opposite.

MAINTENANCE

Your BreltIng chronometer is a sophisticated instrument which is constantly subjected to a wide variety of stresses and strains. Within a very small volume, a large number of components contribute to handling all the functions. Their mechanical action inevitably leads to a certain amount of wear and tear, which may be controlled by maintenance consisting of renewing the lubrication and replacing worn components. Like any precision measurement instrument, your watch must be regularly maintained in order to function at its highest level of potential: we recommend a regular service every two years, while the complete overhaul should be scheduled about every five years. Your authorized BreltIng dealer will be pleased to handle this for you.

WATER-RESISTANCE

the movement of your chronometer is protected by a complex case fitted with gaskets to ensure its water-resistance. Under the influence of various external agents - perspiration, chlorinated or salt water, cosmetics, fragrances or dust - these gaskets gradually deteriorate and must be regularly replaced. If used intensively in water, we recommend that this be done once a year as part of a service. If the watch is only occasionally used in water, this operation may be carried out every two years. Moreover, a

water-resistance test should be done every year; it takes only a few minutes and can be performed by your authorized B - It Ling dealer.

Brc It Ling models are water-resistant to varying degrees. t the extent of the water-resistance, expressed in meters (M) is a standard value and does not indicate an absolute depth of immersion. t the crown and pushpieces must not under any circumstances be operated under water or when the watch is wet. t the table below indicates the conditions in which your watch may reasonably be used, according to its degree of water-resistance.

ACTIVITIES / DEGREE OF WATER-RESISTANCE	3bars/30M/100FT 5ba	50M/165FT 10bars/10	1030FT 30bars/900M	1,650FT+
Splashing
Shower, swimming, surface water sports
Water-skiing, dives, snorkeling
Diving

USEFUL TIPS

Brc tLg genuine leather straps are crafted with the most refined materials and represent extremely high-quality products. Like all objects in natural skin (shoes, gloves, etc.), their length of life varies considerably,

according to the conditions in which they are worn. In particular, water, cosmetics and perspiration accelerate the aging process. A metal or synthetic BrErling bracelet is thus better suited to activities involving frequent contact with water or humidity.

Brell Ling metal cases and bracelets are made from the finest alloys and guarantee slurdiness and wearer comfort. r regular cleaning by rinsing and brushing in clear water will keep your watch shiny. t his operation is strongly recommended after each immersion in salty or chlorinated water. For watches fitted with a leather strap, proceed in the same manner, while avoiding getting the strap wet.

WHAT TO AVOID

Like any valuable objects, B rlt Lin g chronometers deserve special care. It is important to protect them from jarring and knocks by hard objects, and not to expose them to chemical products, solvents, dangerous gases, or magnetic fields. Moreover, your B rlt Lin g chronometer is designed to run smoothly at temperatures ranging between 0^ and 50^ .

IHR BREITLING CHRONOMETER
