FAAS 250 - Wristwatch Puma - Free user manual and instructions

Product Type	Digital Sports Watch
Brand	Puma
Model	FAAS 250
Power	CR2016 Button Cell
Display	Digital with icons (alarm, chime, time zone)
Buttons	S1 (Start/Lap/+), S2 (Stop/Reset), S3 (Mode), S4 (Setting/Light)
Modes	Time (TIME), Chronograph (CHro), Data (DATA), Alarm (AL), Timer (Tm r)
Main Functions	Two time zones, chronograph with 9 lap times, timer with 3 types (CD-S, CD-U, CD-R), dual daily alarm, chime
Time Setting	Long press S4 to enter setting, S1 to change, S2 for next option, S3/S4 to exit
Chronograph	Start with S1, record lap with S1, stop with S2, reset with S2 when stopped
Timer	Programming with S4, S1 to change, S2 for option, S1 to start, S2 to stop, S4 to reset
Alarm	S2 to select alarm 1 or 2, S1 to enable/disable, S4 to set time, S1 to change, S2 for next option
Light	Press S4 (Setting/Light button) in Time mode
Maintenance and Cleaning	Clean with a soft, dry cloth. Avoid chemical products.
Battery Replacement	Recommended at an authorized service center. Use a CR2016 battery.
Spare Parts and Repairability	CR2016 battery. Repair by authorized service center.
General Information	Manual available in multiple languages (FR, DE, EN, ES, IT, JA, NL, PT, ZH, etc.)

Frequently Asked Questions - FAAS 250 Puma

How to set the time on the FAAS 250 watch?

Make sure you are in Time mode (TIME) and the desired time zone (T1 or T2) is displayed. Long press S4 until the seconds flash. Use S1 to change the flashing value, S2 to move to the next option (seconds, hours, minutes, day, month, year, 12/24 hour format). Press S3 or S4 to exit setting.

How to use the chronograph?

In Chronograph mode (CHro), press S1 to start timing. Press S1 again to record a lap or split time (LAP/SPL). Press S2 to stop the chronograph. Once stopped, press S2 again to reset to zero. Caution: resetting erases all session data.

How to display split times in Data mode?

Switch to Data mode (DATA) after a chronograph session (without resetting). Press S1 to scroll through laps (LAP 1, LAP 2...). To display split times (SPL), press S4 or wait 4 seconds.

How to set the alarm?

In Alarm mode (AL), press S2 to select alarm 1 or 2. Press S4 until the hours flash. Use S1 to change the value, S2 to go to minutes then time zone selection (T1/T2). Press S1 to enable/disable the alarm or chime. Exit with S3 or S4.

How to change the battery?

When the display dims or disappears, the battery must be replaced with a CR2016 battery. It is recommended to have the replacement done at an authorized service center to avoid damage.

What to do if the display dims?

A dim display indicates the battery is worn out. Have the CR2016 battery replaced by a professional at an authorized service center.

How to switch between the two time zones?

In Time mode (TIME), hold down S2 until the T1 or T2 icon flashes. Release S2 to display the corresponding time zone. Time setting is done separately for each zone.

How to use the countdown timer?

In Timer mode (Tm r), press S4 to set the time (hours:minutes) and choose the type: CD-S (stop at zero), CD-U (continue after zero), or CD-R (repeat 30 cycles). Use S1 to change, S2 for next option. Press S1 to start, S2 to stop, S4 to reset to the programmed time.

How to enable or disable the chime?

In Alarm mode (AL), select alarm 1 or 2 with S2. Press S1 multiple times to cycle through options: alarm and chime enabled (ON), alarm and chime disabled (OFF), alarm enabled (ON) only, or chime enabled (ON) only. The corresponding icon is displayed.

How to reset the chronograph to zero?

Make sure the chronograph is stopped (press S2 if it is running). Press S2 again to reset the chronograph to zero. Caution: this erases all data of the current session (lap times and split times).

USER MANUAL FAAS 250 Puma

White Puma logo on red background, no text or symbols present

P.4 ENGLISH
P.12 ČESKY
P.20 HUNGARIAN
P.28 DEUTSCH
P.36 ESPAÑOL
P.44 PORTUGUÊS
P.52 ITALIANO
P.60 FRANÇAIS
P.68 DUTCH
P.76 中文
P.84 日本語

FASS200-250 SS12

APU00586

11/11-HW-20K

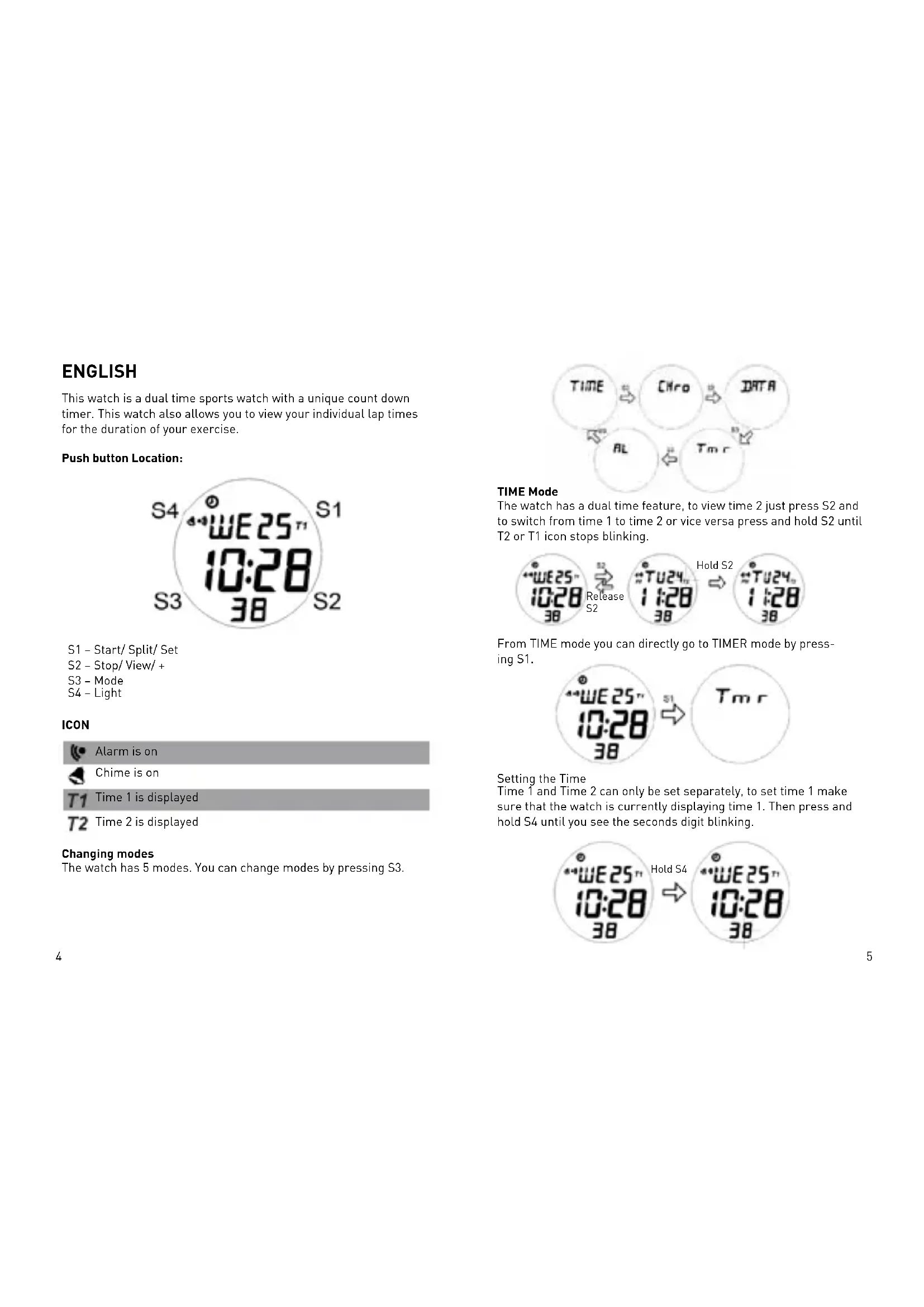

ENGLISH

This watch is a dual time sports watch with a unique count down timer. This watch also allows you to view your individual lap times for the duration of your exercise.

Push button Location:

S1 - Start/ Split/ Set

S2 - Stop/ View/ +

S3 - Mode

S4 - Light

ICON

Alarm is on

Chime is on

Time 1 is displayed

Time 2 is displayed

Changing modes

The watch has 5 modes. You can change modes by pressing S3.

TIME Mode

The watch has a dual time feature, to view time 2 just press S2 and to switch from time 1 to time 2 or vice versa press and hold S2 until T2 or T1 icon stops blinking.

From TIME mode you can directly go to TIMER mode by pressing S1.

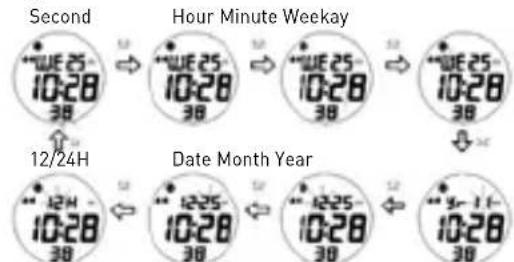

Setting the Time

Time 1 and Time 2 can only be set separately, to set time 1 make sure that the watch is currently displaying time 1. Then press and hold S4 until you see the seconds digit blinking.

Press S1 to change the current value of the blinking digit.

Press S2 to move on to the next option and press S3 or S4 to exit time settings.

To set Time 2 just follow the same steps in setting Time 1 but this time make sure Time 2 is displayed on the watch.

CHRONO Mode

The Chrono mode for this watch can take up to 9 laps. The time for each lap can be viewed in DATA mode.

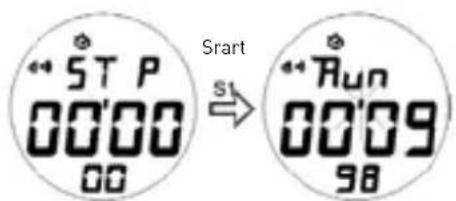

Press S1 to start the Chrono timer.

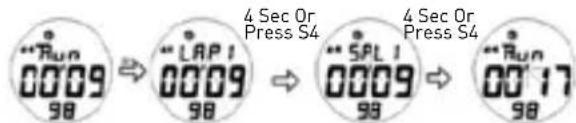

Press S1 again to take a lap or split time.

Press S2 to stop the Chrono timer. Press S2 again while Chrono timer isn't running to reset the timer.

Please take note, once timer has been reset all data for that run can no longer be viewed in DATA mode.

DATA Mode

In this mode you can view the individual lap/ split time for you exercise as long as chrono timer has not been reset to zero.

To view the different laps, press S1.

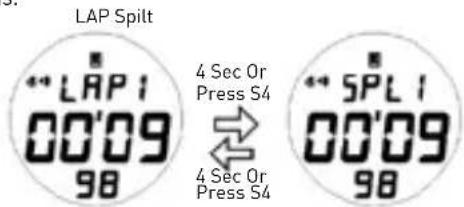

To view the split time of the different laps, press S4 or wait for 4 seconds.

TIMER Mode

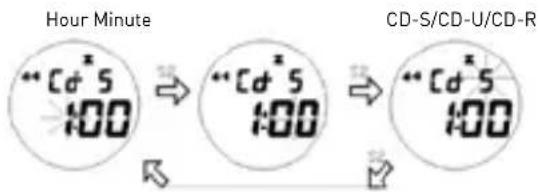

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

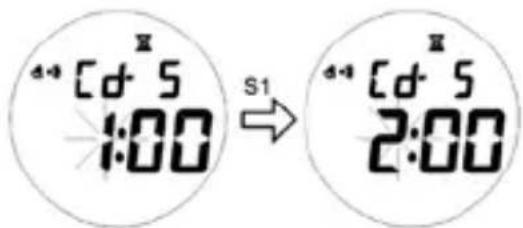

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit timer settings.

The CD-S timer or count down stop timer function just like a regular count down timer, once it reaches zero, it stops. While the CD-U or count down up timer, counts down using the set count down time and then when it reaches zero will start to count up until timer is stopped or reaches 99:59'59. The CD-R or count down repeat will continually repeat the set count down time for 30 cycles or until timer is stopped.

All the 3 timers count down timers will start giving out a 5 beep alert sound at 5 minutes, 2 beeps at 2 minutes, 1 beep at 1 minute and a 10 seconds beep just before reaching zero.

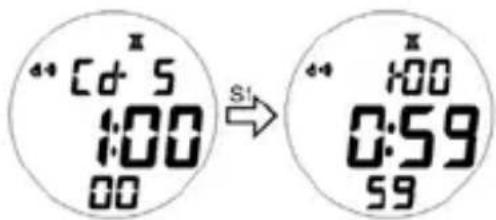

Press S1 to start the timer.

Press S4 to view the type of timer selected.

Press S2 to stop the timer.

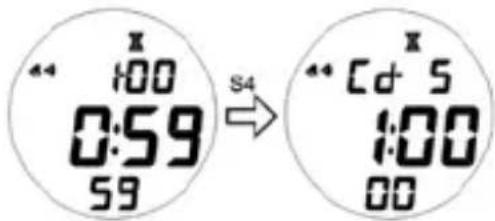

Press S4 to reset timer to set value while timer is not running.

ALARM Mode

This watch has 2 daily alarms, which can be set for T1 or T2.

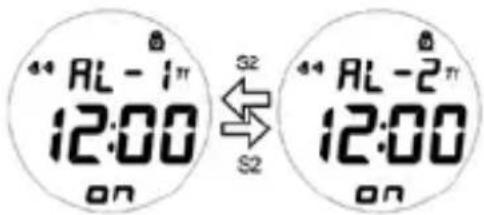

Press S2 to select Alarm 1 or 2.

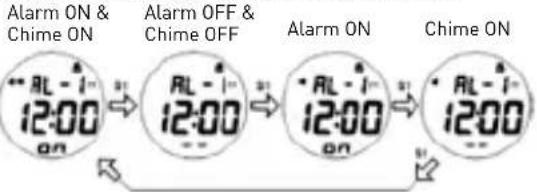

Press S1 to turn on or off the selected alarm or chime.

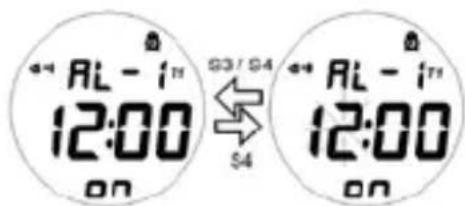

Press and hold S4 until the hour digits start to blink, to set the selected alarm.

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit alarm settings.

Battery Replacement:

If the display goes dim or goes totally blank, it is time to replace the battery. The user is recommended to go to authorized service center for correct battery replacement (CR2016).

Česky

Modo de ALARME

Figure 12
