Product Type	Sports Watch
Brand	Puma
Model	FAAS 300
Display	Digital
Main Functions	Chronograph, Timer, Alarm, Dual Time Zone
Modes	Time, Chrono, Data, Timer (3 types), Alarm
Lap Recording	Up to 9 lap times
Timer Type	CD-S, CD-U, CD-R
Alarm	2 daily alarms with chime
Lighting	Yes, via button S4
Power	CR2016 battery
Battery Replacement	By authorized service center
Buttons	S1, S2, S3, S4

Frequently Asked Questions - FAAS 300 Puma

How to set the time on the Puma FAAS 300 watch?

Press and hold S4 in Time mode until the seconds flash. Use S1 to change and S2 to move to the next option. Set the two time zones (T1 and T2) separately.

How to use the stopwatch?

In Chrono mode, press S1 to start, S1 to record a lap, and S2 to stop. To reset, press S2 again when stopped.

How to set the timer?

In Timer mode, press S4 until the digit flashes. Use S1 to change, S2 to move to the next option. Choose between CD-S, CD-U or CD-R.

How to set the alarm?

In Alarm mode, press S2 to select alarm 1 or 2. Press S1 to turn on/off. To set the time, press S4 until the hours flash, then adjust with S1 and S2.

How to switch between the two time zones?

In Time mode, press S2 until the T1 or T2 icon appears and stops flashing. Each time zone is set independently.

What to do if the display becomes dim?

This indicates that the battery is low. Replace the battery (CR2016) at an authorized service center. Do not attempt to do it yourself.

How to view recorded lap times?

In Data mode, press S1 to display successive lap times. Press S4 to view split times.

How to activate the backlight?

Briefly press S4 to turn on the light. In setting mode, S4 is also used to exit settings.

What is the difference between the three timer types?

CD-S stops at zero, CD-U counts beyond zero, CD-R repeats the countdown up to 30 cycles. All emit warning beeps.

How to reset the stopwatch after a session?

Make sure the stopwatch is stopped (press S2), then press S2 again to reset. All session data will be cleared.

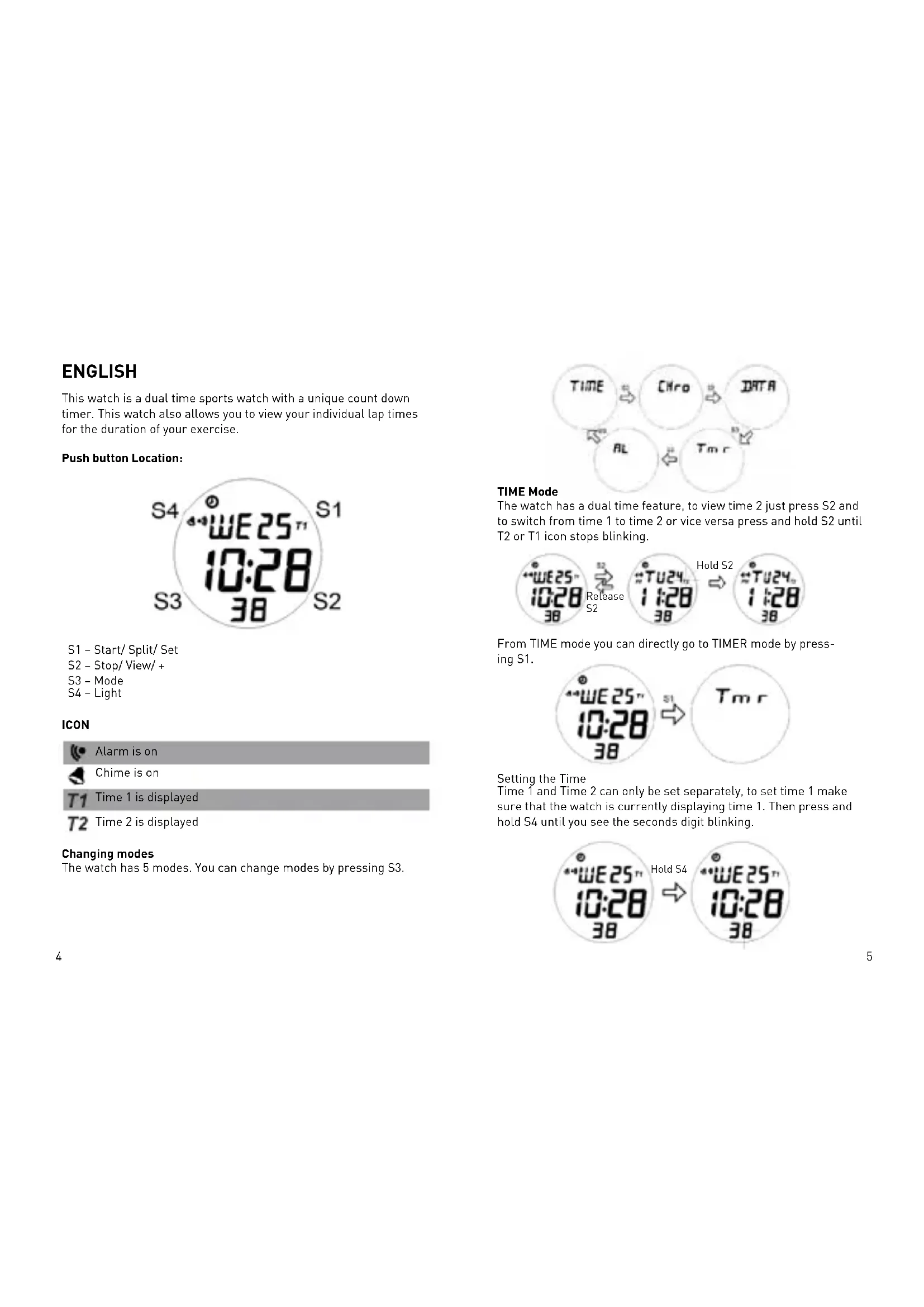

USER MANUAL FAAS 300 Puma

This watch is a dual time sports watch with a unique count down timer. This watch also allows you to view your individual lap times for the duration of your exercise.

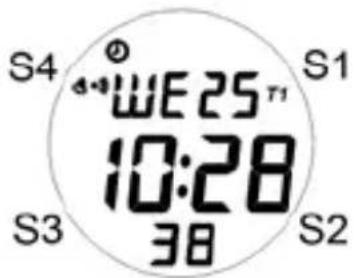

Push button Location:

S1-Start/Split/Set
S2-Stop/View/+
S3 - Mode
S4-Light

ICON

Alarm is on
Chime is on
Time 1 is displayed
T2 Time 2 is displayed

Changing modes

The watch has 5 modes. You can change modes by pressing S3.

TIME Mode

The watch has a dual time feature, to view time 2 just press S2 and to switch from time 1 to time 2 or vice versa press and hold S2 until T2 or T1 icon stops blinking.

From TIME mode you can directly go to TIMER mode by pressing S1.

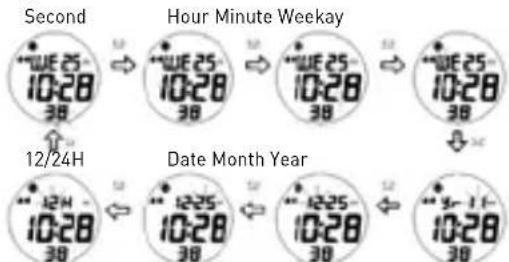

Setting the Time

Time 1 and Time 2 can only be set separately, to set time 1 make sure that the watch is currently displaying time 1. Then press and hold S4 until you see the seconds digit blinking.

Press S1 to change the current value of the blinking digit.

Press S2 to move on to the next option and press S3 or S4 to exit time settings.

To set Time 2 just follow the same steps in setting Time 1 but this time make sure Time 2 is displayed on the watch.

CHRONO Mode

The Chrono mode for this watch can take up to 9 laps. The time for each lap can be viewed in DATA mode.

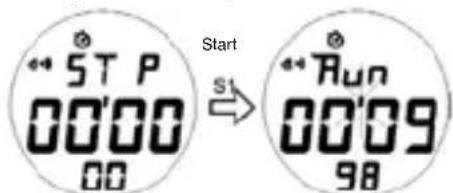

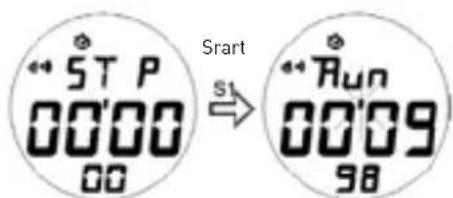

Press S1 to start the Chrono timer.

Press S1 again to take a lap or split time.

Press S2 to stop the Chrono timer. Press S2 again while Chrono timer isn't running to reset the timer. Please take note, once timer has been reset all data for that run can no longer be viewed in DATA mode.

DATA Mode

In this mode you can view the individual lap/ split time for you exercise as long as chrono timer has not been reset to zero.

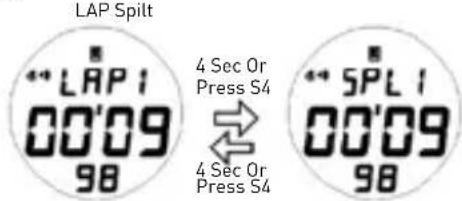

To view the different laps, press S1.

To view the split time of the different laps, press S4 or wait for 4 seconds.

TIMER Mode

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

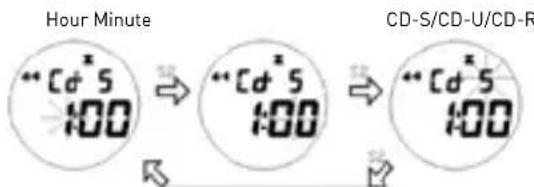

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit timer settings.

The CD-S timer or count down stop timer function just like a regular count down timer, once it reaches zero, it stops. While the CD-U or count down up timer, counts down using the set count down time and then when it reaches zero will start to count up until timer is stopped or reaches 99:59'59. The CD-R or count down repeat will continually repeat the set count down time for 30 cycles or until timer is stopped.

All the 3 timers count down timers will start giving out a 5 beep alert sound at 5 minutes, 2 beeps at 2 minutes, 1 beep at 1 minute and a 10 seconds beep just before reaching zero.

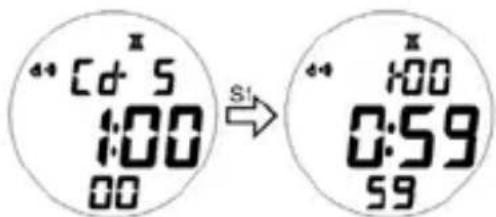

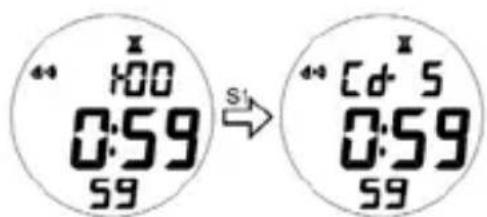

Press S1 to start the timer.

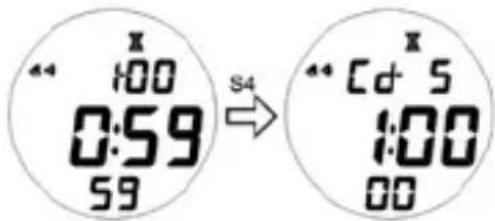

Press S4 to view the type of timer selected.

Press S2 to stop the timer.

Press S4 to reset timer to set value while timer is not running.

ALARM Mode

This watch has 2 daily alarms, which can be set for T1 or T2.

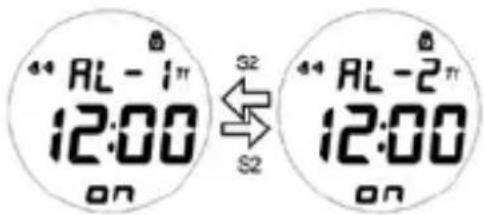

Press S2 to select Alarm 1 or 2.

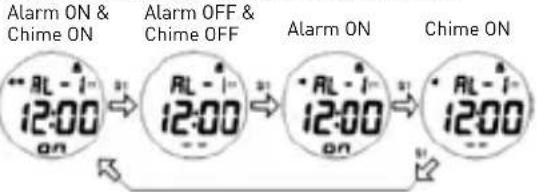

Press S1 to turn on or off the selected alarm or chime.

Press and hold S4 until the hour digits start to blink, to set the selected alarm.

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit alarm settings.

Battery Replacement:

If the display goes dim or goes totally blank, it is time to replace the battery. The user is recommended to go to authorized service center for correct battery replacement [CR2016].
