Brand	Puma
Model	Flat Coast
Product Type	Sports Watch
Power	CR2016 Battery
Display	Digital
Number of Time Zones	2
Available Modes	5 (Time, Chrono, Data, Alarm, Timer)
Stopwatch Function	Yes, with recording of up to 9 lap times.
Timer Types	3 (CD-S, CD-U, CD-R)
Number of Alarms	2 daily alarms
Hourly Chime	Yes, can be activated/deactivated
Backlight	Yes, via button S4
Buttons	4 (S1, S2, S3, S4)
Battery Replacement	Recommended at authorized service center
Battery Type	CR2016
Time Setting	Independent for each time zone, via long press of S4
Chrono Reset	Clears all session data
Display of Intermediate Times	In Data mode, press S1 or S4

Frequently Asked Questions - Flat Coast Puma

How to set the time on the Puma Flat Coast watch?

Press and hold S4 until the seconds flash. Use S1 to change the flashing value and S2 to move to the next option. Press S3 or S4 to exit. Repeat for each time zone.

How to switch between the two time zones?

In Time mode, press S2 until the T1 or T2 icon stops flashing to display the desired time zone.

How to use the stopwatch?

In Chrono mode, press S1 to start, again on S1 to record a lap, and S2 to stop. When the chrono is stopped, press S2 again to reset it to zero.

How to view intermediate times after a session?

Go to Data mode (DATA). Press S1 to display lap times, or press S4 (or wait 4 seconds) to see intermediate times.

How many lap times can the stopwatch record?

The stopwatch can record up to 9 lap times maximum.

What are the three timer types available?

The three types are: CD-S (countdown then stop), CD-U (countdown then count up), and CD-R (repeated countdown over 30 cycles).

How to set an alarm?

In Alarm mode, press S2 to choose alarm 1 or 2, then press and hold S4 until the hours flash. Use S1 to change and S2 to move to the next option. Press S3 or S4 to exit.

How to enable or disable the hourly chime?

In Alarm mode, press S1 to enable or disable the selected alarm or chime. The Chime icon appears when the function is active.

Which battery to use for the watch and how to replace it?

The battery is a CR2016. To replace it, it is recommended to go to an authorized service center.

How to turn on the watch backlight?

Press the S4 button to activate the dial backlight.

USER MANUAL Flat Coast Puma

White Puma logo on red background, no text or symbols present

P.4 ENGLISH
P.12 ČESKY
P.20 HUNGARIAN
P.28 DEUTSCH
P.36 ESPAÑOL
P.44 PORTUGUÊS
P.52 ITALIANO
P.60 FRANÇAIS
P.68 DUTCH
P.76 中文
P.84 日本語

FASS200-250 SS12

APU00586

11/11-HW-20K

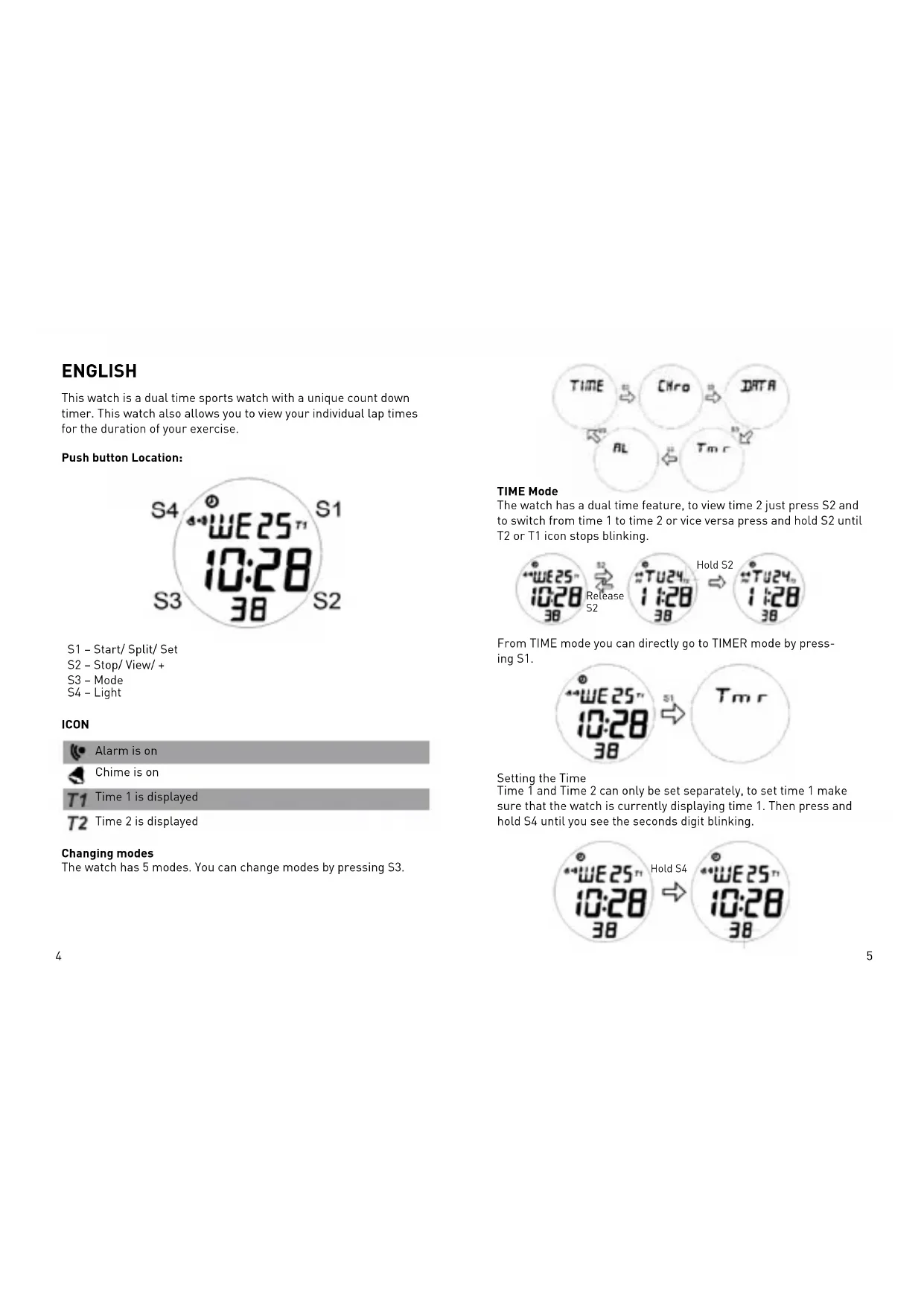

ENGLISH

This watch is a dual time sports watch with a unique count down timer. This watch also allows you to view your individual lap times for the duration of your exercise.

Push button Location:

S1 - Start/ Split/ Set

S2 - Stop/ View/ +

S3 - Mode

S4 - Light

ICON

Alarm is on

Chime is on

Time 1 is displayed

Time 2 is displayed

Changing modes

The watch has 5 modes. You can change modes by pressing S3.

TIME Mode

The watch has a dual time feature, to view time 2 just press S2 and to switch from time 1 to time 2 or vice versa press and hold S2 until T2 or T1 icon stops blinking.

From TIME mode you can directly go to TIMER mode by pressing S1.

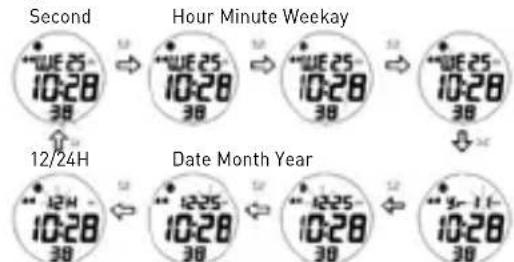

Setting the Time

Time 1 and Time 2 can only be set separately, to set time 1 make sure that the watch is currently displaying time 1. Then press and hold S4 until you see the seconds digit blinking.

Press S1 to change the current value of the blinking digit.

Press S2 to move on to the next option and press S3 or S4 to exit time settings.

To set Time 2 just follow the same steps in setting Time 1 but this time make sure Time 2 is displayed on the watch.

CHRONO Mode

The Chrono mode for this watch can take up to 9 laps. The time for each lap can be viewed in DATA mode.

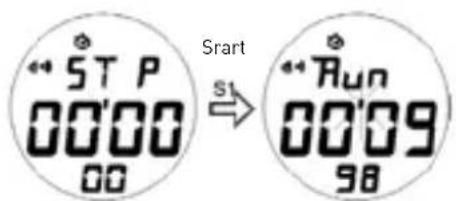

Press S1 to start the Chrono timer.

Press S1 again to take a lap or split time.

Press S2 to stop the Chrono timer. Press S2 again while Chrono timer isn't running to reset the timer.

Please take note, once timer has been reset all data for that run can no longer be viewed in DATA mode.

DATA Mode

In this mode you can view the individual lap/ split time for you exercise as long as chrono timer has not been reset to zero.

To view the different laps, press S1.

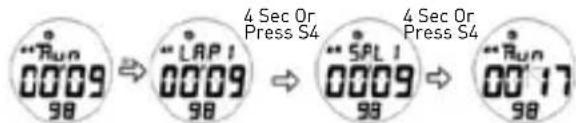

To view the split time of the different laps, press S4 or wait for 4 seconds.

TIMER Mode

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

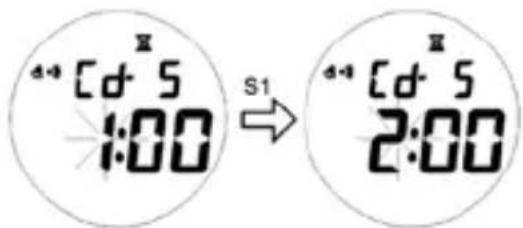

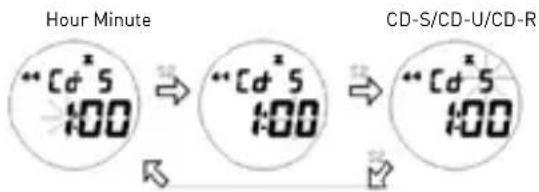

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit timer settings.

The CD-S timer or count down stop timer function just like a regular count down timer, once it reaches zero, it stops. While the CD-U or count down up timer, counts down using the set count down time and then when it reaches zero will start to count up until timer is stopped or reaches 99:59'59. The CD-R or count down repeat will continually repeat the set count down time for 30 cycles or until timer is stopped.

All the 3 timers count down timers will start giving out a 5 beep alert sound at 5 minutes, 2 beeps at 2 minutes, 1 beep at 1 minute and a 10 seconds beep just before reaching zero.

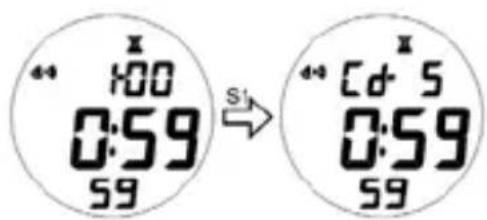

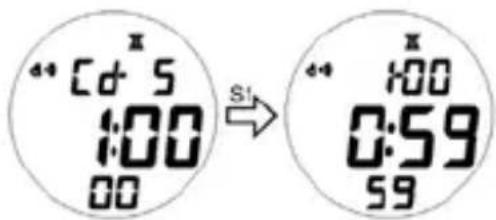

Press S1 to start the timer.

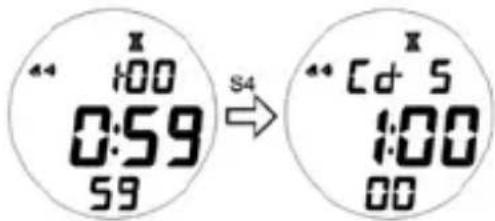

Press S4 to view the type of timer selected.

Press S2 to stop the timer.

Press S4 to reset timer to set value while timer is not running.

ALARM Mode

This watch has 2 daily alarms, which can be set for T1 or T2.

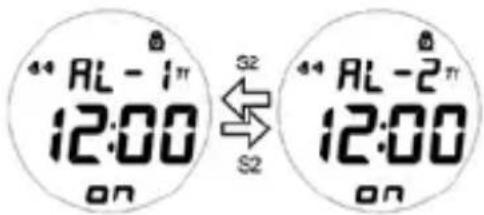

Press S2 to select Alarm 1 or 2.

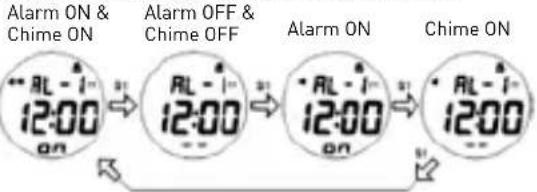

Press S1 to turn on or off the selected alarm or chime.

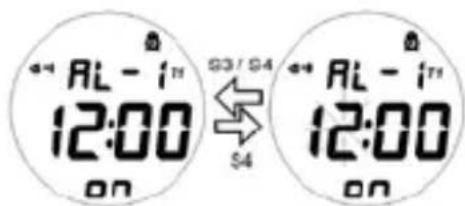

Press and hold S4 until the hour digits start to blink, to set the selected alarm.

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit alarm settings.

Battery Replacement:

If the display goes dim or goes totally blank, it is time to replace the battery. The user is recommended to go to authorized service center for correct battery replacement (CR2016).
