BF3 - Bottle warmer Petra Electric - Free user manual and instructions

Product type	Bottle warmer
Brand	Petra Electric
Model	BF3
Intended use	Heat and keep warm baby bottles and small jars of baby food (max. diameter 73 mm)
Power supply	220-240 V ~ 50/60 Hz
Adjustable thermostat	Yes, with rotary knob and markings
Indicator light	Yes, indicates heating (turns off when temperature is reached)
Keep warm function	Yes, thanks to the thermostat
Heating method	Water bath (fill with water up to about 2 cm from the rim)
Maximum container size	Diameter 73 mm, height suitable for bottles and small jars
Removable bracket	Yes, to position bottles and jars
Safety	Do not immerse in water; do not use unattended; unplug after use
Cleaning	With a damp cloth and a little dish soap; do not use harsh products
Cord storage	Wind under the device with bracket pointing down
Compliance	European Directives 2006/95/EC, 2004/108/EC, and 2005/32/EC

Frequently Asked Questions - BF3 Petra Electric

How to use the Petra Electric BF3 bottle warmer?

Place the bracket according to the type of container (bottle or jar). Fill with water up to about 2 cm from the rim. Adjust the temperature with the knob. The indicator light turns on during heating. After use, unplug the appliance.

How to adjust the temperature?

Turn the rotary knob. The markings on the knob help you find the right setting. For compact food or a full bottle, set it higher; for liquid or less full, set it lower.

What to do if a small jar gets stuck in the appliance?

Try to gently twist the jar. Sometimes the jar is not perfectly round. If it is properly positioned, it should go in more easily.

How to clean the bottle warmer?

Unplug and empty the water. Clean with a damp cloth and a little dish soap. Never immerse the appliance in water and do not use harsh chemicals.

Can I heat other foods besides bottles?

The appliance is designed to heat and keep warm commercially available bottles and small jars of baby food, with a maximum diameter of 73 mm. Do not use for other purposes.

Does the bottle warmer stop automatically?

No, the appliance does not stop completely when you turn the knob. You must unplug the appliance after each use for safety reasons.

What is the maximum keep-warm time?

It is recommended not to keep food warm for more than one hour to avoid hygiene risks. Serve directly after reheating.

Is the bottle warmer suitable for all bottles?

It is suitable for bottles and small jars with a maximum diameter of 73 mm. Check the dimensions of your containers before use.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the customer service or a qualified person. Improper repairs can cause hazards.

How to store the cord?

Wind the excess cord into the cord storage under the appliance, then insert the bracket with the tip pointing down into the slot provided.

USER MANUAL BF3 Petra Electric

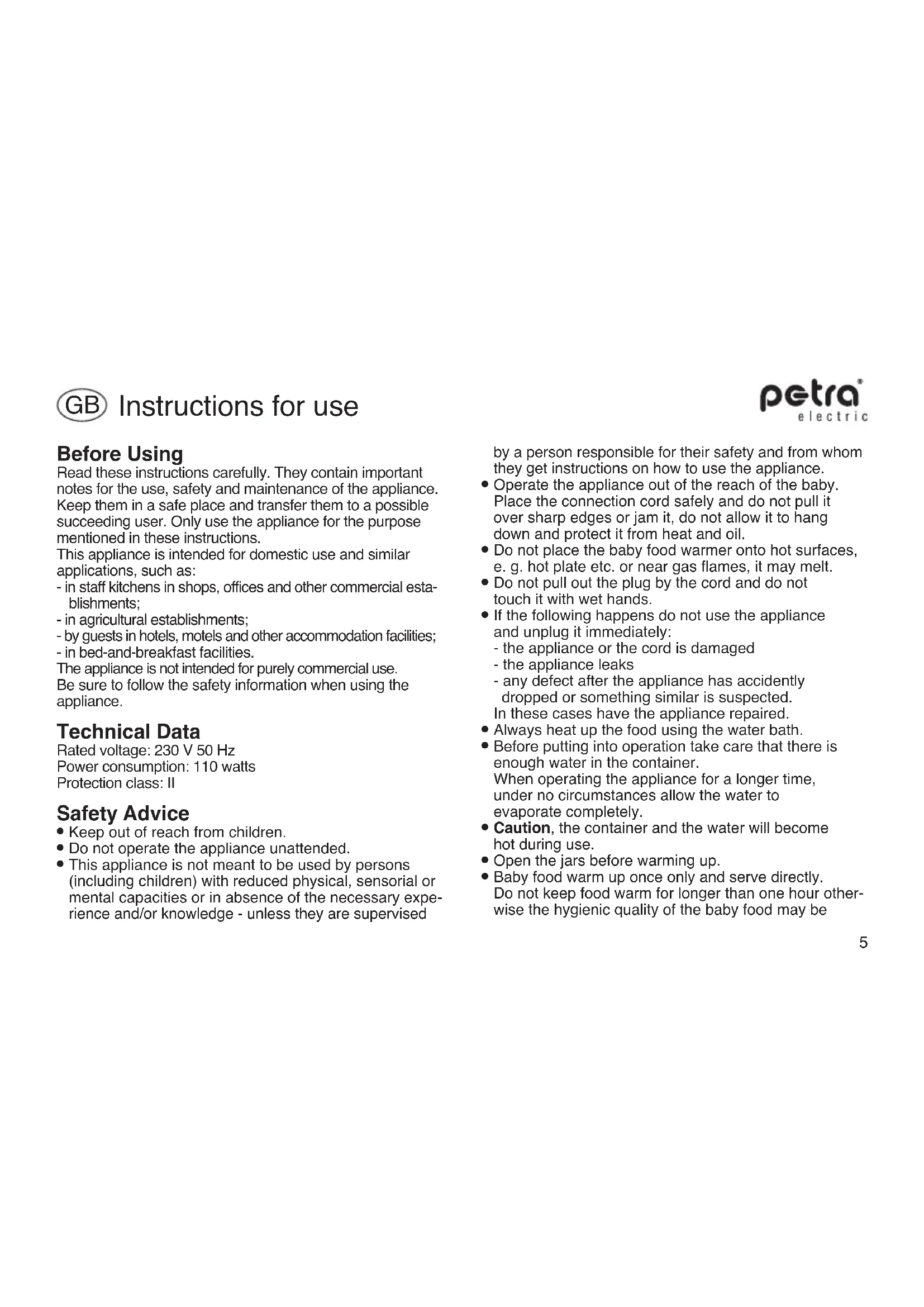

Instructions for use

Before Using

Read these instructions carefully. They contain important notes for the use, safety and maintenance of the appliance. Keep them in a safe place and transfer them to a possible succeeding user. Only use the appliance for the purpose mentioned in these instructions.

This appliance is intended for domestic use and similar applications, such as:

• in staff kitchens in shops, offices and other commercial establishments;

• in agricultural establishments;

• by guests in hotels, motels and other accommodation facilities;

• in bed-and-breakfast facilities.

The appliance is not intended for purely commercial use.

Be sure to follow the safety information when using the appliance.

Technical Data

Rated voltage: 230V50Hz

Power consumption: 110 watts

Protection class: II

Safety Advice

• Keep out of reach from children.
• Do not operate the appliance unattended.
• This appliance is not meant to be used by persons (including children) with reduced physical, sensorial or mental capacities or in absence of the necessary experience and/or knowledge - unless they are supervised

by a person responsible for their safety and from whom they get instructions on how to use the appliance.

• Operate the appliance out of the reach of the baby. Place the connection cord safely and do not pull it over sharp edges or jam it, do not allow it to hang down and protect it from heat and oil.
• Do not place the baby food warmer onto hot surfaces, e.g. hot plate etc. or near gas flames, it may melt.
• Do not pull out the plug by the cord and do not touch it with wet hands.

• If the following happens do not use the appliance and unplug it immediately:

• the appliance or the cord is damaged

• the appliance leaks

• any defect after the appliance has accidentally dropped or something similar is suspected. In these cases have the appliance repaired.

• Always heat up the food using the water bath.

• Before putting into operation take care that there is enough water in the container.

When operating the appliance for a longer time, under no circumstances allow the water to evaporate completely.

• Caution, the container and the water will become hot during use.
• Open the jars before warming up.
• Baby food warm up once only and serve directly. Do not keep food warm for longer than one hour otherwise the hygienic quality of the baby food may be

reduced.

• The appliance cannot be switched off permanently by the temperature control.
  Therefore unplug always after use.
• Do not immerse the baby food warmer in water.
• In case of misuse, wrong handling or incorrect repair no liability will be taken for possible damages. Claims under guarantee are also excluded in such cases.
• The appliance is not designed for commercial purposes.
• Packaging material like foil bags are not designed for children.
• In case the cord of this appliance is damaged, it has to be replaced by an authorised service agent of the manufacturer or a person having similar qualifications.

Substantial dangers for the user can appear from inappropriate repairs.

Putting into operation

The appliance can be used for a convenient warming up and keeping warm of feeding bottles and all standard sized baby food jars with a diameter of up to 73mm

Prior to use, roll up the not required cord at the bottom of the appliance and slide the pointed end of the lifter into the groove in the upper edge of the appliance.

To warm up baby food jars, only push the lifter down until the edge of the open glass is just over the appliance. For feeding bottles, push the lifter right down to the bottom.

Then fill container with water up to 2cm below the edge.

Comment: Sometimes, the jugs of some manufacturers of baby food might jam when inserting into the appliance. The often reason for this is an non-round jug. Please try to turn the jug a bit - by this normally it fits in slightly.

Temperature control

The temperature of the water bath can be controlled by the rotary switch. The warming up of the baby food depends on the consistency and composition of the bottle or the glass.

For solid food choose a higher setting of the rotary switch than for liquid food. Full bottles and jars also require a higer setting than for less filled ones. When practising the correct setting can be found quickly.

The control lamp shows that the device is heating. It goes out as soon as the water reaches the set temperature. For taking out the food jars, push the lifter a bit upwards.

Shake the bottle well or stir the baby food well in order to guarantee equally warm contents.

The right temperature should always be checked by holding the baby bottle against the cheek or better by tasting yourself.

If the food is to be kept warm for some time, the jar or the bottle should be left in the container.

The thermostat guarantees a constant temperature by switching on the heating time after time.

Cleaning and maintenance

Before cleaning always unplug the appliance and pour out the remaining water. Never immerse the appliance into water.

Do not use caustic or scouring cleansing agents. Clean with a damp cloth, if necessary use some washing-up liquid.

For UK use only

1. This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.

2. The replacement of the plug at the mains lead has to be done according to the following instructions:

Important: The wires in this mains lead are coloured in accordance with the following code:

blue: Neutral

brown:Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black,

• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect any wire to the terminal which is marked with the letter E or by the earth symbol ④ or coloured green or green and yellow.

1. If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 5 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician.
2. Never use the plug without closing the fuse cover.

The appliance complies with the European directives 2006/95/EC, 2004/108/EC and 2005/32/EC.

At the end of its lifetime this product must not be disposed of through the normal domestic waste, but it should be handed to an assembly point for the

recycling of electrical and electronic appliances. You can inquire about details at the local administration.

Subject to technical changes.

Mode d'emploi

Avant usage

Specifications techniques

Tension nominale: 230V50Hz

Puisance absorbee: 110 W

Classe de protection: II
