USER MANUAL KM 90.07 Petra Electric

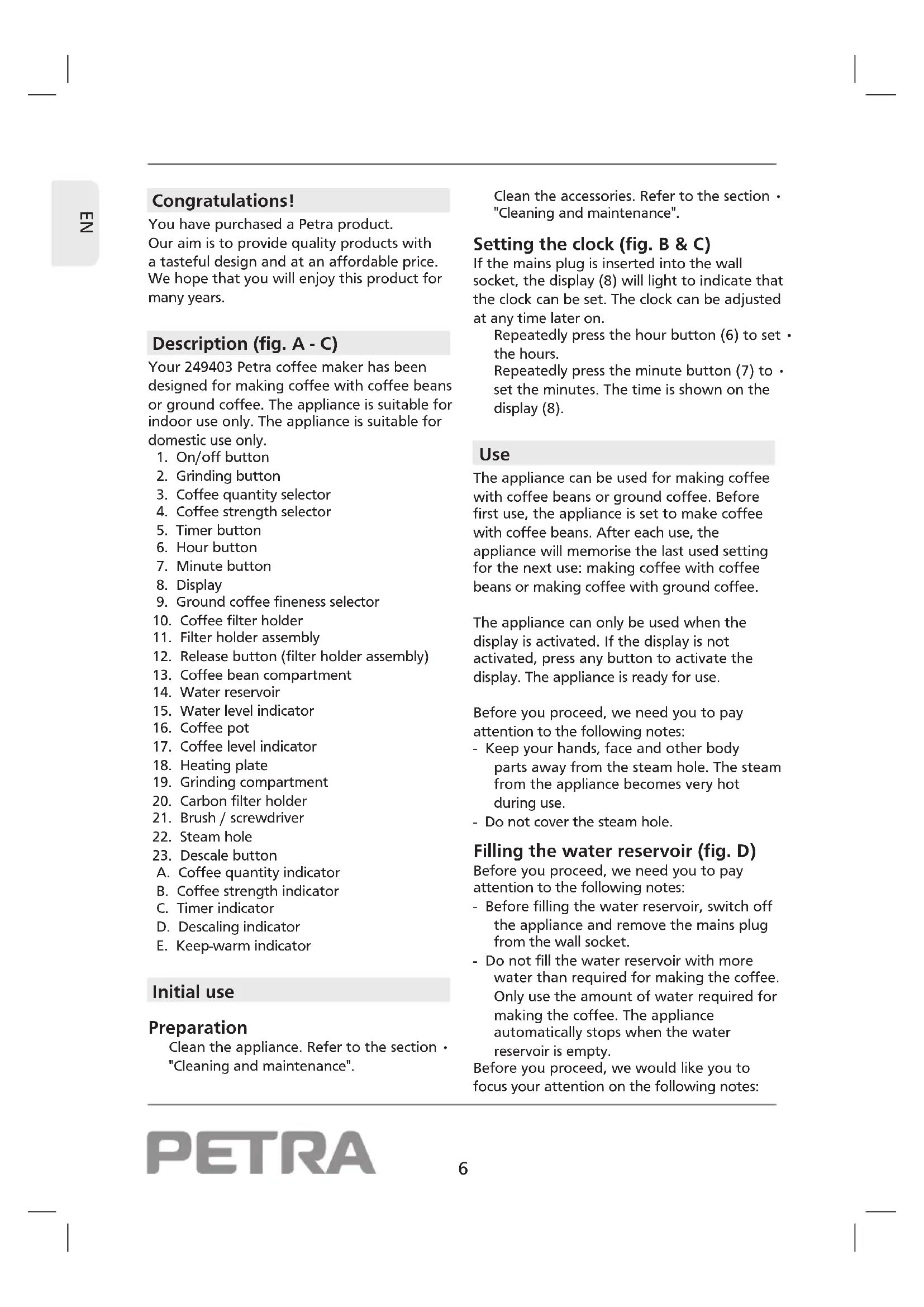

Congratulations! You have purchased a Petra product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. Description (fig. A - C) Your 249403 Petra coffee maker has been designed for making coffee with coffee beans or ground coffee. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

9. Ground coffee fineness selector

10. Coffee filter holder

11. Filter holder assembly

12. Release button (filter holder assembly)

13. Coffee bean compartment

19. Grinding compartment

A. Coffee quantity indicator B. Coffee strength indicator C. Timer indicator D. Descaling indicator E. Keep-warm indicator Initial use Preparation Clean the appliance. Refer to the section • "Cleaning and maintenance". Clean the accessories. Refer to the section • "Cleaning and maintenance". Setting the clock (fig. B & C) If the mains plug is inserted into the wall socket, the display (8) will light to indicate that the clock can be set. The clock can be adjusted at any time later on. Repeatedly press the hour button (6) to set • the hours. Repeatedly press the minute button (7) to • set the minutes. The time is shown on the display (8). Use The appliance can be used for making coffee with coffee beans or ground coffee. Before first use, the appliance is set to make coffee with coffee beans. After each use, the appliance will memorise the last used setting for the next use: making coffee with coffee beans or making coffee with ground coffee. The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Before you proceed, we need you to pay attention to the following notes: - Keep your hands, face and other body parts away from the steam hole. The steam from the appliance becomes very hot during use. - Do not cover the steam hole. Filling the water reservoir (fig. D) Before you proceed, we need you to pay attention to the following notes: - Before filling the water reservoir, switch off the appliance and remove the mains plug from the wall socket. - Do not fill the water reservoir with more water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty. Before you proceed, we would like you to focus your attention on the following notes:7

- Do not use the appliance without water in the water reservoir. - Do not exceed the maximum mark (10 cups) when you fill the water reservoir. Make sure that the water level is always above the minimum mark (2 cups) during use. - Only use cold water to fill the water reservoir. - Do not use carbonated water or other liquids to fill the water reservoir. - Do not pour water in the coffee bean compartment. Open the cover (24).• Fill the water reservoir (14) with water up • to the required mark on the water level indicator (15). Do not fill the water reservoir with more • water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty. Close the cover (24).• Setting the coffee quantity (fig. B & C) The coffee quantity selector (3) is used for setting the required coffee quantity. The coffee quantity selector (3) can be set to 2, 4, 6, 8 or 10 cups. Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Repeatedly press the coffee quantity • selector (3) to set the coffee quantity. The number of cups (A) is shown on the display (8). Setting the coffee strength (fig. B & C) The coffee strength selector (4) is used for setting the required coffee strength. The coffee strength selector (4) can be set to mild coffee (MILD), medium coffee (MEDIUM) and strong coffee (STRONG). Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Repeatedly press the coffee strength • selector (4) to set the coffee strength. The coffee strength (B) is shown on the display (8). Setting the ground coffee fineness (fig. E) The ground coffee fineness selector (9) is used for setting the required fineness of the ground coffee when using coffee beans. The ground coffee fineness selector (9) can be set to different positions from fine coffee grounds to coarse coffee grounds. Turn the ground coffee fineness selector • (9) to the required position to set the fineness of the ground coffee. Making coffee with coffee beans (fig. A - H) Before you proceed, we would like you to focus your attention on the following notes: - Only use coffee beans that are suitable for the appliance. - Only use paper coffee filters (1x4) that are suitable for the appliance. If the grinding function is not activated, • press the grinding button (2) to activate the grinding function. The coffee quantity and the coffee strength are shown on the display. Fill the water reservoir (14) with the • required amount of water. Do not fill the water reservoir with more • water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty. Open the cover (27).• Fill the coffee bean compartment (13) • completely with coffee beans. Close the cover (27).• Set the ground coffee fineness. Refer to • the section "Setting the ground coffee fineness".8

Press the release button (12) to open the • filter holder assembly (11). Place a suitable coffee filter in the coffee • filter holder (10). Close the filter holder assembly (11) until • the release button (12) clicks into place. Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Set the coffee quantity. Refer to the • section "Setting the coffee quantity". Set the coffee strength. Refer to the • section "Setting the coffee strength". Place the coffee pot (16) on the heating • plate (18). Switch on the appliance by pressing the • on/off button (1). The cup-of-coffee symbol (E) appears. After a few seconds, the appliance starts grinding the coffee beans and making the coffee. To interrupt the process, press the on/off • button (1). If the process is completed, the appliance • will beep and switch to keep-warm mode. The cup-of-coffee symbol (E) starts flashing. The appliance can be switched off by pressing the on/off button (1) or the appliance switches off automatically after 2 hours. Allow the appliance to cool down • completely. Making coffee with ground coffee (fig. A, B, C, D, F & G) Before you proceed, we would like you to focus your attention on the following notes: - Only use ground coffee that is suitable for the appliance. - Only use paper coffee filters (1x4) that are suitable for the appliance. If the grinding function is activated, press • the grinding button (2) to deactivate the grinding function. The coffee quantity and the coffee strength are not shown on the display. Fill the water reservoir (14) with the • required amount of water. Do not fill the water reservoir with more • water than required for making the coffee. Only use the amount of water required for making the coffee. The appliance automatically stops when the water reservoir is empty. Press the release button (12) to open the • filter holder assembly (11). Place a suitable coffee filter in the coffee • filter holder (10). Put the required amount of coffee in the • coffee filter. Close the filter holder assembly (11) until • the release button (12) clicks into place. Place the coffee pot (16) on the heating • plate (18). Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Switch on the appliance by pressing the • on/off button (1). The cup-of-coffee symbol (E) appears. The appliance starts making the coffee. To interrupt the process, press the on/off • button (1). If the process is completed, the appliance • will beep and switch to keep-warm mode. The cup-of-coffee symbol (E) starts flashing. The appliance can be switched off by pressing the on/off button (1) or the appliance switches off automatically after 2 hours. Allow the appliance to cool down • completely. Delay start function (fig. B & C) The appliance has a delay start function which makes it possible to program the time for starting the coffee-making process. Note: The appliance can only be used when the display is activated. If the display is not activated, press any button to activate the display. The appliance is ready for use. Set the clock. Check whether the clock has • already been set. If the clock has not been set, refer to the section "Setting the clock". Keep the timer button (5) pressed until the • clock on the display flashes.9

Repeatedly press the hour button (6) to set • the hours. Repeatedly press the minute button (7) to • set the minutes. Set the coffee quantity. Refer to the • section "Setting the coffee quantity". Set the coffee strength. Refer to the • section "Setting the coffee strength". If you want to make coffee with ground • coffee, switch off the grinding function before using the delay start function. Press the timer button (5) to save the • settings. The timer indicator (C) lights continuously. To interrupt the process, press the timer • button (5) again. The timer indicator (C) goes off. Cleaning and maintenance Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, always switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or any other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Clean the accessories:• - Clean the coffee pot in soapy water. - Clean the coffee filter holder in soapy water. - Clean the lid of the coffee bean compartment in soapy water. - Thoroughly dry the accessories. Clean the outside of the appliance with • a damp cloth. Dry the outside of the appliance with a clean, dry cloth. Put the appliance and the accessories in • the original packaging. Store the appliance in a dry and frost-free • place, out of the reach of children. Cleaning the grinding compartment (fig. C & I) When grinding coffee beans, coffee powder can clog the grinding mechanism. The grinding compartment (19) can be cleaned every 2 weeks to prevent the grinding mechanism from being clogged. Before you proceed, we would like you to focus your attention on the following notes: - Before cleaning the grinding compartment, take the following actions: - Switch off the appliance. - Remove the mains plug from the wall socket. - Remove the coffee pot from the heating plate. - Empty the coffee filter holder. Place a suitable coffee filter. Close the filter holder assembly. Remove the cover (28).• Clean the grinding compartment (19) using • the brush (21). Mount the cover (28).• Descaling the appliance (fig. A - D) The appliance must be descaled after each 70 brewing cycles. If you leave the mains plug in the wall socket, the appliance will keep track of the number of brewing cycles. The indicator (D) will flash on the display to indicate that the appliance must be descaled. If the appliance must be descaled, use a suitable descaling agent. Special descaling agents are available from our service station. Before descaling the appliance, the old carbon filter must be removed from the water reservoir. The carbon filter removes chlorine and other contaminants from the water for a pure coffee taste. After descaling the appliance, a new carbon filter must be placed in the water reservoir. New carbon filters are available from our service station.10

Note: Petra will not be responsible for any damage caused by descaling agents. Damage caused by not regularly descaling the appliance is not covered by the guarantee. Before you proceed, we need you to pay attention to the following notes: - Before descaling the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or any other liquids. - Make sure that the grinding function is not activated when descaling the appliance. Open the cover (24).• If necessary, empty the water reservoir (14).• Remove the carbon filter holder (20) from • the water reservoir (14). Open the cover (25).• Remove the old carbon filter (26).• Place the new carbon filter (26).• Close the cover (25).• Note: The carbon filter holder must not be placed in the water reservoir before the appliance has been descaled. Fill the water reservoir (14) with a suitable • descaling agent. Place the coffee pot (16) on the heating • plate (18). Insert the mains plug into the wall socket.• Switch on the appliance by pressing the • on/off button (1). Let the appliance run until 1/3 of the • descaling agent is in the coffee pot (16). Switch off the appliance by pressing the • on/off button (1). Let the descaling agent work for • approximately 30 minutes. Switch on the appliance by pressing the • on/off button (1). Let the appliance run until the remaining • descaling agent is in the coffee pot (16). The appliance stops automatically when the water reservoir (14) is empty. Rinse the appliance twice according to the • below procedure: - Fill the water reservoir (14) with clean water up to the maximum mark on the water level indicator (15). - Place the empty coffee pot (16) on the heating plate (18). - Switch on the appliance by pressing the on/off button (1). - Let all water run through the appliance. The appliance stops automatically when the water reservoir (14) is empty. Place the carbon filter holder (20) in the • water reservoir (14). Close the cover (24).• Switch off the appliance by pressing the • on/off button (1). Keep the coffee quantity selector (3) and • the coffee strength selector (4) pressed until the indicator (D) disappears from the display (8) (fig. C). Clean the outside of the appliance with • a damp cloth. Dry the outside of the appliance with a clean, dry cloth. The appliance is ready for use. Safety instructions General safety Read the manual carefully before use. • Keep the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if any part or any • accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Children should be supervised to ensure • that they do not play with the appliance. The use of this appliance by children or • persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance. Do not use the appliance near bathtubs, • showers, basins or other vessels containing water. Do not immerse the appliance in water or • other liquids.11

If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in • domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and- breakfast type environments. Electrical safety Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. The appliance is not intended to be • operated by means of an external timer or separate remote-control system. Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm

Make sure that water cannot enter the • contact plugs of the mains cable and the extension cable. Always fully unwind the mains cable and • the extension cable. Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges. Do not use the appliance if the mains cable • or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable to disconnect • the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for coffee makers Do not use the appliance outdoors.• Do not use the appliance in damp • environments. Only use the appliance in frost-free • environments if the appliance is filled with water. Place the appliance on a stable and flat • surface. Place the appliance on a heat-resistant and • splash-proof surface. Do not place the appliance on a hob.• Do not place the appliance on hot surfaces • or near open flames. Make sure that the appliance does not • come into contact with flammable material. Keep the appliance away from heat • sources. Be careful with hot water and steam to • avoid burns. Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.12

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. Warning! This appliance must be earthed. Disclaimer Subject to change; specifications can be changed without further notice.13
