SPJ ACTIVE SPEAKER SERIES WITH MP3 PLAYER

178.033 / 178.036 / 178.039

INSTRUCTION MANUAL

HANDLEIDING

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

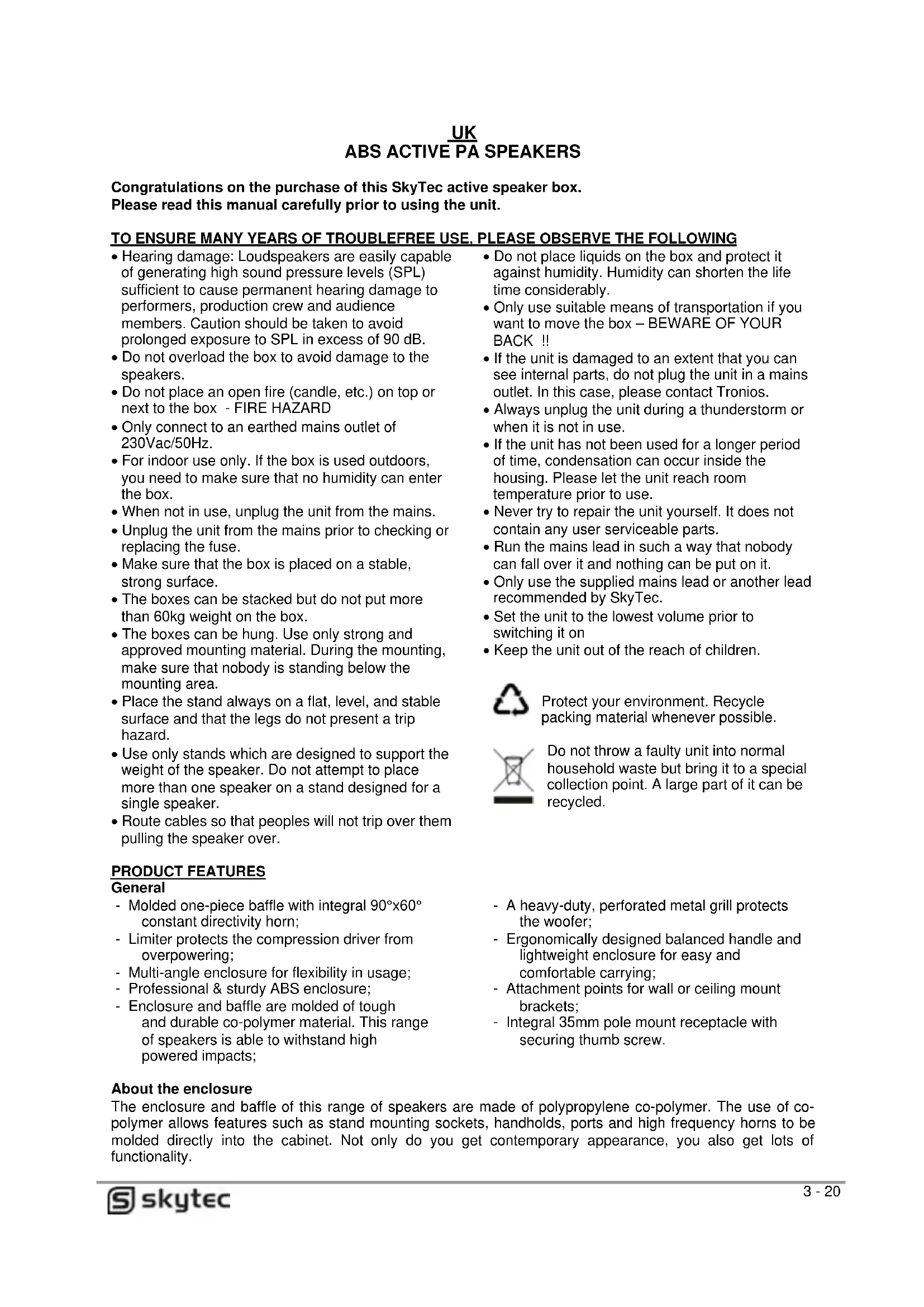

UK ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this SkyTec active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac/50Hz.
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.
• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.
• Route cables so that peoples will not trip over them pulling the speaker over.

PRODUCT FEATURES

General

• Molded one-piece baffle with integral 90°x60° constant directivity horn;
• Limiter protects the compression driver from overpowering;
• Multi-angle enclosure for flexibility in usage;
• Professional & sturdy ABS enclosure;

• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.

• Only use suitable means of transportation if you want to move the box – BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
• Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
• Only use the supplied mains lead or another lead recommended by SkyTec.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

Protect your environment. Recycle packing material whenever possible.

Do not throw a faulty unit into normal household waste but bring it to a special collection point. A large part of it can be recycled.

• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

About the enclosure

The enclosure and baffle of this range of speakers are made of polypropylene co-polymer. The use of copolymer allows features such as stand mounting sockets, handholds, ports and high frequency horns to be molded directly into the cabinet. Not only do you get contemporary appearance, you also get lots of functionality.

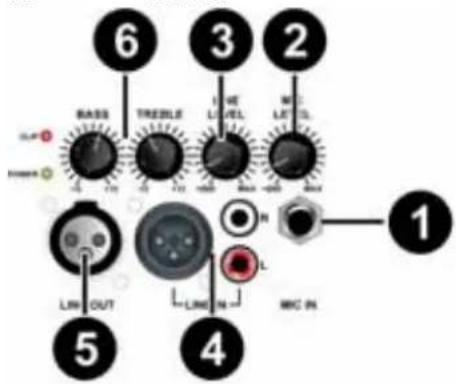

INPUT PANEL

10"

Versie:

6 3 2 BASS TREELE LINE LEVEL MILLET 1 LIRE OUT LINE N MIL IN 5 4

1. Input connector for microphone
2. Volume control for the microphone
3. Volume control for the line input
4. Line input connector for the audio input source e.g. mixer, CD player, etc.
5. Output connector to a second box or amplifier (line level)
6. Tone control for the output

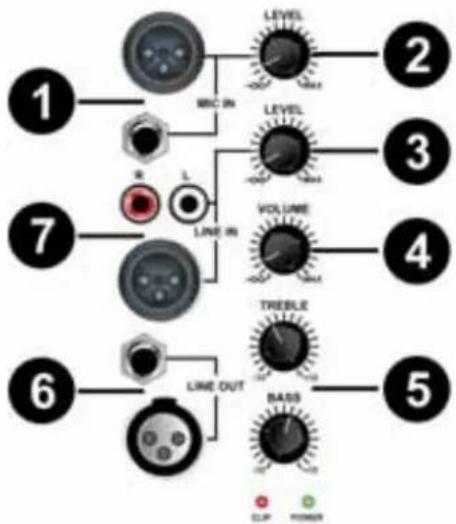

12" & 15" Versie:

1. Input connector for microphones
2. Volume control for the microphone
3. Volume control for the line input
4. Volume control for the output
5. Tone control for the output
6. Output connector to a second box or amplifier (line level)
7. Line input connector for the audio input source e.g. mixer, CD player, etc.

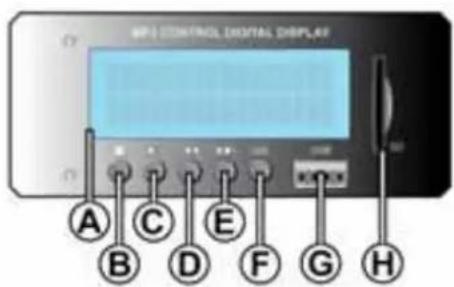

MP3 PANEL

A. DISPLAY

Shows MP3 information

B. STOP

Track stop playing

C. PLAY/PAUSE

Track play or pause mode

D. PREV

Play previous track

E. NEXT

Play next track

F. USB/SD SWITCH

Use switch for playing from USB stick or SD card

G. USB CONNECTION

For connection of a USB stick with MP3 files

H. SD CARD CONNECTION

For connection of a SD CARD with MP3 files

MP-CONTROL DIGITAL DISPLAY A C E F G H

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the “normally correct speaker” is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

Possible cause Action

No output

Cables Reseat all connectors

Substitute

Check

known

solder

good

joins

cables

Inspect cable for damage

Inspect wire or connector for stray strand that may short

Intermittent

Poor connections

While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Check the soldering on your connectors.

Constant noise, buzzing and/or humming

Faulty electronic

device in the signal

Any constant noise originates in the amplifier, mixer, signal processing, source devices, or line-level wiring. Check and correct system grounding as required. chain forces or electronic components. Check wiring for shielding.

Poor low-frequency output

Improper polarity

When two speakers in close proximity to each other are connected out-of-polarity, they can partially cancel each other out, especially at low frequencies. Check your speaker cables to be sure they are all identically wired and connected. Check the balanced line signal cables to be sure they are all correctly wired.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Tronios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
