Product Type	Home DVD player with built-in 5.1 amplifier
Brand	Daewoo
Model	DHT230NT
Supported disc formats	DVD, VCD, SVCD, DVCD, CD, MP3, CD-R/RW, JPEG
Video output	Composite, S-Video, YCbCr/YPbPr, VGA (progressive)
Audio output	5.1 analog channels, optical and coaxial SPDIF
Audio formats	Dolby Digital, DTS, PCM, MPEG1/2
Special functions	Karaoke (2 microphones), zoom, multi-angle, parental control, A-B repeat
Output power	30W (subwoofer), 15W x 5 channels
Power supply	120 V ~ 60 Hz, 80 W
Dimensions (approx.)	430 x 250 x 50 mm (main unit)
Weight (approx.)	2.5 kg
Operating temperature	5 °C to 35 °C
Operating humidity	15 % to 75 %
Maintenance and cleaning	Clean the casing with a dry cloth. For the disc, wipe from the center outward.
Safety	Class I laser - do not open. Unplug before any maintenance.
Spare parts and repairability	Entrust any repairs to a Daewoo authorized technician. Parts available through after-sales service.
Included accessories	Remote control, AV cables, user manual

Frequently Asked Questions - DHT230NT DAEWOO

My Daewoo DHT230NT player does not turn on. What should I do?

Check that the power cord is properly plugged in and the outlet works. Make sure the on/off switch is in the ON position.

Why is there no picture on the TV?

Check that the TV is on and set to the correct AV input. Ensure the video cables (composite, S-Video, or component) are properly connected and not damaged.

The sound does not work, what should I check?

Check that the TV or amplifier is set to the correct audio input. Ensure the audio cables are connected correctly (L/R) and the volume is not at minimum.

The player does not accept a DVD, what should I do?

Check that the disc is compatible (DVD, VCD, CD...) and that it is not scratched or dirty. Clean the disc with a soft cloth from the center outward. Ensure the disc's region code matches the player (region 4 for Mexico).

The remote control does not work, how to fix it?

Check that the batteries are installed correctly (AAA type) and are new. Point the remote at the sensor within 7 meters and remove any obstacles. If the problem persists, replace the batteries.

How to use the Karaoke function?

Plug a microphone into the front MIC jack. Press the OK button on the remote to activate Karaoke mode. Adjust the microphone volume using the MIC VOL knob on the front panel.

How to change the subtitle or audio language?

During DVD playback, press the 'LANG' or 'SUBTITLE' button on the remote repeatedly to select the available language. Note that not all discs offer multiple languages.

The player makes a humming or crackling sound, is this normal?

A slight hum may come from the transformer. If the sound is distorted, check speaker connections and keep audio cables away from power cables. If the problem persists, contact a technician.

Can I play MP3 or JPEG files on this player?

Yes, the Daewoo DHT230NT supports CD-R/RW containing MP3 and JPEG files. Insert the disc, the menu appears. Use the directional keys to navigate and select files.

How to reset to factory settings?

Go to the SETUP menu, then 'Initial settings' or 'Default'. Select 'RESET' and confirm with ENTER. The default parental control code is 3308.

USER MANUAL DHT230NT DAEWOO

Dolby digital surround

leyendus ocultas

DTS Cinema digital surround

DAEWOO ELECTRONICS CORPORATION DE MEXICO

ALCE BLANCO # 36 COL. INDUSTRIAL ALCE BLANCO

NAUCALPAN EDO. DE MÉXICO

TEL: [phone] LADA: 01 800 8492882 C.P. 53370

HECHO EN CHINA

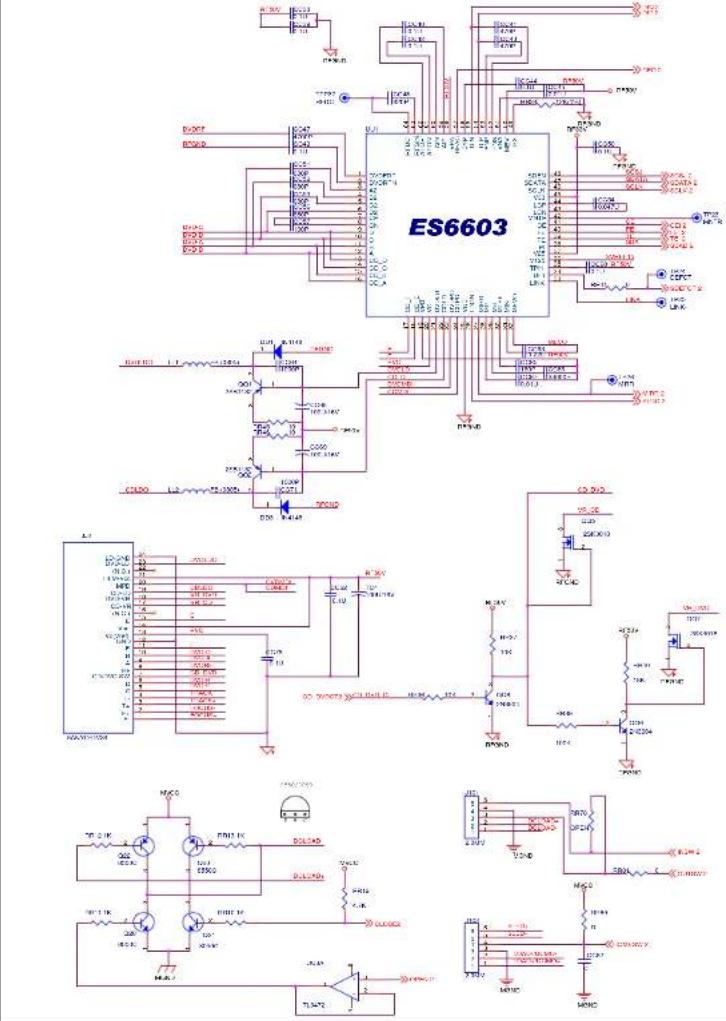

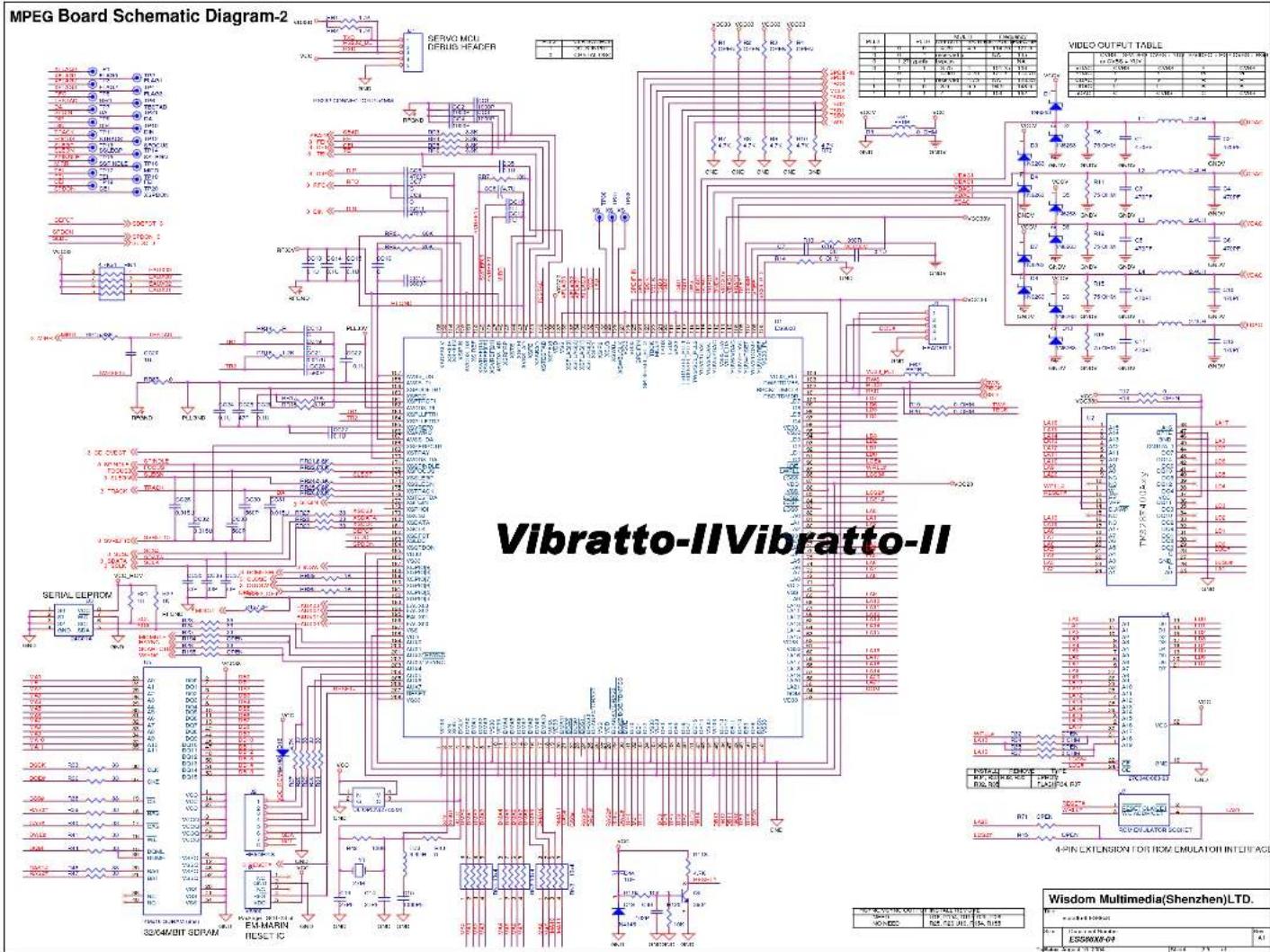

MPEG Board Schematic Diagram-1

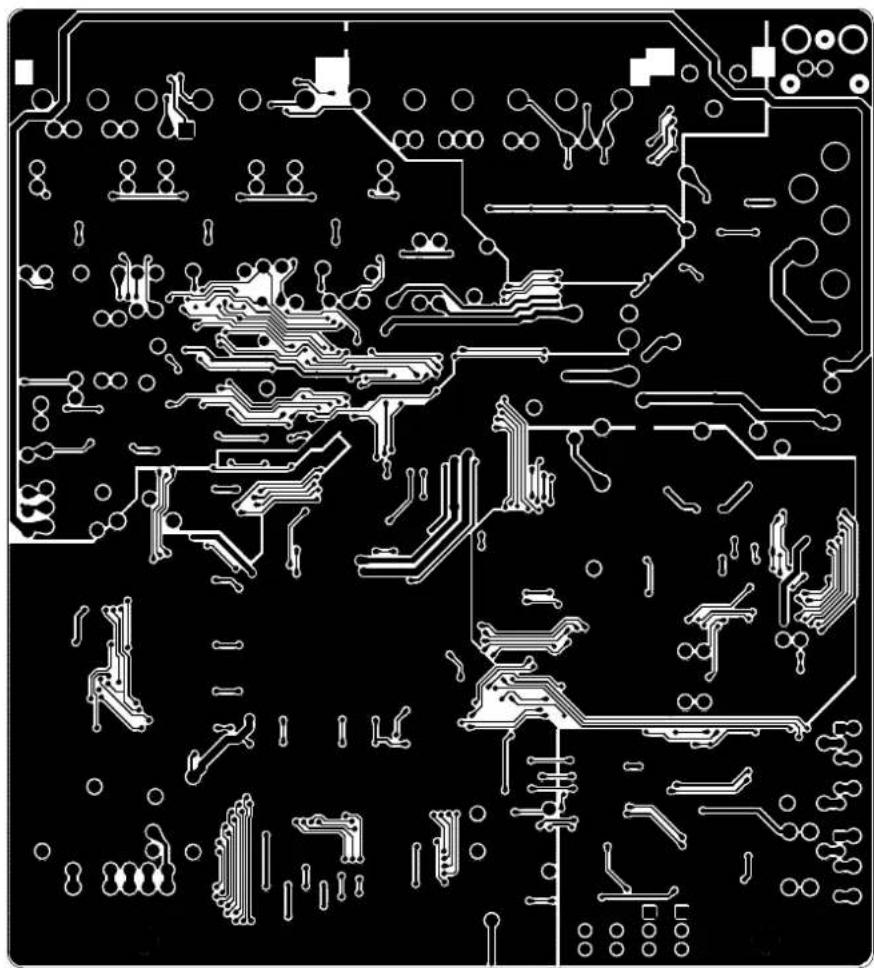

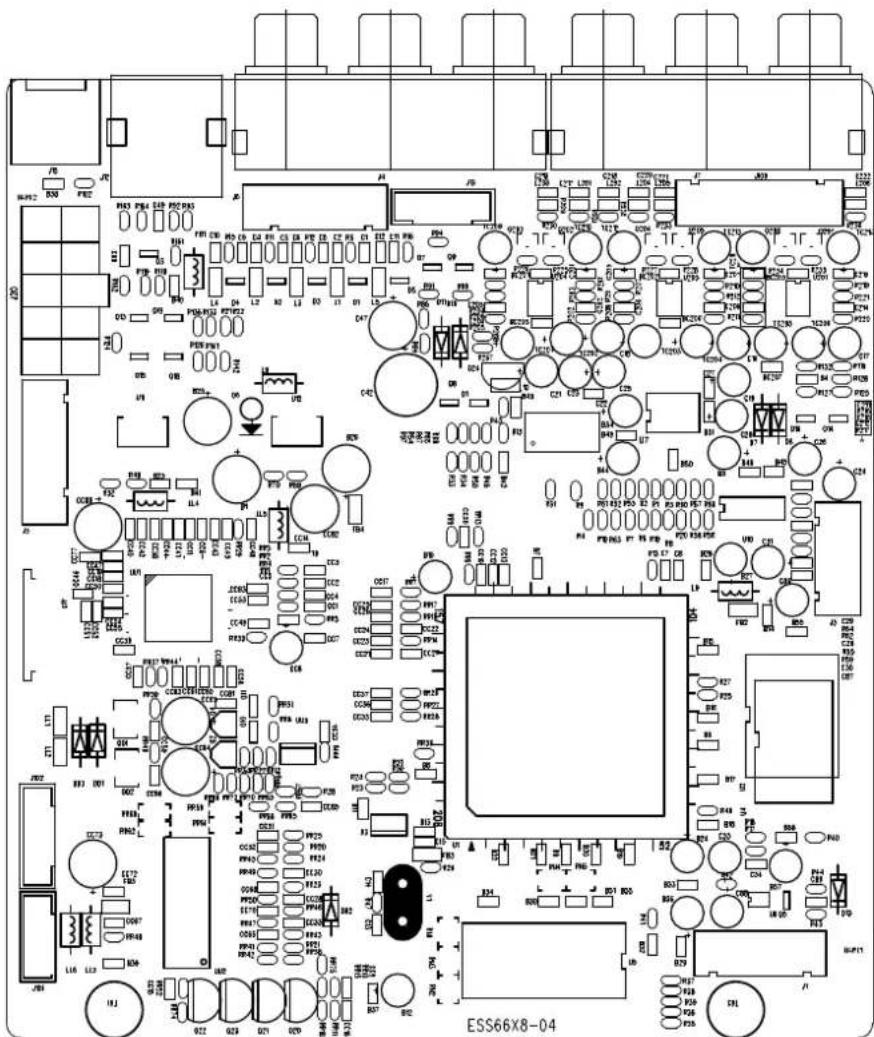

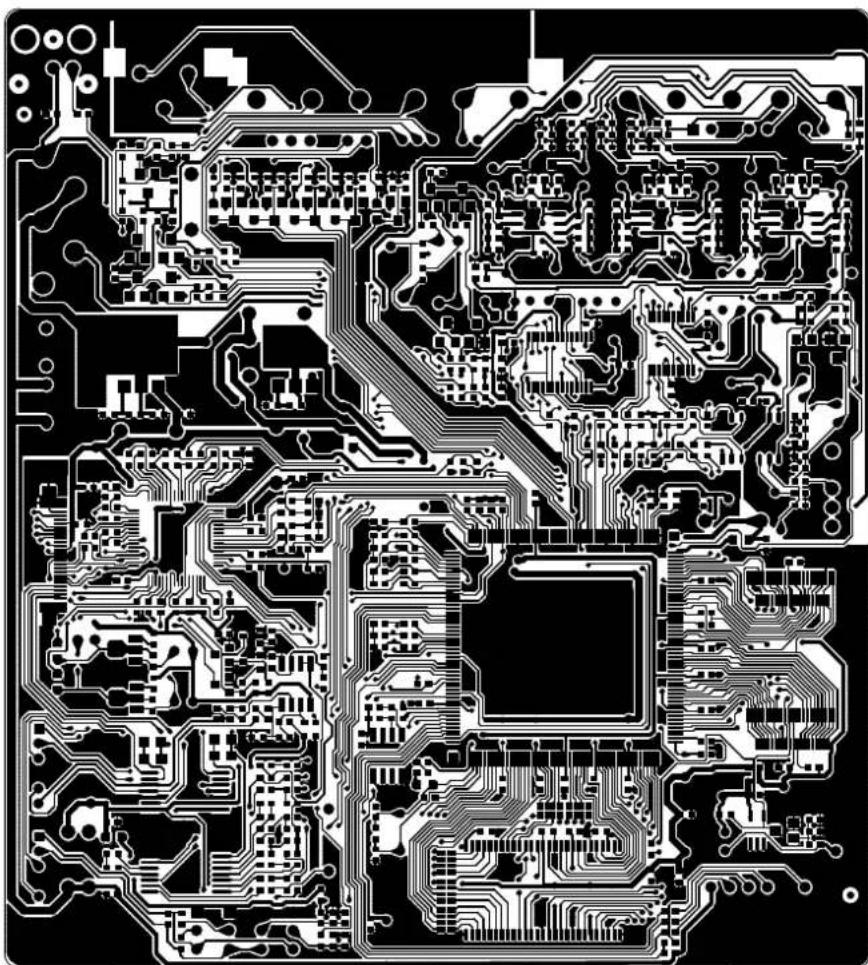

ESS66x8-04 REV-A1 ES66x8 + SANYO DV34 PICKUP + OUTPUT

Background

This DVD design is based on ESS Vibrio-II ES68x single chip DVD mpo and servo processor. The ES68x is built upon ESS proven Programmable Multimedia Processor architecture with integrated servo DSP. A complete DVD design using ES68x RF-Amp can support all major popular optical pickup hooks. With ES68x unity memory architecture, the whole system memory is reduced to a minimum. ES68x provides the best price performance DVD solution in the industry.

System Clock Requirement

ES686 requires a 27MHz clock to operate. This 27MHz can either be generated externally and feed into pin 3 and pin 4 or thru a 27MHz crystal attached to pin 2 and 3. This 27MHz will be used for all video processing reference. In addition, internal multiplier will generate a much higher operating frequency for the internal RISC DSP code to operate. Audio clock is generated from ES686 by its internal PLL circuitry.

SDRAM Usage

E66x8 support the use of higher density 4Mx16 SDRAM. A single of 4Mx16 SDRAM is sufficient for the whole system to operate.

System Configuration

CHIP	FUNCTION
ESE68x8	Single chip processor that handles all system control. DVD oscoding and servo control.
64MBI SDRAM	Data storage and frame buffer
8Mbit EPROMFLASH	Program storage
24C01 SERIAL EE	System setup configuration storage
WM9706	2-Channel AudioDAC
CS4360	6-Channel AudioDAC
WM9739	2-Channel AudioADC

LCS#	FUNCTION
LCS#1	STARRE
LCS#2	RCN EMULATOR
LCS#3	RCN/STAS#

AUXx	FUNCTION
#2000	"TOC DATA"
#2001	"TOC CLOCK"
#2002	"VOTOMETER / REYNING"
#2003	"SCARTCTT / VINDANT"
#2004	"Y"
#2005	"VST DATA"
#2006	"VST GS"
#2007	"VST CLE"

EAUXx	FUNCTION
FANUC ANCHORAC MD	ACD'00AC MC
FANX2	ACD'00AC NIAMN2
FANX3	ACD'00AC CS4

XGP10x	FUNCTION
XGP104	MNGL / X232.5B
XGP105	CD DCCCT
XGP106	CUTSW
XGP107	CLOSE
XGP108	HOMSXY
XGP109	KESN

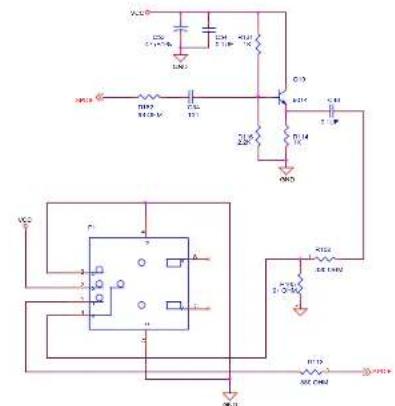

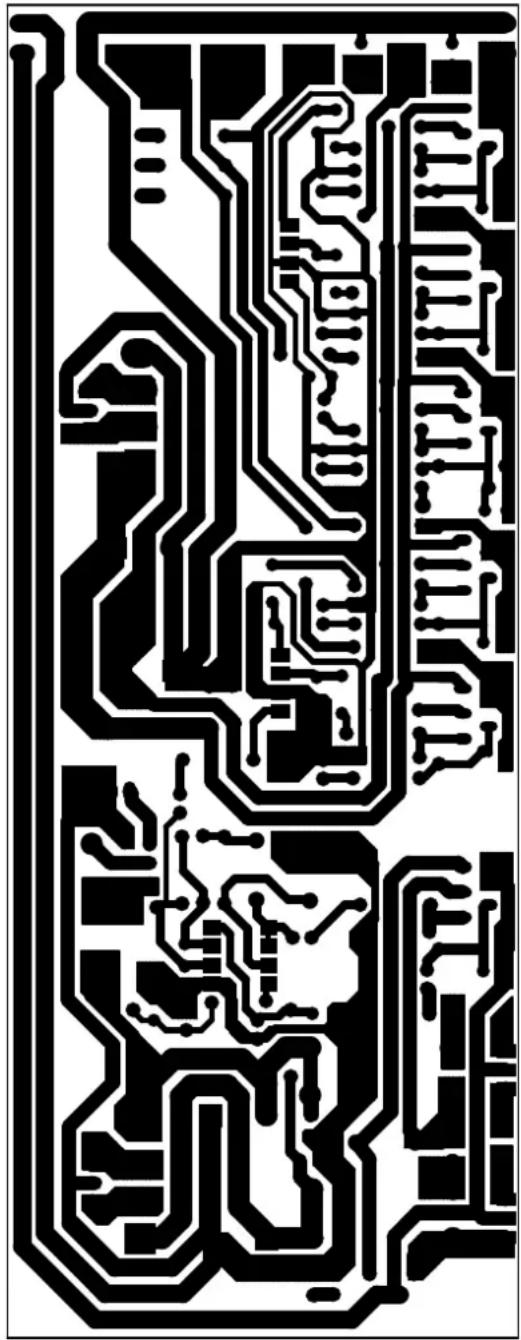

Revision History

Rev-A1. 1.Basso on Escher-HI Rev-A4, change pickup from HIT ACHI HOP1200 to SANYO DY34.

A2

1.Add pull low resistor on TSD2.

1. Change R92 from IK to OPEN

2. Change CDAC to PB, charge UDAC to PR

Wisdom Multimedia(Shenzhen) LTD.
No
1
2
3
4

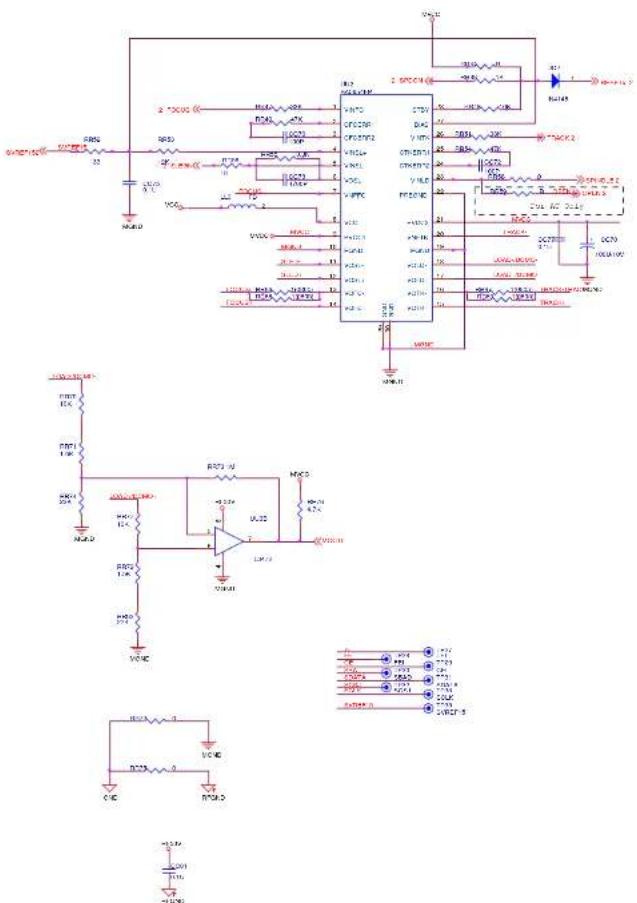

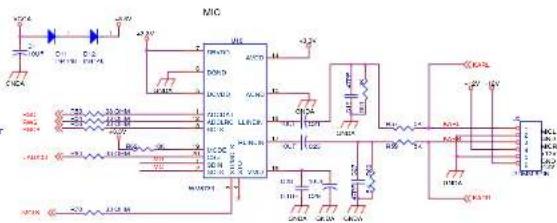

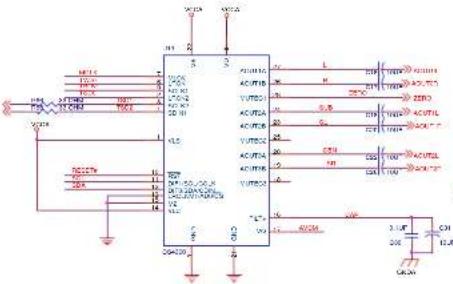

MPEG Board Schematic Diagram-3

Wisdom Multimedia(Shenzhen) LTD.
10821 2023-05-04
###	###
ES560X0-01	41

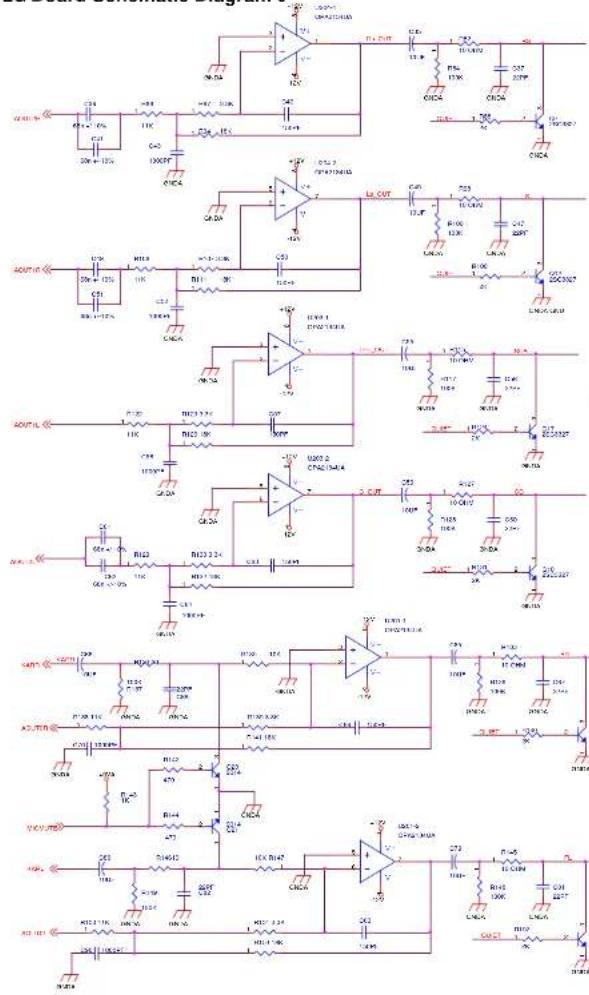

CHANNEL AUDIO OUT

8-CANNNL AUDIOAG

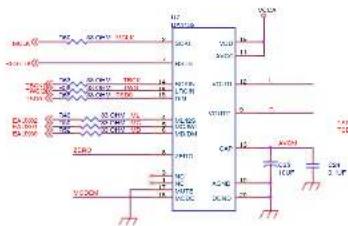

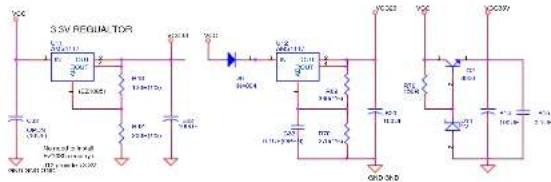

MPEG Board Schematic Diagram-4

add this part to generate 2.8V or 2.5V add this generate VCM3F

Wisdom Multimedia(Shenzhen) LTD.
Name	A#dulal Ayush
No.	12008260004

MPEG Board Schematic Diagram-5

Wisdom Multimedia(Shenzhen) LTD.
Name	Shenzhen Multimedia Co., Ltd.
Contact no	020-86200474

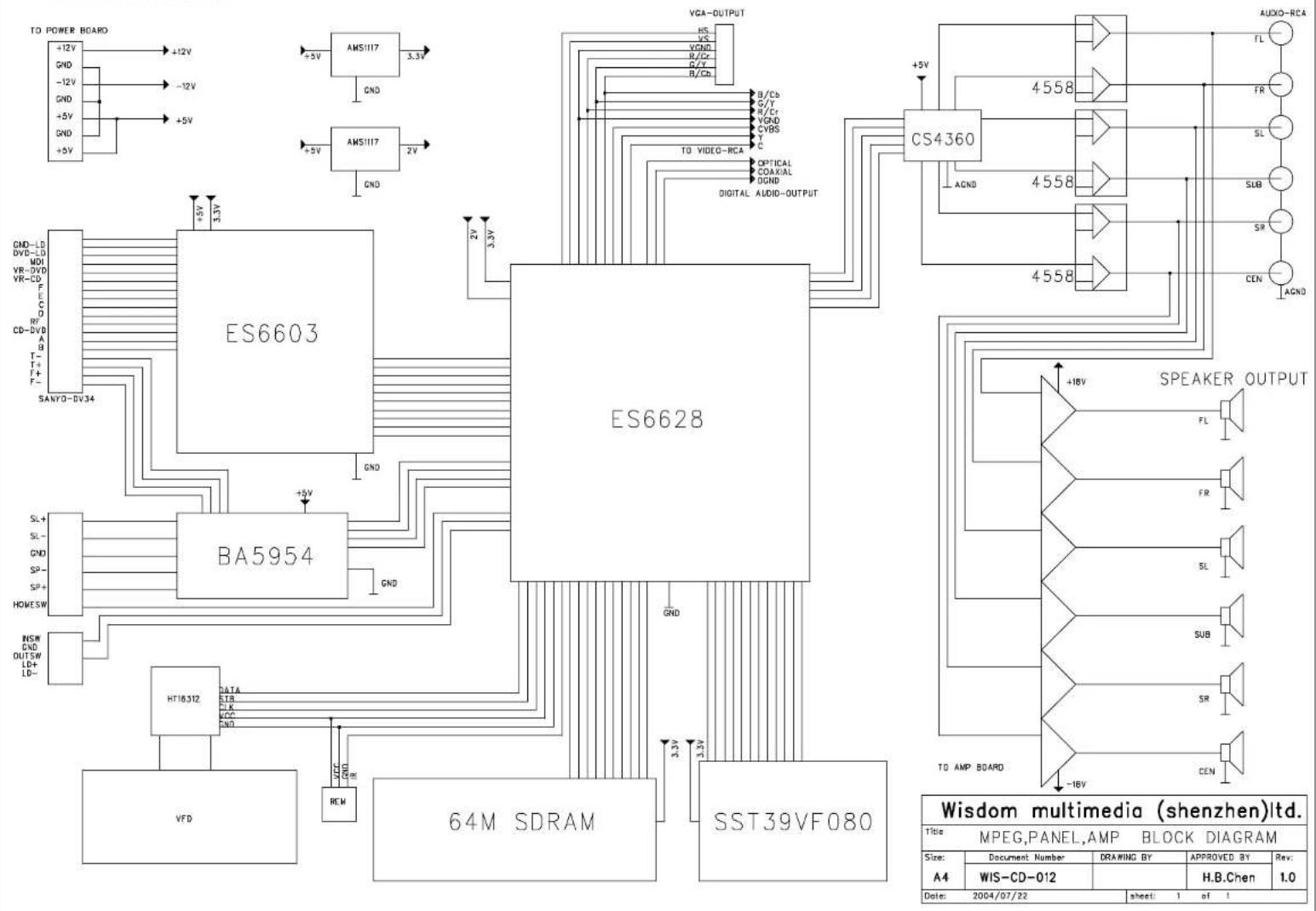

MAIN BLOCK DIAGRAM

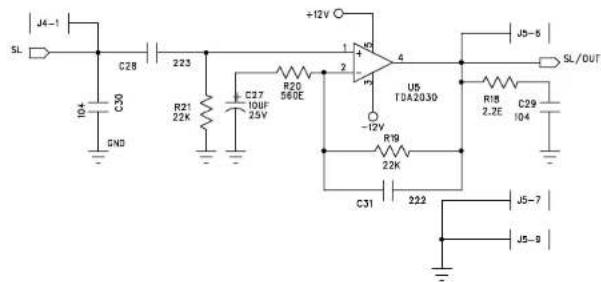

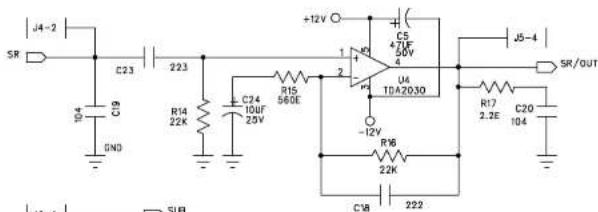

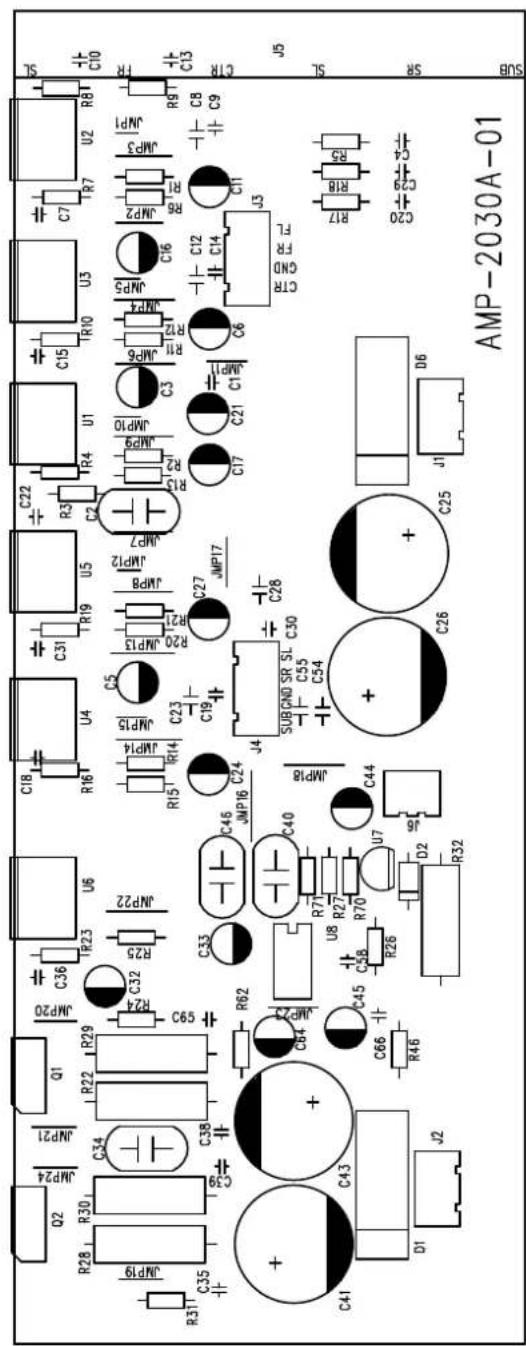

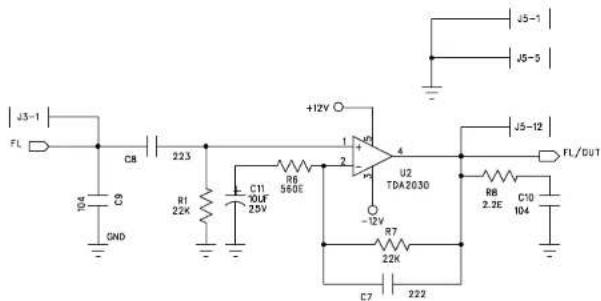

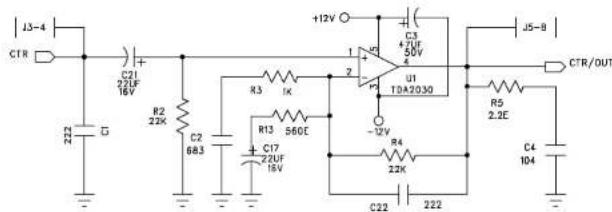

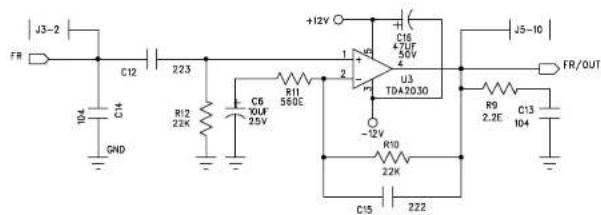

AMP Board Schematic Diagram-1

Wisdom multimedia (shenzhen) Ltd.
Title AMP-2030A
Size: A4	Document Number	DRAWING BY	APPROVED BY	Rev: 1.0
	WIS-CD-012		H.B.Chen
Date: 2004/02/01		sheet: 1 of 2

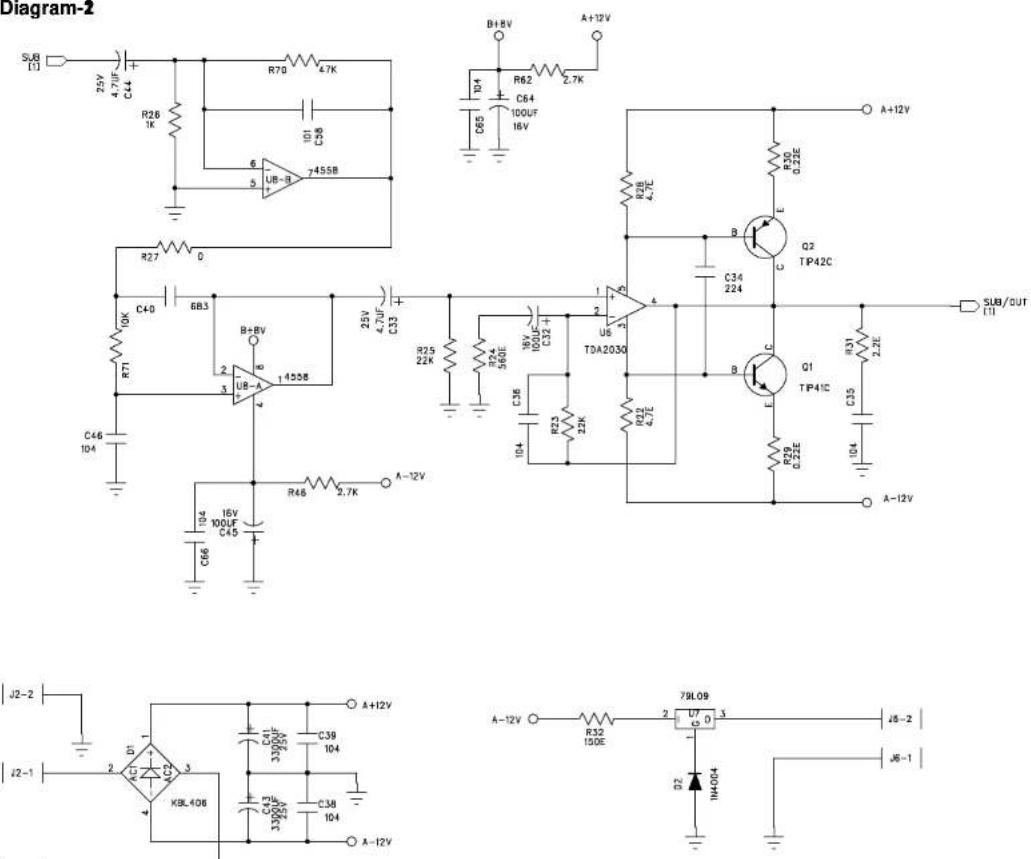

AMP Board Schematic Diagram-2

Wisdom multimedia (shenzhen) Ltd.
Title AMP-2030A
Size: A4	Document Number	DRAWING BY	APPROVED BY	Rev: 1.0
	WIS-CD-012		H.B.Chen
Date: 2004/02/01		sheet: 2 of 2

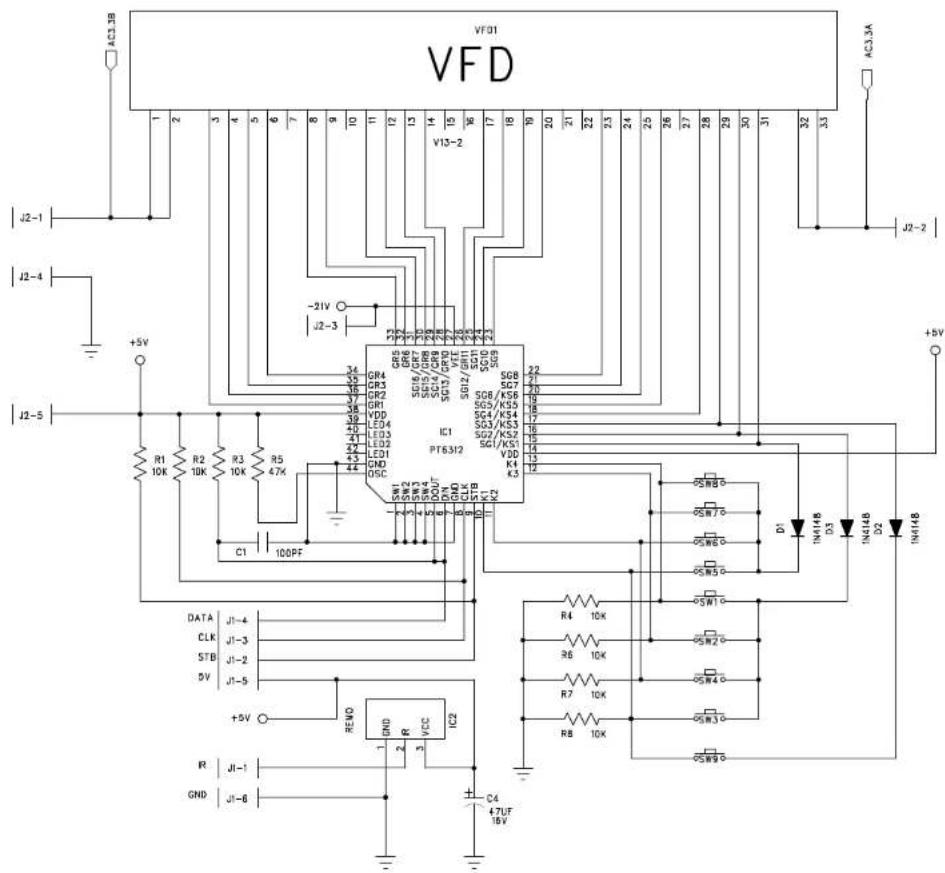

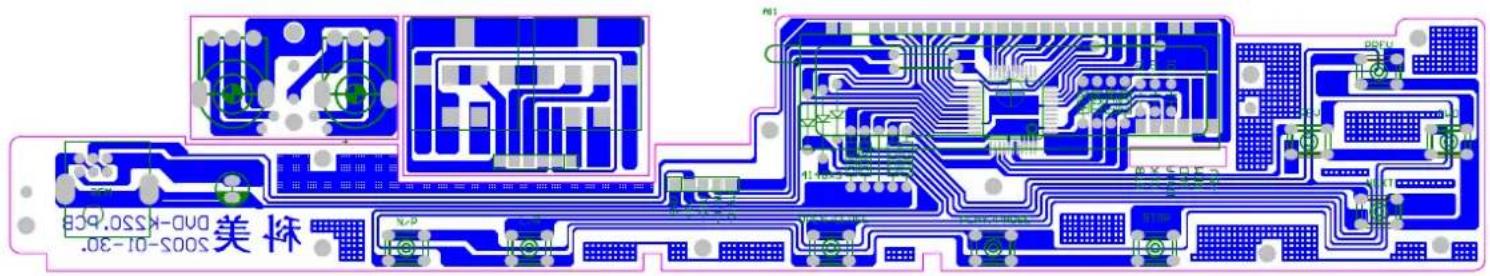

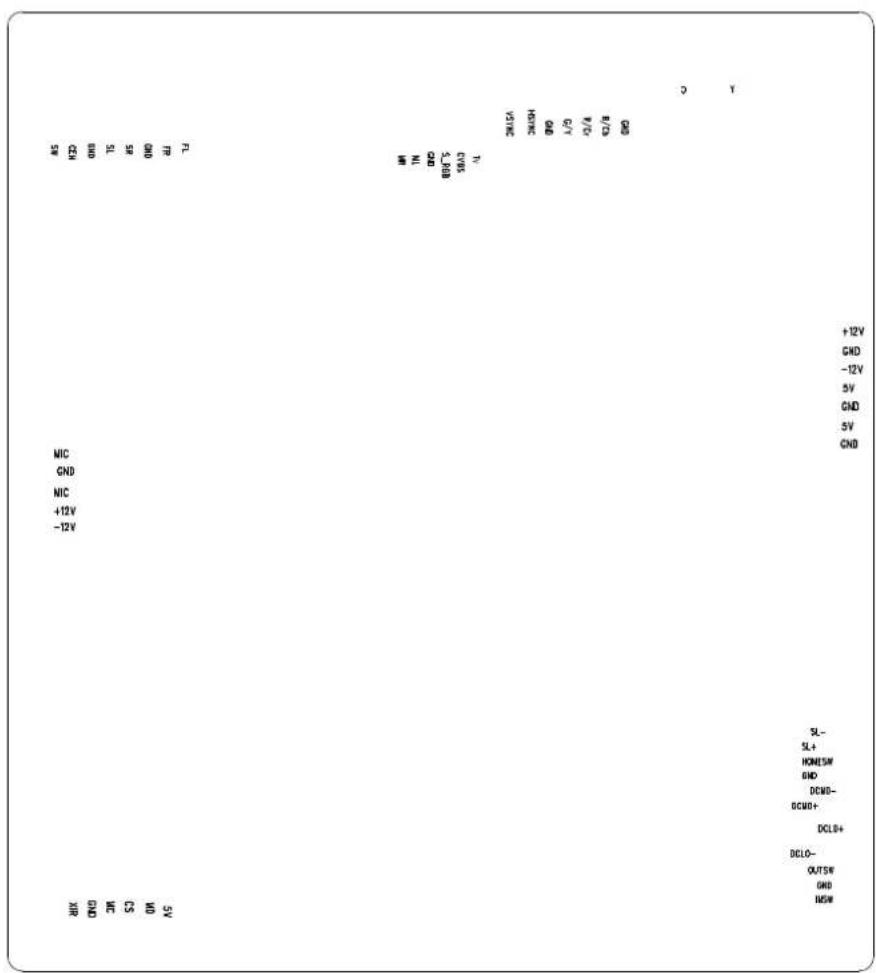

Panel Board Schematic Diagram

Wisdom multimedia (shenzhen) Ltd.
Title DVD-K220
Size: A4	Document Number	DRAWING BY	APPROVED BY	Rev: 1.0
	WIS-CD-007		H.B.Chen
Date: 2002/1/25		sheet: 1 of 1

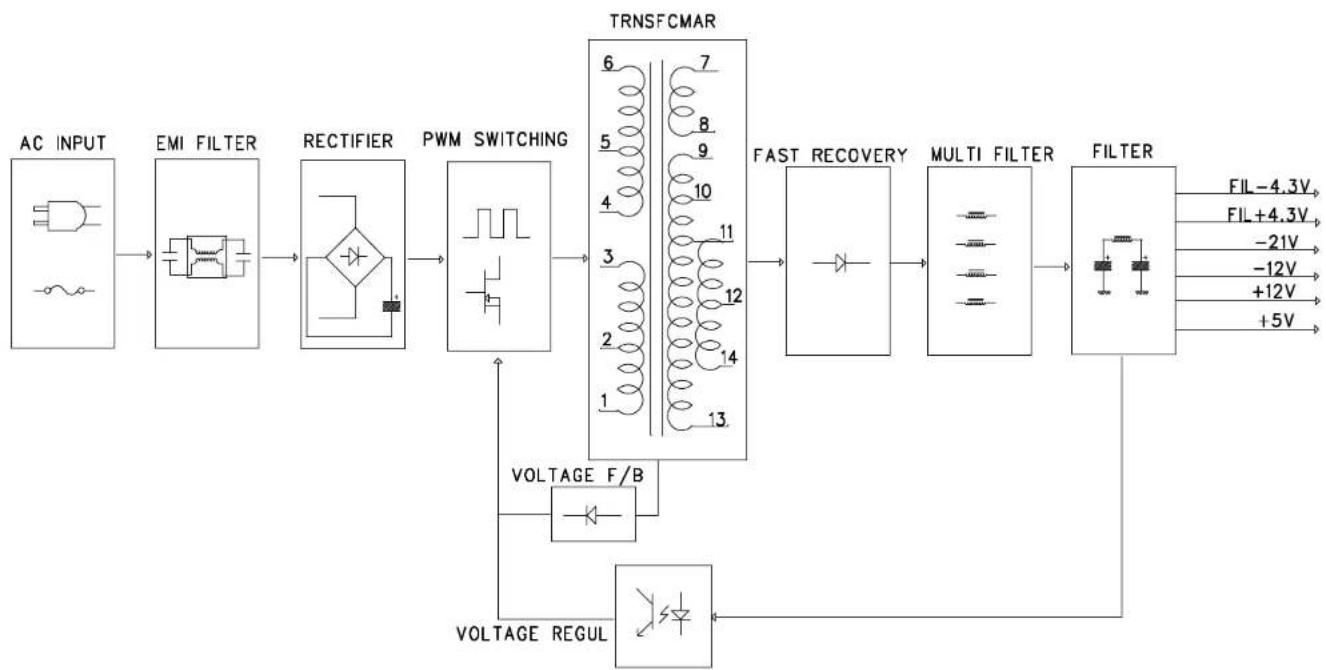

Power supplier block diagram

Wisdom multimedia (shenzhen) Ltd.
Title power-6002
Size: A4	Document Number	DRAWING BY	APPROVED BY	Rev: 1.0
	WIS-CD-031		H.B.Chen
Date: 2003/5/22		sheet 1 of 1

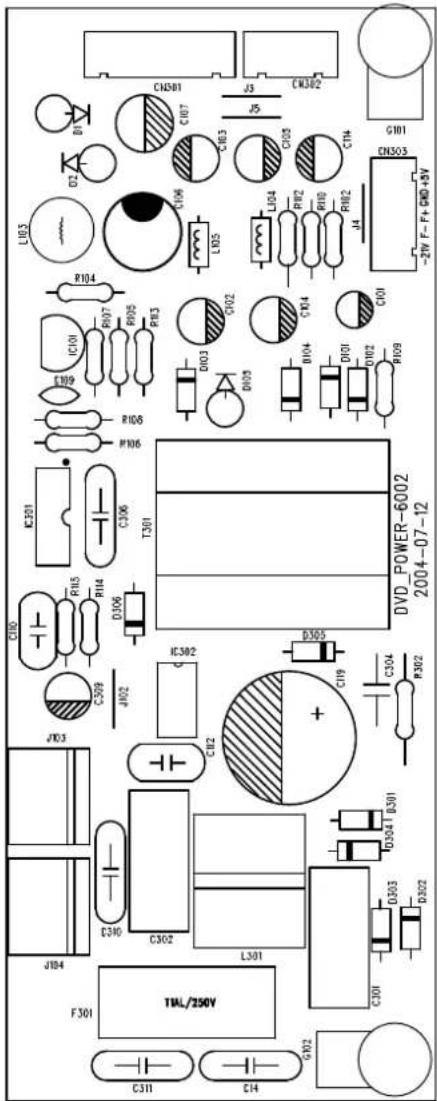

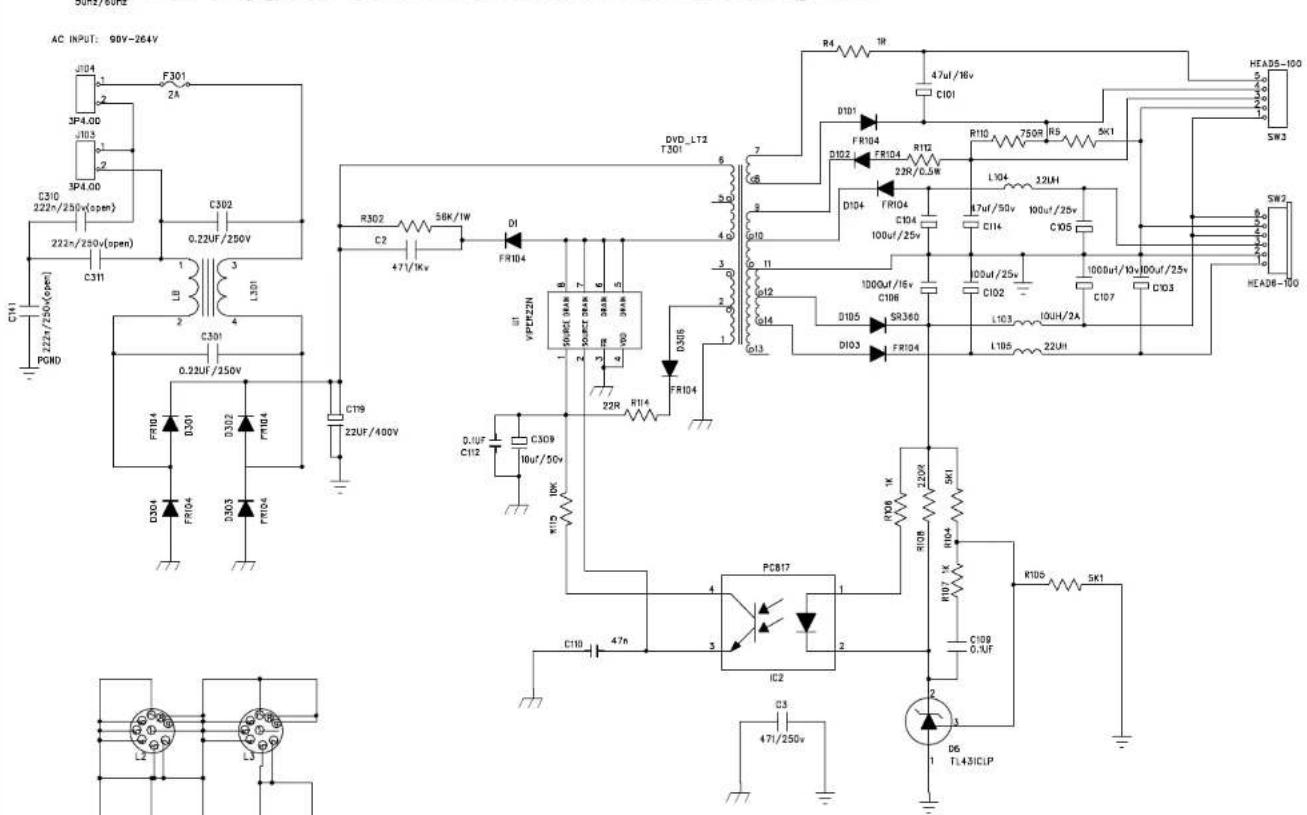

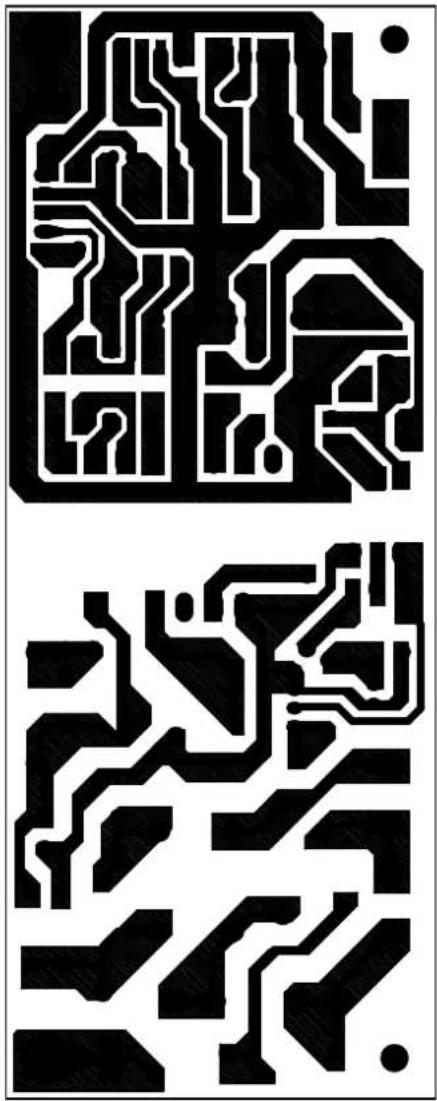

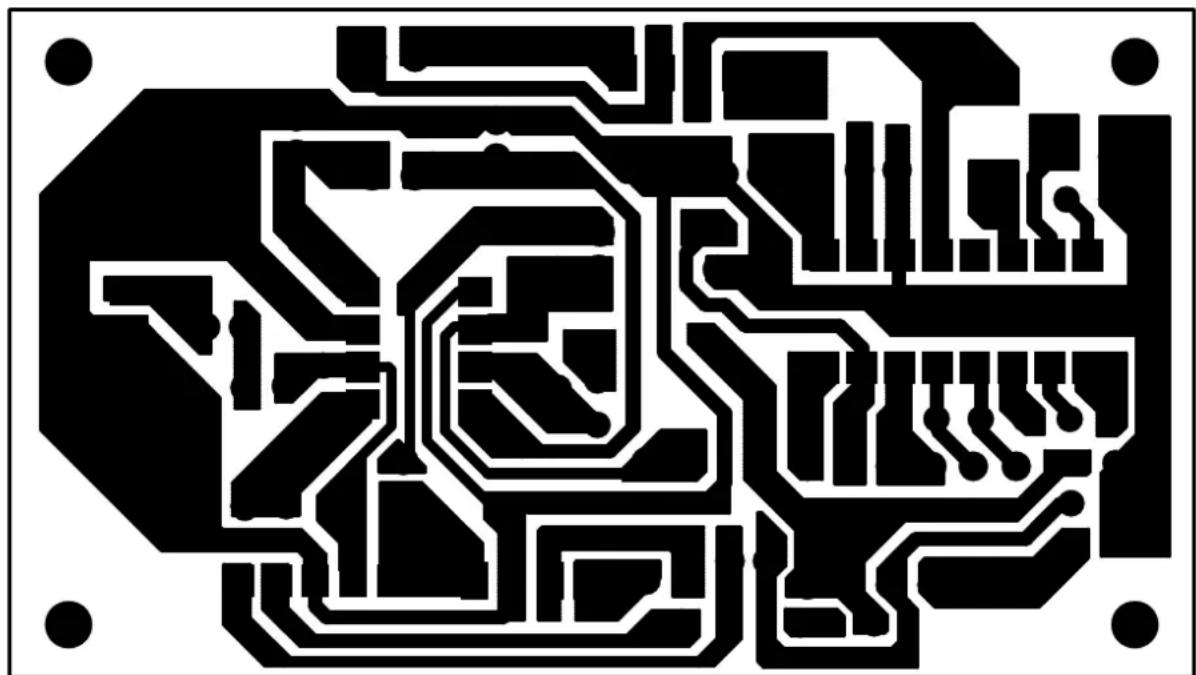

Power supplier board schematic circuit diagram

Wisdom multimedia (shenzhen) Ltd.

Title power-6002

Size: Document Number DRAWING BY APPROVED BY Rev: A4 WIS-CD-031 H.B.Chen 1.0 Date: 2003/5/22

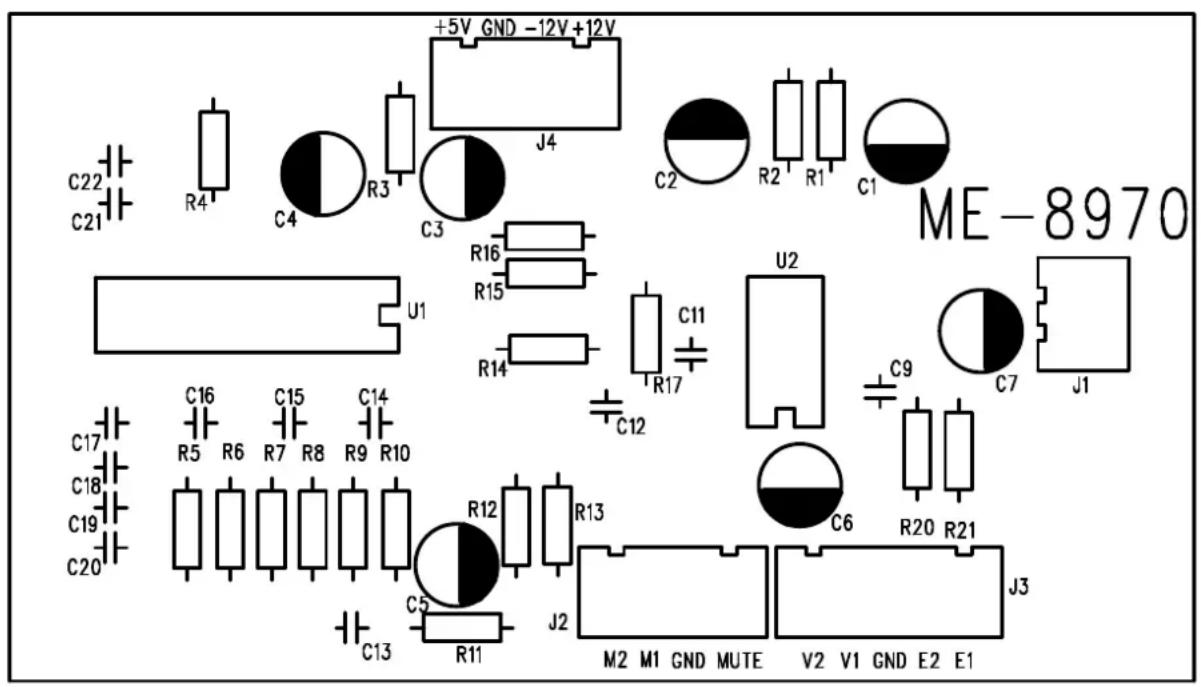

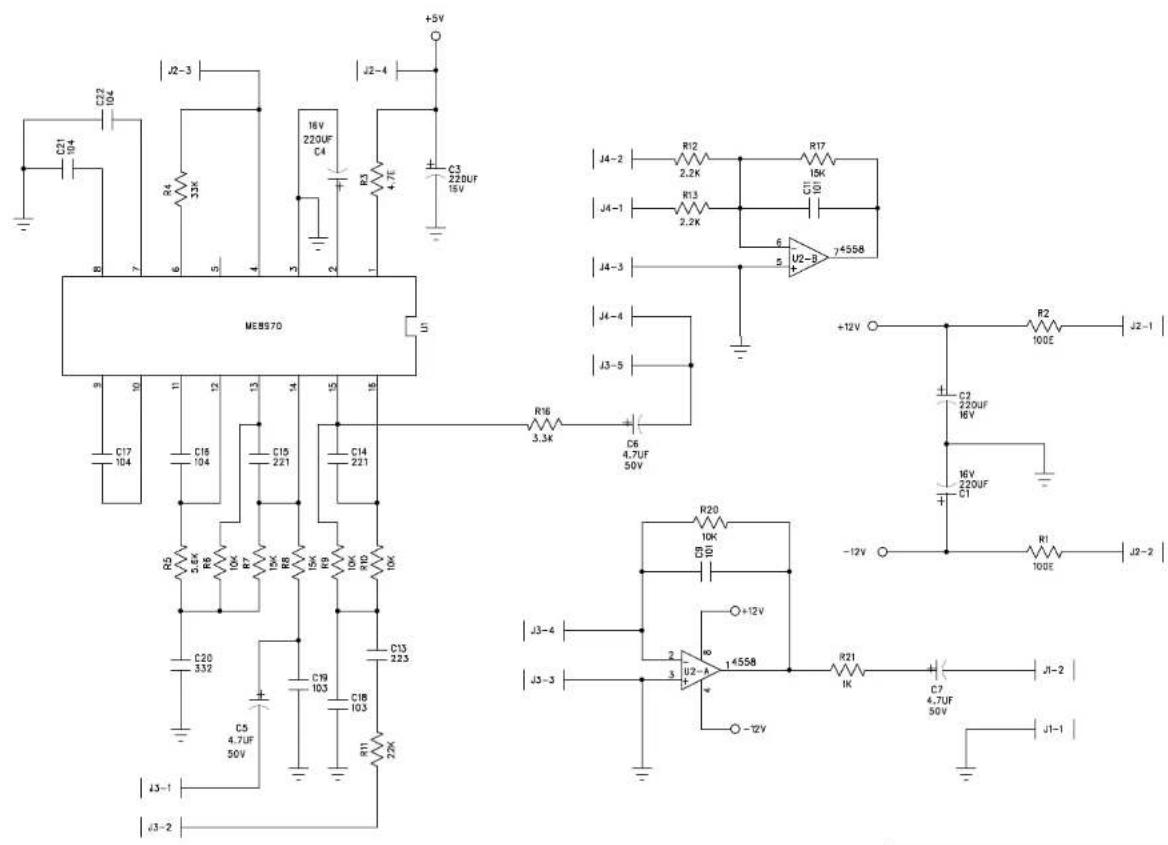

MIC Board Schematic Diagram

Wisdom multimedia (shenzhen) Ltd.
Title ME8970
Size: A4	Document Number	DRAWING BY	APPROVED BY	Rev: 1.0
	WIS-CD-XXX	Luzhou	H.B.Chen
Date: 2004/03/05		sheet: 1 of 1

5. Trouble Shooting Guide

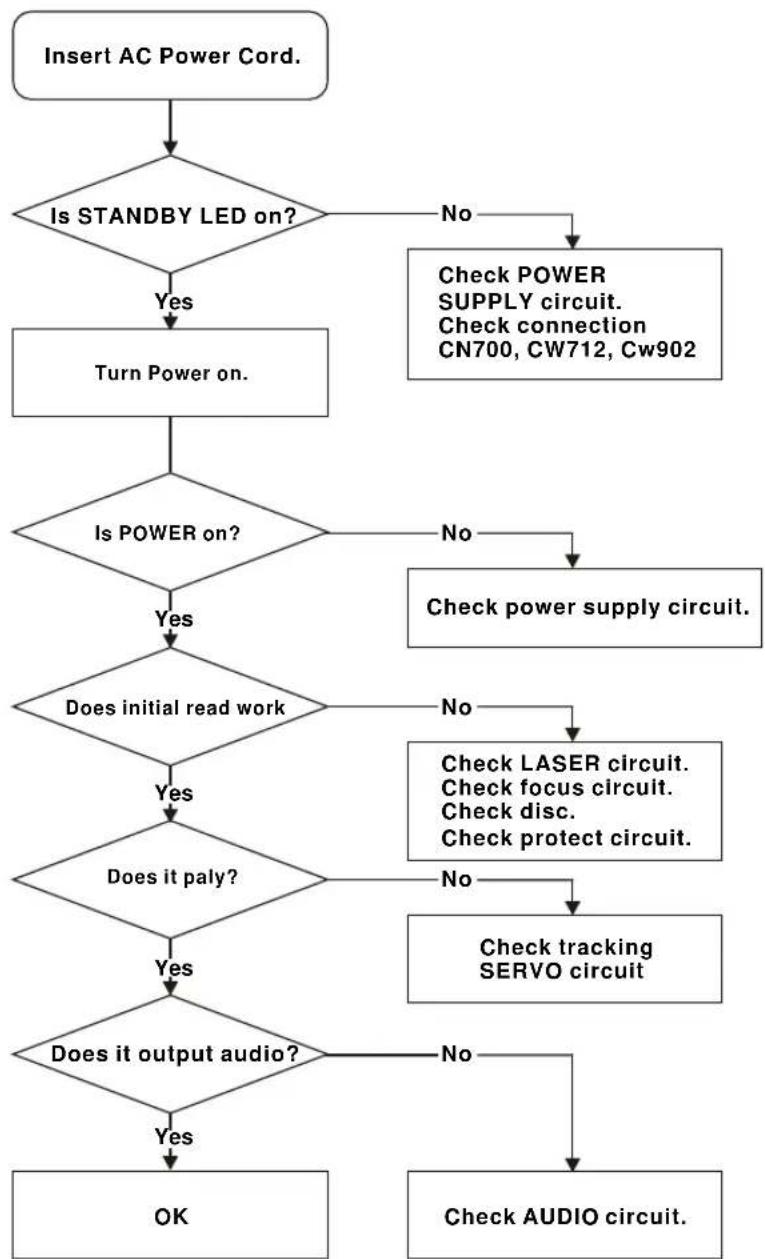

Basic Operating

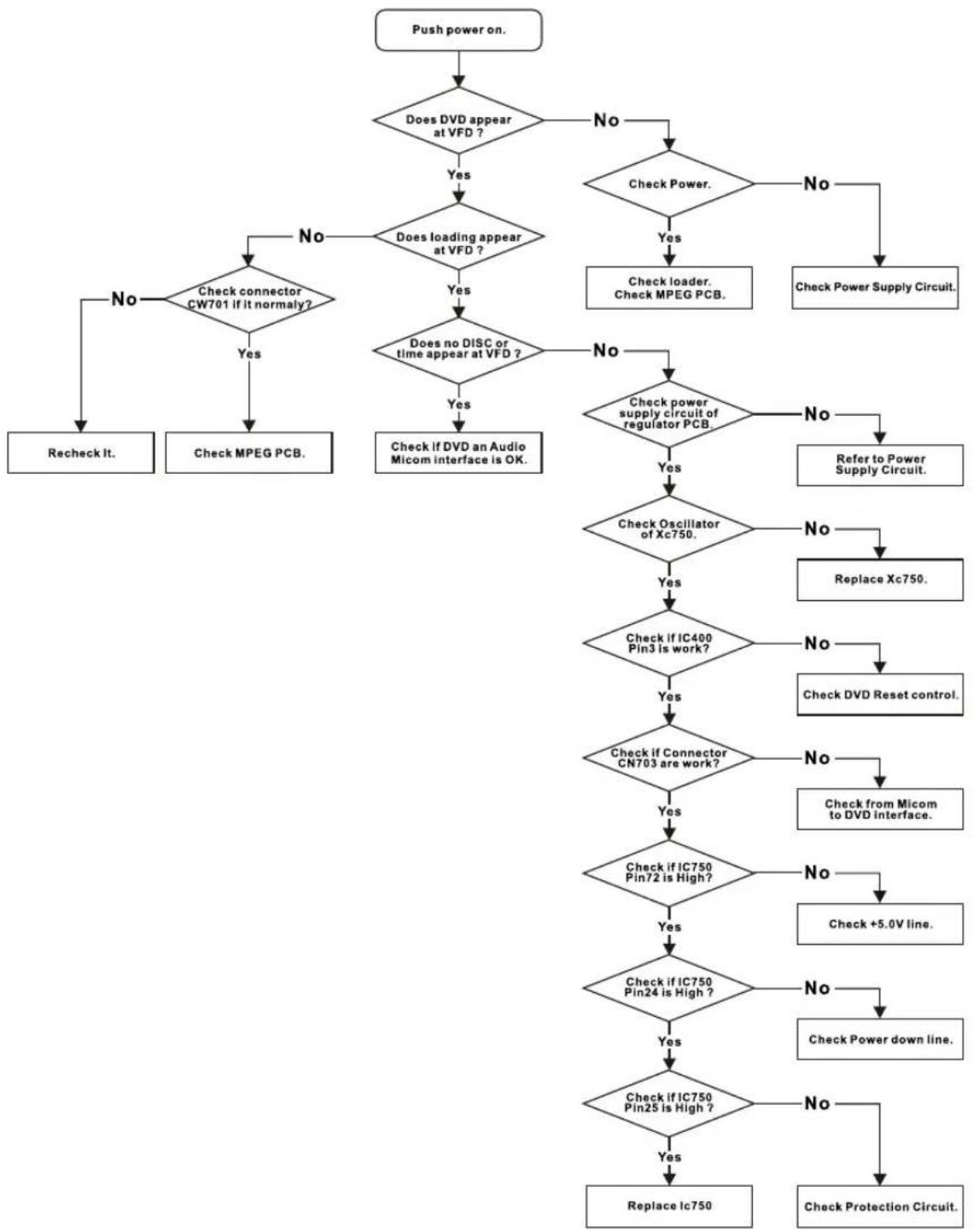

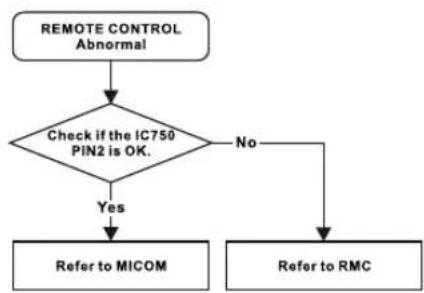

5. Trouble Shooting Guide

Mi-Com Circuit

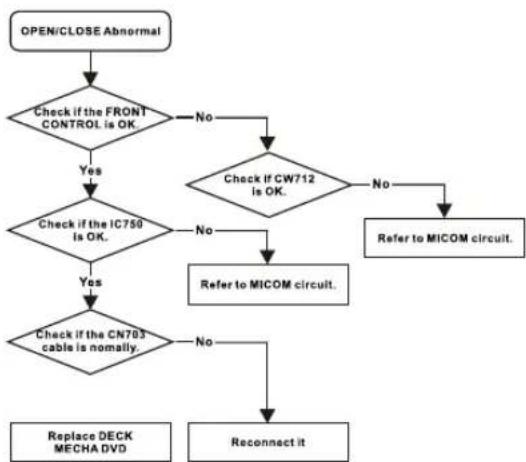

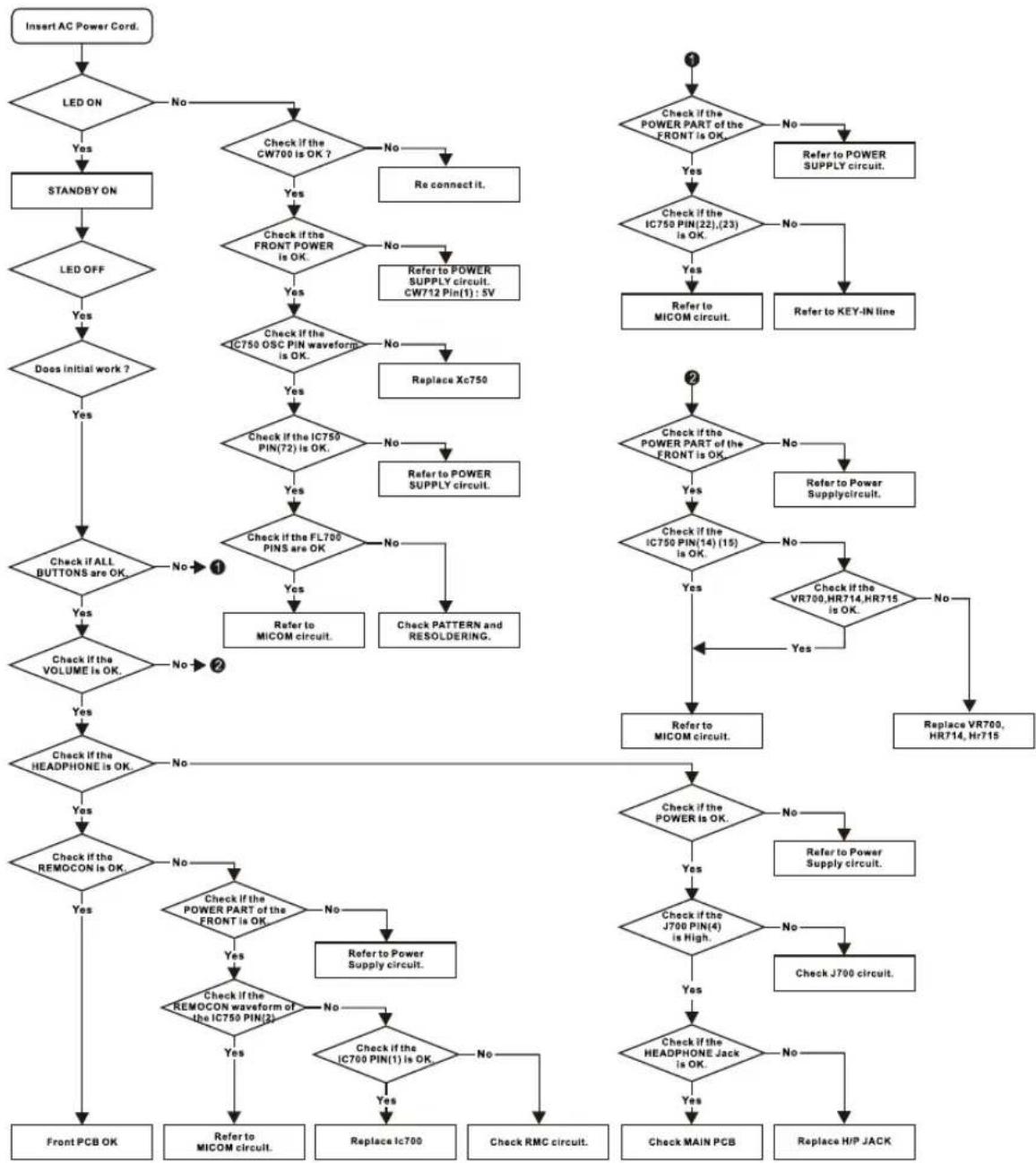

5.Trouble Shooting Guide

- Front Circuit

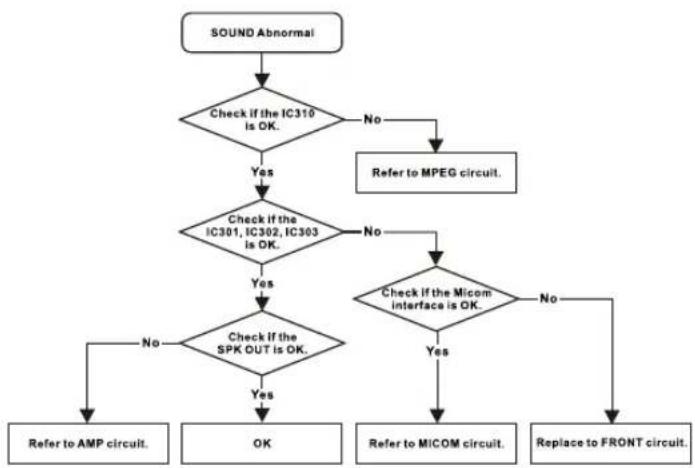

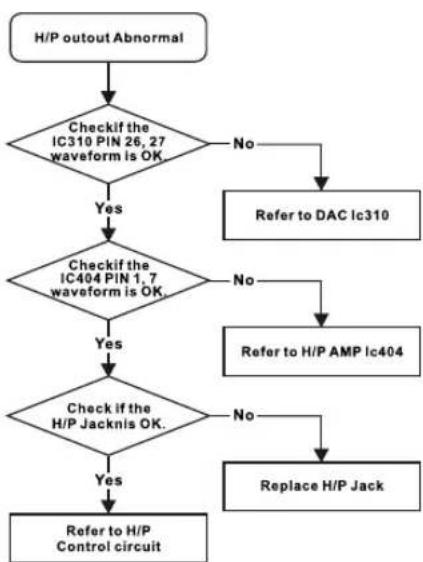

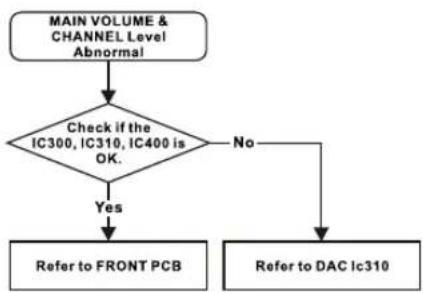

5.Trouble Shooting Guide

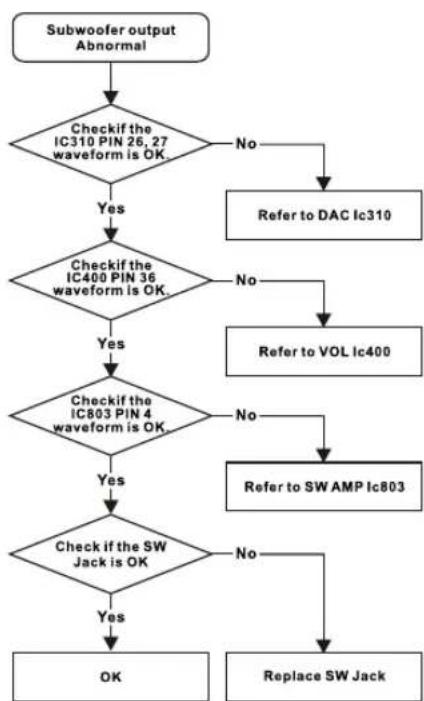

Audio Block

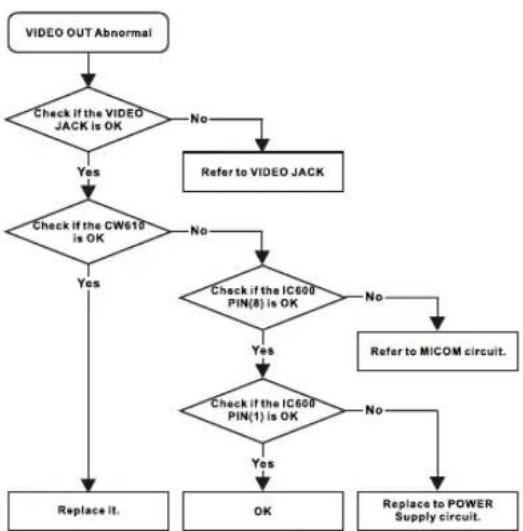

5.Trouble Shooting Guide

DVD Block

6. DVD Program Download Method

INSERT THE UPDATE DISC INTO THE DISC TRAY, THEN THE DVD RECEIVER READING THE DISC AND UPDATE THE FIRMWAFE ITSELF AS FOLLOWINGS.

@ INSERT THE UPDATE DISC.

NO	STATUS	VFD	MONITOR	SET CONDITION
1	STARTING UPDATE	DISC LOADING	LOADING	DOOR CLOSE
2	DETECT THE UPDATE DISC	TRK • 000 0:00:00	ES6028.ROM	DOOR CLOSE
3	READ THE DISC	TRK • 000 0:00:00	WRITING/ERASE	DOOR CLOSE
4	COMPLETED THE READ	TRK • 000 0:00:00	DONE	DOOR CLOSE
5	COMPLETED THE	TRK • 000 0:00:00		UPDATE DOOR OPEN 1)
6	END	TRK • 000 0:00:00		DOOR CLOSE : 2) 4 Secretary

NOTE:

1) AFTER DOOR OPEN, EJECT THE UPDATE DISC.
2) AFTER ,COMPLETED, POWER OUT AND IN AGAIN.

CAUTION:

WHILE DOOR OPEN, IF CD DOOR IS CLOSED BY TOUCH, OR POWER BUTTON IS PRESSED THEN FLASH MEMORY WILL BE ERASED.

REW

H

HSINI

COW

741111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

74111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

T

80000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

T

n/d

T

80000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

80000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

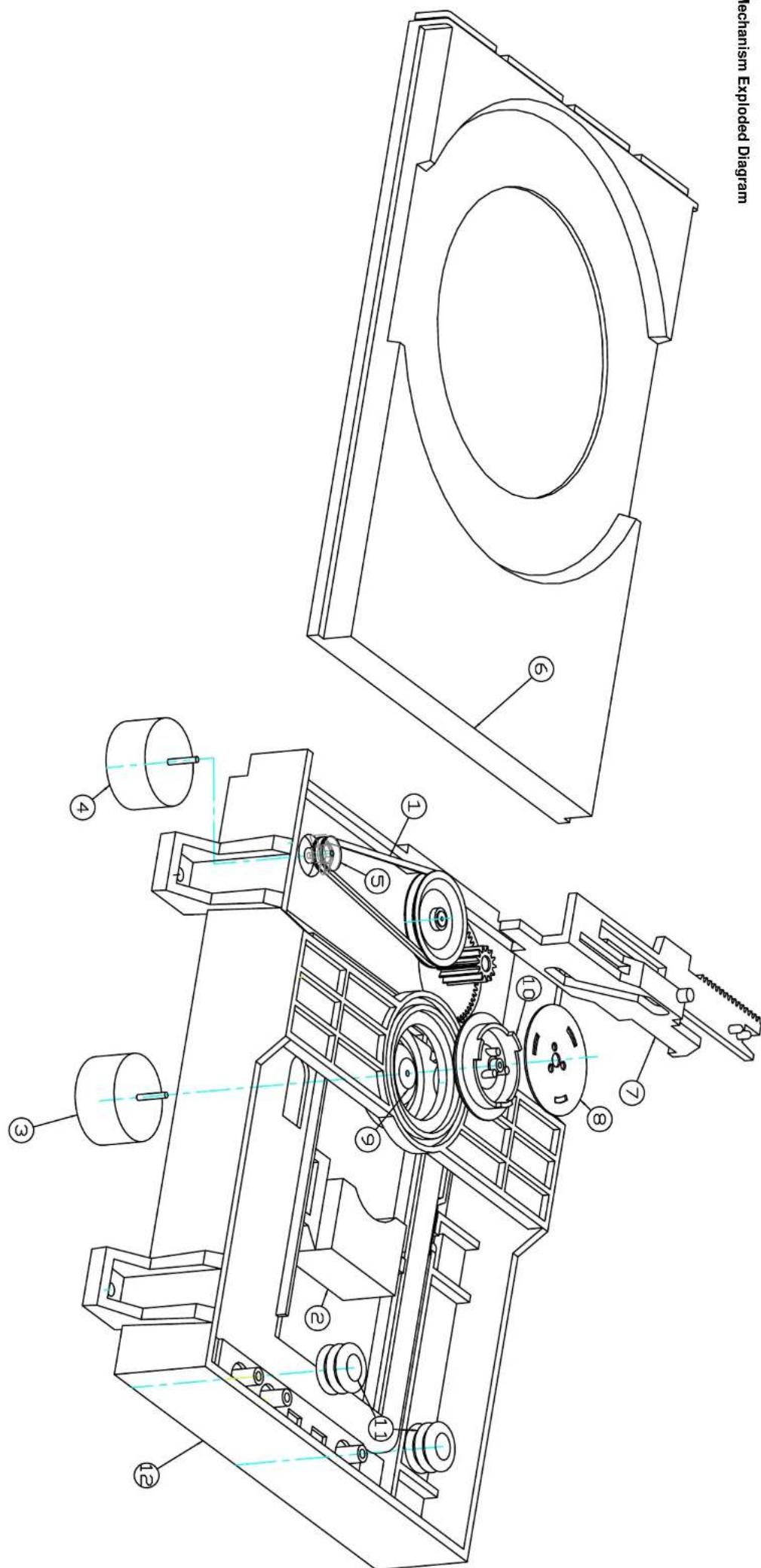

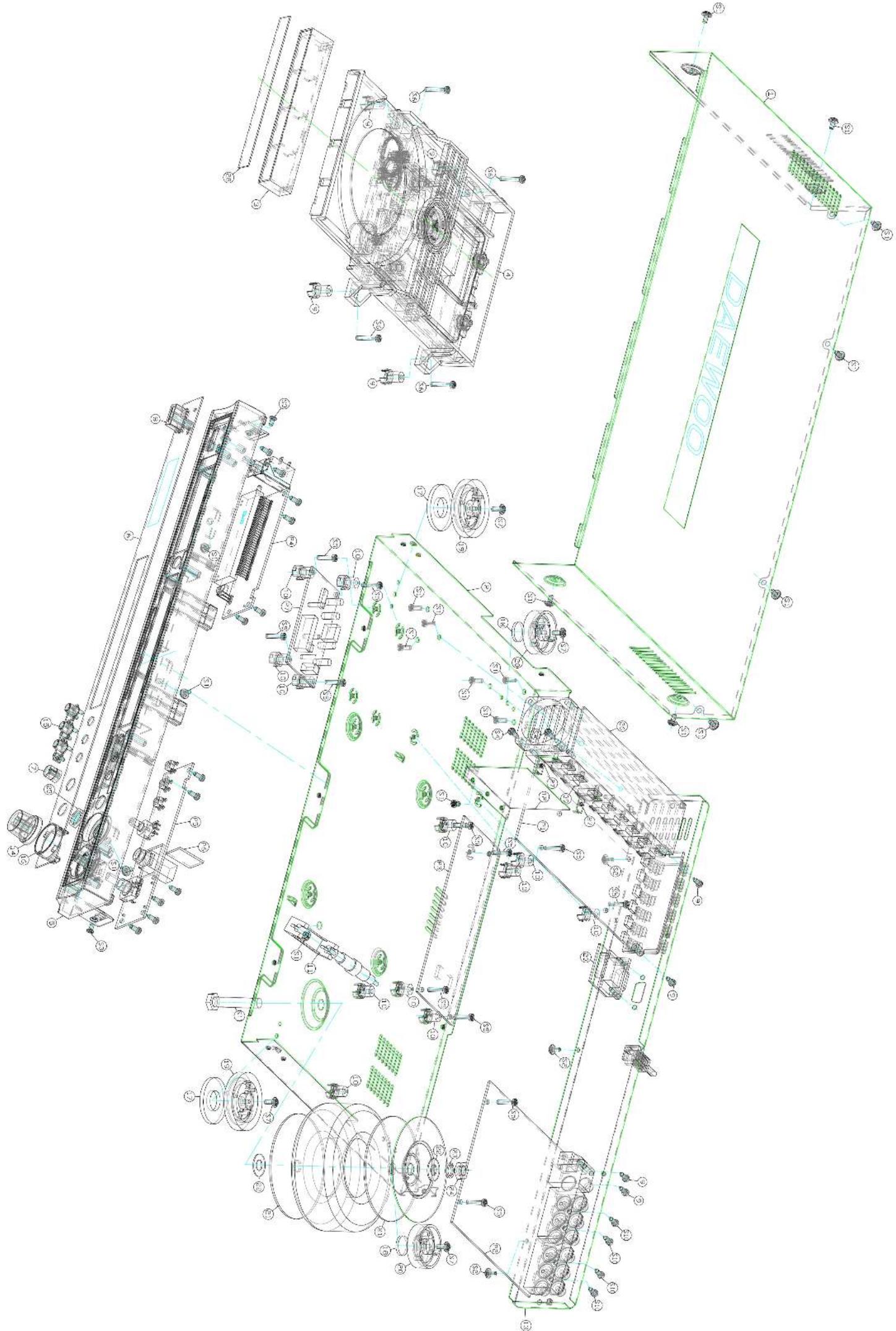

Mechanical Part List

NO	NAME OF PART	PART NO.	MATERIAL	DESCRIPTION	QTY	REMARKS
1	CHASSIS TOP	2812 230NT-10	SECC	T=0.7	1	MODULE
2	CHASSIS BOTTOM	2813 230NT-10	SECC	T=0.8	1	MODULE
3	DOOR DVD	3 728-205B-10	ABS		1	MODULE
4	MECHANISM DVD	10110DS-6000		COSMIC DS-600MA	1
5	CABINET FRONT	3711 230NT-10	ABS		1	MODULE
6	LENS WINDOW	3737 230NT-10	PMMA		1	MODULE
7	KNOB MIC VOL	3763 230NT-10	ABS		1	MODULE
8	KNOB POWER	3761 230NT-10	ABS		1	MODULE
9	PLASTIC BRACKET	3706 230NT-11	ABS	HEIGHT=6MM	4
10	PLASTIC BRACKET	3706 230NT-10	ABS	HEIGHT=10MM	12
11	CLIP LINE	3725 230NT-10			1
12	METAL BRACKET SHIELD	2843 230NT-10	SECC	T=0.8	1	MODULE
13	CHASSIS BACK	2814 230NT-10	SECC	T=0.7	1	MODULE
14	KNOB VOLUME	3763 230NT-11	ABS		1	MODULE
15	KNOB SERIAL	3761 230NT-11	ABS		1	MODULE
16	DECO KNOB VOLUME	3734 230NT-10	ABS		1	MODULE
17	COTTON FRONT	4955 230NT-10	COTTON	Φ35mm	2	MODULE
18	COTTON BACK	4955 230NT-11	COTTON	Φ15mm	2	MODULE
19	LEG SUPPORT FRONT	370C 230NT-10		Φ44mm	2
20	LEG SUPPORT BACK	370C 230NT-11		Φ33mm	2
21	RUBBER	3788 230NT-10		Φ79mm	2
22	SPACER	2301 230NT-10		Φ17mm	2
23	WASHER	2303 230NT-10		Φ11.5mm	1
24	NUT POWER TRANSFORMER	262080390D20		M=8	1
25	NUT MIC	262120024D00		M=12	1
26	HEAT SINK AL	2832 230NT-10	AL	EXTRUSION	1	MODULE

MPEGPCB Part List

No	Location	Parts Name	Description			Quantity	Remark
001	ESS66X8-04	MEPG PCB	170mm×130mm			1
002	C217,C218,C219,C220,C221,C222	C CHIP CERA	C0603	22P	J	6
003	C13,C14,C89,	C CHIP CERA	C0603	27P	J	3
004	CC35,CC36,CC37,	C CHIP CERA	C0603	33P	J	3
005	C20,CC25,C29,	C CHIP CERA	C0603	47P	J	3
006	CC65,CC67,CC55	C CHIP CERA	C0603	101	J	3
007	C201,C203,C205,C207,C211,C213	C CHIP CERA	C0603	151	J	6
008	CC60	C CHIP CERA	C0603	161	J	1
009	C1,C2,C3,C4,C5,C6,C9,C10,C11,C12,CC41,CC43,	C CHIP CERA	C0603	471	J	12
010	CC23,CC30,CC33,	C CHIP CERA	C0603	561	J	3
011	CC50,CC51,CC52,CC54	C CHIP CERA	C0603	681	J	4
012	CC47	C CHIP CERA	C0603	821	J	1
013	CC1,CC2,CC3,CC4,CC59,CC66,C202,C204,C206,C208,C212,C214	C CHIP CERA	C0603	102	K	12
014	CC6,CC1,CC68,CC18	C CHIP CERA	C0603	472	K	4
015	CC17	C CHIP CERA	C0603	682	K	1
016	CC40,CC42,CC45,CC62,	C CHIP CERA	C0603	103	K	4
017	CC28,CC31,CC32	C CHIP CERA	C0603	153	K	3
018	CC61	C CHIP CERA	C0603	333	K	1
019	CC53,CC21	C CHIP CERA	C0603	473	K	2
020	B4,CC5,B6,C7,C7,B7,C8,B9,B11,CC13,B13,CC14,B14,B15,CC15,B16,B17,B18,B19,B20,B21,C22,C22,B22,B23,CC24,CC26,CC27,C27,B28,B29,C30,B30,B31,B32,B33,C34,CC34,B34,B35,B37,B38,CC38,CC39,B39,B40,B41,B42,B43,CC44,B45,B46,CC46,CC48,CC49,C49,B49,B50,B51,B55,CC56,	C CHIP CERA	C0603	104	Z	77
035	R92,R102,	R CHIP	R0603	331	J	2
036	R13,R69,	R CHIP	R0603	391	J	2
037	RR18,	R CHIP	R0603	471	J	1
038	RR52,RR74	R CHIP	R0603	681	J	2
039	RR15,R23,R24,RR37,RR50,R127, R52,R69,R161,R164,R225,R226, R227,R228,R234,R235,	R CHIP	R0603	102	J	16
040	RR14	R CHIP	R0603	122	J	1
041	RR64,RR70,	R CHIP	R0603	152	J	2
042	RR75,R91,R99,R163	R CHIP	R0603	222	J	4
043	RR1,R2,R2,R3,R4,R29,R49,R203, R206,R212,R218,R221,	R CHIP	R0603	332	J	11
044	R6,R7,R8,R9,R10,RR10,R35,R42,R67	R CHIP	R0603	472	J	10
045	RR17,RR23,RR44,R59,R62,	R CHIP	R0603	512	J	5
046	RR19,RR20,RR21,RR24,RR25	R CHIP	R0603	682	J	5
047	RR5,RR16,RR38,R43,R44,R54,RR63, RR69,R267,RR22,RR51	R CHIP	R0603	103	J	11
048	R202,R205,R208,R211,R217,R220,R268	R CHIP	R0603	113	J	7
049	RR29,RR47	R CHIP	R0603	123	J	2
050	R201,R204,R207,R210,R216,R219,RR12	R CHIP	R0603	183	J	7
051	RR42,R55,R64,R66,RR72,	R CHIP	R0603	223	J	5
052	RR7	R CHIP	R0603	203	J	1
053	RR13,RR41,RR45,	R CHIP	R0603	333	J	3
054	RR43,RR48,	R CHIP	R0603	473	J	2
055	RR6	R CHIP	R0603	683	J	1
056	R47,R86,R94,R229,R230,R231, R232,R233,R236,RR34	R CHIP	R0603	104	J	10
057	RR65	R CHIP	R0603	105	J	1
058	RR59,RR60,RR61,RR62	R CHIP	R0805	1R	J	4

No	Location	Parts Name	Description	Quantity	Remark
078	B10,B12,C16,C17,C18,C19,C21,C23, C24,B24,C25,C26,C28, B36,B54,B57,C86,TC209,TC210, TC211,TC212,TC213,TC214.	C ELECTRO	10uf/10V(5 X 11mm)	23
079	B1,B26,B44,CC63,CC64,CC73, CC80,CC82,TC201,TC205	C ELECTRO	100uf/10V(5 X 11mm)	10
080	TC202,TC206	C ELECTRO	100uf/16V(6.3 X 11mm)	2
081	B25,C47	C ELECTRO	220uf/10V(6.3 X 11mm)	2
082	C42,	C ELECTRO	470uf/10V(8 X 12mm)	1
083	J5	JACK	CONSP2.5/mm	1
084	J101	JACK	CONSP2.0mm	1
085	J102	JACK	CON6P2.0mm	1
086	J1	JACK	CON6P2.5/mm	1
087	J3 J6	JACK	CON7P2.5/mm	2
088	J2	JACK	CON8P2.5/mm	1
089	J12	RCA JACK	S-VIDEO+VIDEO	1
090	J7	RCA JACK	AUDIO RCA	1
091	J4	RCA JACK	VIDEO RCA	1
092	J15	JACK	OPTICAL	1
093	J1	CONN ATAPI	FFC-24P/B 0.5mm	1
094	U1	IC CHIP	ES6628F	1
095	U5	IC CHIP	K4S641632E-TC75	1
096	U4	IC CHIP	SST39VF080	1
097	U3	IC CHIP	AT24C01A	1
098	UU1	IC CHIP	ES6603S	1
099	U7	IC CHIP	PCM1606E	1
100	UU2	IC CHIP	BA5954FP	1
101	UU3	IC CHIP	TL3472C	1
102	U201, U203, U204	IC CHIP	BA4558D	3
018	C46	CTERYLENE	104PF/63V	1
019	C34	CTERYLENE	224PF/100V	1
020	C33,C44	CELECTRO	4.7UF/25V/5x12	2
021	C6,C11,C24,C27	CELECTRO	10UF/16V/5x12	4
022	C17,C21	CELECTRO	22UF/16V/5x12	2
023	C3,C5	CELECTRO	47UF/50V/8x12	2
024	C32,C45,C64	CELECTRO	100UF/16V/6x12	3
025	C25,C26,C41,C43	CELECTRO	3300UF/25V/16x26	4
026	U1,U2,U3,U4,U5,U6	IC	TDA2030A	6
027	U7	IC	79L09	1
028	U8	IC	JRC4558	1
029	D2	DIODE	1N4004	1
030	D1,D6	DIODE	KBL406	2
031	Q1	AUDION	TIP41C TO220	1
032	Q2	AUDION	TIP42C TO220	1
033	J6	JACK	2P2.54	1
034	J1,J2	JACK	3P2.54	2
035	J3,J4	JACK	4P2.54	2
036	J5	JACK	WP-12-01	1
037	JMP1,JMP5JMP10,JMP12,JMP15	JUMPERS	L5mm/Φ0.6	5
038	JMP3,JMP2,JMP4,JMP6,JMP9,JMP8,JMP11,JMP13,JMP14,JMP19,JMP22,JMP23,JMP16,JMP18,JMP17	JUMPERS	L8.5mm/Φ0.6	15
039		RADIATOR	170x40x42mm	1
040		RADIATOR NOG		2
041		ISOLATION TALC	18x13x0.1mm	8
042		ISOLATION	Φ3x1.8mm	8
043		SCREW	PM3x10mm	8
044		SCREW	BM3x6mm	4
001	DVD-Power-6002	POWER PCB	180x70x1.6mm	1
002	R109	RESISTANCE	UR 1/4W 1	1
023	D101.D102.D103.D104.D306	DIODE	FR104	5
024	D105	DIODE	SR360	1
025	IC101	DIODE	TO-92 WL431	1
026	C309	C ELECTRO	10uf/50V (5×12)	1
027	C101	C ELECTRO	47uf/16V (5×12)	1
028	C114	C ELECTRO	47uf/50V (6.3×12)	1
029	C119	C ELECTRO	22uf/400V (13×22)	1
030	C102.C103.C104.C105	C ELECTRO	100uf/25V (6.3×12)	4
031	C107	C ELECTRO	1000uf/10V (8×12)	1
032	C106	C ELECTRO	1000uf/16V (10×16)	1
033	J103.J104,	JACK	CON3P4.0nm	2
034	CN303	JACK	CON5P2.5nm	1
035	CN301	JACK	CON7P2.5nm	1
036	IC301	IC	PC817	1
037	IC302	IC	VIPER22A	1
038	J102	JUMPERS	Φ0.5mm L7mm	1
039	J101	JUMPERS	Φ0.5mm L10mm	1
040	G101	SHEET COPPER	Φ4	1
041	F301	FUSE	BLX-A 1.5A/250V	1
042	T301	TRANSFORMER	HC-E128	1
001	ME-8970	KARAOKE PCB	80×45×1.6mm	1
002	R3	RESISTANCE	4.7 Ω/0.25W/0.5%	1
003	R1,R2	RESISTANCE	100 Ω/0.25W/1%	2
004	R21	RESISTANCE	1K0.25W/1%	1
005	R12,R13	RESISTANCE	2.2K/0.25W/1%	2
006	R16	RESISTANCE	3.3K/0.25W/1%	1
007	R5	RESISTANCE	5.6K/0.25W/1%	1
008	R6.R9,R10,R20	RESISTANCE	10K/0.25W/1%	4
009	R7,R8,R14,R17	RESISTANCE	15K/0.25W/1%	4
010	R11	RESISTANCE	22K/0.25W/1%	1
011	R4	RESISTANCE	33K/0.25W/1%	1
007	IC1	DRIVER IC	16312	1
008	IC2	INFRARED RECEIVER	REM	1
009	V 13-2	VFD DISPLAY	13*2	2
010	J2	NEILSBED	2.0*5P	1
011	J1	NEILSBED	2.0*6P	2
012	KI-K1	TOUCH SWITCH	6*6*5	1
013	KI-K2	TOUCH SWITCH	6*6*5	1
014	KI-K3	TOUCH SWITCH	6*6*5	1
015	KI-K4	TOUCH SWITCH	6*6*5	1
016	KI-K5	TOUCH SWITCH	6*6*5	1
017	KI-K6	TOUCH SWITCH	6*6*5	1
018	KI-K7	TOUCH SWITCH	6*6*5	1
019	KI-K8	TOUCH SWITCH	6*6*5	1
020	KI-K9	TOUCH SWITCH	6*6*5	1

DAEWOO

IMPORTADO Y DISTRIBUTION POR MEXICO S.A. DE C.V.:

DAEWOO ELECTRONICS CORPORATION DE

ALCE BLANCO #36 FRACC. IND. ALCE BLANCO NAUCALPAN

EDO.DEMEXICO C.P.53370 MEXICO

TEL: [phone]

HECHO EN CHINA
