Product Type	Digital Sports Watch
Brand	Puma
Model	Pulse
Power Supply	CR2016 Battery
Display	LCD Digital
Number of Modes	5 (Time, Stopwatch, Data, Timer, Alarm)
Stopwatch	Yes, with memory of 9 lap times
Timer	Yes, 3 types of countdown (CD-S, CD-U, CD-R)
Alarm	Yes, 2 daily alarms
Dual Time Zone	Yes
Lighting	Yes, via S4 button
Hourly Chime	Yes
Control Buttons	4 (S1, S2, S3, S4)
Intermediate Time Function	Yes
Battery Replacement	Recommended at an authorized service center

Frequently Asked Questions - Pulse Puma

How to set the time on the Pulse Puma watch?

To set the time, make sure you are in Time mode. Press and hold S4 until the seconds flash. Use S1 to change the value, S2 to move to the next option, and S3 or S4 to exit. Set the two time zones (T1 and T2) separately by first displaying the desired zone with S2.

How to switch from Time mode to Timer mode?

From Time mode, simply press S1 to directly switch to Timer mode.

How to start the stopwatch?

In Stopwatch mode, press S1 to start timing. Press S1 again to record a lap time or split time.

How to record a lap time?

While the stopwatch is running, press S1 to record the current lap time. The stopwatch continues running for the next lap.

How to reset the stopwatch?

First stop the stopwatch by pressing S2, then press S2 again to reset it to zero. Note that resetting erases all session data.

How to set the timer?

In Timer mode, press and hold S4 until the digit flashes. Use S1 to change, S2 to move to the next option, and S3 or S4 to exit. You can choose between three types: CD-S, CD-U, CD-R.

What is the difference between the three timer types?

CD-S: countdown then stop. CD-U: countdown then count up to 99:59'59. CD-R: repeated countdown for 30 cycles or until manual stop.

How to set the alarm?

In Alarm mode, press S2 to select alarm 1 or 2. Press and hold S4 until the hours flash. Use S1 to change, S2 to move to minutes, then S3 or S4 to exit.

How to enable or disable the hourly chime?

In Alarm mode, press S2 to select the alarm or chime, then press S1 to enable or disable. Icons indicate the status: alarm enabled, chime enabled, etc.

When and how to replace the battery?

When the display dims or disappears, it is time to replace the battery. We recommend going to an authorized service center for the replacement. The battery used is a CR2016.

USER MANUAL Pulse Puma

This watch is a dual time sports watch with a unique count down timer. This watch also allows you to view your individual lap times for the duration of your exercise.

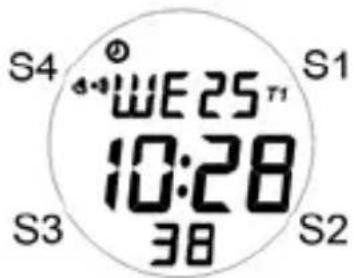

Push button Location:

S1-Start/Split/Set
S2-Stop/View/+
S3 - Mode
S4-Light

ICON

Alarm is on
Chime is on
Time 1 is displayed
T2 Time 2 is displayed

Changing modes

The watch has 5 modes. You can change modes by pressing S3.

TIME Mode

The watch has a dual time feature, to view time 2 just press S2 and to switch from time 1 to time 2 or vice versa press and hold S2 until T2 or T1 icon stops blinking.

From TIME mode you can directly go to TIMER mode by pressing S1.

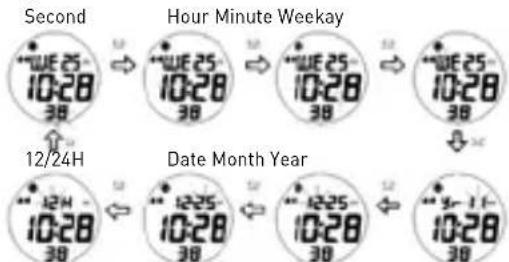

Setting the Time

Time 1 and Time 2 can only be set separately, to set time 1 make sure that the watch is currently displaying time 1. Then press and hold S4 until you see the seconds digit blinking.

Press S1 to change the current value of the blinking digit.

Press S2 to move on to the next option and press S3 or S4 to exit time settings.

To set Time 2 just follow the same steps in setting Time 1 but this time make sure Time 2 is displayed on the watch.

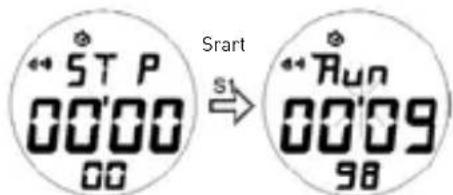

CHRONO Mode

The Chrono mode for this watch can take up to 9 laps. The time for each lap can be viewed in DATA mode.

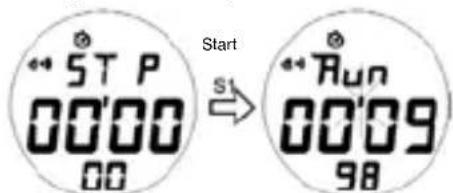

Press S1 to start the Chrono timer.

Press S1 again to take a lap or split time.

Press S2 to stop the Chrono timer. Press S2 again while Chrono timer isn't running to reset the timer.

Please take note, once timer has been reset all data for that run can no longer be viewed in DATA mode.

DATA Mode

In this mode you can view the individual lap/ split time for you exercise as long as chrono timer has not been reset to zero.

To view the different laps, press S1.

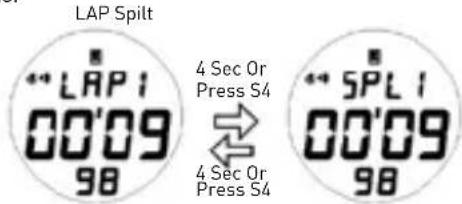

To view the split time of the different laps, press S4 or wait for 4 seconds.

TIMER Mode

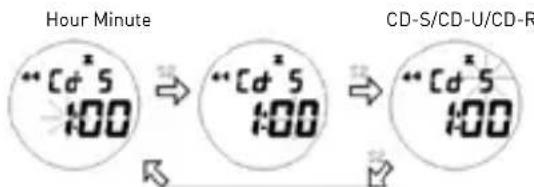

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

The watch has 3 types of timers in this mode CD-S (Count Down Stop), CD-U (Count Down Up) and CD-R (Count Down Repeat).

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit timer settings.

The CD-S timer or count down stop timer function just like a regular count down timer, once it reaches zero, it stops. While the CD-U or count down up timer, counts down using the set count down time and then when it reaches zero will start to count up until timer is stopped or reaches 99:59'59. The CD-R or count down repeat will continually repeat the set count down time for 30 cycles or until timer is stopped.

All the 3 timers count down timers will start giving out a 5 beep alert sound at 5 minutes, 2 beeps at 2 minutes, 1 beep at 1 minute and a 10 seconds beep just before reaching zero.

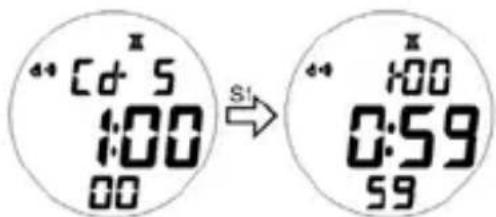

Press S1 to start the timer.

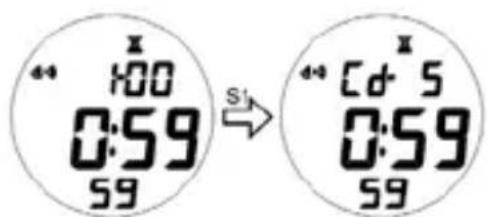

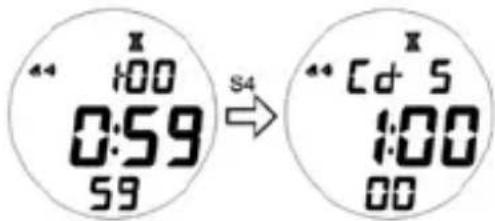

Press S4 to view the type of timer selected.

Press S2 to stop the timer.

Press S4 to reset timer to set value while timer is not running.

ALARM Mode

This watch has 2 daily alarms, which can be set for T1 or T2.

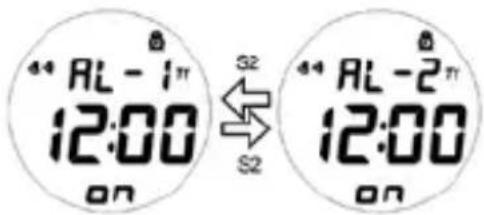

Press S2 to select Alarm 1 or 2.

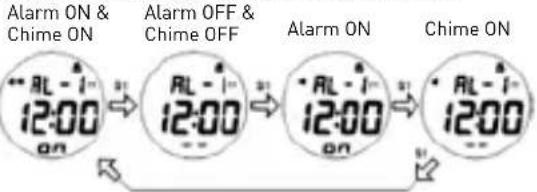

Press S1 to turn on or off the selected alarm or chime.

Press and hold S4 until the hour digits start to blink, to set the selected alarm.

Press S1 to change the value of the blinking digit.

Press S2 to go to the next option.

Press S3 or S4 to exit alarm settings.

Battery Replacement:

If the display goes dim or goes totally blank, it is time to replace the battery. The user is recommended to go to authorized service center for correct battery replacement [CR2016].
