LSM0930 - Shredder Swingline - Free user manual and instructions

Product Type	Document Shredder
Brand	Swingline
Model	LSM0930 (also LSM09-30)
Cutting Capacity (sheets)	9 sheets (max)
Duty Cycle	Continuous Use
Power Supply	120 V AC, 60 Hz
Current Intensity	8.0 A
Media Types	Paper, CD, credit cards (one at a time)
Jam Prevention Technology	Non Stop Jam Free with thickness sensor
Automatic Lubrication	SelfOil™: built-in oil reservoir, refill with Swingline oil 1760049
LED Indicators	Power (green), jam (red), bin full (red), door open (red), oil level (red), lubrication in progress (green)
Dimensions (L x W x H)	Approximately 38 x 28 x 55 cm
Weight	Approximately 9 kg
Safety	Automatic stop if door open; overload protection; do not insert hands
Maintenance	Empty bin regularly; use only recommended Swingline oil
Warranty	Lifetime warranty on blades, 2 years on other parts

Frequently Asked Questions - LSM0930 Swingline

What is the maximum cutting capacity of the Swingline LSM0930?

The shredder can shred up to 9 sheets of paper in one pass. For CDs and credit cards, insert one at a time.

How to lubricate the LSM0930 shredder?

Use the SelfOil™ automatic function. Open the oil reservoir cap (J) and pour in Swingline oil (ref. 1760049). Press and hold the auto start button (F) for 5 seconds during first use. The lubrication indicator lights up automatically after 15 minutes of shredding.

What to do in case of a jam?

Use the reverse (E) and forward (G) buttons alternately to clear the paper. The Non Stop Jam Free technology reduces jams by checking paper thickness before shredding.

What types of media can I shred?

Standard paper, CDs and credit cards. Use the dedicated slot (H) for CDs and credit cards. Shred only one CD or card at a time.

How to empty the full bin?

When the red bin full indicator lights up, open the door, remove the bag frame, empty or replace the bag, then close the door and press the auto start button (F).

The shredder stops by itself. What to do?

First check the indicator: door open or bin full. If the door is open, close it. If the jam indicator is red, remove the paper. If it's overheating, let it cool for a few minutes.

What oil to use for lubrication?

Use only Swingline oil (ref. 1760049). Do not use flammable oil or aerosol. The oil is available in a 60 ml bottle, supplied with the device.

Can I shred staples or paper clips?

Yes, the shredder can handle staples and paper clips without issue. However, remove large binders or clips to avoid damaging the blades.

How to clean the device?

Unplug the device. Use a dry cloth to clean the exterior. Do not use aerosol products or liquid cleaners. For the blades, automatic lubrication cleans them partially.

What is the warranty of the Swingline LSM0930?

Limited lifetime warranty on cutting blades and 2 years on other parts (excluding misuse). Register your product at swingline.com to activate the warranty.

USER MANUAL LSM0930 Swingline

LM12-30 LSM09-30 Document Shredders Déchiqueteuses LS32-30 LX20-30

Document Shredders Déchiqueteuses Destructoras de documentos

Instruction Manual

Models		LS32-30	LX20-30
Sheet Capacity - (CC423)		28-32 sheets	20 sheets
		Continuous Cycle -	Continuous operation
Volts / Hz		120V AC / 60Hz	120V AC / 60Hz
Amperage		11.0A	10.0A
CDs and Credit Cards		Yes	Yes

Models		LM12-30	LSM09-30
Sheet Capacity -		11 sheets	9 sheets
Duty Cycle -		Continuous operation	Continuous operation
Volts / Hz		120V AC / 60Hz	120V AC / 60Hz
Amperage		10.0A	8.0A
CDs and Credit Cards		Yes	Yes

IMPORTANT: ONLY INSERT ONE CD OR ONE CREDIT CARD AT A TIME.

Sheet capacity may vary with voltage.

Spécifications :

I J A D H E F G B C

Models: LS32-30, LX20-30 Models: LM12-30, LSM09-30

I J A D H E F G B C

1 2 3 4

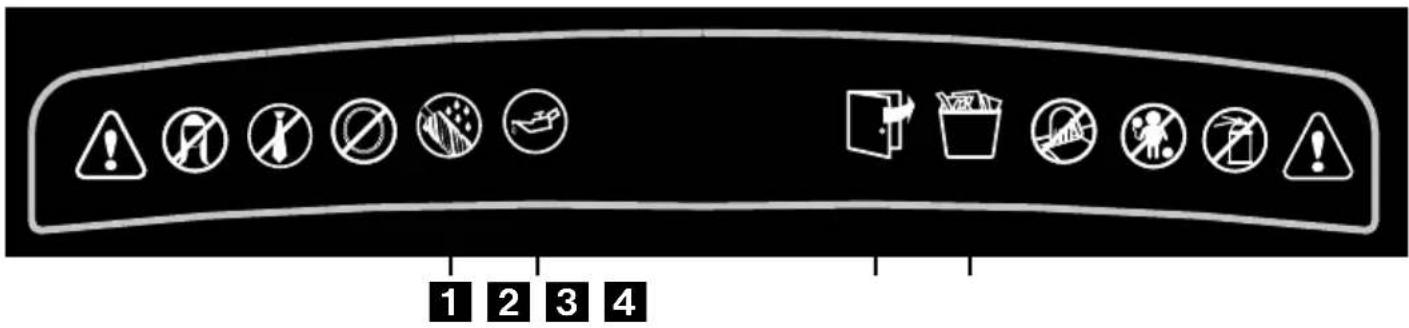

Indicator Panel

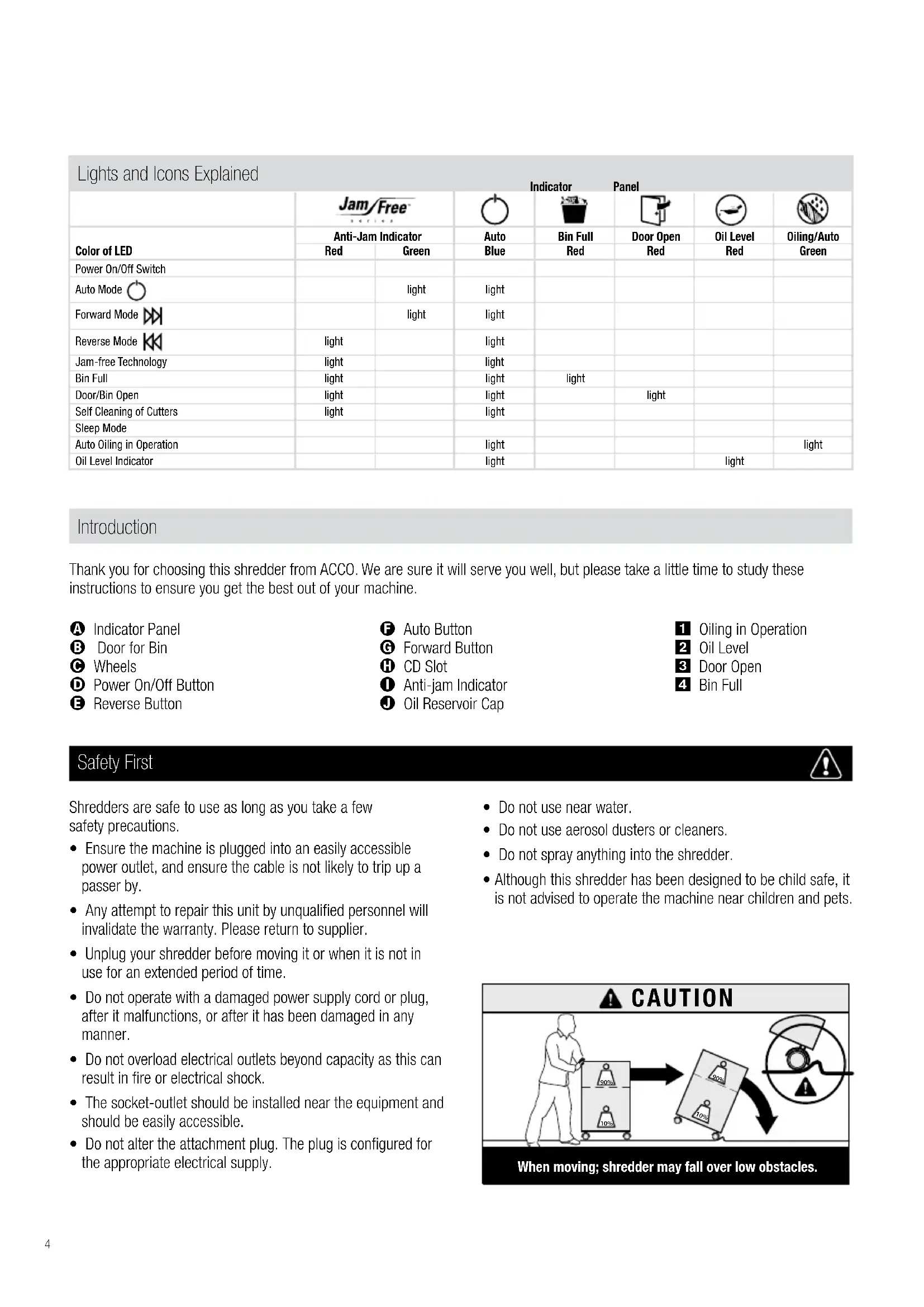

Lights and Icons Explained

			[KD7]
Color of LED	Anti-Jam Indicator		AutoBlue	Bin FullRed	Door OpenRed	Oil LevelRed	Oiling/AutoGreen
	Red	Green
Power On/Off Switch
Auto Mode		light	light
Forward Mode		light	light
Reverse Mode	light		light
Jam-free Technology	light		light
Bin Full	light		light	light
Door/Bin Open	light		light		light
Self Cleaning of Cutters	light		light
Sleep Mode
Auto Oiling in Operation			light				light
Oil Level Indicator			light			light

Introduction

Thank you for choosing this shredder from ACCO. We are sure it will serve you well, but please take a little time to study these instructions to ensure you get the best out of your machine.

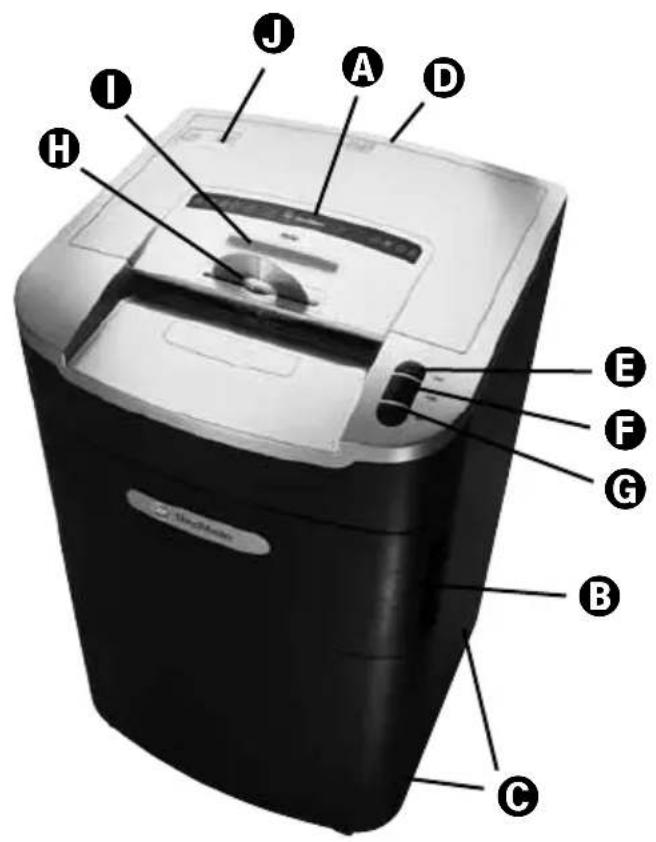

A Indicator Panel
B Door for Bin
© Wheels
D Power On/Off Button
E Reverse Button

F Auto Button
G Forward Button
CD Slot
Anti-jam Indicator
Oil Reservoir Cap

1 Oiling in Operation
2 Oil Level
3 Door Open
4 Bin Full

Safety First

Shredders are safe to use as long as you take a few safety precautions.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualified personnel will invalidate the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an extended period of time.
• Do not operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.
• Do not overload electrical outlets beyond capacity as this can result in fire or electrical shock.
• The socket-outlet should be installed near the equipment and should be easily accessible.

• Do not alter the attachment plug. The plug is configured for the appropriate electrical supply.

• Do not use near water.

• Do not use aerosol dusters or cleaners.
• Do not spray anything into the shredder.
• Although this shredder has been designed to be child safe, it is not advised to operate the machine near children and pets.

CAUTION 90% 10% 20% 10% When moving; shredder may fall over low obstacles.

Shredder Control Panel

ReverseForwardAuto

Safety First - Read instructions before use.

This means you should be careful because long hair can become entangled in the cutting head. This could hurt you.

This means don't reach into the feed opening of the cutting head. This could hurt you.

This means be careful of ties and other loose clothing which could become entangled in the cutting head. This could hurt you.

This means keep children away from shredder.

This means be careful of loose jewelry which could become entangled in the cutting head.

This means do not shred CD's.

This means do not shred credit cards.

This means oil level.

This means oiling in operation.

Door Open Protection

If the door is opened during shredding, as a precaution the shredder will instantly stop, and the door open symbol on the indicator panel will flash red. To turn back to auto mode simply press the auto button again (F).

Non-Stop Jam Free Anti-Jam Technology

Swingline Shredders will only shred stacks of paper that are within the shredders sheet capacity. For example, a shredder with a capacity of 22 sheets will not allow the shredding of more sheets than this.

Sensors in the paper feed area measure the thickness of paper about to be shredded. The ability to shred or not is communicated through red and green lighting. Green means that the stack of paper is within the shredders sheet capacity and OK to shred. Red means that you have too much paper, remove some sheets in order to shred.

Given that you are unable to shred more sheets of paper than the shredder is capable of shredding, paper jams are prevented.

This prevents time wasted through reversing paper and unblocking jams not to mention the mess it can create.

Rare Occasions of Jamming

In the unlikely event of the shredder jamming, use the reverse function to unblock the shredder.

Alternating between the reverse and forward functions will help unblock the feed area.

Initial Setup of SelfOil™

The shredder is designed to automatically lubricate the cutting mechanism as required to ensure the product continues to work to its maximum performance and to extend the product life. Before turning on the machine for the first time, please open the oil reservoir cap on the head of the shredder (①) and pour in the 60ml bottle of oil provided as standard. This is sufficient to allow the shredder to start for the first time and to operate continuously for approximately one hour of shredding before the reservoir will need refilling. Press and hold down the Auto button (⑤) for 5 seconds to start the pump and prime the system. This operation is only required the very first time the shredder is used. When the 'Oil Refill' indicator is illuminated ⚙, flip up the oil reservoir cap (⑥) and refill the oil reservoir using a bottle of standard Swingline oil (1760049). The automatic oiling operation lasts approximately 2 seconds and you will hear the distribution pump during this time. Auto-oiling operates after 15 minutes of shredding.

CAUTION

We only recommend the use of Swingline shredder lubricant to maintain optimum performance and safety. ACCO accepts no liability for product performance or safety if anything other than Swingline branded shredder lubricant is used (Order Code 1760049).

WARNING

Do not use flammable oil.

Only Swingline part number 1760049 is recommended.

Operation

• LS32-30 & LX20-30 only. After unpacking the product, pull out the shredder bag frame and remove the CD shard tray, which sits on top of the bag frame. Store this tray on the bag frame as shown and use when you shred CD's or credit cards to separate waste for recycling. On the LM12-30 and LSM09-30 high security models, the CD tray can be left permanently in position in the shredder.
• Flip up the oil cap and fill up the reservoir using the 60ml bottle of oil provided*. Close the cap.
• Connect shredder to mains supply.
• Check that the on/off switch at the back of the machine is switched to the 'ON' position.
• Press and hold down the Auto button (F) for 5 seconds to start the pump and prime the system. Only required when the product is used for the first time.
• To commence shredding, press the auto feed button. This sets the shredder into auto mode.
• Insert paper to be shredded into the feed area. The shredder will detect the paper and start automatically.
• If the shredder is left in auto mode for more than 2 minutes without being used, the shredder will automatically turn back to standby mode in order to save power.
• The shredder will automatically 'wake up' from sleep mode when paper is inserted into the shredder mouth. There is no need to press the Auto button (F).

CD and Credit Card Shredding

- A separate CD tray is provided to collect the shredded CD shards. On the LS32-30 and LX20-30, ensure that this is correctly mounted onto the standard shredder bag frame before shredding CD's or credit cards. The LM12-30 & LSM09-30 models are supplied with a separate CD bin, which fits on the front of the bag frame. CD and credit card shards should be disposed of separately from paper.

LS32-30/LX20-30 LM12-30/LSM09-30

Two views of a mechanical device with open doors, showing internal compartments (no text or symbols visible)

• Always shred CD's and credit cards through the safety guard slot (H). Only shred 1 credit card or 1 CD at a time.
• Empty the CD tray or CD bin after 8 credit cards or CD's to avoid waste spilling over into the paper waste bin.

LS32-30 & LX20-30 only. Remove the CD tray before starting to shred paper again and store on the bag frame.

Bin Full

When the bin is full the shredder will not function and the bin full symbol will illuminate red.

When this happens you must empty the bin.

- Open the door and slide out the shredder bag support frame. Carefully remove the shredder bag from the frame.

Once the shredder bag has been disposed of and replaced, close the door and press the auto button to resume shredding.

Note: LX20-30, LM12-30, LSM09-30 Models - Once the shredder bag has been reinserted and/or cabinet door has been closed, the shredder will run in reverse for two seconds, stop for two seconds and then forward for two seconds to clear away any remaining paper from the cutter mechanism. This ‘self-cleaning’ mechanism is additional jam prevention technology from ACCO.

Shredder Accessories

Use Swingline shredder bags to recycle shredded paper (1765021) or plastic shredder bag (1765015). There are instructions on the paper shredder bag on how to fit it to the internal bag support frame. A complimentary oil bottle and shredder bag is included with the shredder.

Service

We recommend these machines are serviced every 6-12 months by an ACCO service engineer - see the back of this booklet for the contact details of your local service center.

Limited Warranty:

LIMITED LIFETIME CUTTING BLADE WARRANTY AND LIMITED TWO YEAR WARRANTY FOR ALL OTHER PARTS

ACCO Brands, 300 Tower Parkway, Lincolnshire IL, 60069, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S-6B7, ACCO MEXICANA S.A. DE C.V Circuito de la Industria Norte No. 6 Parque Industria Lerma, Lerma Edo. de México C.P. 52000 México. (each, respectively, "ACCO Brands") warrants to the original purchaser that: (a) the cutting blades on LS32-30 & LX20-30 are free from defects in material and workmanship under normal use and service for as long as the original purchaser owns the product; and/ or that the cutting blades on LM12-30 and LSM09-30 are free from defects in material and workmanship under normal use and service for a period of one (1) year after the purchase. (b) all other parts of LS32-30, LX20-30, LM12-30, LSM09-30 are free from defects in material and workmanship under normal use and service for two (2) years.

ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:

(i) if the product has been misused,
(ii) if the product has been damaged by negligence or accident, or
(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.

For warranty execution, please call:

1-800-541-0094 in the USA

1-800-263-1063 in Canada

1-800-758-6825 in Mexico

Or go to www.swingline.com.

TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.

This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.

IMPORTANT To quickly and easily confirm your warranty, register your new shredder at www.swingline.com

Fill in this information for your own machine record.

Purchased from

Model

Assembly No. Serial No.

Please indicate your model and serial number for prompt and accurate service when calling or writing for information

I J A D H E F G B C

I J A D H E F G B C

1 2 3 4

Panneau indicateur

Two views of a mechanical device with open doors, showing internal compartments (no text or symbols visible)

I J A D H E F G B C

Modelos: LS32-30, LX20-30 Modelos: LM12-30, LSM09-30

I J A D H E F G B C

1 2 3 4

Panel indicador

Exterior view of a file organizer with open door (no visible text or labels)

LM12-30/LSM09-30

Exterior view of a file organizer with open door and internal compartments (no visible text or labels)

If none of the above mentioned methods helped to solve the problem: Contact Service Team:

UNITED STATES

ACCO Brands USA

300 Quartet Avenue,

Booneville, MS 38829

Phone: [phone]

Website: www.GBC.com

Website: www.GBCcanada.com

Website: www.GBC.com.mx

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Canada Class B Notice - Avis Canada, Classe B

This Class B digital apparatus complies with Canadian ICES-003.

Any modifications made to this device that are not approved by ACCO Brands Corporation may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.
