USER MANUAL Jess Topmark

Exterior view of a baby boom chair with gray and white design (no text or symbols visible)

JESS

6-36

15 kg

T2085

Gebruiksaanwijzing

Instruc on for use

Gebrauchsanleitung

Mode d'emploi

WAARSCHUWING

Two pictograms showing a person using a tool to avoid a dog, with no text or symbols present.

Line drawing of a table with a chair, a pen holder, and multiple writing tools (no text or symbols)

Abstract line drawing of intertwined loops or cables (no text or symbols)

Sketch of a mechanical device with no visible text or symbols

Simple line drawing of a hand holding an object, no text or symbols present

B. Beves gen van de poten

Simple line drawing of a curved object with two downward arrows labeled L and R (no text or symbols beyond labels)

Simple line drawing of two vertical structures with labeled points L and R (no text or symbols beyond labels)

Simple line drawing of a person holding a tool or object (no text or symbols)

Line drawing of a mechanical tool or bracket with four arms (no text or symbols)

IN GEBRUIK NEMEN

Two line drawings of a human figure in different poses, one holding a tool and the other holding a foot (no text or symbols)

Two hand-drawn sketch of a chair with legs and arms, showing post-fract assembly (no text or symbols)

Line drawing of a baby boom chair (no text or symbols)

GEBRUIK VAN DE 5-PUNTS VEILIGHEIDSGORDEL

WAARSCHUWING: GEBRUIK ALTIJD DE VEILIGHEIDSGORDEL IN COMBINATIE MET HET TUSSENBEENSTUK.

Pure mechanical assembly diagram showing two vertical connectors and a central connector (no text or symbols)

Pure mechanical diagram showing a Y-shaped pipe fitting with no text or symbols

VASTMAKEN

VERZORING EN ONDERHOUD

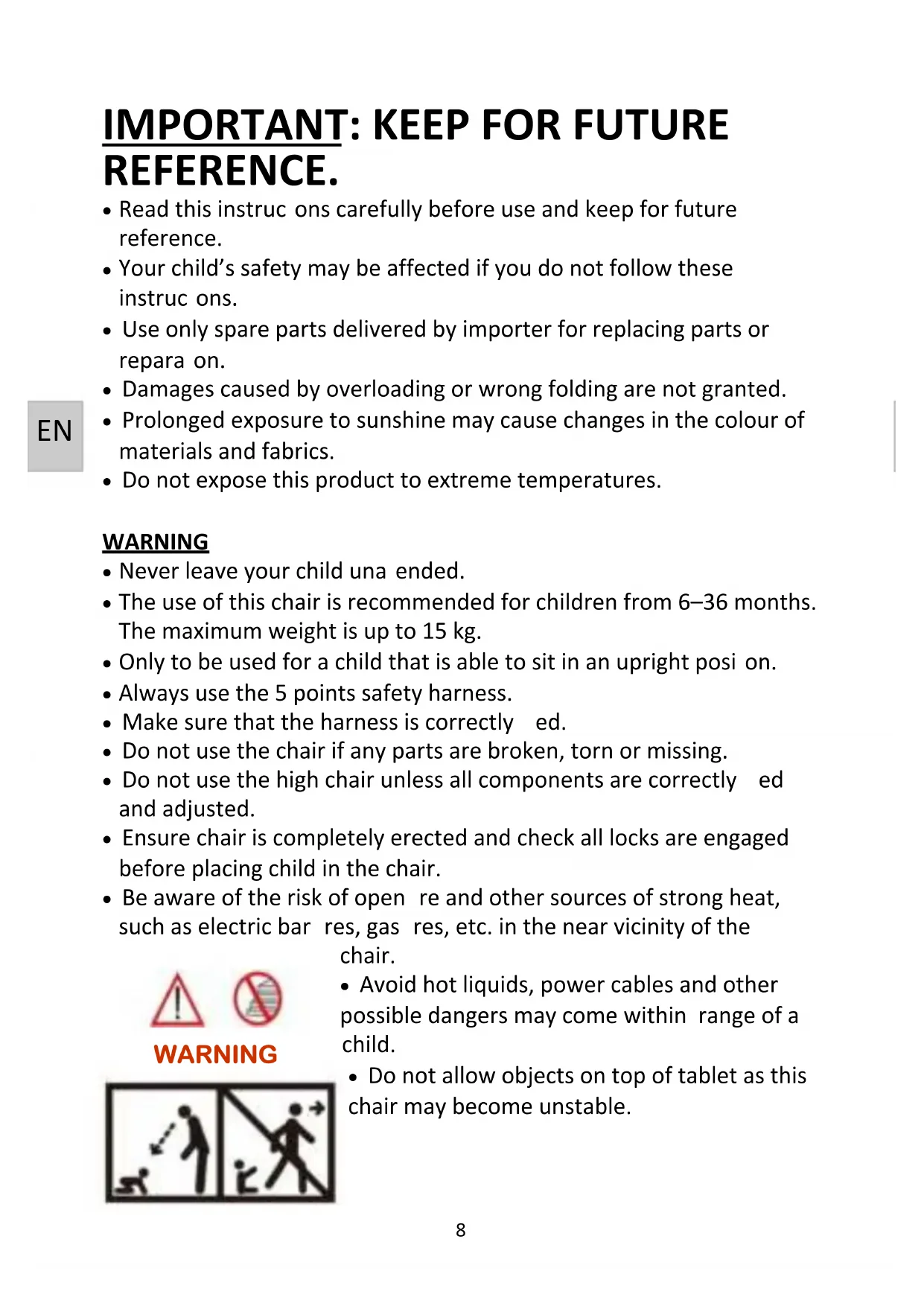

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instruction carefully before use and keep for future reference.
• Your child's safety may be affected if you do not follow these instruct ons.
• Use only spare parts delivered by importer for replacing parts or repara on.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures.

WARNING

• Never leave your child una ended.
• The use of this chair is recommended for children from 6–36 months. The maximum weight is up to 15 kg.
• Only to be used for a child that is able to sit in an upright position.
  • Always use the 5 points safety harness.
• Make sure that the harness is correctly ed.
• Do not use the chair if any parts are broken, torn or missing.
• Do not use the high chair unless all components are correctly and adjusted.
• Ensure chair is completely erected and check all locks are engaged before placing child in the chair.
• Be aware of the risk of open re and other sources of strong heat, such as electric bar res, gas res, etc. in the near vicinity of the chair.

WARNING

Two pictograms showing a person using a tool to avoid a dog, with no text or symbols present.

- Avoid hot liquids, power cables and other possible dangers may come within range of a child.

- Do not allow objects on top of tablet as this chair may become unstable.

• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• Do not allow more children, as chair may become unstable.
• Do not use accessories or replacement parts other than the ones recommended by instruc on manual.
• Accessories which are not approved by the manufacturer shall not be used.
• Only replacement parts supplied or recommend by the manufacturer/distributor shall be used.
• Do not allow any children, animals or other object to be placed under or near the chair while child is seated in the chair.
• Do not force tray into child when adjusting tray, always allow breathing space for child's comfort.
• Only the tray is not enough to grant the safety of your child, ALWAYS use the 5 points safety harness.
• The product must be assembled by an adult.
• Never put chair near steps or stairs.

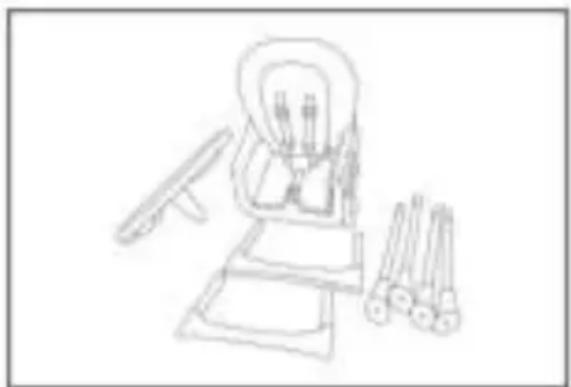

Check if following spare parts are in the box:

- Seat with upholstery and 5 points harness

- Tray

• Upper dinning tray

- Footrest front (with "footprint" marking)

- Footrest rear

• 4 legs (2x le and 2x right)

Line drawing of a medical or dental procedure setup with tools and a chair (no text or symbols)

Note that the fabric pa erns, colour pictures and stroller accessories on this product in this instruc on manual may vary from that of the product that you have purchased.

If one or more of the above men oned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING

Please keep all packaging material away from babies and children, to prevent su oca on.

ASSEMBLING

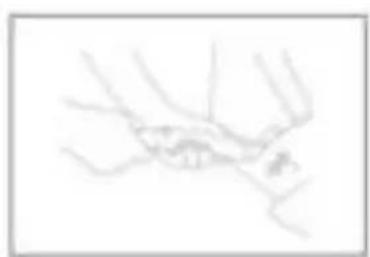

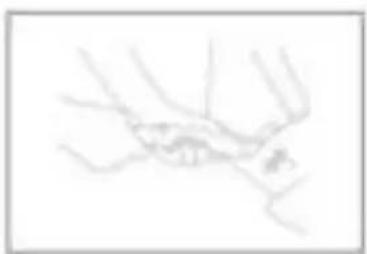

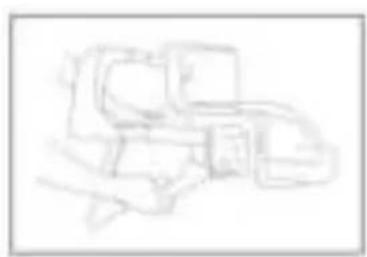

A. Assembly footrest

1. Insert and push front footrest into front tube connec on, un l the pins are xed.
2. Insert and push rear footrest into rear tube connec on, un l the pins are xed.

EN

Simple line drawing of a mechanical component or tool (no text or symbols)

Sketch of a mechanical device with no visible text or symbols

Simple line drawing of a hand holding an object, no text or symbols present

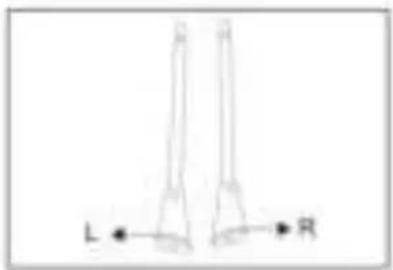

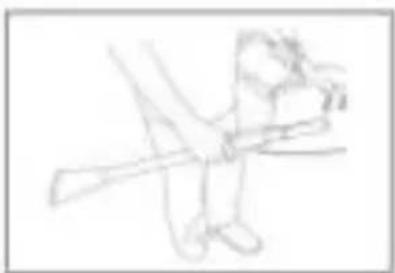

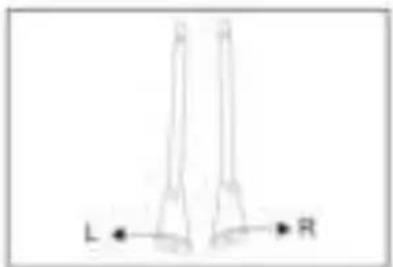

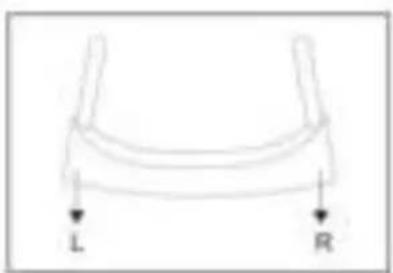

B. Assembly 4 legs

1. Install two "L" legs into "L" side of footrest, press until the pins are fixed.
2. Install two "R" legs into "R" side of footrest, press until the pins are fixed.

L R

Simple line drawing of two vertical poles with labeled points L and R (no text or symbols beyond labels)

Simple line drawing of a person holding a tool, no text or symbols present

C. To place and operate tray

1. Press both side of red adjustment levers under the tray and move it in front or backwards.
2. Tray has 3 posi ons adjustment mechanism and can therefore be adjusted to three different posi ons.

Line drawing of a mechanical tool or bracket with four arms and a central knob (no text or symbols)

USING

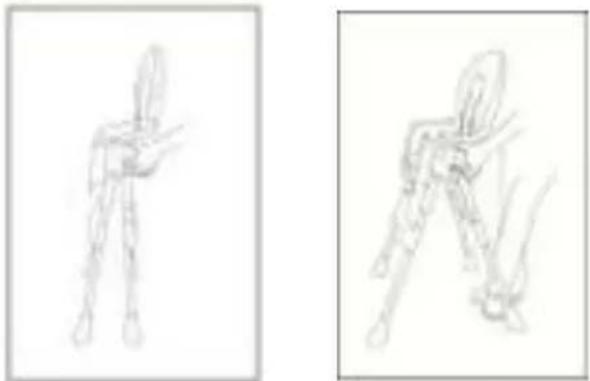

D. To open the high chair

1. Press the "front" red button on each side of the high chair at the same time and pull the rear legs outwards with your foot un I an audible click is heard to indicate that the chair is secured in open posi on.

Two line drawings of a human figure in different poses, one holding a tool and the other holding a foot (no text or symbols)

E. To fold the chair

1. Unfasten the harness and remove the child from the high chair.
2. Stand behind the chair and press the "rear" red bu on on each side of the high chair at the same me.
   Push the rear legs forwards with your foot un I an audible click is heard to indicate that the high chair is secured in closed posi on.

Two sequential line drawings of a mechanical or architectural component, possibly a lamp or stand, with no visible text or symbols.

F. To change chair in a low chair

1. Remove four legs from footrest, the high chair can be used as a low chair.

Line drawing of a baby boom chair (no text or symbols)

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts. Lock buckle parts of hip belts together into the cross belt (belt between the legs) until secure click is heard.

Adjust shoulder, hip and crotch belt in right length to t your child.

To release belt just squeeze the bu ons.

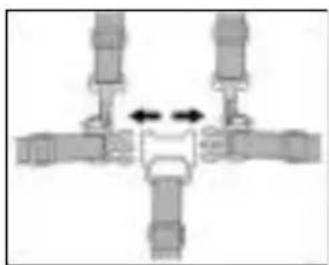

TO OPEN

Pure mechanical assembly diagram showing four connected components with arrows indicating motion direction (no text or symbols)

Pure mechanical diagram showing two connected pipes with arrows indicating direction (no text or symbols)

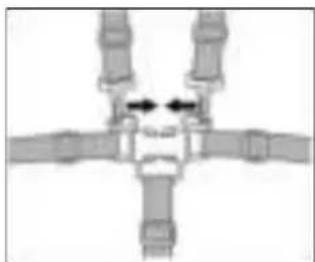

TO CLOSE

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labelling on the product permits these methods.

The fabric coa ng is 100% PVC. Inlay and chair may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away.

In some climates the parts may be a ected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ven lated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

EN

Image displaying five distinct symbols: a recycling symbol, crossed-out triangle, crossed-out circle, and an octagon.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought.

The warranty applies only to the \^rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 14988

Two black-and-white pictograms showing human figures in different poses, one with a tool and the other with a stick (no text or symbols)

Line drawing of a tableware kit with a lamp, pens, and accessories (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Simple line drawing of a mechanical device or tool (no text or symbols)

Simple line drawing of a hand holding an object, no text or symbols present

Simple line drawing of a person holding a long object, possibly a tool or device (no text or symbols)

Line drawing of a mechanical device with four legs and a central hub (no text or symbols)

GEBRAUCH

Two hand-drawn sketches of a person in different poses, one showing a bent leg and the other a straight leg (no text or symbols)

Two sequential line drawings of a mechanical or architectural component, showing structural changes without any text or symbols.

Line drawing of a baby boom chair (no text or symbols)

Pure mechanical assembly diagram showing two vertical connectors and a central connector (no text or symbols)

Pure mechanical diagram showing a Y-shaped pipe fitting with two connectors and directional arrows (no text or symbols)

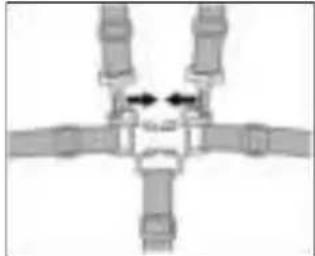

SCHLIESSEN

PFLEGE

Two black-and-white pictograms showing human figures in different poses: one with a falling object, the other with a walking figure (no text or symbols)

Line drawing of a hair salon chair with brushes and a table, no text or symbols present

Simple line drawing of a mechanical component or tool (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Simple line drawing of a hand holding an object, no text or symbols present

B. Fixa on des pieds

Simple line drawing of a person holding a tool, no text or symbols present

C. Installa on et u lisa on de la table e

Line drawing of a mechanical tool or plunger with no visible text or symbols

UTILAGE

Two line drawings of a human figure in different poses, one holding a tool and the other holding a device (no text or symbols)

Two hand-drawn sketches of a person's legs and legs with hands placed on the feet, showing different postures (no text or symbols)

Line drawing of a baby boom chair (no text or symbols)

Pure mechanical diagram showing a Y-shaped connection with no text or symbols

SOIN ET ENTRETIEN

Two black-and-white pictograms showing human figures in different poses: one with a diagonal arrow and one with a right-pointing arrow, both without any text or symbols.

Line drawing of a medical or dental procedure setup with tools and a chair (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Simple line drawing of a hand holding an object, no text or symbols present

Simple line drawing of a curved object with two downward arrows labeled L and R (no text or symbols beyond labels)

L ← → R

Simple line drawing of a person holding a tool, no text or symbols present

Line drawing of a mechanical tool or bracket with four arms and a central knob (no text or symbols)

D. Desplegar la silla

Two hand-drawn sketches of a human figure in different poses, one showing forward bend and the other with extended leg and lower torso (no text or symbols)

E. Plegar la silla

Two hand-drawn sketches of a table with legs and legs bent, showing structural details (no text or symbols)

Line drawing of a baby boom chair with no text or symbols on the chair itself

Pure mechanical assembly diagram showing four connected components with bidirectional arrows (no text or symbols)

Pure mechanical or electrical component diagram without any text, numbers, or symbols

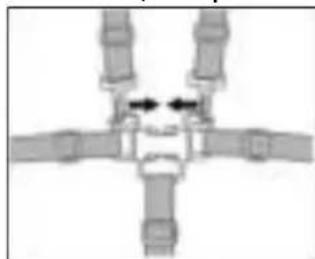

PARA CERRAR
