USER MANUAL BT 5030 BRAUN

BT5090BT5090BT5070BT5090BT5070BT5090

• not with all models Charging Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Place the appliance (switched off) in the charging stand or connect it directly to an electrical outlet via the special cord set (8).

• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for 4 hours (BT 5050/5030/5010: 8 hours).

• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.

• A full charge provides up to 40 minutes of cordless operating time. This may vary according to your beard growth.

• Maximum battery capacity will only be reached after several charging/ discharging cycles. Charge Indicator (5) BT 5090/5070

• The charge indicator shows the battery status.

• The charge indicator blinks green when the appliance is being charged. 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1297355726_BT_5090-5010_MN-ANZ_S6-80.indd 12 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 11 of 7913 When the battery is fully charged, the charge indicator shines permanently green provided the appliance is connected to an electrical outlet.

• During cordless use the charge indicator blinks green.

• The charge indicator flashes red when the battery is running low. You should be able to finish your current trimming sequence. BT 5050/5030/5010

• The charge indicator (5) shows that the appliance is being charged. When the battery is fully charged, the charge indicator turns off. Comb attachments (1a, 1b)

• The combs can be taken off by pressing the release buttons (1c) with your thumb and forefinger. Beard trimming

• Place the precision comb (1a) on the appliance with the appliance turned off (a).

• Make sure the lock switch (6a) is in the upper position and turn the length selector (6b) to your desired length. The beard comb slides automatically up or down (possible lenght settings 1 - 10 mm in 0,5 mm steps).

• To lock the comb at your desired length slide the lock switch (6a) down. The length selector is fixed.

• It is advisable to begin with the highest setting and then reduce the setting until you reach the desired beard length.

• Press the on/off switch (7). Hold the beard comb with the angled edge against your beard and guide the trimmer against the direction of the hair growth (a).

• To avoid clogging the beard comb with hair, clean it from time to time with the brush. Contour Trimming / Styling

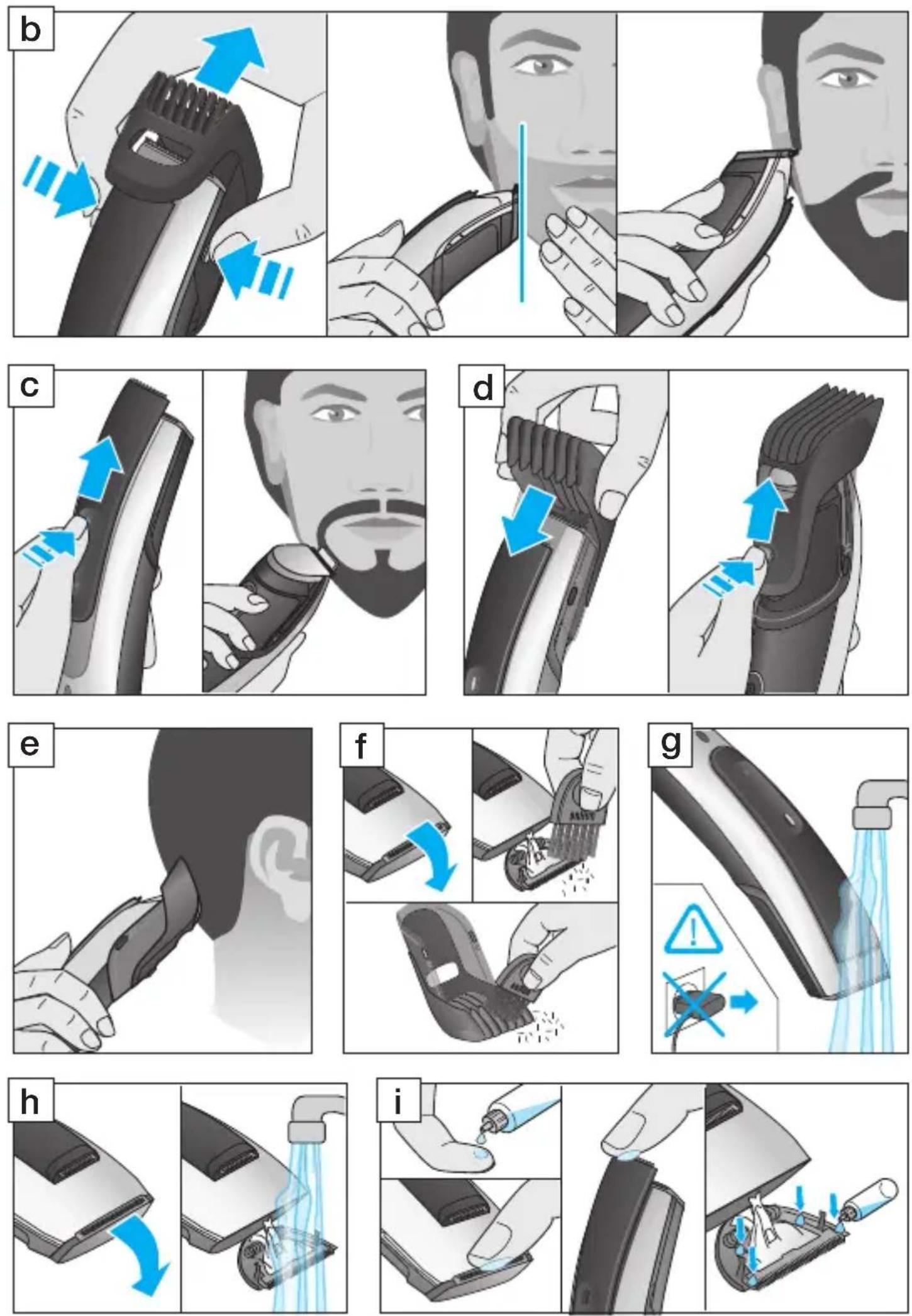

• The wide trimmer (2) evenly cuts and trims large areas. It is ideal for shaping sideburns, moustaches and partial short beards. Take off the comb. While stretching the skin, guide the wide trimmer against the direction of hair growth (b).

• The precision trimmer (3) precisely defines lines and edges and is ideal for precise contouring. To use the precision trimmer, press the release button (4) and slide it up (c). 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1397355726_BT_5090-5010_MN-ANZ_S6-80.indd 13 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 12 of 7914 Hair cutting The hair should be clean, well combed, tangle-free and dry.

• Place the hair comb (1b) on the appliance with the appliance turned off (d).

• Press the length selector (6c) and slide the comb to your desired length (possible length settings 10 - 20 mm in 2 mm steps).

• If you are not used to clipping hair, begin with a highest setting and then reduce the setting to avoid cutting more hair than desired. If you want to cut your hair shorter than 10 mm, we advise to first cut it with the hair comb (1b) down to 10 mm and then use the beard comb for the desired length.

• Use a slow and controlled movement. Do not force the appliance through the hair faster than it can be cut.

• In between, shake or blow off the hair. If too much hair is caught in the comb, remove and clean it. Cleaning Regular cleaning ensures better trimming performance. Cleaning with the brush

• Switch off the appliance. Open the wide trimmer by pressing with the thumb against the trimmer from the front side. It opens by ca. 45° and can also be taken off (h).

• Using the brush clean the trimmers and the space behind the wide trimmer (inside the housing). Cleaning with water

• Switch off the appliance and rinse the head and trimmers under warm running water. You can also rinse the opened wide trimmer.

• Leave the appliance with opened wide trimmer to dry. Keeping your appliance in top shape To keep the cutting system working properly, oil it with light machine oil after each use (i). Preserving the batteries In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by trimming/cutting) every 6 months approximately. Then recharge the appliance to full capacity. 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1497355726_BT_5090-5010_MN-ANZ_S6-80.indd 14 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 13 of 7915 Environmental notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice. For electric specifications, see printing on the special cord set. Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law. For Australia & New Zealand only: Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefi ts given by this warranty are in addition to other rights and remedies of the consumer law. 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1597355726_BT_5090-5010_MN-ANZ_S6-80.indd 15 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 14 of 7916 For Claims in Australia please contact: Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: +612 8864 5000 Facsimile: +612 8864 5574 Email: gillette@au.pgconsumers.com For claims in New Zealand please contact: Procter & Gamble Distributing New Zealand Limited Unit 3, Building I, 5 Orbit Drive Rosedale, North Shore City 0632 Auckland, New Zealand Telephone: +649 477 6400 Facsimile: +649 477 6399 Email: gillette@nz.pgconsumers.com Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance. Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1697355726_BT_5090-5010_MN-ANZ_S6-80.indd 16 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 15 of 7917 D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without aff ecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details. Australian Consumer Service (free call): 1 800 641 820 New Zealand Consumer Service (free call): 0 800 108 909 97355726_BT_5090-5010_MN-ANZ_S6-80.indd 1797355726_BT_5090-5010_MN-ANZ_S6-80.indd 17 16.06.15 15:4516.06.15 15:45 CSS APPROVED Effective Date 18Jun2015 GMT - Printed 29Sep2015 Page 16 of 7918 Australian & New Zealand Service Agents VICTORIA & TASMANIA Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@ statewideservices.com.au QUEENSLAND Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. (08) 9475 0911 Fax. (08) 9475 0922 Email: mark1app@iinet.net.au
