USER MANUAL W627 HAIER

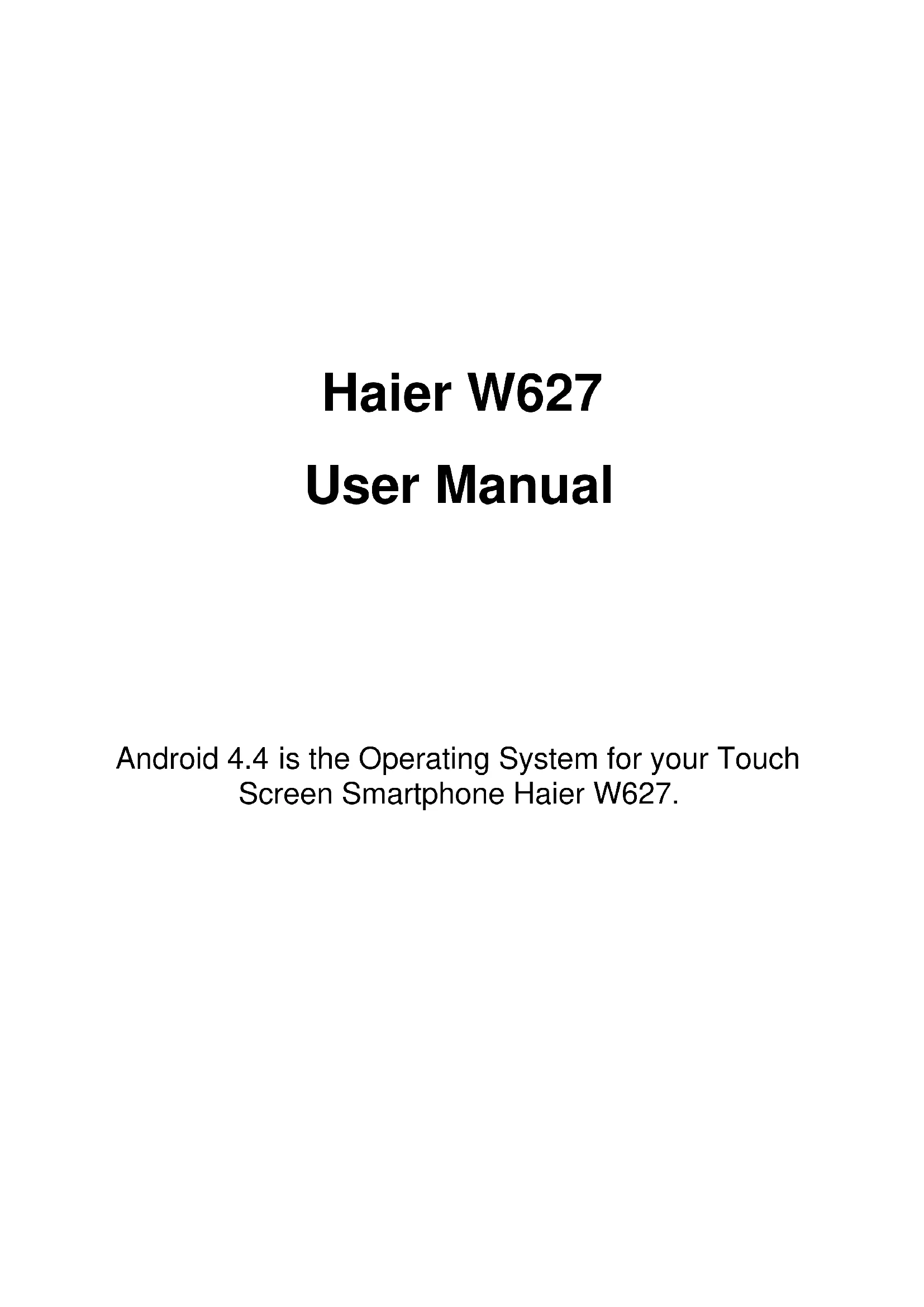

Android 4.4 is the Operating System for your Touch Screen Smartphone Haier W627.-2- INTRODUCTION Thanks for choosing the Haier W627, Dual SIM Android smart phone based on 1.2 GHz Dual Core Processor. This smart phone is running on Android OS, v4.4. The total memory is 4GB. The memory used by operating system and integrated applications is 2.2GB .The available memory for users is 1.8GB. If you‟d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don‟t worry if the pictures we use to demonstrate your phone‟s functions look a little different from what you see on its screen. It‟s the functions that matter.

• The Manufacturer reserves the right for the changes in the manual without advanced notice-3-

Please read through the following briefings carefully, and act in accordance with these rules, so as to prevent causing any danger or violating any law. Your mobile phone model has been designed to compile with applicable safety requirements for exposure to radio waves. The radio wave exposure guidelines employ a unit of measurement called Specific Absorption Rate (SAR). The recommended SAR limit for mobile handset is 2.0 W/Kg averaged over a 6 minutes period and taken over a volume containing a mass 1g of human tissue. Use cell phone when the signal strength is good. Keep your calls short or instead use headset or send a text message. This advice applies especially to children, adolescents and pregnant women. If you are using a Bluetooth headset device, please make sure it has a low power emitter. Information about the meaning of Logo WEEE (Waste Electrical and Electronic Equipment):-4- The WEEE logo on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

• RADIO WAVES: Proof of compliance with international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user and any other person is-5- an essential requirement of these standards or this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES

FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under the ICNIRP guidelines for this device model are:-6-

Maximum SAR for this model and conditions under which it was recorded. SAR GSM 900/1800MHz+Bluetoot h+Wi-Fi

During use, the actual SAR values for this device are usually well below the values stated above. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are not using an approved accessory ensure that whatever product is used is free of any metal and that it positions the phone the indicated distance away from the body. Organizations such as the World Health Organization-7- and the US Food and Drug Administration have stated that if people are concerned and want to reduce their exposure they could use a hands-free device to keep the phone away from the head and body during phone calls, or reduce the amount of time spent on the phone. As mobile devices offer a range of functions, they can be used in positions other than against your ear. In such circumstances the device will be compliant with the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the phone at least 1.0 cm away from the body.-8-

On The Road Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. Near Sensitive Electronics Don‟t use your phone near sensitive electronic equipment – particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. Your phone may cause interference when used near TVs, radios or automated office equipment. While Flying Your phone can cause interference with aircraft equipment. So it‟s essential you follow airline-9- regulations. And if airline personnel ask you to switch off your phone, or disable its wireless functions, please do as they say. In Hospital Your phone may interfere with the normal operation of medical equipment. Follow all hospital regulations and turn it off when you‟re asked to by posted warnings or medical staff. At a Petrol Station Don‟t use your phone at petrol stations. In fact, it‟s always best to switch off whenever you‟re near fuels, chemicals or explosives. Around Water Keep your phone away from water (or any other liquid). It‟s not a waterproof model. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorized repairs could break the terms of your warranty.-10- Broken Antenna Don‟t use your phone if the antenna is damaged, as it could cause injury. Around Children Keep your mobile out of children‟s reach. It should never be used as a toy and it might not be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, make the warranty void, break national regulations on the use of mobile phones, or even cause injury. Near Explosives Turn off your phone in or near areas where explosive materials are used. Always obey local laws and turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned-11- on and in an area where there‟s network coverage. Dial the national emergency number and press „send‟. Explain exactly where you are and don‟t hang up until help has arrived. Working Temperature The working temperature for the phone is between 0 Degree and 40 Degree Celsius. Please don‟t use the phone outside the range. Using the phone under too high or too low temperature might cause problems. To prevent possible hearing damage, do not listen at high volume levels for long periods.-12-

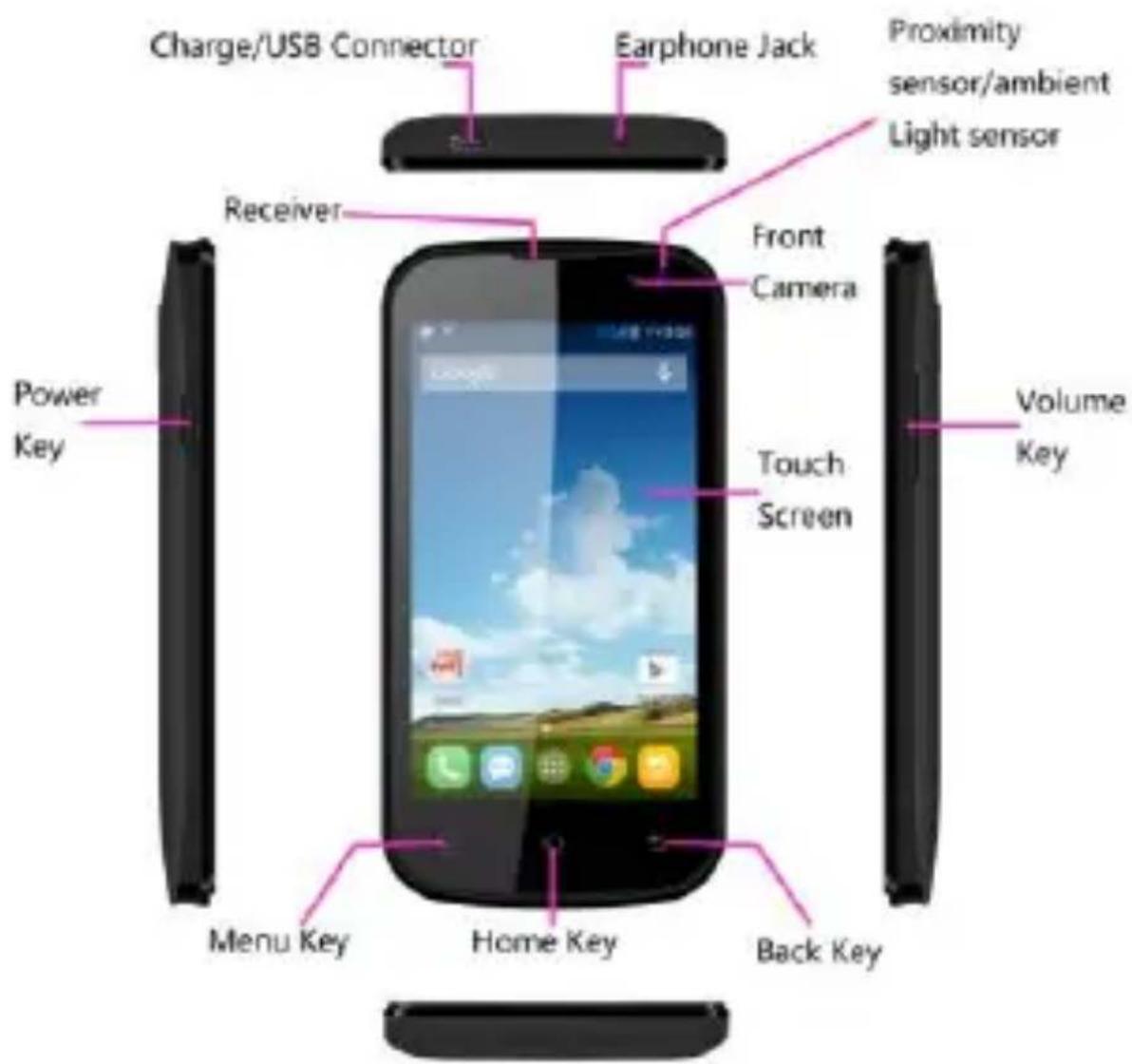

Power Key Long press To turn on / off the phone from, and short press to turn on / off the screen backlight or screen lock the phone Ear Piece Receive the voice Sensors

1. Ambiance sensor, for

detecting the light or surrounding brightness

2. Proximity sensor, used to

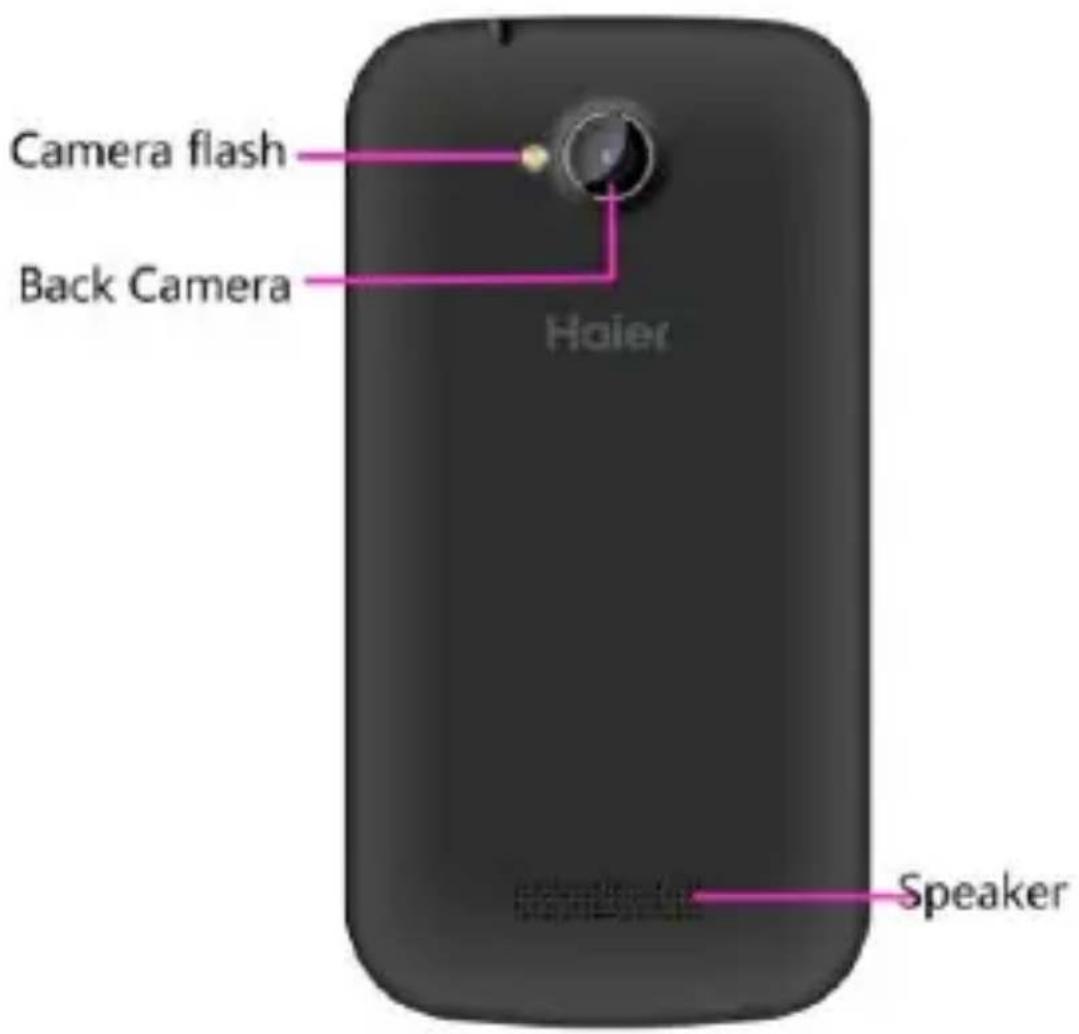

measure distance between the phone and turn off the display during a call Front Camera Capturing images using front camera Microphone Voice receiver Menu Key To enter the option menu Home Key Short Press to return to home screen and long press to show the list off previous application opened-15- Return Key Return to the previous menu or screen The volume keys Increase volume level or Decrease volume level Headset Port To connect your 3.5” handsfree or audio port Micro-USB Port To connect the charger or data cable Flash Light Brighten the environment when you capture images. Back Camera Capturing images using Back camera Loud Speaker Produces the sound, phone ringtone, notification and loud the conversation sound

Shows the phone’s network signal strength.

Show the phone’s battery capacity.

Speaker has been activated.

You have unread SMS.

The ringing type is set on Vibration.

You have missed calls.

A clock alarm is active.

Inserting the Battery

1. Open the battery cover on the back of your phone.

2. Align the battery's contact points with those of the

phone and gently press the battery down into place.

3. Replace the battery cover clicking it back into

position. Inserting the Battery Closing the Back Cover-17- Removing the battery

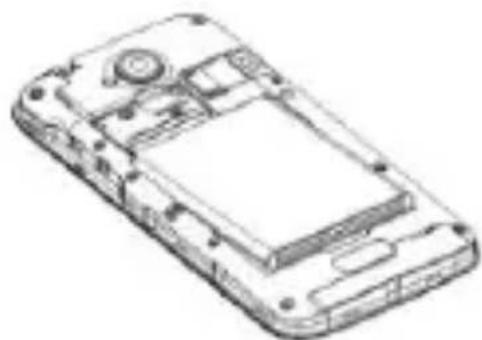

1. Switch off your phone.

2. Open the battery cover.

3. Lift the battery up and out of your phone.

Note: The Schematics may differ from the actual product, it is just for the demonstration of Inserting the Battery Removing the Battery Removing the Battery Open the Back Cover-18- function.

The rechargeable Li-ion battery that comes with your phone is ready to be used, but is not charged. It is easy to do & can be done in 3 simple steps below: 1. Connect the charger to your phone, and plug it into a socket. 2. The battery indicator in the corner of the screen will scroll to show you it‟s charging. 3. When fully charged, the battery indicator will stop scrolling. 4. Disconnect the charger from your mobile, and unplug.

Press the power key to power-ON/OFF the phone. When you turn your phone on, it‟ll automatically check the SIM and show the following information on screen: Input SIM1 PIN: If you‟ve set a PI N for your SIM1. Input SIM2 PIN: If you‟ve set a PI N for your SIM2. Note:-19- The PIN is supplied with your SIM. Please replace it with your own PIN code as soon as possible. Enter the wrong PIN three times, and your SIM will be locked. Then you’ll need to contact your network service provider to ask for a PUK code to unlock it. It is applicable for both the SIMs if you are using 2 SIM Cards.

In Idle mode, press the All Apps Icon to enter the main menu on the desktop and click the Home key to return.

Once at the main menu, click the icon to select the submenu, press Back Key to return to the previous menu, and press the Home Screen to return to the home screen.

As a new notification appears in the notification area, slide down in the area to view the contents of the-20- notification.

The main interface may extend and exceed the screen width to provide more space for newly added shortcuts and tools. Slide your finger horizontally on the main interface to extend to the left or right area of the main interface.

You can long press the icon on the main menu until it‟s enlarged and the mobile phone vibrates, and copies the icons in the main menu to the main interface.

enlarged and the mobile phone vibrates.

2. Drag the icon to the desired position and then

enlarged and the mobile phone vibrates.

2. Drag the icon to “Remove” to delete it.

2. Choose from “Wallpapers”, and Select the

wallpaper and press “Set wallpaper” to complete.

APK is a supported file format for the Android mobile operating system. a)Please copy the downloaded APK file into the SD card, and then insert the SD card into the phone. b)In Idle mode, click the All Apps Icon to enter the main menu. c)Click “File Manager” to enter the directory of SD card. d)Click the APK file you wish to install, and follow the installation wizard.-22- e) Comment on the memory available for the user: Your Smartphone Haier has an internal memory of 4 GB (eMMC) and 512 MB of RAM ; the memory used by the operating system (OS) and the preinstalled applications is 2.2 GB. The memory available for the user is 1.8 GB.-23-

Select the All Apps Icon to enter the main menu… Allow you to view a list of features available in your phone.

Allow you to set the Alarm from Clock.

Browse the internet. Search engine default set as Google.

Allow you to make tedious calculations quickly.

View the calendar & add events.

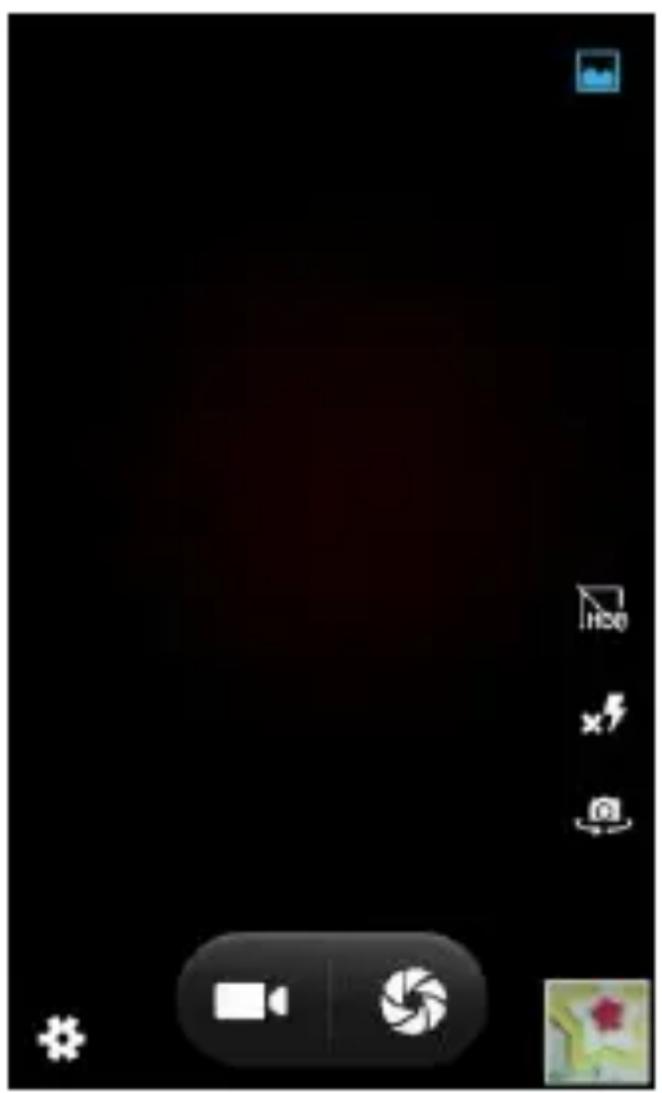

Allow you to click pictures anytime you want. Your Haier W627 has High Definition camera with LED-24- Flash supporting many special features which ensures you always click good quality of pictures and stores them under the Gallery folder. In Camera, easily choose Camcorder to record Video Files.

To see your list of Contacts. Access phonebook through this function.

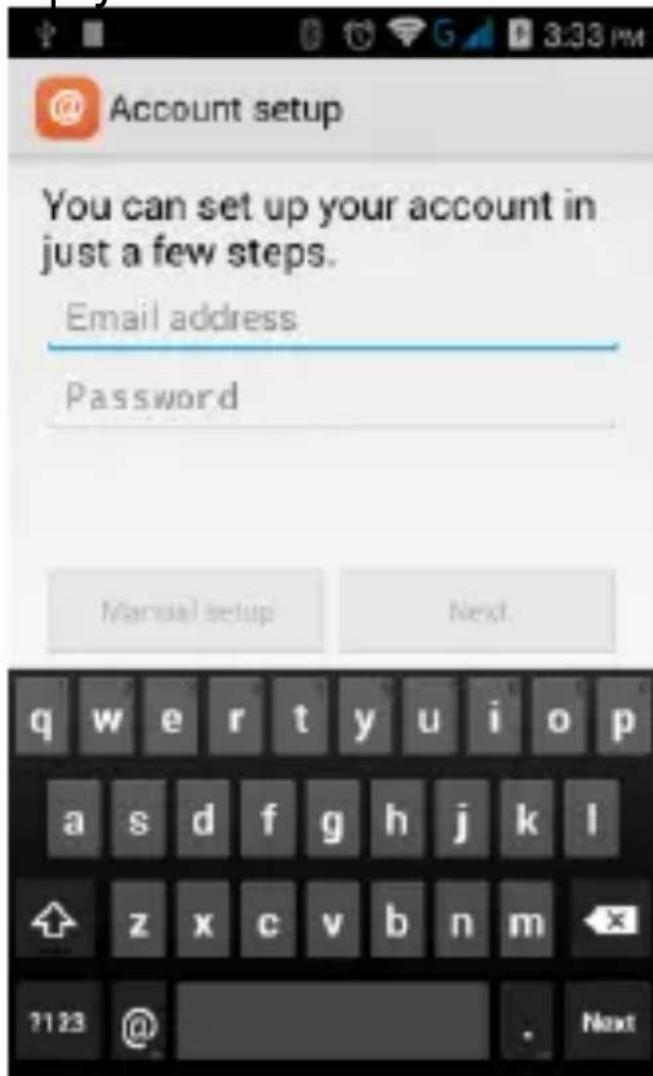

Allows you set up your POP/IMAP email accounts.

Allow you to save & view photos & videos.

Log in to your Gmail account to view all the applications & download from thousands of applications available under the Google Market called Play Store.-26- Note: To use this app please connect to an internet connection.

Allow you to view messages sent & received as a thread.

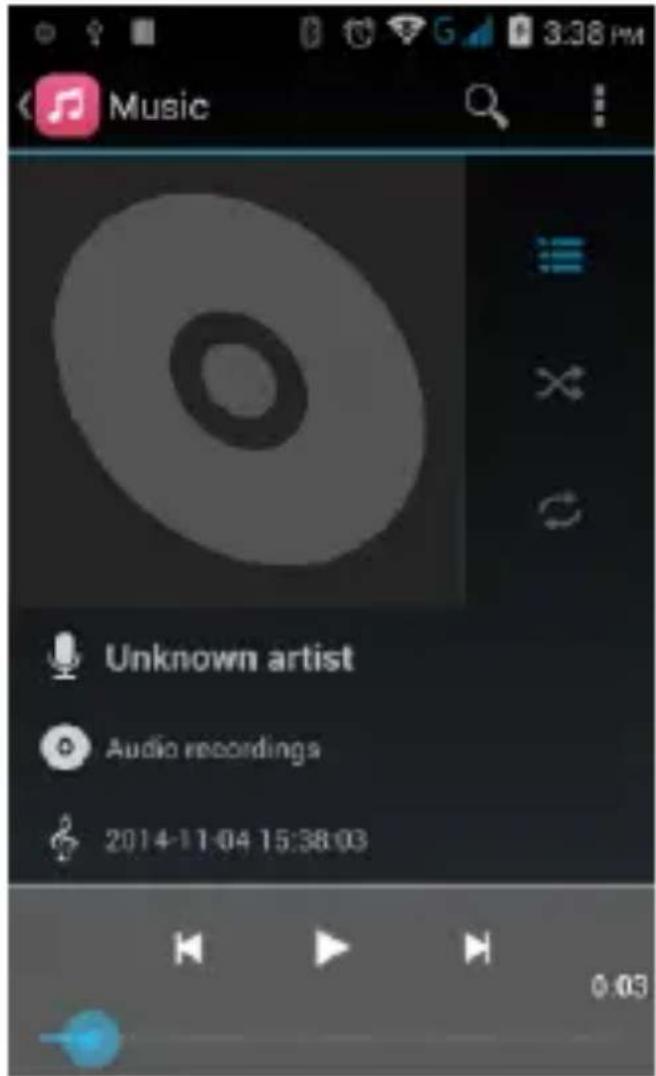

View the list of songs available in your phone. View the artists, albums, playlists & more.-27-

Allow you to make quick outgoing calls.

You could install the files in APK format & also view your files.

This service is provided by the operator. It provides many types of personalized message services.

Allows you to record sounds.

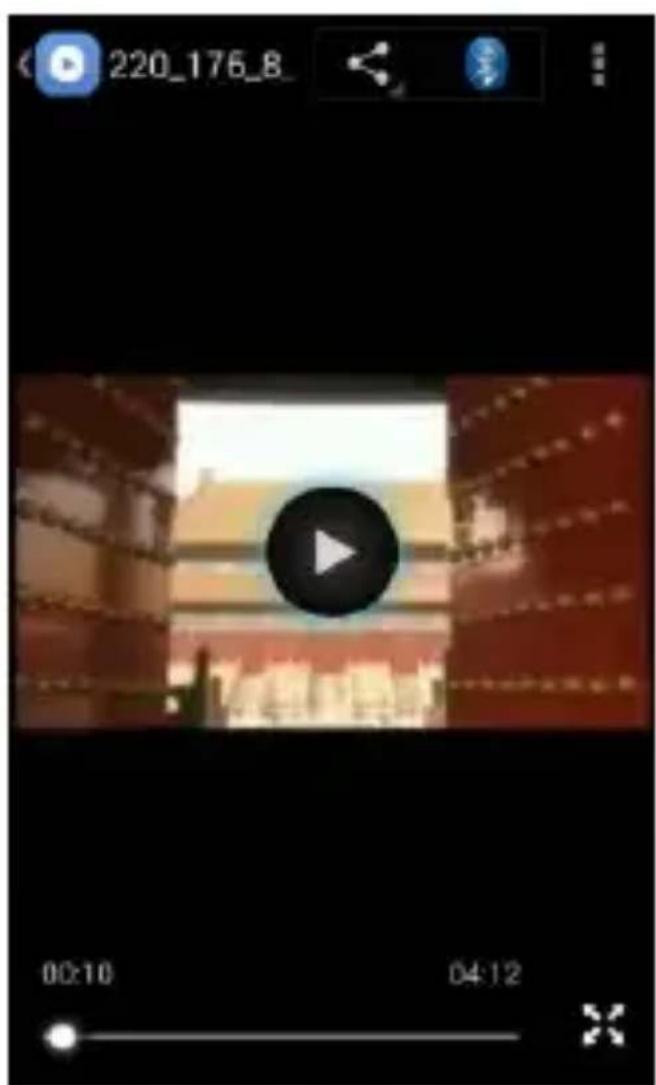

View from list of videos.-30-

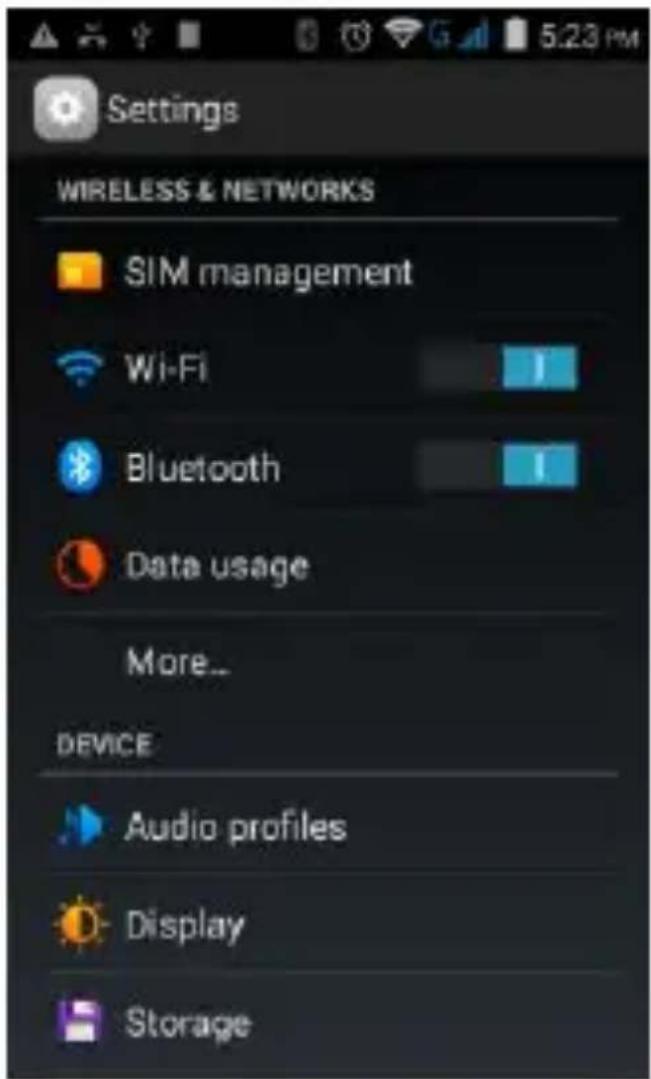

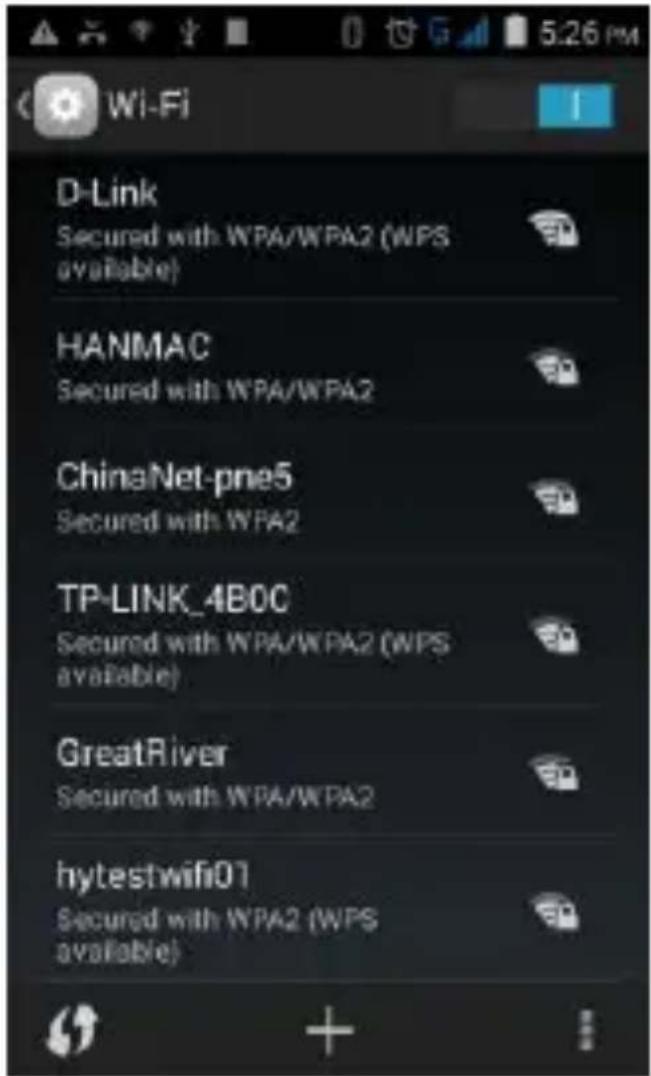

Haier W627 supports Wi-Fi Direct which allows Android later devices with the appropriate hardware to connect directly to each other via Wi-Fi without an intermediate access point. Using the APIs, you can discover and connect to other devices when each device supports Wi-Fi Direct, then communicate over a speedy connection across distances much longer than a Bluetooth connection. This is useful for applications that share data among users, such as a multiplayer game or file sharing. a. Enter "Settings" interface . Then click "Wi-Fi direct" to access Wi-Fi direct feature. Then turn on the feature.-31- b. After turning on the feature click "Search" at the bottom and it will display the available devices：-32-

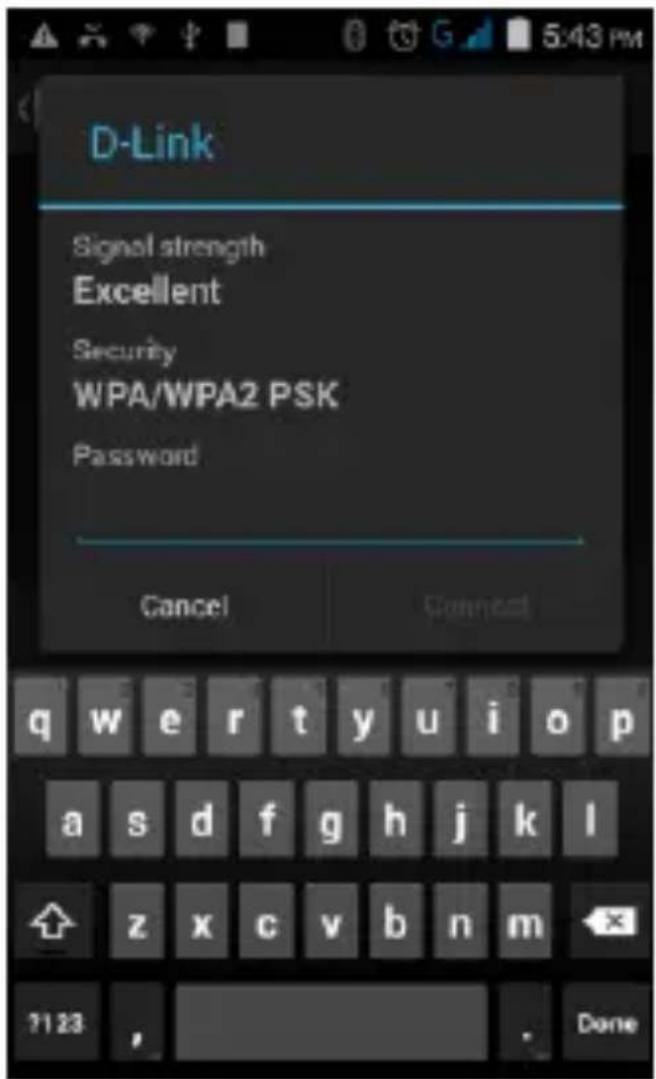

c. Click the available devices, e.g. D-Link,and it will give you option to connect:-33- d. Click "connect" and the devices will be connected-34-

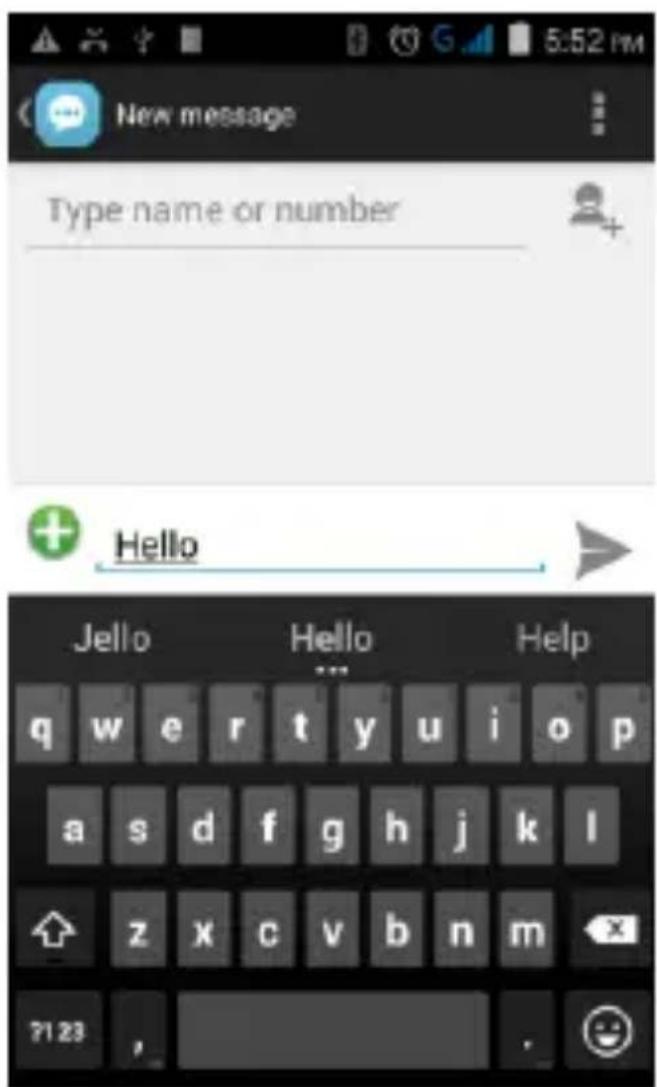

Intelligent keyboard Haier W627 automatically corrects and suggests words as you type.-35- Cut, Copy and Paste Touch and hold text content,and then slide your finger to move the insertion points,then choose to cut, copy, or paste. It is very easy to copy text from web pages, email, or text messages.-36-

Use a dry soft cloth to wipe general dirt. Do not use a hard cloth, benzene or thinner to wipe the phone, otherwise, the surface of the phone will be scratched or could even result in the fading of color.-37-

Your device is a product of superior design and craftsmanship and should be handled with care: The following suggestions will help you protect your phone: Always keep the small parts of the phone away from children. Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will rust electronic circuits. If your device does get wet, remove the battery, and allow the device to dry completely before replacing it. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. Do not store the device in high or cold temperature. High temperatures can shorten the life of electronic devices and damage batteries. Do not attempt to open the device other than as instructed in this guide. Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.-38- Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a soft, clean, dry cloth to clean the surface of the device. Do not paint the device. Paint can clog the moving parts and prevent proper operation. Use indoor chargers.
