Voyage V5 - Smartphone HAIER - Free user manual and instructions

Product Type	Smartphone
Brand	Haier
Model	Voyage V5
Dimensions	156 x 75 x 8.5 mm
Weight	180 g
Battery Capacity	4000 mAh Li-Po
Display Size	6.1 inches
Display Type	IPS LCD
Resolution	720 x 1560 pixels
Processor	Quad-core 1.8 GHz
RAM	3 GB
Internal Storage	32 GB
Operating System	Android 11
Rear Camera	13 MP
Front Camera	5 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS, MicroUSB
Sensors	Accelerometer, Proximity, Light
Maintenance	Wipe with soft dry cloth; avoid liquids and abrasives
Safety	Do not disassemble; avoid extreme temperatures; use original charger
Spare Parts & Repair	Contact Haier service center for genuine parts

Frequently Asked Questions - Voyage V5 HAIER

How do I insert the SIM and microSD card?

Use the included ejector tool to open the tray on the left side. Insert the nano-SIM and microSD card with the gold contacts facing down. Gently close the tray.

How do I take a screenshot?

Press and hold the Power button and the Volume Down button simultaneously for 2 seconds.

How do I factory reset the device?

Go to Settings > System > Reset options > Erase all data (factory reset). Confirm your PIN and tap Reset phone. This will delete all data.

How can I extend battery life?

Reduce screen brightness, turn off unused connectivity (Wi-Fi, Bluetooth, GPS), enable Battery saver mode, and close background apps.

Is the Voyage V5 waterproof?

No, it does not have an official water resistance rating. Keep it away from water and moisture.

How do I clean the phone?

Turn off the device. Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol, solvents, or abrasive materials. Avoid getting moisture in openings.

How to update the software?

Go to Settings > System > System update. Tap Check for updates and follow on-screen instructions. Ensure battery is above 50%.

How to enable dual SIM functionality?

Insert two nano-SIM cards into the tray. Then go to Settings > Network & Internet > SIM cards to manage preferences.

How to back up my data?

Go to Settings > System > Backup. Enable Back up to Google Drive and select your account. You can also manually copy files to a computer via USB.

The phone freezes or is unresponsive. What should I do?

Press and hold the Power button for about 10 seconds to force restart. If the issue persists, try a factory reset or contact Haier support.

USER MANUAL Voyage V5 HAIER

Front view of a black smartphone with glossy screen and control buttons at bottom (no visible text or symbols)

Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie Haie Gaie Haie Haie

BEDIENUNGSANLEITUNG

Vorsichtsmaßnahmen

Line drawing of a smartphone with a green indicator badge on the side (no text or symbols)

Nighttime cityscape featuring a large suspension bridge over water, with illuminated buildings and city lights in the background (no readable text or symbols)

Address: No1 Haier Road, Hitech Zone, Qingdao 266101, PR. China www.haier.com

Precautions

	Please carefully read and observe the terms below: Safe power onDo not use your mobile phone where it is forbidden to use or you might cause a disturbance or danger.
	Safe transportation firstPlease observe all related local laws and regulations.Do not use your mobile phone while driving.Safe transportation should be considered first when driving.
	Turn off when in the hospitalPlease follow related limitations.Please switch your mobile phone off when near a medical instrument.
	Turn off on an airplanePlease follow related limitations.Do not use your mobile phone on an airplane.
	Turn off when at a gasoline stationDo not use your mobile phone at a filling station or around fuels or chemicals.
	Turn off around exposure AreaPlease observe related limitations and do not use your mobile phone near an area where explosions can occur.
	BackupRemember to make a backup or keep a written record of all important information saved in your mobile phone.
	Use qualified after sales serviceOnly a qualified technician can install or repair your mobile phone. Please contact the authorized service center in case of phone failure.
	Accessories and batteriesOnly use the authorized accessories and batteries and do not connect to incompatible manufacturers or products.

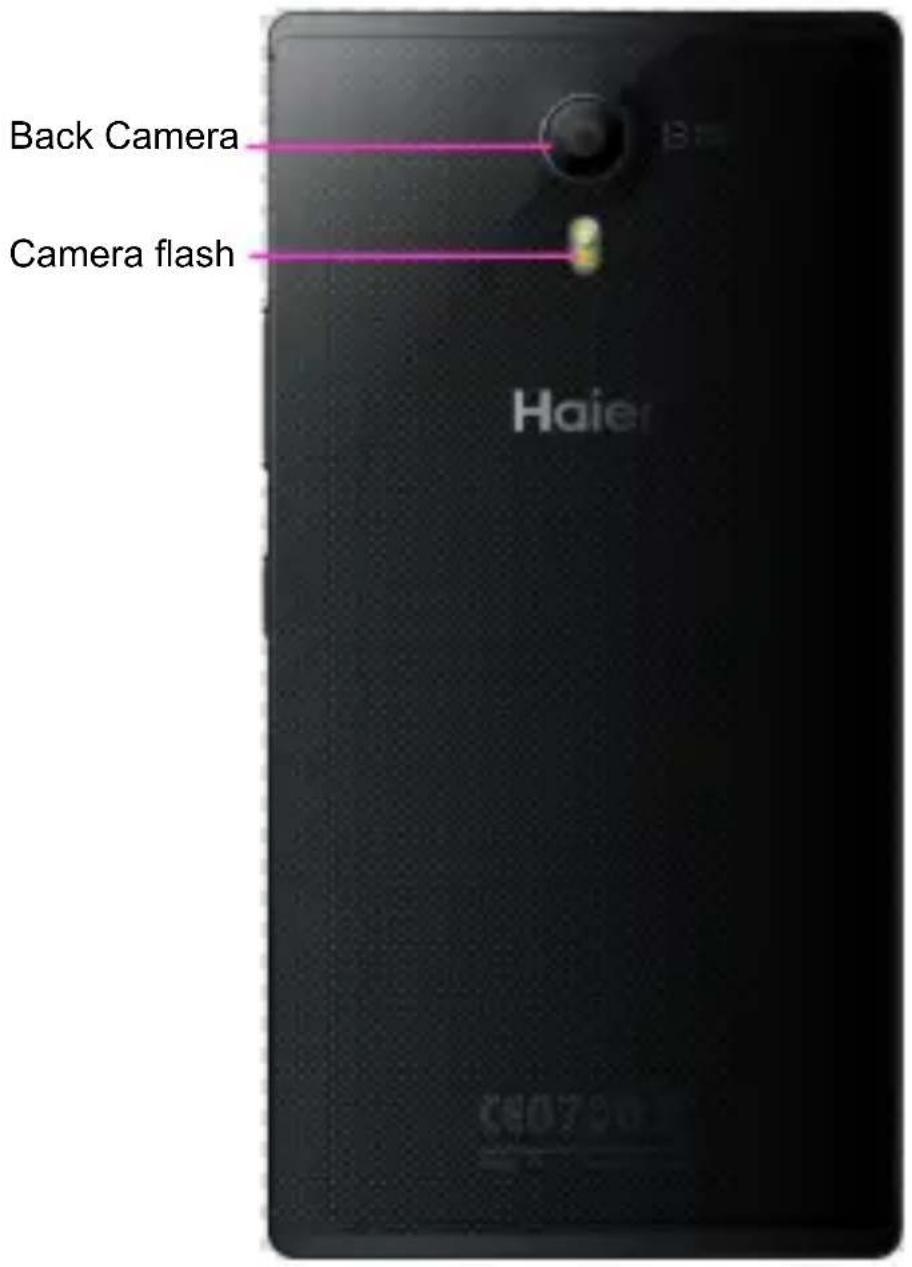

Your phone

Your phone

SIM Card

Installing the SIM Card

Make sure that the clipped corner of the SIM card is facing the correct direction and the metallic contacts are facing the correct direction. Slide the SIM card into the card slot until it stops.

Line drawing of a smartphone with a green indicator badge on the left side (no text or symbols)

Nano-SIM and micro SD slot sharing

Lock & Unlock Screen

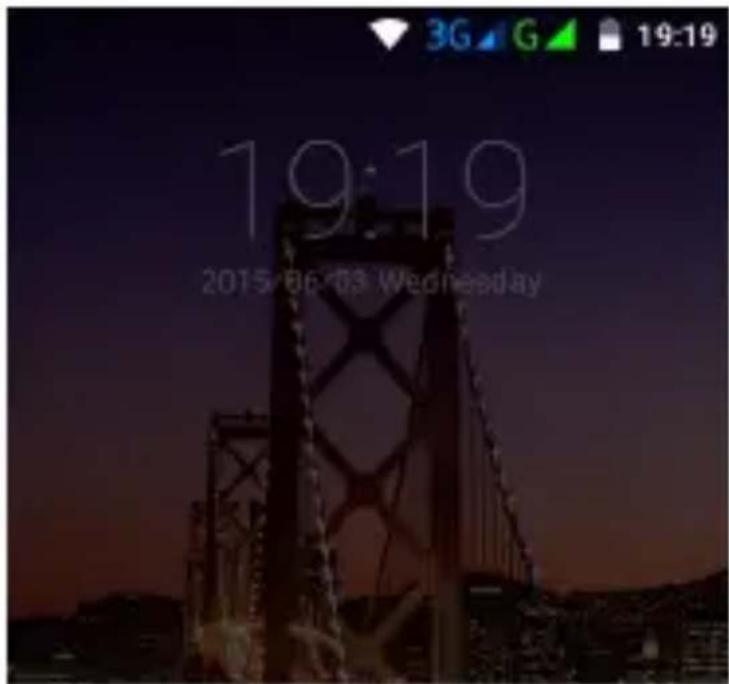

Locking the Screen

To save your battery, prevent accidental touches or when you want to wipe smudges off your touch screen, put the touch screen to sleep by pressing the Power Key

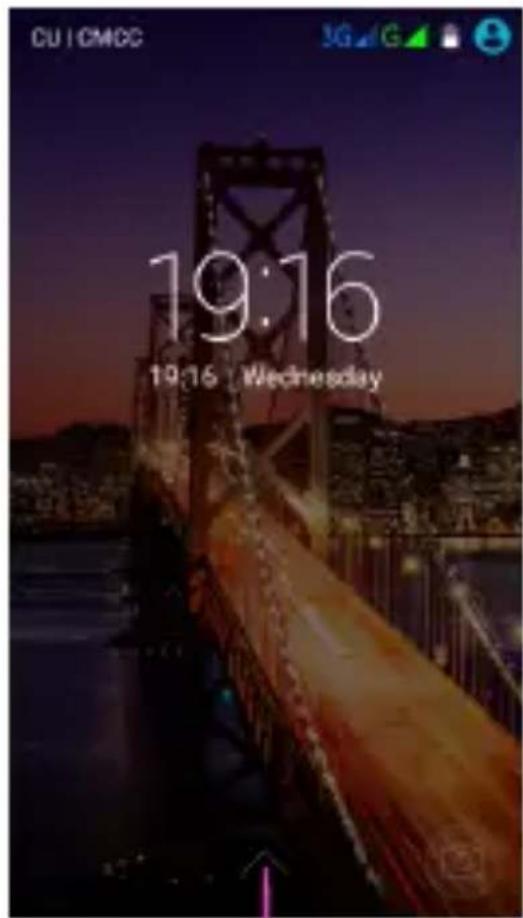

Unlocking the Screen

To wake up the touch screen, just press the Power Key again, and then you unlock the phone by swiping up from the bottom border.

Lock icon

Up to unlock icon

Home Screen

Status Bar and Notifications

The status bar at the top of the screen contains icons that tell you about messages and phone status and shows what's going on in your phone. You can drag down the status bar to open the Notification panel and get more information.

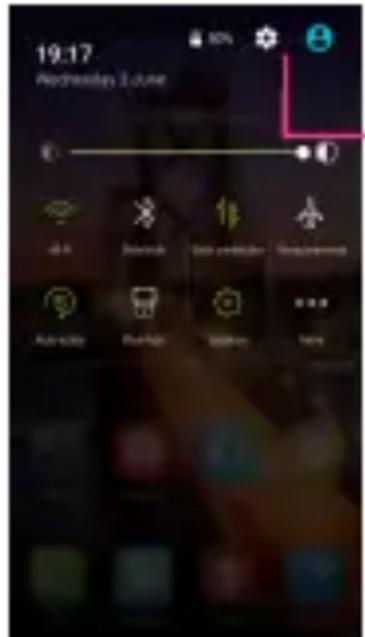

Down to open the toolkits panel

Toolkits

In the toolkits you can quickly start the common applications such as Bluetooth, WLAN and so on.

Touch to open the system settings

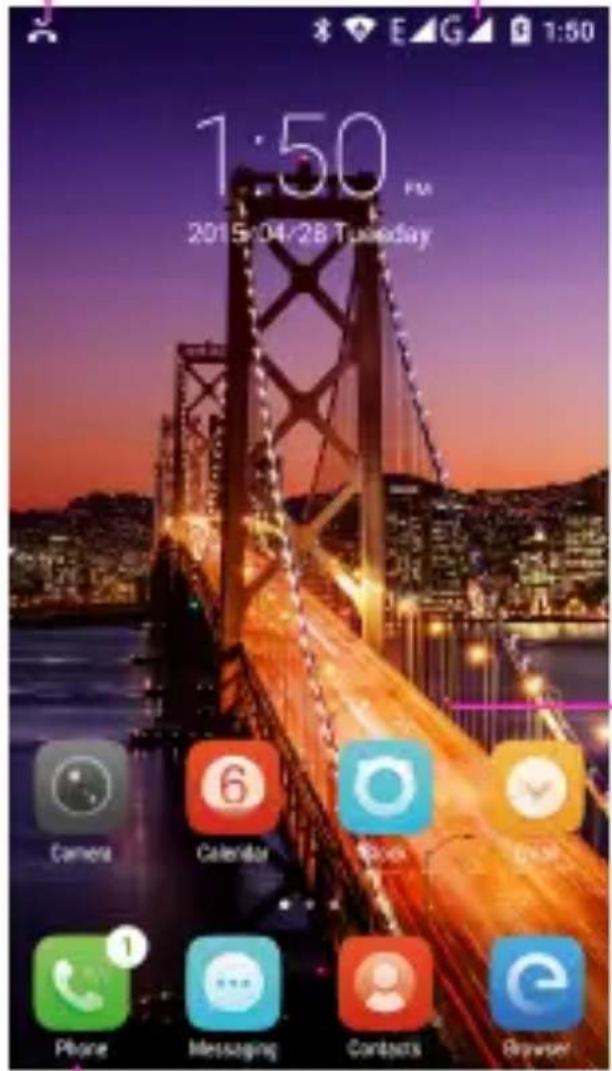

Home Screen

The Home screen is your gateway to the main features in your phone.

Notifications

Drag down to open the Notification panel

Status bar

Slide the Home screen left or right to view all the installed applications

The favorite tray

Touch the applications in the tray to enter applications

Touch and hold the applications to drag them in or out from the tray

Customizing

The phone provides you with Options menus.

Touch the Menu Key to enter customizing:

Manager Apps

Update Wallpaper

Theme Settings

Desktop thumb

Keyguard Settings

System Settings

Touch to enter the Settings, and set the system preferences

Touch to select a wallpaper, and set it as the wallpaper of Home screen

Phone Function

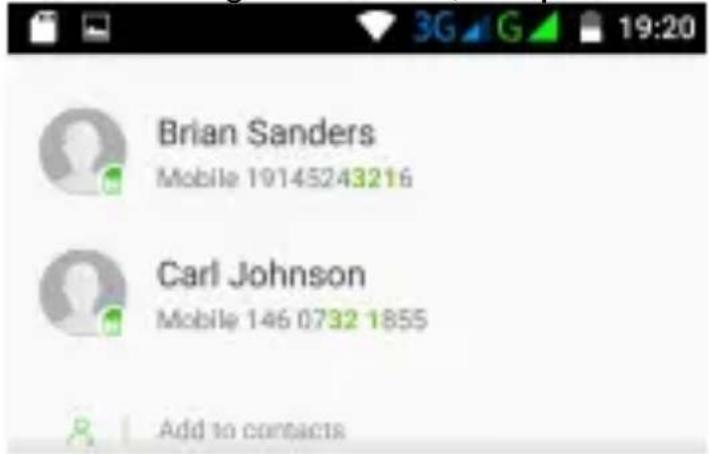

Making a Call

Touch to enter the Dial pad.

The phone offers you several ways of making a call.

You can make a call through the Phone, People and Messaging.

321

	[WOGW]	[KABW]
QQ	ABC	DEF
GHI	JKL	MNO
[0Y27]
PQRS	TUV	WXYZ
[P]	+	W

Connecting to WLAN

Connecting to WLAN

1. You can connect to the WLAN, and use it to surf the Internet at high speed and download.

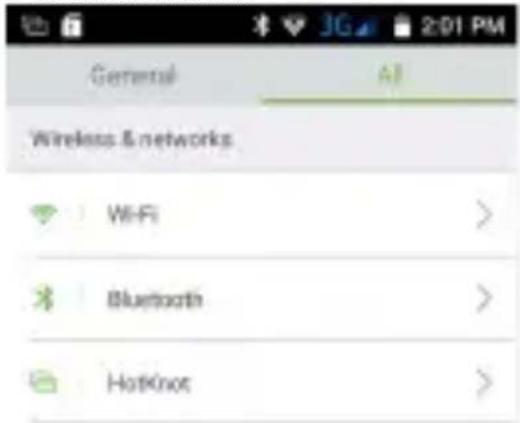

Touch Launcher → Settings → WLAN.

1. Turn on the switch to activate WLAN.

1. Touch WLAN.
2. Choose an available WLAN network to connect

1. Secured networks are indicated with a Lock icon. If the network is secured, you are prompted to enter a password or other credentials (Ask your network administrator for details)

1. Touch "Connect".

Accessing the Internet

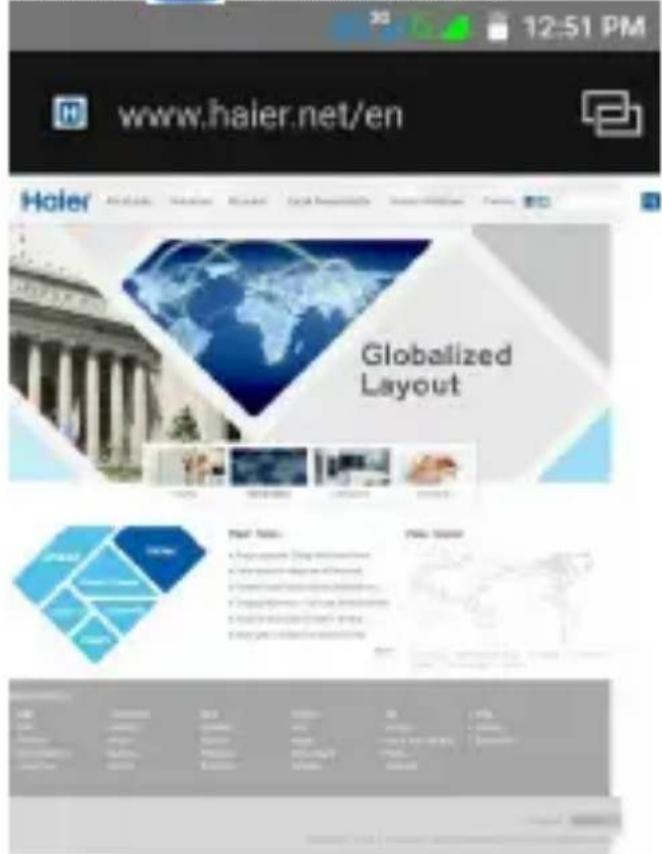

Using the Browser

Touch to enter the Browser.

Accessing the Internet

When you are viewing the web page, touch the Menu Key, the following options are available to you:

Taking Pictures/Videos

Taking pictures and videos

Touch to enter the Camera.

Playing Music

Music Player

Touch to enter Music.

Categories Select Artists, Albums, Songs and Playlists.

Touch to open the album, songs or playlist.

Repeat: Touch to repeat the all songs; touch again to shuffle the all songs; touch three times to repeat the current song.

Hotknot

The machine supports hotknot function. After opening you can use hotknot to share files, provided that the other handset also supports this function.

1. Start hotknot

1. Allow data exchange when the screen touches another device.

Allow data exchange when the screen touches another device

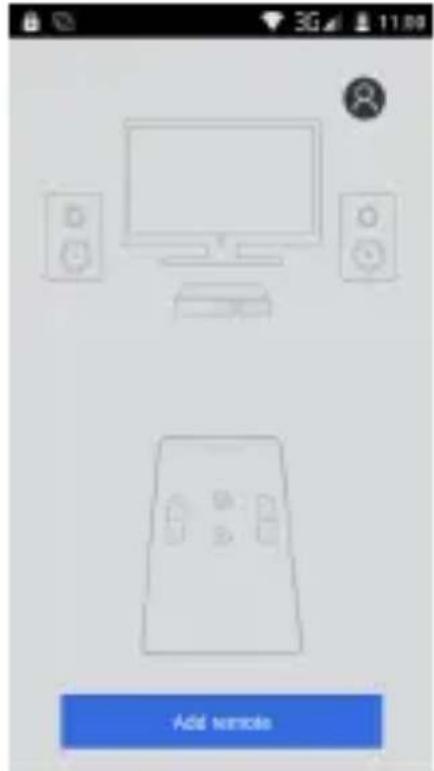

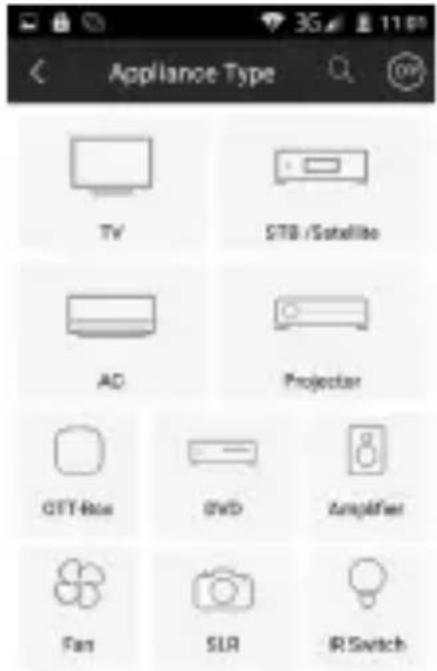

Infrared

The machine supports infrared, you can download APK for infrared remote control.

Troubleshooting

Frequently Asked Questions	Cause and Solution
Fail to turn on	Press the Power Key for over 1 second. Check if the battery is properly connected. Please remove and install it again, retry to turn it on; Check if battery is appropriately charged.
Fail to connect network	Weak signal. Please try and move to a location with strong signal and try connecting to the network again; Please ensure that you are not beyond the network coverage of service providers; Please ensure you have a valid SIM card. Please contact your network provider for further information;
Poor quality of calling	Please check if the sound volume is tuned improperly In an area with poor receiving condition, example: basement, the signal might be weak. Try searching a location with stronger signal reception and call again. While using the mobile phone in the peak period of communication, like commute time, you may be unable to call because of line congestion.
SIM Card Error	Dirt on the metal surface of an SIM card. Use clean cloth to wipe the metal touch point on an SIM card. The SIM card is not installed. The SIM card is damaged. Please contact your network service provider.
Callers cannot contact you	Please check if the mobile phone is on and connected with the network. Please check if the Call barring or call divert is activated. Please check if the SIM card is valid.
Fail to set some functions	Wrong operation. The network provider does not support the function, or you have not applied for it.

Haier Packingist

Dear Customer,

Thanks for purchasing Haier product.

Be sure to check whether the following accessories are enclosed within the packet:

★ Main Unit
★ Charger
★ Data Cable
★ Battery
★ Earphone
★ Quick User Guide
★ Warranty Card
★ Protection film

Qingdao Haier Telecom Co, Ltd.

Adress: No1 Haier Road, Hi-tech Zone, Qingdao 266101, PR. China www.haier.com

Identification Table of Names and Contents of Hazardous Substances/Elements in Products
This product meets the requirements of SJ/T 11363_2006 Directive or RohS Directive of EU(including the Exemption Clause of EU RohS Directive)
Parts	Toxic or hazardous substances/elements
	Le ad (P b)	Mercury (Hg)	Cadmium (Cd)	Hexavalent Chromium (Cr6+)	Polybrominated Biphenyls (PBB)	Polybrominated diphenyl ether (PBDE)
Cabinets and mechanical parts	×	○ ○ ○	○ ○
PCBA and processor	×	○ ○ ○	○ ○
LCD Display	×	○ ○ ○	○ ○
Battery	×	○ ○ ○	○ ○
Power adaptor	×	○ ○ ○	○ ○
USB cable	×	○ ○ ○	○ ○
Earphone(optional)	×	○ ○ ○	○ ○
○:shows that the contents of hazardous substances contained in all homogeneous materials of current part meet the limit requirements defined in the SJ/T 11363-2006 Standard (contents Limit Requirements for Hazardous Substances/Elements in Electronic and IT Product).▲: shows that the contents of hazardous substances contained in at least one homogeneous material current part exceeds the limit requirements defined in the SJ/T 11363-2006 Standard (contents Limit Requirements for Hazardous Substances/Elements in Electronic and IT Product), but meet the requirements of Exemption Clauses of EU RohS Directive.×: shows that the content of hazardous substances contained in at least one homogeneous material of current part exceeds the limit requirements defined in the SJ/T 1136-2006 Standard (contents Limit Requirements for Hazardous Substances/Elements in Electronic and IT Product), and also fails to meet the requirements of Exemption Clauses of EU RohS Directive.

Declaration of Conformity

:)s(evitceriD licnuoC fo noitacilppA

Radio & Telecommunications Terminal Equipment Directive (1999/5/EC)

Standard(s) to which Conformity is Declared:

EN 50360: 2001/AC:2006

EN 62479: 2010

EN 50566: 2013

EN 62209-1: 2006

EN 62209-2: 2010

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

ETSI EN301 489-1 V1.9.2

ETSI EN301 489-3 V1.6.1

ETSI EN301 489-7 V1.3.1

ETSI EN301 489-17 V2.2.1

ETSI EN 301 489-24 V1.5.1

ETSI EN 300 440-1 V1.6.1

ETSI EN 300 440-2 V1.4.1

ETSI EN300 328 V1.7.1

ETSI EN301 511 V9.0.2

EN301 908-1 V5.2.1

EN301 908-2 V5.2.1

Manufacturer's Name : Qingdao Haier Telecom Co., Ltd.

Manufacturer's Address: No.1 haier Road Hi-tech Zone, Qingdao, P.R. China......

Type of Equipment: WCDMA/GSM Dual-Mode Digital Mobile Phone......

Model No.: V5

Year of Manufacturing : 2015....

I' the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Place : Haier

Xiao Xiao

(Signature)

Date : 2015/6/2

Xiao xiao

(Full Name)

PM

)noitisoP(
