Product Type	Smartphone
Brand	Haier
Model	VOYAGE V3
Dimensions	165 x 76 x 9 mm
Weight	200 g
Display Size	6.5 inches
Display Resolution	HD+ (720 x 1520 pixels)
Processor	Quad-core 1.6 GHz
RAM	2 GB
Internal Storage	32 GB
Rear Camera	13 MP
Front Camera	5 MP
Battery Capacity	4000 mAh
Operating System	Android 10 (Go edition)
Connectivity	4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS
SIM	Dual SIM (Nano-SIM, dual standby)
Charging Port	Micro USB 2.0
Headphone Jack	3.5 mm
Power Adapter	5V/1A (included)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.
Safety Warnings	Do not expose to water or extreme temperatures. Use only approved chargers.
Spare Parts Availability	Battery and screen available from authorized service centers.
Repairability	Moderate; battery and display replaceable by professionals.
General Information	Manual in PDF (40 pages, English) available for download.

Frequently Asked Questions - VOYAGE V3 HAIER

How to insert SIM and SD cards?

Use the SIM ejector tool to open the tray on the left side. Insert Nano-SIMs and a microSD card (up to 128 GB) as indicated.

How to take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously until the screen flashes.

Can I expand the storage?

Yes, via a microSD card up to 128 GB, inserted in the SIM tray.

How to extend battery life?

Reduce screen brightness, enable Battery Saver mode in Settings, and close unused apps.

Is the phone waterproof?

No, the Haier Voyage V3 is not water-resistant. Avoid exposure to moisture and liquids.

How to perform a factory reset?

Go to Settings > System > Reset > Factory data reset. Backup your data first.

How to connect to Wi-Fi?

Open Settings > Network & Internet > Wi-Fi, turn it on, select your network, and enter the password.

How to update the software?

Go to Settings > System > System update. Download and install updates over Wi-Fi.

What is the charging time?

Using the included 5V/1A charger, full charge takes approximately 3 hours.

How to clean the screen?

Turn off the phone and gently wipe the screen with a soft, lint-free cloth slightly dampened with water. Avoid chemicals.

USER MANUAL VOYAGE V3 HAIER

Front view of a black smartphone with glossy screen and control buttons at bottom (no visible text or symbols)

Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haier Gaier Haier Haier Haieer Gaieer Haieer Haieer Gaieer Haieer Haieer Gaieer Haieer Haieer Gaieer Haieer Haieer Gaieer Haieer

BEDIENUNGSANLEITUNG

Front view of a black tablet device with glossy screen and control buttons at bottom (no visible text or symbols)

Vorsichtsmaß nahmen

Line drawing of a smartphone with a green arrow pointing to its side (no text or symbols on the device itself)

Telefonfunktion

Bildschirm sperren

Address: No1 Haier Road, Hi-tech Zone, Qingdao 266101, PR.

China

www.haier.com

Front view of a black tablet device with glossy screen and control buttons at bottom (no visible text or symbols)

Precautions

	Please carefully read and observe the terms below: Safe power on Do not use your mobile phone where it is forbidden to use or you might cause a disturbance or danger.
	Safe transportation first Please observe all related local laws and regulations. Do not use your mobile phone while driving. Safe transportation should be considered first when driving.
	Turn off when in the hospital Please follow related limitations. Please switch your mobile phone off when near a medical instrument.
	Turn off on an airplane Please follow related limitations. Do not use your mobile phone on an airplane.
	Turn off when at a gasoline station Do not use your mobile phone at a filling station or around fuels or chemicals.
	Turn off around exposure Area Please observe related limitations and do not use your mobile phone near an area where explosions can occur.
	Backup Remember to make a backup or keep a written record of all important information saved in your mobile phone.
	Use qualified after sales service Only a qualified technician can install or repair your mobile phone. Please contact the authorized service center in case of phone failure.
	Accessories and batteries Only use the authorized accessories and batteries and do not connect to incompatible manufacturers or products.

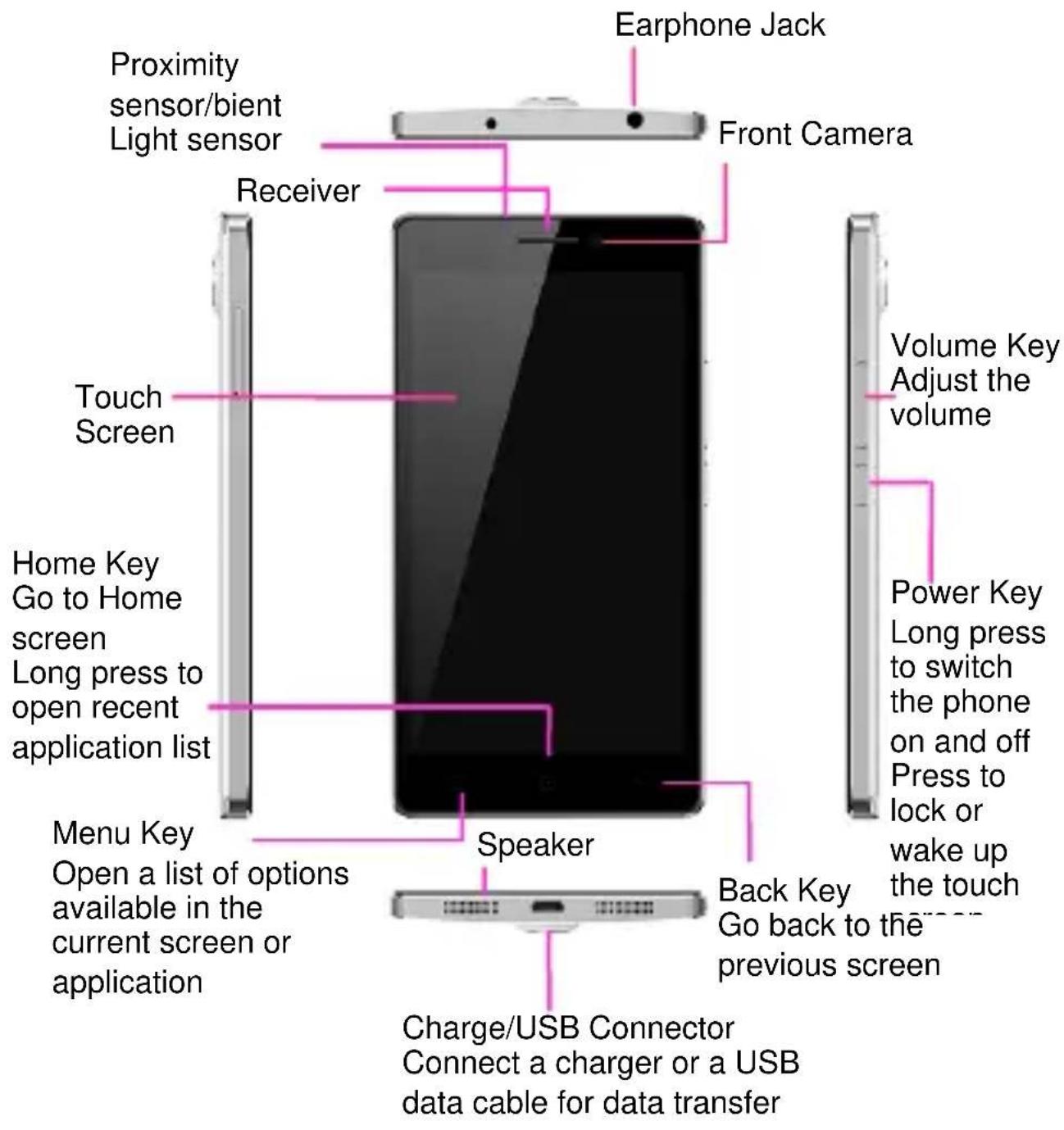

Your phone

Your phone

Back Camera

Camera flash

Front view of a white Huawei smartphone with a circular lens and handle (no visible text or symbols on body)

SIM Card

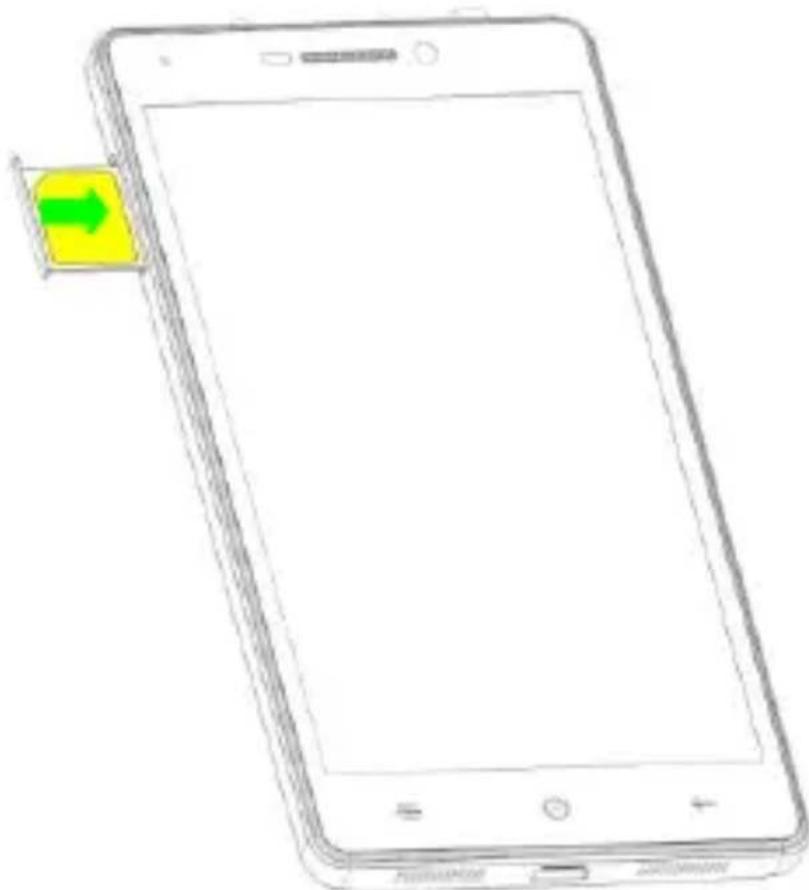

Installing the SIM Card

Make sure that the clipped corner of the SIM card is facing the correct direction and the metallic contacts are facing the correct direction. Slide the SIM card into the card slot until it stops.

Line drawing of a smartphone with a green arrow pointing to its side (no text or symbols on the device itself)

Lock & Unlock Screen

Locking the Screen

To save your battery, prevent accidental touches or when you want to wipe smudges off your touch screen, put the touch screen to sleep by pressing the Power Key

Unlocking the Screen

To wake up the touch screen, just press the Power Key again, and then drag the lock icon to the right on the screen to unlock according to the clue on the screen.

Home Screen

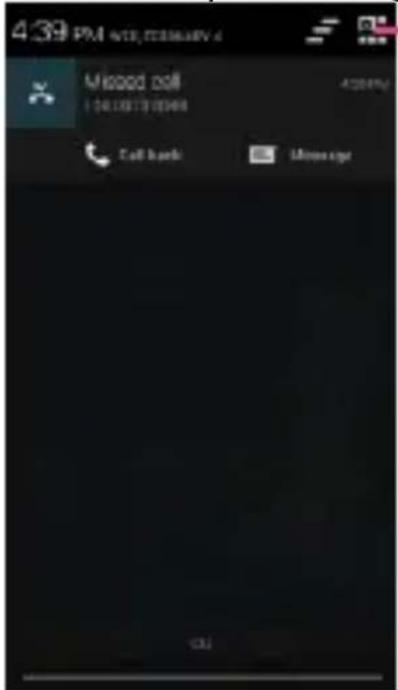

Status Bar and Notifications

The status bar at the top of the screen contains icons that tell you about messages and phone status and shows what's going on in your phone. You can drag down the status bar to open the Notification panel and get more information.

Touch to open the toolkits panel

Toolkits

In the toolkits you can quickly start the common applications such as Bluetooth, WLAN and so on.

Touch to open the Notification panel

Touch to open the system settings

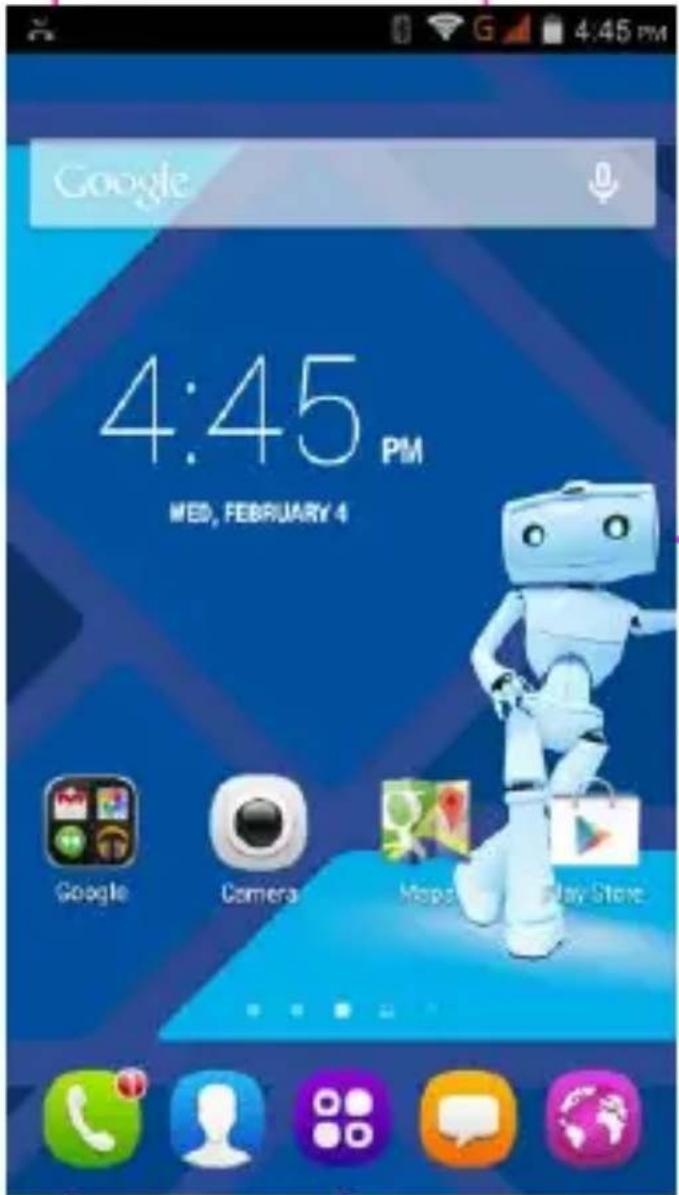

Home Screen

The Home screen is your gateway to the main features in your phone.

Notifications

Drag down to open the Notification panel

Status bar

Slide the Home screen left or right to view more content in other panels on the Home screen

The favorite tray

Touch the applications in the tray to enter applications

Touch and hold the applications to drag them in or out from the tray

Launcher

Touch to enter Main menu Browse all the installed applications

Customizing

The phone provides you with Options menus.

Touch the Menu Key to enter customizing:

Touch to select a wallpaper, and set it as the wallpaper of Home screen

Touch to enter the Settings, and set the system preferences

Phone Function

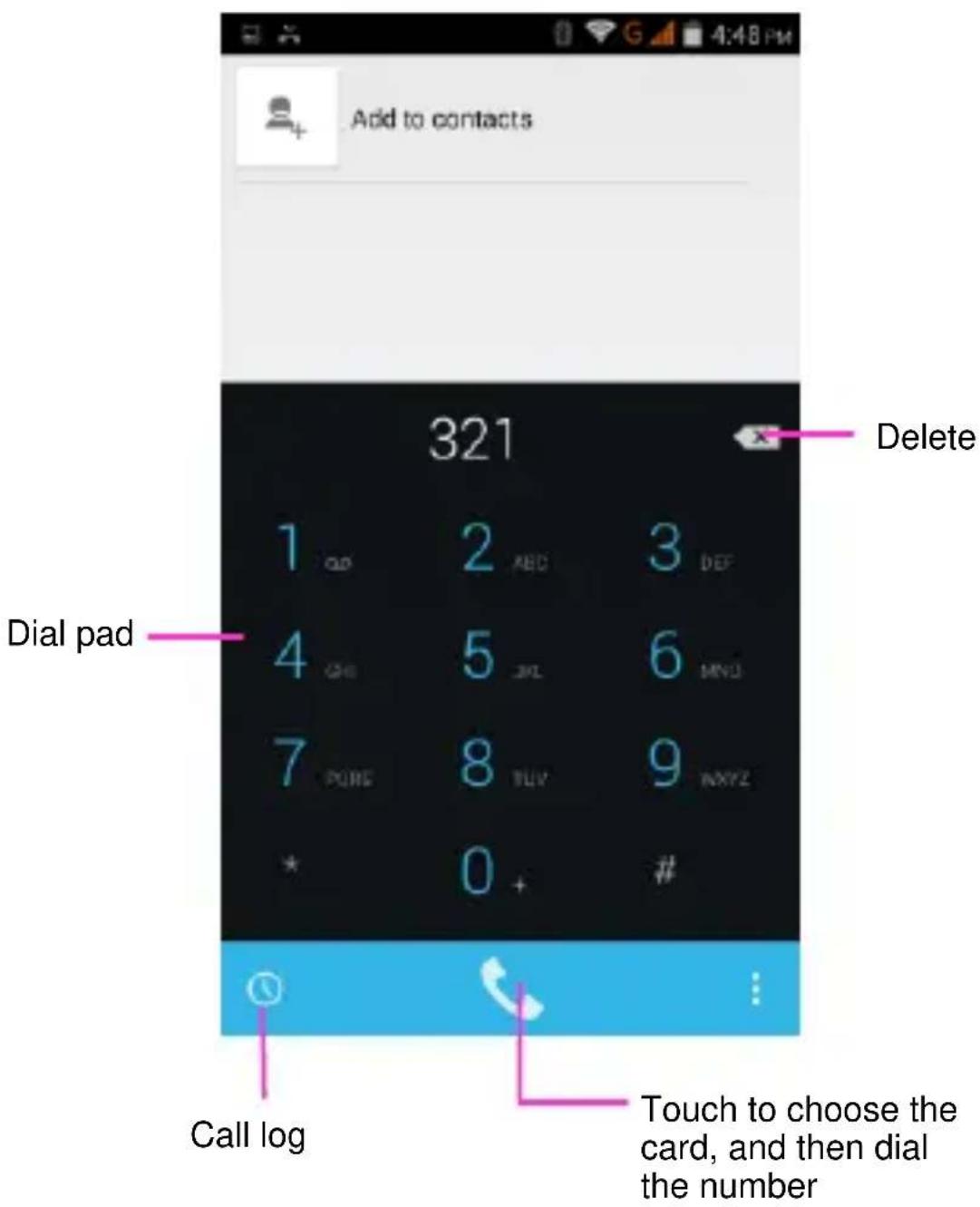

Making a Call

Touch to enter the Dial pad.

The phone offers you several ways of making a call.

You can make a call through the Phone, People, Messaging and Call log.

Connecting to WLAN

Connecting to WLAN

1. You can connect to the WLAN, and use it to surf the Internet at high speed and download.

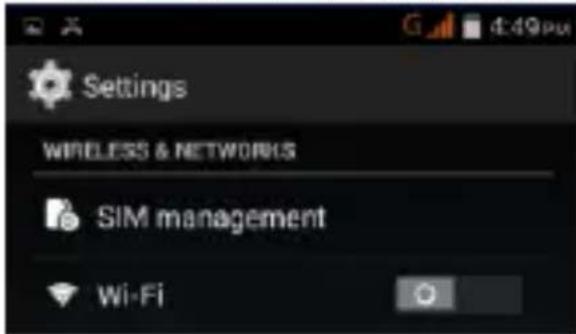

Touch Launcher → Settings → WLAN.

1. Turn on the switch to activate WLAN.

1. Touch WLAN.

2. Choose an available WLAN network to connect

1. Secured networks are indicated with a Lock icon. If the network is secured, you are prompted to enter a password or other credentials (Ask your network administrator for details)

1. Touch "Connect".

Accessing the Internet

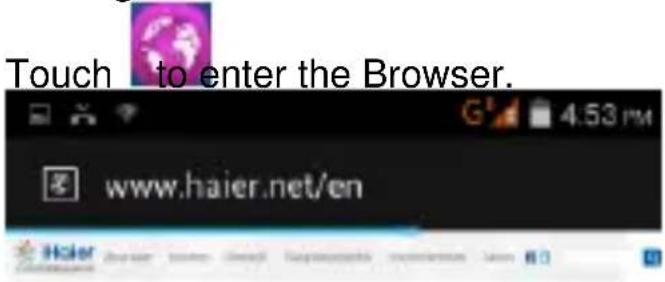

Using the Browser

Accessing the Internet

When you are viewing the web page, touch the Menu Key, the following options are available to you:

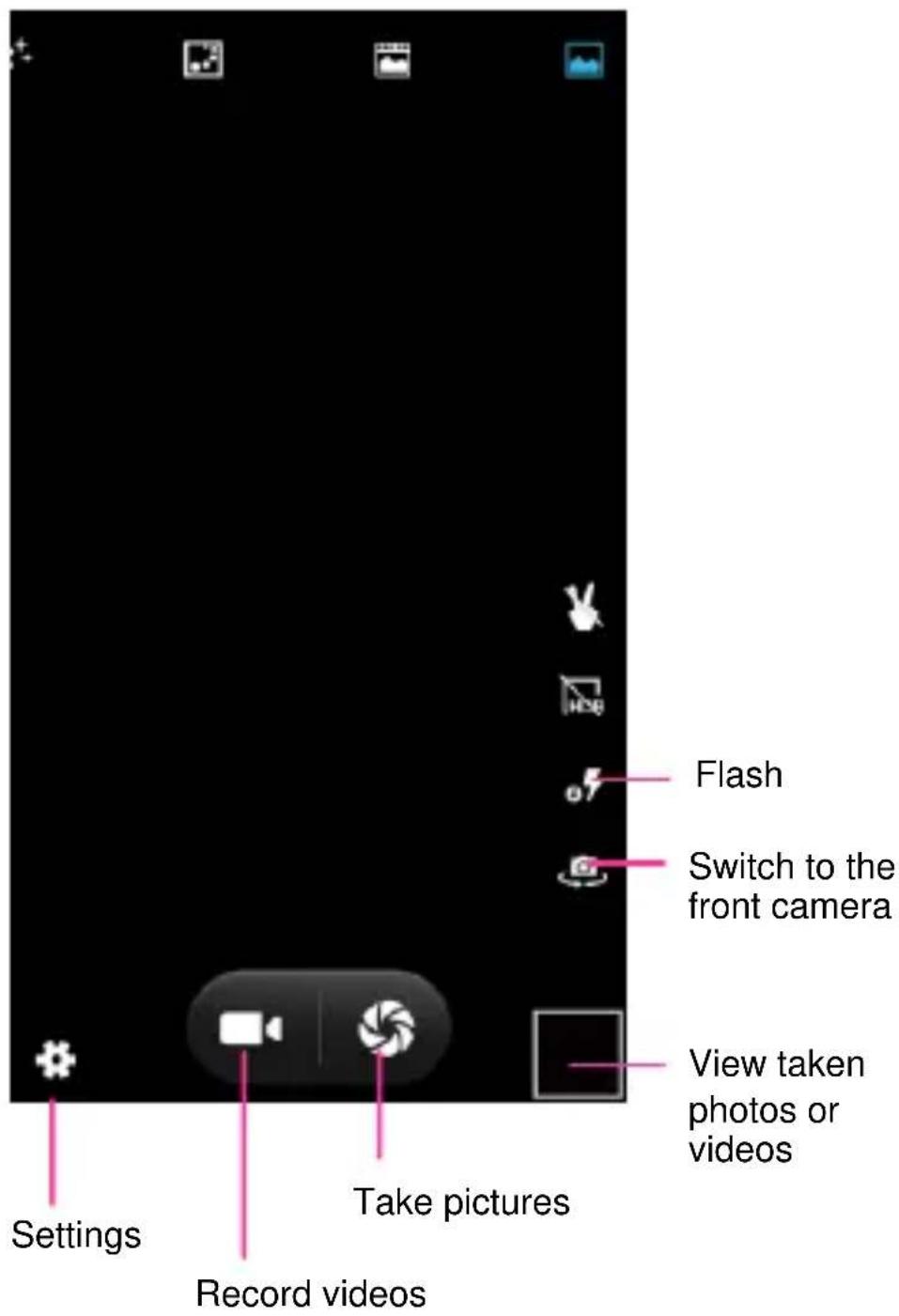

Taking Pictures/Videos

Taking pictures and videos

Touch to enter the Camera.

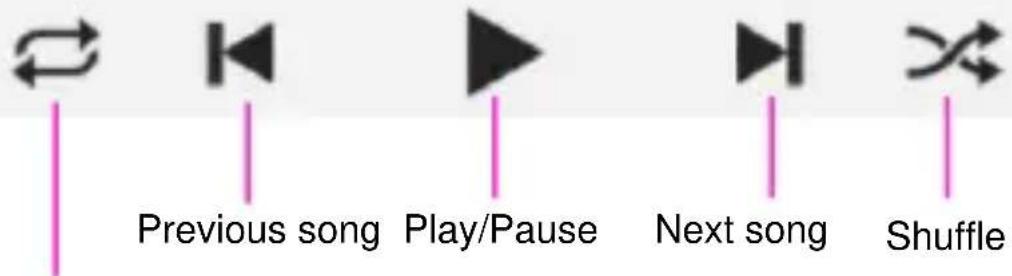

Playing Music

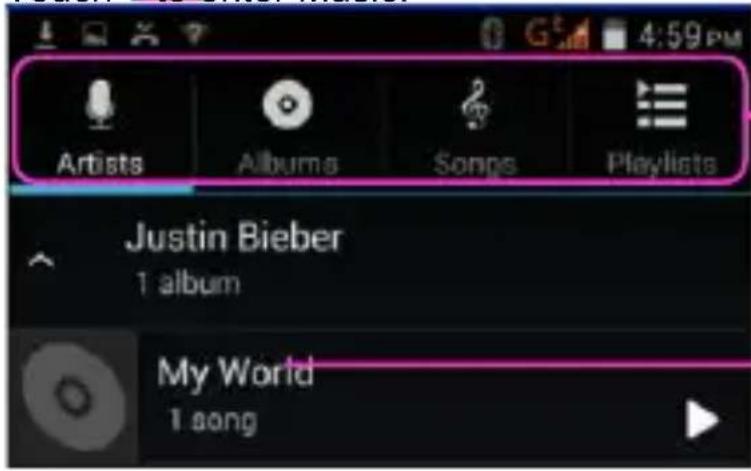

Music Player

Touch to enter Music.

Categories

Select Genres,

Artists, Albums, and

Songs

Touch to open the album, songs or playlist

Repeat: Touch to

repeat the all songs;

touch again to repeat

the current song

Troubleshooting

Frequently Asked Questions	Cause and Solution
Fail to turn on	Press the Power Key for over 1 second. Check if the battery is properly connected. Please remove and install it again, retry to turn it on; Check if battery is appropriately charged.
Fail to connect network	Weak signal. Please try and move to a location with strong signal and try connecting to the network again; Please ensure that you are not beyond the network coverage of service providers; Please ensure you have a valid SIM card. Please contact your network provider for further information;
Poor quality of calling	Please check if the sound volume is tuned improperly In an area with poor receiving condition, example: basement, the signal might be weak. Try searching a location with stronger signal reception and call again. While using the mobile phone in the peak period of communication, like commute time, you may be unable to call because of line congestion.
SIM Card Error	Dirt on the metal surface of an SIM card. Use clean cloth to wipe the metal touch point on an SIM card. The SIM card is not installed. The SIM card is damaged. Please contact your network service provider.
Callers cannot contact you	Please check if the mobile phone is on and connected with the network. Please check if the Call barring or call divert is activated. Please check if the SIM card is valid.
Fail to set some functions	Wrong operation. The network provider does not support the function, or you have not applied for it.

Haier Packing List

Dear Customer,

Thanks for purchasing Haier product.

Be sure to check whether the following accessories are enclosed within the packet:

★ Main Unit
★ Charger
★ Data Cable
★ Battery
★ Earphone
★ Quick User Guide
★ Warranty Card
★ Protection film

Qingdao Haier Telecom Co, Ltd.

Adress: No1 Haier Road, Hi-tech Zone, Qingdao 266101, PR. China www.haier.com

Identification Table of Names and Contents of Hazardous Substances/Elements in Products
This product meets the requirements of SJ/T 11363_2006 Directive or Roh Directive of EU(including the Exemption Clause of EU RohS Directive)
Parts	Toxic or hazardous substances/elements
	Lead(Pb)	Mercury(Hg)	Cadmium(Cd)	HexavalentChromium(Cr6+)	PolybrominatedBiphenyls(PBB)	Polybrominateddiphenylether(PBDE)
Cabinets and mechanical parts	×	○○○○○
PCBA and processor	×	○○○○○
LCD Display	×	○○○○○
Battery	×	○○○○○
Power adaptor	×	○○○○○
USB cable	×	○○○○○
Earphone(optional)	×	○○○○○
○:shows that the contents of hazardous substances contained in all homogeneous materials of current part meet the limit requirements defined the SJ/T 11363-2006 Standard (contents Limit Requirements for Haza Substances/Elements in Electronic and IT Product).▲: shows that the contents of hazardous substances contained in at least one homogeneous material current part exceeds the limit requirements defined in the SJ/T 11363-2006 Standard (contents Limit Requirements for Haza Substances/Elements in Electronic and IT Product), but meet the requirements of Exemption Clauses of EU RohS Directive.×: shows that the content of hazardous substances contained in at least one homogeneous material of current part exceeds the limit requirements define in the SJ/T 1136-2006 Standard (contents Limit Requirements for Haza Substances/Elements in Electronic and IT Product), and also fails to meet the requirements of Exemption Clauses of EU RohS Directive.

Declaration of Conformity

:)s(evitceriD licnuoC fo noitacilppA

Radio & Telecommunications Terminal Equipment Directive (1999/5/EC)

Standard(s) to which Conformity is Declared:

EN 50360: 2001/AC:2006

EN 62479: 2010

EN 50566: 2013

EN 62209-1: 2006

EN 62209-2: 2010

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

ETSI EN301 489-1 V1.9.2

ETSI EN301 489-3 V1.6.1

ETSI EN301 489-7 V1.3.1

ETSI EN301 489-17 V2.2.1

ETSI EN 301 489-24 V1.5.1

ETSI EN 300 440-1 V1.6.1

ETSI EN 300 440-2 V1.4.1

ETSI EN300 328 V1.7.1

ETSI EN301 511 V9.0.2

EN301 908-1 V5.2.1

EN301 908-2 V5.2.1

Manufacturer's Name : Qingdao Haier Telecom Co., Ltd....

Manufacturer's Address : No.1 haier Road Hi-tech Zone, Qingdao , P.R. China......

Type of Equipment : WCDMA/GSM Dual-Mode Digital Mobile Phone......

Model No.: V3

Year of Manufacturing : 2015....

I' the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Place : Haier ......

Xiao Xiao

(Signature)

Date : 2015/3/6 ......

Xiao xiao

(Full Name)
