USER MANUAL Eco Wheeler 415 S Güde

Translation of the original instructions

GB Translation of the original instructions

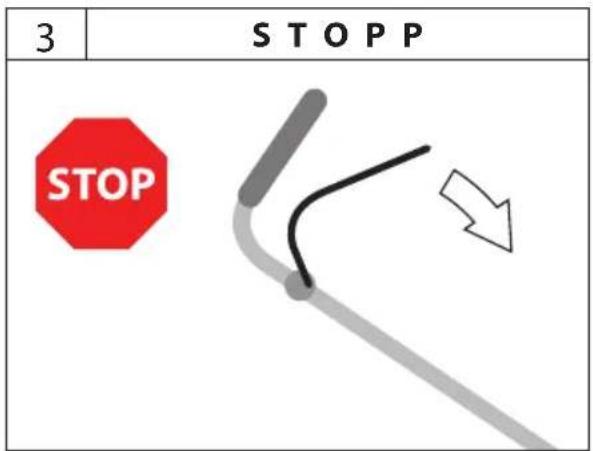

Starting-up the machine

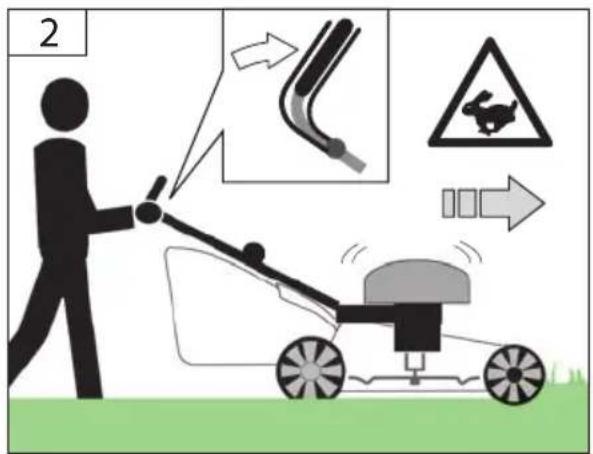

Cutting instructions

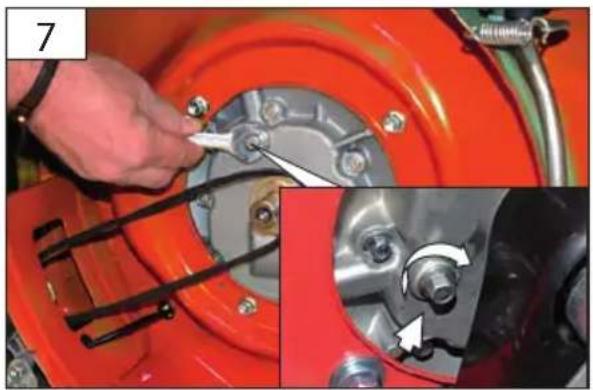

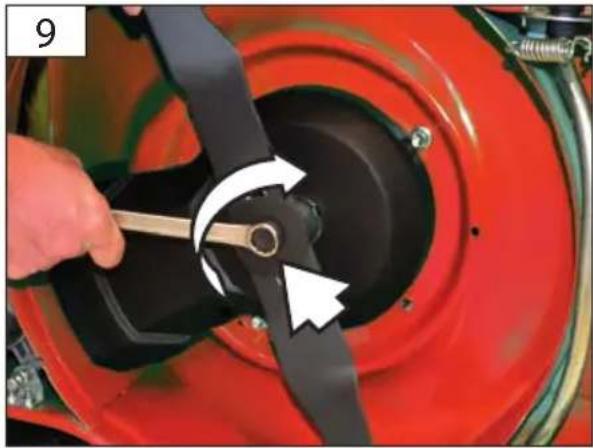

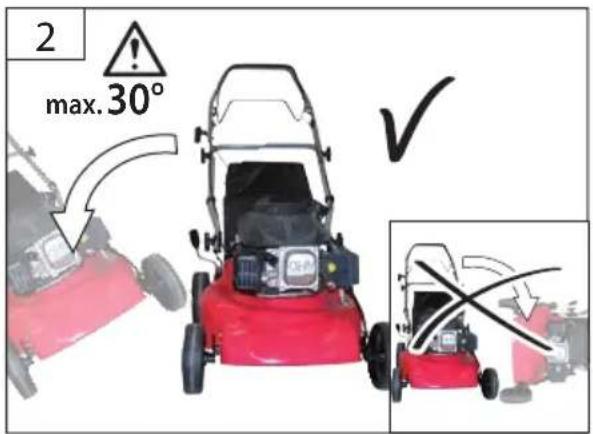

Cleaning / Maintenance

The motor does not start

Warning: The vibration emission level will vary

because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. An accurate estimate of the vibratory load shouldalso take into account the times when the tool isshut down or when it is running but not actually inuse. This may signicantly reduce the vibratoryload over the total working period. Identify additional safety measures to protect theoperator from the eects of vibration such as:maintain the tool and the accessories, keep thehands warm, organisation of work patterns. Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.The operator is responsible for accidents or risks to third parties. In case of any doubts about connection and operation refer please to our customer center delivered items

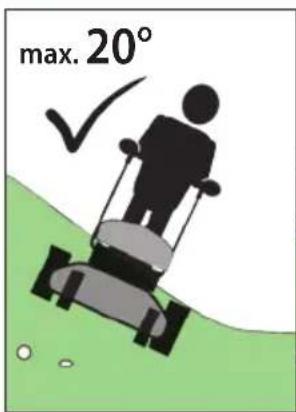

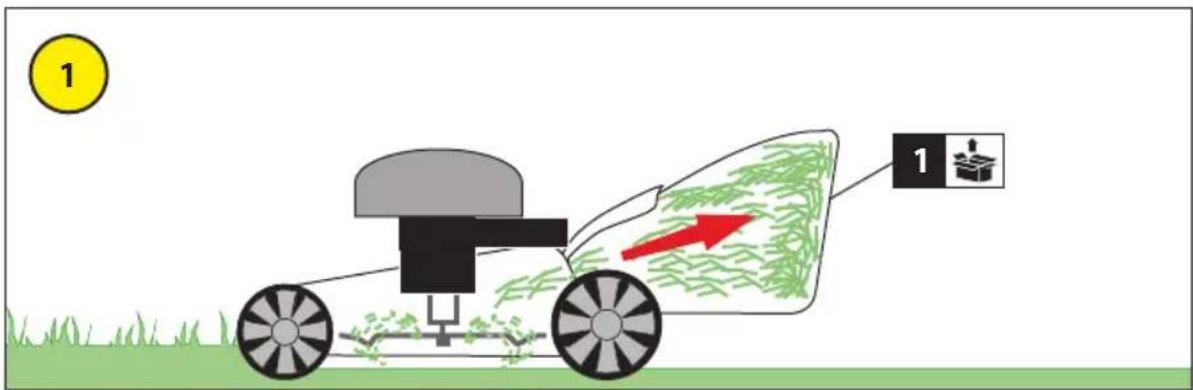

Accessories Specied Conditions Of Use The mower has been designed for cutting grass and grass areas with a maximum climb of 20° in private gardens around the house and in garden colonies. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Use the appliance only outside, never use it in conned and bad ventilated areas. The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness. Requirements for operating sta The operating sta must carefully read the Opera- tingInstructions before using the appliance. This device is not intended for use by persons (inclu- ding children) with limited physical, sensory or mental capabilities or without the nec essary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device. Qualication:: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age:: Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Local regulations may stipulate the minimum age of the user. Training:: Using the appliance only requires corre

spondingtraining by a professional or the Operating

nstructions. Nospecial training is necessary. GB27

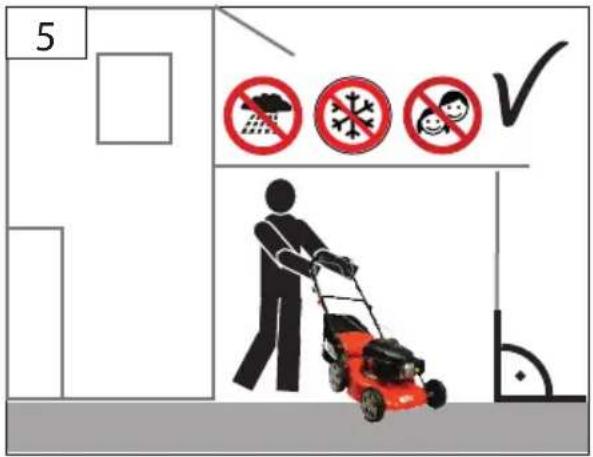

Risk of explosion! Refuel the engine only when switched o. Risk of poisoning! Use the appliance only outside, never use it in conned and bad ventilated areas. Prohibited smoking and open re using. Keep children and other persons inclu- ding animals in a safe distance when using the appliance. Never expose tool to rain. Protect against humidity Protect against frost Wear safety cut through resistant shoes with safety sole and steel toe ! Warnung vor heißen Oberächen! Warning against dangerous voltage Protect against humidity This side up Safety instructions Warning Read all safety warnings and all instructions, including those given in the accompanying brochure.Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m. Wear personal protective equipment. ENGLISH

Emergency procedure Danger of injury ! Never put your hands and feet near the rotating parts.Keep a distance from the ejection opening at all times. Danger of burns ! Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muer. Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, inaccordance with DIN13164, a workplace has to be ttedwith a rst-aid kit. It isessential to replace any usedmaterial in the rst-aid kitimmedia- tely after it has been used. If you seek help,state the

3. Number of injured persons

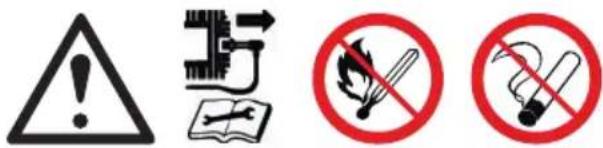

Symbols Caution! Read the Operating Instructions! Wear ear protectors! Wear eye protective goggles ! Caution - hot surface! Danger of burns ! Warning against bounced subjects Keep distance of persons! Observe to keep out of dangerous zone Switch the engine o and remove the socket plug before any work on the engine. Keep a sucient distance from the cutting knife when operating the appliance. Caution, risk of drawing-in!28 ENGLISH

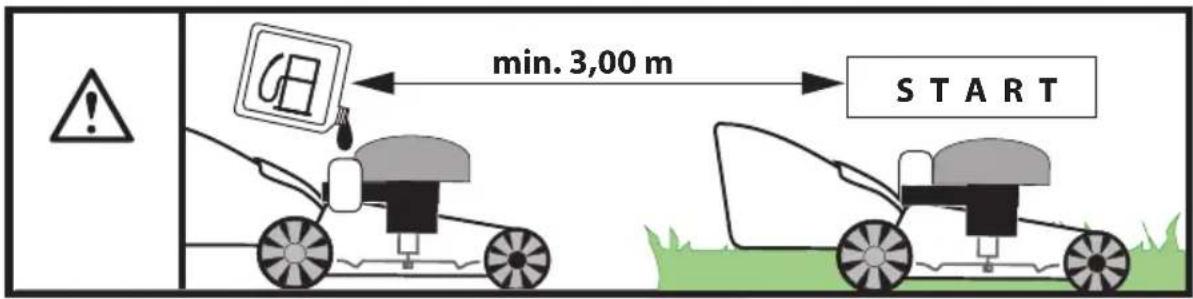

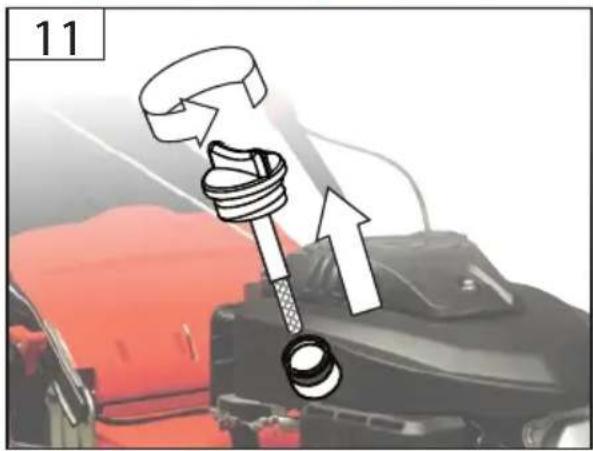

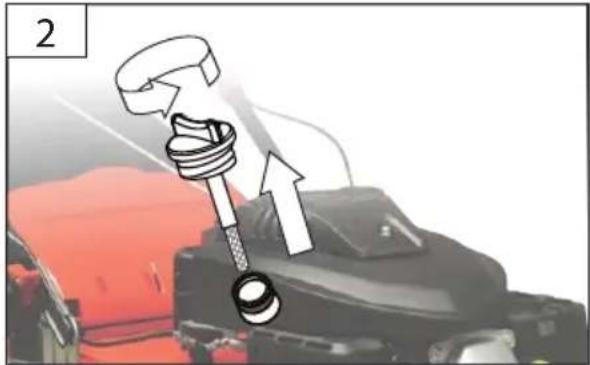

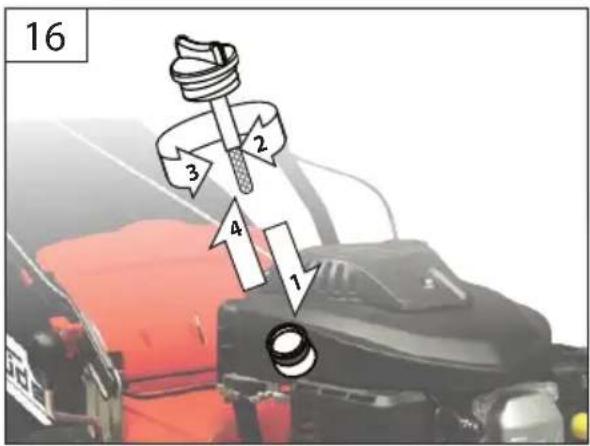

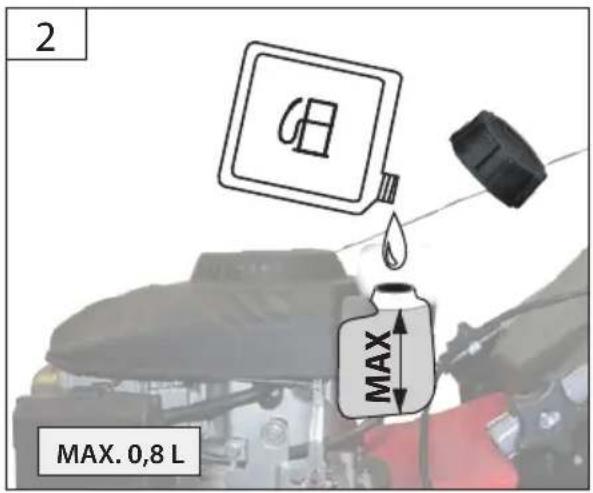

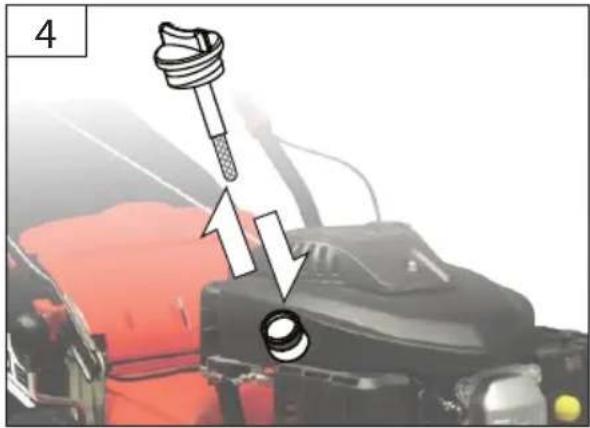

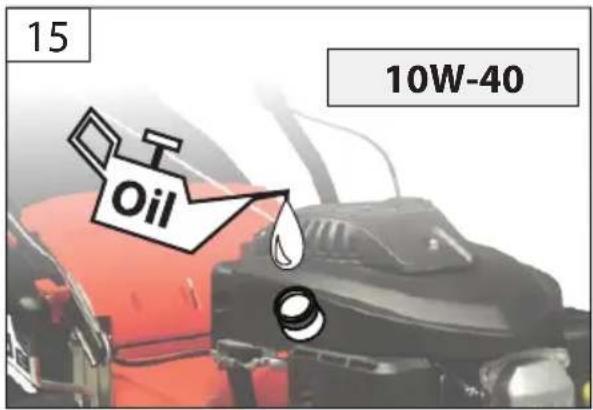

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals. Wear protective gloves if necessary. Use the appliance in broad daylight or in a well-lit environment. Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away. Fuel is highly ammable. Keep the fuel in sui,le containers only. The appliance may only be refuelled outdoors and not near open re or burning cigarettes. Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened. Make sure the fuel does not overow. If the fuel overows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated. The engine must necessarily be lled with engine oil before being put into operation for the rst time. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged. Check all screw and plug-in connections and protective equipment if rm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation. The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conict with the designation and it is prohibited to attach any protective equipment of other manufacturers. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Do not start the engine before your feet are in a safe distance from the cutting tools. Do not incline the appliance when being started. Do not start the appliance when you are standing in front of the ejection opening. Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes. Pay maximum attention when turning around and pulling the appliance to you. Switch the mower o whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped. If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched o and the socket plug removed. Check whether the appliance is not damaged. Repair any damage. Switch the appliance immediately o after nishing your work. Do not store the appliance in enclosed places just after being switched o but let it cool down outdoors instead. Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open re or sparks. When the appliance is not going to be used for a long time, store it with an empty tank. Replace any defective muer. Do not change the controlled engine setting and do not rev the engine up. Disposal Disposal notes are based on the icons placed on the machine or on its package. Any damaged or disposed devices must be delivered to appropriate collection centres. Batteries, oil, and similar substances must not enter the environment. Transport packaging disposal The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Re

turning the packaging into material circulation saves

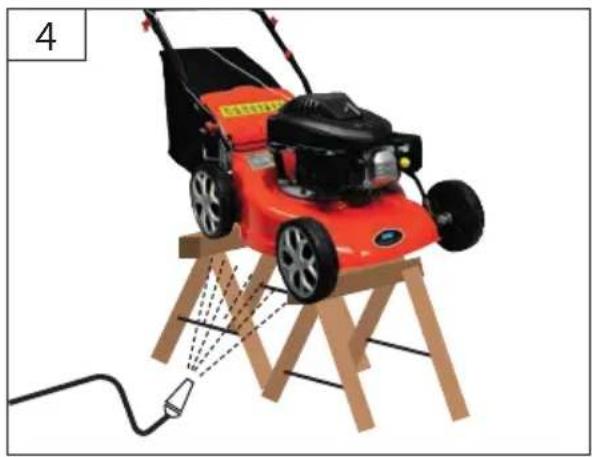

aw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Risk of suocation! Keep parts of the packagings out of reach of children and dispose them as soon as possible. Maintenance Switch the engine o and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and the appliance has cooled down. Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals. Apply environment-friendly oil to all moving parts. Check the collection bag at regular intervals for any GB29

wear and aging. Refer all servicing to qualied service personnel. Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injur ies. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be sub- mitted for any claim in the guarantee period.

he guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the ope- rating and assembly instructions and common wear

e also not included in the guarantee. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bure- aucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference: Serial No.:: Art. No:: Year of production:: Tel.: +49 (0) 79 04 / 700-360 Fax: +49 (0) 79 04 / 700-51999 E-Mail: support@ts.guede.com Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.30 ENGLISH

Inspection and maintenance plan Regular servicing period Before any start-

After 1 month After 3 months NAfter 6 months After 12 months After 24 months

Spark plug Inspection Clean

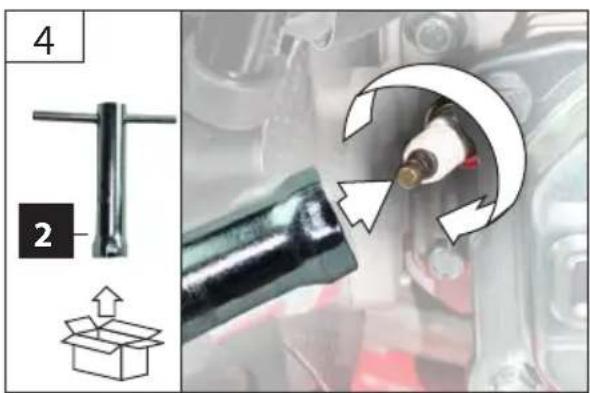

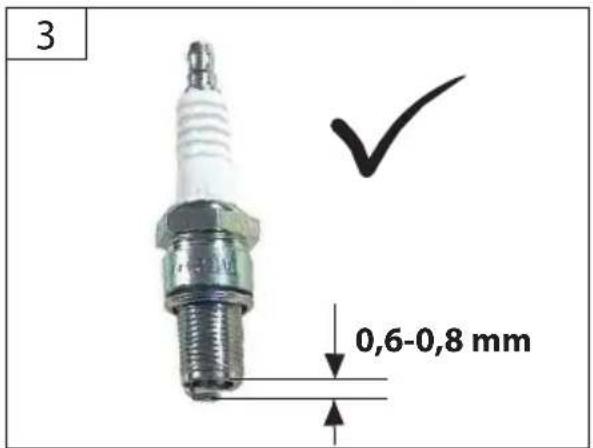

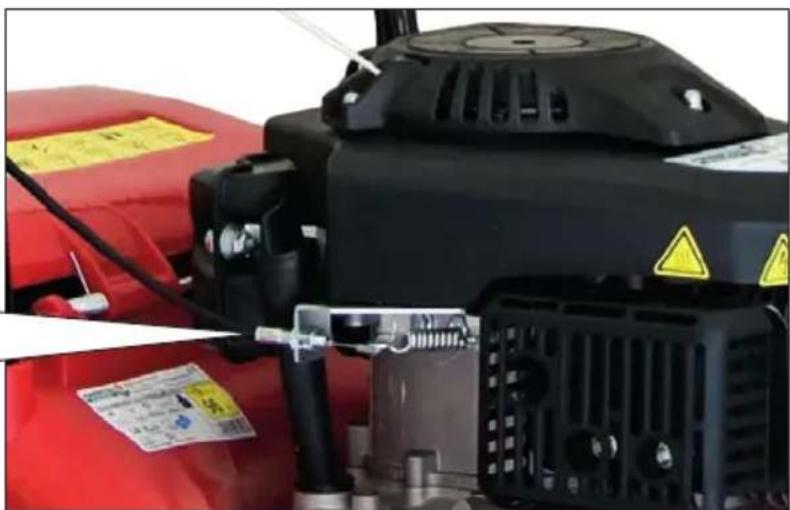

Provide appropriate servicing upon the earlier of the following: in the given month or after the specied hours of operation have expired. Defects searching Defect Cause Measure The motor does not start Start-Stop lever has not been pressed Press the Start-Stop lever Primary pump has not been used Use the primary pump Lack of fuel Add some fuel Bowden cables are too long Adjust the Bowden cables using the coupling nut. Wrong fuel, storing without petrol tank being drained Drain the fuel tank and carburettor. Add fresh petrol. Sooted spark plug (carbon residues on electrodes), electrodes distance too big Clean the spark plug, check the plug ther- mal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm The spark plug is wet from petrol (oversaturated engine). Dry the spark plug out and ret it. Grass is not collected Blocked channel Full collection bag Too wet grass Clean the ejection channel Empty the collection bag Cut in dry weather FR31
