OTS 102 - Hair Straightener OK - Free user manual and instructions

Product type	Hair straightener
Brand	OK
Model	OTS 102
Rated voltage	220-240 V~, 50/60 Hz
Rated power	22 W
Protection class	II
Heating plates	Yes
Handle	Yes
Indicator light	Yes
On/Off switch	Yes
Power cord with plug	Yes
Intended use	Hair straightening only
Usage	On dry hair, strands of 3-4 cm, max 5 seconds per strand
Maintenance	Clean with a damp cloth, do not immerse
Repairability	Only by an authorized after-sales service
Safety	Do not use near water, unplug after use, do not touch hot plates
Number of pages in the manual	52
Languages of the manual	FR, DE, EL, EN, ES, HU, IT, NL, PL, PT, SV, TR
Maximum temperature	Not specified (estimated: around 200°C)
Plate material	Not specified
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - OTS 102 OK

How to use the OK OTS 102 hair straightener?

Make sure your hair is dry and detangled. Plug in the device, turn it on with the On/Off switch. The indicator light turns on. Take strands of 3-4 cm, insert them between the plates and press the handles. Guide the device from roots to tips without exceeding 5 seconds per strand. Unplug after use.

Can the straightener be used on wet hair?

No, use the straightener only on dry hair. Using it on wet hair may damage the hair and the device.

How to clean the straightener?

Unplug the device and let it cool down completely. Clean the exterior surfaces with a damp cloth then wipe. Never immerse the device in water or use solvents or abrasive objects.

What to do if the straightener falls into water?

Unplug the device immediately. Do not put your hands in the water before unplugging. Then have the device checked by an authorized after-sales service.

Is the straightener suitable for commercial use?

No, this product is designed only for household use. Commercial use may cause damage or injury.

How to replace the power cord?

The power cord can only be replaced by an authorized after-sales service. Do not attempt to repair it yourself to avoid any risk.

What is the power of the straightener?

The rated power is 22 W under a voltage of 220-240 V~, 50/60 Hz.

What are the important safety precautions?

Do not use near water (bathtub, pool). Unplug immediately after use. Do not touch the heating plates during or after use. Hold the device by the handle. Never leave the device unattended when it is plugged in.

Can the straightener be used by children?

Yes, from 8 years old under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision.

How to store the straightener?

Store the device in a dry and cool place, away from moisture and sunlight, and out of reach of children. Make sure it is completely cool before storing.

USER MANUAL OTS 102 OK

Black hair iron with a black clip and 'ok.' button, shown in studio setting (no text or symbols on device body)

Close-up of a black plug inserted into a white wall socket, with an arrow pointing to the plug (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicating a feature, no visible text or symbols

Close-up of a person's hair being folded with a bandage, showing size annotation (3 to 4 cm) and an arrow indicating the fold.

Close-up of a hand holding a black hair clip with an arrow pointing to it (no text or symbols visible)

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

Close-up of a white electrical outlet plug with a black cable inserted, showing an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a black mechanical component with a downward arrow indicating a cut or assembly (no text or symbols visible)

2

Close-up of hands tying a knot with a ruler, showing size annotation (3 to 4 cm) — no text or symbols on the diagram itself.

3

Close-up of a person's hair being adjusted with a black bandage, showing a white arrow pointing to the band (no text or symbols visible)

4

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

5

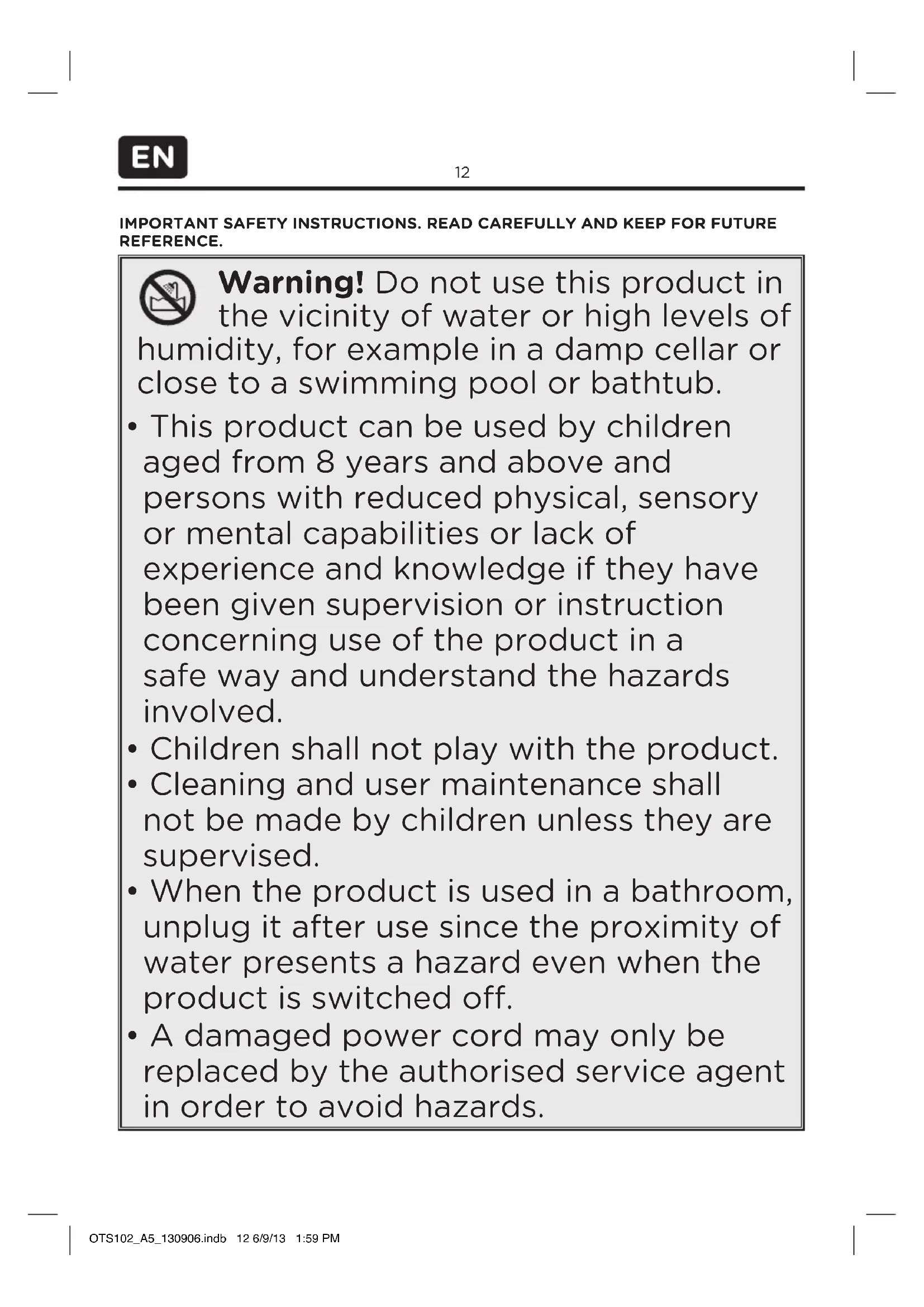

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Warning! Do not use this product in the vicinity of water or high levels of humidity, for example in a damp cellar or close to a swimming pool or bathtub.

- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- When the product is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the product is switched off.

- A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
  • Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
  • The mains voltage must match the information on the rating label of the product.
• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.
  • Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.
- Place the product on a flat, sturdy and slip-resistant surface.
• Never use, expose or put the product near to:

• direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not intended for commercial use. It is designed for household use only.
- Should the product fall into water, then unplug the power cable from the mains outlet. Do not reach into the water before the product has been disconnected from the mains supply. Get the product checked by an expert at this stage.
- Risk of burning! Parts of the product may become very hot during operation. Hold the product therefore only with the handle.
- Clean the product and all other accessories after each use.
- Follow the instructions in the chapter CLEANING AND CARE.

CONGRATULATIONS

Thanks for your purchase of ok. product. Please read this manual carefully and keep it for future reference.

INTENDED USE

This product is intended for straightening hair only. Any other use may result in damage to product or injuries.

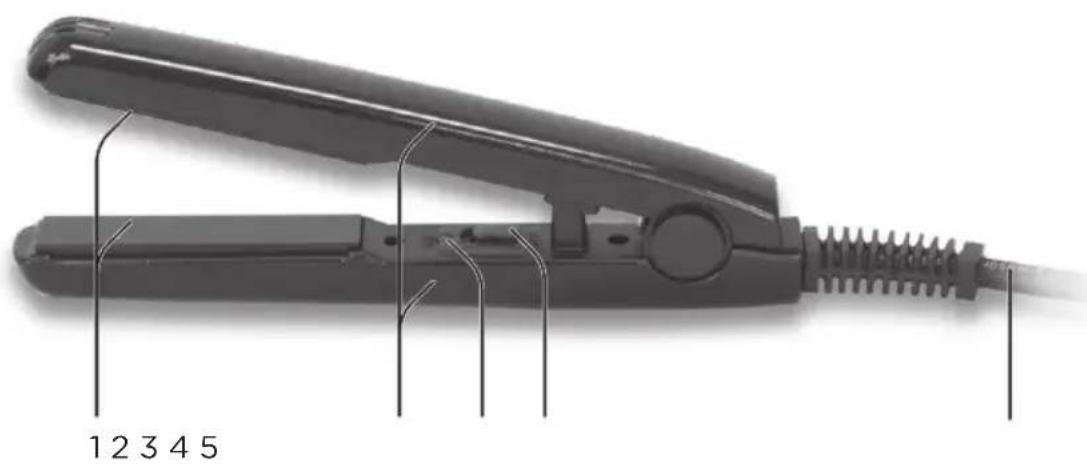

COMPONENTS

The product may be available in different colors.

12 3 4 5

1. Straightener plates

2. Handle

3. Indicator light

4. On/off switch

5. Power cable with plug

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and Care, then run the product 2 or 3 times. Then switch off the product and let it cool completely.

SPECIFICATION

Rated voltage: 220 - 240 V\~, 50/60 Hz / Rated power input: 22 W / Protection class II

DISPOSAL

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

USING THE HAIR STRAIGHTENER

Make sure your hairs are completely dry before using the product. Pre-comb your hair to remove tangles and use hair strands of 3 - 4 cm for straightening. Only straighten each hair strand for max. 5 seconds with the hair straightener to prevent the hair from overheating.

Close-up of a black plug inserted into a white wall socket, with a cable inserted (no text or symbols visible)

1

Connect the power plug to a suitable power outlet.

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

2

Turn on the product and it starts to heat up. The indicator lights up.

CAUTION

Never touch the straightener plates. Danger of burns! Hold the product by its handle only.

3 to 4 cm

3

Place the hair strands between the hair straightener and press the handles firmly together.

Close-up of a person's shoulder being adjusted to a black fabric item, with an arrow indicating the process (no text or symbols visible)

4

Guide the product in one movement from the roots of the hair to the tips but not longer than 5 second to prevent hair overheating.

Close-up of a black plug inserted into a white electrical outlet, with an arrow pointing to the plug (no text or symbols visible)

5

After use, unplug the power plug from the power outlet.

CLEANING AND CARE

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
  • Make sure that no water enters the product interior (for example, through the switch).
• Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a black mechanical component with an arrow pointing to a small internal feature (no text or symbols visible)

2

Close-up of hands adjusting a dark fabric piece with a curved arrow indicating measurement (no text or symbols visible)

3

Close-up of a hand tying a knot with a white arrow indicating the knot (no text or symbols present)

4

Close-up of a white electrical outlet with a black plug inserted, showing an arrow pointing to the plug (no text or symbols visible)

5

Close-up of a white electrical outlet plug with a black cable inserted, showing a plug inserted into the socket (no text or symbols visible)

1

Close-up of a black mechanical component with an arrow pointing to a small feature (no text or symbols visible)

2

3 to 4 cm

3

Close-up of a person's hair being held by hands, with a white arrow pointing to the band (no text or symbols visible)

4

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

5

Close-up of a white electrical outlet plug with a black cable inserted, showing an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

2

3 to 4 cm

3

Close-up of a person's hair being styled with a black bandage, showing a white arrow indicating the point of change (no text or symbols present)

4

Close-up of a white electrical outlet with a black plug inserted into the socket, showing an arrow pointing to the plug (no text or symbols visible)

5

Close-up of a black plug inserted into a white wall socket, with an arrow pointing to the plug (no text or symbols visible)

1

Collegare la spina in una presa adatta

Close-up of a black mechanical component with a downward arrow indicating a cut or assembly (no text or symbols visible)

2

3 to 4 cm

3

Close-up of a hand adjusting a black garment with a white arrow pointing to the seam (no text or symbols visible)

4

Close-up of a black cable inserted into a white electrical outlet socket (no text or symbols visible)

5

Close-up of a white electrical outlet plug with a black cable inserted, showing an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a black metal pliers with a downward arrow indicating a cut or assembly (no text or symbols visible)

2

Close-up of hands braiding a dark garment with a black collar, showing measurement annotation (no text or symbols on the garment itself)

3

Close-up of a person's hands holding a dark fabric with a white arrow pointing to the seam (no text or symbols visible)

4

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

5

KORZYSTANIE Z PROSTOWNICY

Close-up of a white electrical outlet with a black plug inserted into the socket, showing an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a black mechanical component with a downward arrow indicating a cut or assembly (no text or symbols visible)

2

3 to 4 cm

3

Close-up of a hand braiding long black hair with a white arrow pointing to the knot (no text or symbols visible)

4

Close-up of a black cable inserted into a white electrical outlet socket (no text or symbols visible)

5

Close-up of a black plug inserted into a white wall socket, with an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a mechanical tool with a downward arrow indicating a specific component (no text or symbols visible)

2

3 to 4 cm

3

Close-up of a person's shoulder being adjusted to a black fabric item, with an arrow indicating the step (no text or symbols visible)

4

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

5

Close-up of a black plug inserted into a white wall socket, with a cable plugged in (no text or symbols visible)

1

Close-up of a mechanical component with a downward arrow indicating a feature or assembly (no visible text or symbols)

2

3 to 4 cm

3

Close-up of a hand holding a black hair clip with an arrow pointing to it (no text or symbols visible)

4

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow indicating direction (no text or symbols visible)

5

Close-up of a black plug inserted into a white electrical outlet socket, with an arrow pointing to the plug (no text or symbols visible)

1

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

2

Close-up of a person's hair being adjusted with a bandage, showing size annotation (3 to 4 cm) and an arrow indicating the process.

3

Close-up of a hand adjusting a black garment with a white arrow pointing to the seam (no text or symbols visible)

4

Close-up of a black plug inserted into a white socket, with an arrow pointing to the plug (no text or symbols visible)

5
