USER MANUAL L22V884 SABA

Premiere installation

ENTREE D'ANTENNE RF (radio)

TENSION D'EXPLOitation

Ecran large 22 pouces

DIMENSIONS (mm)

PxLxH(Avec pied):155×532×384.5

Poids (en Kg): 4.70

PxLxH (Sans pied): 60 x 532 x 347

Poids (en Kg): 4.55

Normes de transmission:

DVB-T, MPEG2,DVB-T, MPEG4 HD

i. DEMODULATION

Safety Precautions 36

Power Source 36

Power Cord 36

Moisture and Water 36

Cleaning. 36

Heat and Flames 36

Lightning 36

Replacement Parts 36

Servicing 36

Waste Disposal 36

Information for Users in European Union

Countries 36

Disconnecting the Device 36

Disconnecting the Device 36

Headphone Volume 37

Installation 37

LCD Screen 37

Warning 37

Overview of the Remote Control 38

LCD TV and Operating Buttons 39

Viewing the Connections-Back Connectors 39

Viewing the Connections - Side Connectors 40

Aerial Connection 40

Power Connection 41

Using Side USB Input 41

USB Memory Connection 41

Connecting the LCD TV to a PC 41

Connecting to a DVD Player 41

Using Side AV Connectors 42

Using Other Connectors 42

Connecting Other Equipment via Scart 42

Inserting Batteries in the Remote

ControlHandset. 42

Switching the TV On/Off 42

To Switch the TV On 42

To Switch the TV Off 43

Input Selection 43

Basic Operations 43

Operation with the Buttons on the TV 43

Operation with the Remote Control 43

Initial Settings 44

Electronic Programme Guide (EPG) 45

Programme Options. 45

Analogue Teletext 46

Widescreen. 46

Dijital TV Menu System 46

Channel List 46

Navigating the Entire Channel List 46

Moving the channels in the channel list 46

Deleting the Channels in the Channel List 46

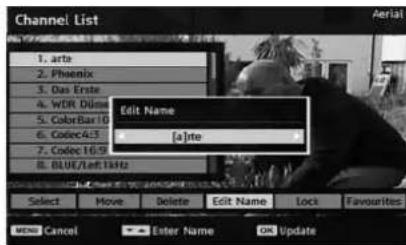

Renaming channels 47

Adding Locks to Channels 47

Setting Favourites 47

Program Guide 47

Timers 47

Common Interface 48

TV Setup 48

Setup 48

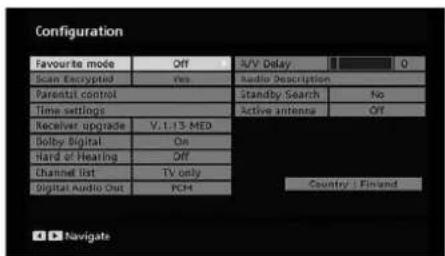

Configuration 48

Time Settings** 49

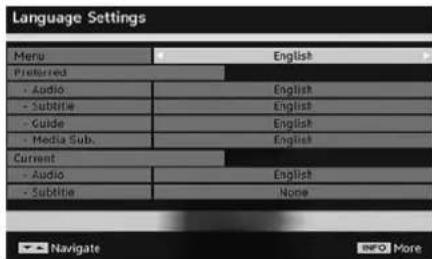

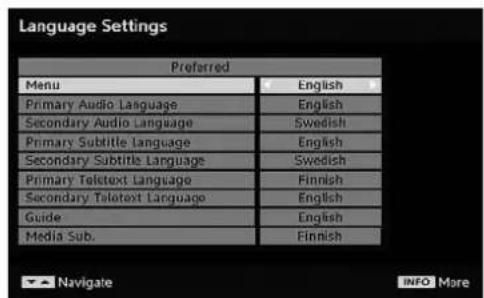

Language Settings 50

Language Settings 51

Installation 51

Video Playback (optional) 53

Analogue TV Menu System 54

Picture Menu. 54

Sound Menu 54

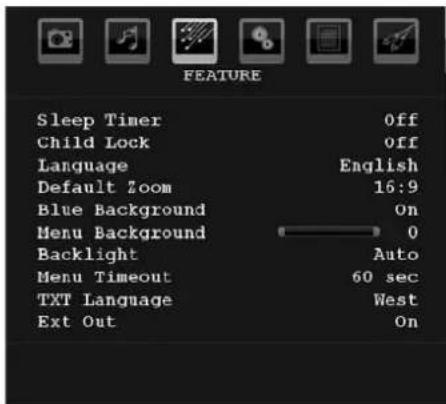

Feature Menu 55

Install Menu 56

Install Menu in AV Modes 57

Program Table 57

Source Menu 58

PC Mode Menu System 58

PC Position Menu 58

Displaying TV Information 59

Mute Function 59

Picture Mode Selection. 59

Freezing Picture 59

Zoom Modes. 59

Teletext 60

Tips 61

Appendix A: PC Input Typical Display Modes 62

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) 62

Appendix D: Supported File Formats

for USB Mode 63

Specifications 64

Transmission Standards: 64

Features

• Remote controlled colour LCD TV.
• Fully integrated digital TV (DVB-T-MPEG2) (DVB-T-MPEG4).
• HDMI connectors for digital video and audio. This connection is also designed to accept high defi nition signals.
• USB input.
  200 programmes from VHF, UHF(analogue).
• 500 programmes for digital mode (IDTV).
• Integrated tuner TNT HD, MPEG 2 / MPEG 4 compatible.
• OSD menu system.
• Scart socket for external devices (such as video, video games, audio set, etc.).
• Stereo sound system. (German+Nicam)
• Teletext, fastext, TOP text.
• Headphone connection.
  Automatic programming system.
• Forward or backward manual tuning.
• Sleep timer.
  Child lock.
  Automatic sound mute when no transmission.
• NTSC playback.
  AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.
• PLL (Frequency Search).
• PC input.
  Plug&Play for Windows 98, ME, 2000, XP, Vista.
  Audio line out.
  Game Mode (optional)

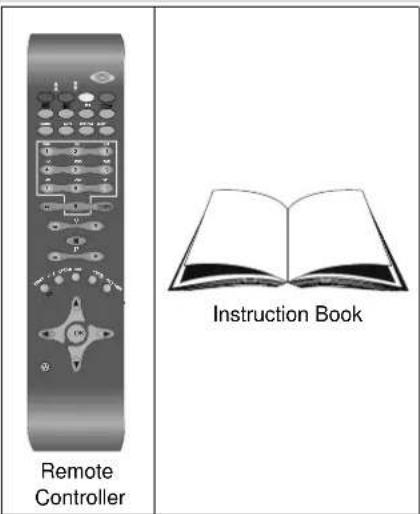

Accessories

Introduction

Thank you for choosing this product. This manual will guide you for the proper operation of your TV.

Before operating the TV, please read this manual thoroughly.

Please do keep this manual in a safe place for future references.

Preparation

For ventilation, leave a free space of at least 10cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this device in moderate climates.

Safety Precautions

Please read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240 V AC, 50Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open fl ames and sources of intense heat such as an electric heater. Ensure that no open fl ame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to quali ed personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.

Information for Users in European Union Countries

This symbol on the product or on its packaging means that your electrical and electronic device should

be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU.

For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning

Do not leave your TV in standby or operating mode when you leave your house.

When you use the wall mount kit (optional) with the LCD TV, we would definitely recommend to plug all your cables into the back of the LCD before mounting to the wall.

English - 37 -

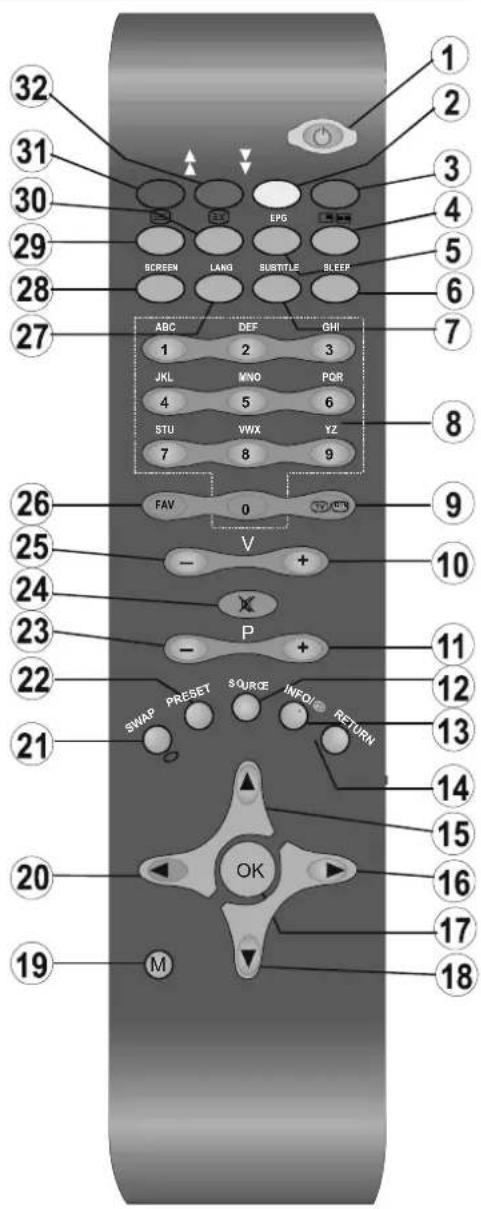

Overview of the Remote Control

Standby1.

Yellow / Feature menu / Current language 2 (^) (in DTV mode)

Blue / Install menu / Favourite mode (*) (in 3 DTV mode)

No function4.

Guide (in DTV mode)5.

Sleep timer6.

Subtitle on-off / TXT subtitle7.

Numeric buttons8.

TV-Digital TV9.

Volume up10.

Programme up / Page down (in DTV 11. mode)

AV / Source selection12.

Info / Reveal (in TXT mode)13.

Return/Exit (in DTV mode)/Index page 14 (in TXT mode)

Cursor up / Page up (in TXT mode)15.

Cursor right / Subpage (in TXT mode)16.

1. OK / Select / Freeze picture / Hold (in TXT mode)
   18.Cursor down / Page down (in TXT mode)
2. Menu on-off
3. Cursor left
4. Previous Programme / Swap
5. Picture mode selection Programme down / Page up (in DTV 23. mode)
6. Mute
7. Volume down
8. Favourite mode (in DTV mode)
9. Mono-Stereo / Dual I-II / Current language (in DTV mode) (*)
10. Image size / Expand (in TXT mode)
11. Teletext / Mix
12. Update (in TXT mode)
13. Red / Sound menu / Change channel list (in DTV mode)
14. Green / Picture menu / Subtitle on-off (in DTV mode) (*)

(*) Only for EU country options.

LCD TV and Operating Buttons

Standby button1.

TV/AV button2.

Programme Up/Down buttons3.

Volume Up/Down buttons4.

Note: Press " 一 一 + buttons at the same time to view main menu.

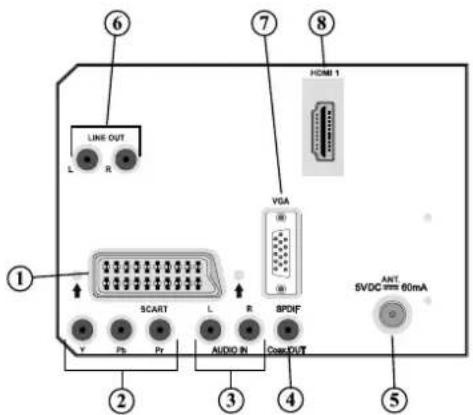

Viewing the Connections-Back Connectors

SCART socket1. inputs or outputs for external devices.

Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

Component Video Inputs (YpBPr)2. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output.

Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

1. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr.

Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio.

Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

English - 39 -

S/PDIF Out4. outputs digital audio signals of the currently watched source.

Use an S/PDIF coaxial cable to transfer audio signals to a device that has S/PDIF input. You should also set SPDIF Out option in the Sound Menu as On.

RF Input5. connects to an antenna or a cable.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

1. Audio Line Outs output audio signals to an external device such as an optional sound system.

To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.

Note: Line out feature cannot be used while in HDMI source. You can use SPDIF instead.

PC Input7. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

HDMI 1:8.HDMI input

HDMI Inputs are for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p signals. No sound connection is needed for an HDMI to HDMI connection.

Viewing the Connections - Side Connectors

1. CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see "Conditional Access" section.

USB Input 2. (functional in DTV mode only)

1. Headphone jack is used for connecting an external headphone to the system. Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
2. Video Input is used for connecting video signals of external devices. Connect the video cable between the VIDEO IN socket on the TV and theVIDEO OUT jack on your device.
3. Audio Inputs are used for connecting audio signals of external devices. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.

Note: If you connect a device to the TV via theVIDEO INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

English - 40 -

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
- Plug the power cable to the mains socket outlet.

Using Side USB Input

• You can connect USB devices to your TV by using the USB input of the TV. This feature allows you to display/play JPG, video (optional) and MP3 files stored in a USB stick.
• It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV.
• You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or data loss.
• Do not pull out USB module while playing a file. CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

USB Memory Connection

• Plug your USB device to the USB input of the TV.
  IMPORTANT: The TV supports only FAT32 disk formatting. NTFS format is not supported.

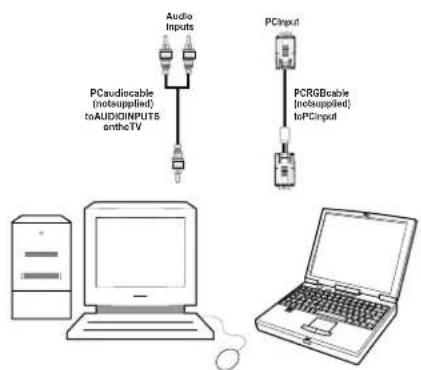

Connecting the LCD TV to a PC

For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.
• Use 15-pin D-sub display cable to connect a PC to the LCD TV.
• When the connection is made, switch to PC source. See "Input selection" section.
• Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
• Most DVD players are connected through COMPONENT SOCKET. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.
• You may also connect through the SCART socket. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Using Side AV Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a camcorder, connect to theVIDEO IN socket and the AUDIO SOCKETs. For selecting the related source, see the section "Input selection" in the following parts.
• To listen the TV sound from headphones, connect to the HEADPHONE jack of the TV.

Using Other Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set's manual for further queries.
• For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection. You should also set SPDIF Out option in the Sound menu as On.

Connecting Other Equipment via Scart

Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART socket. Note that cables shown in the illustration are not supplied.

Power off both the TV and the devices before making any connections.

For more information, refer to your device's own instruction book.

Inserting Batteries in the Remote Control Handset

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
• Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

Remote range is approximately 7m/23ft.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC 50 Hz.
• Press STANDBY switch. Then the standby LED lights up.
• To switch on the TV from standby mode either:

• Press the "按钮, P+ / P- or a numeric button on the remote control.
• Press the -P/CH or P/CH+ button on the TV. The TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Press the "按钮 on the remote control or press the STANDBY switch, so the TV will switch to standby mode.
• To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources.
- Press SOURCE button on your remote control for directly changing sources.

or,

• Select "Source" option from the main menu by using "▲" or "▶" button. Use then "▼" or "▲" button to highlight an input and press "▶" button to select.

Note: You can mark desired source options by pressing the OK button. Therefore, when SOURCE button is pressed, only the marked source options will be available (except for the TV source).

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press "button to decrease volume or button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

• Press "P/CH +" button to select the next programme or "P/CH -" button to select the previous programme.

Viewing Main Menu

Press " / " button at the same time to view main menu. In the Main menu select submenu using "P/CH" or "P/CH+" buttons and enter the sub-menu using " " button + To learn the usage of the menus, refer to the menu system sections.

AV Mode

• Press the "TV/AV" button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.
• Functions of the menu system are described in the following sections.

Volume Setting

• Press V+ button to increase the volume. Press V button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press "P -" button to select the previous programme.
• Press "P+" button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 - 499 (for IDTV) or 10-199 (for analogue), press the numeric buttons consecutively. The limit of the delay time is 3 seconds.
• Press directly the programme number to reselect single digit programmes.

English - 43 -

Initial Settings

When the TV is turned on for the first time, the menu for the language selection appears on the screen. The message "Welcome please select your language!" is displayed in all language options sequentially in the OSD.

By pressing the "▼" or "▲" buttons highlight the language you want to set and press OK button.

You can get information about the menu usage by pressing INFO button. Press INFO button again to exit the help menu.

After then, "First time installation" OSD will appear on the screen. By pressing " 一 or 一 buttons, select the country you want to set and press OK button.

Note: Country selection will not be available for UK. Press OK to continue.

After then, the active antenna selection OSD appears on the screen:

By pressing " 一 ^ or " 一 buttons, set active antenna mode as on or off.

If an active antenna is connected to your TV, you can select this option as On. Antenna power should be "Off" when standard antenna is used instead of the active antenna. See "Configuration Menu" in the following sections for more information.

Press OK button on the remote control to continue and the following message will be displayed on the screen:

To select the "Yes" or "No" option, highlight the item by using "or buttons and press OK button.

The IDTV will automatically tune to the transmission channels, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take a few minutes. To cancel searching, you can press M button at any time during the

process. The following OSD will be displayed during the automatic search:

After Automatic Search is completed, the following message will be displayed, asking for sorting option. If you select "YES", programme list will be sorted according to LCN (logical channel number). Select "NO" for using frequency sort. (This feature is available for only Germany, Austria and Italy country option)

After this operation, the following menu will appear on the screen, asking for analog channel search:

To search for analogue channels, select "Yes". TV switches to the analogue TV mode. A menu will be displayed to search for analogue channels.

Set Language item by pressing "or button. Press "or" button to highlight Country item and then use "or" to set. Press "of" button to highlight TXT. Language. Set TXT Language by using "or" button. To cancel, press the BLUE button.

When finished, press OK or RED button to continue and the following OSD will be displayed:

After automatic tuning is finalized, a programme list will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the names of the programmes, you can change them in Program table. For details, see the section, "Program table".

General Operation

Pressing the button at any time while watching television programmes will switch the TV

set to the digital terrestrial television broadcasting. Information Banner

• Whenever you change the channel using the + or - button or numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen. This will remain on the screen for approximately a few seconds.
• The information banner can also be displayed by pressing the INFO button at any time while watching the TV. Pressing INFO button again removes the banner.

If the selected channel is locked, you must enter the correct four digit key to view the channel. In this case, a dialog box asking for the lock key will be displayed:

Electronic Programme Guide (EPG)

Some, but not all, channels send information about the current and next events. Please note that event information is updated automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

• Press EPG button to view the EPG menu.
• Press "▼" or "▲" buttons to navigate through channels.
• Press "←" or "→" buttons to navigate through the programme list.

RED button (Shrink): makes the info boxes smaller.

GREEN button (Expand): makes the info boxes larger.

YELLOW button (Prev. Day): displays the programmes of previous day.

BLUE button (Next day): displays the programmes of the next day.

INFO (Details): displays the programmes in detail.

OK(View/Timer):shows the highlighted channel / sets the reminder for future programmes.

Numeric buttons (Jump): go to preferred channel directly via numeric buttons.

: Jump to current broadcast.

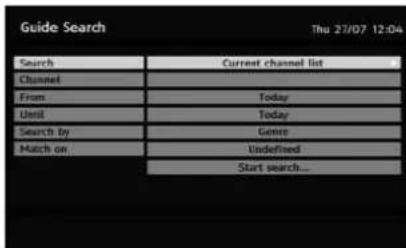

0 (SEARCH): activates "Guide Search" window

Press "0" button to view Guide Search menu. Using this feature, you can search the programme guide database in accordance with the genre selected or with name match.

Programme Options

In EPG menu, press the OK button to enter the "Programme Options" menu.

Using this option, you can switch to the selected channel.

Over Air Download

To ensure that your IDTV always has the most up-to-date information, please ensure that, after use, it is set to standby mode. At 3 A.M. each day, the IDTV automatically searches for any updates which may be broadcast and will download this to your IDTV automatically. This operation will normally take approximately 30 minutes.

Displaying Subtitles

With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles.

Note: You can enable subtitles by pressing the (For UK*) or GREEN (for EU) button.

Digital Teletext (For UK only**)

• Press the TELETEXT button.
  The digital teletext information appears.
• Operate it with the coloured buttons, "▼" / "▲" / "▼" buttons and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on digital teletext screen.
- When "Press OK" button or similar message appears on the screen, press the OK button.

English - 45 -

• When the TELETEXT button is pressed, the TV returns to television broadcasting.
• With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.
  The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.
• When you press the TELETEXT button again, the digital teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to the analogue text system. Please do refer to the "TELETEXT" explanations.

Widescreen

Depending on the type of the broadcast being transmitted, programmes can be viewed in a number of formats. Press the SCREEN button repeatedly to change screen format.

When Auto is selected, the format being displayed is determined by the picture being broadcast.

PLEASE NOTE: Menu size changes depending on the chosen image size.

Dijital TV Menu System

• Press M button and DTV main menu will be displayed.

Channel List

Using "or" buttons on the remote control in main menu, make sure that the rst item, Channel List, is highlighted and press the OK button to display the Channel List.

You can use following buttons for Move, Delete and Lock functions.

• Channel List is the place where the channels are managed.

YELLOW: Tags/untags the selected channel.

BLUE: Tags/untags all channels.

Navigating the Entire Channel List

• Press "▼or" "Keys for selecting the previous or next channel.
  You can press or buttons to move page up or page down.
• To watch a specific channel, highlight it using or "buttons and then press OK button, while the "Select" item on Channel List menu is highlighted via "or buttons.

Moving the channels in the channel list

• Press "or " buttons to select the channel that will be moved.
• Press "or" buttons to select the "Move" item on Channel List menu and press OK to confirm.

Note: If you enter the same programme number of the channel that you want to move, "...services will be replaced. Do you want to continue?" OSD will be displayed. Press OK to confirm or select "No" to cancel.

Note: The following screen will be displayed when want to move or delete channels that are sorted by LCN (logical channel number) service.

Select "YES" to continue. Select "NO" to cancel (LCN feature is available for only Germany, Austria, Switzerland and Italy country options).

Deleting the Channels in the Channel List

• Press "or " buttons to select the channel that will be deleted.
• Press " " or "▶" buttons to select the "Delete" item on Channel List OSD.

Press "OK" button to delete the highlighted channel in the channel list. Then the message below appears on the screen.

Renaming channels

To rename a specific channel, the channel must be highlighted via pressing "or" buttons and then highlight the "Edit Name" item by pressing or

" buttons. Press "OK" button to activate rename feature.

Now pressing "or" buttons moves to the previous/ next character. Pressing "Vor" buttons toggles the current character, i.e., 'b' character becomes 'a' on and 'c' on. Pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the key one by one as the button is pressed.

Press the M button to cancel the editing or OK button to save the new name.

Adding Locks to Channels

Channel Locking provides a password-protected access to channels selected by parents.

In order to lock a channel you should know the Parental Lock password (default value is set to 0000 in the factory and can only be changed from the Configuration menu).

By pressing "▼" or "▲" buttons, highlight the channel to be locked and select the "Lock" option by pressing "▲" or "▼" buttons. Then press the OK button and a password box is displayed:

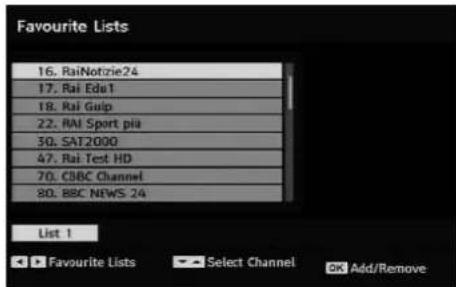

Setting Favourites

To set a favourite you should highlight the "Favourites" item at the bottom of the Channel List menu. Then press OK button and Edit Favourite List menu appears on the screen.

Adding a Channel to a Favourites List

By pressing "Vor" buttons, highlight the channel that you want to add to the favourite list. By pressing OK button, the highlighted channel is added to Favourite List. F icon indicates that a channel is added to Favourite List.

Removing a Channel from a Favourite List

• Highlight the channel that you want to remove from the favourite list and press OK button to remove. You can press OK button again to re-adding a channel.
• To activate Favourites, go to the Configuration menu and select Favourite mode. Use "←" or "→" to set Favourite mode as on. To cancel Favourites, set Favourite Mode to Off.

Hint: Pressing INFO button can help you for displaying information in IDTV.

Program Guide

This section is same with the instructions given in the General Operations page. Please see Electronic Programme Guide (EPG) section in the General Operations part.

Timers

To display timers window, press either TIME button on the remote control or activate the item from the main menu. To add a timer, press the YELLOW button on the remote control. Then "Add Timer" window appears.

Channel: "or keys will navigate the user through the TV or Radio list.

Date: Starting date is entered via the Left/Right or the numeric buttons.

English - 47 -

Start: Starting time is entered via the Left/Right or the numeric buttons.

End: Ending time is entered via the Left/Right or the numeric buttons.

Duration: Displays the duration of the recording.

Duration item will be automatically displayed after the starting and ending times are entered.

Change/Delete: permits or prohibits any modifications for other users.

You can save the adjustments by pressing the GREEN key or cancel the process by pressing the RED button.

You can edit the list via GREEN key and delete with the RED button.

Common Interface

Press M button to display the main menu and use the “▼ or “▲” buttons to highlight the “Common Interface” line and press OK button.

It is required to subscribe to a pay channel company to view the pay channels of the Digital Terrestrial broadcasting.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the Television using the following procedure.

• Switch off the TV and unplug from the mains.
• Insert the CAM, and then the viewing card to the slot.
• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
• Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
• Some CAMs may require the following set up. Please set the CAM by entering the DIGITAL TV menu, Common Interface then pressing OK button. (CAM set up menu is not displayed when it is not required.)
• To see the viewing contract information:
• Enter DIGITAL TV; press M button, then highlight Common Interface and press OK button.
• When no module is inserted, "No Common Interface module detected" message appears on the screen.
  Refer to the module instruction manual for details of the settings.

NOTE: Insert or remove the CI module only when the TV is in STANDBY mode or SWITCHED OFF.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from the main menu. Press the M button to display the main menu and use or buttons to highlight "TV Setup". Press OK button to display TV Setup menu screen.

You can find detailed information for all menu items in "Analogue TV Menu System" section.

Setup

The adjustments in this menu are given as the following:

Conf iguration

You can configure the settings of your TV. Select Configuration from Setup menu and press OK to view this menu. Press the RETURN button on the remote control to exit.

Favourite Mode

Use this function to enable or disable favourite mode. Press "or button to set this function as on or off.

Scan Encrypted

Scan Encrypted Channel feature will always be ON after performing first time installation. When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search. Use "▼" or "▲" button to select Scan Encrypted and then press "or " button to set this setting as On or Off.

Parental Control

• Some channels broadcast material which you do not want younger members of the family to watch. Any channel can be 'locked' so that it cannot be selected for viewing unless a four-digit PIN code is entered. In this way any channel not suitable for younger viewers can be prohibited.
• This function enables or disables the menu protection system and allows the PIN code to be changed.

• Use "Vor" buttons to highlight Parental Control. Press OK button to enter Parental Control menu. A dialog box asking for the lock key is displayed:

There is only one key which is set to "0000" initially. Enter lock key. If wrong lock key is entered, the "WRONG PIN" message will be displayed on the screen and the TV returns to the previous menu. If the PIN is correct, the Parental Control menu including following items will be displayed:

Maturity Lock (^**)

(^**) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible. When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, the TV will not display the related video-audio.

Menu Lock

Use "or" buttons to set Menu Lock. Here, you can set/reset locking function for the main menu or the installation menu to restrict access. If the menu lock is disabled, there will be free access to the menu system.

Disabled: All menus are unlocked.

All Menus: All menus are accessible only with the correct lock key. So the user cannot add, delete, rename or move the channels and cannot set the timers.

Installation Menu: Installation menu is locked, so the user cannot add channels. Changes will be updated after exiting Confi guration Menu.

Set PIN

Use "or" buttons to go to "Set PIN" option. Press OK to display the "Set PIN" window. Use numeric buttons to enter new pin number you will need to input your new pin a second time for verification purposes. The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Time Settings\*\*

(^**) : Time setting will not be available for UK.

In the configuration menu, highlight the Time Settings item by pressing "▼" or "▲buttons. Press OK and Time Settings sub menu will be displayed on the screen:

Use "or" buttons to highlight the Time Zone Setting. Time Zone Setting is set using or buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time Zone options will not be available to be set.

If MANUAL option is selected as the Time Zone Setting, Time Zone can be altered:

• By pressing "▼" or "▲" buttons select Time Zone. Use "or" buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone.

Receiver Upgrade

Over Air Download (OAD)

To ensure that your TV always has the most up to date information, use this setting. Please ensure that the TV is set to standby mode. The TV automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcast and will download this to your receiver automatically. This operation will normally take approximately 30 minutes. If you have an important recording to be carried out at 3.00 A.M. and you do not want to interrupt it, disable auto OAD search by performing the following:

• Press M button and using the “▼” or “▲” buttons to choose Setup and press OK button.
• Highlight Configuration menu with or "keys and press OK.
• Use "▼" or "▲" buttons to choose "RECEIVER UPGRADE" and press OK button.
• Using the "or" button change "Automatic scanning" from Enabled to Disabled.

• Highlight "Scan for upgrade" menu with "▼or" ▲ keys and pres OK to commence upgrade.

After the search progress is completed, the message "Completed searching for upgrade. No new software was found" appears on the screen if no new software is found.

English - 49 -

Dolby Digital (*)

In the Configuration Menu, highlight the Dolby D item by pressing "▲" or "▼" buttons. Use the "▲" or "▼" buttons to set the Dolby Digital as On or Off. If the channel that you are watching supports Dolby Digital and Dolby Digital Plus, you can turn this setting on.

(^*) Hard of Hearing function will not be available for UK.

Hard of Hearing (^*)

Use "or" button to select Hard of Hearing and then press or button to set this setting as On or Off.

If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

(^*) Hard of Hearing function will not be available for UK.

Channel List

Use "or" buttons to go to Channel List option. Use or buttons to toggle Channel List Mode. If you select "TV Only", with the "or" buttons, you navigate through only TV channels. If you select "Radio Only", with the "or" buttons, you navigate through only radio channels. If you select "Text Only", with the "or" buttons, you navigate through only text channels. If you choose "Show All" all channels can be navigated. To save the recent changes and exit; press the M button.

Digital Audio Out

Use this setting to define digital audio out signal type. Use "or" buttons to set Digital audio out as AC3 or PCM.

If your selected channel includes AC3 sound stream, you should connect your TV to external equipment by using Spdif out of your TV for enabling the sound output. If you have no external sound equipment, please select Digital Audio Out as "PCM" by using "or button.

A/V Delay

You can use this setting when there is an AV synchronization problem in the received broadcast. Press "or " button to change the delay.

Audio Description (Optional)

Audio description refers to an additional narration track for blind and visually impaired viewers of visual media. You can use this feature, only if the broadcaster supports that additional narration track. Use or buttons to select an item. Then use or buttons to set.

Audio Description (Optional)

This function enables or disables the audio description feature by pressing the "or" buttons.

Preferred Language (Optional)

By pressing the "▼" or "▲" buttons the preferred audio description language is being changed. This setting can be used, only if it is available.

Relative Volume (Optional)

Using this option, the Audio Description volume level can be increased or decreased relatively, according to the general volume.

Standby Search (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use "or" button to select Standby Search and then press "or" button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.

To use Standby search please make sure that you select Standby Search as On.

Active Antenna (*)

Use "or" buttons to highlight Active Antenna option. When antenna power option is set as On by pressing "or" button, +5V will be transmitted to the antenna output. This feature enables the use of active antenna.

Note: Antenna power should be "Off" when standard antenna is used instead of the active antenna.

Language Settings

In this menu the user can adjust the preferred language. Select "Language" item in the Setup menu and press OK button. Then language settings menu will be displayed.

You can set the desired language options by using "▼" and "▲" buttons.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

Use "or" buttons to highlight the menu item that will be adjusted and then press "or" button to set.

Audio Language is used for selecting the soundtrack of a channels. Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.
- Guide Language: If the received EPG data includes the selected guide language, EPG data language will be changed accordingly.
- Teletext language sets the desired teletext language.

Media Subtitle (optional): In order to display subtitles properly,

use this setting to select a movie subtitle language. By pressing "or button, select the desired language option.

Installation

The Installation menu is mainly intended to help you for creating a Channel Table in most eficien't way Select Installation from the main menu by pressing " " or "Abuttons.

Automatic Channel Scan

Automatic channel scan is started by pressing OK button while Automatic channel scan item is highlighted.

The following message appears on the screen:

Highlight Yes or No by using "or" buttons and press OK button to confirm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Highlight Yes and press OK button to search for analogue channels. The following menu appears on the screen for analogue channel search:

Set Language item by pressing "or button. Press "or" button to highlight Country item and then use "or" set. Press "o" button to highlight TXT Language. Select a region by using or button.When finished, press OK or RED button to continue.To cancel,press the BLUE button.

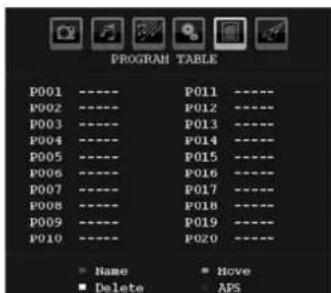

After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

Manual Search

In Manual Search, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For every valid channel number, signal level and signal quality are shown on the screen.

In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.

Frequency Search

Enter the desired frequency. When finished, press OK button, and the TV will start frequency search.

Clear Service List (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

English - 51 -

Use this setting to clear channels stored. Press "▼" or "▲" button to select Clear Service List and then press OK. The following OSD will be displayed on the screen:

Press OK to cancel.

Select Yes by pressing " 一 or 一 button and press OK to delete all of the channels.

First Time Installation

The user can use this item to load default settings, which were loaded to the receiver at the factory.

To install factory settings, highlight "First Time Installation" menu item and press OK button, then you will be asked whether or not to delete the settings. Selecting "Yes" by pressing OK button while the "Yes" is highlighted, will delete the existing channel table.

After factory settings are loaded, "First Time Installation" menu will be displayed.

The menu which is displayed for language selection appears on the screen at first. By using or "▲ buttons, select the desired language option, and press OK button to activate.

After then, "First time installation" OSD will appear on the screen. By pressing "or" buttons, select the Country you want to set and press OK button (* only for EU countries).

Next, active antenna mode selection OSD will appear on the screen. Use "or" to set and press OK to continue. See the section, "Initial Settings" for more information.

After active antenna mode option is selected, a message asking for automatic search appears on the screen:

Highlight "Yes" item by pressing "or" buttons and press OK button to start installation. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen. This process is same as described in Automatic Search section.

Media Browser (in DTV mode)

Whenever you plug a USB f1 ash disk to your TV, the following message will be displayed on the screen:

Select YES or NO by pressing " 一 ^ 一 or " 一 ^ 一 button and OK" button to continue.

You can also select Media Browser item from the main menu by using "▼" or "▲buttons. Press OK to view Media Browser contents.

You can play audio and photo files from a USB flash disk.

Note: Some USB compliant devices may not be supported.

Note: Movie Sense and Pixelence features cannot be set while in Media Browser mode.

Note: If you plug USB stick in analogue mode, the TV will automatically switch to digital TV mode.

Note: If the USB stick is not recognized after Power off/on or First Time Installation, first plug the USB device out and power off/on the TV set. Plug the USB device again.

Press OK to browse, "M" to quit.

Playing Audio Files:

Play This (OK) : Plays the selected tile.

Play (GREEN) : Play all media files in the folder starting with the selected one.

Pause/Resume (YELLOW button): Pauses or resumes playback.

Stop (RED): Stop the playing file.

Previous/Next: Jumps to previous or next fi le to play.

Shufae (INFO) : Plays the files randomly. If shuffle mode is enabled, previous/next functions will also jump to the tracks randomly.

Loop (BLUE) : Plays the selected file repeatedly.

Viewing JPEG Files

Jump (0...9): jump to selected file using the numeric buttons.

OK: view the selected picture in full screen.

Play / Slideshow (GREEN) : start to slideshow with all pictures in the folder.

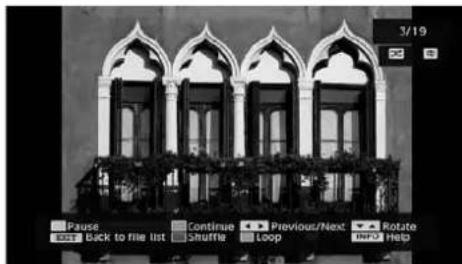

Slideshow Options

Pause (YELLOW): Pause the slideshow.

Continue (GREEN) : Continue with the slideshow.

Previous/Next ( / ) Jump to previous or next if le of slideshow.

Rotate ( / ) : Rotate the picture using up/down buttons.

RETURN: Back to fi lelist.

Shuffle (RED) : Shows the files randomly and continuous in current folder and icon turns the highlighted icon. If during a slideshow the shuffle mode is enabled, the next pictures will be chosen randomly (If the loop function is not enabled, the slideshow will stop at the end. If the loop function is enabled, after the slideshow ends, it will start again and again).

Loop(GREEN) : Slideshow goes on continuously and icon turns the highlighted icon.

Info: Activate the operations bar.

Video Playback (optional)

Play (Red button) : Starts the video playback.

Stop (Blue button) : Stops the video playback.

Pause (OK button): Pause the video playback.

Rewind (Cursor Left) : Goes backward.

Forward (Cursor Right) : Goes forward.

Menu (M button) : Sets subtitle/Audio.

You can set subtitles by using OK button before starting the playback or by using M button during the playback. Press RETURN button to switch back to previous menu.

Analogue TV Menu System

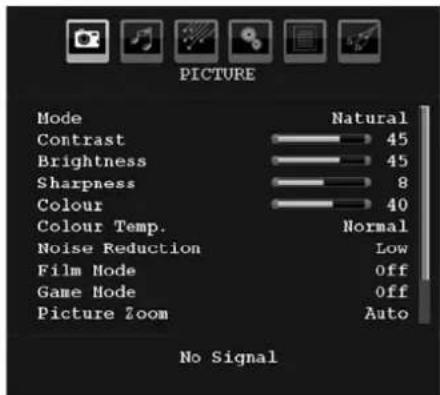

Picture Menu

Mode

For your viewing requirements, you can set the related mode option.

Press "▼" or "▲" button to select Mode. Press "

"or button to choose from one of these options: Cinema, Dynamic and Natural.

Brightness/Contrast/Colour/Sharpness/Hue

Press "or" button to select the desired option. Press "or" button to set the level.

Note: Hue option can only be visible when the TV receives an NTSC signal.

Colour Temp

Press "or" button to select Colour Temp. Press "or" to choose from one of these options: Cool, Normal and Warm.

Note:

• Setting Cool option gives white colours a slight blue stress.
• Setting Warm option gives white colours a slight red stress.
• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount.

Press "▼" or "▲" button to select Noise Reduction. Press "▲" or "▼" to choose from one of these options: Low, Medium, High or Off.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

Press "▼" or "▲button to select Film Mode.

Press " " or " " button to set this feature On or Off.

Turn this feature on when you are watching.

If Ims to see the fast motion scenes clearly.

Game Mode (optional)

Select Game Mode by pressing "▼or" button. Use "▲" or "▲" button to set Game Mode as On or Off. When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.

Note:

Picture mode selection button on the remote control will have no function while Game Mode is on.

Picture Zoom

Select Picture Zoom by pressing "▼" or "▲" button.

Use "or" buttons, to change picture zoom to Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle or Zoom.

Store

Press "or" button to select Store. Press "or OK button to store the settings. "Stored..." will be displayed on the screen.

Reset

Press " or " " button to select Reset. Press "or OK button to reset the picture modes to factory default settings.

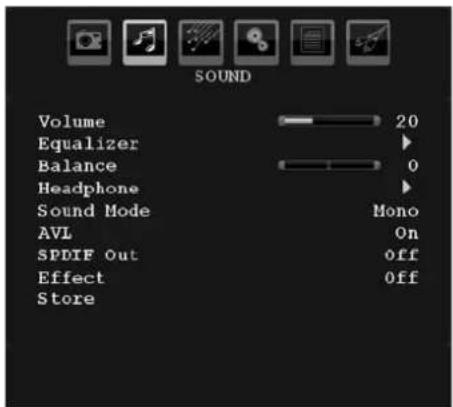

Sound Menu

Volume

Press "▼" or "▲" button to select Volume. Press "←" or "→" button to change the level of the Volume.

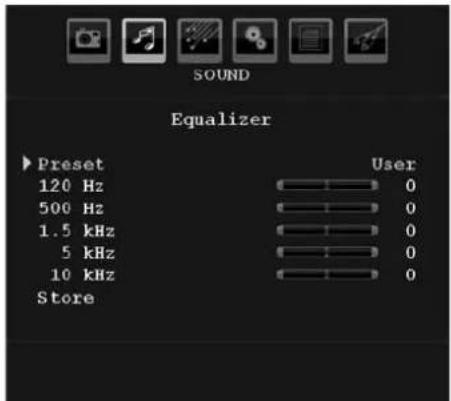

Equalizer

Press "Vor" button to select Equalizer. Press "▶" button to view equalizer menu.

Press "or" button to change the preset. In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User.

Select the desired frequency by pressing "▼" or "▲" button and increase or decrease the frequency gain by pressing "▲" button.

Press the "M" button to return to the previous menu. Note: Equalizer menu settings can be changed only when the Equalizer Mode is in User.

Balance

This setting is used for emphasizing left or right speaker balance.

Press " " or "▲ button to select Balance. Press " " or "按钮 to change the level of the balance. Balance level can be adjusted between -32 and + 32.

Headphone

Press "Vor" button to select Headphone. Press "▶button to view the headphone menu.

Note: Headphone will be disabled when SPDIF option is set to on.

Headphone sub-menu options are described below: Volume

Press "▶" or "▲" button to select Volume. Press "▶" button to increase headphone volume level. Press "▲" button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.

Sound Mode (optional)

Press "For" button to select Sound Mode. Using "For" button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Press "▼" or "▲" button to select AVL Press "▶" button to set the AVL as On or Off.

Spdif Out

Press "or" button to select Spdif Out. Press "or" button to set the Spdif Out. as On or Off.

Note: If Spdif Out is set to On, headphone will be disabled.

Effect (optional)

If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereolike. If the current sound system is stereo, switching this effect on will give a more spatial effect.

Press "▼" or "▲" button to select Effect. Press "▶" or "▲" button to set as On or Off.

Store

Press "or" button to select Store. Press "or OK button to store the settings. "Stored..." will be displayed on the screen.

Feature Menu

Sleep Timer

Press "or" button to select Sleep Timer. Use "or" button to set the Sleep Timer.

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.

Child Lock

Press "or" button to select Child Lock. Use " " button to set the Child Lock On or Off. When On is selected, the TV can only be controlled

English - 55 -

by the remote control handset. In this case the control panel buttons will not work.

Hence, if one of those buttons is pressed, Child Lock On will be displayed on the screen when the menu screen is not visible.

Language

Press "or " button to select Language. Use " or " button to select the Language.

Default Zoom

While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press "Vor" button to select Default Zoom. You can set Default Zoom to Panoramic, 16:9, 4:3 or 14:9 by pressing "or" button.

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.

By pressing "▶" or "▲" button, select Blue Background. Press "▲" or "▶" button to set Blue Background as On or Off.

Menu Background

Press "or" button to select Menu Background. You can set menu background level by pressing "or" button.

Backlight

This setting controls the backlight level. Select Backlight by pressing "▼ or "▲ button. Press "▲" or "▼" button to set Backlight to Auto, Medium, Maximum or Minimum.

Menu Timeout

To set a specific display timeout for menu screens, set a value for this option.

Press "▼" or "▲ button to select Menu Timeout. Use "or" button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

Press "or" button to select Teletext Language. Use "or" button to change Teletext Language to West, East, Turk/Gre, Cyrillic, Arabic or Persian.

Ext Out

Press "or" button to select Ext Out. Use " " on button to set the Ext Out as On or Off.

Note:

For copying from a DVD or VCR device, you should choose desired source from source menu and turn "On" to EXT Out from feature menu.

Ext Out should be On in order to use Timers function in the DTV mode.

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using external connection, HDMI PC FULL MODE option should be On to adjust the screen ratio correctly. This item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the TV to HDMI mode, this feature will be visible (except for 1080i/1080P resolution).

Full Mode (optional)

If you connect a device via HDMI connectors and set 1080i/1080P resolutions, Full Mode item will be visible. You can set Full Mode as 1:1 or Normal by using "or" if you select 1:1, screen ratio will be adjusted correctly. If you set Normal, screen ratio may expand.

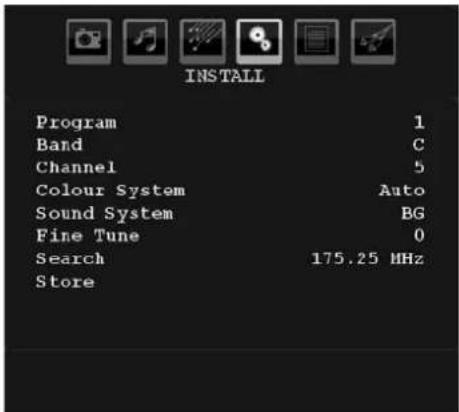

Install Menu

Program

Press "or" button to select Program. Use "or" button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199.

Band

Band can be selected either C or S. Press "or" button to set Band.

Channel

Channel can be changed by "or button or numeric buttons.

Colour System

Press "or" button to select Colour System. Use "or" button to change the colour system to PAL, PAL 60, SECAM or AUTO.

Sound System

Press "or" button to select Sound System. Press "or" button to change the sound system to BG,DK,I,L or L'.

Fine Tune

Press "or" button to select Fine Tune. Press "or" button to adjust the tuning.

Search

Press "or" button to select Search. Use "or" button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.

Store

Press "or" "button to select Store. Press "or OK button to store the settings. "Stored..." will be displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will be available. Switch to TV mode for viewing complete version of the Install menu.

Colour System

Press "or" button to select Colour System. Use "or" button to change the colour system to PAL, SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

Store

Press "or" button to select Store Program. Press "or OK button to store the settings. "Stored..." will be displayed on the screen.

Program Table

Select Program Table by pressing "▼" or "▲" button. Press "▶" to display Program Table:

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.

Name

To change the name of a programme, select the programme and press the RED button.

The first letter of the selected name will be highlighted. Press "▼" or "▲" button to change that letter and "▼" or "▲" button to select the other letters. By pressing the RED button, you can store the name.

Move

Select the programme which you want to move by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:

English - 57 -

Country

Press " " or " button to select your country. If you want to exit from A.P.S. function, press the BLUE button.

When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function stops and Program Table appears on the screen. If you wait until the end of APS, Program Table will be displayed with the programmes found and located.

Source Menu

Press "or" button and select the sixth icon. Then press OK button. Source menu appears on the screen:

In source menu, highlight a source by pressing "or" button and switch to that mode by pressing "▶" button. Source options are: TV, DTV/USB, EXT-1, FAV, HDMI, YPbPr and PC-VGA.

Note: Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.

PC Mode Menu System

See "Connecting the LCD TV to a PC" section for connecting a PC to the TV set.

For switching to PC source, press "SOURCE" button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode.

Note that PC mode menu settings are available only while the TV is in PC source.

PC Position Menu

Select the first icon by pressing or button. PC Position menu appears on the screen:

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.

Select Autoposition item by using "▼" or "▲" buttons. Press OK or "▲" button.

Warning: Please ensure auto adjustment is performed with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

Select H Position item by using "▼" or "▲ button. Use "▼" or "▲" button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

Select V Position item by using "▼" or "▲ button. Use "▼" button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Select Phase item by using "▼" or "▲" buttons. Use "or" button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Select Dot Clock item by using "▼" or "▲" buttons. Use "▼" button to adjust the value.

PC Picture Menu

For adjusting PC picture items, do the following:

Press " 一 ^ 一 or 一 ^ 一 button to select the second icon. PC Picture menu appears on the screen.

Brightness, Contrast, Colour and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".

Note: If you set Colour Temp as User, you can define R, G, B settings manually.

Sound, Feature and Source settings are identical to the settings explained in Analog TV menu system.

Displaying TV Information

Programme Number, Programme Name, Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function

Press "按钮 to disable sound. Mute indicator will be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the first one is pressing the "OK" button and the second one is increasing the volume level.

Picture Mode Selection

By pressing PRESET button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural and Cinema.

Note: This feature cannot be set while in PC mode.

Freezing Picture

You can freeze the picture on the screen by pressing the "OK" button on the remote control. Press the "OK" button to freeze picture. Press again to quit freeze mode (Note: Not available in "ATV" mode).

Zoom Modes

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

Press SCREEN button to directly change the zoom mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available.

Zoom mode cannot be changed while in PC mode.

Auto

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external

device, the TV automatically changes the ZOOM mode according to the WSS signal.

• When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fit the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

English - 59 -

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Zoom

This option zooms to the picture.

Note: You can shift to screen up or down by pressing "▼/" buttons while picture zoom is selected as panaromic, 14:9, Cinema or Subtitle.

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

"Teletext/Mix On-Off

Activates teletext mode when pressed once. Pressing the button for the second time, activates teletext mix feature. Pressing again will quit the teletext mode.

"RETURN" Index

Selects the teletext index page.

"SCREEN" Expand

Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.

"INFO?" Reveal

Shows hidden information (e.g. solutions of games).

"OK" Hold

Holds a text page when convenient. Press again to resume.

P + / P-and numbers (0-9)

Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics.

When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs.

The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing P - or + commands will request the next or previous page respec tively.

TXT (Teletext) Subtitle

If you press SUBTITLE button, teletext subtitle information will be displayed on the bottom right part of the screen (if available). You can set the desired option by highlighting it using or button and then by pressing OK button

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence

Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power

If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthy audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Also make sure the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that no device is connected.

Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1600 X 1200. The following table is an illustration of some of the typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index	Resolution Frequency				Standard
	Hor Ver		Ver (Hz)	Hor (KHz)
1 640	480 60	31.5 VESA
2 640	480 72	37.9 VESA
3 640	480 75	37.5 VESA
4 800	600 56	35.2 VESA
5 800	600 60	37.9 VESA
6 800	600 70	43.8
7 800	600 72	48.1 VESA
8 800	600 75	46.9 VESA
9 832	624 75	49.7 MAC
10 1024	24 768	50 48.4 VESA
11 1024	24 768	70 56.5 VESA
12 1024	24 768	72 57.7
13 1024	24 768	75 60.0
14 1152	864 70	64.2 VESA
15 1152	864 75	67.5 VESA
16 1152	870 75	68.9 MAC
17 1280	768 60	47.7 VESA
18 1360	768 60	47.7
19 1280	960 60	60 60.0 VESA
20 1280	1024 60	64.0 VESA
21 1280	1024 75	80.0 VESA
22 1600	1200 60	75.0 VESA

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source	Supported Signals		Available
EXT-1(SCART)	PAL 50:60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
FAV	PAL 50:60 O
	NTSC 60 O
YPbPr	480I	60Hz	O
	480P 60Hz		O
	576I	50Hz	O
	576P 50Hz		O
	720P 50Hz		O
	720P 60Hz		O
	1080I	50Hz	O
	1080I	60Hz	O
	1080P 50Hz		O
	1080P 60Hz		O
HDMI	480I	60Hz	O
	480P 60Hz		O
	576I	50Hz	O
	576P 50Hz		O
	720P 50Hz		O
	720P 60Hz		O
	1080I	50Hz	o
	1080I	60Hz	O
	1080P 50Hz		O
	1080P 60Hz		O
	1080P	24 Hz	O

(X: Not Available, O: Available)

Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix D: Supported File Formats for USB Mode

Media	File Extension	Format Remarks
		Video Audio (Maximum)		resolution/Bit rate etc.)
Movie (optional)	.avi	XviD/ 3ivx	PCM/MP3 XviD Verson up to: 1.1.2
		MPEG4 PCM/MP3
		MS ISO MPEG4	PCM/MP3	Support SP and ASP
Music	-- PCM	Sample Rate: 8K ~ 48KHz
	.mp3 -		MPEG 1/2 Layer 1/2/3 (MP3)	Sample Rate: 8K ~ 48KHz, Bit Rate: 32K~320Kbps
Photo.jpg		Baseline JPEG		WxH = 14592x12288, Up to 179 Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale
		Progressive JPEG		Up to 4 Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale
External Subtitles (optional)	.srt			Support Text File Format, but do not support Picture File Format
	.smi

Note: Necessary bitrates for some video types are higher than USB limits. For this reason, some video types cannot be played.

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/L

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

200

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German+Nicam Stereo

AUDIO OUTPUT POWER (W_RMS) (10% THD)

2× 2,5

POWER CONSUMPTION (W)

70 W (max)

<1W(Standby)

PANEL

22" wide display

DIMENSIONS (mm)

DxLxH (With foot): 155 x 532 x 384.5

Weight (Kg): 4.70

DlxH (Without foot): 60 x 532 x 347

Weight (Kg): 4.55

Transmission Standards:

DVB-T, MPEG2,DVB-T, MPEG4 HD

i. DEMODULATION

-Symbol rate: COFDM with 2K/8K FFT mode.

-Modulation: 16-QAM - 64-QAM FEC for all DVB modes (automatically found)

ii.VIDEO

iii. AUDIO

-H.264 (MPEG-4 part 10) main and high profile level 4.1/MPEG-2 MP@HL video decoder.
-HD display multi format capable (1080i, 720p, 576p)
-CVBS analogue output.
-MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC, AC3
-Sampling frequencies supported are 32, 44.1 & 48 kHz
