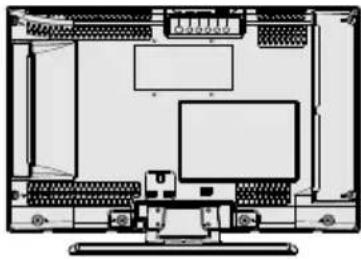

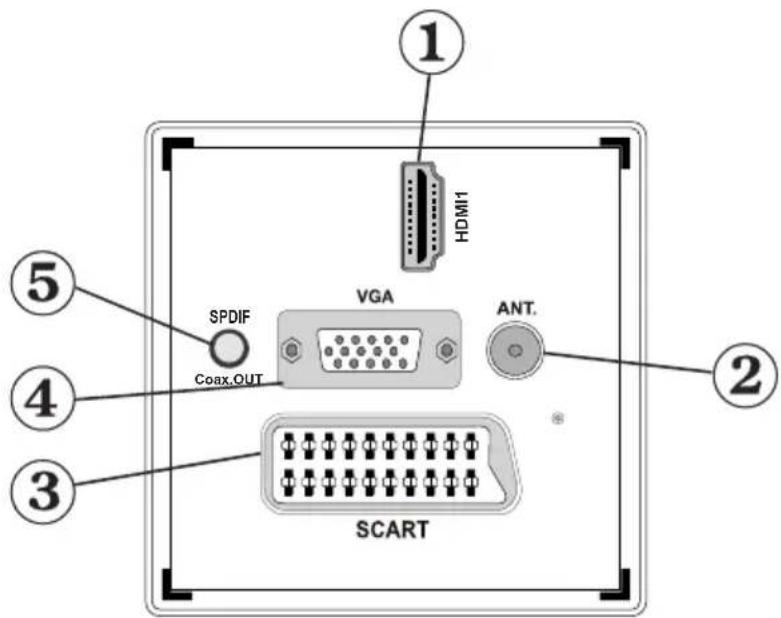

Viewing the Back side Connections

Viewing the Connections - Side Connectors

Connecting the LCD TV to a PC

Connecting to a DVD Player via HDMI

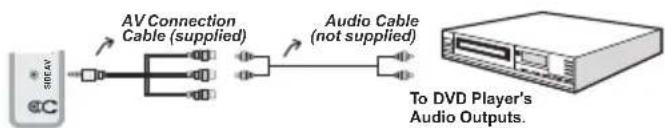

Connecting to a DVD Player via Component Sockets (YPbPr) or Scart Cable

Operation with the Buttons on the TV

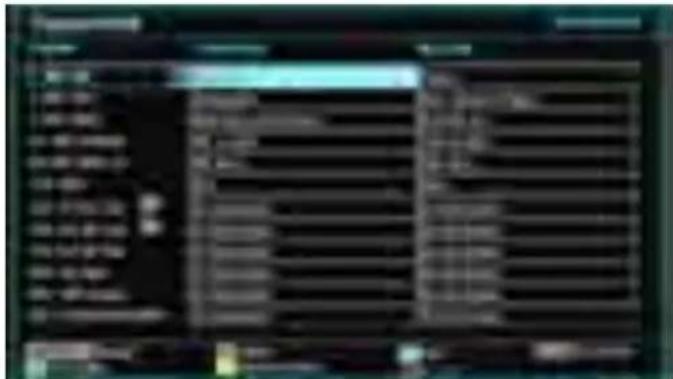

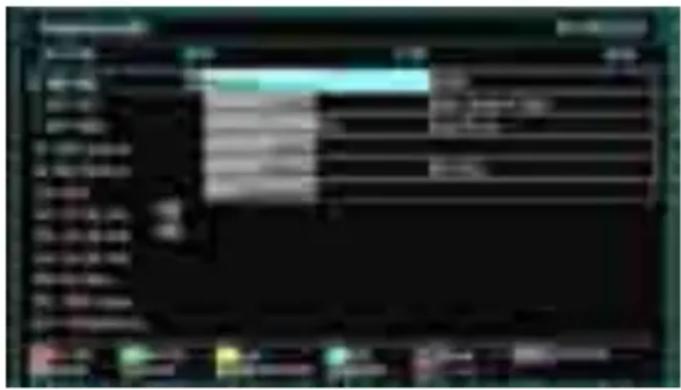

Recording via EPG Screen

Operating the Channel List

Managing Stations: Sorting Channel List

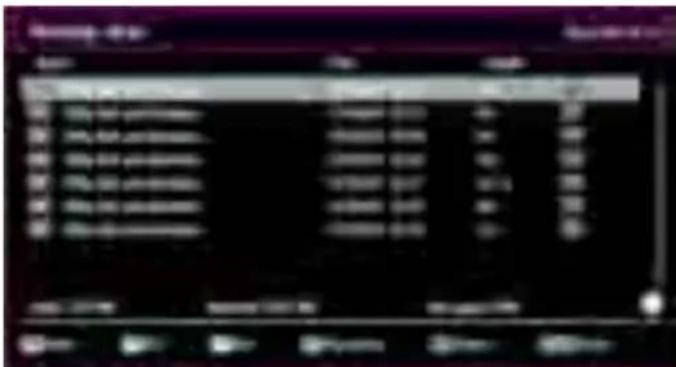

Watching Recorded Programmes

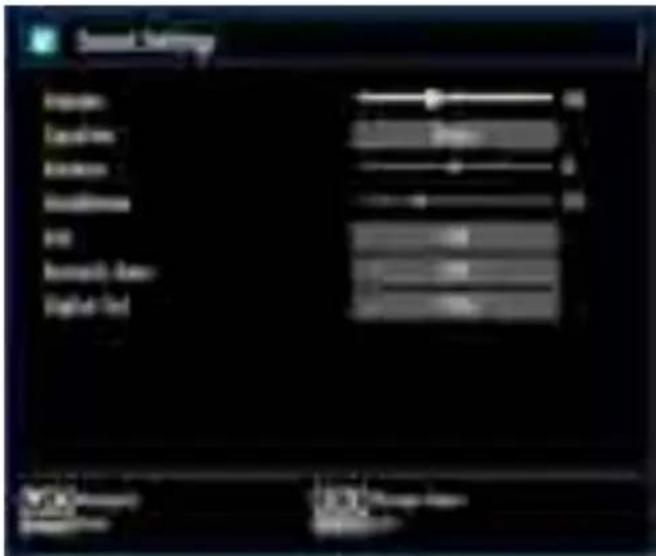

Conguring Sound Settings

Conguring Source Settings

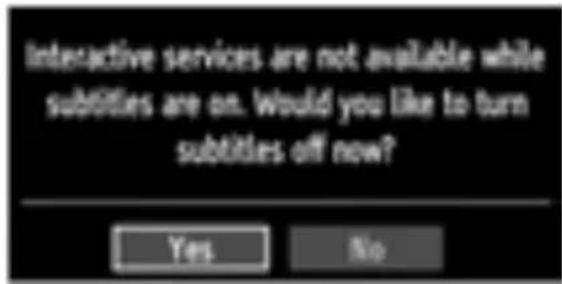

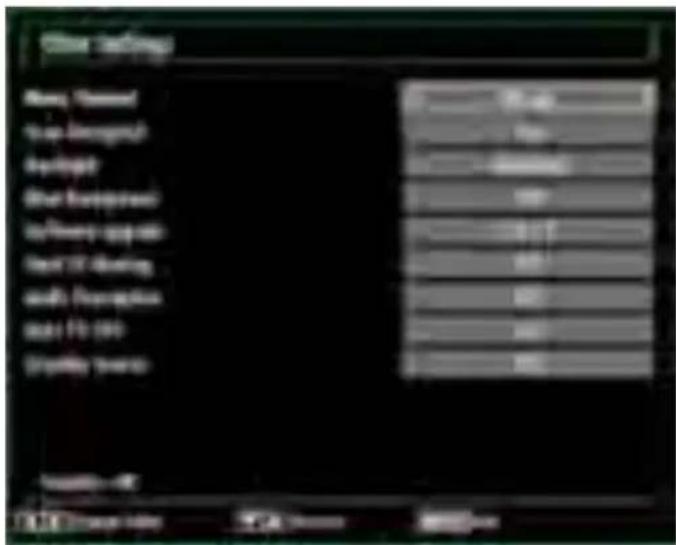

Conguring Other Settings

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

connection is also designed to accept high denition signals. USB input.

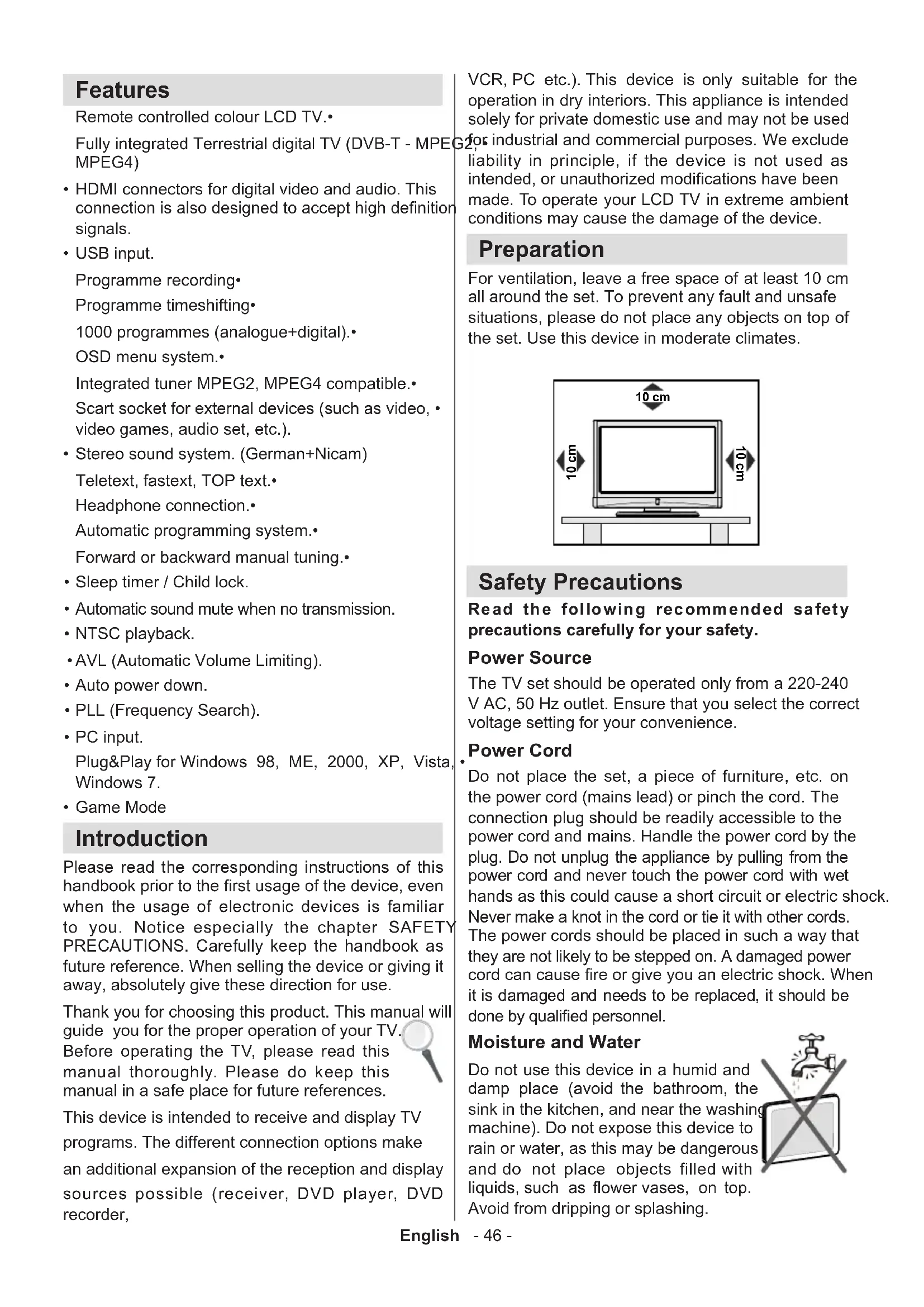

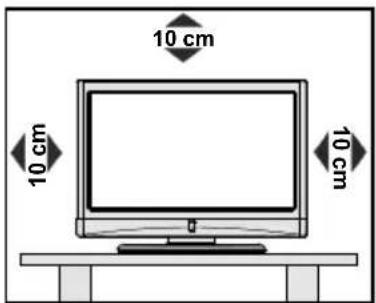

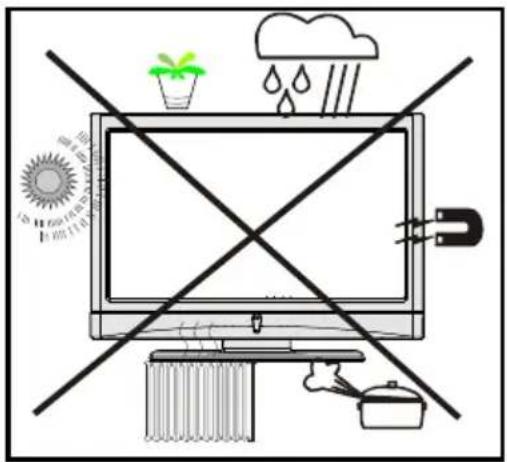

Introduction Please read the corresponding instructions of this handbook prior to the rst usage of the device, even when the usage of electronic devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use. Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references. This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device. Preparation For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates. 10 cm 10 cm 10 cm Safety Precautions Read the following recommended safety precautions carefully for your safety. Power Source The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience. Power Cord Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. The connection plug should be readily accessible to the power cord and mains. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause re or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualied personnel. Moisture and Water Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as ower vases, on top. Avoid from dripping or splashing.English - 47 - If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualied personnel before operating it any further. Cleaning Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth. Ventilation The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway. Heat and Flames The set should not be placed near to open ames and sources of intense heat such as an electric heater. Ensure that no open ame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, re or the like. Lightning In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet. Replacement Parts When replacement parts are required, make sure that the service technician has used replacement parts, which are specied by the manufacturer or have the same specications as the original one. Unauthorized substitutions may result in re, electrical shock or other hazards. Servicing Please refer all servicing to qualied personnel. Do not remove the cover yourself as this may result in an electric shock. Waste Disposal Instructions for waste disposal:• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area. Don’t try to recharge batteries. Danger of explosion.

Replace batteries only with the same or equivalent type. This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or the dealer where you purchased the product. Disconnecting the Device The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available). LCD Screen The LCD panel is a very high technology product with about a million thin lm transistors, giving you ne picture details. Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point. Please note that this does not affect the performance of your product. Warning! Do not leave your TV in standby or operating mode when you leave your house. Connection to a Television Distribution System (Cable TV etc.) from Tuner Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).English - 48 - Package Contents

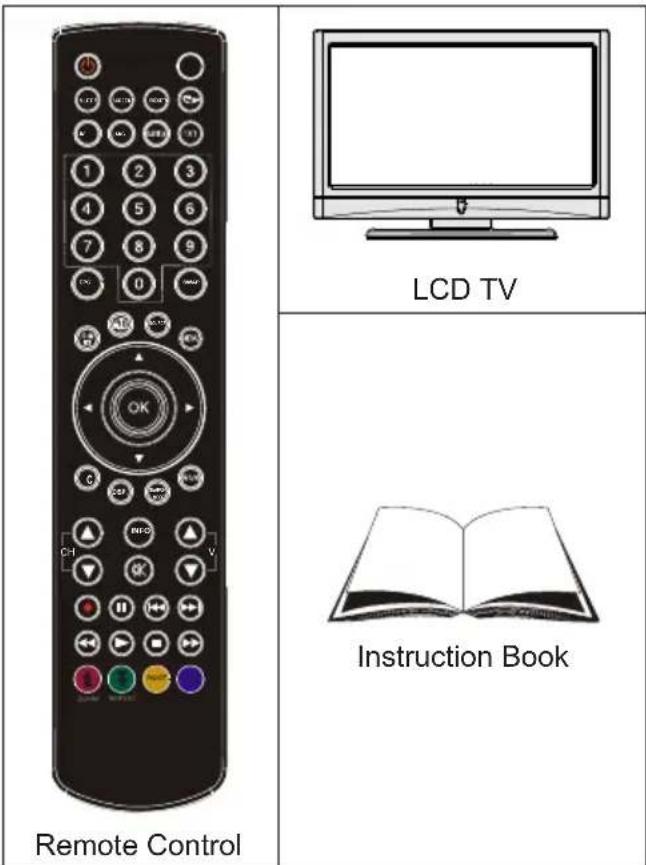

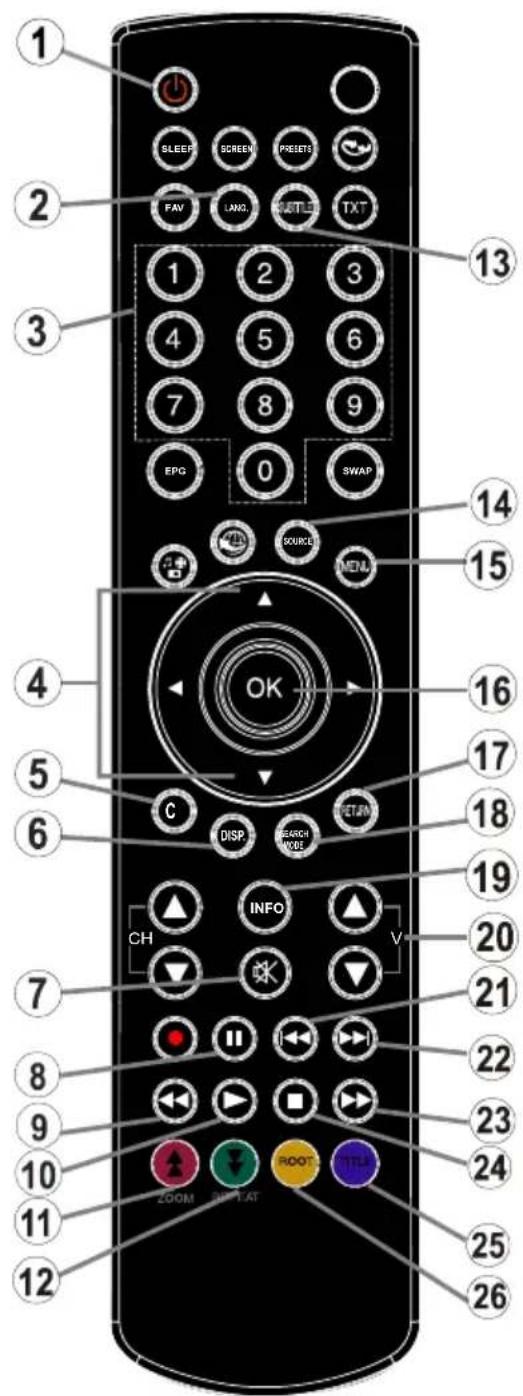

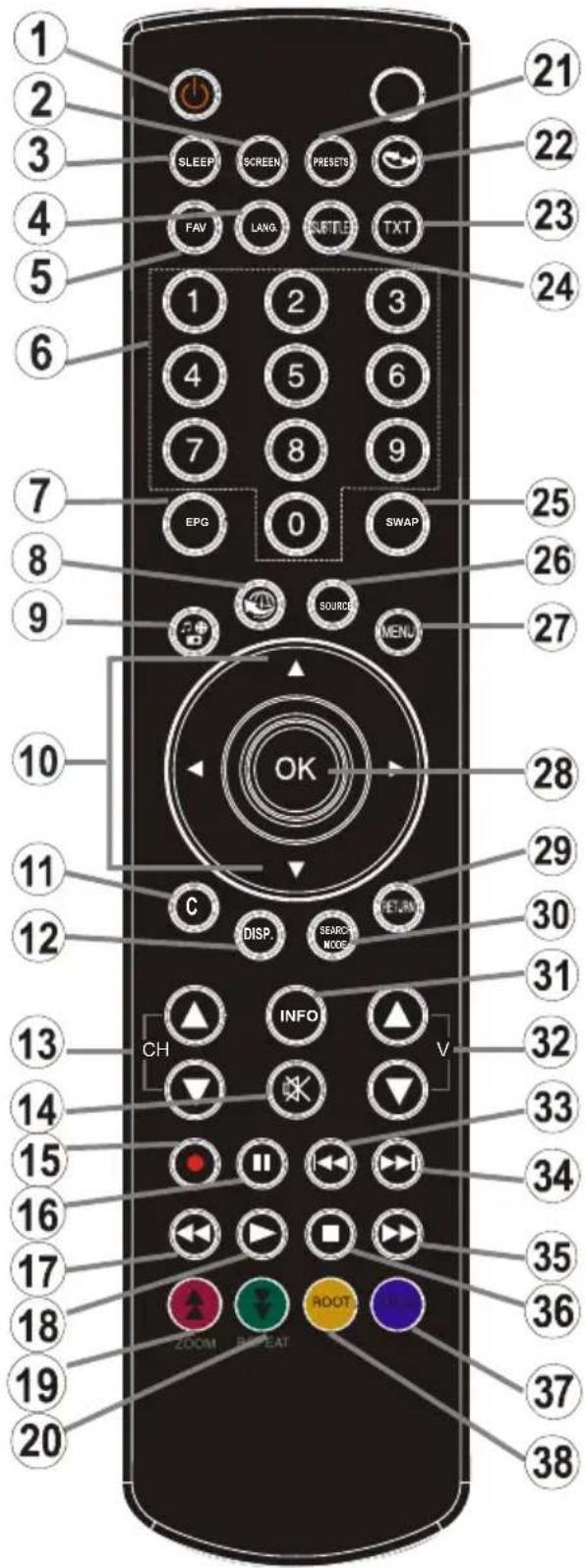

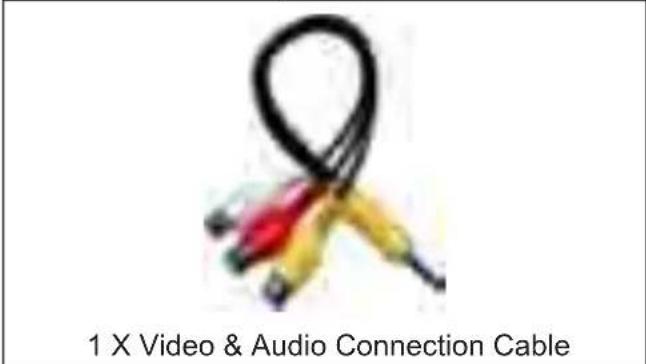

Remote Control LCD TV Instruction Book 1 X Video & Audio Connection Cable Note: You should check the accessories after purchasing. Make sure that each accessory is included. Licence Notication (Optional) Manufactured under license from Dolby Laboratories. TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. The Standby Off/On button doesn´t separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. To exclude the danger of re, the power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations. Electrical device not in the hands of children Never let children use any electrical device unsupervised. Children cannot always recognise possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children, as there is danger of suffocation. Note: The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.English - 49 - Remote Control Buttons SLEEPSCREENPRESETSLANG. FAV EPG SWAP SOURCE

Programme recording15. Pause (in Media Browser mode) / Timeshift 16. recording Rapid reverse (in Media Browser mode)

Play (in Media Browser mode)18. Red button19. Green button / List Schedule (in EPG) / Tag 20. / Untag All (in favourite list) / Play-Slideshow (in Media Browser) / Loop-Shufe (in Media Browser) Picture mode selection / Changes picture mode

Teletext / Mix (in TXT mode)23. Subtitle on-off (in DVB channels)24. Previous programme25. AV / Source selection26. Menu on-off27. Okay (Conrm) / Hold (in TXT mode) / Edit 28. Channel List Exit / Return / Index page (in TXT mode)

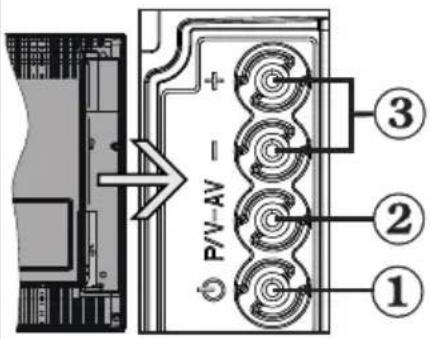

Volume Up/Down buttons Note:You can use +/- buttons to change volume. If you want to change channels, press P/V/ AV button once and then use +/- buttons. If you hold the P/V/ AV button about a few seconds, source OSD will be displayed. Main menu OSD cannot be displayed via control buttons. Viewing the Back side Connections HDMI 1 SPDIF Coax.OUT HDMI 1: HDMI Input1. HDMI Input are for connecting a device that has an HDMI socket. Your LCD TV is capable of displaying High Denition pictures from devices such as a High Denition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection. RF Input

2. connects to an aerial antenna system.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages. SCART

3. input or output for external devices. Connect the SCART cable between SCART socket on TV and

SCART socket on your external device (such as a decoder, a VCR or a DVD player). Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Note: S-VHS signal is supported via the scart socket.English - 51 - PC Input4. is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC. Note: You can use YPbPr to VGA cable(not supplied) to enable YPbPr signal via PC input.

WARNING: You cannot use PC and YPbPr at the same time.

5. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input. Viewing the Connections - Side Connectors CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe 1. to. For more information, see “Conditional Access” section. USB Inputs.

Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to this input. TV control buttons.

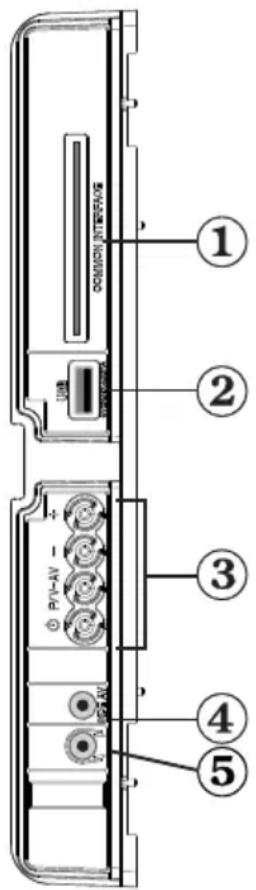

Side audio-video connection4. input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV’s Side AV socket. Afterwards, insert your video cable’s (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match. To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device’s audio cable’s connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match. Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input. Headphone jack is used for connecting an external headphone to the system.

Connect to the HEADPHONE jack to listen to the TV from headphones (optional). Power Connection IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the

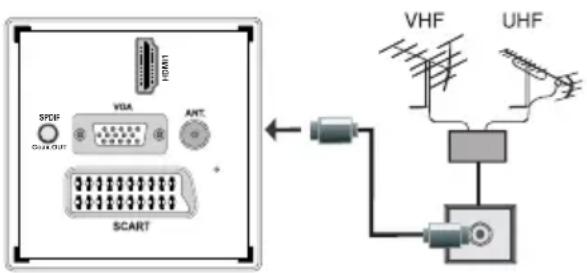

mains. Plug the power cable to the mains socket outlet. Aerial Connection Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.• HDMI 1 SPDIF Coax.OUTEnglish - 52 - Using USB Inputs USB Connection You can connect a USB hard disk drive or USB

memory stick to your TV by using the USB inputs of the TV. This feature allows you to play les stored in a USB drive or record programmes. 2.5” and 3.5” inch (hdd with external power supply)

external hard disk drives are supported. To record a programme, you should rst connect

a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. IMPORTANT ! You may back up your les before making any

connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any le damage or dataloss. It is possible that certain types of USB devices (e.g.

MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. IMPORTANT: The TV supports only FAT32 disk formatting. NTFS format is not supported. If you connect a USB disk with NTFS format, the TV will ask you to format the content. See the section, “Format Disk” in the following pages for more information on disk formatting. Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case. USB Disk Connection

• Plug your USB device to the USB input of the TV. Note: Plug or unplug your USB disk while the TV is switched off. Note: If you are going to connect a USB hard disk drive to the TV set, USB connection cable used between the disk drive and the TV should have a USB logo and should be as short as possible. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more le capacity, you can experience problems with the formatting process. In such a case, you should format the disk with your personal computer and the formatted disk type should be FAT32.

SIDE VIEW USB MEMORY

5Vdc Max:500mA USB CAUTION ! Quickly plugging and unplugging USB devices, • is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself. Do not pull out USB module while playing or

recording a le. Programme Recording To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. IMPORTANT: When using a new USB hard disk drive, it is recommended that you rst format the disk using your TV’s “Format Disk” option. For using recording function, you should connect a

USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed. Recorded programmes are saved into the connected

USB disk in .TS format (MPEG-2 transport stream). If desirable, you can back up / copy these saved recordings into a personal computer. Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these les will not be available to be played on a computer. You can play the recordings only via your TV. An hour of the recordings stored occupies

approximately 2 GB of space. For more information on recording programmes,

see sections “Instant Recording”, “Timeshifting”, “Electronic Programme Guide”, “Recordings Library” or “Recording Timers” in the following parts. Recorded programmes are split into 1GB

(approximately an hour) partitions. Names of the stored recordings’ last three digits indicates this: Such as 4801-000.ts , 4801-001.ts. Recorded programmes are stored in the following

directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number (such as 4801-000.ts). A text (txt) le is created for each recording. This text le includes information such as broadcaster, programme, and recording time. If the writing speed of the connected USB disk is not

sufcient, recording may fail and timeshifting feaute may not be available.English - 53 - CameraAV ConnectionCable (supplied)AV Cable(not supplied)HeadphoneSIDE AV To listen the TV sound from headphones, you • should connect headphones to your TV by using the HEADPHONE jack as illustrated above. Connecting to a DVD Player via HDMI Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections. Note: Not all cables shown in the illustration are supplied. If your DVD player has an

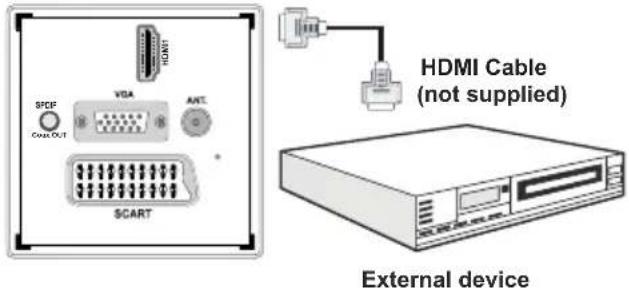

• HDMI socket, you can connect via HDMI for better video and audio quality. HDMI 1SPDIFCoax.OUT External device (not supplied) HDMI Cable

When you connect to DVD player as illustrated above, • switch to the connected HDMI source. See, Input Selection section for more information on changing sources. Connecting to a DVD Player via Component Sockets (YPbPr) or Scart Cable Some DVD players are connected through • COMPONENT SOCKETS (YPbPr). YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied). When the connection is made, switch to YPbPr

source. See, “Input selection” section. To enable audio connection, use the

• VGA/ Component Audio cable. First, plug single jack of the cable to the TV. Afterwards, insert your DVD player’s audio cable’s connectors into the plural part of the VGA/Component audio connection cable (see illustration below). Colours of the connected jacks should match ( RED & WHITE). AV Connection Cable (supplied) Audio Cable (not supplied) To DVD Player's Audio Outputs. SIDE AV Recordings of HD programmes can occupy bigger • size on the USB disk depending on the broadcast’s resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes. Do not plug out the USB/HDD during the recording.

This may harm the connected USB/HDD. Multipartition HDDs are supported until two

partitions. Some stream packets may not be recorded because

of signal problems, so sometimes video may freezes during playback. Record, Play, Pause, Display (for PlayListDialog)

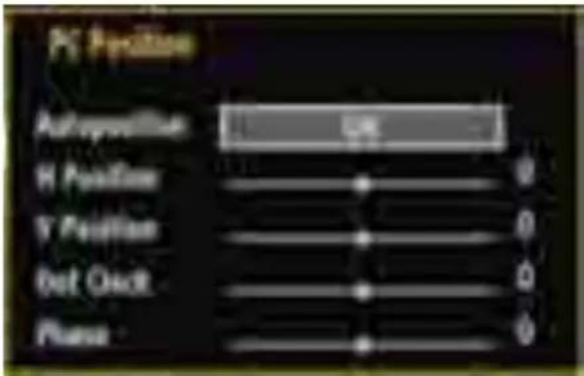

keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback. Connecting the LCD TV to a PC For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LCD TV. When the connection is made, switch to PC source. See “Input selection” section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts

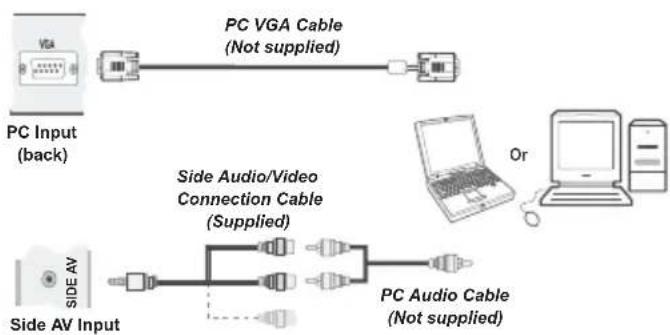

PC Input (back) Side AV Input PC VGA Cable (Not supplied) PC Audio Cable (Not supplied) Side Audio/Video Connection Cable (Supplied)

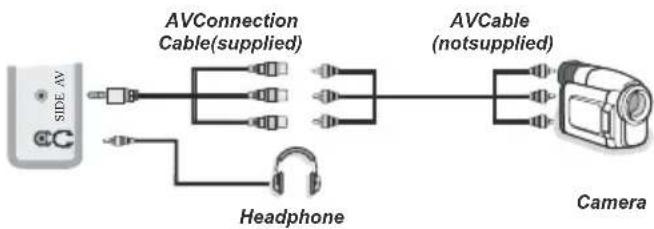

SIDE AV Using Side AV Connectors You can connect a range of optional equipment to your LCD TV using side connectors of the TV. For connecting a camcorder or camera , you should

use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV’s AV IN socket (side). Afterwards, insert your camera cable’s (not supplied) connectors into the plural part of the video/ audio connection cable. Colours of the connected jacks should match. See illustration below. Afterwards, you should switch to

• Side AV source. See the section Input selection in the following sections for more information.English - 54 - When the connection is made, switch to • YPbPr source. See, Input selection section. You may also connect through the

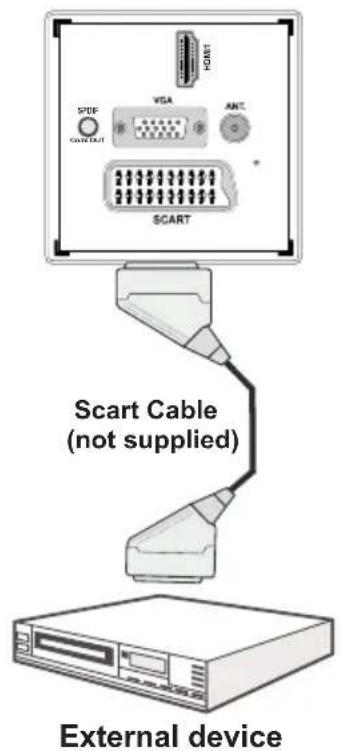

• SCART input. HDMI 1SPDIFCoax.OUT Scart Cable(not supplied) External device Note• : These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods. Remote Control Handset Inserting Batteries Remove the battery cover located on the back of • the handset by gently pulling backwards from the indicated part. Insert two

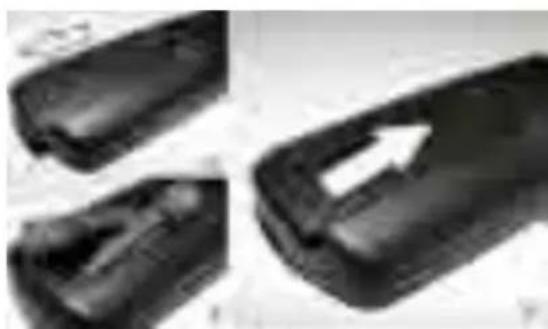

• AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover. Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft. Switching On/Off To Switch the TV On Connect the power cord to the 220-240V AC 50 Hz. • Then the standby LED lights up.(The led will blink during the standby On/Off) To switch on the TV from standby mode either:

• ” button, - or + button on the TV. The TV will then switch on. Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected. By either method the TV will switch on. To Switch the TV Off Press the “• ” button on the remote control or press the “ ” switch on the TV, so the TV will switch to standby mode. To power down the TV completely, unplug the

power cord from the mains socket. Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE” button on your remote control consecutively for directly changing sources. Note: YPbPr mode can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (not supplied).English - 55 - Basic Operations You can operate your TV using both the remote control and onset buttons. Operation with the Buttons on the TV Main menu OSD cannot be displayed via control buttons. “+/-” buttons will function as volume up/down as default. Even if you set other functions for these buttons, “+/-” buttons will perform as default after a short while. Volume Setting Press “• P/V/AV” button once and then use “+/-” buttons to increase or decrease volume, so a volume level scale (slider) will be displayed on the screen. While Tv is on, +/- button can use as volume + or volume - as default. Programme Selection Press “• P/V/AV” button once and then use “+/-” buttons to change channel. By pressing “+/-” button,you can select the next or previous programme. AV Mode Hold the “• P/V/AV” button, source OSD will be displayed in a few second. Operation with the Remote Control The remote control of your TV is designed to control • all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV. Volume Setting Press • V “ ” button to increase the volume. Press V “ ” button to decrease the volume. A volume level scale (slider) will be displayed on the screen. Programme Selection (Previous or Next Programme) Press • CH “ ” button to select the previous programme. Press

• CH “ ” button to select the next programme. Programme Selection (Direct Access) Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second numeric button, only the rst digit programme will be displayed. Press directly the programme number to reselect single digit programmes. Viewing Electronic Programme Guide (EPG) You can view the electronic programme guide (EPG) to view information about available programmes.To view the EPG menu please press EPG button on the remote control. Press “

• ”/“ ” buttons to navigate through channels. Press “• ”/“ ” buttons to navigate through the programme list. EPG menu displays available information on all

channels. Please note that event information is updated

automatically. If there are no event information data available for channels, EPG will be displayed with blanks. Down/up/left/right: Navigate. OK (Options): views/records or sets timer for future programs. INFO (Event Details): Displays the programmes in detail. Green button: Programme schedule will be listed Yellow button: Display EPG data in accordane with timeline schedule Blue button (Filter): Views ltering options. (RECORD): the TV will start to record the selected progamme. You can press again to stop the recording. Down/up/left/right: Navigate. Red button (Prev Time Slice): Displays the programmes of previous time slice.English - 56 - Green button (Next Time Slice): Displays the programmes of the next time slice. Yellow button (Prev Day): Displays the programmes of previous day. Blue button (Next day): Displays the programmes of the next day. Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons. OK (Options): views/records or sets timer for future programs. TXT button (Filter): Views ltering options. INFO (Details): Displays the programmes in detail. (RECORD): the TV will start to record the selected progamme. You can press again to stop the recording. Red button (Prev Day): Displays the programmes of previous day. Green button (Next day): Displays the programmes of the next day. Yellow button (Zoom): Expands programme information. Blue button (Filter): Views ltering options. INFO (Details): Displays the programmes in detail. Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons. OK (Options): views/records or sets timer for future programs. TXT (Search): Displays “Guide Search” menu. SUBTTL: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed. SWAP (Now) : Shows the current programme. Recording via EPG Screen IMPORTANT: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. (RECORD): the TV will start to record the selected progamme. You can press again to stop the recording. Note: Switching to a different broadcast or source is not available during the recording. / : Page left / Page right. Programme Options In EPG menu, press the OK button to enter the “Event Options” menu. Select Channel In EPG menu, using this option, you can switch to the selected channel. Record / Delete Record Timer IMPORTANT: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. After you have selected a programme in EPG menu,

press the OK button and and Options screen will be displayed. Select “Record” option and press the OK button. After this operation, a recording becomes set to the selected programme. To cancel an already set recording, highlight that

programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled. Note: You cannot switch to any other channel or source while there is an active recording on the current channel. Set Timer / Delete Timer After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select “Set Timer on Event” option and press OK button. You can set a timer for future programmes. To cancel an already set reminder, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled. Note: It is not possible to record or set timer for two or more individual events at the same time interval.English - 57 - First Time Installation IMPORTANT: Ensure that the aerial is connected before switching on the TV for the first time installation. When the TV is operated for the rst time, installation wizard will guide you through the process. First, you will be asked to set and conrm a PIN number. Selected PIN number cannot be 0000. Enter a PIN number and conrm it by entering once more. Press OK button to continue. If the two PIN numbers match, your master PIN number will be set. Next, language selection screen will be displayed: Use “• ” or “ ” buttons to select your language and press OK button to set selected language and continue. After selecting the language, “

• Welcome!” screen will be displayed, requiring you to set Country,Teletext Language and Scan Encrypted options. By pressing “• ” or “ ” button, select the country you want to set and press “ ” button to highlight Teletext Language option. Use “ ” or “ ” button to select desired Teletext Language. Press “

• ” button after setting Teletext Language option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations.Afterwards select the desired Teletext Language. Press

• OK button on the remote control to continue and the following message will be displayed on the screen: To select the “Yes” or “No” option, highlight the item by using “ ” or “ ” buttons and press OK button. Afterwards, the following OSD will be displayed on the screen and the digital television will search for digital terrestrial TV broadcasts Note: You can press MENU button to cancel. After all the available stations are stored, Channel

List will be displayed on the screen. If you like the sort channels, according to the LCN,please select “Yes” and than press “OK”. Press • OK button to quit channel list and watch TV.English - 58 - Installation Press MENU button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed. Select Automatic Channel Scan (Retune) by using “ ”/“ ” button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select Digital Aerial, Analogue or Digital Aerial- Analogue tuning using “ ”/“ ” and OK buttons. Auto Channel Scan (Retune) Menu Operation Digital: Searches and stores aerial DVB stations. Analogue: Searches and stores analogue stations. Full: Searches and stores both analogue and aerial DVB stations. Whenever you select an automatic search type and

press OK button, a conrmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using .“ ” or “ ” and OK button. After auto channel scan type is set and selected

and conrmed, installation process will start and progress bar will move along. Press MENU button to cancel process. In such a case, located channels are not stored. Manual Tuning HINT: This feature can be used for direct broadcast entry. Select

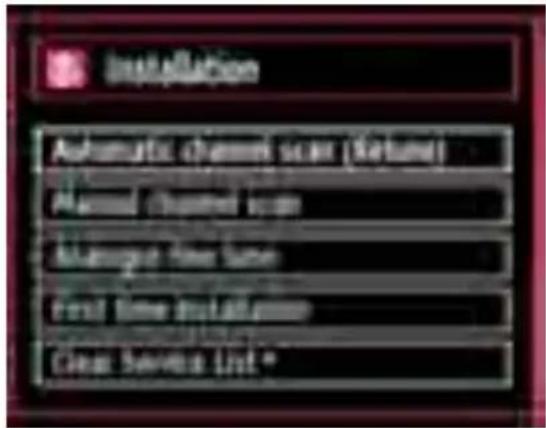

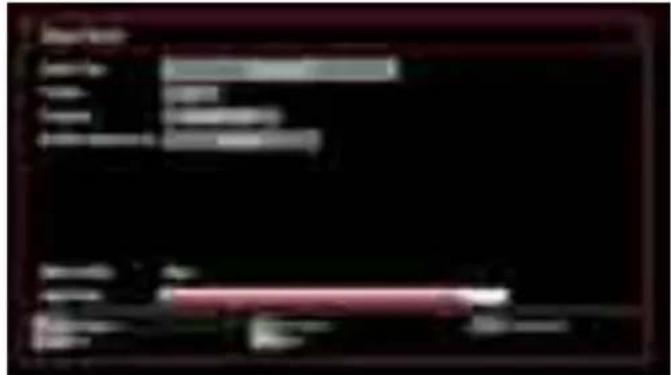

• Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed. Select the desired

• Search Type using “ ” or “ ” button. Manual search options will change accordingly. Use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. You can press MENU button to cancel. Digital Manual Search In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital Aerial, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search. Analogue Manual Search After selecting search type as analogue, you can use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored. Analogue Fine Tune Select • Analogue Fine Tune from the Installation menu by using “ ” or “ ” and OK buttons. Analogue ne tune screen will be displayed. Analogue Fine Tune feature will not be available if there are no analog channels, digital channels and external sources stored. Press

• OK button to proceed. Use “ ” or “ ” button to set Fine Tune. When nished, press OK button again. First Time Installation Select First Time Installation line and press OK button. Enter the PIN number you have previously set during the rst time installation. If the correct PIN number is entered, installation process will start. See the section, “First Time Installation” at the beginning of instruction book for more information on the process.English - 59 - Clear Service List (*) (*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored. Press “ ” or “ ” button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen: Press OK to cancel. Select Yes by pressing “ ” or “ ” button and press OK to delete all of the channels. Managing Stations: Channel List The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press

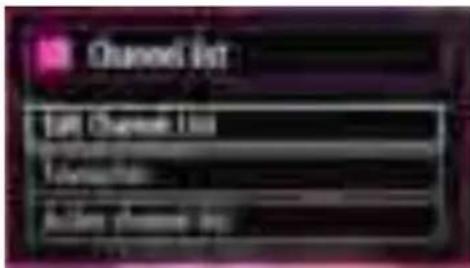

• MENU button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select Edit Channel List. Operating the Channel List Press “• ” or “ ” button to select the channel that will be processed. Press “ ” or “ ” button to select a function on Channel List menu. Use

• CH “ ” / CH “ ” buttons to move page up or down. Press

• BLUE button to view ltering options. Press

• MENU button to exit. Moving a Channel First select the desired channel. Select Move option • in the channel list and press OK button. Edit Number screen will be displayed. Enter the

desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK. Press

• OK button to process. Selected channel is now moved. Deleting a Channel You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel. Select the channel that you want to delete and select

Delete option. Press OK button to continue. A warning screen will appear. Select

• YES to delete, select No to cancel. Press OK button to continue. Renaming a Channel Select the channel that you want to rename and • select Edit Name option. Press OK button to continue. Pressing “

• ” or “ ” button moves to the previous/ next character. Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed. When nished, press

• OK button to save. Press MENU to cancel. Locking a Channel You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel. Select the channel that you want to lock and select

Lock option. Press OK button to continue. You will be asked to enter parental control PIN that

you have previously dened during the rst time installation. Press • OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.English - 60 - Managing Stations: Favourites You can create a list of favourite programmes. Press

• MENU button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents. Select

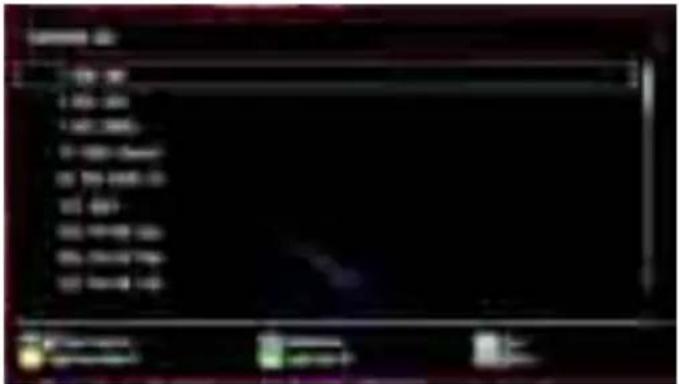

• Favourites to manage favourite list. Use “ ”/“ ” and OK buttons to select Favourites. You can set various channels as favourites so that

only the favourite channels are navigated. Select a channel by using “• ” or “ ” button. Press OK button to add selected channel to favourites list. Press OK button again to remove. Button Functions OK• : Add/remove a station. YELLOW

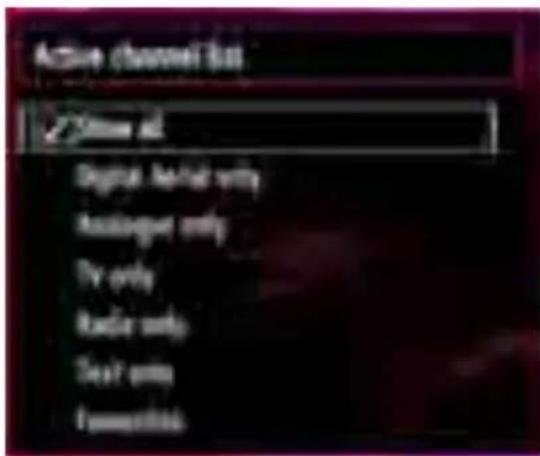

• : Displays ltering options. Managing Stations: Sorting Channel List You can select broadcasts to be listed in the channel list. To display specic types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “ ” or “ ” button. Press OK button to continue. You can select a broadcast type option from the list by using “ ” /“ ” and OK buttons. On-Screen Information You can press INFO button to display on-screen information. Details of the station and current programme will be displayed on the information banner. The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number. Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks. If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel If you have forgotten the PIN number you have set during the rst time installation, you should use the master PIN code, 4725. “Enter PIN” will be displayed on the screen in such a case: Media Playback Using Media Browser If the USB stick is not recognized after power off/on or First Time Installation, rst, plug the USB device out and power off/on the TV set. Plug the USB device in again. To display Media Browser window, press either “MENU” button on the remote control and then select Media Browser by pressing “ ” or “ ” button. Press OK button to continue. Media Browser menu options will be displayed. Also, when you plug USB devices, media browser screen will be displayed automatically: You can play music, picture and video les from the connected USB memory stick. Use “ ” or “ ” button to select Videos, Photos, Music or Settings.English - 61 - Viewing Videos via USB When you select Videos from the main options, available video les will be ltered and listed on this screen. You can use “ ” or “ ” button to select a video le and press OK button to play a video. If you select a subtitle le and press OK button, you can select or deselect that subtitle le. The following menu will be displayed while playing a video le: Jump (Numeric buttons):The TV will jump to the le starting with the letter you input via the numeric buttons on your remote control. Play This (OK button) : Plays the selected le. Down/up: Navigate. Play ( button) : Plays all media les starting with the selected one. Lang (Play Preview): Displays selected le in a small preview screen. RED button: Sorts les by name. YELLOW button: Toggles viewing style. Loop/Shufe (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shufe. Press once more to enable only Shufe. Press again to enable all. You can follow the disabled functions with the change of the icons. BLUE button: Changes media type. Play ( button): Starts the video playback. Stop ( button): Stops the video playback. Pause ( button): Pause the video playback. Rewind ( button): Goes backward. Forward ( button): Goes forward. Subtitle/Audio (LANG. button): Sets subtitle/Audio. Jump (GREEN button): Jumps to time. Use numeric buttons to type the desired time and press GREEN button again to proceed. Yellow: Opens subtitle time correction menu Press SWAP button to switch back to previous menu. Viewing Photos via USB When you select Photos from the main options, available image les will be ltered and listed on this screen. Jump (Numeric buttons):Jump to selected le using the numeric buttons. OK: Views the selected picture in full screen. Down/up: Navigate. Slideshow ( button): Starts the slideshow using all images. GREEN button: Views images in thumbnails. RED button: Sorts les by date. YELLOW button: Toggles viewing style. BLUE button: Changes media type. Slideshow Options Pause ( button) : Pauses the slideshow. Continue ( button) : Continues the slideshow. Loop/Shufe (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shufe. Press once more to enable only Shufe. Press again to enable all. You can follow the disabled functions with the change of the icons.English - 62 - Previous/Next (Left/Right buttons): Jumps to previous or next le on slideshow. Rotate (Up/Down buttons): Rotates the image using up/down buttons. RETURN (Exit): Back to le list. INFO: Displays help screen. Playing Music via USB When you select Music from the main options, available audio les will be ltered and listed on this screen. Down/up: Navigate. Play ( button) : Plays all media les starting with the selected one. Stop ( button) : Stops playback. Pause ( button) : Pauses the selected playback. RED: Sorts les by Title,Artist or Album. Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort les again by pressing RED button. Loop/Shufe (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shufe. Press once more to enable only Shufe. Press again to enable all. You can follow the disabled functions with the change of the icons. If you start the playback with the button and activate the symbol, the TV will play the next music/video le. The playback will proceed accordingly and when the end of the list is reached, it will be played again from the beginning (loop function). If you start the playback with the OK button and activate the symbol, the same music or video le will be played in a loop (repeat function). If you start the playback with or OK button and activate the symbol, music or video le will be played in a shufe. If you start the playback with or OK button and activate symbols, music or video le playback will continue randomly and the random playback will continue. 0..9 (Numeric buttons): The TV will jump to the le starting with the letter you input via the numeric buttons on your remote control. Play This (OK button) : Plays the selected le. Previous/Next (Left/Right buttons) : Jumps to previous or next le to play. YELLOW: Toggles viewing style. BLUE: Changes media type. Recordings Library IMPORTANT: To view recordings library, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. To view the list of recordings, select “Recordings Library” and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library. RED button (Delete) :Erases the selected recording. GREEN button (Edit): Makes changes on the selected recording. BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options. OK button: Activates play options menu:

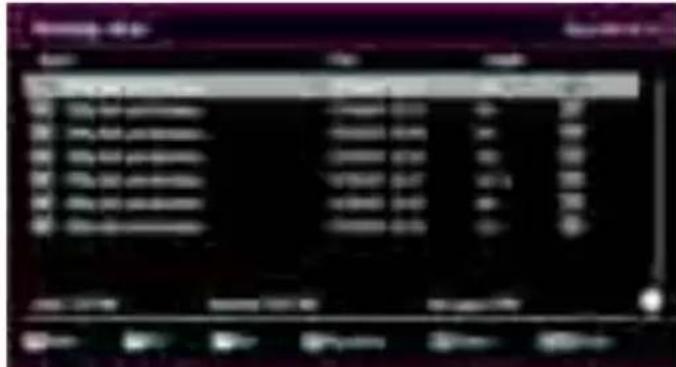

• Play from start: Plays the recording from the beginning.

• Resume: Recommences the recordings.

• Play from offset: Species a playing point. Note: Viewing main menu and menu items will not ve available during the playback. (Resume): Recommences the recordings. INFO (Details): Displays the short extended programmes in detail.English - 63 - Media Browser Settings You can set your Media Browser preferences by using the Settings dialog. Press “ ” or “ ” button to highlight an item and use “ ” or “ ” button to set. View Style: Sets default browsing mode. Music FF/FR Speed: Sets forwarding/advancing speed. Slide Show Interval: Sets slide show interval time. Show Subtitle: Sets subtitle enabling preference. Subtitle Language: Sets the preferred subtitle language for video les. Subtitle Position: Sets subtitle position as up or down. Subtitle Font Size: Sets subtitle font size (max. 54pt). Timeshift Recording IMPORTANT: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. Press

• (PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and

simultaneously recorded to the connected USB disk (*). Press (PLAY) button again to watch the paused programme from the stopped moment. This playback is performed in x1 playback speed.

You will see the timeshift gap between the real and the timeshifted programme in the info bar. Use

• / (PREVIOUS/NEXT) buttons to move forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be quitted and you will switch back to watching normal broadcast. Press

• (STOP) button to quit timeshifting mode. (*) Similtaneous timeshifting recording’s duration depends on your connected USB disk’s file size and defined Max. Timeshift in the Recordings Conguration menu. See the section, “Recordings” for more information on setting Max. Timeshift. Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting. Instant Recording IMPORTANT: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. Press

• (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen: Record OSD will then be displayed for a short time • and the current event will be recorded. You can press

• (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press (STOP) button to cancel instant recording. The following OSD will be displayed: Select Yes by using “ ” or “ ” / OK buttons to cancel instant recording. Note: Switching to a different broadcast or source; and viewing Media Browser are not available during the recording. Watching Recorded Programmes In the main menu, use “ ” or “ ” buttons to select Media Browser. Highlight Recordings Library item by using “ ” or “ ” button and press OK button to enter. Recordings Library will then be displayed.English - 64 - IMPORTANT: To view recordings library, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. Select a recorded item from the list (if previously recorded) by using “ ” / “ ” button. Press OK button to view Play Options. Select an option by using “ ” / “ ” or OK buttons. Available playback options: Play from start: Plays the recording from the • beginning. Resume: Recommences the recordings.

Play from offset: Species a playing point.• Note: Viewing main menu and menu items will not be available during the playback. Press (STOP) button to stop a playback and return to return to Recordings Library. Slow Forward If you press (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed. Changing Image Size: Picture Formats You can change the aspect ratio (image size) of • the TV for viewing the picture in different zoom modes. Press

• SCREEN button repeatedly to change the image size. Available zoom modes are listed below. Auto When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source (if available). The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device. Note: Auto mode only will be available in HDMI, YPbPr and DTV sources. 16:9 This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to ll the wide TV screen. For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape. Subtitle This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen. Note: You can shift to screen up or down by pressing “ ” / “ ” buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle. 14:9 This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen. 14:9 Zoom This option zooms to the 14:9 picture.English - 65 - 4:3 Use to view a normal picture (4:3 aspect ratio) as this is its original size. Panoramic This stretches the left and right sides of a normal picture (4:3 aspect ratio) to ll the screen, without making the picture appear unnatural. The top and bottom of the picture are slightly cut off. Cinema This zooms up the wide picture (16:9 aspect ratio) to the full screen. Conguring Picture Settings You can use different picture settings in detail. Press MENU button and select the Picture icon by using “ ” or “ ” button. Press OK button to view Picture Settings menu. Operating Picture Settings Menu Items Press “• ” or “ ” button to highlight a menu item. Use “• ” or “ ” button to set an item. Press • MENU button to exit. Picture Settings Menu Items Mode: For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema,Game,Dynamic and Natural. Contrast: Sets the lightness and darkness values of the screen. Brightness: Sets the brightness value for the screen. Sharpness: Sets the sharpness value for the objects displayed on the screen. Colour: Sets the colour value, adjusting the colors. Colour Shift: Adjust the desired colour tone. Colour Temp: Sets the desired colour tone. Setting Cool option gives white colours a slight blue stress. For normal colours, select Normal option. Setting Warm option gives white colours a slight red stress. Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off. Game Mode: When Game Mode is set to On, specic game mode settings, which are optimized for better video quality, will be loaded. Note: When Game Mode is on, some items in the Picture Settings menu will be unavailable to be set. Picture Zoom:Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema. Reset: Resets the picture settings to factory default settings. While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode. PC Picture Settings For adjusting PC picture items, do the following: Press “ ” or “ ” button to select Picture icon. Picture menu appears on the screen. Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical to settings dened in TV picture menu under “Main Menu System”. Sound,Settings and Source settings are identical to the settings explained in main menu system. PC Position: Select this to display PC position menu items.English - 66 - Autoposition: Automatically optimizes the display. Press OK to optimize. H Position: This item shifts the image horizontally to right hand side or left hand side of the screen. V Position: This item shifts the image vertically towards the top or bottom of the screen. Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method. Conguring Sound Settings Sound settings can be congured according to your personal preferences. Press MENU button and select the Sound icon by using “ ” or “ ” button. Press OK button to view Sound Settings menu. Operating Sound Settings Menu Items Press “• ” or “ ” button to highlight a menu item. Use “• ” or “ ” button to set an item. Press • MENU button to exit. Sound Settings Menu Items Volume: Adjusts volume level. Equalizer: Press OK button to view equalizer sub- menu. In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User. Balance: This setting is used for emphasizing left or right speaker balance. Headphone: Sets headphone volume. Sound Mode: You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode. AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes). Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set. Digital Out: Sets digital out audio type. Conguring Your TV’s Settings Detailed settings can be configured to suit your personal preferences. Press MENU button and select Settings icon by using

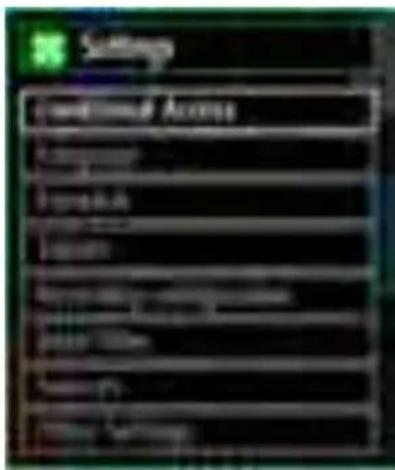

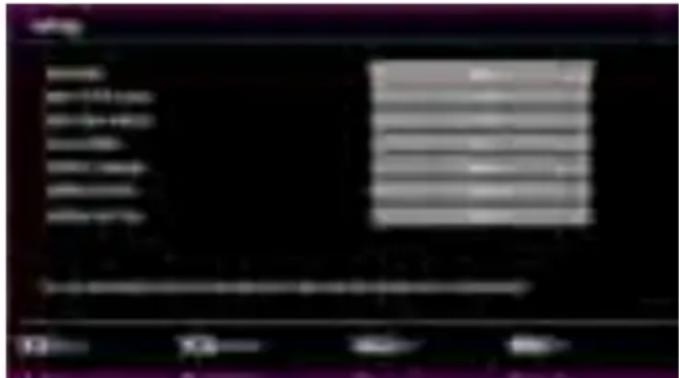

• MENU button to exit. Settings Menu Items Conditional Access: Controls conditional access modules when available. Language: Congures language settings. Parental: Congures parental settings. Timers: Sets timers for selected programmes. Date/Time: Sets date and time. Sources: Enables or disables selected source options. Other Settings: Displays other setting options of the TV set. Using a Conditional Access Module IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF. In order to watch certain digital channels, a conditional

access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV. Obtain the Conditional Access Module (CAM) and

the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure. Insert the CAM and then the viewing card to the

slot that is located in the terminal cover at the rear side of the TV. The CAM should be correctly inserted, it is

impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted. Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated. When no module is inserted, “

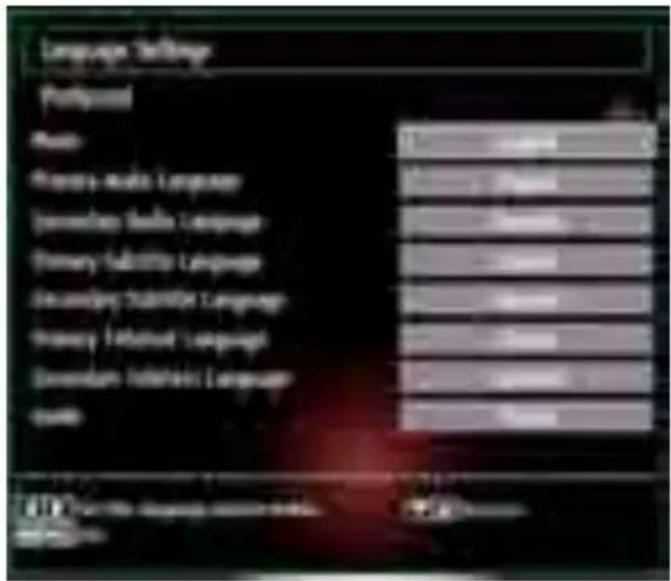

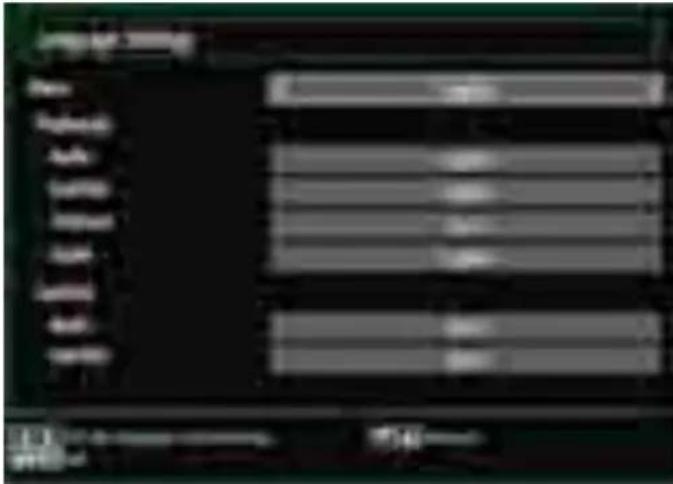

• : Sets the subtitle language. Selected language will be seen in subtitles. Teletext

• : Sets teletext language. Guide

• : Sets the preferred Guide language. Current (*) (*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed. Audio

• : Changes the audio language for the current channel. Subtitle

• : Sets the subtitle language for the current channel. Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below.English - 68 - Language Settings In the conguration menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen: Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “ ” or “ ” button to set. Notes: System Language determines the on-screen menu

language. Audio Language is used for selecting the soundtrack

of a channels. Primary settings are the rst priority when multiple • choices are available on a broadcast. Secondary settings are the alternatives when the rst options are not available. Parental Control To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system. This function enables or disables the menu protection system and allows the PIN code to be changed. Press MENU button and select the Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Parental and press OK to continue: To display parental lock menu options, PIN number should be entered. Factory default PIN number is 4725. After coding the correct PIN number, parental settings menu will be displayed: Parental Settings Menu Operation Select an item by using “• ” or “ ” button. Use “• ” or “ ” button to set an item. Press• OK button to view more options. Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system. Maturity Lock (optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast. Default value is set to Age 18. Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby Off/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby Off/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible. Set PIN: Denes a new PIN number. Use numeric buttons to enter a new pin number. You will need to code your new pin a second time for verication purposes. IMPORTANT: The factory default pin number is 4725, if you change the pin number make sure you write it down and keep it safe. Timers To view Timers menu, press MENU button and select Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Timers and press OK to continue: Setting Sleep Timer This setting is used for setting the TV to turn off after a certain time. Highlight Sleep Timer by using “

• ” or “ ” button. Use “• ” or “ ” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.English - 69 - Setting Programme Timers You can set programme timers for a particular programme using this feature. Press “ ” button to set timers on an event. Programme timer function buttons will be displayed on the screen. Adding a Timer Press • YELLOW button on the remote control to add a timer. The following menu appears on the screen: Network Type: This feature is unavailable to be set. Timer Type: You can select timer type as Record or Timer. Channel: Changes channel by using “ ” or “ ”. Record Type: This item is unavailable to be set. Date: Enter a date using the numeric buttons. Start: Enter a starting time using the numeric buttons. End: Enter an ending time using the numeric buttons. Duration: Displays duration between the starting and ending time. Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use “ ” or “ ” buttons to select an option. Change/Delete: Sets the change/delete permission. Playback: Sets the playback permission and parental settings. Press

• GREEN button to save the timer. Press RED button to cancel. Editing a Timer Select the timer you want to edit by pressing “• ” or “ ” button. Press • GREEN button. Edit Timer menu screen will be displayed. When nished with editing, press

• GREEN button to save. You can press MENU button to cancel. Deleting a Timer Select the timer you want to delete by pressing “• ” or “ ” button. Press • RED button. Select

• YES by using “ ” or “ ” buttons to delete the timer. Select NO to cancel. Recording Conguration Select Recording Conguration item in the Settings menu to congure recording settings. The following menu is displayed for recording conguration. The following options are available for adjustments: Start Early (*) You set recording timer’s starting time to start earlier by using this setting. (*) Available only for EU country options. End Late (*) You set recording timer’s starting time to start later by using this setting. (*) Available only for EU country options. Max Timeshift This setting allows you to set the maximum time allowed for timeshifting. Duration options are approximate and can change accordingly, depending on the broadcast received. Format Disk IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If you want to delete all les on the connected USB

hard disk drive or memory stick, you can use Format Disk option. Also, if your USB disk malfunctions, you can try

formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case. Press

• OK button while the Format Disk option is highlighted. A menu will appear on the screen, requiring you to enter a pin number. If you have not changed the pin number, the factory default is 0000. After you enter the pin, a pop-up menu appears on the screen to ensure that the hard disk should be formatted, select “YES” and press OK to format the hard disk. Select “NO” and press OK to cancel. Ensure you back up important recordings before you format the USB disk unit. Hard Disk InfoEnglish - 70 - To view the details about the USB disk, highlight Hard Disk Info by using “ ” or “ ” key and press OK. USB disk information will be displayed: Conguring Date/Time Settings Select Date/Time in the Settings menu to congure Date/Time settings. Press OK button. Use “• ” or “ ” buttons to highlight Date/Time. Date,Time,Time Settings Mode and Time Zone Setting will be available. Use “ ” or “ ” buttons to highlight the Time Settings Mode. Time Settings Mode is set using “ ” or “ ” buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

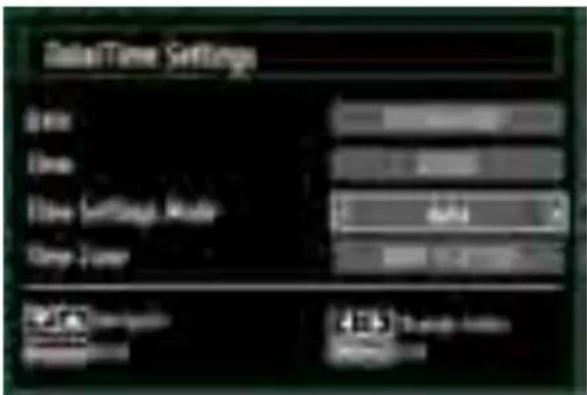

• By pressing “ ” or “ ” buttons select Time Zone. Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone. Changes are automatically stored. Press

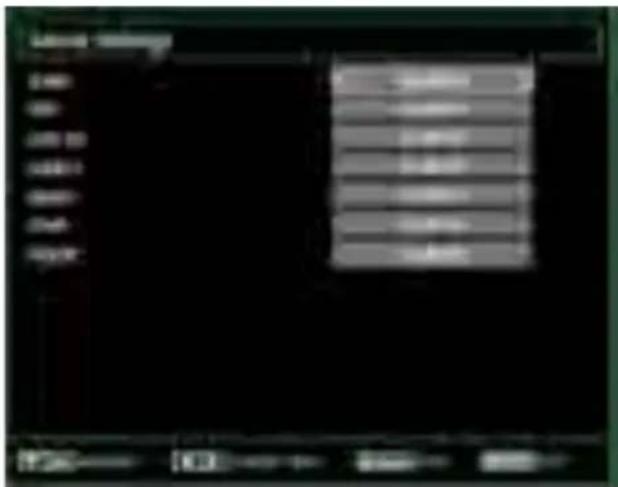

• MENU to exit. Conguring Source Settings You can enables or disable selected source options. The TV will not switch to the disabled source options when SOURCE button is pressed. Select • Sources in the Settings menu and press OK button. Press“

• ” or “ ” buttons to select a source. Use “• ” or “ ” button to enable or disable the selected source. Changes are automatically stored. Note: YPbPr mode can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (not supplied). Conguring Other Settings To view general conguration preferences, select Other Settings in the Settings menu and press OK button. Operation Press “• ” or “ ” buttons to select an item. Use “• ” or “ ” button to set an option. Press• OK button to view a sub-menu. Menu Timeout: Changes timeout duration for menu screens. Scan Encrypted: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search. Backlight (optional): This setting controls the backlight level and it can be set to Auto, Maximum, Minimum, Medium and Eco Mode (optional). Blue Background: Activates or deactivates blue background system when the signal is weak or absent. Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.English - 71 - You can enable or disable automatic upgrade by setting Automatic Scanning option. You can manually search for new software by selecting Scan for upgrade. Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals. Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track. Auto TV Off: You can set the timeout value of auto off feature.After the timeout value is reached and the Tv is not operated for selected time , the TV will go off. Standby Search (optional): Use “ ” or “ ” button to select Standby Search and then press “ ” or “ ” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Other Features Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or “INFO” button is pressed. Mute Function: Press “ ” button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the rst one is pressing the “ ” button and the second one is increasing the volume level. Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game. Displaying Subtitles: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function. If “Subtitle” is On, pressing the “TXT” button causes the following warning message display on the screen (** for UK only) Teletext Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted. Teletext function buttons are listed below: “TXT” Teletext / Mix : Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode. “RETURN” Index: Selects the teletext index page. “INFO”Reveal: Shows hidden information (e.g. solutions of games). “OK” Hold: Holds a text page when convenient. Press again to resume.

”/“ ” Subcode Pages : Selects subcode pages if available when the teletext is activated. CH “ ” / CH “ ” and numbers (0-9): Press to select a page. Note: Most TV stations use code 100 for their index pages. Coloured Buttons (RED/GREEN/YELLOW/ BLUE) Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “ ” or “ ” commands will request the next or previous page respec tively. Tips Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they mayEnglish - 72 - damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part. Image Persistence: Please note that ghosting may occur while displaying a persistent image.LCD TVs’ image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods. No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet. Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals. No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected. Sound: You can not hear any sound. Did you perhaps interrupt the sound, pressing the button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu. Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV. Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device Recording Unavailable: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off. USB Is too Slow: If “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.English - 73 - Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1360x768. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen. Index Resolution Frequency

1360x768 60 Hz Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) Source Supported Signals Available EXT (SCART ) PAL 50/60 O NTSC 60 O RGB 50 O RGB 60 O Side AV PAL 50/60 O NTSC 60 O YPbPr 480I 60Hz O 480P 60Hz O 576I 50Hz O 576P 50Hz O 720P 50Hz O 720P 60Hz O 1080I 50Hz O 1080I 60Hz O 1080P 50Hz O 1080P 60Hz O HDMI1 480I 60Hz O 480P 60Hz O 576I 50Hz O 576P 50Hz O 720P 50Hz O 720P 60Hz O 1080I 50Hz O 1080I 60Hz O 1080P 50Hz O 1080P 60Hz O 1080P 24Hz O (X: Not Available, O: Available) In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.English - 74 - Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. 24Hz 25Hz 30Hz 50Hz 60Hz 480i

• Your TV is capable of nding and updating new software upgrades over broadcast channels.

• For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.

• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.

• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version. Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is nished successfully. During reboot TV makes nal initializations. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to x the problem for you. Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause yourTVnottore-openagainandcanonlybexedbyservicepersonnel.English - 76 - Specications TV BROADCASTING PAL/SECAM B/G D/K K’ I/I’ L/L’ RECEIVING CHANNELS VHF (BAND I/III) UHF (BAND U) HYPERBAND

• NTSC/PAL playback (according to disc content)

• LPCM audio via coaxial digital audio output. (optional)

• Multi-Audio (up to 8) support (According to disc content)

• Multi-Subtitle (up to 32) support (According to disc content)

• 8 level parental control

• Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)

• Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)

• Frame by frame forward playback.

• This DVD player may not support some MP3 recordings due to differences in recording formats or disc type.

• Please read the owner’s manual about MP3 playback.

• CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design.

• DVD-R/RW discs recorded by DVD-Video method can be played . Some DVD-R/RW discs may be incompatible due to laser pick-up and disc design.

• Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs.

• For proper operation, only 12 cm discs must be used.English - 78 - Safety Information CAUTION DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed. CLASS 1 LASER PRODUCT

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock of persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Notes on Discs On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like glue remove before using it.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.

• After playing, store the disc in its case. On cleaning

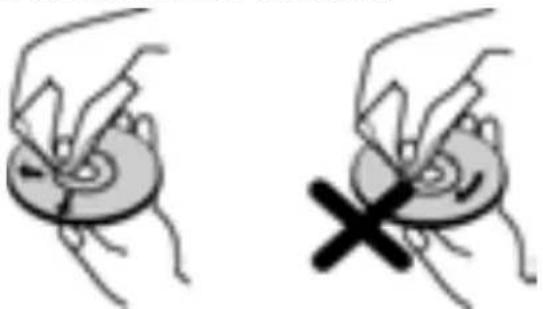

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. Licence Notication

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited. How to Watch a DVD When placing a disc into the loader, labeled side of the disc should be on the front: When TV set is turned on, rst switch to DVD source by using the SOURCE button on the remote control. Press play on the remote control, or directly press play button at the front panel. If there is no disc inside the loader, place a DVD rst and press play.English - 79 - DVD Control Panel Buttons A. Disc loader B. Play / Pause Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as “button select” (selects the highlighted item in menu) if this is not prohibited by the disc. C. Stop / Eject Stop playing disc / Eject or Load the disc Note:

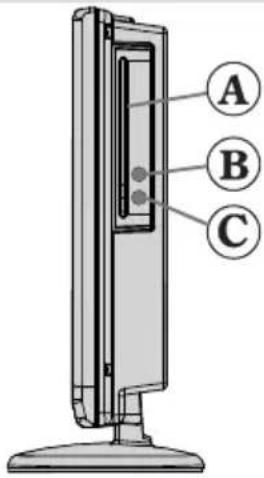

• You cannot eject the disc via the remote control.

VEnglish - 80 - General Operation You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons. Buttons on the Remote Control DVD Playback Movie Playback Picture Playback Music Playback Play Play Play Play Pause Pause Pause Pause Stop Stop Stop Stop / Skip backward/forward Skip backward/forward Previous / Next Previous / Next

Highlights a menu item. / Shifts the zoomed picture down or up (if available). / Fast reverse / Fast forward C Clears digit (if available). DISPLAY Displays time / Views main setup menu INFO Time counter mode selection (during playback). Press repeatedly to switch between modes. LANG. Audio language. X X MENU Displays TV menu. OK / SELECT Enter / View / Play REPEAT Displays repeat options. RETURN Returns back to the previous menu (if available). ROOT Goes back to the root folder (if available). SEARCH MODE (*) Direct selection of scenes or time. Selects the desired file. Selects the desired file. SUBTITLE Subtitle on-off. Press repeatedly to switch between subtitle options. X X TITLE Displays disc menu (if available). Displays disc menu (if available). X X ZOOM Zooms picture. Press repeatedly to switch between zoom options. Other Functions – Button Combinations (During playback)

Sets slow forward speed.

Sets fast forward speed.

Sets fast reverse speed.

Confirms stop command.

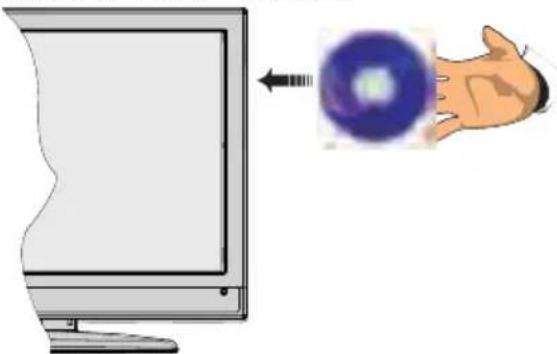

Press repeatedly to advance manually. (*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).English - 81 - General Playback Basic Play Press on the power button1. Please insert a disc to the loader.2. The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it. A menu may appear on the TV screen after a few moments or the lm may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change. Note: Step 3 and 4 is available only when a menu is recorded on the disc. Press “

3. ” / “ ” / / or the number button

(s) to select the preferred title. Press

Play of the selected items now starts.The played item may be a motion picture, a still picture or another submenu depending on the disc. For your reference: If an action corresponding to a button is prohibited the

” symbol appears. Notes on Playback: No sound will be heard during Rapid advance 1. or Rapid reverse. No sound will be heard during Slow motion play.

Reverse slow motion play is not available.3. In some cases, the subtitle language is not 4. changed immediately to the selected one. When the preferred language is not selected even

after pressing the button several times, it means that the language is not available on the disc. When the player is restarted or the disc is

changed, the subtitle selection is automatically changed back to the initial settings. If a language is selected, not supported by the

disc, the subtitle language will automatically be set to the disc’s priority language. Usually a circulation will happen while switching

to another language, that is you can cancel the subtitle by pressing this button a number of times until “Subtitle Off” appears on the screen. When the power is turned on or the disc is

removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard. Some DVDs may not contain root and/or title

menus. Reverse stepping is not available.11. For your convenience:12. If you attempt to enter a number greater than the total time of the current title, the time search box disappears and “ Input Invalid” message appears on up-left corner of screen. Slide Show is disabled when the ZOOM mode

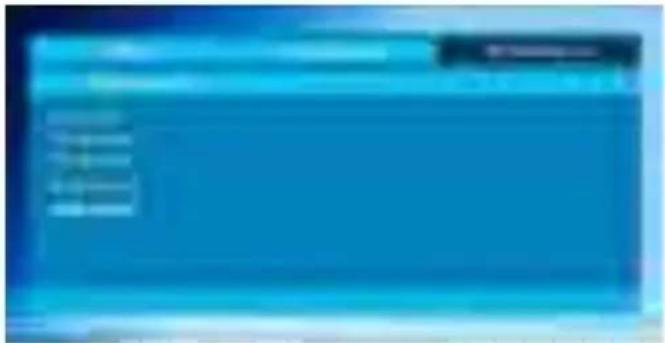

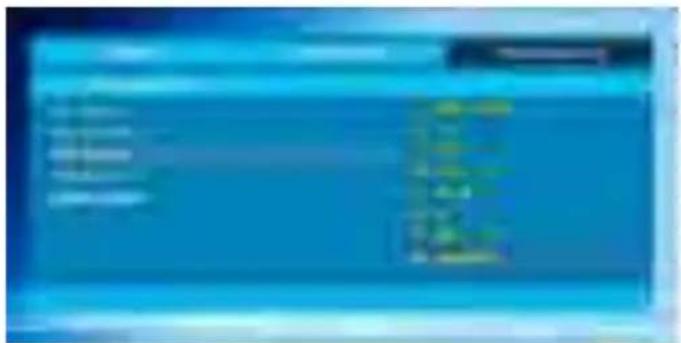

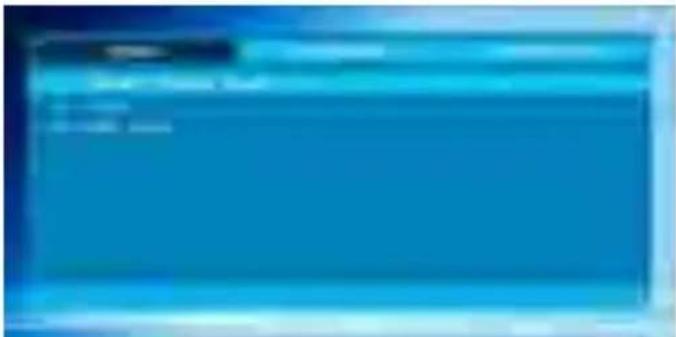

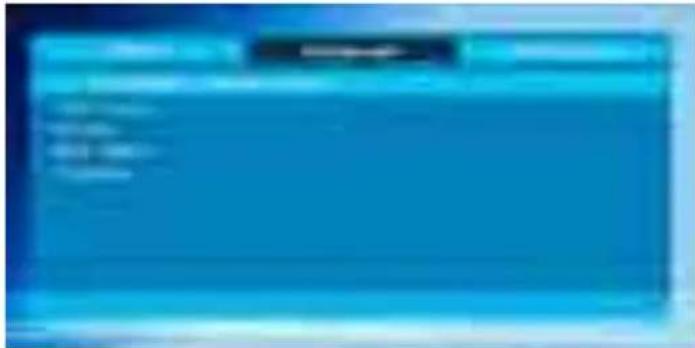

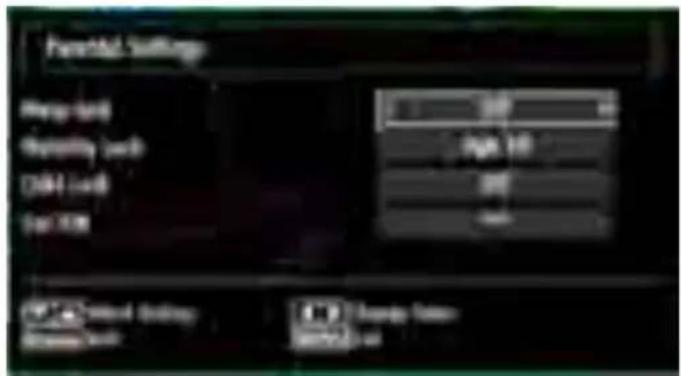

is on. Setup Menu Items Vıdeo Setup Page TV Type TV Type is only available as ‘PAL’. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen. DivX VOD DivX VOD provides the convenience of streaming video in terms of quality and performance. Language Setup OSD LANG You can select the default OSD language of the player menus AUDIO You can select the default audio language if supported by the DVD disc. DISC MENU You can select the DVD’s disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc. SUBTITLE You can select the default subtitle language if supported by the DVD disc.English - 82 - Preferences DEFAULT If you choose RESET and press OK, the factory- presets are loaded. Parental level and parental password does not change. DOWNMIX This mode can be selected when the digital audio output of the TV is used. SURROUND: Surround sound output. STEREO: Two channels stereo. PARENTAL (Parental Level) Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent. Parental Level can be adjusted to one of the eight levels. Level “8 ADULT” adjustment let you watch all of the DVD titles ignoring the DVD disc’s parental level. You can watch the DVD discs, which has the same or lower parental level than the player’s level only. PASSWORD (Change Password): Using this item you can change the current password. To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password. You can use C key to delete the incorrect entry. Note: Factory preset of the password is “0000”. You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service. SPDIF OUTPUT You can set Spdif Output as PCM or RAW. If you select PCM from SPDIF Output in DVD menu and play DVD with Dolby audio, you can get audio output with two channels via the speakers and the SPDIF Out. If you select RAW from SPDIF Output in DVD menu and play DVD with Dolby audio, speakers will be muted and you can get 5+1 Dolby audio via the SPDIF Out. Troubleshooting The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged. (Scratch, ngerprint etc.)

• Clean the DVD disc and try again. See instructions described in “Notes on Discs” to clean your disc properly.

• Ensure that the DVD disc is in the drawer with the label uppermost.

• A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand-by to dry the equipment. Disc does not play

• No disc in the machine. Place a disc into the loader.

• Disc incorrectly loaded. Ensure that the DVD disc is in the drawer with the label uppermost.

• Wrong type of disc. The machine cannot play CD- ROMS etc.

• The region code of the DVD must match the player. Wrong OSD language

• Select the language in the set-up menu.

• The language for the sound or subtitles on a DVD cannot be changed.

• Multilingual sound and/or subtitles not recorded on the DVD.

• Try to change the sound or subtitles using DVD’s title menu. Some DVD’s do not allow the user to change these settings without using the disc’s menuEnglish - 83 - Some functions (Zoom etc) do not work

• These functions are not available on the DVD. No picture

• Have you pressed the correct buttons on the remote control? Try once more. No sound

• Check the volume is set to an audible level.

• Make sure you have not switched the sound off accidentally. Distorted sound

• Check that the appropriate listening mode setting is correct. No response from remote control

• Make sure the remote control is in the correct mode.

• Check batteries are tted correctly.

• Change the batteries. If nothing works If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself. Denition of Terms Chapter Number These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and specic parts of video presentations can be searched quickly using these numbers. DVD This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG II) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded). DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play. Subtitles These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs. Time Number This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to nd a specic scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc’s manufacturer.) Title Number These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc. Track Number These numbers are assigned to the tracks, which are recorded on AudioCDs. They enable specic tracks to be located quickly. LPCM LPCM stands for Pulse Code Modulation and is digital audio. MPEG Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format. DivX DivX is a digital video compression technology based on MPEG-4 and developed by DivX Networks Inc.English - 84 - Disc Types Compatible with This Unit D IG IT A L A U D I O D V DA U D IO -C DA ud io V id eo1 2 cmA u d io1 2 cmA u d io(x x x x .m p 3 )M P 3 -C D J P E G R E A D A B L EP IC T U R E -C DV id eo(s t ill p ic tu r e )

75 Ohm (sin balance)

R E A D A B L E 7 4 m in .
