DO 603 ED - Heating pad DOMO - Free user manual and instructions

Brand	DOMO
Model	DO 603 ED
Product type	Heating cushion (electric blanket)
Power supply	230-240 V ~
Temperature settings	8 levels (1 = low, 8 = high) + foot mode
Timer	From 1 minute to 12 hours
Preheat	Yes, adjustable from 1 minute to 19h59
Automatic safety	Setting 8 automatically switches to 3 after 30 minutes
Control	Electronic with on/off buttons, mode, +/-, timer, preheat, start/stop
Use	Place on mattress, secure with straps under mattress, control at head of bed
Maintenance	Machine wash wool or delicate program at 30°C max; hand wash possible
Dry cleaning	Prohibited
Drying	Air dry, do not use clips or spin dryer
Ironing	Prohibited
Warranty	2 years against manufacturing defects (excluding normal wear and improper use)
Spare parts	Removable power cord, blanket and cable connector
Repairability	Repairs by authorized service only
Recommended use	Domestic, not for medical use or by persons insensitive to heat

Frequently Asked Questions - DO 603 ED DOMO

How to adjust the temperature of the DO 603 ED heating cushion?

Use the mode button to select the temperature, then the + and - buttons to choose between levels 1 (lowest) and 8 (highest). There is also a foot mode to heat only the foot area.

Can I use the heating cushion all night?

Yes, but it is recommended to choose a temperature between 3 and 5 for sleep. Level 8 automatically switches to 3 after 30 minutes to prevent overheating.

How to clean my DO 603 ED heated blanket?

Unplug and separate the cable. Hand wash or machine wash wool/delicate program at 30°C max. Do not dry clean, bleach, fabric softener, and do not iron. Air dry without clips.

The heating cushion smells strange during first use, is this normal?

Yes, it is normal. A slight odor may be released during the first uses due to new materials. It disappears quickly.

What are the important safety precautions?

Do not use if the cable is damaged, do not pinch the cord, do not use with persons insensitive to heat (babies, diabetics, etc.), do not fold the blanket during use, and always unplug after use.

How to attach the blanket to the bed?

Place the blanket on the mattress, control towards the head. Attach the fixing straps by passing them under the mattress and fastening them at the other end. Make sure the cord stays out of the bed.

Can I use a control other than the one provided?

No, only use the control supplied with the device. Another control could cause overheating or fire.

What is the warranty period of the DO 603 ED?

The warranty is 2 years from the date of purchase. It covers manufacturing defects, but not damage due to improper use or normal wear.

How to use the preheat function?

Press the preheat button, then adjust the duration with the + and - buttons (from 1 minute to 19h59). It is recommended to preheat at levels 7 or 8, but not during your sleep.

Can the heating cushion be used on a hospital bed or by a disabled person?

No, the device must not be used on an adjustable bed or by disabled, paralyzed, diabetic, or heat-insensitive persons, except under the supervision of a guardian.

USER MANUAL DO 603 ED DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol 品 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

When you put the devise away, place it in a suitable bag or box to prevent it from becoming crushed. Make sure that no sharp objects can penetrate the blanket when it is in storage.

Do not use sprays or anti-moth products on the blanket.

Store the blanket in a dry place.

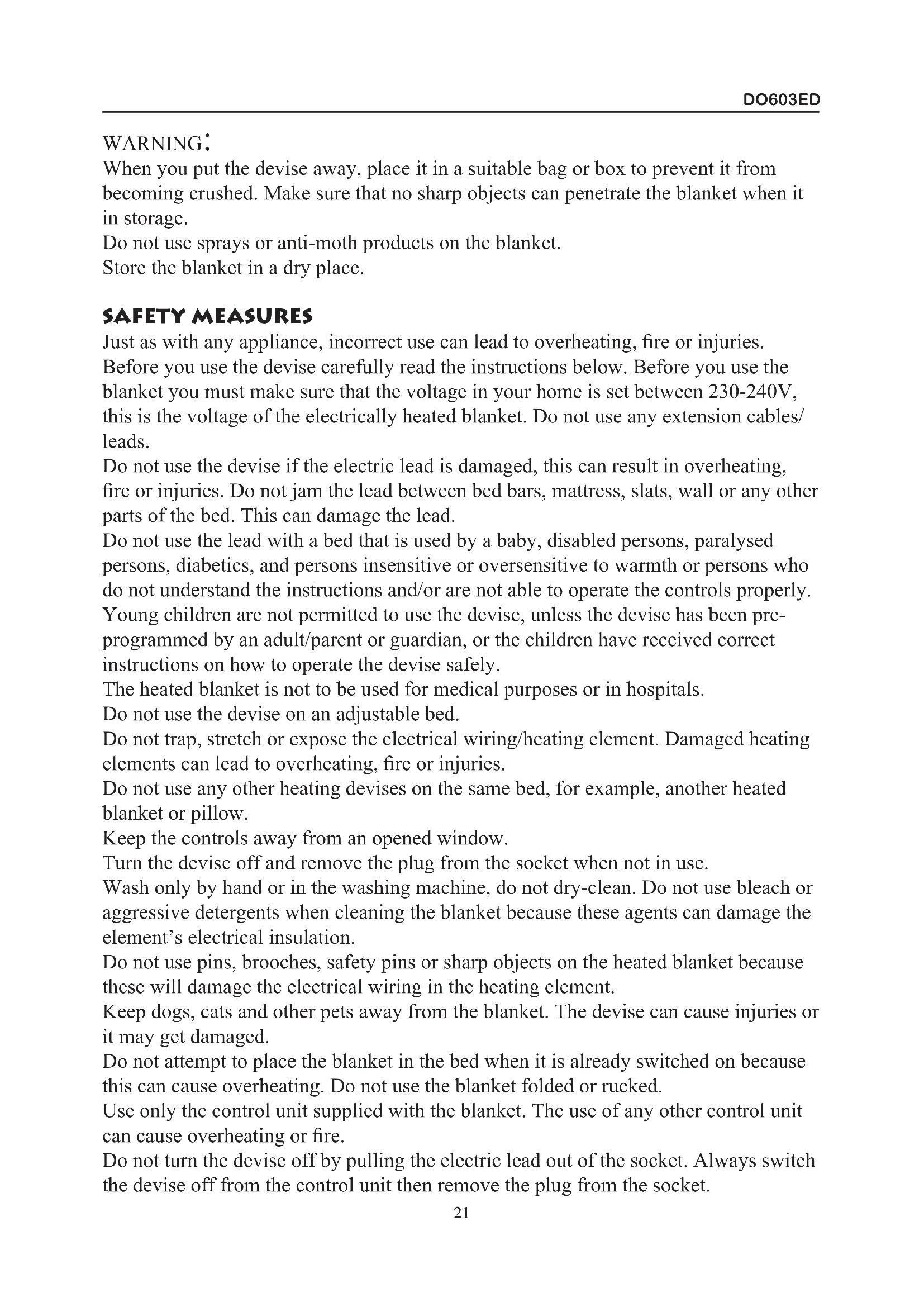

SAFETY MEASURES

Just as with any appliance, incorrect use can lead to overheating, fire or injuries.

Before you use the devise carefully read the instructions below. Before you use the blanket you must make sure that the voltage in your home is set between 230-240V, this is the voltage of the electrically heated blanket. Do not use any extension cables/ leads.

Do not use the devise if the electric lead is damaged, this can result in overheating, fire or injuries. Do not jam the lead between bed bars, mattress, slats, wall or any other parts of the bed. This can damage the lead.

Do not use the lead with a bed that is used by a baby, disabled persons, paralysed persons, diabetics, and persons insensitive or oversensitive to warmth or persons who do not understand the instructions and/or are not able to operate the controls properly.

Young children are not permitted to use the devise, unless the devise has been preprogrammed by an adult/parent or guardian, or the children have received correct instructions on how to operate the devise safely.

The heated blanket is not to be used for medical purposes or in hospitals.

Do not use the devise on an adjustable bed.

Do not trap, stretch or expose the electrical wiring/heating element. Damaged heating elements can lead to overheating, fire or injuries.

Do not use any other heating devises on the same bed, for example, another heated blanket or pillow.

Keep the controls away from an opened window.

Turn the devise off and remove the plug from the socket when not in use.

Wash only by hand or in the washing machine, do not dry-clean. Do not use bleach or aggressive detergents when cleaning the blanket because these agents can damage the element's electrical insulation.

Do not use pins, brooches, safety pins or sharp objects on the heated blanket because these will damage the electrical wiring in the heating element.

Keep dogs, cats and other pets away from the blanket. The devise can cause injuries or it may get damaged.

Do not attempt to place the blanket in the bed when it is already switched on because this can cause overheating. Do not use the blanket folded or rucked.

Use only the control unit supplied with the blanket. The use of any other control unit can cause overheating or fire.

Do not turn the devise off by pulling the electric lead out of the socket. Always switch the devise off from the control unit then remove the plug from the socket.

When you detect damage to the devise, immediately remove the plug from the socket and take the devise to the place of purchase or to the manufacturer's after-sales servicing point for examination and/or repair. This devise is not for use by persons, including children, with any kind of impairment, such as, physical, sensorial or mental incapacity. These persons are also not permitted to use the devise if they have limited experience or insufficient knowledge, unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety. Make sure that children cannot play with the devise.

This appliance is only for household use or environments of a similar character such as:

• kitchens that are used by personnel of shops, office or other similar professional environments.
• Farms
• Hotel rooms and motel rooms and other similar environments with a residential character.
• Bed and breakfast or similar.

Attention : this appliance may not be used with an external timer or seperate remote control.

Place the electric blanket on the mattress, at the foot end of the bed. The control unit needs to be placed at the head of the bed. Make sure that the heated blanket is not placed under a pillow or hangs over the edge of the bed.

Roll the fastening ribbons away and fasten them to the other end of the heated blanket, through and under the mattress.

The electric lead and the control unit must remain outside the bed and may not be left in the vicinity of any source of heat, such as radiators or lighting/lamps.

KEEP THESE INSTRUCTIONS FOR LATER REFERENCE.

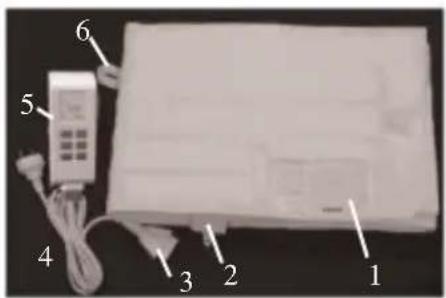

PARTS

1. Warning label and type plate
2. Blanket connection
3. Lead connection
4. Electric lead
5. Electronic control unit
6. Loop for fastening ribbon

CONTROL

1. On/off switch
2. Start/stop button
3. Function button (mode)
4. “+” and “-” button
5. Timer button
6. Preheat button

INSTRUCTIONS FOR USE

Plug the electrical connector into the blanket's electrical fixture.

Plug the devise into the socket.

Adjust the regulator at the side of the control unit to the "1" position.

Press the "mode" button to set the temperature of the blanket. Press the "+" or "-" buttons. You can make a selection from "1" to "8" for the different temperature settings. "1" is the lowest temperature and "8" is the highest temperature. Select "foot" if you wish to heat only the foot end of the blanket.

TAKE CARE: temperature selection "8" is the highest temperature setting. This setting is used only to quickly preheat the blanket. After 30 minutes this setting will automatically set itself to position "3".

Press the "timer" button to adjust the length of time you wish to heat the blanket. Use the "+" and "-" button to set the time from 1 min to 12 hours.

Press the "preheat" button to preset the time for start heating. Use the "+" and "-" button to set the length of time you wish to start preheat, between 1 minute to 19:59h . We recommend to preheat the unit on position "7" or "8". This setting cannot be used for sleeping on. For heating during sleeping set to position "3,4 or 5" to your desired comfort temperature.

After completing all of the settings mentioned above, press the "start/stop" key to switch the heated blanket on. Press the "start/stop" key again in order to switch the devise off.

Note: When using the devise for the first time a light odour may be detectable. This is normal and is caused through the use of new materials. The odour will vanish quickly.

MAINTENANCE AND CLEANING

Maintenance of your heated blanket is easy as long as you follow the steps set out here below.

TAKE CARE: always remove the plug from the socket and the heating element from the blanket before cleaning. When washing your blanket you must follow the instructions here below or your blanket can shrink. This can cause overheating, fire or injuries.

The blanket cannot be dry-cleaned. Dry-cleaning agents will damage the wiring.

Do not use bleach or use stain remover.

Do not use a wringing machine or a mangle.

Do not iron the blanket.

The blanket can be used only if it is completely dry.

Do not use mothballs or sprays on the blanket.

WASHING IN THE WASHING MACHINE

• Use a liquid detergent for wool or delicate materials.
• Select the washing programme "wool" or delicate.
• The temperature of the water must not be higher than 30^ .
• Remove the blanket from the washing machine, hang it up completely unfolded, and let it dry in the fresh air. Do not use clothing pegs or any other type of fasteners on the blanket.

WASHING BY HAND

Pleat the blanket and leave it to soak for 15 minutes in lukewarm water, not warmer than 30^ . Use a detergent designed for wool or a detergent for delicate materials.

Knead the blanket softly by hand.

Rinse the blanket in clean, lukewarm water. The water must not be warmer than 30^ .

Remove the blanket from the water. Unfold it completely and let it dry in the fresh air.

Do not use clothing pegs or any other type of fasteners on the blanket.
