Product type	SSD (Solid State Drive)
Brand	OCZ Technology
Model	TL100
Connection interface	SATA 6 Gbit/s (backward compatible with SATA 3 Gbit/s)
Form factor	2.5 inches
Dimensions (L x W x H)	100 x 69.85 x 7 mm (estimated)
Weight	Approximately 45 g (estimated)
Supply voltage	5 V (via SATA connector)
Main functions	Data storage, boot drive, TRIM support
Compatible operating systems	Windows 7, 8.1, 10; Linux (Fedora 21, Mint 17.1, elementary OS Freya, openSUSE 13.2, Ubuntu 14.04, 14.10); Mac OS X 10.9, 10.10, 10.11
Firmware update	Via SSD UTILITY downloadable from www.ocz.com
Precautions for use	Handle with care against static electricity; avoid exposure to sun, humidity, extreme temperatures
Compliance	CE marking
Disposal	Do not dispose with household waste, recycle according to local regulations
Technical support	http://support.ocz.com
Warranty	See http://ocz.com/support/warranty

Frequently Asked Questions - TL100 OCZ Technology

Does the TL100 SSD support TRIM?

Yes, the OCZ TL100 SSD supports TRIM, but your operating system must also provide native TRIM support.

Why does my SSD seem slow?

Make sure your SSD is connected to a SATA 6 Gbit/s port for maximum performance. Although backward compatible, a SATA 3 Gbit/s connection reduces performance.

Where to download the SSD UTILITY software?

You can download the SSD UTILITY for your product at http://www.ocz.com/consumer/download

Which operating systems are compatible with the TL100?

The SSD is compatible with Windows 7, 8.1, 10, several Linux distributions (Fedora 21, Mint 17.1, elementary OS Freya, openSUSE 13.2, Ubuntu 14.04, 14.10) and Mac OS X 10.9, 10.10, 10.11.

How to install the SSD in a laptop?

Turn off the system, unplug cables and remove the battery. Open the hard drive access panel, disconnect the old drive, install brackets on the SSD if needed, insert the SSD into the bay aligning the SATA connectors, then close the panel and reconnect the battery.

How to format the SSD under Windows?

Under Windows 8.1/10, use the Windows+X shortcut and select 'Disk Management'. Under Windows 7, click Start, right-click 'Computer', choose 'Manage', then 'Disk Management'. Right-click the new disk and select 'New Simple Volume', follow the instructions. Warning: formatting erases all data.

Is the TL100 SSD backward compatible with SATA 3 Gbit/s?

Yes, SATA 6 Gbit/s is backward compatible with SATA 3 Gbit/s, but performance will be reduced.

How to update the SSD firmware?

Download the latest firmware from www.ocz.com and use the SSD UTILITY to perform the update.

What precautions to take when handling the SSD?

To minimize static electricity, touch a metal surface before handling the SSD. Keep the drive away from direct sunlight, humidity, and extreme temperatures.

What to do if my SSD is not recognized by the system?

Check the SATA and power connections. Make sure the SSD is properly inserted. If the drive is new, it may need initialization in disk management. Contact OCZ technical support if the problem persists.

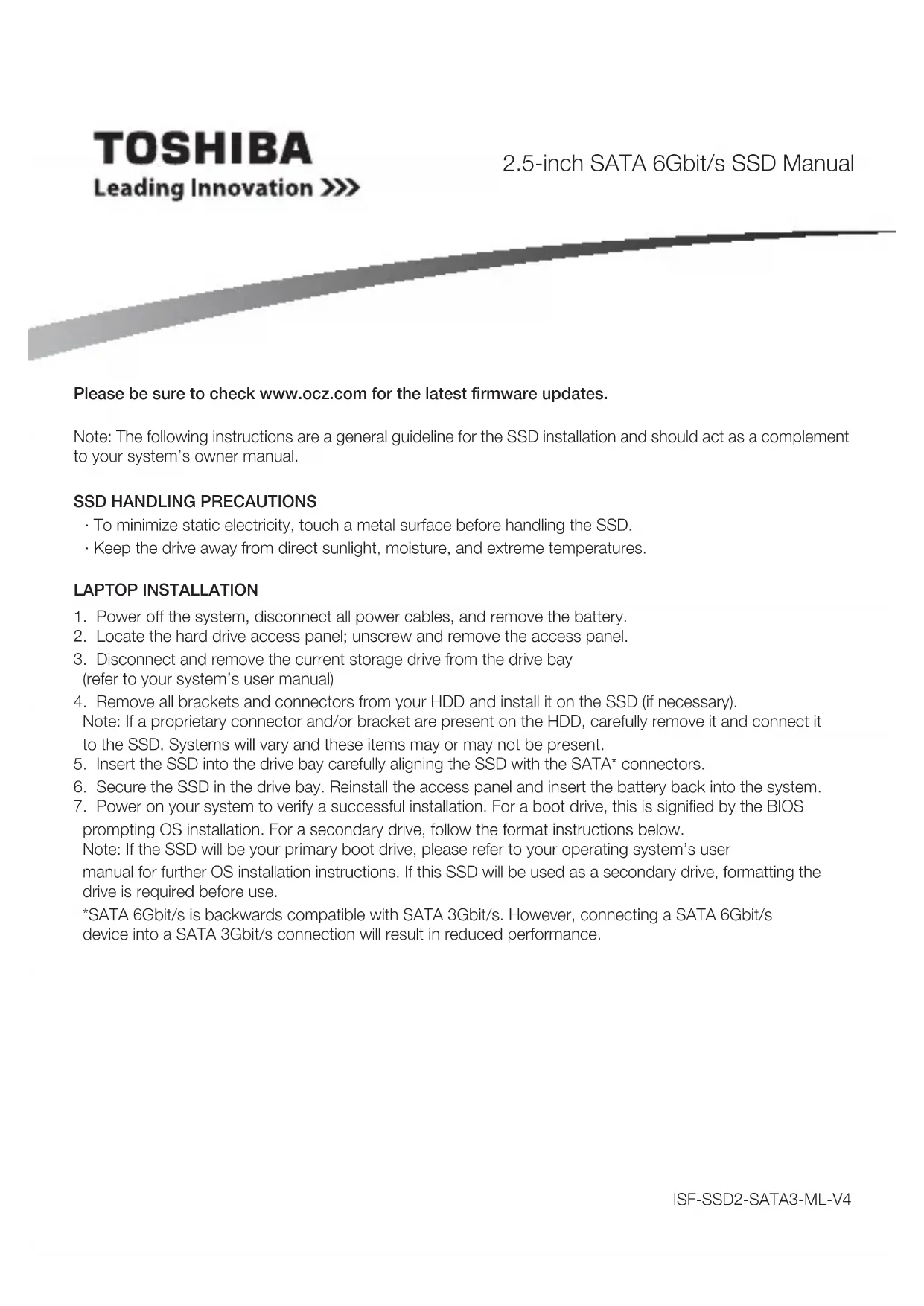

USER MANUAL TL100 OCZ Technology

Please be sure to check www.ocz.com for the latest firmware updates.

Note: The following instructions are a general guideline for the SSD installation and should act as a complement to your system's owner manual.

SSD HANDLING PRECAUTIONS

To minimize static electricity, touch a metal surface before handling the SSD.
- Keep the drive away from direct sunlight, moisture, and extreme temperatures.

LAPTOP INSTALLATION

1. Power off the system, disconnect all power cables, and remove the battery.
2. Locate the hard drive access panel; unscrew and remove the access panel.
3. Disconnect and remove the current storage drive from the drive bay (refer to your system's user manual)
4. Remove all brackets and connectors from your HDD and install it on the SSD (if necessary). Note: If a proprietary connector and/or bracket are present on the HDD, carefully remove it and connect it to the SSD. Systems will vary and these items may or may not be present.
5. Insert the SSD into the drive bay carefully aligning the SSD with the SATA* connectors.
6. Secure the SSD in the drive bay. Reinstall the access panel and insert the battery back into the system.
7. Power on your system to verify a successful installation. For a boot drive, this is signified by the BIOS prompting OS installation. For a secondary drive, follow the format instructions below. Note: If the SSD will be your primary boot drive, please refer to your operating system's user manual for further OS installation instructions. If this SSD will be used as a secondary drive, formatting the drive is required before use.

*SATA 6Gbit/s is backwards compatible with SATA 3Gbit/s. However, connecting a SATA 6Gbit/s device into a SATA 3Gbit/s connection will result in reduced performance.

DESKTOP INSTALLATION

1. Power off the system and disconnect all power cables.
2. Remove the system's outer panel (refer to your system's user manual).
3. If your system provides a 2.5-inch drive bay(s), there is no need for a 3.5-inch adapter bracket.
4. If your system does not provide a 2.5-inch drive bay(s), you will need to mount the SSD in a 2.5-inch to
   3.5-inch adapter bracket (3.5-inch adapter bracket included with select models).
5. Install the SSD into an available drive bay.
6. Connect one end of both the SATA* data cable and power cable to the SATA connectors on your motherboard and the remaining ends to your SSD.
7. Reinstall the outer panel and reconnect the power cable to your PC.
8. Power on your system to verify a successful installation.

Note: If the SSD will be your primary boot drive, please refer to your operating system's user manual for further OS installation instructions. If this SSD will be used as a secondary drive, formatting the drive is required before use.

*SATA 6Gbit/s is backwards compatible with SATA 3Gbit/s. However, connecting a SATA 6Gbit/s device into a SATA 3Gbit/s connection will result in reduced performance.

FORMATTING THE SSD IN WINDOWS

Reformatting the Product may cause all the data stored in the Product to be lost or corrupted. Ensure the Product contains no necessary data or files before reformatting.

1a. For Windows 8.1 and Windows 10:

• Enter the shortcut key "Windows key + X".
• Select "Disk Management".

1b. For Windows® 7:

• Click on the Windows Start Button, right-click "Computer" and select "Manage". The "Computer Management" window will pop up.
• On the left-hand menu (under "Storage") select "Disk Management".

Note: If a popup window appears asking you to initialize the disk. Click "OK"

1. Right-click the newly "unallocated" disk, then select "New Simple Volume" and follow the on-screen instructions. Note: No change is needed to default Simple Volume settings.
2. Click "Finish" when prompted.
3. The SSD is now formatted and ready for OS installation.

FAQ

Q: Is TRIM supported on my OCZ Series SSD?

A: Yes, your OCZ Series SSD features TRIM support, but your operating system must also natively support TRIM for this feature to function properly.

Q: Why does my drive seem to be running slow?

A: Even though your SSD is compatible with previous generations of the SATA interface, it must be attached to a SATA 6Gbit/s connection for maximum performance.

Q: Where can I find the SSD Utility to update firmware, secure erase, and check drive information?

A: You can download the SSD Utility for your product at http://www.ocz.com/consumer/download

Q: What operating systems are compatible?

A:Windows7,Windows8.1,Windows10

Linux® Fedora® 21, Mint 17.1, elementary® OS Freya, openSUSE® 13.2, Ubuntu® 14.04, Ubuntu® 14.10, MAC OS X® 10.9, 10.10, 10.11

CAPACITY CALCULATION

One Gigabyte (1GB) means 10^9 = 1,000,000,000 bytes and One Terabyte(1TB) means 10^12 = 1,000,000,000,000 bytes using powers of 10. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 = 1,099,511,627,776 bytes, and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system and other factors.

CE COMPLIANCE

This product is CE marked in accordance with the requirements of the applicable EU Directives. Responsible for CE marking is Toshiba Electronics Europe GmbH, Hansaallee 181, 40549 Düsseldorf, Germany.

SAFETY INSTRUCTIONS

WARNING

• Do not leave SSD within the reach of children and pets
• Do not disassemble or modify the SSD
  In case of overheating, turn off the SSD

Following information is only valid for EU-member States: DISPOSAL OF PRODUCTS:

This symbol indicates that this product must not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Following information is only valid for United States: FCC Class B Information:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

TECHNICAL SUPPORT

Need help?

Please contact us at our technical support page: http://support.ocz.com

For warranty claims, please check: http://ocz.com/support/warranty

http://ocz.com/consumer/support

http://ocz.com/consumer/support

http://ocz.com/consumer/support

http://ocz.com/consumer/support

http://ocz.com/consumer/support

http://ocz.com/consumer/support

Ecnn n3dene He pa6oTaET dOJXHbIM o6pa3OM nn y Bac eCTb COMHeHn OTHcHTeJIbHO 3NeKtpuecko 6e3OnaChocTn, HemeJeHHo o6paTteCb B cnyk6y TexHnuecko noDepKKn KOMnaHn OCZ nn K oOfNuaNbHomy dInepy.

N3NoKeHHa Daane HnΦopMaun aKtYaJIbHa TOnIbKO dIa CtpaH-NeHOB EC. YTNIN3AUIN:

IcnoJb3OBAHne daHHORo cIMBOLA yka3bIbAeT Ha TO, YTO C 3TtMn I3dJIeHem HeIb3aOBpaTaBCaKcC 6bITOBbIMn OTXODAMN. ObecneueHne npabINbHOYTNIN3aUm IN3dEInr cNoOC6CTByET npedOTBpaSeHnO OTPuCaTeNbHbIX NocJeCTBn DnIg OKpyXaUoSe Cpebl N3doPobBy nIOde, KOTOpBle MOy 6bITb BbIbBaHbI HeHaJIeXaUm OBpaSeHnEM C NOIO6bHMn OTXODAMN. JIaI NOUYeHnB oJee NoDpObHOHnHΦopMaunn O nopAKe BTOpNUHO npepaBoTKn DaHHoro IN3dEInr OBpaAsaHTcB MecTHbIE OprAHbI Bnactn, B cnjx6y n BO BBIO3y n YTNIN3aUm OTXODOB nn60 no Mecty npno6peTeHn H3dJIeN.

TEXHnueCKA NOIDEPKKA

Tpe6yetc npomoub?

IocTeTte cTpaHnU cyJxkbI texHnuecko noDepKKn KOMnaHN OCZ: http://support.ocz.com

IhOpMaunO npedbAeHn npTeH3n no rapaHTn m. no apecy: http://ocz.com/support/warranty
