Product type	Refrigerator with freezer compartment (4 stars)
Brand	IKEA
Model	EFFEKTFULL
Dimensions (H x W x D)	1770 x 540 x 550 mm
Total net volume	272 L (fridge 193 L, freezer 79 L)
Energy consumption	0.813 kWh/24h
Energy class	A+
Noise level	35 dBA
Freezing capacity	3.5 kg/24h
Temperature rise time	19 h
Defrost system	Automatic (fridge), manual (freezer)
Refrigerant	R600a (isobutane)
Climate classes	SN, N, ST, T (from 10 °C to 43 °C)
Power supply	220-240 V, 50 Hz, earthed plug
Interior lighting	LED (do not replace yourself)
Accessories supplied	Egg tray, ice cube tray, cold accumulator, scraper, divider for vegetable drawer
Main functions	Refrigeration, freezing, ice making, coldest zone, touch control with standby
Maintenance and cleaning	Regular cleaning with warm water and mild detergent; manual defrosting of freezer; cleaning of drainage hole
Safety	Child safety (do not play inside), emergency stop, mandatory earthing, flammable refrigerant
Warranty	5 years (IKEA contractual warranty)
Country of destination	France (coldest zone device included)

Frequently Asked Questions - EFFEKTFULL IKEA

How to set the temperature of the EFFEKTFULL refrigerator?

Use the setting button on the control panel. Each press changes the set temperature, indicated by the green LED lights. The intermediate setting is preprogrammed at the factory.

What to do if the appliance is not cooling enough?

Check that the doors close properly, that the appliance is not near a heat source, that the temperature is correctly set, and that air circulation is not obstructed. Consult the section 'What to do if...' in the manual.

How to defrost the freezer compartment?

Turn off the appliance, remove drawers and food. Leave the door open to melt the ice. Place an absorbent cloth at the bottom to collect water. Never use sharp tools to speed up defrosting.

What type of refrigerant is used and is it dangerous?

The refrigerant is R600a (isobutane), a flammable natural gas. It is safe if the circuit remains intact. In case of a leak, ventilate the room and avoid any flame or spark.

Can I clean the accessories in the dishwasher?

No, the refrigerator accessories (shelves, bins) are not dishwasher safe. Wash them by hand with warm water and mild detergent.

How long after installation can I plug in the appliance?

It is recommended to wait at least two hours after installation for the refrigerant circuit to stabilize before turning on the appliance.

What does the flashing green light mean?

A continuously flashing green light indicates a technical malfunction alarm. Contact the authorized IKEA after-sales service, specifying the 12-digit service number on the rating plate.

How to save energy with this refrigerator?

Install the appliance away from heat sources and sunlight. Allow hot food to cool before storing. Avoid opening doors unnecessarily and ensure they close properly. Defrost frozen food in the refrigerator to benefit from the cold.

Where is the coldest zone of the refrigerator?

The coldest zone is indicated by a special device at the bottom of the appliance (according to French regulations). Place the most perishable foods (meat, fish) there.

How to activate standby mode on the appliance?

Press and hold the temperature setting button for 3 seconds. The lights turn off and the appliance goes into standby (power off). To reactivate, briefly press the same button.

USER MANUAL EFFEKTFULL IKEA

Cleaning and maintenance 11

What to do if ... 12

Technical data 14

Environmental concerns 15

IKEA GUARANTEE

15

Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• to avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar nonretail applications.
• This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC).
• Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is

flammable.

Therefore, make sure the refrigerant circuit pipes are not damaged.

Keep special attention in case of damaged pipes emptying the refrigerant circuit.

• C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas. Pay special attention during disposal operations.
• Do not damage the appliance refrigerant circuit pipes.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep the appliance ventilation openings clear of obstruction.
• Do not attempt to speed up defrosting process and perform defrosting in any other way then described in the User Manual.
• Do not use or place electrical devices inside the appliance compartments if they are not of the type

expressly authorised by the Manufacturer.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.
• During installation, make sure the appliance does not damage the power cable.
• Do not pull the appliance power cable.
• Do not use single/multi adapters or extension cords.
• Plug the appliance into a grounded (earthed) socket: the appliance must be earthed.

• The appliance must be disconnected from its power source during service and when replacing parts

• It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by means of an accessible multi-pole switch installed upstream of the socket in conformity with national safety standards.

• The appliance must be handled and installed by two or more persons.
• Installation and maintenance including replacement of the supply cord must be carried out by the manufacturer or a qualified technician, in compliance with the manufacturer's instructions and the local safety regulations in force. In order to avoid a hazard do not repair or replace any part of the appliance including the supply cord, unless specifically stated in the user manual.

Before first use

To ensure best use of your appliance, carefully read this User Manual which contains a description of the product and useful advice.

Keep these instructions for future reference.

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly.
   Any functional fault must be reported to IKEA After Sales Service as soon as possible.
2. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
3. Clean the inside of the appliance before using it.

Precautions and general recommendations Installation and connection

• Be careful not to damage the floors (e.g. parquet) when moving the appliance.
• Make sure the appliance is not near a heat source.
• Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.
• The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class	Amb. T. (°C)
SN From 1	0 to 32
N From 1	6 to 32
ST From 1	6 to 38
T From 1	6 to 43

• Make sure the voltage specified on the rating plate corresponds to that of your home.

Safety

• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
• Do not swallow the contents (non-toxic) of the ice packs (in some models).
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

Use

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.
• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not store glass containers with liquids in the freezer compartment since they may break.
• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.
• The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The Manufacturer declines any liability for injury to persons or animals or damage to property if the above advice and precautions are not respected.

Energy-saving tips

• Install the appliance in a dry, well ventilated room far away from any heat source (e.g. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.
• To guarantee adequate ventilation follow installation instructions.
  Insufficient ventilation on back of the

ENGLISH 7

product increases energy consumption and decreases cooling efficiency.

• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.
• Allow warm food and drinks to cool down before placing in the appliance.
• Do not obstruct the fan (if available) with food items.
• After placing the food check if the door of compartments closes properly, especially the freezer door.
• Reduce to a minimum door opening.
• When thawing frozen food, place them in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator.
• Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).
• You can increase storage capacity of frozen food by removing baskets maintaining an equivalent energy consumption.
• Damaged gasket must be replaced as soon as possible.

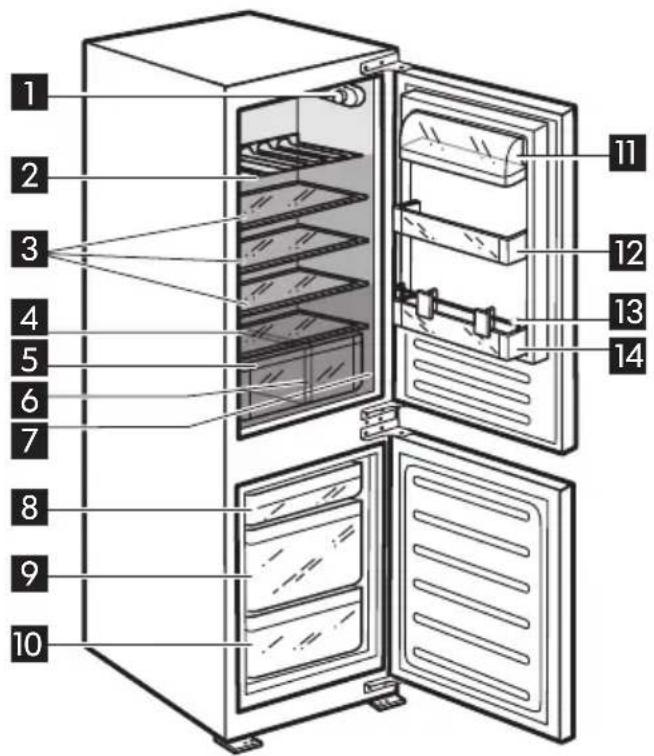

Product description

Carefully read the user handbook before using the appliance.

Refrigerator compartment

Control panel with LED light
2 Bottle rack
Glass shelves
4. Crisper drawer lid
5 Crisper
6 Crisper divider

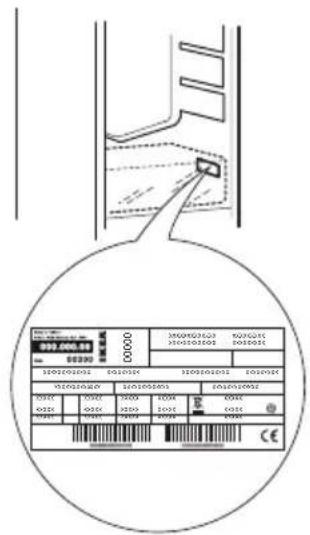

Rating plate (at the side of crisper drawer)
Dairy balcony with lid
Door balcony
13 Bottle holder with dividers
14 Bottle balcony
Least cold zone
Intermediate temperature zone
Coldest zone

Freezer Compartment

8 Top drawer (storage area for frozen and deep frozen food)
9 Middle drawer (storage area for frozen and deep frozen food)
Bottom drawer (for freezing fresh foods)

Characteristics, technical data and images may vary according to the model.

Accessories

Egg tray

1x

Ice tray

1x

Freezer block

1x

Ice scraper

1x

First Use

Connect the appliance to the power supply. The ideal food storage temperatures are already factory-set (intermediate). Note: after being switched on, the

appliance needs 4-5 hours in order to reach the correct temperature to store a typical volume of food.

ENGLISH 9

Important!

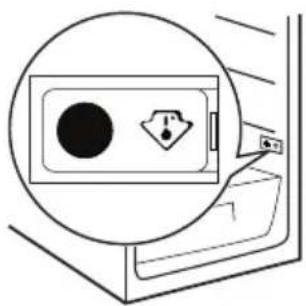

This appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

Daily use

Refrigerator and freezer operation

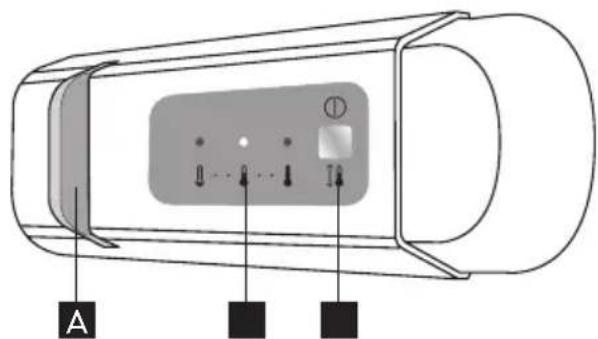

The appliance's refrigerator compartment features a control panel with LED lights. A different temperature can be set using the button as shown in the figure.

The three green LED indicators indicate the refrigerator compartment set temperature. The following adjustments are possible:

Leds on Set temperature

Stand-by.

Press the C button for 3 seconds to deactivate the appliance (the control panel and lights remain off). Press the button again briefly to reactivate the appliance.

Note: This operation does not disconnect the appliance from the power supply.

Note: the ambient temperature, frequency of door opening and position of the appliance can affect the temperature inside the two compartments.

These factors must be taken into account when setting the thermostat.

A Led light
B Refrigerator compartment temperature
C Button for temperature regulation and Stand-by function

LED light

LEDs last longer than traditional light bulbs, improve internal visibility and are environmentally friendly. Contact the Service Centre if replacement necessary.

Refrigerator compartment

Defrosting of the refrigerator compartment is completely automatic.

The formation of water droplets on the rear internal wall of the refrigerator compartment indicates that the automatic defrosting is underway.

The defrost water automatically runs into a drain outlet and then into a container from where it evaporates.

Caution! The refrigerator accessories must not be placed in a dishwasher.

Freezer compartment

This appliance is a refrigerator with a

* star freezer compartment.

Packaged frozen food can be stored for the period of time indicated on the packaging.

Once defrosted, food must be used within 24 hours.

Freezing fresh food

Place fresh food to be frozen in the freezer compartment.

Avoid direct contact with already frozen food.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Place fresh food in the freezing area of the freezer compartment, leaving enough space between items to allow air to circulate freely.

Do not refreeze partially thawed food. It is important to wrap food so that no water, moisture, or vapour can penetrate.

Removing the freezer drawers

Pull the drawers all the way out, lift them up and remove.

Note: to maximize available space, the freezer compartment can also be used without the drawers inserted. After placing food in the compartment, make sure the freezer compartment door closes properly.

Making ice cubes

Fill the ice cube tray 2/3 full with water and place it in the freezer compartment. Do not use sharp or pointed instruments to detach the tray.

Cleaning and Maintenance

Regularly clean the appliance with a cloth and a solution of hot water and neutral detergent specifically formulated for refrigerator interiors. Do not use abrasive cleaners or tools. Use the tool provided to regularly clean the defrost water drain outlet, located on the rear wall of the refrigerator compartment near the risper draw, in order to ensure defrost water is removed correctly (see Fig. 1).

Before servicing or cleaning the appliance, unplug it from the mains or disconnect the power supply.

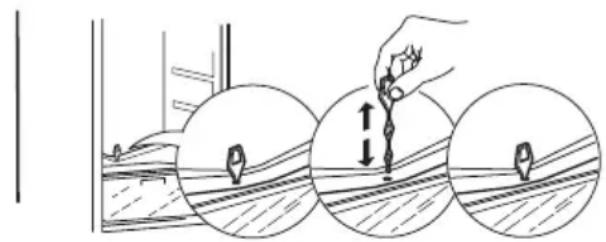

Fig. 1

Defrosting the freezer compartment

It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will depend on ambient temperature and humidity, and on the frequency of door opening.

Set the coldest temperature four hours before removing food from the freezer compartment, so as to extend the storage time of food during defrosting.

To defrost, switch the appliance off and remove the drawers. Place the frozen food in a cool place.

Leave the freezer door open to allow the frost to melt.

To prevent water leaking onto the floor during defrosting, place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.

Clean the interior of the freezer. Rinse and

dry carefully.

Switch the appliance on again and place food back in the freezer compartment.

Food storage

Wrap food to protect it from any water, humidity or condensation; this will prevent the spread of any odours in the refrigerator, while also ensuring better storage of frozen food.

Never place warm food in the freezer. Cooling hot foods before freezing saves energy and prolongs the life of the appliance.

If the event of prolonged disuse

Disconnect the appliance from the power supply, remove all food, defrost and clean the appliance. Leave the doors open just enough to allow air to circulate inside the compartments.

This will prevent the formation of mould and unpleasant odours.

In the event of a power cut

Keep the doors of the appliance closed. This will allow the food to stay cold as long as possible. If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.

What to do if...

Problem Possible causes: Solutions:
The control panel is switched off and/or the appliance does not work	There may be a problem with the power supply to the appliance.	Check that: • there is no power cut • the power plug is properly inserted in the socket and the bipolar power switch, if present, is set to the correct position (on) • the household electrical system protection devices are in good working order • the power supply cable is not damaged. • switch the appliance on with the Temp. button.
The inside light does not work. The light may need replacing. Malfunction of a technical component		Contact an authorized Service Centre.
Temperature inside the compartments is not low enough.	There could be various causes (see "Solution").	Check that: • the doors are closed properly • the appliance is not installed near a heat source • the temperature is set appropriately • air circulation inside the appliance is not obstructed in any way (see installation)
Water collects at the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrost water drain outlet (see "Cleaning and maintenance")
The front edge of the refrigerator next to the seal is hot.	This is not a problem. It prevents condensation from forming.	No solution is required.
The inside light flashes "Door open" alarm active. It is activated when the refrigerator compartment door remains open for a prolonged period of time.		To stop the alarm, close the refrigerator door. On reopening the door, check the light works

What to do if...

Problem Possible causes: Solutions:
The temperature inside the refrigerator compartment is too low	Freezing large quantities of food also lowers the temperature in the refrigerator compartment
Excessive frost build-up in the freezer compartment	The freezer compartment door does not close properly
One or more green lights flash continuously.	Malfunction Alarm The alarm indicates a fault in a technical component

Note:

it is normal for the refrigeration system to produce some noises, such as gurgling and hissing.

Before contacting the After-Sales Service:

Restart the appliance to see if the fault has been remedied. If it persists, switch the appliance off again and repeat the operation after an hour.

If your appliance still does not work properly after carrying out the checks listed in the troubleshooting guide and switching the appliance on again, contact the After-sales Service, clearly explaining the problem and specifying:

the nature of the problem
the model
- the type and serial number of the appliance

(given on the rating plate)

• the Service number (the number after the word SERVICE on the rating plate inside the appliance).

0000 000 00000

SERVICE

Technical data

Product dimensions (mm)	EFFECTFULL
Height 1770
Width 540
Depth 550
Net Volume (l)
Refrigerator 193
Freezer 79
Defrost system
Refrigerator Automatic
Freezer Manual
Star Rating 4
Rising Time (h) 19
Freezing capacity (kg/24 h)	3,5
Energy consumption (kwh/24h)	0.813
Noise level (dba) 35
Energy class A+

The technical specifications are given on the rating plate inside the appliance and on the energy label.

Environmental concerns

1. Packing

The packing material is 100% recyclable and bears the recycling symbol. For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Declaration of conformity

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

• This appliance has been designed, manufactured and marketed in compliance with:

• safety objectives of the "Low Voltage" Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments);

• the protection requirements of Directive "EMC" 2004/108/EC.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
• Cases where no fault could be found during a technician's visit.
• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
• Repairs caused by installation which is faulty or not according to specification.
• The use of the appliance in a nondomestic environment i.e. professional use.
• Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.
• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed After Sales Service Provider to:

make a service request under this guarantee;
- ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.

In order to provide you a quicker service, we recommend to use the specific phone numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Please also always refer to the IKEA article number (8 digit code) and 12 digit service number placed on the rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhaltsverzeichnis

Compartment Congélateur

GARANTIE IKEA (FRANCE)

CONTRAT DE GARANTIE ET DE SERVICE APRES-VENTE IKEA

Opening hours: Monday - Friday 8.00 - 20.00

ROMÁNIA

Numar de telegram: 021 2044888

Tarif: Tarif local

Orar: Luni - Vineri 8.00 - 20.00

POCCN

TeneboHHbHmHOmep:84957059426

CTOUMOCTb 3BOHKA: MECTHAR CTOMMOCTb 3BOHKA

Bpempa6o7b: PoneeJbHnK - PTHNu9.00-21.00

(MockOBCKOe Bp

Opening hours: Monday - Friday 9.00 - 21.00
