USER MANUAL 35021 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA:1,800,851,8900

Questions?

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electric shock, do not immerse cord, plugs, base, or removable control panel with heating element in water or other liquid.
4. Close supervision is necessary when any appliance is used by one near children.
5. Be sure handle is properly assembled to basket and locked into place. See detailed assembly instructions.
6. Unplug from wall outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended or sold by the appliance manufacturer for use with this model may cause injuries.
9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. Never move deep fryer containing hot oil.
13. Always attach plug to appliance first; then plug cord in the wall outlet. To disconnect, turn any control to MIN and remove plug from wall outlet.
14. Do not use appliance for other than intended purpose.
15. To reduce the risk of injury, NEVER fill oil above MAX fill mark.
16. Always ensure removable tank is filled to at least MIN level when using oil.
17. Never leave appliance unattended while in use.
18. Always dry foods and remove ice before frying
19. Always dry deep fryer components thoroughly after cleaning and before frying.
20. Always fry with lid in place.
21. Do not use refrigerated oil.
22. Never block vent on lid. Be aware of steam emitting from vent.
23. Escaping steam may cause burns to hands or fingers. Open the lid carefully.
24. Always raise basket, rest on oil tank, and allow food to drain before removing lid or food basket.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This product is intended for household use only.

This product is only intended for the preparation, cooking, and serving of foods. This product is not intended for use with any nonfood materials or products.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

WARNING! Burn Hazards.

• Serious hot-oil burns may result from a deep-fat fryer being pulled off a countertop. Do not allow the cord to hang over the edge of the counter where it may be grabbed by children or become entangled with the user. Do not use with an extension cord.

• Hot liquid will splash if you miss the drain bracket and accidentally drop the frying basket into the hot liquid. Do not lean over the deep fryer when the lid is off.

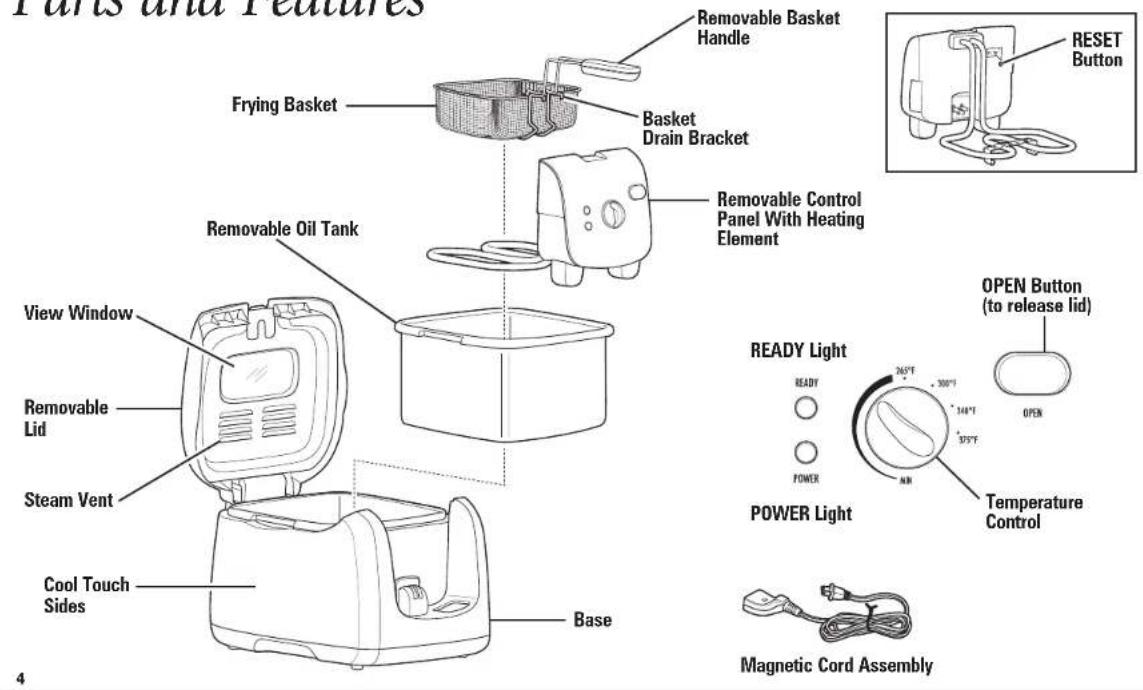

Parts and Features

How to Assemble the Fryer

Place base on a stable, flat surface. Insert oil tank into base.

Slide control panel with heating element into base; making sure it is in place. NOTE: Heater cannot be turned on unless correctly installed on base.

To assemble handle, squeeze tines of handle together. Align tines with round holes on metal bracket of basket.

Release tines to allow them to spread and then pull handle back to lock into metal bracket.

For storage: Push handle into basket and squeeze tines together to remove handle.

Frying

BEFORE FIRST USE: Thoroughly clean and dry fryer. See "Cleaning Your Fryer" section. NOTE: Never operate unit without oil in tank or unit will exceed temperature limit and will require resetting. See "How to Reset" section for details.

WARNING

Burn Hazard.

• Never fill oil above MAX fill mark.
• Never move fryer when it is in operation or when fryer contains hot oil.
• Never leave fryer unattended while in use.
• Remove as much moisture from food as possible. Do not add water or ice to oil.

Place assembled fryer on a stable, level, heat-resistant surface out of reach of children.

Press OPEN button to open lid.

Fill fryer with at least 6 but no more than 8 cups of oil to MAX indicator mark on removable oil tank.

NOTICE: Never operate unit without oil in tank or unit will exceed temperature limit and will require resetting. (See "How to Reset" on page 11.)

Make sure fryer is turned to MIN. Attach magnetic end of cord assembly to fryer socket. Magnetic end of cord will only go in one way. Be careful not to disturb magnetic connection when plugging cord into electrical outlet NOTE: Magnetic force is relatively low to ensure that the cord will break away in the event of being inadvertently pulled, thereby preventing deep fryer from being pulled off a countertop.

Close lid. Set temperature control to desired setting. Preheat fryer until READY Light comes on (6 to 10 minutes). For more information on temperature selection, check food package or Frying Chart. READY Light will come on when oil has reached preset temperature.

Frying (cont.)

To fry food, place food in basket.

NOTE: Do not exceed maximum amount of food to be fried in one batch. See Frying Chart for more information.

To drain food, leave lid closed, pull up basket handle until it hooks on edge of oil tank.

Press OPEN button to open lid. Carefully hang basket on oil tank. Close lid.

FRYING TIP: READY Light may go out after frying a batch of food. When oil has reached selected temperature, READY Light will come back on. Unit is now ready to fry the next batch of food.

sefully hang basket on oil tank. Close lid.

Lower basket into tank. Set time based on Frying Chart or package directions.

To remove food, press OPEN button to open lid. Line a bowl or colander with paper towels. Carefully, empty food from basket onto paper towels. Fill basket and repeat frying as desired.

Turn temperature control to MIN and unplug appliance after use.

Frying Chart

FOOD (FULL BASKET)	FRYING TEMPERATURE	COOKING TIME	INTERNAL TEMP/DONENESS
Frozen French Fries	375°F (190°C)	8 to 10 minutes	Brown and crisp
Fresh-Cut French Fries	375°F (190°C)	7 to 9 minutes	Brown and crisp
Frozen Onion Rings	375°F (190°C)	6 to 8 minutes	Brown and crisp
Frozen Fish Sticks	350°F (180°C)	4 to 6 minutes	145°F (63°C)
Frozen Butterflied Shrimp	350°F (180°C)	3 to 5 minutes	145°F (63°C)
Frozen Chicken Tenders	375°F (190°C)	3 to 5 minutes	165°F (73°C)
FOOD (SINGLE LAYER)	FRYING TEMPERATURE	COOKING TIME	INTERNAL TEMP/DONENESS
Frozen Chicken Wing Pieces	375°F (190°C)	8 to 10 minutes	165°F (73°C)
Fresh Chicken Wing Pieces	375°F (190°C)	7 to 9 minutes	165°F (73°C)

NOTES:

Length of cooking time and temperature may vary based on batch size and weight.
- For best results, fry a single layer of food for each batch.
- Frozen, uncooked chicken should be thawed, excess water removed, and patted dry with paper towel prior to cooking.
See "Frying Tips" for more information to obtain best results.
Always follow package directions.

• When cooking meat, poultry, or fish, use cooking thermometer to determine internal temperatures.
• Visit foodsafety.gov for more information on safe internal cooking temperatures.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

Cleaning Your Fryer

Make sure fryer is turned to MIN. Unplug from wall outlet. Wait until oil has cooled. This can take several hours.

Clean outside of base with hot, soapy water. Do not immerse unit in water.

Lift control panel up and out of base. Do not drip oil on base.

Press OPEN button to release and open lid. Hold base with one hand; use other hand to slightly tilt lid towards the control panel and pull lid up.

WARNING

Burn Hazard.

To avoid eruptions and/or spatter of hot oil, dry all fryer components thoroughly before using.

Do not immerse heating element assembly in water.
NOTE: To avoid damaging fryer, use care when cleaning heating element assembly. Gently wipe with soft cloth dampened with hot, soapy water.

Lift oil tank from fryer and pour out oil. Wipe all excess oil or oil film from oil tank.

TO REINSERT LID: Place lid on the lid hinge, making sure the silver spring lines up with the opening on the back of the base. Slightly tilt lid towards control panel; gently press lid down into place.

Frying Tips

SELECTING AND CHANGING THE FRYING OIL:

• Use a good quality vegetable or peanut oil.
• Frying foods in butter, margarine, olive oil, or animal fat is NOT recommended because of low temperature smoke point.
  DO NOT mix two types of oil.
• Change oil regularly to maintain optimum frying and flavor quality.
• Oil used for french fries can be used 10 to 12 times before changing if oil is filtered after each use. Oil used for food that is high in protein (such as meat or fish) should be changed more frequently.
• To filter oil, allow oil to cool completely. Cheesecloth or paper towel may be used as a filter to strain oil.
  Always follow food package directions.
  DO NOT add fresh oil to used oil.
  Always change the oil when it has a strong smell or taste, or when it turns dark and/or syrupy.

BEFORE FRYING:

• Excess water or ice particles can cause hot oil to splatter or foam. Remove any excess water from fresh food by blotting with a paper towel. Remove any ice chunks or buildup from frozen foods.

GENERAL TIPS:

DO NOT use plastic utensils in hot oil.
- Season food AFTER frying.
If food is not as crisp as desired, reduce batch size.

10

DISPOSING OF OIL:

• Pour cool oil into its original (resealable) empty plastic bottle.

BASKET USAGE WITH FRESHLY BATTERED FOODS:

• Freshly battered foods should be carefully placed directly into oil. First, lower basket completely and then carefully place each piece of battered food into hot oil. Use basket to remove fried battered foods.

STORAGE:

• Basket handle can be disengaged and rotated into basket. Place oil tank in base and then place basket and power cord in oil tank.
  It is best to store all oils in the refrigerator or a cool, dark, dry place for up to six months.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Troubleshooting

HOW TO RESET:

If your unit is not heating or will not turn on, your unit may need to be reset.

1. Make sure fryer and oil are cold.
2. Turn temperature control to MIN.
3. Unplug magnetic cord from the wall outlet.
4. Remove removable control panel and heater element.
5. Use a thin pointed object such as a wooden skewer or thin screwdriver to push in RESET button.

PROBLEM

Fried food does not have a golden-brown color and/or is not crispy.

Fryer gives off a strong, unpleasant odor.

Unit does not heat.

PROBABLE CAUSE

• Selected temperature is too low or food has not been fried long enough. Check food package or Frying Chart for correct temperature or preparation time.

• There is too much food in basket. Never fry too much food at one time. See food package, Frying Chart, or recipe for correct frying amount. Food pieces may be too thick to fry adequately.
  Volume of oil is too low.

• Oil isn't fresh. Change oil. Filter oil regularly to keep it fresh longer.

• When frying food with a high moisture content (such as chicken or fries), change oil frequently.

• Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different
  types of oil or fat.

• Ensure magnetic cord assembly is properly attached to fryer socket.

• Ensure electrical cord assembly is plugged into electrical outlet.
• Heating element assembly not correctly assembled. Make sure heating element assembly is properly installed on base. See "How to Assemble the Fryer" section.
• Press RESET button on heating element assembly. Make sure fryer has recommended amount of oil in oil tank.

Troubleshooting (cont.)

PROBLEM

During frying, the oil spills over the edge of the fryer.

PROBABLE CAUSE

• There is too much oil in fryer. Make sure that oil does not exceed maximum level mark.
• Basket/food immersed too quickly. Carefully raise basket out of oil.
• Food contains too much liquid. Dry food thoroughly before placing it in fryer. Follow instructions in "Frying" section.
• When frying food with a high moisture content (such as chicken or fries), change oil frequently.
• There is too much food in frying basket. Do not fry more food at one time than quantities indicated on food package or Frying Chart.
• Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different types of oil or fat.
• The use of refrigerated oil may cause excessive splattering. Use room-temperature oil.
• Oil tank has not been cleaned properly. See instructions in the "Cleaning Your Fryer" section.

Condensation forms on viewing window.

Oil film buildup on oil tank.

Water vapor from food collects on window. When unit is cold, wipe a small amount of oil on inside of viewing window to prevent condensation buildup.
- Use plastic scouring pad to clean.
To clean oil residue from oil tank, use a household degreaser.

Notes

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1,800,851,8900 in the U.S. or 1,800,267,2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRECAUTIONS IMPORTANTES

Col. Palmitas Polanco

Mexico, D.F. C.P. 11560

01-800-71-16-100

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon

Ruperto Martinez No. 238 Ote

Centro MONTERRE, 64000 N.L.

Tel:[phone]·Fax:[phone]

Jalisco

SERVICIOS DE MANTENIMIENTO CASTILLO
Garibaldi No. 1450
Ladrón de Guevara
GUADALAJARA 44660 Jal.
Tel: [phone] Fax: [phone]

Chihuahua

DISTRIBUIDORA TURMIX
Av. Paseo Triunfo de la Rep. No. 5289 Local 2 A.
Int. Hipermart
Alamos de San Lorenzo
CD.JUAREZ 32340 Chih
Tel: [phone] Fax: [phone]

Modelo:

35021

Tip:

DF09

CharacteristicasElecricas:

120V~ 60Hz 1500W
