KA 1050 - Coffee machine Efbe-Schott - Free user manual and instructions

Frequently Asked Questions - KA 1050 Efbe-Schott

USER MANUAL KA 1050 Efbe-Schott

1. Base
2. ON/OFF switch
3. Glass jug
4. Lid of the water tank + filter holder
5. Water tank with level
6. Filter holder housing
7. Nozzle

NL

Close-up of a mechanical component with a double-headed arrow indicating upward motion (no text or symbols visible)

PRAKTISCHE HINWEISE

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

☐ Only use the appliance in the way indicated in this instruction manual.
☐ Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.

□ Never leave your appliance unsupervised when in use.

From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician(*). Never use the appliance if it shows visible damage.

☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.

☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

☐ Never use the appliance near hot surfaces. Never place it on hot surfaces (e.g. hotplates) or near a flame.

Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down.

☐ Never use the appliance outside and always place it in a dry environment.

☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

☐ Never move the appliance by pulling the cord. Stand the appliance on a table or flat surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

☐ Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle.

☐ Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles, ... when it is in use as they might catch fire. Never put the appliance on hot surfaces or near a flame, as the housing might melt.

☐ Only use fresh cold or lukewarm drinkable water. Never use water coming from a bathtub or wash stand or other containers.

☐ Do not use the appliance if the jug is damaged. Use the jug only for this appliance. Handle the jug carefully so that it does not break. Never put the jug on the hotplate or any other hot surface if it is empty or almost empty.
☐ Pay attention not to get burned by the steam coming out of the filter during use.
☐ When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
☐ Only put ground coffee in the filter.
☐ Never use your coffee maker without water in it. If you have a programmable coffee maker, make sure to fill it with water before programming it.
Important: never put the jug in a microwave oven to warm up the coffee. We will not take any responsibility if you do so.
☐ Never forget that the coffee coming out of the appliance is very hot. Only move the jug very carefully to avoid splashing.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

INITIAL OPERATION

• When you use your appliance for the first time, pour fresh water into the water tank and switch on the appliance (without coffee).
• Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough, repeat the process with fresh water. Repeat this process 3 times.

PREPARATION OF COFFEE

• Open the lid of the water tank and the filter holder.
• Pour the desired amount of water into the water tank. Both the glass jug and the scale on the water tank show the amount for normal cups (1 cup = 125 ml) and small cups. Make sure not to overfill by filling maximum 12 (15) cups of water.
• Open the lid of the filter holder.
• Insert a paper filter (size 4) in the filter holder and add the desired quantity of ground coffee (approximately 6g per cup, or a teaspoonful). Pay attention: fold the bottom and the side edges of the paper filter in such a way that it fits perfectly in the filter holder.
  • Never forget to close the lid before switching on your coffee maker.
• Put the jug with closed lid on the hotplate.
• Switch on the coffee maker by putting the switch in position "1". The pilot light will be illuminated, indicating that your appliance is in use. Thanks to the keep warm function, your coffee is warmed up as long as the appliance is switched on and the jug is situated on the hotplate.
• When the brewing process is over, remove the jug from the hotplate (the drip stop will prevent dripping); pour the desired amount of coffee and put the jug with the remaining coffee back on the hotplate.
• However, we advise you to not let the appliance switched on for more than 2 hours and make sure that you never let an empty jug on the hotplate. The hotplate will only stop heating up when the switch is in the OFF position (i.e. position "0").

DESCALING AND CLEANING

• We advise you to descale the coffee maker to prolong its life span. For descaling, only use products especially made to descale coffee makers and follow their instruction manual. Then rinse the appliance twice with fresh water, without coffee powder. Guarantee claims will not be accepted for appliances that have not been descaled.

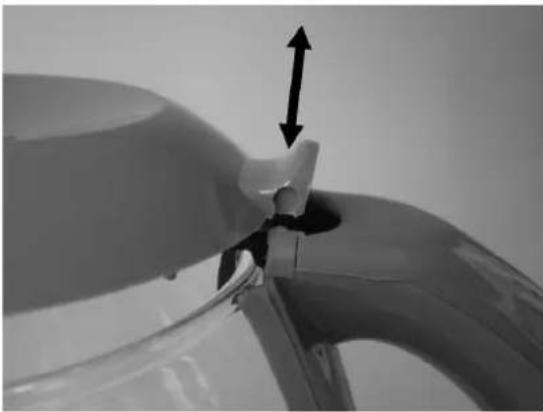

- Never use a dishwasher to clean the jug. Just clean it in soapsuds. The lid is detachable; raise the lid out of its hinge

• To clean the plastic parts of the appliance, use a damp, non abrasive cloth.

Close-up of a mechanical component with a double-headed arrow indicating upward motion (no text or symbols visible)

PRACTICAL HINTS

When you notice that the coffee making process is longer than it should be, it is probably time to decalcify the appliance. Do not wait until the situation gets worse. The descaling frequency depends on the amount of lime in water and therefore can be different from family to family.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol ■ on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Close-up of a mechanical component with a double-headed arrow indicating upward motion (no text or symbols visible)

CONSEILS PRATIQUES

CONDITIONS DE GARANTIE

Close-up of a mechanical component with a double-headed arrow indicating upward motion (no text or symbols visible)
