Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page)Assembly page 1/20 Fax [phone] Kaffeeautomat Coffee maker Cafetière Koffiezetapparaat I/B Version

Art. Nr.: KA 510 230V~ 900 W# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

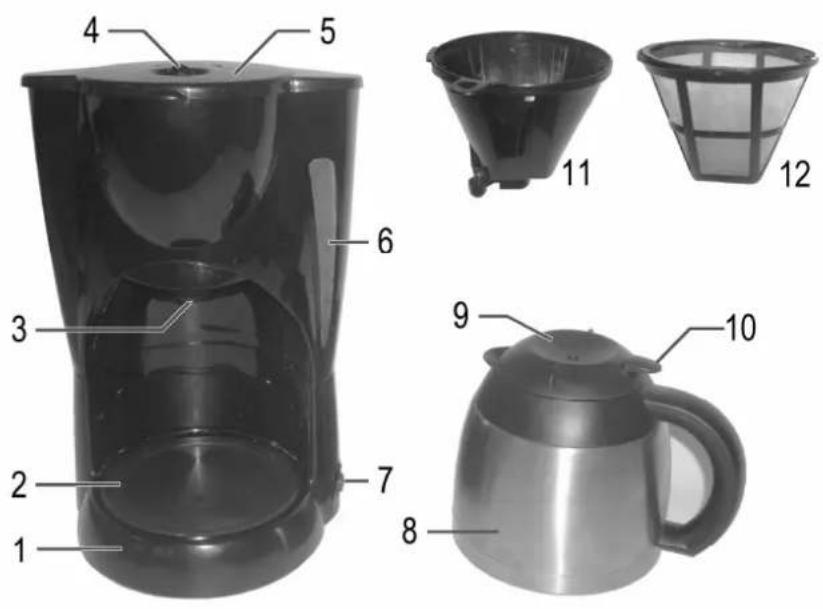

5. Lid of the water tank

6. Water tank with level indicator

7. Illuminated ON switch

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

2. Plaque de support

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

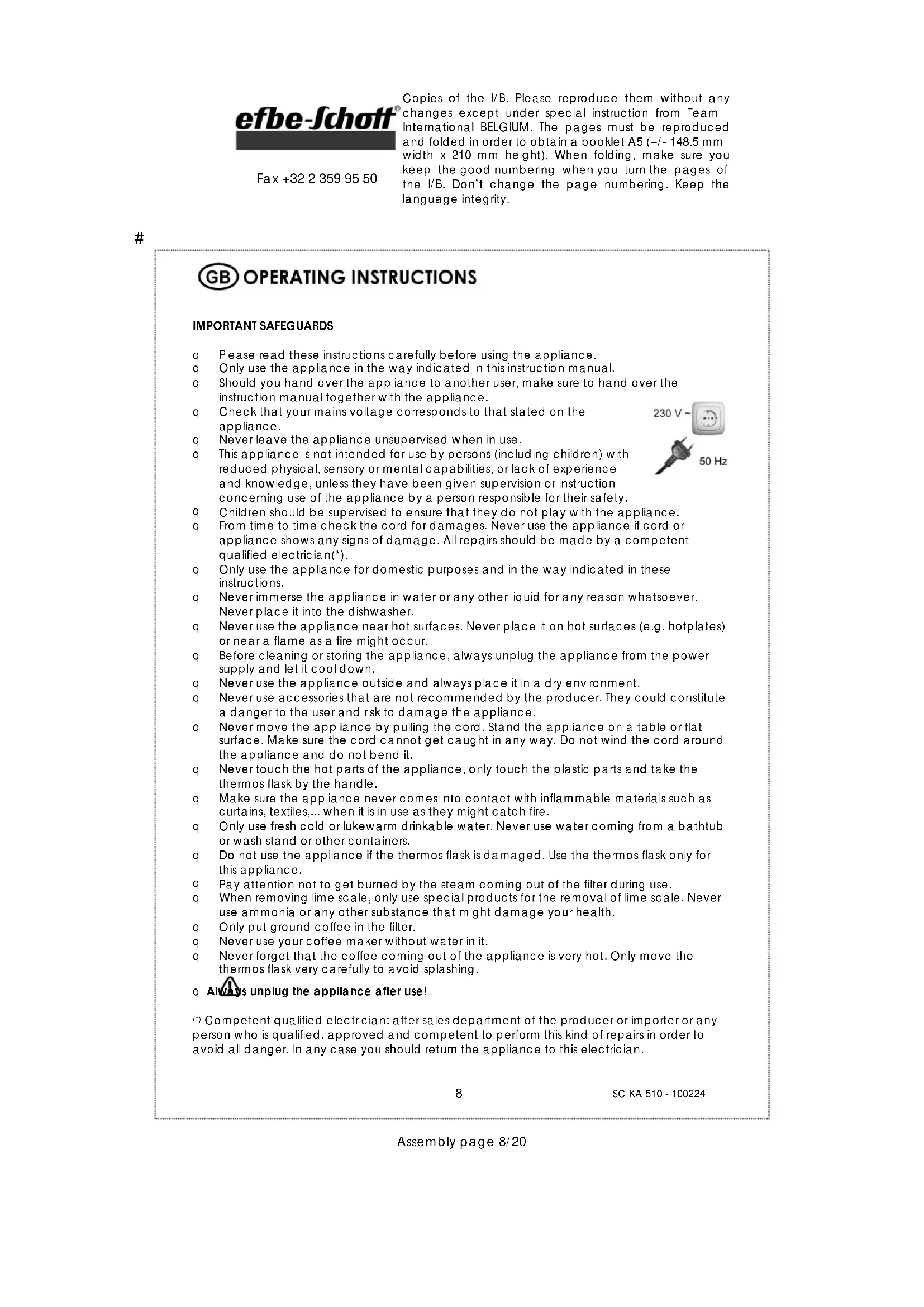

Please read these instructions carefully before using the appliance.

Only use the appliance in the way indicated in this instruction manual.

Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician(*).

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces. Never place it on hot surfaces (e.g. hotplates) or near a flame as a fire might occur.

Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down.

Never use the appliance outside and always place it in a dry environment.

Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Stand the appliance on a table or flat surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Never touch the hot parts of the appliance, only touch the plastic parts and take the thermos flask by the handle.

Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles,... when it is in use as they might catch fire.

Only use fresh cold or lukewarm drinkable water. Never use water coming from a bathtub or wash stand or other containers.

Do not use the appliance if the thermos flask is damaged. Use the thermos flask only for this appliance.

Pay attention not to get burned by the steam coming out of the filter during use.

When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health.

Only put ground coffee in the filter.

Never use your coffee maker without water in it.

Never forget that the coffee coming out of the appliance is very hot. Only move the thermos flask very carefully to avoid splashing. q Always unplug the appliance after use!

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

SC KA 510 - 100224 Assembly page 9/20 Fax [phone] NOTE The appliance does not have an OFF switch. Once all the water has passed through, the appliance turns off automatically. Therefore always unplug the appliance when it is not in use. If the appliance is turned on by accident, wait until it turns off automatically and let it cool down. Even when the appliance is unplugged only for a moment, it will not turn off. Never open the lid of the water tank when in use, hot water can splash and cause burns. INITIAL OPERATION

• When you use your appliance for the first time, pour fresh water into the water tank and switch on the appliance (see paragraph “Preparation of coffee”) without coffee in it.

• Once all the water has passed through, the appliance switches off automatically. When it is cold enough (after about 5 minutes) repeat the process with fresh water only. Repeat this process at least 2 times.

PREPARATION OF COFFEE

• Open the lid of the water tank (5).

• Pour the desired amount of water into the water tank. Make sure not to overfill by filling maximum 12 cups of water (do not exceed the “MAX” indication on the water tank). The number of cups can be read from the water level indicator (6). Use a paper filter if you want to make more than 10 cups of coffee, as the fine pores of the permanent filter only allow the coffee to pass through slowly and using too much coffee powder might make it run over.

• Use the permanent filter (12) or insert a paper filter (size 4) in the filter holder (11) and add the desired quantity of ground coffee (1 teaspoon per cup, approximately 6g). Pay attention: fold the bottom and the side edges of the paper filter in such a way that it fits perfectly in the filter holder.

Note: When the permanent filter is not being used (but only a paper filter), an aroma- retaining brewing is not possible.

• Put the permanent filter in the filter holder in such a way that the half round notch fits exactly, then put the filter holder in the appliance with the notch in front and the small handle in the foreseen notch on the left. Press on the filter holder until you hear a click.

• Never forget to close the lid (5) before switching on your coffee maker.

• Put the thermos flask (8) with closed lid (9) on the supporting plate (2).

• Switch on the coffee maker with the switch (7). The pilot light on the switch will be illuminated, indicating that your appliance is in use. The thermos flask allows you to keep the coffee warm for quite some time.

• When the brewing process is over, remove the thermos flask from the supporting plate (the drip stop (3) will prevent dripping) and pour the desired amount of coffee, keeping the lever (10) of the trickle-through lid pressed down.

AROMA SELECTOR SWITCH

The appliance has an aroma selector switch (4) which makes it possible to choose between normal coffee (position ) and aroma retaining coffee (position ). If you choose an aroma retaining brewing process, some of the hot water will drip separately into the thermos flask.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

DESCALING AND CLEANING

• We advise you to descale the coffee maker to prolong its life span. For descaling, only use products especially made for the descaling of coffee makers and follow their instruction manual. Then rinse the appliance twice with fresh water, without coffee powder. Guarantee claims will not be accepted for appliances that have not been descaled.

• Never use a dishwasher to clean the appliance or its accessories. Just clean the thermos flask in soapsuds.

• To clean the plastic parts of the appliance, use a damp, non abrasive cloth. PRACTICAL HINTS When you notice that the coffee making process is longer than it should be, it is probably time to descale the appliance. Do not wait until the situation gets worse. The descaling frequency depends on the amount of lime in water and therefore can be different from family to family.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair. Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Ne faites pas fonctionner votre cafetière sans eau.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
