USER MANUAL Surround Heater HZ0364U HONEYWELL

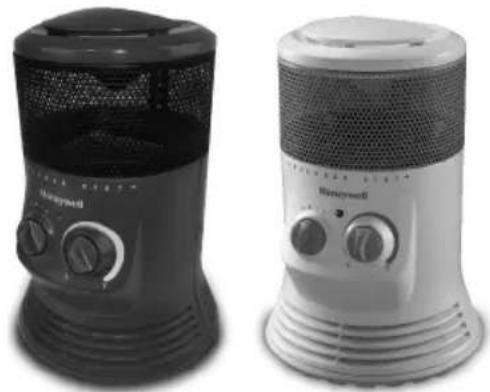

Two electric heating fans shown side by side, one black and one white, with no visible text or symbols on the fans themselves.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

WARNING - READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESE INSTRUCTIONS OR PRODUCT LABELS DO NOT USE THIS PRODUCT AND CALL US AT [phone] FOR AN EXPLANATION.

Warning – Failure to follow any of these safety instructions could result in fire, injury or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product and to avoid such hazards.

1. Warning – Read all instructions before using this heater.
2. Warning - This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If, provided, use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the

Model HZ-0360 Series

heater and keep them away from the sides and rear.

1. Warning – Extreme caution is necessary when any heater is used by or near children, pets or invalids, or whenever the heater is left operating and unattended.

2. Warning – Always unplug heater when not in use.

3. Warning – Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.

4. Warning - Do not use outdoors.

5. Warning – This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.

6. Warning - Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area where it will not be tripped over.

7. Warning - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

8. Warning – This heater draws 12.5 amps during operation when in the high setting. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.

9. Warning – It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace a loose or worn outlet.

10. Warning - To disconnect the heater, first turn off the product, then grip the plug and pull it from the wall outlet. Never pull by the cord.

11. Warning – Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
12. Warning – To prevent a possible fire, do no block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, or where openings may become blocked.
13. Warning – A heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint or flammable liquids are used or stored.
14. Warning – Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
15. Warning - Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No. 14 AWG minimum size and rated not less than 1875 watts. The extension cord shall be a three wire cord with a grounding-type cord and plug connector.

16. Warning – Never tamper with this product or attempt to fix it. Any tampering with, or modification of, this product can result in serious injury, death, or fire. Risk of electric shock. Do not open, no user serviceable parts inside.

17. Warning – Do not remove product labels that contain warnings or safety instruction.

18. Caution – The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
19. Caution – Before cleaning, or storage, or when not in use, turn the fan to the off position and unplug the heater from the electrical outlet and allow it to cool.
20. Caution – Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets. The heater's rubber feet will hold it firmly in position.
21. Caution – If your home has aluminum wiring have a licensed electrician check for your receptacle's connections. When using any 1500 watt heater, aluminum wire connections can cause a safety issue.
22. SAVETHESE INSTRUCTIONS

SET-UP

- Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any wall or any combustible material. DO NOT use on an unstable surface such as bedding or deep carpeting.

BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.

MOVING THE HEATER

• Turn off the heater.
• Allow it to cool for ten minutes.
• Unplug heater and move.

OPERATION

• NOTE: The 360° Surround Heater™ requires no assembly.
• NOTE: NEVER LEAVE AN OPERATING UNIT UNATTENDED
• The 360° Surround Heater™ is designed to disperse heat in 360° range.
• With the Power Knob in the OFFO() position, plug the heater into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.

- The Power Knob is equipped with three (3) settings: Fan Only Low (1) High (11)

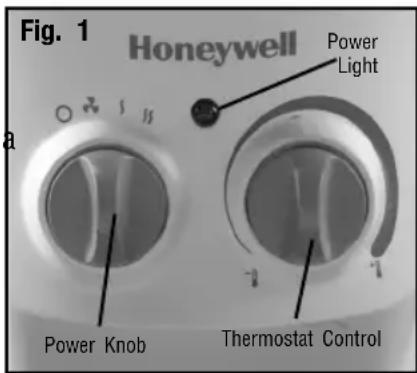

Fig. 1 Honeywell Power Light Power Knob Thermostat Control

The Low ( ) setting uses 750 watts of power and the High ( ) setting uses 1500 watts of power. Fan Only ( ) setting uses 19 watts of power. You can select the proper setting to accommodate your comfort level with the Power Knob. When you choose any setting the amber Power Light will come on. Because the Low ( ) setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about the amperage draw on a circuit when the heater is on the High ( ) setting.

• Turn the Thermostat Control fully clockwise to the highest( ) setting.
• When the room reaches a comfortable temperature, slowly turn the Thermostat Control counter-clockwise until the heating element goes off (the amber Power Light will not be shut off). This is the point at which the Thermostat setting equals the room temperature. At this setting, the Thermostat will automatically turn the heater on and off to maintain the selected temperature.
• Turn the Power Knob to OFFO) and unplug the heater when you are finished using it.

SAFETY FEATURES

The 360° Surround Heater™ is equipped with several devices and features for added protection:

• 360° SafetyTIP™ is an all-around tip-over switch that disables the heater if it is accidentally tipped in any direction.
• A high temperature safety control prevents overheating.
• This heater is also equipped with a thermal cut-off fuse that will permanently shut down the heater should it operate at a higher than normal temperature.
• This heater was created using a high quality safety plastic.

CLEANING

We recommend that the 360° Surround Heater™ be cleaned at least once a month and before off-season storage.

• Turn the heater OFF (O) and unplug it. Allow it to cool.
• Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES, POLISHES OR ANY CHEMICAL SOLUTION.

STORAGE

• Clean your 360° Surround Heater™ using the above-mentioned steps. Wrap the cord around the unit. Place in its original box and store it in a cool, dry place.
• This heater does not disassemble.

TROUBLESHOOTING

If your 360° Surround Heater™ shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.

• Be sure it is plugged in and that the electrical outlet is working.
• Check your Thermostat Control setting. The unit may simply be off because you have reached your desired heat setting.
• Check for any obstructions. If you find an obstruction, turn the heater ON and unplug it. Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the heater in and follow the OPERATION instructions.

ELECTRICAL RATING

This product is rated 12.5 Amps (1500 watts) @ 120V, 60Hz.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz USA Inc.

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a \10 US/\15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges.

We suggest having tracking or delivery confirmation. Send to:

In U.S.:

Kaz USA, Inc.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada
