Product type	Caravan awning / Tent
Brand	dwt-Zelte
Model	Jubilee 25
Dimensions (approx.)	Variable depending on setup, depth ~250 cm, width ~250 cm
Weight (approx.)	~15 kg (estimate)
Material	Polyester fabric, aluminum or steel frame
Color	Not specified (usually beige, gray, or blue)
Number of places	Not specified (caravan awning, family use)
Main functions	Create additional space in front of the caravan, protection against rain and wind
Mounting system	Frame with telescopic bars, attachment to caravan profile, ground pegs
Items included	Canvas, frame (bars, corners, ridge poles), pegs, elastic bands, tension ropes, anti-friction protectors
Optional accessories	Additional bars, storm straps, frame tensioner
Safety	Tension ropes on corners and middle, storm straps, anti-friction protectors to prevent wear
Maintenance	Clean with a soft cloth and soapy water, avoid over-tightening to preserve the fabric
Spare parts and repairability	Bars, pegs, elastic bands, protectors available at the dealer
Warranty	Not specified (refer to the dealer)
General information	Manual available in FR, DE, EN, NL and other languages on request

Frequently Asked Questions - Jubilee 25 dwt-Zelte

How to install the Jubilee 25 awning correctly?

Read the manual carefully before starting. Lay the canvas on a protective mat, pre-assemble the frame on the ground, then insert the awning bead into the caravan profile. First fix the central roof bar, then the corners, and gradually adjust the tension. Use the tension ropes to stabilize the whole. Refer to the illustrations for precise guidance.

Why is my awning canvas not taut?

This is often due to incorrect placement of the corners or uneven tension. Check that the frame corners are exactly in the canvas corners, that the roof bars are parallel to the seams, and that the center of the frame is centered. Loosen the bars and retension them in several steps while maintaining symmetry.

How to avoid damaging the canvas during setup?

Use a mat or ground protection to avoid tears. When fixing the pegs, first drive them halfway before threading the elastic, then finish driving to avoid pulling on the seams. Immediately tighten the bar screws to prevent them from coming loose and hitting the caravan.

How to adjust the frame tension?

Do not tighten the bars to the maximum directly. Work in several passes with equal force to maintain symmetry. Use the recommended frame tensioner. The tension should be sufficient for the seams to be aligned without wrinkles, but not excessive to avoid deforming the canvas.

How to use the storm straps?

The storm straps are attached to the corners and middle of the frame. They provide additional security in high winds, but do not replace proper ground anchoring. Make sure the straps do not rub directly on the canvas to prevent wear.

How to maintain the awning?

Clean the canvas with a soft cloth and soapy water. Avoid abrasive products. Regularly check the tightness of the screws and the condition of the elastic bands. Store the awning in a dry place after cleaning. Protect the bars from shocks during disassembly.

What to do if the awning has persistent wrinkles?

Persistent wrinkles are often due to misalignment of the frame. Check that the roof bars are parallel to the seams and that the corners follow the side seams. If the canvas has been loosened by water weight, it will never regain its original state; then let it dry and retension gradually.

How to install the awning curtains?

The curtain attachments are placed on the track (rail) about 10 cm apart. Slide the roller attachments onto the sewn bead above the windows. Ensure that the zippers of unused pulls are crossed with the elastic bands to stay closed.

Where to find spare parts for the awning?

Spare parts (additional bars, pegs, elastic bands, anti-friction protectors) are available at your dealer. For additional anti-friction protectors, contact dwt-Zelte directly. Only use original parts to ensure safety.

How to protect the awning from wind and rain?

Firmly anchor the awning to the ground with pegs and tighten the tension ropes on the corners and middle. Use the storm straps in high winds. Make sure the front and back protections along the caravan are in place for waterproofing. A well-tensioned canvas withstands weather better.

USER MANUAL Jubilee 25 dwt-Zelte

This is how you erect your awning correctly.

Illustrated instructions

Numerous discussions with end-users and visits to campsites prompted us to produce these illustrated instructions.

They are intended to help you put up your awning safely and in a professional manner.

Just a few moves in the right place, and the job's done!

You can help improve the looks of your campsite by putting up your awning properly!

UK

www.dwt-zelte.com

Awnings

Off we go!

Please read the instructions through carefully before you start putting up the awning.

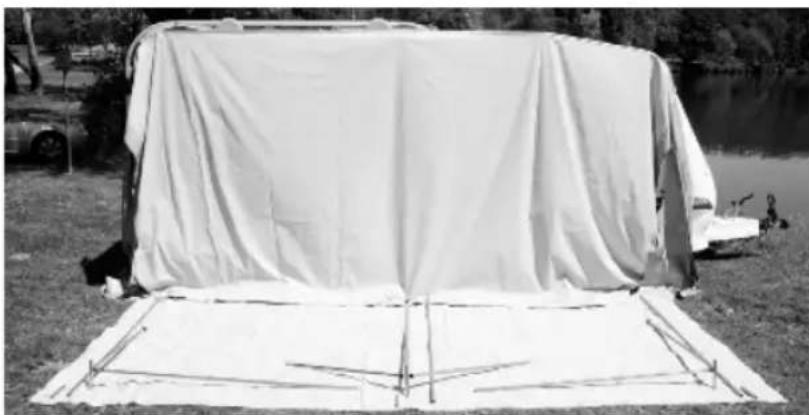

Lay out protective sheeting or tent carpet in front of the caravan.

Fit the frame together, fit the screws or clamps.

Lay out the corners poles, roof poles and ridge poles on the ground in front of the caravan according to the pole diagram. Do not connect these individual parts yet. You can put additional poles such as extra roof poles, verandah poles or canopy tensioners to one side for the moment. These will be needed later.

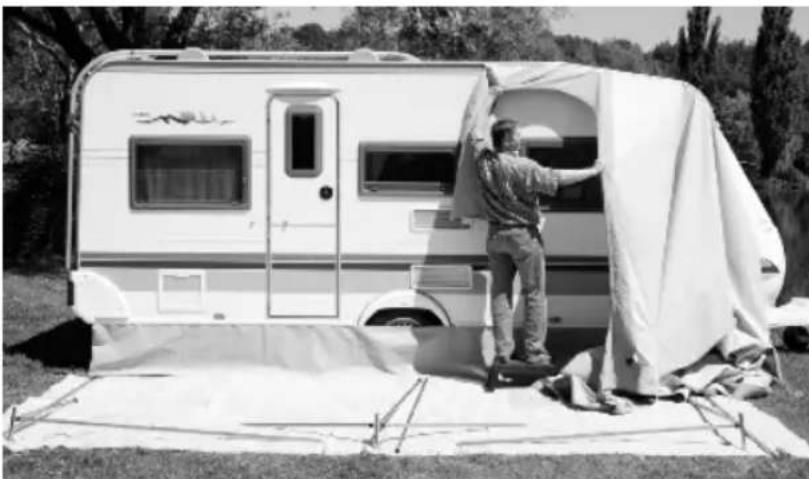

Clean the caravan's awning rail, making sure there are no sharp edges, and feed the roof of the awning in.

For caravans with a sloping front, please use the double wind flap on the right side wall which is stitched on. With the help of the wind flap you can still tighten the sidewall vertically, and attach an annex, according to level of equipment.

Caution

(Refers to all steps of setting up)

Please always tighten the fastening screws or fastening devices so that the individual poles cannot close up again or come away from one another. You will avoid any chance of injury and will stop the caravan being damaged by falling poles.

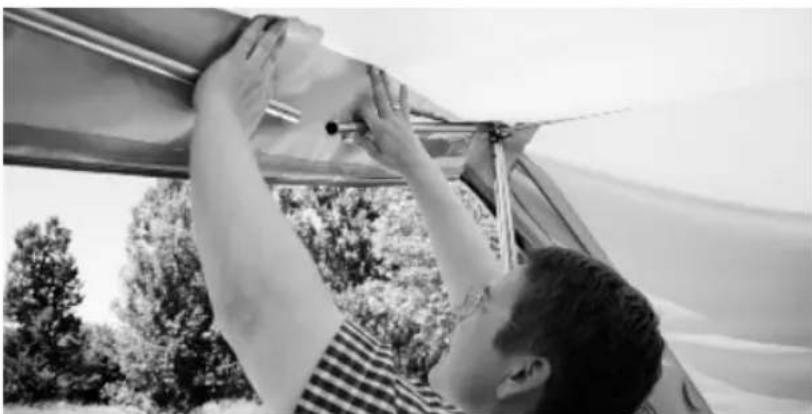

Important

To avoid any damage occurring to your caravan

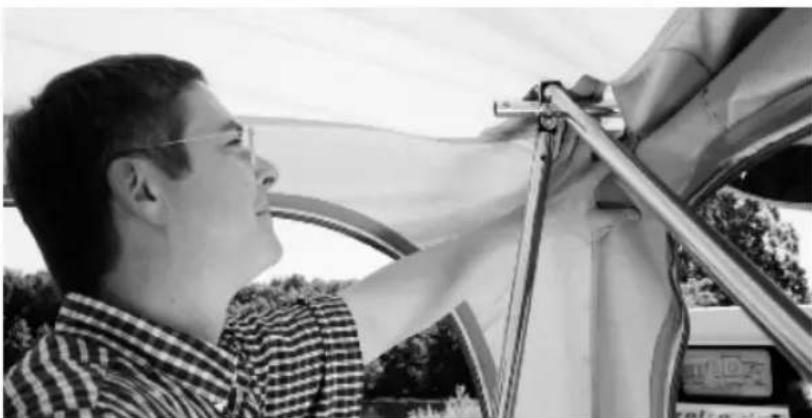

• the screws or other fastening devices for the roof poles should be so adjusted that if they do come loose and fall, the side wall of the caravan is not going to be damaged.

• connect the roof poles with the brackets by making sure they engage properly over both poles pushed in, and only then, telescope them. In this way you will avoid pulling the front pole out and the rest of the pole falling back and hitting the caravan.

www.dwt-zelte.com

www.dwt-zelte.com

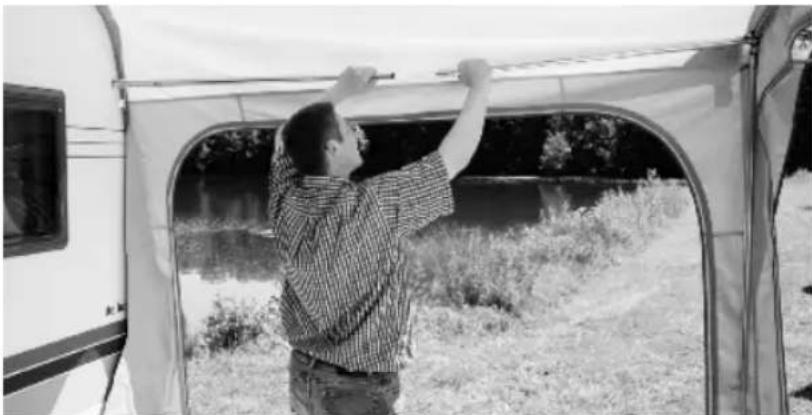

Hang the middle roof pole in the threaded fixing eye or Vario Clip on the caravan and connect this to the centre bracket. Put up the centre bracket and determine the centre height.

While setting up, we recommend that all brackets are secured with a guy-rope to avoid gusts of wind picking up the roof of the awning with its frame.

Put up one side bracket.

Hang the side roof pole in the threaded fixing eye or Vario Clip on the caravan and connect it to the side bracket. Spread the pole slightly and then tighten the screws completely.

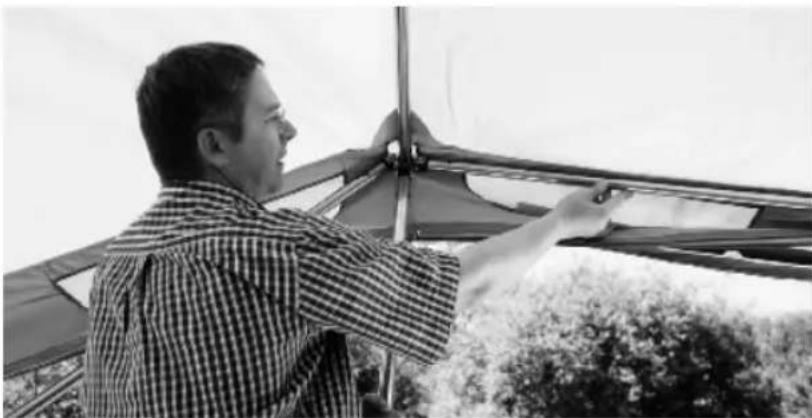

Connect this side bracket with the centre bracket, spread the poles apart slightly and then tighten the screws completely.

Awnings

Repeat the previous three steps with the opposite end of the awning.

Now push the small canopy supports in place, taking care at this point that the side- and centre-brackets are clearly seen through the pole cut-out and that the brackets are not overtensioned forwards.

Note:

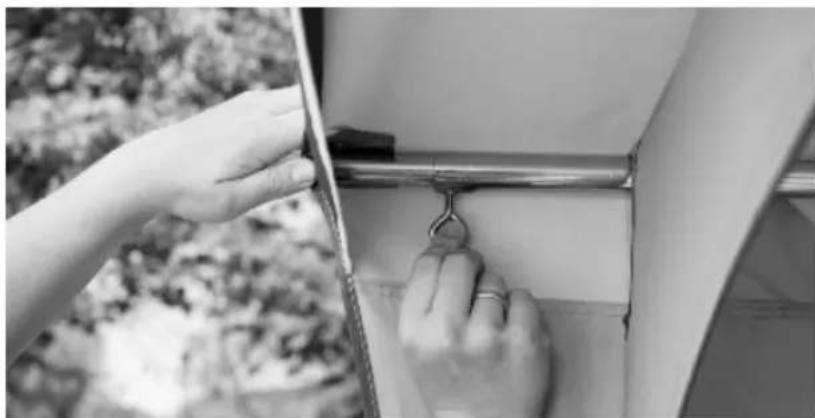

If canopy tensioner poles are also supplied, they are fitted at this point. In the canopy, these poles connect the side supports with those in the centre.
Before taking the next steps, arrange the roof of the awning so that all horizontal seams in the front and side walls are running horizontally.

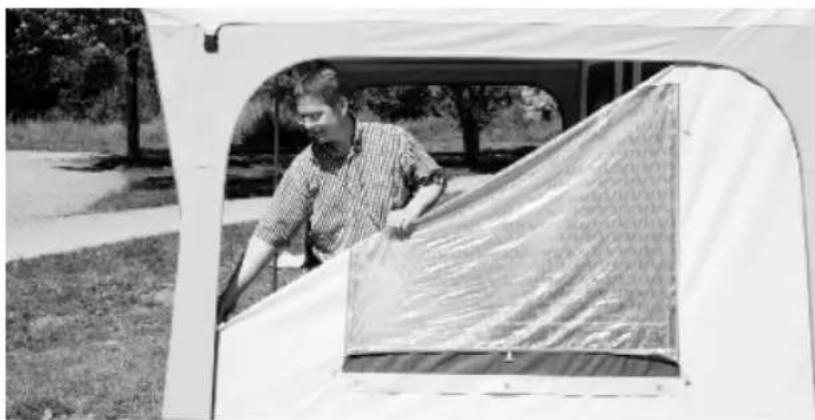

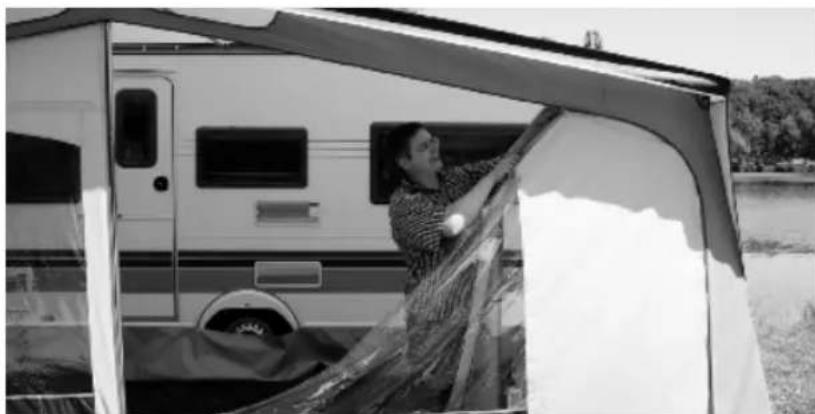

Set the side walls in place.

Set the front wall in place.

www.dwt-zelte.com

Note:

• Correct tensioning of the frame is important to make the tent look right. Please take a little more time over this, and compare the following pictures with the way you have erected your tent.

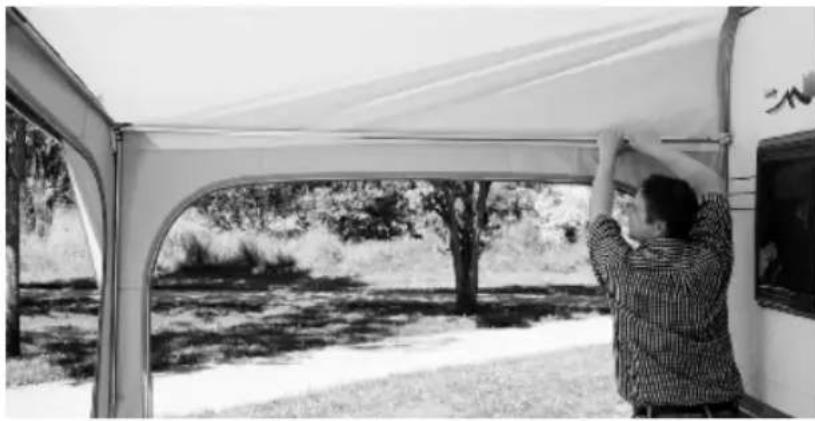

• Do not tension the roof and ridge poles the first time you telescope them with all your might, but evenly, possibly even several times. The decisive factor is a good seat of the brackets in the corners and in the middle

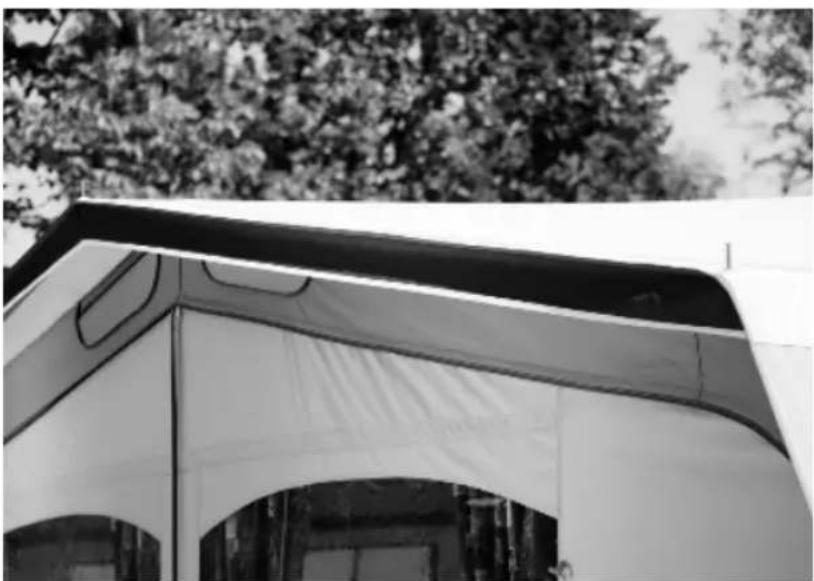

Correct:

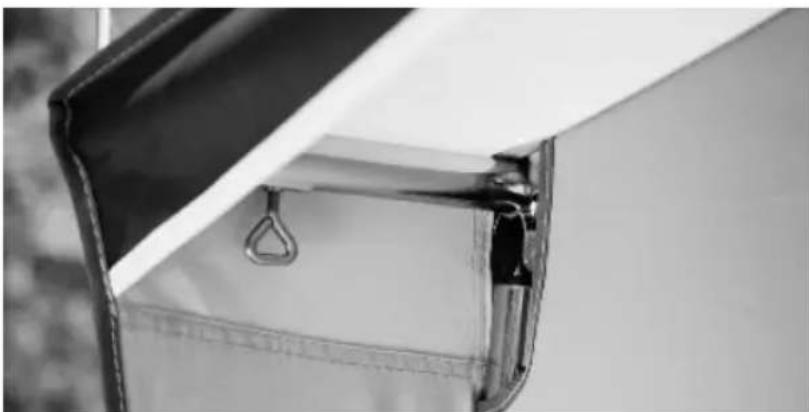

The side bracket is correctly seated in the corner, directly behind the roof seam.

Ridge pole and side roof pole are correctly tensioned.

The canopy support must be telescoped to the correct length.

www.dwt-zelte.com

Correct

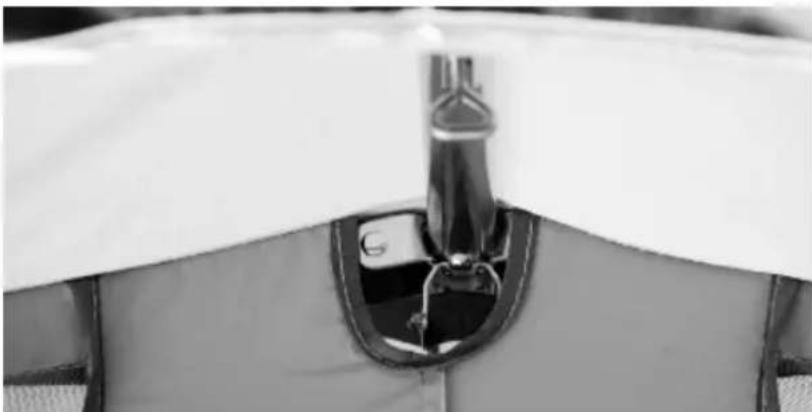

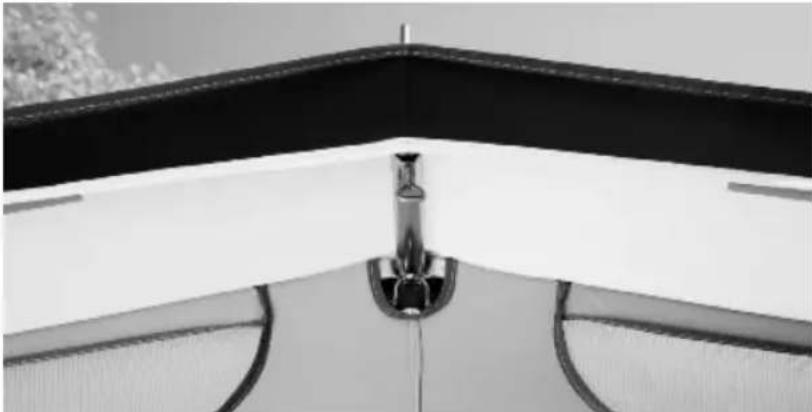

The centre bracket fits properly in the middle of the pole cut-out!

Wrong!

The centre bracket is off-centre in the pole cut-out, it will never be possible to spread the canopy shade properly.

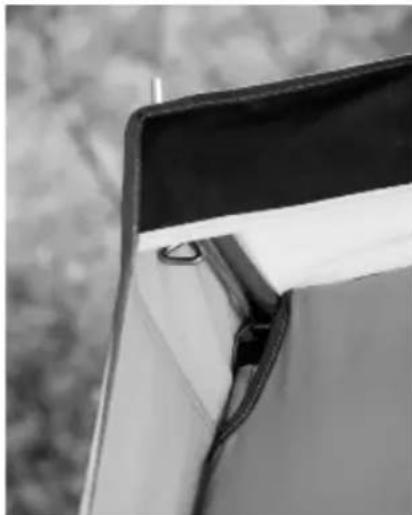

Wrong!

The roof pole is overstrained, or the canopy support must be pulled out further. The roof-seam runs behind the ridge pole. It will never be possible to spread the canopy shade properly.

Awnings

Correct

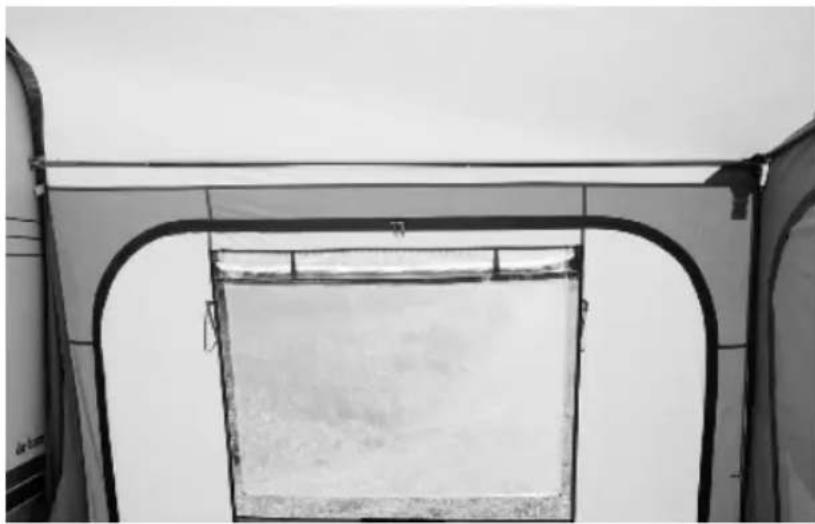

The side roof poles must run parallel to the side wall seam, so that the roof can be spread cleanly.

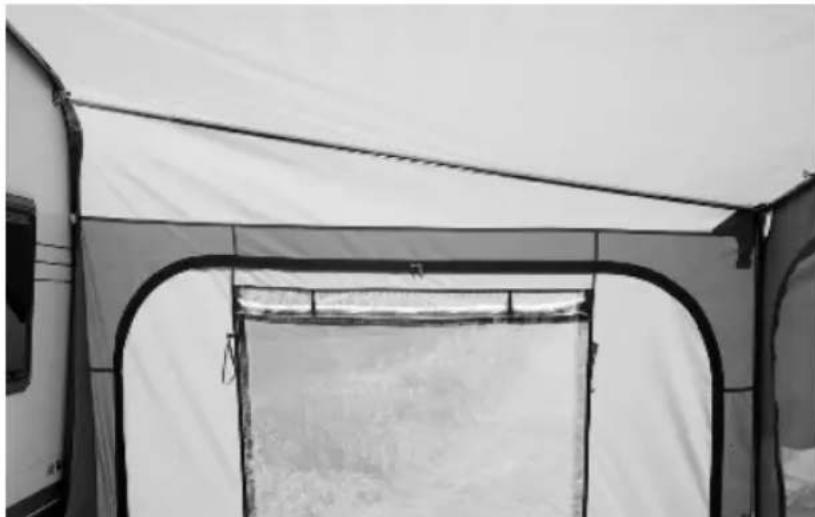

Wrong!

The side roof pole does not run parallel to the side wall seam, and it will not be possible to tension the small wind-flap sewn on to the front wall very tightly like this

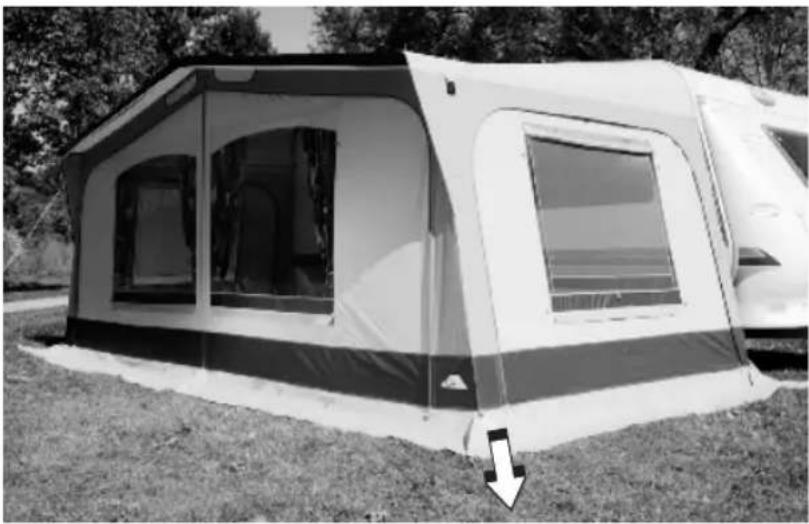

Pull the foot at the corner as shown by the arrow in the picture.

This allows equal tensioning of the front- and side-walls. Repeat the procedure with the corner foot on the other side. Fix this corner with ladder tensioner and tent peg.

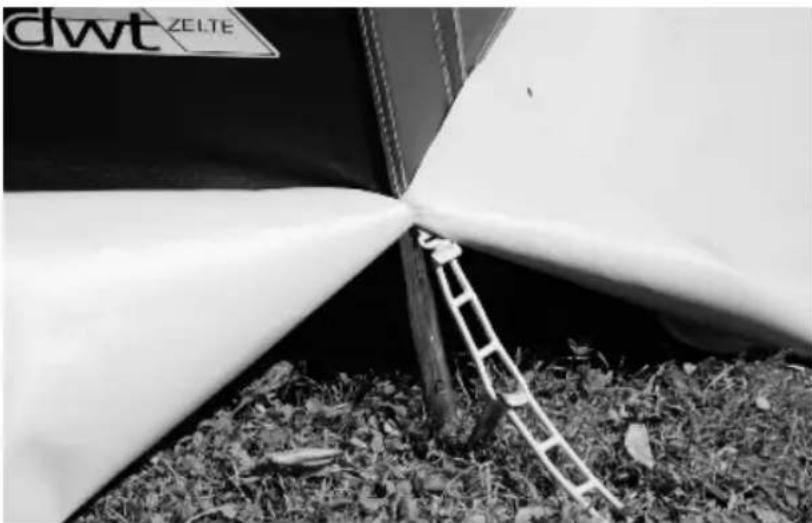

Caution

Knock the peg into the ground BEFORE you fit the tensioner over it. This will avoid the possibility of the force of the blows tearing the seam or the loop.

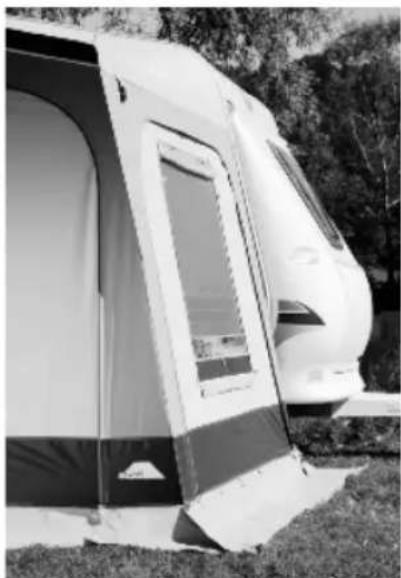

Correct

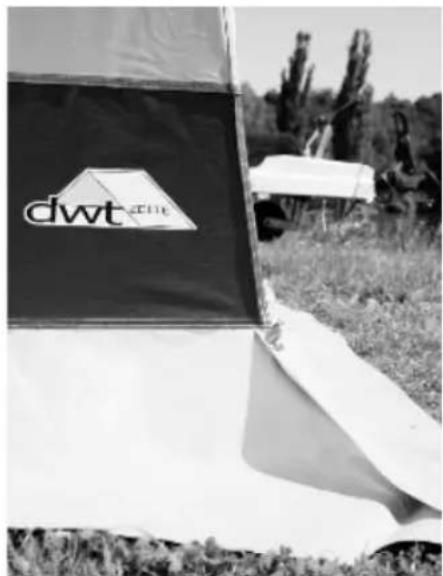

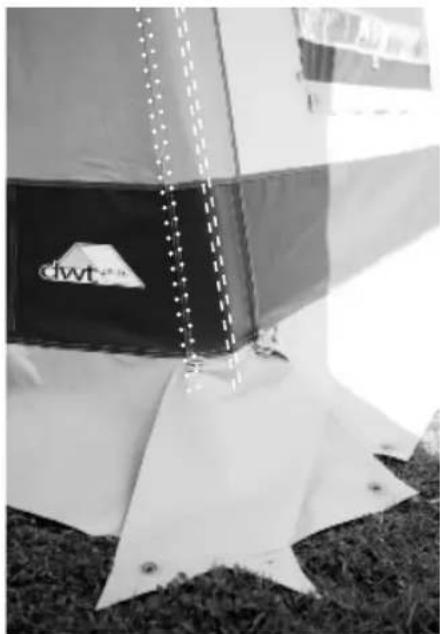

The corner seam is directly above the frame leg. Only like this can the tent be spread almost without wrinkles.

Wrong!

The vertical corner seam is not directly above the frame leg. This makes it impossible to spread the tent smoothly.

Corner seam

Caution

• Should the ladder tensioners or similar systems not be firmly stitched on, now hang these on the hooks in the mud-wall.
• Shut all zip-fasteners before starting to spread the floor.
• Begin spreading the floor at the rear corners of the tent by the caravan.

www.dwt-zelte.com

Awnings

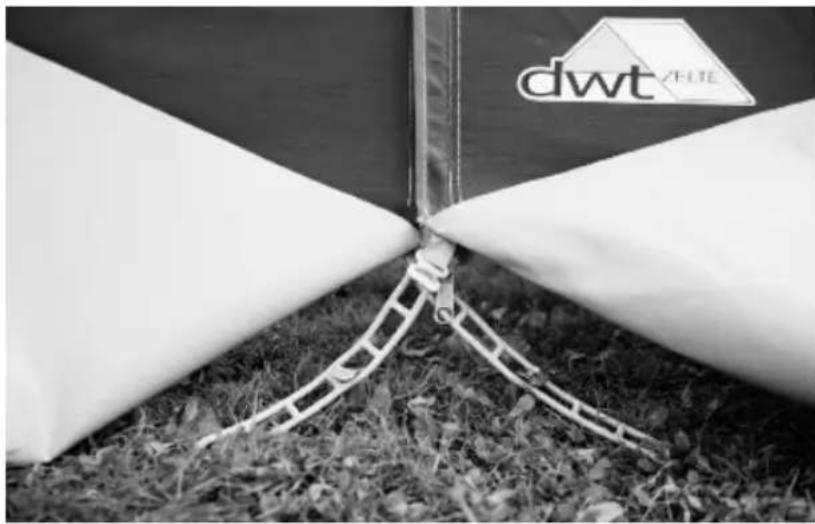

The ends of the zip-fasteners are anchored in crossover form to reduce strain.

The remaining tensioning elements are tightened straight downwards.

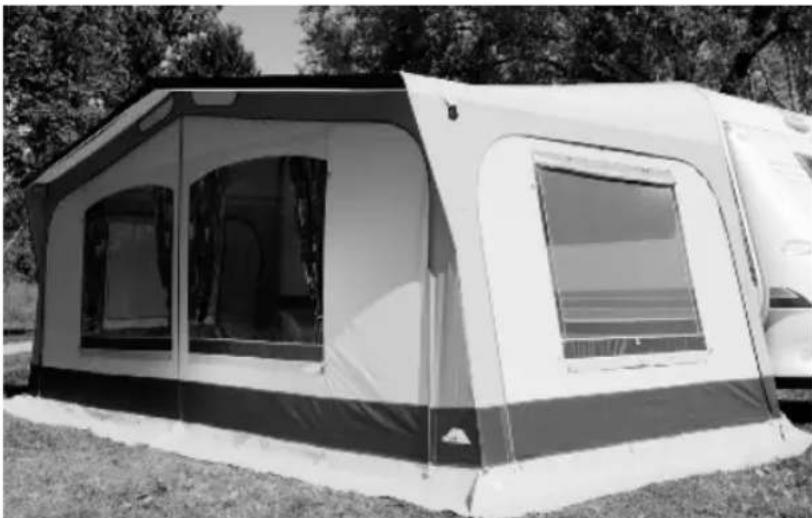

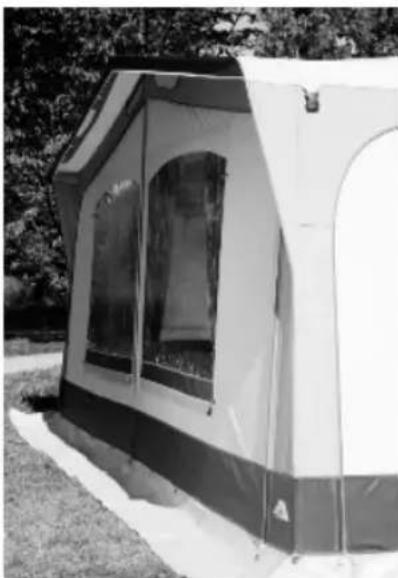

Correct

The front wall: corner to corner in a straight line.

The side walls from front corner to caravan in a straight line, the canopy shade tight.

www.dwt-zelte.com

Correct

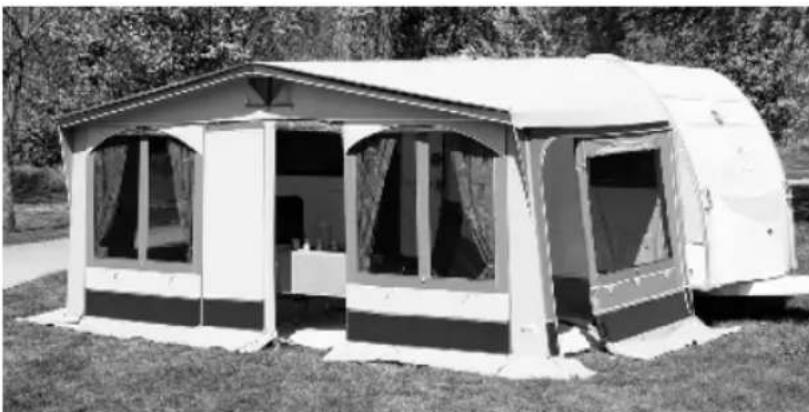

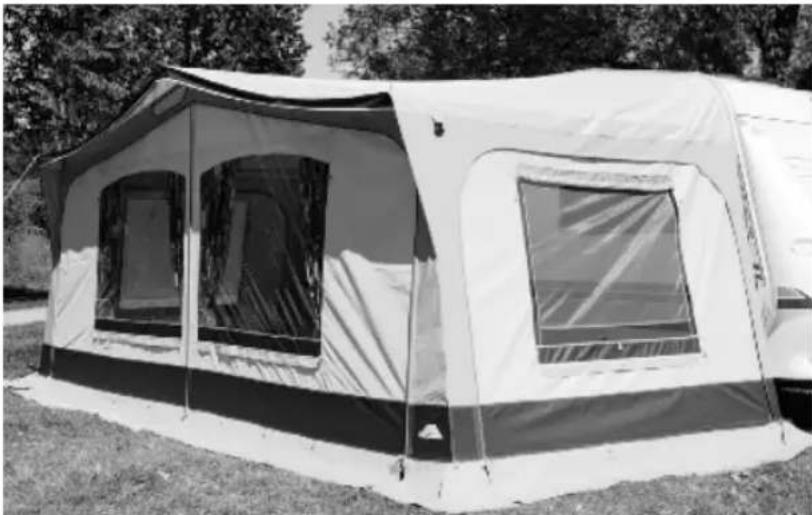

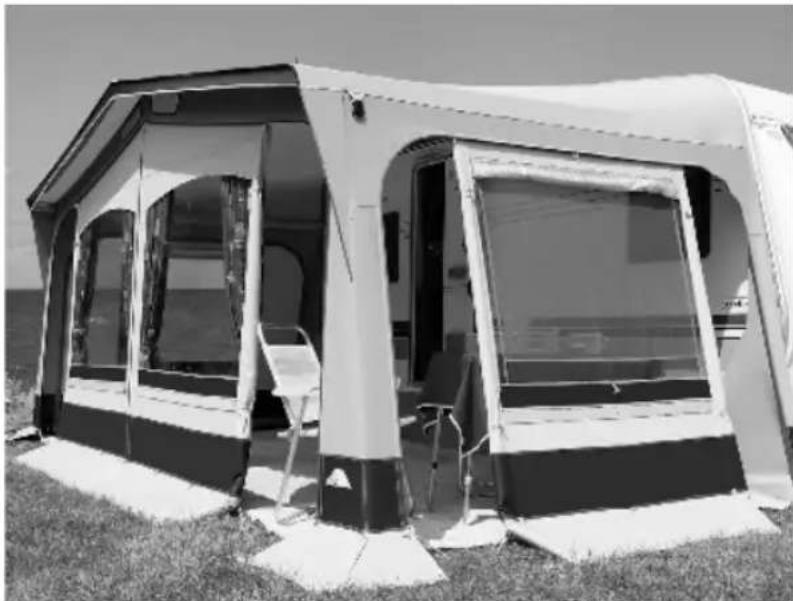

This is how your tent should look if you have followed these instructions. The better and more tightly your tent is erected, the less likely it is to be affected by wind and rain.

Wrong!

Judge for yourself. In this condition, a single gust of wind would be enough to tear seams or if it rains, pools of water will collect on the roof. Once the roofing material is stretched out of shape, it will never go back into shape, and afterwards extra poles won't help either. Don't let it come to that!

www.dwt-zelte.com

Awnings

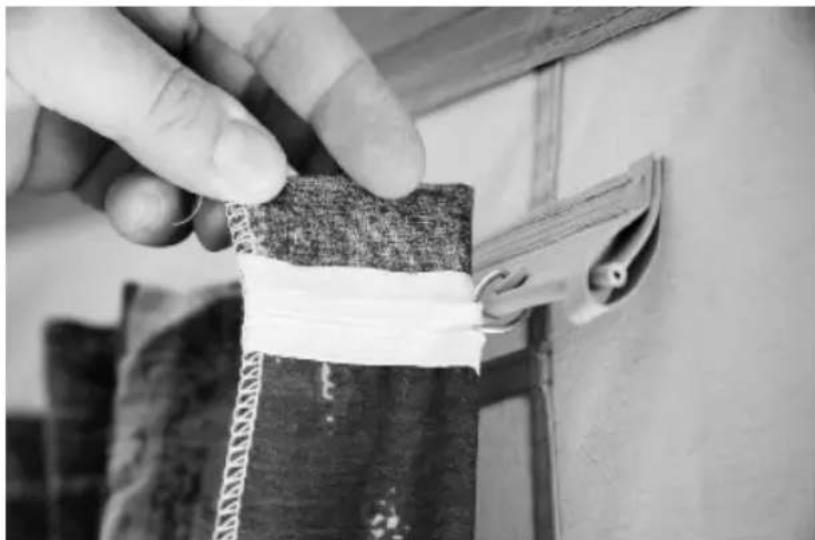

The curtain rolls are pulled through the loops at a spacing of about 10 cm and fixed to the curtain strip.

Correct

Fit the additional roof poles where there are already wear protectors sewn in.

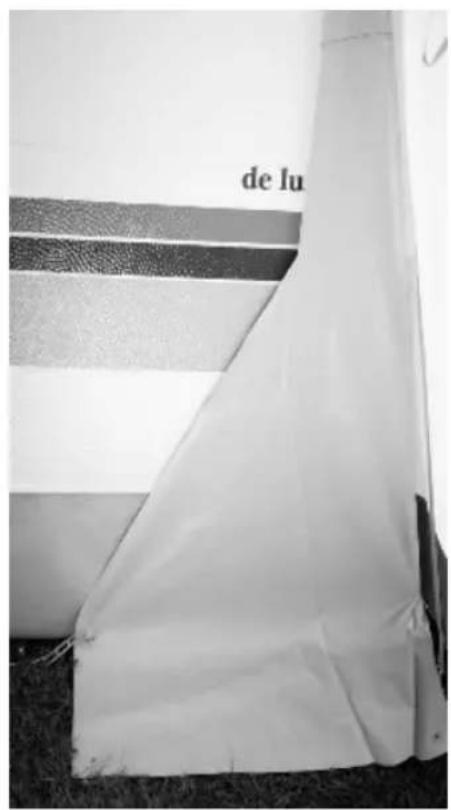

The wind flaps at bow and stern are anchored into the ground.

www.dwt-zelte.com

Correct

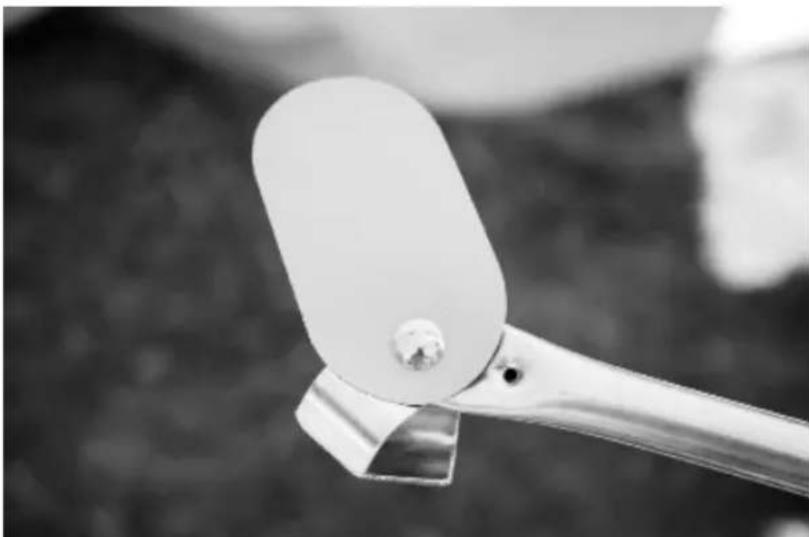

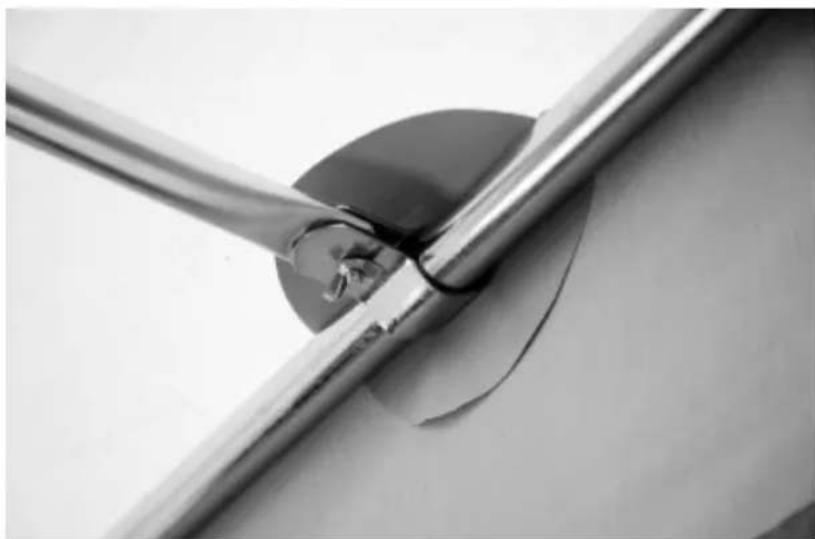

The wear protector supplied is placed around the pole and the clamp fitted under it. This is to protect the material of the front and side walls from abrasion. Check these fixings on a regular basis and replace the wear protectors as and when necessary.

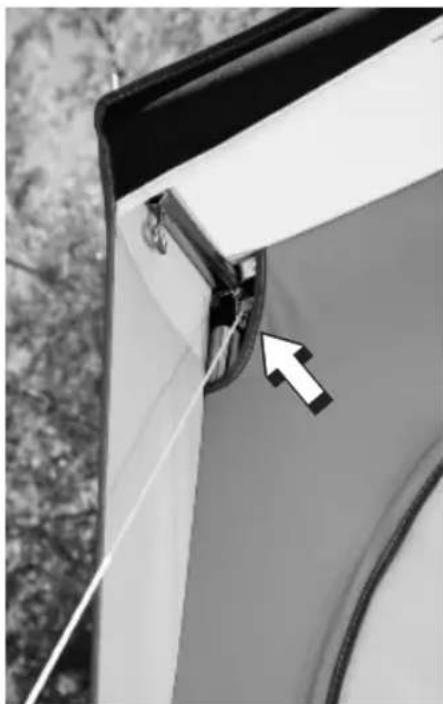

Correct

The guy-ropes lend the tent.

additional stability.

Fix the rope to the frame bracket.

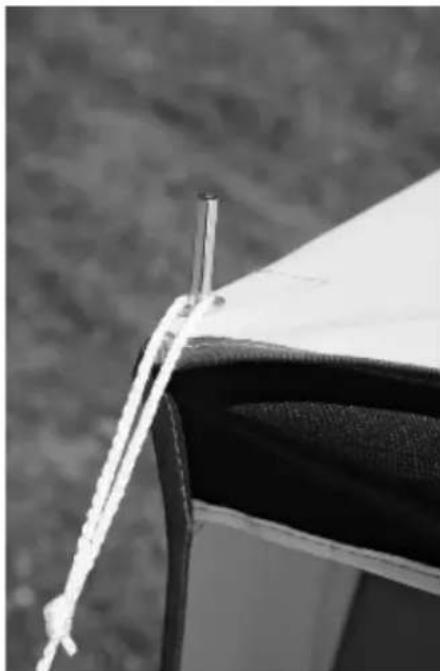

Wrong!

The rope will damage the roof material, and will bend the bracket.

www.dwt-zelte.com

Awnings

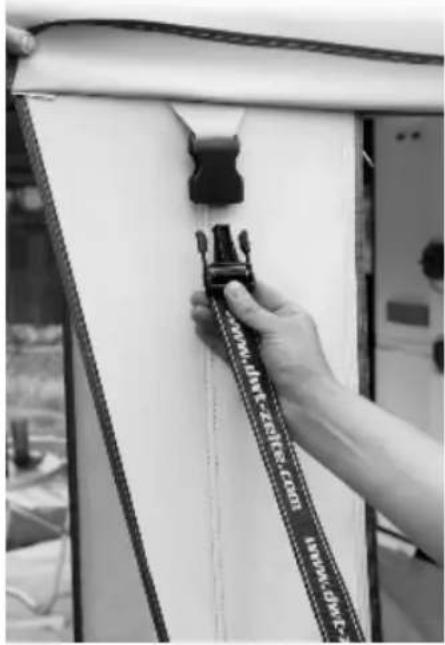

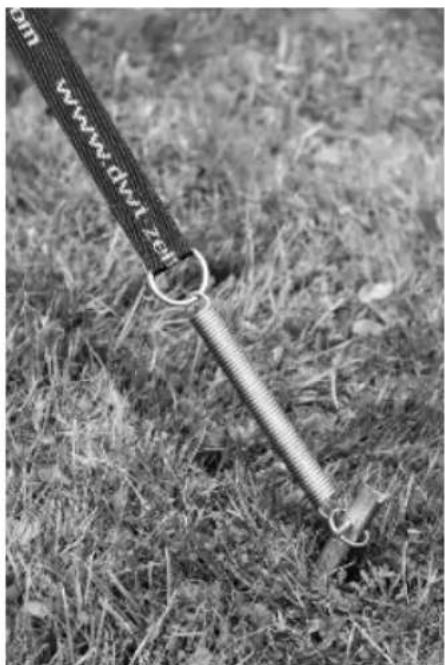

Alternatively check whether your model is also equipped to fit the „Sicherheitsgurt plus“ safety strap.

This by no means replaces the regular ground anchorage, but should be used additionally.
