USER MANUAL GS100RGB LED Laserworld

GS-100RGB move (+ white edition)

Please spend a few minutes to read this manual fully before operating this laser!

Two black-and-white photoelectric lighting equipment with yellow warning labels and a white cylindrical device (no visible text or symbols)

English

Deutsch

Français

Español

03/2017

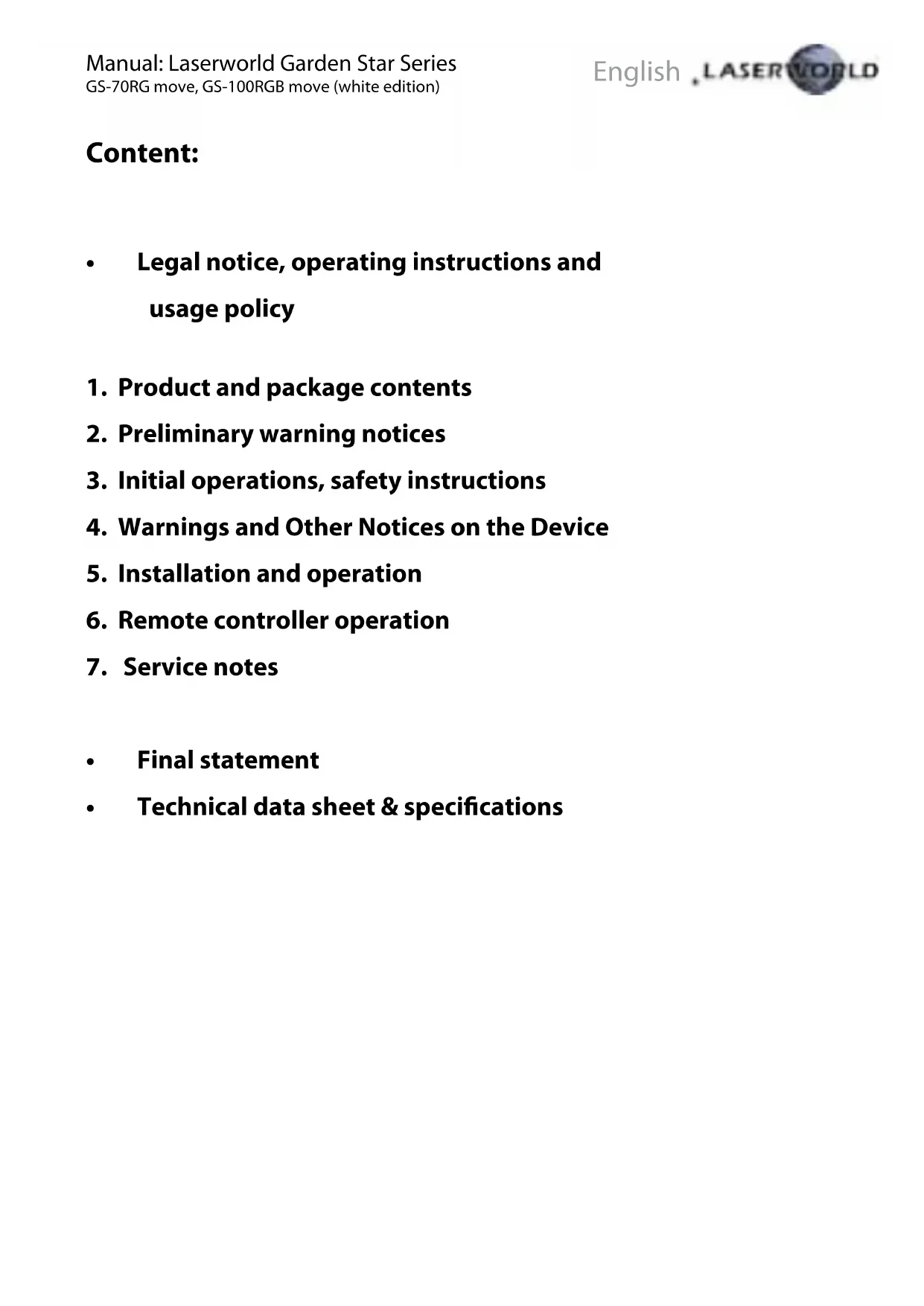

Content:

• Legal notice, operating instructions and usage policy

1. Product and package contents
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Warnings and Other Notices on the Device
5. Installation and operation
6. Remote controller operation
7. Service notes

• Final statement
• Technical data sheet & specifications

English Version

Legal notice:

Thank you for purchasing this Laserworld product.

Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products.

This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith.

The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Operating instructions and usage policy: The laser systems of the Laserworld Garden Star Series are intended for private use only. This device is no toy and must not be operated by minors or children!

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser light effect 1 x remote control unit 1 x manual

1 x power supply unit 1 x stake

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, power adapter or power cords.
3. Never look directly into the light source of a laser projector.
4. This device is manufactured according to protection class IP65. It is dust-proof and protected against temporary submergence. Do not operate the device under water.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done according to safety regulations of the respective country.
4. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation may damage device.

5. Never use dimmer, RC or other electronically switched sockets.

6. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Ensure that the device does not get overheated.

7. Operating temperatures: -20°C up to +40°C
8. The operation of the device below -15^ may result in reduced output power and below -20^ laser output may stop. This is not a deficiency, but derives from general physical principles. When the temperatures rise above the given temperatures the laser runs at normal level again.

9. This unit is intended for indoor and outdoor use.

10. Do not open the device! This product has no user serviceable parts inside. Danger of laser radiation!

11. Warnings and Other Notices on the Device

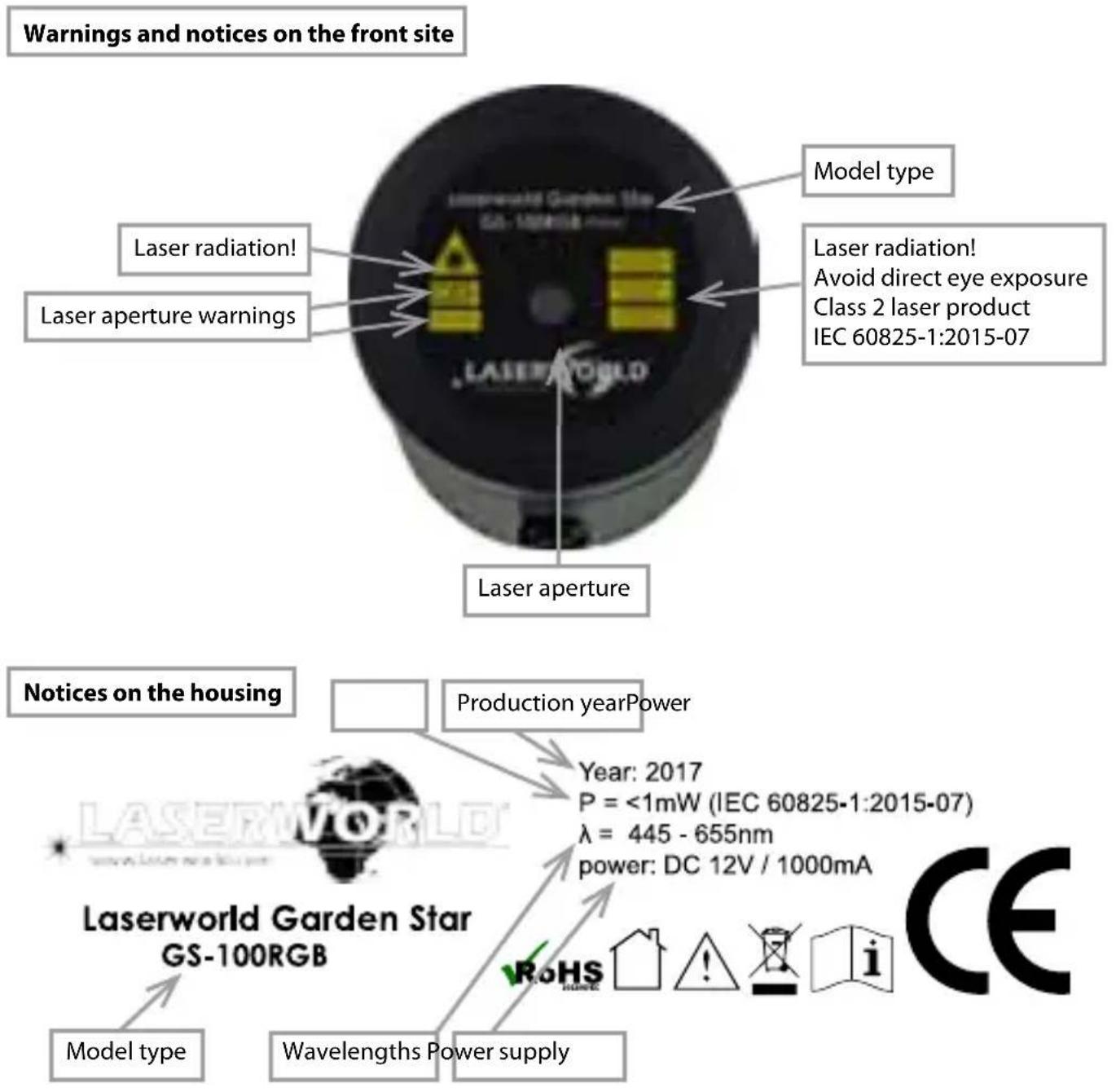

Warnings and notices on the front site Laser radiation! Laser aperture warnings Model type Laser radiation! Avoid direct eye exposure Class 2 laser product IEC 60825-1:2015-07 Laser aperture Notices on the housing Production yearPower Year: 2017 P = <1mW (IEC 60825-1:2015-07) λ = 445 - 655nm power: DC 12V / 1000mA Laserworld Garden Star GS-100RGB RoHS Model type Wavelengths Power supply CE

Manufacturer / Representative notice on the back site

ACHTUNG:

Anleitung beachten!

WARNING:

Read user manual before use!

Laserworld (Switzerland) AG,

Kreuzlingerstr. 5, CH-8574 Lengwil

Represented in the EU: Ray

Technologies GmbH,

Mühlbachweg 2.

D-83626 Valley

Notices on the Remote

!

WARNING

Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with This product contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal b urns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed in-side any part of the body, seek immediate

medical attention.

5. Installation and operation

1. Choose a suitable indoor or outdoor location for your laser light effect.

2. Installation:

3. Bolt the angle bracket together using the screw included in delivery.

4. Screw the angle bracket to the thread on the bottom of the the laser unit. Make sure to only hand-tighten the angle bracket to not tear out the thread.

5. Screw the stake to the other end of the angle bracket, make sure to only hand-tighten the stake.

6. Connect the psu adapter to the power cable of the device. Connect the power adapter to mains.

7. Your laser device starts to project immediately.
8. Disconnect the device from mains to switch off the laser light effect.

6. Remote controller operation

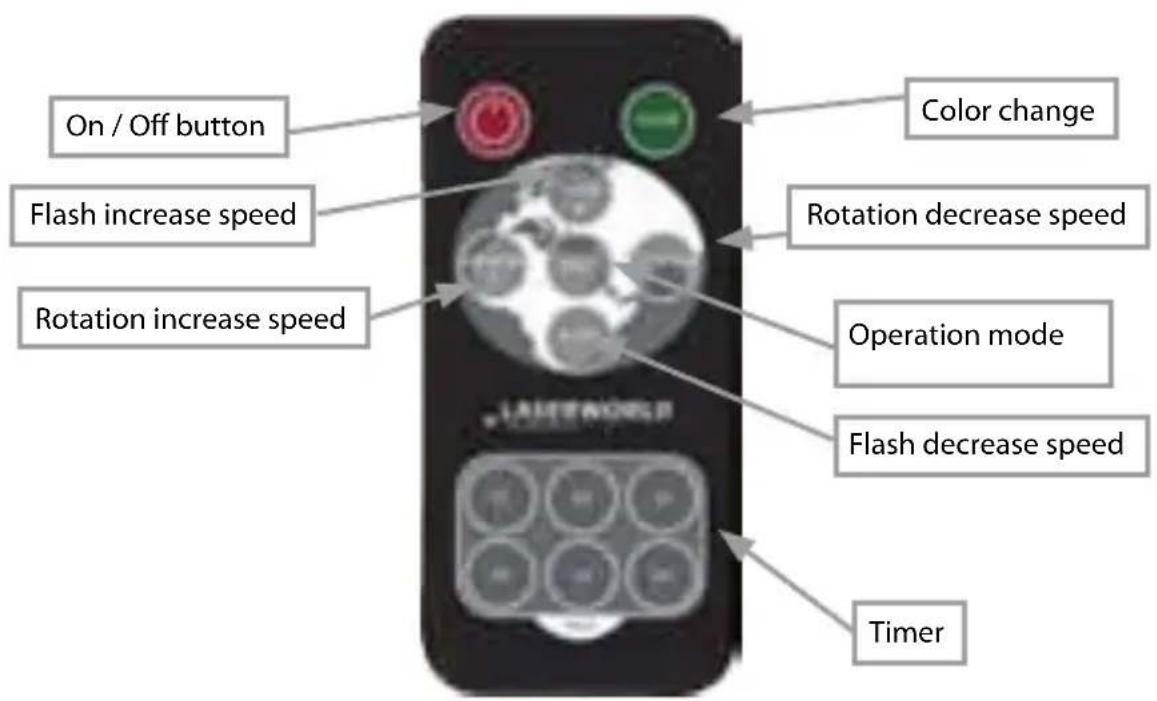

On / Off button Flash increase speed Rotation increase speed Color change Rotation decrease speed Operation mode Flash decrease speed Timer

On / OFF:

Push „power“ on the red button and the show laser starts to work. The first output is the last activated feature before the device has been switched off. When pushing the „On / OFF“ button again, the output stops. Even though the show laser has been switched off by the remote control, it is recommended to remove the power supply plug from the socket when the device is not in use.

Timer function:

With the timer function a power off time can be set.

After 1, 2, 3, 4, 5 or 6 hours the Garden Star unit powers off automatically, if the respective button has been pushed. If a certain time period is selected, output starts automatically at the same time on the next day for the same selected time period.

For setting a power off timer press one of the six timer buttons on the bottom of the remote control. The laser projection blinks. If the setting has been made press the timer button a second time to delete the previously selection.

Rotation:

Two buttons on the remote control are responsible for changing the speed of the rotation. The left „Rotation +" button and the right „Rotation -" button.

By pressing the „Rotation +“ button rotation of the output speeds up. With the „Rotation -“ button it's possible to slow down the rotation of the laser light effects.

By pressing the „Rotation -“ button multiple times the rotation stops.

Flash:

For changing the speed of the flash feature there are two buttons on the remote control. The upper „Flash +“ button and the lower „Flash -“ button. When pressed one of the buttons, output stops and starts again. By pressing the „Flash +“ button flash frequency increases. With the „Flash -“ button it's possible to slow down the rotation of the laser light effects. By pressing the „Rotation -“ button multiple times the rotation stops.

Operation modes:

As illustrated in the picture, there is a „mode“ button in the middle of the remote control. When pressing the button the operating modes are changing. The laser effects always starts in a demo mode with a rotating image. The different color modes can be changed, by pressing the „color“ button. The second operation mode displays the current color selection with a strobe effect.

Colors and color change

When pressing the button „COLOR“, colors are changing and the different color modes are displayed. The Laserworld GS-70RG move displays its effects in green and red. Laserworld GS-100RGB move and the white edition of the same type emits laser light in red, green and blue.

There are single color laser as well as two-color effects. There is an further option, which allow all the colors come together in red, green & blue.

7. Service notes

- Quick on/off switching of this device can dramatically reduce lifetime of the laser diode.

- Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.

- Disconnect the device from mains when it is not needed.

• The devices of the Garden Star Series are not meant for professional applications.

- Damages on the device caused by improper handling, neglect of the safety instructions and service notes will void warranty.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse.

Users must to follow their local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil

Switzerland

Registered office:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[e-mail]

representative according to EMVG:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany

C€
