USER MANUAL WX677 WORX

Illustration of a mechanical component with a flanged top and base (no text or symbols)

Mechanical component diagram showing a shaft and base with a numbered connection point (7), no text or symbols present.

Simple 3D diagram of a bent pipe or angle with a numbered label (8) at the end, no text or symbols present.

A1 Sunflower

A2 Sunwater

A3 Steuwertier

B Hand No. 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

C

Diagram showing a mechanical component being processed into a curved cylindrical part, with an arrow indicating the process (no text or symbols present)

Technical illustration of a mechanical component with a downward arrow indicating assembly or adjustment (no text or symbols present)

D3

Technical line drawing of a camera with a clip and arrow indicating motion (no text or symbols)

Diagram showing a mechanical device emitting a cylindrical component with a curved arrow indicating motion (no text or symbols)

E ON OFF Sonierafter

F WORK 3 4

G WORX

Diagram of a surveying instrument with light source and warning symbol, showing optical path and cross symbol

1. LED LIGHT
2. ON/OFF SWITCH
3. VARIABLE SPEED DIAL
4. VENTING SLOTS
5. UNIVERSAL-FIT ACCESSORY INTERFACE*
6. SMALLER FLANGE (FOR OTHER BRANDS' SANDING PADS)
7. FLANGE

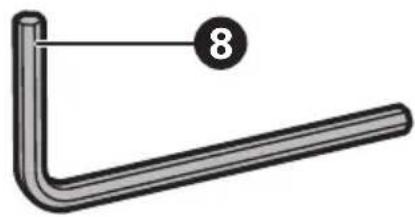

8. ALLEN KEY

*Works with other oscillating tool brands' accessories.

The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Bosch ^® , Black & Decker ^® , *Makita ^® and Fein ^® .

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX677 (6-designation of machinery, representative of high frequency oscillation tool)

Voltage	12V -Max**
Oscillations speed 5000-20000/min
Machine weight	1Kg

**Voltage measured without workload. Initial battery voltage reaches maximum of 12 volts. Nominal voltage is 10.8 volts.

NOISE INFORMATION

A weighted sound pressure L	_pA : 75dB(A)
A weighted sound power L	_wA : 86dB(A)
K_pA & K_wA : 3.0dB(A)
Wear ear protection when sound pressure is over:	80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:

Typical weighted vibration	Vibration emission value a_h = 3.14m/s^2
	Uncertainty K = 1.5m/ s^2

– the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
– the declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

SAFETY INSTRUCTION FOR CUTTING

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Always wear a dust mask

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on

charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
Li-Ion Li-Ion	Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.
	Do not expose to rain or water
	Do not burn
	Avoid danger of injury from the sharp edges of the accessories.
	Accessories can become very hot while working, presenting danger of burns!
	Make sure the battery is removed prior to changing accessories.

OPERATION INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The power tool is intended for sawing and remodeling wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.

ASSEMBLY AND OPERATION

Action Figure

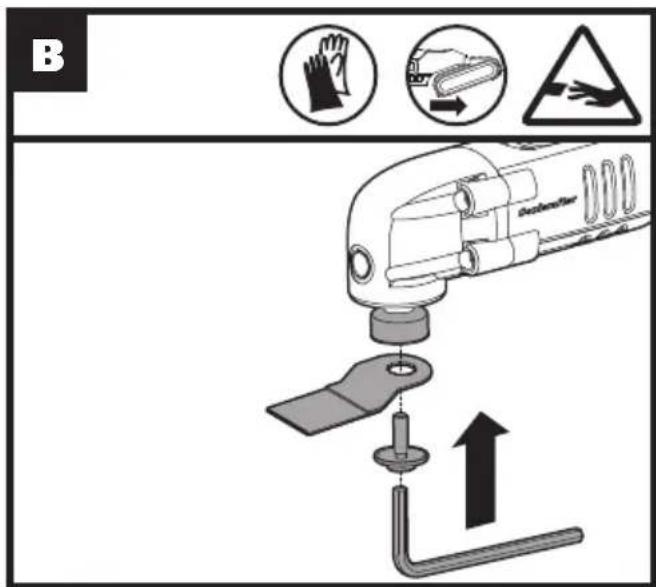

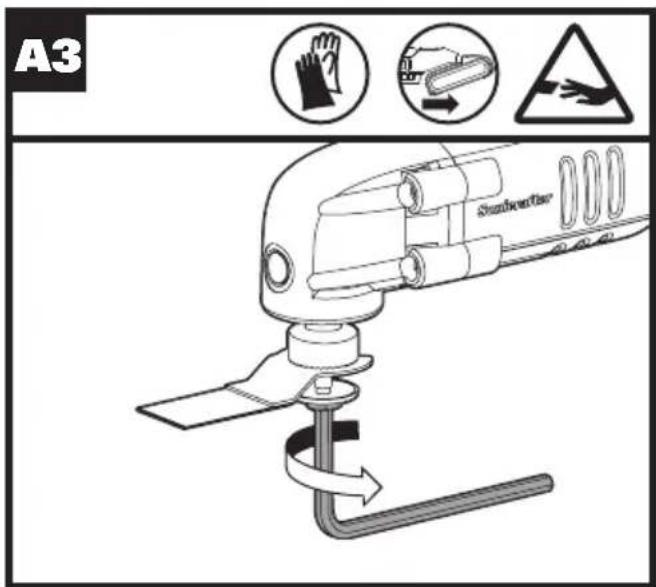

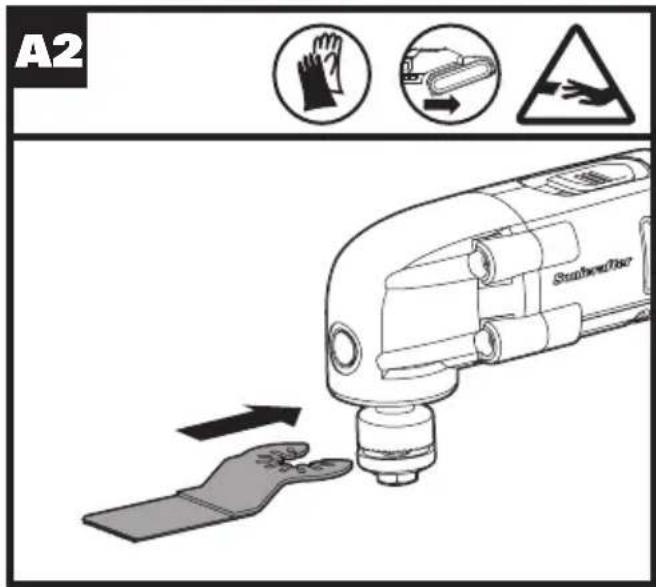

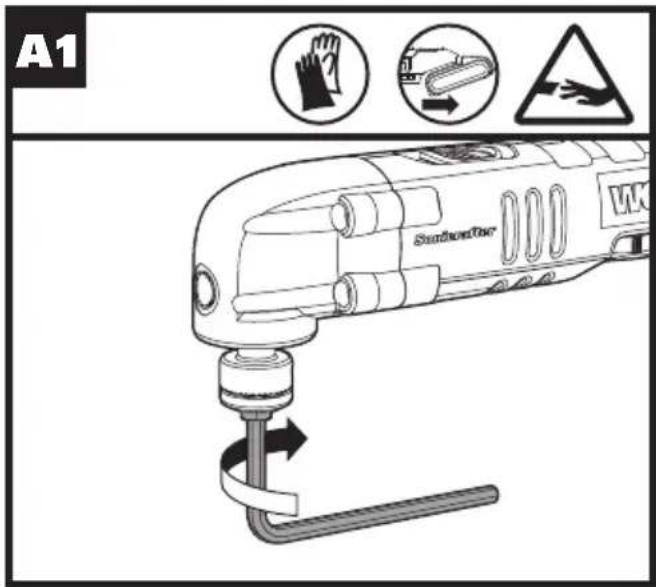

Mounting Accessories	See Fig. A1,A2,A3, B

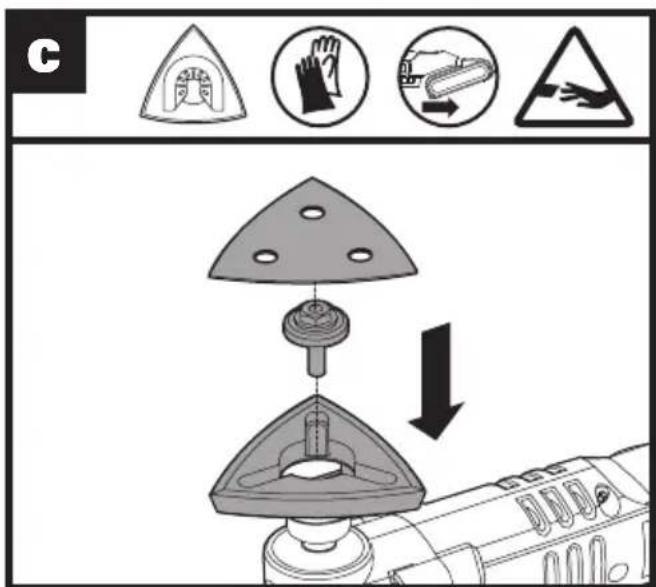

Mounting The Sanding Sheet	See Fig. C

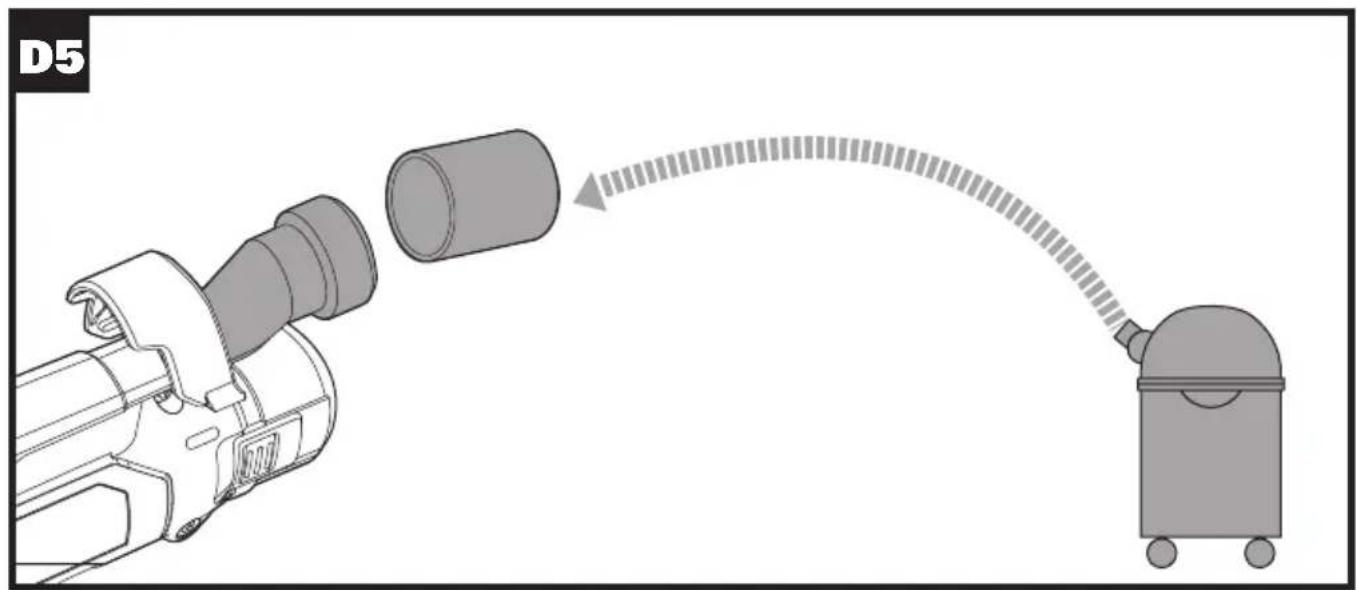

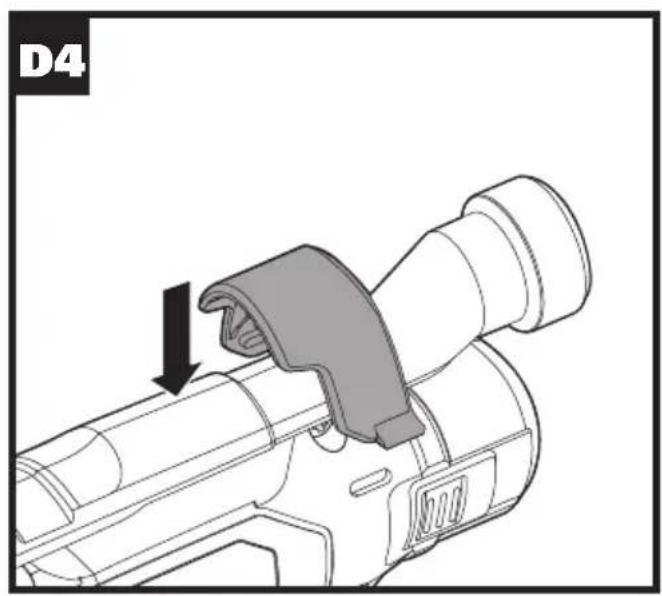

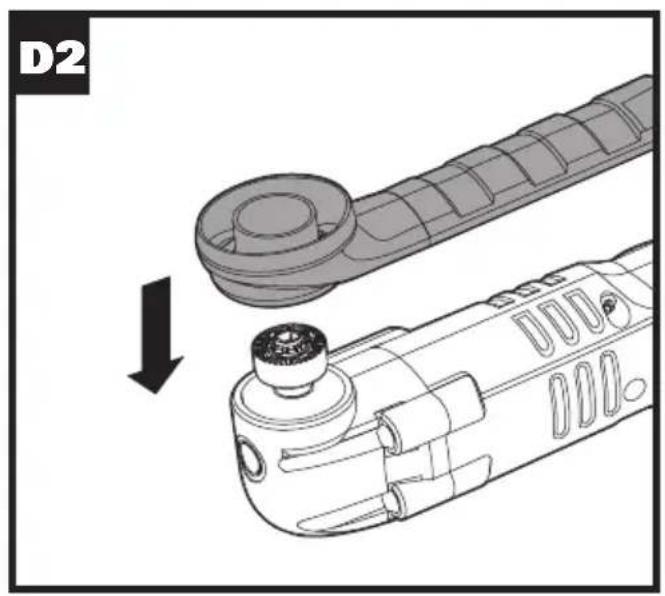

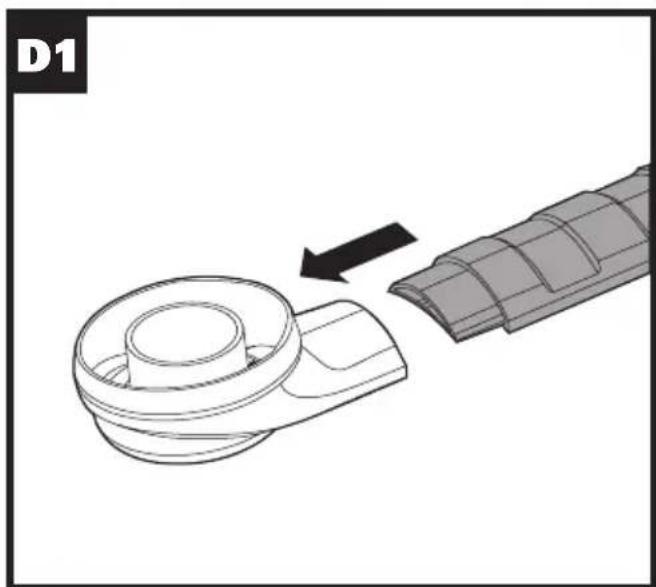

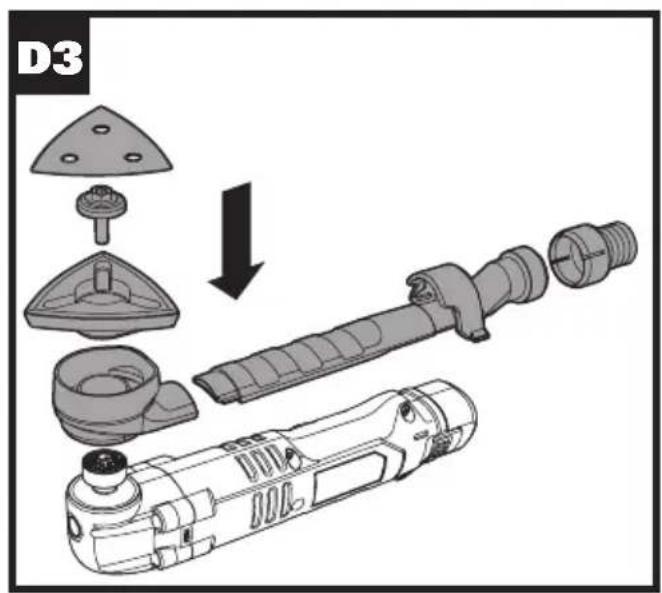

Mounting The Suction Device (not supplied)	See Fig. D1-D5

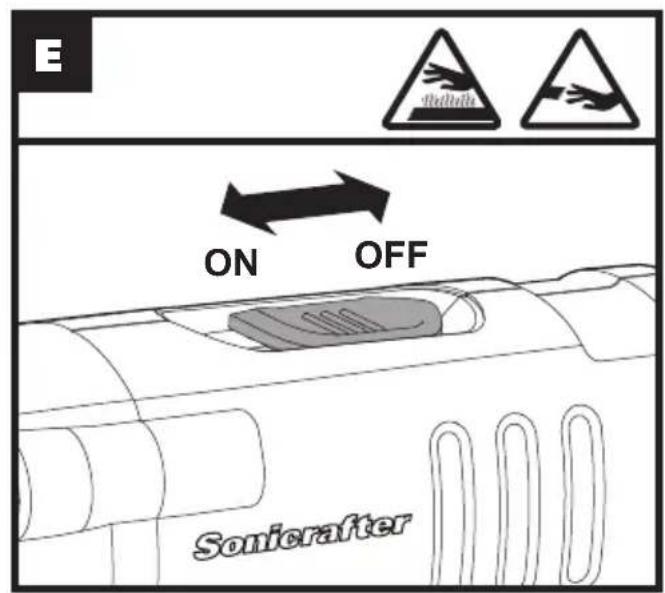

Operating The On/Off Switch	See Fig. E

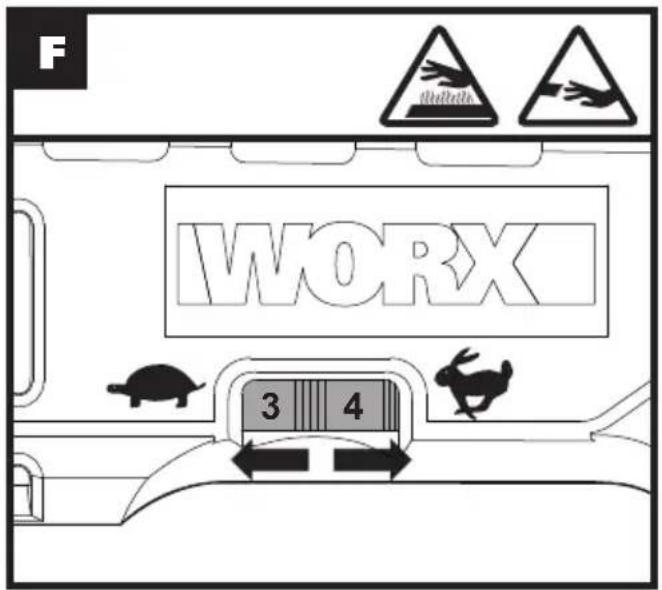

Using The Variable Speed Dial	See Fig. F

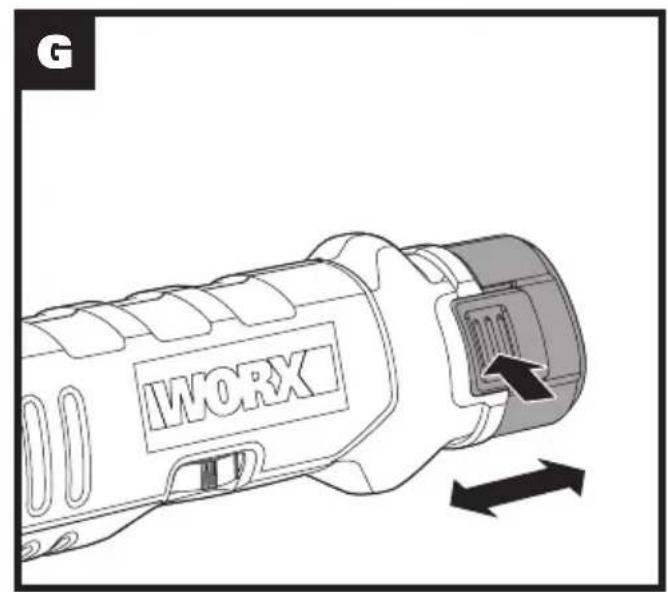

Remove Or Install Battery Pack	See Fig. G

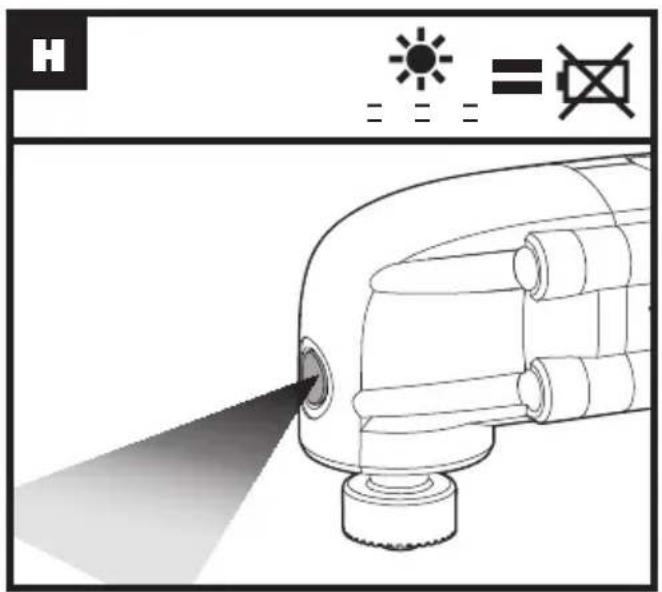

LED Light See Fig. H

The Variable Speed Dial can be used to set the optimum oscillating frequency according to the accessories used and the respective application.

Oscillation frequency	Application
High oscillation frequency:	Sanding, sawing, rasping and polishing stone and metal.
Low oscillation frequency:	Scraping, polishing varnishes.

DISPOSAL OF AN EXHAUSTED BATTERY PACK

To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your tool, then remove the battery pack from the tool housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components.

WORKING HINTS FOR YOUR TOOL

If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.

Always ensure the workpiece is firmly held or clamped to prevent movement.

Any movement of the material may affect the quality of the cutting or sanding finish.

Start your tool before working and turn it off only after you stop working.

Do not start sanding without having the sandpaper fitted.

Do not allow the sandpaper to wear away, it will damage the sanding pad. The guarantee does not cover sanding pad wear and tear.

Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for finishing surfaces. If necessary, first make a test run on scrap material.

Excessive force will reduce the working efficiency and cause motor overload. Replacing the accessory regularly will maintain optimum working efficiency.

MAINTAIN TOOLS WITH CARE

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

APPLICATION

WARNING: The sawing teeth are very sharp. Do not touch during mounting and application. The workpiece must be clamped tightly before it is cut.

	Pic Description Application
Sawing		Universal Metal/Wood End Cut Blade	Wood, plastic, fiberglass, nails, non-ferrous metals, thin sheet metal, hardened fillers
		Standard Wood End Cut Blade	Wood, plastic, drywall
		Precision Wood Cut Blade Wood, soft plastics
		HSS Semicircle Saw Blade	Thin wood, plastic, fiberglass, non-ferrous metals, thin sheet metal, hardened fillers, window glazing
Sanding		Sanding Pad (Perforated)	Wood, plastic, hardened fillers
		Sanding Finger Pad	Wood, plastic, hardened fillers
Rasping		Triangular Carbide Grit Rasp	Wood, hardened adhesives, thin set, masonry
		Carbide Rasp (Finger Shaped)	Wood, hardened adhesives, thin set, masonry
Removing grout		Carbide Grit Semicircle Saw Blade	Grout, porous concrete, masonry
		Diamond-Coated Semicircle Saw Blade	Ceramic and stone tile, backerboard
Scraping		Rigid Scraper Blade	Old paint, hardened adhesives, caulk, carpet
		Flexible Scraper Blade	Elastic sealants, paint, adhesive residues, carpet

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal.

The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly.

Cut/Sand with a constant movement and light pressure.

Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Sonicrafter®

Type WX677 (6-designation of machinery, representative of high frequency oscillation tool)

Function Sanding, sawing, rasping, scraping, polishing

Complies with the following directives,

2006/42/EC

2004/108/EC

2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-4

The person authorized to compile the technical file, Name: Russell Nicholson

Address: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

A# C E

2014/12/12

Allen Ding

Deputy Chief Engineer, Testing & Certification

Name: Russell Nicholson

Anschrift: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#o

C€

2014/12/12

Allen Ding

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

MISES EN GARDE POUR LA COUPE

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#

CE

2014/12/12

Allen Ding

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A# C E

2014/12/12

Allen Ding

Ltd, PO Box 152, Leeds, LS10 9DS, UK

M A

C€

2014/12/12

Allen Ding

TIPS VOOR HET WERKEN MET UW APPARAAT

PO Box 152, Leeds, LS10 9DS, UK

M A

CE

2014/12/12

Allen Ding

Ltd, PO Box 152, Leeds, LS10 9DS, UK

M A

C€

2014/12/12

Allen Ding

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

INSTRUCTIUNI DE SIGURANTĂ PENTRU TĂIERE

Nume: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

M A

CE

2014/12/12

Allen Ding

Adjunct Inginer şef, Testare si certificare

1. LED INDIKÁTOR
2. VYPÍNAČ
3. REGULÁTOR RYCHLOSTI
4. VĚTRACÍ OTVORY
5. UNIVERZÁLNÍ ROZHRANÍ PRO ZASTRČENÍ PŘÍSLUŠENSTVÍ *
6. MALÁ PŘÍRUBA PRO BRUSNÉ DESKY JINÝCH ZNAČEK
7. PŘÍRUBA
8. INBUSOVÝ KLÍČ

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A# C E

2014/12/12
