USER MANUAL IAN 288582 SILVERCREST

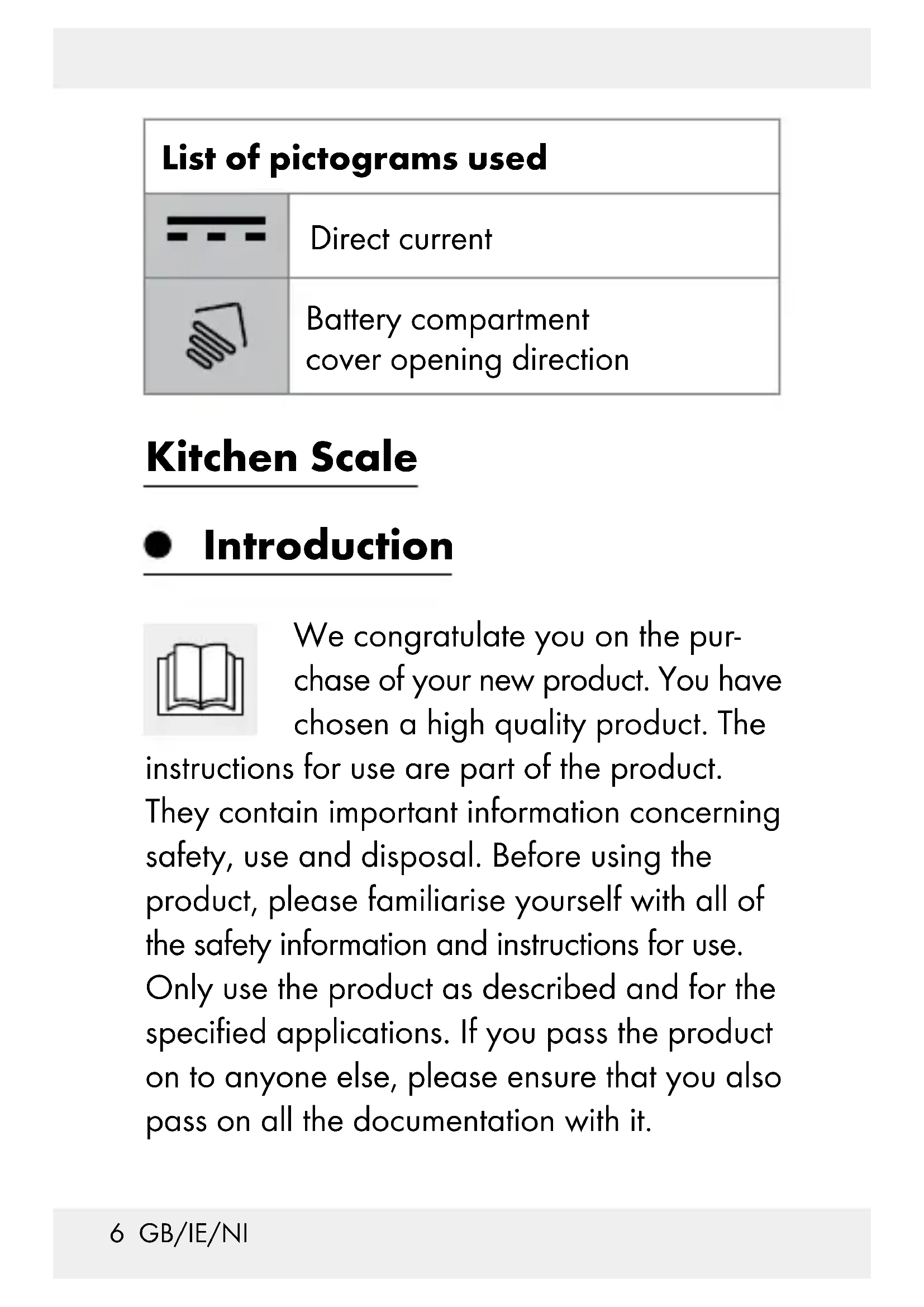

5 65 GB/IE/NI List of pictograms used ...........Page 6 Introduction ......................................Page 6 Intended use ...........................................Page 7 Description of parts ................................Page 7 Technical data ........................................Page 8 Scope of delivery ....................................Page 8 Safety notices .................................Page 9 General Safety Instructions ....................Page 9 Safety instructions for batteries / rechargeable batteries ...........................Page 13 Before first use ............................... Page 18 Replacing the battery .............................Page 18 Operation ........................................... Page 19 Weighing ................................................Page 19 Incremental weighing .............................Page 20 Changing the measuring unit ................. Page 21 Switching off ...........................................Page 22 Troubleshooting............................Page 22 Cleaning and care ....................... Page 23 Disposal ................................................Page 23 Warranty ............................................Page 266 GB/IE/NI List of pictograms used Direct current Battery compartment cover opening direction Kitchen Scale Introduction We congratulate you on the pur- chase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.7 GB/IE/NI Intended use This product is designed to weigh out and tare quantities of food. The product is not intended to be in contact with food. The product is desi- gned only for use in private household and must not be used in medicinal or commercial areas. The manufacturer is not liable to damage caused by improper use. Description of parts Kitchen scale (Figs. A+B):

Effective weighing area

Battery compartment LC display (Fig. C):

Minus symbol8 GB/IE/NI Technical data Max. measuring range: 5000 g / 11 lb Graduation: 1g / 0 lb:0.1 oz Battery: button cell, type CR2032, 1 x 3 V Rated current: 10 mA Model numbers: HG02513A: Red HG02513B: Grey Scope of delivery Check that all the items are present and that the product and all its parts have no defects immediately after unpacking. Do not under any circumstances use the product if the pack- age contents are incomplete. 1 Kitchen scale 1 Battery (preinstalled) 1 Set of instructions for use Container is not included with the product9 GB/IE/NI Safety notices

CHILDREN! Never leave children unsupervised with the packaging material. The10 GB/IE/NI packaging material repre- sents a danger of suffoca- tion. Children frequently underestimate the dangers. Always keep children away from the packaging material. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super- vision or instruction concern- ing use of the product in a safe way and understand the hazards involved. Children shall11 GB/IE/NI not play with the product. Cleaning and user mainte- nance shall not be made by children without supervision. 5 kg CAUTION! RISK OF INJURY! Do not place more than 5 kg on the product. This could damage the product. Do not expose the product to – extreme temperatures, – direct sunlight – magnetic fields, – moisture. These can damage the product

This product has delicate electronic components. This12 GB/IE/NI means that if it is placed near an object that transmits radio signals, it could cause interference. This could be, for example, mobile tele- phones, walkie talkies, CB radios, remote controls and microwaves. If the display indicates a problem, move such objects away from it. Electromagnetic interference / high-frequency emissions can lead to the product failing. In cases of the product failing to work, remove the battery for a short while and then replace it. Do this as described13 GB/IE/NI in the “Replacing the battery“ section. Check the product for dam- age before use. Never use a damaged product. The product is not intended to be in contact with food. Safety instructions for batteries / re- chargeable batteries DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally14 GB/IE/NI swallowed seek immediate medical attention.

PLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable bat- teries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / recharge- able batteries.15 GB/IE/NI Risk of leakage of batter- ies / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek im- mediate medical attention. WEAR PROTEC-

TIVE GLOVES!16 GB/IE/NI

Leaked or damaged batter- ies / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / rechargeable bat- teries, immediately remove them from the product to pre- vent damage. Remove batteries / recharge- able batteries if the product will not be used for a longer period.17 GB/IE/NI Risk of damage of the product Only use the specified type of battery / rechargeable battery! Insert batteries / rechargea- ble batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product. Clean the contacts on the battery / rechargeable bat- tery and in the battery com- partment before inserting! Remove exhausted batteries / rechargeable batteries from the product immediately.18 GB/IE/NI Before first use Remove all packaging materials from the product. Remove the insulating strip from the battery compartment

Replacing the battery Turn the product over and place it on a soft underlay to avoid scratching the surface. Loosen the screw located at the cover of the battery compartment

on the back of the product. Open the cover of the battery compart- ment

Remove the used battery, if present. Insert a battery (as specified in section “Technical data”) in the battery compart- ment

Note: Make sure you insert the battery with the correct polarity. This is indicated in the battery compartment

Close the cover of the battery compartment

and tighten the screw.19 GB/IE/NI Operation Note: The product is not intended to be in contact with food. Always use transparent container having a flat bottom surface with diameter not more than 12 cm so that the LC display

is not covered. A container is not included with the product. Weighing Set the product on a solid, lever and flat surface to weigh. Spread the product in a 90° angle (see fig. A). Place a container on the effective weigh- ing area

of the product. Press the button

to switch on the product. The LC display

will show all displays for approx. 3 seconds. During this time the weighing equipment on the product is calibrating. Afterwards the numerical display

will show zero reading. The unit display

will show the20 GB/IE/NI last unit previously selected. At the same time „0“ symbol

will appear. Note: if an object (e.g. a key) is already on the effective weighing area

will still show zero reading. Note: Zero reading means either 0 in g or 0:00.0 in lb:oz. Note: The „0“ symbol

is only dis- played when the product is switched on or when after taring the same weight bur- dens on the product as at switching on the product. Place the item you wish to weigh inside the container. The numerical display

will show the weight of the item you are weighing. Incremental weighing Press button

when same and other items being weighed inside the container. The numerical display

will change from the reading to zero reading. The „T“ symbol

will appear.21 GB/IE/NI Now add another item to weigh inside the container. The numerical display

will show the weight of the newly added item. If you remove the item added to the prod- uct, the numerical display

will again show zero reading. If you remove all items from the product, the LC display

will show a negative value indicated by the minus symbol

shows zero reading. Important! Be sure never to add more than 5 kg to the effective weighing area

Overloading the product can damage it. Changing the measuring unit The product will display the weight in the official European measuring unit „g“ (grams), as well as the traditional unit of weight „lb:oz” (pound: ounce, 1lb = 16 oz ≈ 453.59 g).22 GB/IE/NI To switch the unit of measure, holding the button

for approx. 3 seconds. Switching off Note: The product can only be turned off manually if the „0“ symbol

appears. To switch off the product, press the button

under no weighing (when numerical display

showing zero reading). If no weight is detected on the effective weighing area

for 2 minutes and no button

is pressed, the product will automatically switch off. Troubleshooting = Fault = Cause = Solution

= The product is overloaded. = Remove the overload.23 GB/IE/NI

= The batteries are too weak to weigh. You cannot operate the product. = Replace the battery (see section “Replacing the battery”). Cleaning and care Never immerse the product in water or other liquids. This can damage the product. Clean the product with a slightly damp- ened, fluff-free cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution. To store, fold up the product. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.24 GB/IE/NI
