USER MANUAL PS 33 T OLYMPIA

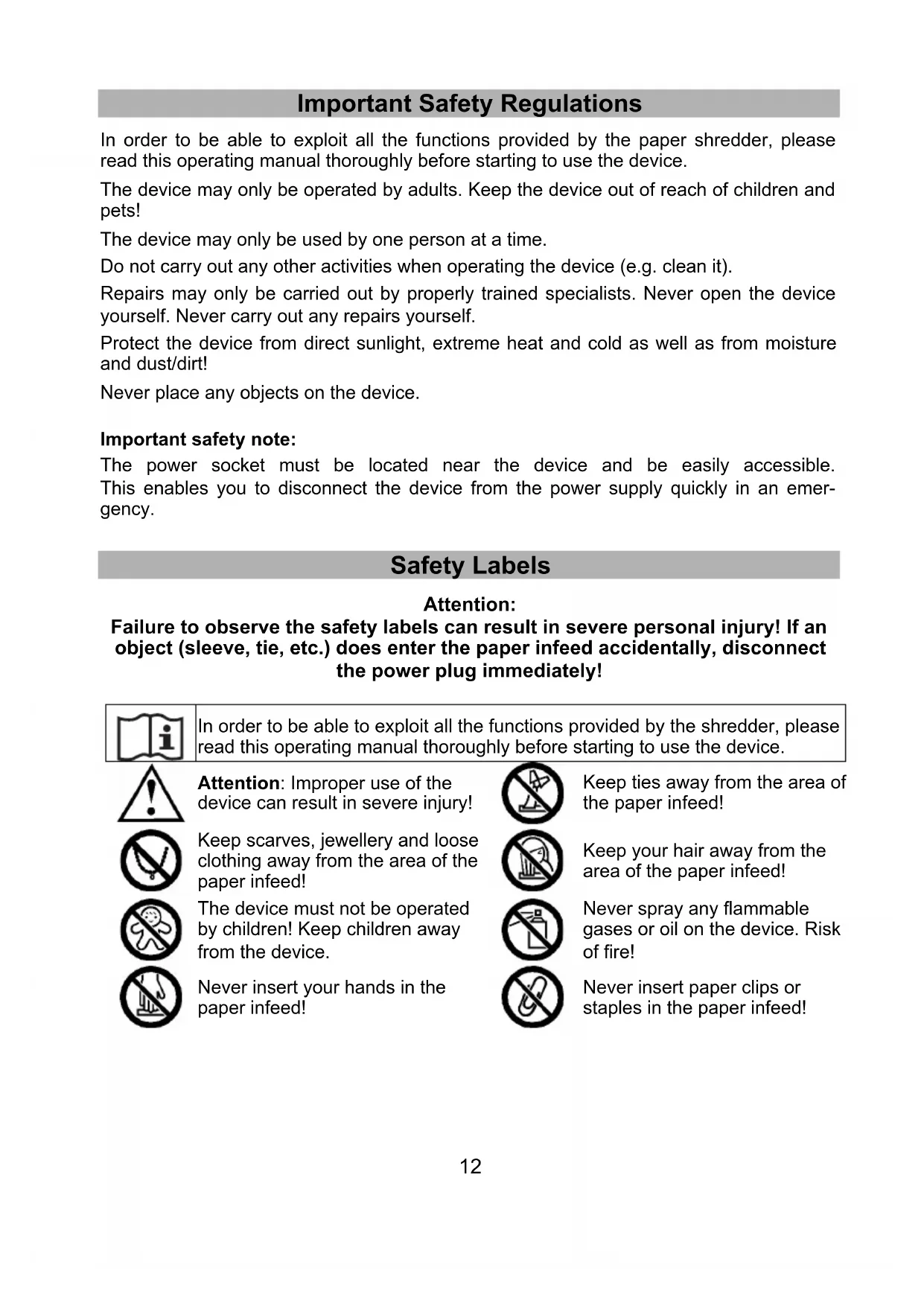

Important Safety Regulations

In order to be able to exploit all the functions provided by the paper shredder, please read this operating manual thoroughly before starting to use the device.

The device may only be operated by adults. Keep the device out of reach of children and pets!

The device may only be used by one person at a time.

Do not carry out any other activities when operating the device (e.g. clean it).

Repairs may only be carried out by properly trained specialists. Never open the device yourself. Never carry out any repairs yourself.

Protect the device from direct sunlight, extreme heat and cold as well as from moisture and dust/dirt!

Never place any objects on the device.

Important safety note:

The power socket must be located near the device and be easily accessible. This enables you to disconnect the device from the power supply quickly in an emergency.

Safety Labels

Attention:

Failure to observe the safety labels can result in severe personal injury! If an object (sleeve, tie, etc.) does enter the paper infeed accidentally, disconnect the power plug immediately!

In order to be able to exploit all the functions provided by the shredder, please read this operating manual thoroughly before starting to use the device.

Attention: Improper use of the device can result in severe injury!

Keep scarves, jewellery and loose clothing away from the area of the paper infeed!

The device must not be operated by children! Keep children away from the device.

Never insert your hands in the paper infeed!

Keep ties away from the area of the paper infeed!

Keep your hair away from the area of the paper infeed!

Never spray any flammable gases or oil on the device. Risk of fire!

Never insert paper clips or staples in the paper infeed!

Electrical Safety Guidelines

Disconnect the power plug before emptying the waste paper bin, before cleaning the device and prior to a longer period out of service.

Do not put the device into operation in the case of damage to the power cable, the power plug or the device itself (risk of injury)!

Never exceed the recommended capacity of the power socket!

Do not complete any modifications to the power cable because it is designed for the power supply specified.

Intended Use

• Only use the PS 33T paper shredder for shredding paper!
• Attempting to shred other material can lead to personal injury (e.g. through splinters from hard material, etc.) and damage to the equipment (e.g. damage to the cutting mechanism etc.).
• The material being shredded must be dry and comply with the requirements stipulated in the Technical Data.
• Remove any paper clips and staples prior to shredding.
• Do not shred continuous forms in this device.
• Only use the device in dry, closed rooms.

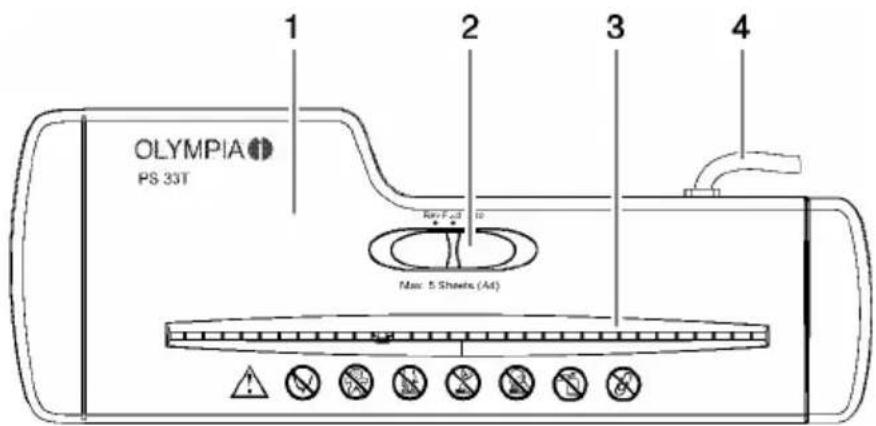

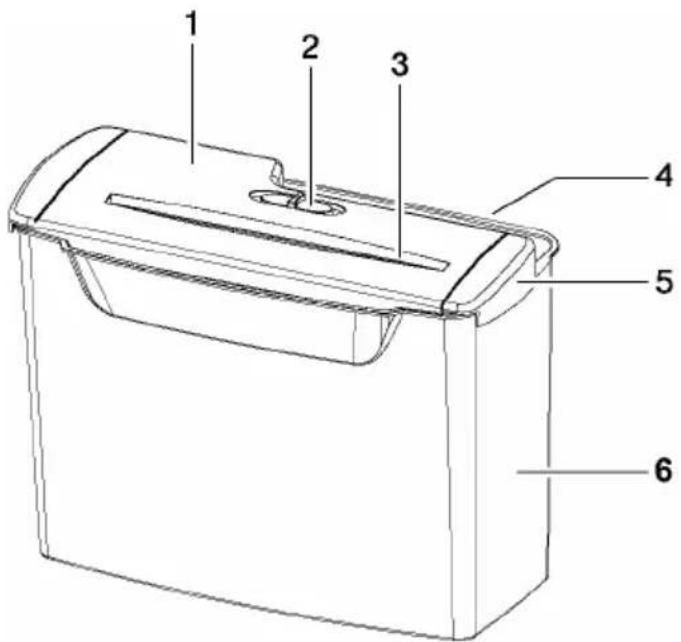

Operating Elements

1 Shredder attachment
2 Sliding switch
3 Paper infeed with cutting mechanism
4 Cable
5 Pullout (to place the shredder attachment on other, larger bins)
6 Waste bin

Starting Up

Remove the device carefully from the packaging.

Place the paper shredder on a level surface.

Place the shredder attachment on the waste bin supplied or position it on another suitable bin with the aid of the pullout rails.

Assembling the shredder attachment on the waste bin supplied

Set the shredder attachment on the waste bin supplied so that it snaps into place with an audible click.

Assembling the shredder attachment on another waste bin

Draw out the pullout on the right-hand side of the shredder attachment and then assemble it on another suitable waste bin with a level surface.

Note: The shredder attachment must not wobble!

Connecting the power supply

Connect the power plug to a power socket. Pay attention to the information regarding power supply on the rear side of the device for the necessary precautions.

Important information: The power socket and power connection on the device must be freely accessible for reasons of safety, namely to enable the power supply to be disconnected quickly in an emergency!

Set the sliding switch to Auto.

Operation

Sliding switch

The sliding switch is used to control the cutting mechanism in the paper shredder. The switch can be set to three positions:

Position Rev: Continuous reverse running.

Position Fwd: Continuous forward running.

Position Auto: The device is ready to operate. The cutting mechanism automatically starts to run forwards as soon as paper is inserted in the paper infeed and detected by the mechanical sensor. The paper is then drawn in automatically. The cutting mechanism continues to run approx. 2 to 4 seconds after the last sheet of paper has been inserted. The device then switches off automatically.

Shredding paper

• Set the sliding switch to Auto or Fwd.
• Insert paper from the top and straight into the paper infeed (max. 5 sheets A4, 80g / m^2 ).

Note: Do not exceed the sheet capacity recommended in the technical data, otherwise the paper will jam! Do not forget that the thickness of the paper increases when folded, as a result of which the recommended sheet capacity can be exceeded. Also reduce the quantity of paper when shredding coarse paper.

Emptying the waste bin

It is recommended not to allow the waste bin to fill up until the cuttings reach the cutting mechanism. This prevents the shredded paper congesting and jamming in the cutting mechanism.

Empty the waste bin regularly. Ensure that the sliding switch is set to Auto and disconnect the power plug!

Clearing a Paper Jam

If too much paper is fed into the cutting mechanism, a paper jam occurs.

Proceed as follows:

• Move the sliding switch to Rev (Reverse).

• The cutting mechanism runs in reverse and pushes the paper back out.

• Remove the paper and reduce the quantity of paper being fed in.
• Move the sliding switch back to Auto.

Continue with the shredding process.

If the jam is not cleared by the reverse/forward running process, disconnect the power plug and remove the remaining material from the cutting mechanism manually.

Motor Protection

The motor switches off automatically in the event of an overload. Disconnect the power plug from the power socket and let the motor cool down for 30 to 40 minutes to room temperature. Then connect the power plug to the power socket again and continue operation.

Maintenance and Service

Caution: maintenance work may only be performed when the mains plug is pulled out.

Clean the housing with a slightly moist cloth.

Do not use any aggressive cleaning agents. Never use any chemicals (e.g. cleaning solvent, alcohol) to clean the housing.

To ensure your shredder enjoys a long working life, we recommend to clear residual material from the cutting units at regular intervals and apply special oil for paper shredders to the cutting unit. You can purchase a special CFC-free oil from your specialist retailer or directly from our Service Center in Hattingen. This will extend the service life of the device.

Attention: It is forbidden to use oil spray bottles containing CFC!

Technical Data

Model:

PS

33T

Feed capacity: Max. 5 sheets A4 (80g / m^2)

Working width of paper infeed: 217mm

Strip size: 6 mm

Waste bin volume: 7 litres

Cutting speed: 2,5 - 3,0 m/min

Noise level: 73 dB

Operating cycle, paper: 2 min on, 40 min off

Power supply: 220-240 V / 50 Hz

Max. power consumption: 0.5 A (190 VA)

Dimensions (W x D x H): 315 x 148 x 228 mm

Weight:

1.215

kg

Faults

Problem	Cause	Solution
The device does not operate when paper has been inserted.	Power plug is not properly connected in the power socket.	Insert the plug properly.
	The paper is too thin and, as a result, does not touch the mechanical sensor.	Try using thicker paper. If the device then operates, fold the thin paper and try shredding it again.
	The motor has overheated and switched off automatically. It is possible that paper has jammed in the cutting mechanism.	Clearing a paper jam: 1. Move the sliding switch to its Rev (Reverse) position to dislodge and remove the jammed paper. 2. If this proves ineffective, disconnect the power plug. Remove the shredder attachment and remove any jammed paper from the cutting mechanism manually. Wait 30-40 minutes (until the motor has cooled down) and try to use the shredder again.
The device does not shred.	Too many sheets have been inserted in the feed.	Move the sliding switch to its Rev (Reverse) position to remove the jammed paper. Then insert maximally 5 sheets of A4 (80 g/m²) (unfolded).
	The paper size inserted was too large (larger than A4).
	The paper was inserted crooked.	Move the sliding switch to its Rev (Reverse) position to remove the jammed paper. Insert the paper as straight as possible.
The device does not stop after the shredding process has finished.	The sliding switch is set to Fwd.	Move the sliding switch to Auto (Automatic operation).
	Paper has caught at the mechanical sensor.	Remove the paper from the cutting mechanism (refer to "Clearing a Paper Jam").
The device makes loud noises.	The device does not stand on a level surface.	Set the device down on a level surface.

If you cannot clear the fault yourself, contact your dealer or call the Olympia hotline.

Disposal

This symbol indicates that when the product has come to the end of its service life, the end customer is responsible for disposing of it at a collection point or recycling depot authorised by the local authorities.

This symbol applies to states in the EEA (EEA = European Economic Area, comprised of the EU member states and Norway, Island and Liechtenstein).

Guarantee

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.

OLYMPIA

PS 33T

Puissance:0,9A(190VA)

Mesures (L× I× H) : 315× 148× 228mm

Poids: 1,215 kg

To view the complete Declaration of Conformity, please refer to the free download available on our website www.olympia-vertrieb.de.
