USER MANUAL XS 271 EV NEW POL

Thank you for having chosen our product. Please read these instructions carefully before connecting and using the appliance.

A knowledge of the operating principles will help guarantee correct and safe use of the appliance.

If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

CONTENTS

NOTES AND ADVICE FOR THE USER 3-4

Technical information 3

DESCRIPTION OF THE APPLIANCE 5

INSTALLING THE APPLIANCE 6-7

Installation 6
- Levelling the appliance 6
- Connecting the air exhaust tube 6
- Connecting to the mains supply 7

USING THE APPLIANCE 7-9

Description of the functions 7
Door 8
- Drying the washing correctly 8
- Precautions for fabrics 8
- Program table 9
- Weights of washing 9

MAINTENANCE 10

• Cleaning the filter 10
• Fault finding 10
• Resolving problems 10
• Optional accessories 10

NOTES AND ADVICE FOR THE USER

TECHNICAL INFORMATION

Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	57.0
Max. capacity		7 kg (dry)
Power rating		see characteristics plate
Voltage		see characteristics plate

MODEL:

SERIAL NUMBER:

DATE OF PURCHASE:

NOTES AND ADVICE FOR THE USER

This appliance has been designed for use as a domestic drier. Any other use is considered as improper and therefore dangerous.
Keep this instruction book near to the appliance always, in order that it can be easily consulted when necessary.
Any modifications or attempts to interfere with the appliance can be dangerous for the user and may damage the product.
On delivery of the appliance, check that it has not been

damaged during transport. If any damage is discovered, report the matter to the retailer immediately.

During the drying cycle, the air in the room is ducted through the back of the appliance. Do not cover the drier with washing or any other items.
When positioning the appliance, ensure that the power supply cable is not kinked or squashed and is accessible.
Remember that the door glass and exhaust tube will heat up

during a drying cycle and can reach temperatures of up to 60^ Do not touch these parts before the cooling cycle has been completed.

The appliance must not be used by children unless supervised.
Never dry washing that has been in contact with chemical agents such as dry-cleaning fluids

These products are volatile by nature and could cause an explosion.

Do not dry items with parts containing foam rubber or

Never insert or remove the plug from the mains socket with wet hands.

The machine must be connected to a mains socket fitted with an efficient earth complying with current safety standards.

Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.

Do not expose the appliance to atmospheric agents.

When servicing or cleaning the appliance, remember to disconnect it from the mains supply.

Do not pull the power supply cable to unplug the appliance from the mains supply. Pull the plug only.

NOTES AND ADVICE FOR THE USER

rubber in general, in that the material could melt and damage other items or even the appliance itself.

If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non

professional may cause serious damage and will nullify any rights to repairs under guarantee.

Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
Spin dry or wring the washing well before loading it into the drier. Spun dry washing will dry quicker.

Clean the filter thoroughly each time the drier is used in order to guarantee perfect air circulation.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

DESCRIPTION OF THE APPLIANCE

The drier is a domestic appliance capable of drying any type of fabric at any time.

The machine has been constructed in steel panels which have been treated and painted to guarantees that its aesthetic qualities remain unaltered over time.

The motor and all moving parts have been designed and manufactured to guarantee the minimum possible noise levels
The control panel has been

designed to enable the user to run the desired drying program without difficulty.

The wide door makes loading and unloading the washing much easier.

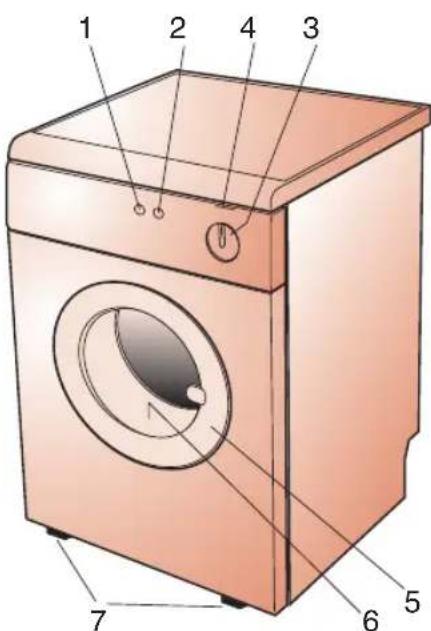

1-ON/OFF button
6-Filter
2 - Delicate or energetic drying button
7 - Adjustable feet
3 - Drying time control knob

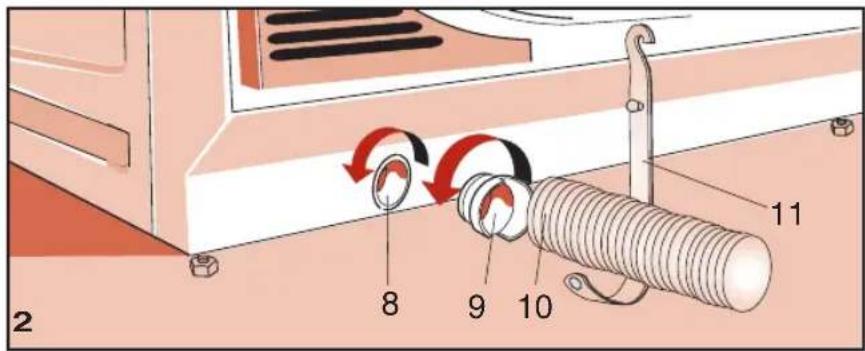

8- Exhaust outlet
4 - Spin function active indicator light
9 - Outlet coupling
5-Door
10- Exhaust tube
11-Tube support

INSTALLING THE APPLIANCE

INSTALLATION

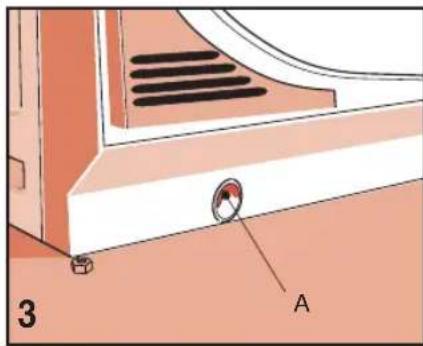

Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and injury.

Install the drier near to a window to facilitate the evacuation of the damp air from the drier.

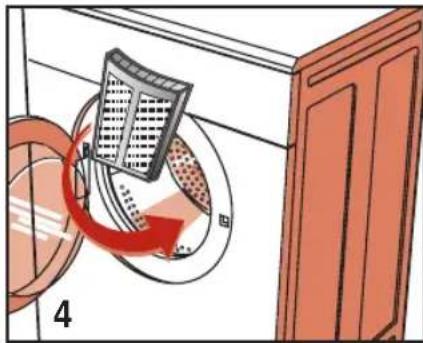

Place the filter in its normal position as shown (fig. 4).

Clean the inside of the drying drum using a damp cloth to remove any dust deposits.

The exhaust tube must be used to prevent condensation, and must be inserted in hole A at the bottom of the back panel of the appliance (fig. 3).

Never cover the air intake at the back of the appliance.

LEVELLING THE DRIER

Adjustable feet. Place the drier upright so that it rests firmly on all four feet. Level the drier by adjusting the feet as follows:

Lift the drier slightly.

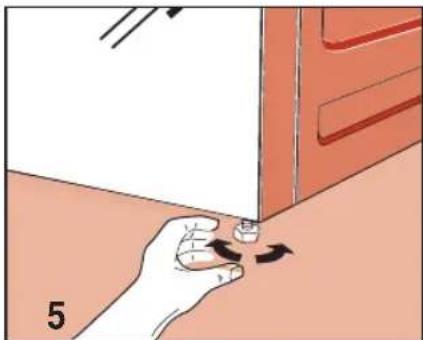

Adjust the feet to the correct height (fig. 5).

Do not unscrew the feet to much and do not use a screwdriver).

Lower the drier.

A badly levelled machine may cause damage to the bearings and lead to their premature wear. This drier does not need to be anchored to the floor.

CONNECTING THE AIR EXHAUST TUBE

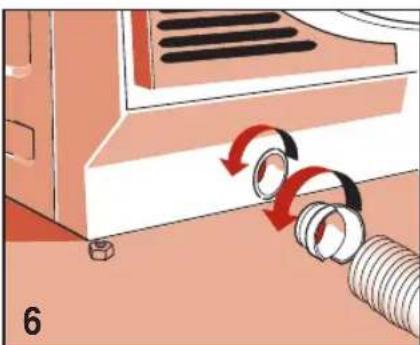

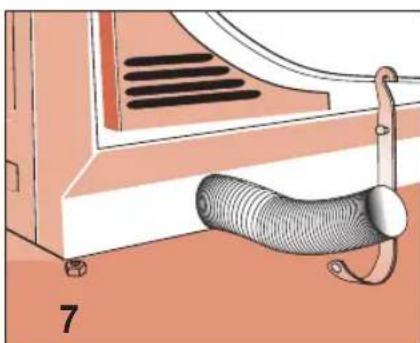

Connect the exhaust tube to the outlet on the back of the drier (fig.6), as follows:

Connect one end of the tube to the connector piece supplied.
Rotate the connecting piece (together with the tube) anticlockwise in the drier outlet hole.
- Carry the tube away from the back of the drier to the left or

right by means of the recess at the bottom of the drier body.

Position the other end of the tube near to a window or a ventilation outlet on an external wall. If this is not possible, ensure that the room is well ventilated when the drier is being used. Use the support supplied to anchor the tube (fig. 7).

Important: The air exhaust tube must be connected even if the air is not discharged outdoors, otherwise the drier will re-absorb the discharged damp air and thus prolong the drying time. Damp air can also damage the drier. Although the air discharged from the exhaust tube is only warm and damp and does not constitute a danger, it must never be directed towards people, animals or plants.

Important: The exhausted air must not be conveyed to a chimney discharging fumes generated by gas or other fuel burning appliances.

INSTALLING THE APPLIANCE

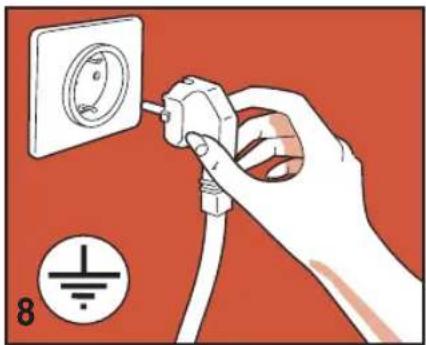

ELECTRICAL CONNECTION

Make sure that the voltage indicated on the identification plate attached to the back of the appliance corresponds to that of the mains supply.
On completion of the installation, the appliance must be connected to the mains supply through a two-pole switch.
All cutouts, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.
The mains supply to which the appliance is connected must be fitted with an earthing sys

tem. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fig. 8).

If the power supply cable is damaged in any way, contact the appropriate specialised customer technical service centre.

The drier must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
Position the appliance so that the power supply cable is easily accessible for disconnection when the need arises.

Important: On completion of the drying cycle, disconnect the appliance from the mains supply to prevent young children from operating the drier.

USING THE APPLIANCE DESCRIPTION OF THE FUNCTIONS

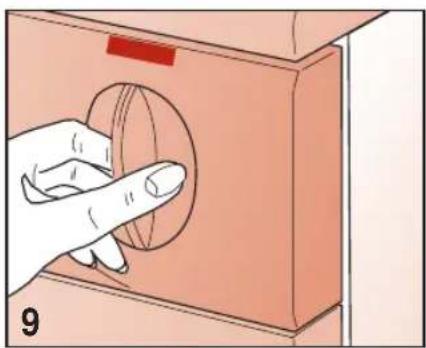

Drying time control knob: Rotate the knob to select the required drying times (fig. 9). Refer to the program table to select the program according to the type of fabric.
At the end of each drying cycle, the appliance effects a 4-5 minute cooling cycle, during which time the appliance is still switched on.

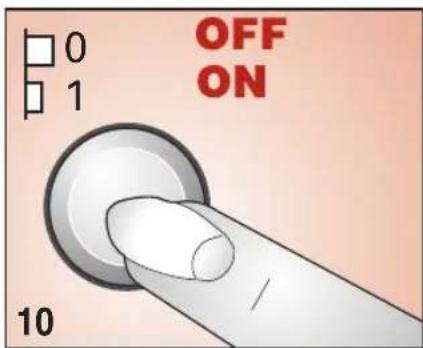

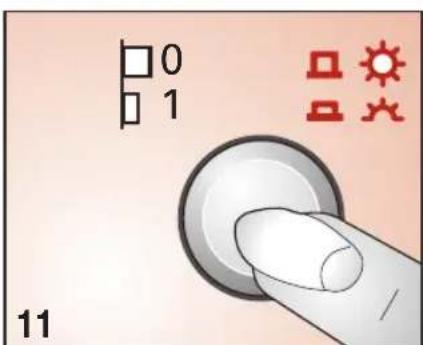

ON/OFF button: Press this button to connect the appliance to the mains supply and not to start it. (fig. 10).

Delicate or energetic drying button: This button is used to select the type of drying cycle to run: Energetic or delicate (fig.11).

■ INDICATOR LIGHT: Stays lit during the drying cycle. Flashes before the program has been set, and at the end of the drying cycle together with an intermittent audible signal.

USING THE APPLIANCE

DOOR

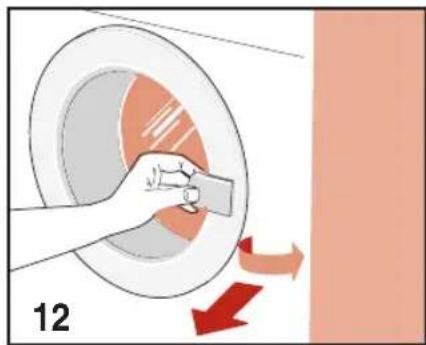

The drier is the front-loading type. Pull the handle outwards, without forcing it, and gently open the door. The appliance will stop if the door is opened during a drying cycle. The drum will continue to rotate for a while, slowing down gradually to a stop.

Important:

Obviously, during a drying cycle the washing in the drum will be hot. The washing is cooled during the cooling cycle (Last 4-5 minutes of each cycle).

To avoid being scalded by

steam or burned by the hot washing, pay particular attention when opening the door during the drying phase.

DRYING THE WASHING CORRECTLY

Follow the procedure below:

A

Spin the washing.

B

Separate the items into types or fabrics.
Close any zips and fasten buttons and remember to empty the pockets of any clothing.
Turn jumpers inside out.

C

Open the door
Load the washing in the drum and remember to load sheets from a corner first.
It is advisable to load small and large items together.

D

Close the door
Dry your hands (never touch electric appliances with wet hands).
Make sure that the ON/OFF button is OFF.
Insert the plug in the mains socket.

E

Make sure that the programmer is positioned on "STOP", press

the ON/OFF button and, after the audible signal, set the required program. (see program table)

At this point, the appliance will start and the indicator light will stay on.

IMPORTANT:

• When you want to change the programme being used;
• When you want to add some items after the drying cycle has already started;
• When, for whatever reason, there is an electric power cutout during drying cycle;

In order to re-start the machine, position the knob on STOP, wait for the light to stop flashing and then reset the programme required.

At the end of the drying cycle, if the selector is not turned on STOP, or if the ON/OFF switch is not positioned on OFF, the machine will automatically perform an anticrase cycle with simultaneous acoustic signalling.

F

After having removed the dry washing, clean the filter as follows:

• Lift the filter
• Open it and clean it using a soft brush
• Close it and replace it in its seating
• The filter must be washed periodically using soapy water in order to remove very small particles.

Unplug the appliance from the mains supply.

PRECAUTIONS FOR FABRIC TYPES

In the case of doubt as to the type of fabric, read the label on the item itself. Almost all items that can be machine dried have this information specified on the label. To avoid static electricity being generated in the items, add a conditioner to the rinse cycle of the washing machine.

Remove synthetic materials from the drum immediately to prevent them from creasing.

USING THE APPLIANCE

PROGRAMTABLE

ELECTRONICALLY CONTROLLED PROGRAM

Cotton Linen	kg 7,0	Extra dry	+□	Synthetics Delicates Mixed fabrics	kg 3,5	Extra dry	+□
		Wardrobe dry	□			Wardrobe dry	□
		Iron dry	□			Iron dry	□
		Slightly damp	□			Slightly damp	□

TIMER CONTROLLED PROGRAM

Cotton/Linen		Synthetics/Delicates		Mixed fabrics
kg.3,5		kg.3,5		kg.2,5
40'-60'	20'-40'	40'-60'	20'-40'	40'-60'	20'-40'

ENERGETIC DRYING

DELICATE DRYING

Important: The drying time is dependent on a number of factors: weight, size of the items, type of fabric, degree of dampness. Well wrung/spun items dry quicker. To prevent items from creasing, do not overload the drier.

WASHING WEIGHTS

The indicated weights are approximate and may vary according to their manufacture, quality and finish.

Bedding

Quilt 700 g

Bottom sheet 550g

Top sheet 600 g

Pillowcase 180g

Household linen

Tea towel (dishes) 90 g

Tea towel (glasses) 70 g

Flannel 20 g

Hand towel 200 g

Other linen items

Bath robe 1200 g

Bath towel 800 g

Lady's blouse 300 g

Man's shirt 600 g

Blouse/shirt in synthetic

material 300g

Table linen

Tablecloth 250g

Large tablecloth 1000 g

Napkin 80g

Men's clothing

Wash'n wear shirt 250g

Vest (sleeveless) 120g

Briefs 80 g

Long johns 250g

Pyjamas 480g

Nightshirt 400 g

Handkerchief 25g

Ladies' clothing

Blouse 100g

Jumper 100g

Briefs 80 g

Slip 150 g

Nightdress 180 g

Pyjamas 450g

Handkerchief 15g

MAINTENANCE

CLEANING THE FILTER

In order to guarantee optimum drying results under all circumstances, remember that the filter must be cleaned regularly. Remember to check and clean the filter after each drying cycle.

Important:

The filter must only be cleaned when the appliance is cold! Clean the filter following the procedure described below:

Open the door.
Grasp the filter in both hands and push it upwards to remove it.
Carefully widen the top edge and open the filter.
Remove the woollen particles.
Close the filter, making sure

that the catch closes at the correct position.

Clean the filter slide guides on the appliance, using a vacuum cleaner if necessary.

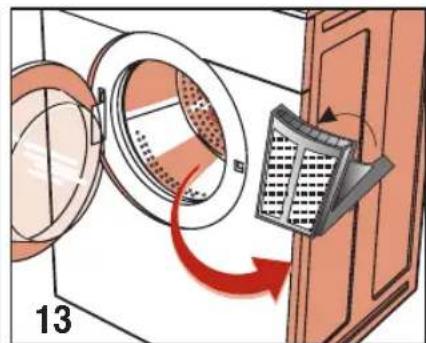

Reposition the filter in the slide guides (fig. 13).

FAULT FINDING

All electric appliance may breakdown at some time. Remember to call a qualified electrician in these cases. However, many problems can be resolved without the need for external intervention.

Important: If a fault occurs, disconnect the appliance from the mains supply immediately. Before calling the customer service centre, check the points listed below.

RESOLVING PROBLEMS

If the drier doesn't start

• Check that:

1) The appliance is plugged into the mains supply.
2) The mains socket is working correctly:

2a) The fuse has not blown. (Check by plugging in another appliance such as a table lamp).

2b) All the instructions in the manual have been

followed.

If the drier doesn't start

• Check that:

1) The door is closed properly.

The washing does not dry

• Check that:

1) The air exhaust tube is not twisted or kinked.
2) The filter is not blocked. (Remember that when the door is opened, the internal parts of the drier and the washing may be very hot).

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre.

When contacting the service centre, inform them of the appliance model, serial number and type of fault.

This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

OPTIONAL ACCESSORIES

The retailer can provide an accessory to enable the drier to be mounted on top of a front-loading washing machine, thus saving space. The installer will inform you of the appliance model for which this option is possible.
