IMPORTANT: When discarding or storing your old clothes dryer, remove the door.4 CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW USE SENSING CYCLES FOR BETTER FABRIC CARE AND ENERGY SAVINGS Use the Sensing Cycles to get the most energy savings and enhanced fabric care from the dryer. During Sensing Cycles, drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts o when the load reaches the selected dryness. Choose Normal cycle to save energy. With Timed Cycles, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to overdrying. Use Timed Cycles for the occasional damp load that needs a little more drying time or when using the drying rack. Maintain good air ow by:

Cleaning your lint screen before each load.

Replacing plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material.

Using the shortest length of vent possible.

Using no more than four 90° elbows in a vent system; each bend and curve reduces air ow.

Removing lint and debris from the exhaust hood.

Removing lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the “Installation Instructions” supplied with your dryer for nal product check.

Clearing away items from the front the dryer. Good Air Flow Along with heat, dryers require good air ow to eciently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions. The venting system attached to the dryer plays a big role in good air ow. Blocked or crushed vents as well as improper venting installation will reduce air ow and dryer performance. Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer. To clean or repair venting, contact a venting specialist. Good Better5 Not all features and options are available on all models. Appearance may vary.

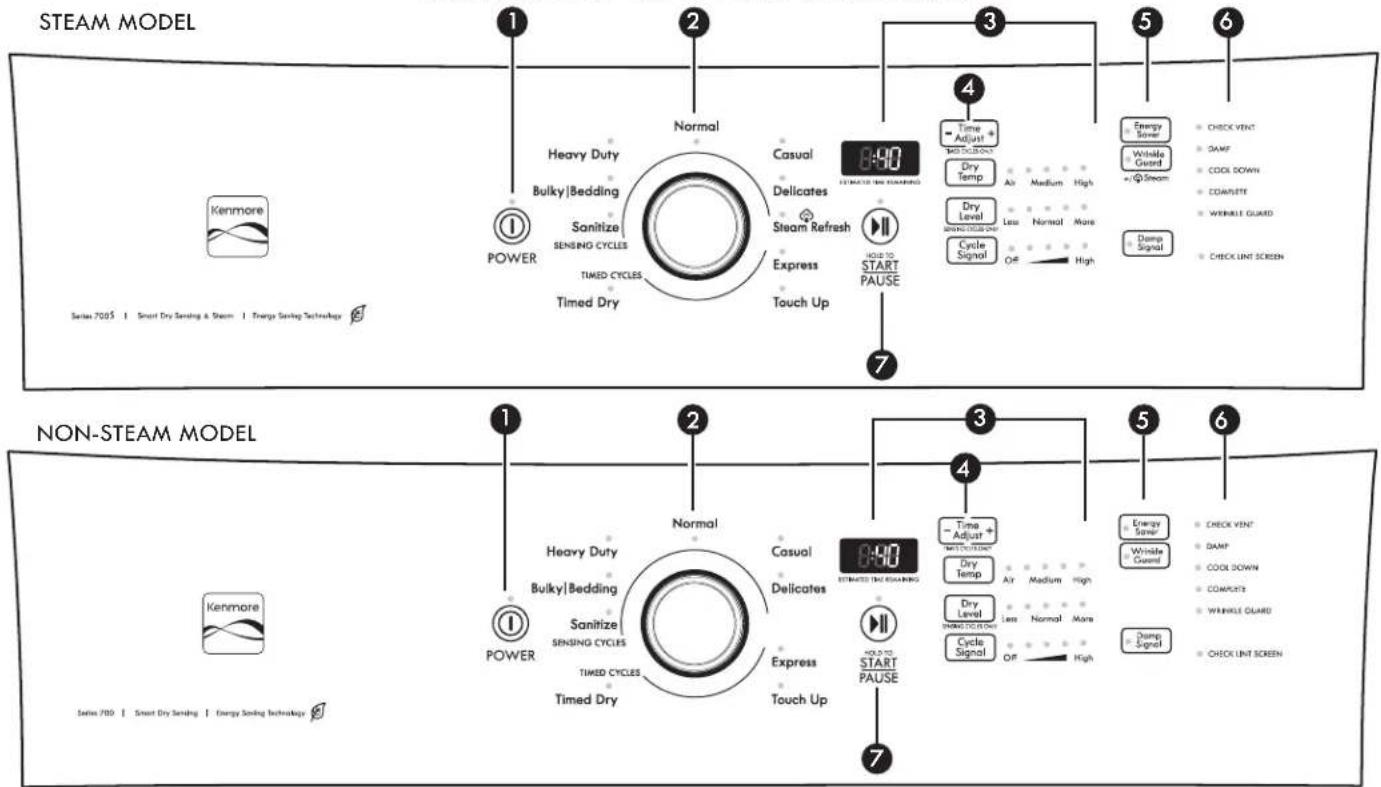

CONTROL PANEL AND FEATURES

POWER BUTTON Touch to turn the dryer on and o. Touch to stop/cancel a cycle at any time. CYCLE KNOB Use your cycle knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. Timed Cycles Will run the dryer for the specied time on the control. On models with a selectable temperature button, you may choose a setting based on the fabrics in your load. Drying time and temperature will vary depending on your dryer model. Sensing Cycles Sensing cycles give the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting.

LED DISPLAY AND SETTINGS

When you select a cycle, its default settings will light up and the Estimated Time Remaining (for Sensing Cycles) or actual time remaining (for Timed Cycles) will be displayed. Touch the setting names next to the display to adjust settings. See “Cycle Guide” for available settings on each cycle. Not all settings are available with all cycles. Dry Temp Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. See “Cycle Guide.”

Dry Level You may adjust the Dry Level on Sensing Cycles (except for the Sanitize cycle), if desired. NOTE: Dry Level is for use with Sensing Cycles only. Cycle Signal The Cycle Signal produces an audible sound when the drying cycle is nished. Promptly removing clothes at the end of the cycle reduces wrinkling. NOTE: When the Wrinkle Guard™ option is selected and the Cycle Signal is on, the tone will sound at 15 minutes, 30 minutes, and at the end of Wrinkle Guard™. Time Adjust for Timed Cycles Only Use “+” and “–” with Timed Cycles to increase or decrease the length of a Timed Dry or Express cycle. OPTIONS Use to select available options for your dryer. Not all cycles and options are available on all models. Energy Saver option Activate the ENERGY SAVER setting to increase your energy savings. This setting uses a lower heat level and extends cycle time. Turn on for optimal energy savings. Turn o for optimal cycle times. ENERGY SAVER will default on for NORMAL. NOTE: Energy savings is not available on all cycles, and may vary across loads and cycles.

STEAM MODEL NON-STEAM MODEL6 Towels and bedding Santize* Wrinkle Guard™ Cycle Signal Extended high-heat drying cycle intended to help sanitize items such as bedding and towels. This cycle is not recommended for all fabrics. For best results, run cycle to completion, do not interrupt. NOTE: Steam portion of Wrinkle Guard™ w/Steam option is disabled for this cycle. Jackets, comforters, pillows Bulky/ Bedding Damp Dry Signal Wrinkle Guard™ Cycle Signal Use for drying large, bulky items; do not overfill dryer drum. Heavyweight items such as towels and jeans Heavy Duty Damp Dry Signal Wrinkle Guard™ Cycle Signal Use for drying large or heavy items. Corduroys, work clothes Normal Damp Dry Signal Energy Saver Wrinkle Guard™ Cycle Signal Medium to large loads of mixed fabrics and items. No-iron fabrics, cottons, perm press, linens, synthetics Casual Damp Dry Signal Energy Saver Wrinkle Guard™ Cycle Signal For normal light- to medium-weight fabrics. Drying time varies based on fabric type, load size, and dryness setting. Lingerie, blouses, washable knit fabrics Delicates Damp Dry Signal Energy Saver Wrinkle Guard™ Cycle Signal For gently drying delicate items. Items to dry: Cycle: Dry Temp: Dry Level

: Available Options: Cycle Details: SENSING CYCLES – Senses moisture in the load and shuts o when the load reaches the selected dryness level. Settings shown are default settings for that cycle. To get the most energy savings and enhanced fabric care from your dryer use the Sensing cycles. These cycles measure the drying air temperature and moisture levels to turn the dryer o once the load reaches the selected dryness level. Dryer performance and results may vary with service voltage less than 240. Wrinkle Guard™ or Wrinkle Guard™ w/Steam option (depending on model) When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The Wrinkle Guard™ option periodically tumbles, rearranges, and us the load to help keep wrinkles from forming. The Wrinkle Guard™ w/Steam setting (depending on model) will add a short steam cycle after 60 minutes to help smooth out wrinkles.

Get up to 150 minutes of heat-free, periodic tumbling at the end of a cycle. Touch the WRINKLE GUARD™ option to select ON or OFF at any time before the cycle has ended. NOTE: If you open the dryer door prior to the end of the Wrinkle Guard™ option, the dryer will go into Pause mode. You will need to touch Power to turn o or touch Start/Pause to continue Wrinkle Guard™ option. Damp Signal Touch to select the Damp Signal to on or o. When selected, a series of beeps will sound when the load is damp, but not completely dry. This will allow you to take clothes out of the load that do not need to dry completely. This option is not available on Sanitize, Steam Refresh, and the Timed cycles.

The indicator bar on the right side of the control will let you know what stage of the drying cycle is in process. Check Vent The Check Vent indicator will light if there is a blocked vent or low airow. Damp This indicator shows that the load is partially dried and items that you may wish to hang up or iron while still damp may be removed. Cool Down The dryer has nished drying with heat, and is now tumbling the load without heat to cool it down and reduce wrinkling. Complete This will indicate that the selected cycle has ended and the load may be removed from the dryer. If Wrinkle Guard™ option has been selected, the dryer may continue to tumble the load, even if the Complete indicator is lit. Wrinkle Guard™ This indicator will light if the Wrinkle Guard™ option has been selected and is running. The dryer will periodically tumble the load for up to 150 minutes after the cycle has ended. Check Lint Screen The Check Lint Screen indicator light will ash as a reminder to clean the lint screen. It will ash until the door is opened or a cycle is started. It will turn o when the dryer is turned o.

Touch and hold START/PAUSE button for up to 3 seconds or until the dryer starts to begin the selected cycle; touch again to pause a cycle.

If loads do not seem as dry as you would like or are drier than you would like, select More Dry or Less Dry next time you dry a similar load.

• Extended high-heat drying cycle intended to help sanitize items such as sheets and towels. This cycle is not recommended for all fabrics. For best results, this cycle should be run to completion to ensure sanitization. Do not interrupt cycle. CYCLE GUIDE – SENSING CYCLES7 TIMED CYCLES – Will run the dryer for the specied time on the control. Settings shown are default settings for that cycle.

CYCLE GUIDE – TIMED CYCLES

Setting the Dry Temp Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. Temperature Tips If your dryer has multiple heat settings: n A High heat setting may be used for drying heavyweight items such as towels and work clothes. n A Medium to Medium High heat setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits. n A Low heat setting may be used for drying lightweight items such as lingerie. n Use an Air (no heat) setting for foam, rubber, plastic, or heat-sensitive fabrics. n Line dry bonded or laminated fabrics. NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions. Any load Timed Dry 40 Wrinkle Guard™ Cycle Signal Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. Any load Touch Up 20 Wrinkle Guard™ Cycle Signal Use this cycle to quickly refresh an item or remove light wrinkles. The load is cooled slowly to reduce wrinkling and make it easier to handle. Small loads and sportswear (2 to 3 items) Express 15 Wrinkle Guard™ Cycle Signal For small loads of 2-3 items. Items to dry: Cycle: Default Time: Available Options: Cycle Details: STEAM CYCLE – Designed for use with dry loads to loosen wrinkles, reduce odors, and refresh fabrics. Settings shown are default settings for that cycle. Not all settings and options are available on each cycle.

CYCLE GUIDE – STEAM CYCLE

Mixed loads Steam Refresh Wrinkle Guard™ Cycle Signal Use to smooth out wrinkles and reduce odors from loads consisting of 1 to 9 dry items of wrinkle-free cotton, cotton- polyester blend, common knits, and synthetic garments. Items to dry: Cycle: Dry Temp: Dry Level: Available Options: Cycle Details:8

1. Clean the lint screen

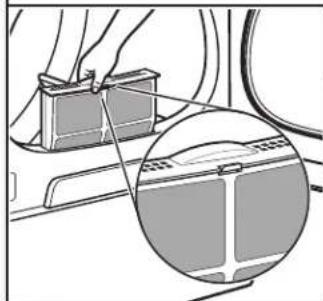

Clean the lint screen before each load. Pull the lint screen straight up and out. Press tab down on front to open lint screen. Roll lint o the screen with your ngers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove. Close lint screen and push the lint screen rmly back into place. For additional cleaning information, see “Dryer Care.”

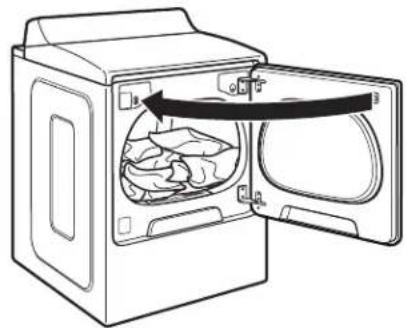

Place laundry in the dryer. Close the door. Do not tightly pack the dryer; clothes should be able to tumble freely.

WARNING: To reduce the risk of fire, electric shock, or injury

to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

Touch POWER to turn on the dryer.9

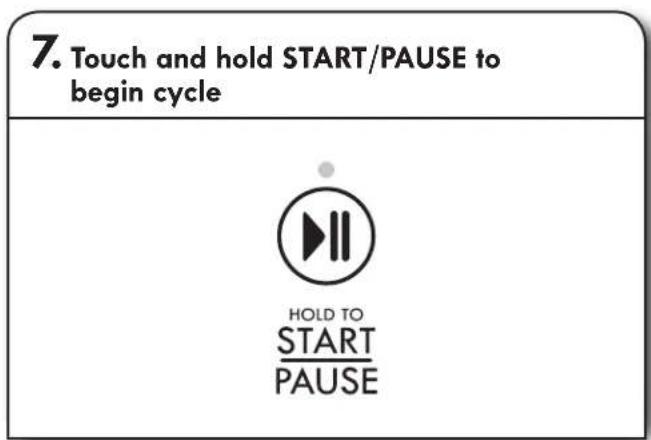

7. Touch and hold START/PAUSE to

begin cycle Touch and hold the START/PAUSE button to begin the cycle. Promptly remove items after cycle has completed to reduce wrinkling. Use the Wrinkle Guard™ option to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops.

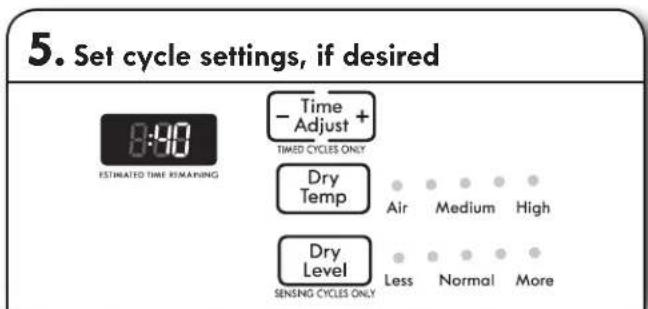

5. Set cycle settings, if desired

You may adjust dierent settings, depending on whether you have selected a Sensing Cycle, Timed Cycle, or Steam Refresh Cycle. See the “Cycle Guide” for detailed information. NOTE: Not all options and settings are available with all cycles. Not all cycles are on all models. Sensing Cycles: You can select a dierent dryness level, depending on your load, by touching DRY LEVEL to scroll to More, Normal, or Less. Selecting More, Normal, or Less automatically adjusts the dryness level at which the dryer will shut o. Dry Level can be changed in the rst 5-8 minutes of the cycle. Sensing cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. NOTE: More Dry removes more load moisture. Normal Dry is used for a starting point for Sensing cycles. Choose normal to save energy. Less Dry removes less moisture and used for loads you may want to put on a hanger to complete drying. Timed Cycles: When you select a Timed Cycle, the default time appears in the display. Touch “+” and “–” to increase or decrease the time in 1-minute increments. Touch and hold to change the time in 5-minute increments. The default temperature may be changed by touching Dry Temp until the desired dry temperature is lit. Steam Refresh: Reduces light wrinkles from loads left in the dryer too long. Do not add dryer sheets.

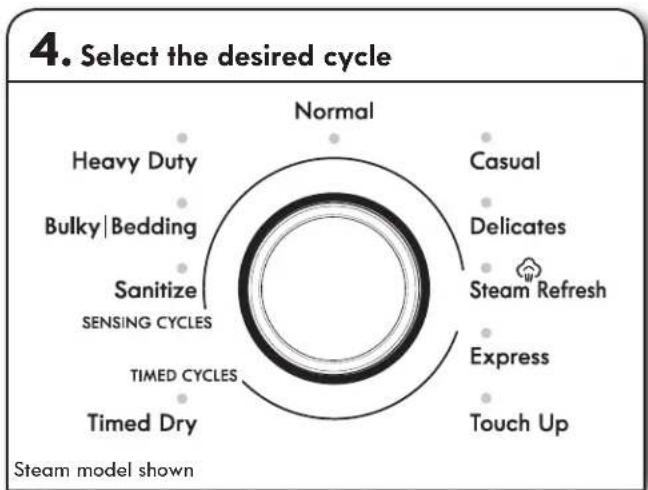

4. Select the desired cycle

Select the desired cycle for your load. See the “Cycle Guide” for more information about each cycle.

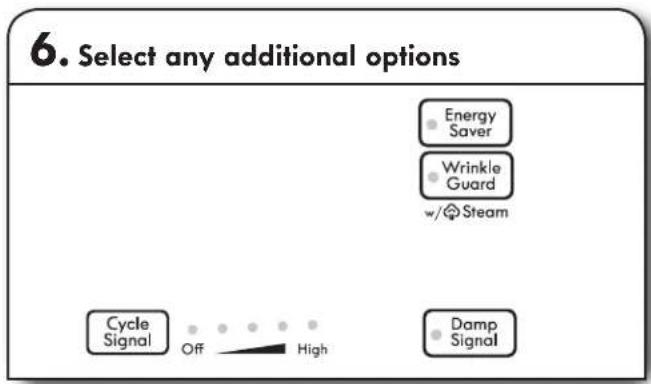

6. Select any additional options

Add additional options such as Energy Saver or Damp Signal by touching that option. If you will be unable to remove the load promptly, select the Wrinkle Guard™ options before touching START. Wrinkle Guard™ or Wrinkle Guard™ w/Steam option (depending on model) When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The Wrinkle Guard™ option periodically tumbles, rearranges, and us the load to help keep wrinkles from forming. The Wrinkle Guard™ w/Steam setting (depending on model) will add a short steam cycle after 60 minutes to help smooth out wrinkles. Get up to 150 minutes of heat-free, periodic tumbling at the end of a cycle. Touch the WRINKLE GUARD™ button to select ON or OFF at any time before the cycle has ended. NOTE:

When the Wrinkle Guard™ option is selected and the Cycle Signal is on, the tone will sound at 15minutes, 30 minutes, and at the end of Wrinkle Guard™.

If you open the dryer door prior to the end of the Wrinkle Guard™ option, the dryer will go into Pause mode. You will need to touch Power to turn o or touch Start/Pause to continue Wrinkle Guard™ option. Steam model shown10 Changing the Sensing Cycle settings to increase or decrease drying time If all your loads on all Automatic Cycles are consistently less dry or more dry than you would like, you may change the default settings to increase or decrease the default dryness level. Your automatic drying settings can be adjusted to adapt to dierent installations, environmental conditions, or personal preference. This change is retained and will aect all of your Automatic Cycles, not just the current cycle/load. There are 5 drying settings, which are displayed using the time display: 0 Much wetter clothes, 30% less drying time. 1 Slightly wetter clothes, 15% less drying time. 2 Factory preset dryness level. 3 Slightly drier clothes, 15% more drying time. 4 Much drier clothes, 30% more drying time. To change the drying settings: NOTE: The settings cannot be changed while the dryer is running or paused. The dryer must be in standby mode (power is o) to adjust the default settings.

1. Before starting a cycle, touch and hold DRY LEVEL

2. Touch DRY LEVEL to select the dryness level shown in the

time display: 0, 1, 2, 3, or 4.

3. Touch START/PAUSE to save the new dryness level setting.

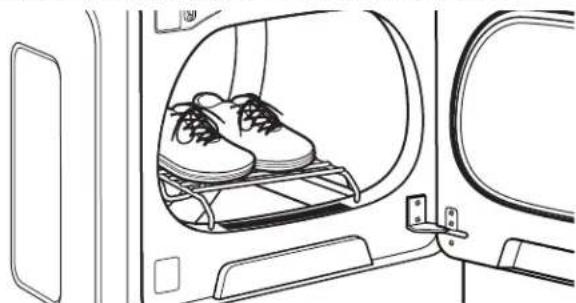

ADDITIONAL FEATURES Using the Drying Rack To obtain a drying rack for your dryer, order by calling 1-877-944-7566. You will need your model and serial number and the purchase date. Remove and discard any packing material before use. Use the Drying Rack for items that you do not want to tumble dry, such as sweaters and tennis shoes. When you use the drying rack, the drum continues to turn, but the rack remains stationary. The drying rack is intended for use with the Timed Cycles only. The drying rack cannot be used with Sensing/Automatic Cycles. To use the drying rack: IMPORTANT: Do not remove the lint screen.

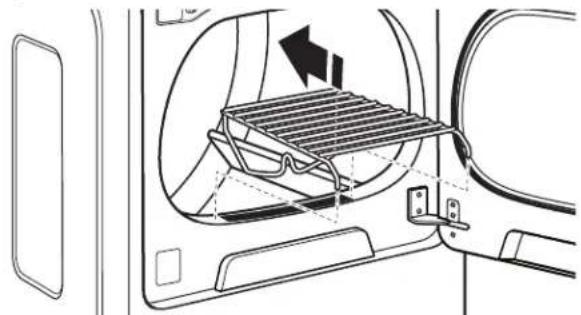

2. Align the two hooks on the front of the drying rack with the

holes in the dryer door opening and press down fully into holes. Rest the rear support on the dryer back ledge.

3. Place wet items on top of the drying rack. Allow space

around items for air to circulate. The drying rack does not move, but the drum will rotate; be sure to leave adequate clearance between items and the inside of the dryer drum. Make sure items do not hang over the edges or between drying rack grille.

5. Select a Timed Dry/Air Only, or Low Temperature cycle.

Items containing foam, rubber, or plastic must be dried on a clothesline or by using the Air Only setting.

6. When the cycle is selected, the Estimated Time Remaining

display shows the default time. You can change the actual time in the cycle by increasing or decreasing the cycle time.

NOTE: Check the lint screen and remove any lint accumulated from items dried on the drying rack after the cycle is nished.11 DRYER CARE Keep dryer area clear and free from items that would block the air ow for proper dryer operation. This includes clearing piles of laundry in front of the dryer. Cleaning the dryer interior To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum

Use a microber cloth and hot water in a spray bottle to clean the drum and a second microber towel to dry. NOTE: Items that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining. Removing accumulated lint From Inside the Dryer Cabinet Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualied servicer. From the Exhaust Vent Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning the dryer location Cleaning the lint screen Every load cleaning The lint screen is located in the door opening of the dryer. The control panel has an indicator light “Check Lint Screen” to remind you to clean the lint screen after each load. A screen blocked by lint can increase drying time. To clean:

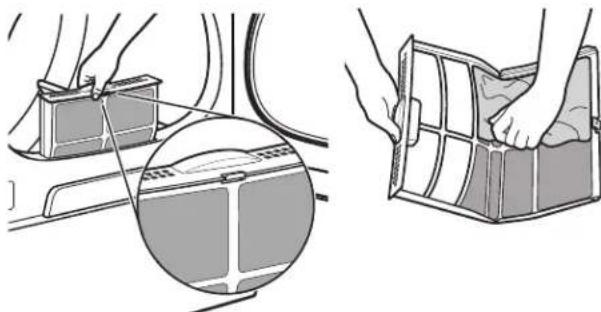

1. Pull the lint screen straight up and out. Press tab down on

front to open lint screen. Roll lint o the screen with your ngers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.

2. Close the lint screen and push rmly back into place.

Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.

If lint falls o the screen into the dryer during removal, check the exhaust hood and remove the lint. See “Venting Requirements” in the Installation Instructions. n Clean space where lint screen is located, as needed. Using a vacuum, gently remove any lint that has accumulated outside of the lint screen. As needed cleaning Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls o while the screen is in the dryer. Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup. To wash:

1. Roll lint o the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot

water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen

with a clean towel. Reinstall screen in dryer.12 WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Steam models only: Shut off water faucet.

4. Steam models only: Disconnect the water inlet hose from

faucet; then drain the hose. Transport hose separately.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer Follow the Installation Instructions to locate, level, and connect the dryer. SPECIAL INSTRUCTIONS

Water Inlet Hose Replace inlet hose and hose screen after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hose if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hose, record the date of replacement. To Winterize the Dryer

1. Unplug dryer or disconnect power.

2. Shut off water faucet.

3. Disconnect water inlet hose from faucet and drain.

To Use the Dryer Again

1. Flush water pipes. Reconnect water inlet hose to faucet.

Turn on water faucet.

2. Plug in dryer or reconnect power as described in the

Installation Instructions. Vacation, storage, and moving care Steam models only: Install and store your dryer where it will not freeze. Because some water may stay in the hose, freezing can damage your dryer. If storing or moving your dryer during freezing weather, winterize it. Non-Use or Storage Care Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

3. Turn off the water supply to the dryer. This helps to avoid

unintended ooding (due to a water pressure surge) while you are away. Moving Care For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Gas models only: Close shut-off valve in gas supply line.

3. Gas models only: Disconnect gas supply line pipe and

remove ttings attached to dryer pipe.

4. Gas models only: Cap the open fuel supply line.

5. Steam models only: Shut o water faucet.

6. Disconnect the water inlet hose from faucet, then drain

the hose. Transport hose separately.

7. Make sure leveling legs are secure in dryer base.

8. Use tape to secure dryer door.13

TROUBLESHOOTING If you experience Possible Causes Solution Dryer Operation Dryer will not run Door not closed completely. Make sure the dryer door is closed completely. START/PAUSE touched with ngernail or not touched long enough. Touch and hold START/PAUSE for up to 3 seconds with pad of nger. Household fuse is blown or circuit breaker has tripped. There may be 2 household fuses or circuit breakers for the dryer. Check that both fuses are intact and tight, or that both circuit breakers have not tripped. Replace the fuses or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualied electrician. Wrong type of fuse. Use a time-delay fuse. Dryer will not turn o Dryer door was opened prior to the end of the Wrinkle Guard™ option. If you open the dryer door prior to the end of the Wrinkle Guard™ option, the dryer will go into Pause mode. You will need to touch Power to turn o or touch Start/Pause to continue Wrinkle Guard™. Dryer will not heat Household fuse is blown or circuit breaker has tripped. The drum may be turning, but you may not have heat. Electric dryers use 2 household fuses or circuit breakers. Replace the fuses or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualied electrician. Supply line valve not open. For gas dryers, make sure that the valve on the gas supply line is open. Unusual Noise Humming or whining noise with Steam cycle selected Water pump on dryer is running. The water pump on the dryer is used during the Steam function. If the dryer has just been installed or unused for an extended period, the pump may be louder and run longer. This is normal. Thumping noise Dryer hasn’t been used in a while. This is normal. The thumping sound should diminish after a few minutes of use. Rattling or vibrating noise A small object caught between the edges of dryer drum. Check the front and rear edges of the drum for small objects. Clean out pockets before laundering. Dryer isn’t properly leveled. The dryer may vibrate if not properly installed. See the Installation Instructions. All four dryer feet should be in rm contact with the oor. Clothing is balled up in dryer. When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer. Clicking noise Gas valve operating. On gas dryers, you may hear the gas valve clicking as it opens and closes. This is normal. Dryer Results Drying times are too long and clothes are not getting dry Lint screen or lint screen housing is clogged with lint. Clean lint screen before each load. Clean space where lint screen is located, as needed. Using a vacuum, gently remove any lint that has accumulated outside of the lint screen. The exhaust vent or outside exhaust hood is clogged with lint, restricting air movement. Run the dryer for 5–10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or exible metal vent. See the Installation Instructions. The exhaust vent is not the correct length. Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. See the Installation Instructions. The exhaust vent diameter is not the correct size. Use 4" (102 mm) diameter vent material. The dryer is not level. Clothes not contacting the moisture sensors during Sensing Cycles. See “Level Dryer” in the Installation Instructions. The Air Dry Temp setting has been selected. Select the correct temperature for the types of garments being dried. See “Cycle Guide.” First try the solutions suggested here for assistance and to possibly avoid a service call.14 If you experience Possible Causes Solution Dryer Results (cont.) Drying times are too long and clothes are not getting dry The load is too large and heavy to dry quickly. Separate the load to tumble freely. Fabric softener sheets are blocking the grille. The air outlet grille is just inside the door, behind the lint screen. Check that it is not blocked by a fabric softener sheet. Use only one fabric softener sheet, and use it only once. The dryer is located in a room with temperature below 45ºF (7ºC). Proper operation of dryer cycles requires temperatures above 45ºF (7ºC). The dryer is located in a closet. Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (25 mm) of airspace, and, for most installations, the rear of the dryer requires 5" (127 mm). See the Installation Instructions. Cycle time is too short The load may not be contacting the sensor strips on Sensing Cycles. Level the dryer. See the Installation Instructions. All four dryer feet should be in rm contact with the oor. Clothes are coming out of the Steam Refresh cycle with damp or wet spots. Under certain environmental or installation conditions, you may experience under drying. The sensing cycle is ending early. Change the dryness level setting on Sensing Cycles. Increasing or decreasing the dryness level will change the amount of drying time in a cycle. If loads are consistently ending too early, see also “Changing the Sensing Cycle settings to increase or decrease drying time.” Lint on load Lint screen is clogged with lint. Clean lint screen before each load. Stains on load Improper use of fabric softener. Add dryer fabric softener sheets at the beginning of the cycle. Fabric softener sheets added to a partially dried load can stain your garments. Do not use fabric softener sheets with steam cycles. Stains on drum Loose dyes in clothes. Drum stains are caused by dyes in clothing (usually blue jeans). These will not transfer to other clothing. Loads are wrinkled The load was not removed from dryer at the end of the cycle. Select Steam Refresh cycle to tumble the load with water and heat. This cycle is best for smoothing out wrinkles and reducing odors from dry loads consisting of wrinkle-free cotton, cotton- polyester blends, common knits, and synthetics. NOTE: Refer to garment care label instructions. Dry-clean-only garments are not recommended. The dryer was tightly packed. Dry smaller loads that can tumble freely. Results may also vary depending on fabric type. For steam cycles, the water is not properly connected with the dryer. Make sure water is connected to the dryer. Check that water inlet hose is connected to both the faucet and dryer’s water inlet valve. Check that the water supply is turned on. Odors Recent painting, staining, or varnishing in the area where your dryer is located. Ventilate the area. When the odors or fumes are gone from the area, rewash and dry the clothing. For steam cycles, the water is not properly connected with the dryer. Make sure water is connected to the dryer. Check that water inlet hose is connected to both the faucet and dryer’s water inlet valve. Check that the water supply is turned on. Odors are left in garments after wearing. To remove odors left in garments after wearing, select Steam Refresh. This cycle is best for reducing wrinkles and odors from dry loads consisting of wrinkle-free cotton, cotton-polyester blends, common knits, and synthetics. First try the solutions suggested here for assistance and to possibly avoid a service call. TROUBLESHOOTING15 TROUBLESHOOTING If you experience Possible Causes Solution Dryer Results (cont.) Load too hot Load removed before cool down portion of cycle complete. Allow the dryer to complete the cool down portion of the cycle before removing the load. Using Timed Dry cycle with a high temperature setting. Select a Sensing Cycle with a lower heat setting to avoid overdrying the load. Dryer Displaying Code Message or Indicator Is Lit “PF” (power failure) The drying cycle has been interrupted by a power failure. Touch and hold START to restart the dryer cycle or press power to clear the display. “L2” Diagnostic Code (low or no line voltage condition) There may be a problem with your home power supply, keeping the dryer’s heater from turning on. The dryer will continue to run when this diagnostic code is present. Touch any pad to clear the code from the display and return to the estimated time remaining. Try the following:

Check to see if a household fuse has blown or circuit breaker has tripped. Electric dryers use two household fuses or breakers. Replace the fuse or reset the circuit breaker.

Conrm that the power cord is properly installed. Refer to the Installation Instructions for details.

Select a Timed Dry heated cycle, and restart the dryer. If the message persists, consult a qualied electrician. “--” Cycle knob is not on cycle. This is not an error. The selector knob is not on a cycle. Rotate your selector knob until a cycle lights up. “Check Vent” cycle status indicator lights up (blocked vent or low airow condition) The lint screen or vent is clogged; the vent is crushed, kinked or has too many turns. The dryer will continue to run when this diagnostic code is present. Touch any key to clear the code from the display and return to the estimated time remaining. Try the following:

Check to see if the vent run from the dryer to the wall is crushed or kinked.

Conrm that the vent run from the dryer to the wall is free of lint and debris.

Conrm that the exterior vent exhaust hood is free of lint and debris.

Conrm that your vent system falls within the recommended run length and number of elbows for the type of vent you are using. Refer to “Plan Vent System” in the Installaton Instructions for details. Select a Timed Dry heated cycle, and restart the dryer. If the message persists, have your entire home venting run cleaned. Contact a venting specialist. “F# E#” (F1 E1, F3 E1, etc.) variable service codes. The dryer is in need of service. If a code beginning with an “F” appears in the display, alternating between F# and E#, the dryer control has detected a problem that requires service. Call for service. First try the solutions suggested here for assistance and to possibly avoid a service call.16
