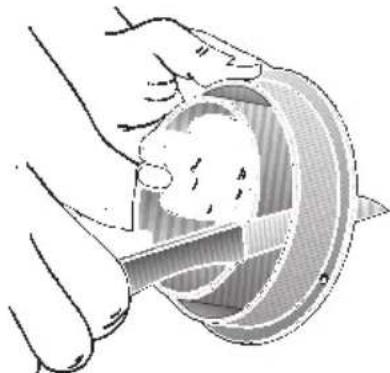

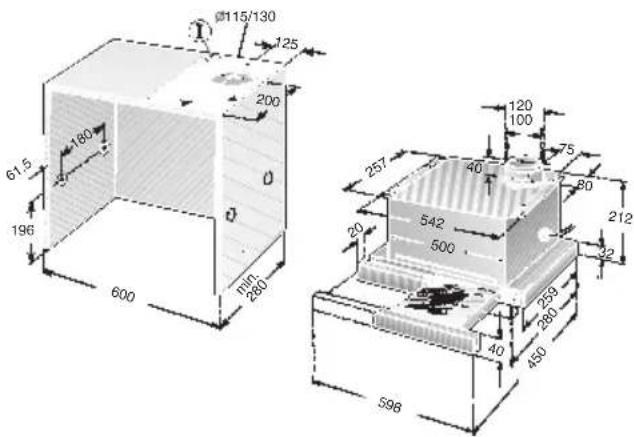

Abluft nach oben:

Diagram showing a structure with an arrow indicating direction, next to a brick wall (no text or symbols)

Vorbereiten:

Diagram of a door with labeled parts and directional arrows indicating movement or force directions

Illustration showing a hand using a screwdriver to install a mechanical bracket component, with close-ups of the parts (no text or symbols present)

Technical diagram of a mechanical assembly with dashed lines indicating hidden edges and a gray arrow symbol (no text or labels)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram showing installation of a ceiling structure with screw fasteners and a spring assembly (no text or labels)

Illustration of a mechanical assembly with a magnified inset showing components like screws and fasteners (no text or symbols)

Abluft Umluft
7,0 8,0

Instructions for use:

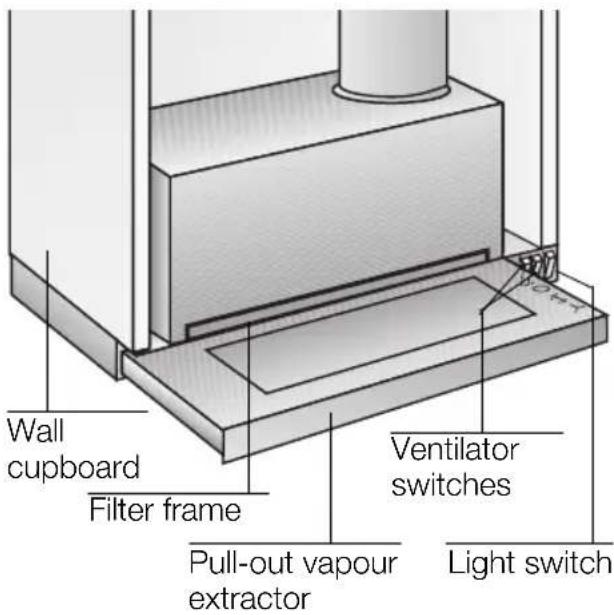

Appliance description

Wall cupboard Filter frame Pull-out vapour extractor Ventilator switches Light switch

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).
⚠ The complete installation set and replacement filters can be obtained from specialist outlets.
The corresponding accessory numbers can be found at the end of these operating instructions.
☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.
⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Before using for the first time If you encounter a problem

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.
☐ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

Simple line drawing of a trash bin with no text or symbols

determines the framework for the return and recycling of used appliances as applicable throughout the EU.

If you have any questions or if a fault occurs, please call Customer Service. (See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

⚠ The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

⚠️ Do not use the appliance if damaged.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠️If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ Dispose of packaging materials properly (see Installation instructions).

⚠ This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

⚠️ Never allow children to play with the appliance.

Do not let adults or children operate the appliance unsupervised:

• if they are mentally or physically unable to use the appliance safely and correctly,
• if they don't have the knowledge and experience to use the appliance safely and correctly.
  ⚠️Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.
⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

How to operate the extractor hood

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.

☐ Switch the ventilator OFF a few minutes after you have finished cooking.

Switching the ventilator ON:

1. Pull out the vapour extractor tray.

☐ The ventilator is operating.

1. Select the required ventilator power level.

Operating controls on different models:

Level 1

Level 2

2 3

Level 1

2 3

Level 2

2 3

Level 3

Level 3

Level 1

Level 2

Switching the ventilator OFF:

☐ Push the vapour extractor tray back in as far as it will go.

Note: The next time that the tray is pulled out, the ventilator will start up at the power level to which it was last set.

Light:

OFF

ON

Note: The light can be switched on at any time, including when the vapour extractor tray has been pushed back into the hood.

Various types of grease filter can be used to absorb the grease contained in the vapours produced during cooking.

The filter frame must be detached before the grease filter can be renewed.

Detaching and re-attaching the filter frame:

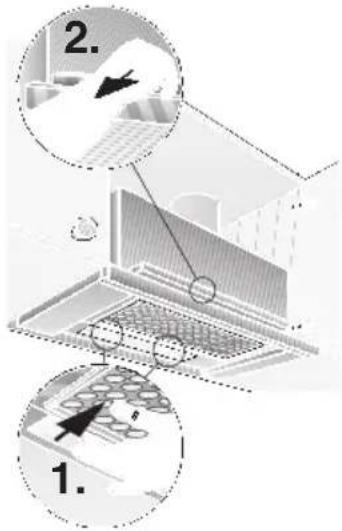

Detaching the frame:

1. Open the cupboard door.

2. Place your fingers in the recessed grips in the inspection window, push the filter frame towards the front and then pull it all the way out.

2. 1.

Re-attaching the frame:

1. Insert the filter frame into the housing and push it in as far as it will go.

2. Close the cupboard door.

Fleece grease filter:

The filter mat is made from material that is itself virtually non-inflammable.

Caution:

As it becomes more and more saturated with grease however, the filter becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

Renewing the fleece filter at appropriate intervals prevents the possibility of it catching fire as a result of a build-up of heat, such as occurs when deep-fat frying or roasting is taking place.

Renewing the fleece filter:

☐ Under normal operating conditions (1 to 2 hours per day), the fleece filter will require replacing after 8 to 10 weeks.

☐ Printed fleece filters must be renewed no later than when the coloured printing has started to fade.

☐ Use only original replacement filters. In so doing you will ensure that safety regulations are upheld and the extractor hood performs as effectively as possible.

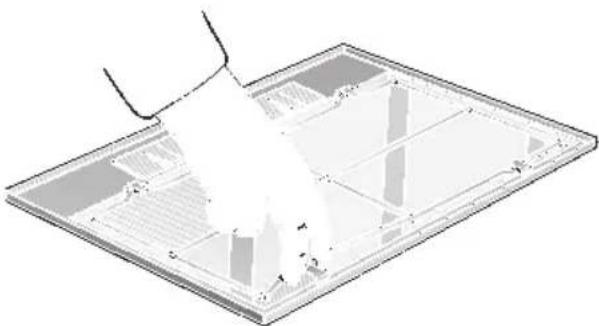

Removing/inserting the fleece filter:

1. Remove the wire frame.
2. Exchange the fleece filter.
3. Refit the wire frame.

3D schematic of a rectangular electronic component with internal grid structure and a hand holding a cable (no text or symbols)

Metal grease filter:

The filter mat is made of non-combustible metal.

Caution:

As it becomes more and more saturated with grease, the filter also becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal filter:

Under normal operating conditions (1 to 2 hours per day), the metal grease filter will require cleaning after 8 to 10 weeks.

Filters and maintenance

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month.

☐ The filters can be cleaned in a dishwasher. It is however possible that they will become slightly discoloured.

☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Removing/inserting the metal grease filter:

See details for removing/inserting the fleece filter.

Activated carbon filter:

For neutralising odours when hood is used in recirculating-air mode.

The activated carbon filter is installed above the grease filter inside the extractor hood.

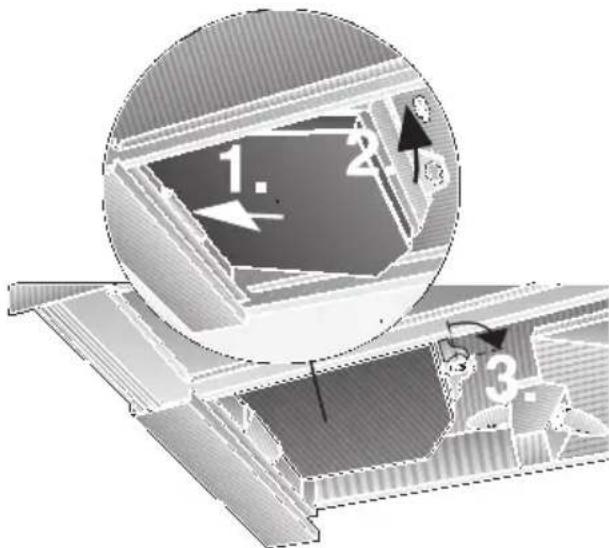

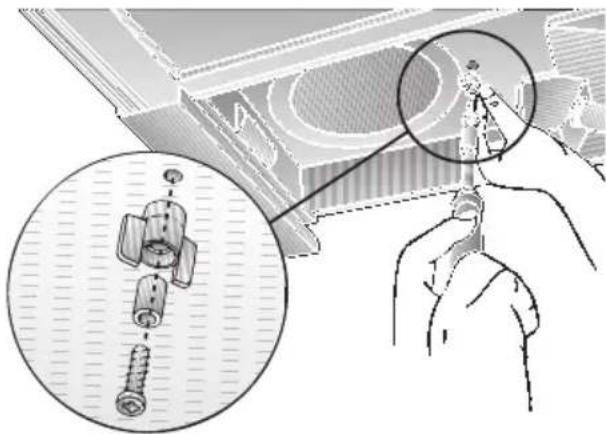

Inserting/removing the filter:

1. Remove the filter frame (see details on previous page).

2. Place wing nut and sleeve over screw, insert into housing and tighten firmly (applies only when installing filter for first time).

Illustration of a hand using a tool to adjust a screw component, with magnified inset showing the assembly process (no text or symbols present)

- Screw, sleeve and wing nut are enclosed with the activated carbon filter -.

1. Hook the activated carbon filter into the left-hand side of the extractor hood housing, push the other side upwards and secure in place with the wing nut.

1. 2 3

1. Re-attach the filter frame.

To remove the activated carbon filter, proceed in reverse order.

Renewing the activated carbon filter:

Under normal operating conditions (1 to 2 hours per day), the activated carbon filter will require replacing approximately once per year. Replacement filters can be obtained from specialist retailers (see Optional accessories).

☐ Use only original replacement filters. In so doing you will be ensuring that the extractor hood performs as effectively as possible.

Disposing of the old activated carbon filter:

□ Activated carbon filters do not contain any pollutants and can be disposed of with domestic refuse.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

⚠ Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

☐ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.
☐ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.

Observe the warranty regulations in the enclosed service booklet.

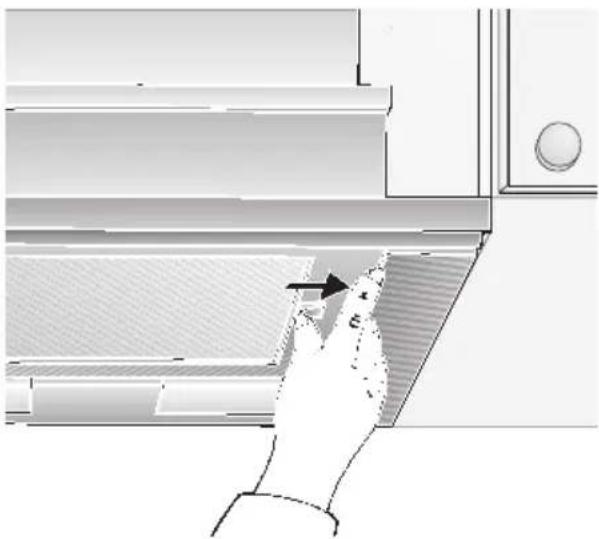

For appliances with a glass plate in the pull-out vapour extractor:

☐ The glass plate is easily removed and can be cleaned in a dishwasher.
☐ To remove the lugs, push outwards.

Illustration of a hand adjusting a window frame with a directional arrow (no text or symbols)

Replacing the light bulb

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
2. Pull out the extractor hood and detach the filter frame.

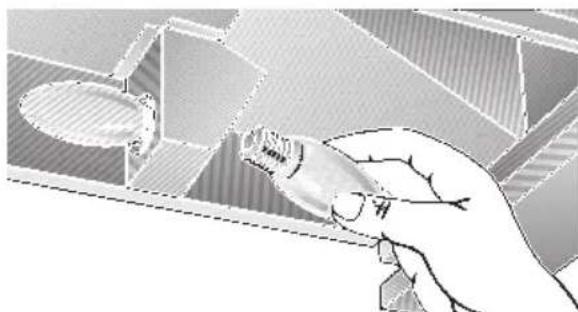

3. Replace the light bulbs. (Standard candle bulbs, max. 40 W, E14 socket).

Illustration of a hand holding a pen, interacting with a 3D geometric object (no text or symbols visible)

1. Re-attach the filter frame.
2. Plug appliance into mains again or switch on at the fuse box.

Important information

⚠️Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.
⚠️You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
⚠ The extractor hood can be used in exhaust air or circulating air mode.
⚠️Always mount the extractor hood over the centre of the hob.
⚠ Minimum distance between electric hob and bottom edge of extractor hood: 430 mm, Fig. 1.
The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.
⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

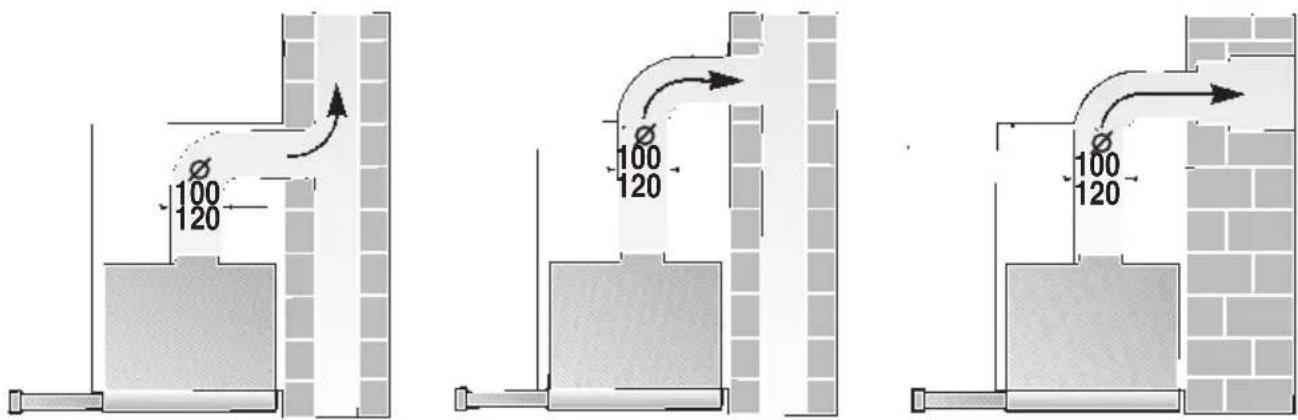

Additional information concerning gas cookers:

When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
⚠️Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.
⚠️Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.
⚠ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air must not be discharged via a smoke or exhaust gas flue which is already in use or via a shaft which is used for ventilating rooms in which fireplaces are located.

Discharge exhaust air in accordance with official and statutory regulations (e.g. national building regulations).

Discharge of air into smoke or exhaust air flues which are not in use requires the consent of a heating engineer.

If the extractor hood is operated in exhaust-air mode at the same time as a flue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), ensure that there is an adequate air supply which the heater requires for combustion.

Safe operation is possible provided that the partial vacuum in the room in which the heater is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and gas cookers.

The extractor hood can be used without restriction in circulating air mode – with an activated carbon filter.

For exhaust air mode a one-way flap should be installed in the extractor hood unless already installed in the exhaust air pipe or wall box.

If a one-way flap is not enclosed with the extractor hood, you purchase one from your dealer.

If the exhaust air is conveyed through the outside wall, a telescopic wall box should be used.

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.

☐ As few bends in the pipe as possible.

☐ Diameter of pipe to be as large as possible (ideal is 120 mm) and no tight bends in pipe.

If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes:

We recommend

Internal diameter at least. 120 mm.

☐ Flact ducts must have an internal cross-section that equates to that of round pipes with a 100/120 mm internal diameter.

There should be no sharp bends.

∅ 100 mm approx. 78 cm²

∅ 120 mm approx. 113 cm²

If pipes have different diameters:

☐ Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Exhaust outlet connection:

Pipe diameter: 100 or 120 mm.

☐ Insert the enclosed outlet connector and twist it as far as it will go.

☐ If the pipe diameter is 120 mm, cut out the inner part of the outlet connector.

Illustration of a hand holding a circular object with a tool, no text or symbols present

Exhaust air flows upwards:

☐ Cut a hole in the top of the wall cupboard, including a groove for the mains cable. - Template ① lis enclosed -.

Ø115/130 125 200 61.5 180 0 196 0 260 600 257 40 120 100 75 80 212 20 542 500 259 40 450 280 598

Exhaust flows straight out at the back:

- inside the wall cupboard -.

☐ Cut a hole in the rear panel of the wall cupboard, including a groove for the mains cable.

Circulating-air mode

☐ With activated carbon filter if exhaust-air mode is not possible.

The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Diagram showing a structure with an arrow indicating direction, adjacent to a brick wall (no text or symbols)

Preparation:

☐ Cut a hole in the top of the wall cupboard, including a groove for the mains cable.

- Template(I) is enclosed -.

Preparing the wall cupboard

⚠ Ensure that there is a minimum gap between hob and extractor hood of 650 mm (for gas hobs) or 430 mm (for electric hobs).

This extractor hood has been designed for installation inside a wall cupboard with the following dimensions:

Width: 600 mm

Height:at least 280 mm.

Preparation:

1. Remove bottom panel of cupboard – if fitted.

⚠ The stability of the cupboard must be maintained.

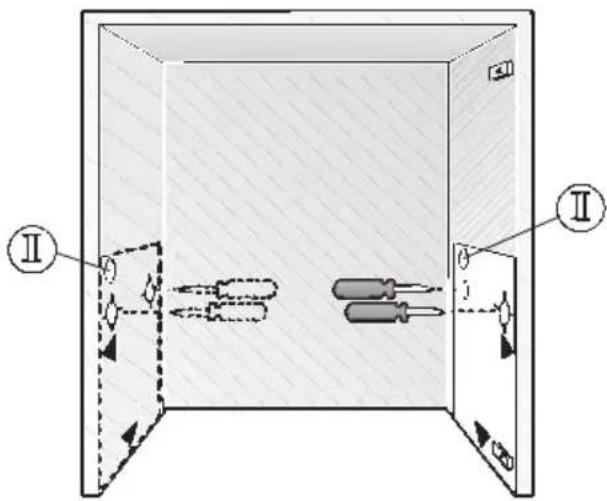

1. Mark two points – right and left – on the inside of the cupboard where the hood is to be mounted, and start the hole with a gimlet.

Details for drilling:

∅ 2 mm - max. 10 mm deep.

Use enclosed template Ⓐ for marking points where hood is to be mounted.

Caution:

☐ The mounting points shown on the template have been configured in such a way as to allow a 20 mm thick handle to be attached flush with the front edges of the cupboard.

☐ If no handle is going to be attached, the mounting points must be brought forward by 20 mm.

If the cupboard depth is greater than 280 mm, the hood can be mounted further back,

... if the light strip under the cupboard units is mounted further back, ... if the handle is more than 20 mm thick.

To do this, move the mounting points further towards the back by the corresponding distance.

Diagram of a room with labeled parts and directional arrows, showing two screwdrivers inside a chamber.

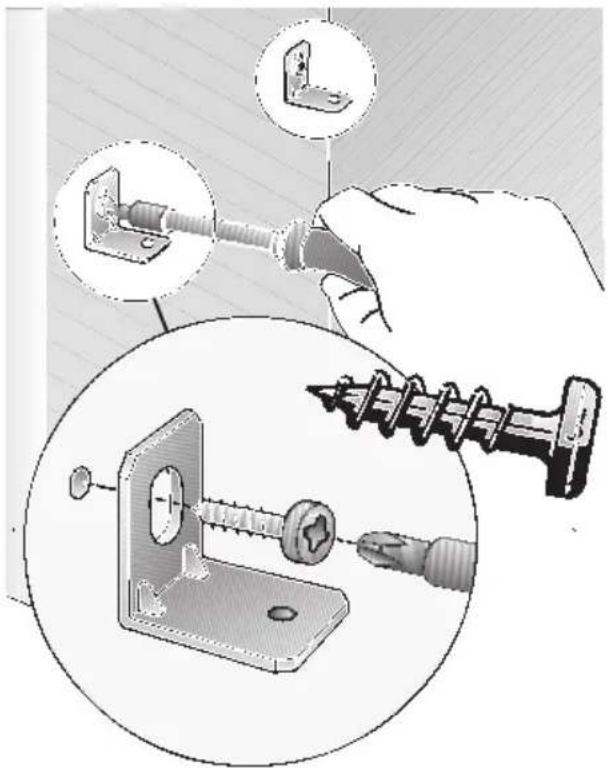

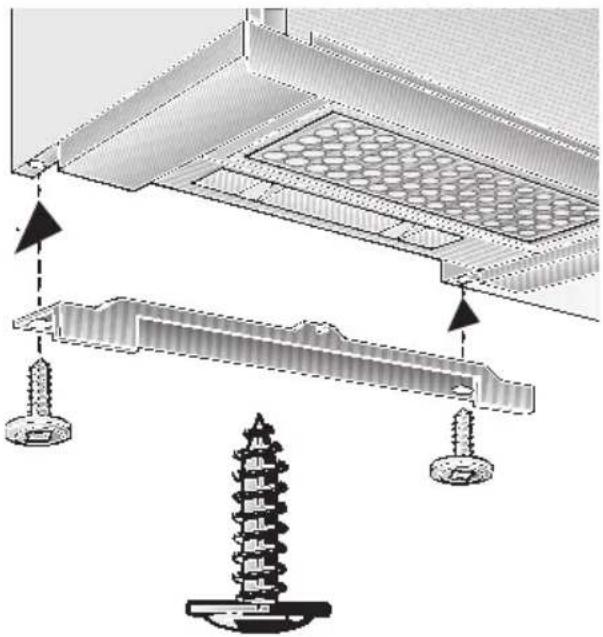

1. Align the 4 enclosed mounting brackets and screw them on tight.

Illustration of a hand using a screwdriver to install a metal bracket, with close-ups of the component (no text or symbols present)

Installation inside the wall cupboard

1. Align the cupboard doors if the hinges will no longer be accessible after the extractor hood has been fitted.

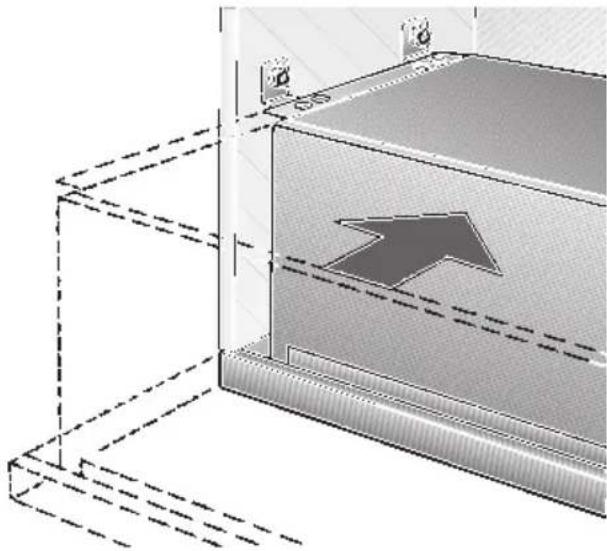

2. Place the extractor hood onto the mounting brackets and push it into the cupboard.

3D diagram of a mechanical assembly with dashed lines indicating hidden edges and a central arrow symbol (no text or labels)

Important: The extractor hood must be firmly seated on the 4 mounting brackets.

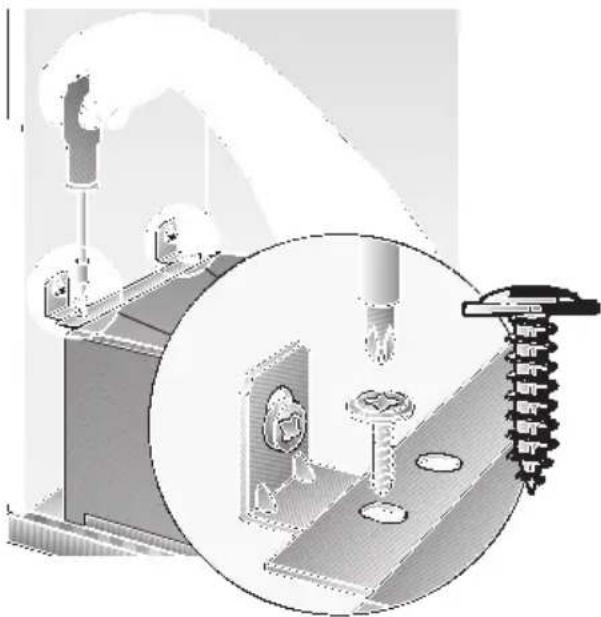

1. Loosely screw in the 4 enclosed screws. Align the extractor hood and then tighten screws.
   ⚠️ Check that the extractor hood is firmly fitted into the cupboard.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

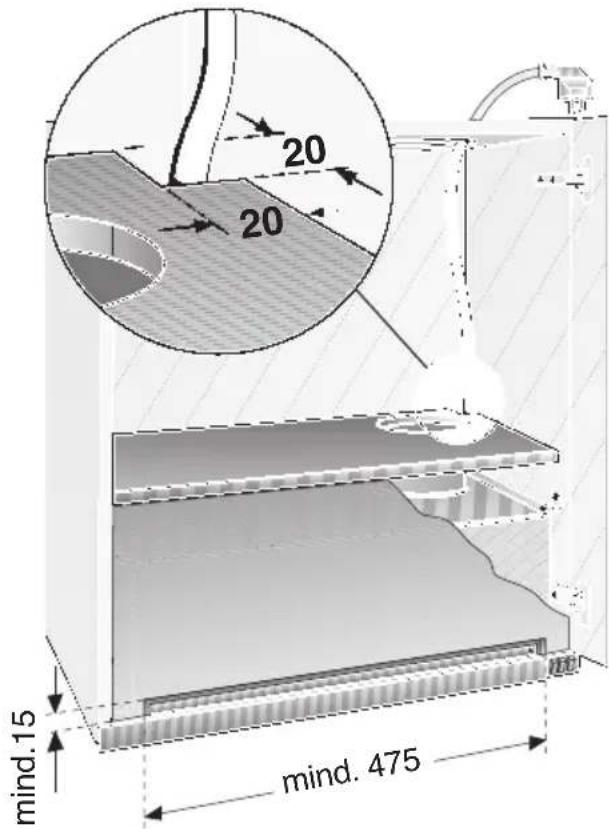

1. Install a shelf immediately above the extractor hood. Cut holes for the pipe connection and the mains cable.

20 20 mind. 15 mind. 475

⚠️ If the shelf is permanently fixed inside the cupboard, 4 holes must be drilled to provide access to the 4 mounting screws for the extractor hood.

1. Route the mains cable through the hole in the wall cupboard and connect up the exhaust pipe.
2. Connect up the extractor hood to the mains.
3. If no handle is going to be attached to the vapour extractor, seal off the 3 holes with the enclosed caps.

Installation inside the wall cupboard

1. Cut the wall masking strip down to size if necessary and screw it onto the wall cupboard.

Technical diagram showing structural components with arrows indicating assembly or alignment (no text or symbols present)

Attaching a handle to the vapour extractor:

☐ A handle can be attached to the vapour extractor.

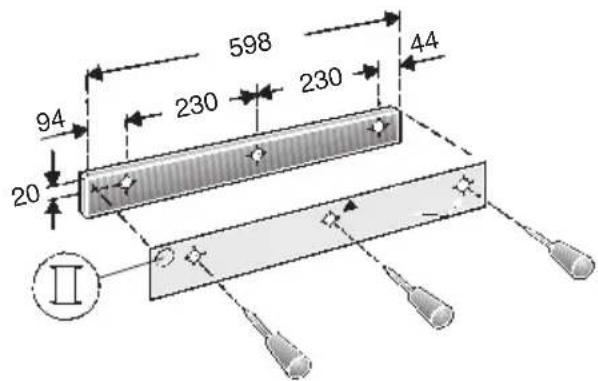

1. Use the enclosed template Ⓗ to mark the 3 mounting points on the handle and start the hole with a gimlet. Details for drilling: ∅ 2 mm – max. 10 mm deep.

598 94 230 230 44 20 Ⅱ

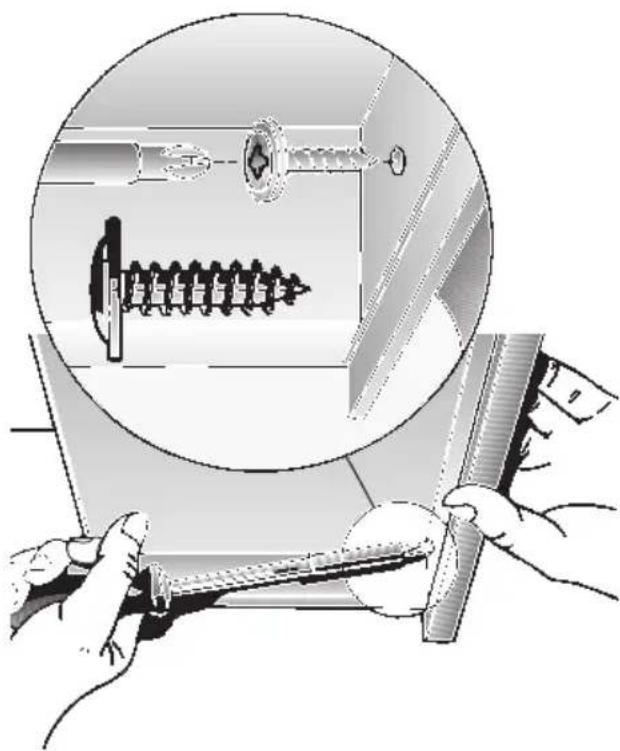

1. Align handle and attach it to the extractor with the 3 enclosed screws.

Illustration of hands assembling a screw and ruler, showing mechanical components inside a circular frame (no text or symbols)

Installation inside the wall cupboard

Note: The extractor hood housing inside the wall cupboard can be boarded up (e.g. with chipboard).

Please observe the following:

• The shelf must not be rest upon the extractor hood housing.
  – The board at the front should not be attached to the housing.
• Ensure that access is possible for replacing filters or by Customer Service.

Weight in kg:

Exhaust air Re-circulating air
7,0 8,0

The manufacturer reserves the right to make design alterations in the interests of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth

Blue - Neutral

Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

Electrical connection

The extractor hood may only be connected to an earthed socket that has been installed according to the relevant regulations. If possible, site the earthed socket directly above the wall cupboard or in its immediate vicinity.

☐ The earthed socket should be connected via its own power circuit.
☐ If the earthed socket is no longer accessible following installation of the extractor hood, ensure that there is a permanently installed disconnector.

If it is necessary to wire the extractor hood directly into the mains:

The extractor hood may only be connected up by a qualified electrician approved by the appropriate electricity company.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

Electrical specifications:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1,30 m.

This extractor hood complies with EC regulations relating to the suppression of RF interference.

Mode d'emploi:

Simple line drawing of a trash bin with no text or symbols

Dérangements

Diagram illustrating two steps of a process involving a container with labeled arrows and circular indicators, likely for technical or educational purposes.

Mise en place:

3D schematic of a rectangular electronic device with internal components and wiring (no text or symbols)

Illustration of a hand holding a screwdriver with magnified inset showing internal components (no text or symbols)

Illustration of a hand using a tool to interact with a 3D geometric object (no text or symbols visible)

Illustration of a hand holding a circular object with a textured surface, possibly a device or component (no text or symbols visible)

Diagram of a building interior with an upward arrow indicating direction, adjacent to a brick wall (no text or symbols)

Préparation:

Diagram of a door with labeled parts and directional arrows indicating movement or force directions

Illustration showing a hand using a screwdriver to install a mechanical bracket component, with close-ups of the parts (no text or symbols present)

Diagram of a mechanical or structural assembly with dashed lines and a central arrow, no visible text or symbols

Illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram showing screw fasteners and a structural component with mounting holes (no text or symbols)

Illustration of a mechanical assembly with gears and a screw, showing hands holding a tool (no text or symbols present)

Simple line drawing of a trash bin with no text or symbols

Storingen

☐ De ventilator is in werking.

Diagram illustrating two steps of a kitchen or storage system with labeled arrows and circular annotations.

Monteren:

Diagram of a device with a transparent panel and internal grid structure, no visible text or symbols

Metalen vetfilter:

Illustration of a hand holding a screwdriver, with close-up insets showing internal components (no text or symbols)

Illustration of a hand holding a small object over a textured surface, with no visible text or symbols.

Illustration of a hand holding a circular object with a textured surface, possibly a device or component (no text or symbols visible)

Diagram showing a chimney with an arrow indicating direction, next to a brick wall (no text or symbols)

Voorbereiden:

Diagram of a door with labeled parts and directional arrows indicating movement or force directions

Illustration showing a hand using a screwdriver to install a metal bracket, with close-ups of the component (no text or symbols present)

Diagram of a 3D container with an arrow indicating direction, enclosed in a dashed box (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram showing installation of a corrugated metal bracket and a screw base (no text or symbols)

Illustration of a mechanical assembly with gears and a ruler, showing components inside a circular frame (no text or symbols)
