USER MANUAL VVA62E450 VIVA
[en] Instructions for installation and use 12
Störungen - was tun? 6
Kundendienst 7
Störungen – was tun?
Important safety information. 12
Environmental protection. 14
Environmental protection. 14
Operating modes. 14
Exhaust air mode. 14
Circulating-air mode 14
Operating the appliance 15
Lighting 15
Cleaning and maintenance. 15
Trouble shooting 16
After-sales service 17
Accessories for circulating-air mode 17
INSTALLATION INSTRUCTIONS 18
Important safety information 18
General information 19
Exhaust air mode. 19
Exhaust duct 19
Checking the wall 20
Electrical connection 20
Installation 20
Preparing for installation 20
Installation 20
Finishing installation of the appliance. 21
Connecting the appliance to the power supply. 21
Attaching the flue duct. 21
INSTRUCTION MANUAL
After-sales contact details for all countries can be found in the attached after-sales service directory.
Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
This appliance is not intended for operation with an external clock timer or a remote control.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.

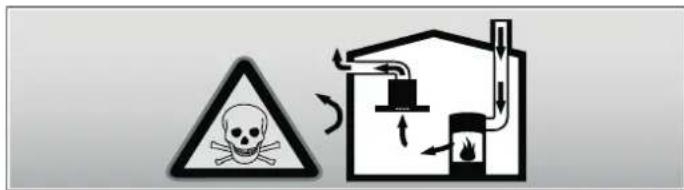

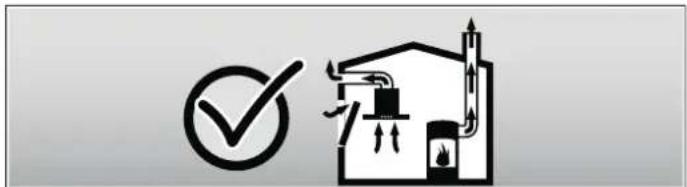

Danger of death!
Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney).
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.
- Adequate incoming air must therefore always be ensured.
- An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/ exhaust air wall boxes or by other technical means.
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months .
Never operate the appliance without the grease filter.
Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambeing). Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks.
Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
- When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
- Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer than 15 minutes. One large burner of more than 5kW (wok) is equivalent to the power of two gas burners.
Risk of burns!
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Risk of injury!
- Components inside the appliance may have sharp edges. Wear protective gloves.
- Items placed on the appliance may fall down. Do not place any objects on the appliance.
Risk of electric shock!
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage.
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1^ slope).
Environmental protection
Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.
Environmental protection
This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE - waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.
Operating modes
This appliance can be used in exhaust-air mode or circulating-air mode.
Exhaust air mode
The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.
Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances.
Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
Circulating-air mode
The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.
Note: To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist outlets, from customer service or from the Online Shop. The accessory numbers can be found at the end of the instructions for use.
Operating the appliance
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
Control panel
Explanation
Light On/Off
0.1 Fan Off/Fan speed 1
2 Fan speed 2
3 Fan speed 3
Setting the fan
Switching on
Press button 1, 2 or 3.
Switching off
Press the 0 button.
Lighting
The lighting can be switched on and off independently of the ventilation.
Press the button.
Cleaning and maintenance
Risk of burns!
The appliance will become hot during operation, especially near the bulbs. Allow the appliance to cool down before cleaning.
Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
Risk of electric shock!
Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
Cleaning agents
Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use
harsh or abrasive cleaning agents,
■ cleaning agents with a high concentration of alcohol,
- hard scouring pads or sponges,
high-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning agents.
Area Cleaning agents
Stainless steel Hot soapy water:
Clean with a dish cloth and dry with a soft cloth.
Clean stainless steel surfaces in the direction of the grain only.
Special stainless steel cleaning products are available from our after-sales service or from specialist retailers.
Apply a very thin layer of the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry with a soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and
Glass cleaner:
plastic
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass scraper.
Operating controls Hot soapy water:
Clean using a damp dish cloth and dry with a soft cloth.
Risk of damage to the electronics from penetrating moisture. Never clean operator controls with a wet cloth.
Do not use any stainless steel cleaners.
Cleaning the metal mesh grease filters
Risk of fire!
Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
- Do not use any aggressive, acidic or alkaline cleaning agents.
- When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.
The metal mesh grease filters can be cleaned in the dishwasher or by hand.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters.
- Do not clean heavily soiled metal mesh grease filters together with utensils.
Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in.
By hand:
Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop.
Soak the metal mesh grease filters in a hot soapy solution.
Clean the filters with a brush and then rinse them thoroughly.
Leave the metal mesh grease filters to drain.
Removing metal mesh grease filter
- Open the lock and fold down the metal mesh grease filter. While doing this, place the other hand under the metal mesh grease filter.
2.Take the metal mesh grease filter out of the holder.
Notes
Grease can accumulate in the bottom of the metal mesh grease filter.
- Hold the metal mesh grease filter level, otherwise grease will drip out.
3.Clean the metal mesh grease filter.
Installing the metal mesh grease filter
1.Insert the metal mesh grease filter.
While doing this, place the other hand under the metal mesh grease filter.
2.Fold the metal mesh grease filter upwards, locking it in place.
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Malfunction table
| Problem Possible cause Solution | ||
| The appliance does not work | The plug is not plugged in. | Connect the appliance to the electricity supply |
| Power cut Check whether other kitchen appliances are working | ||
| Faulty fuse Check in the fuse box to make sure that the fuse for the appliance is OK | ||
| The lighting does not work. | The bulbs are faulty. | For information on changing the bulbs, see the "Replacing Bulbs" section. |
Replacing bulbs
Risk of electric shock!
When changing the bulbs, the bulb socket contacts are live. Before changing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
Important Only use a bulb of the same type and same power (see the bulb holder or rating plate inside the appliance) - to do this, remove the metal mesh grease filter.
Replacing halogen bulbs
Note: When inserting halogen bulbs, do not touch the glass tube. Use a clean cloth to insert the halogen bulbs.
- Carefully remove the bulb ring using a suitable tool.
- Pull out the bulb and replace it with a bulb of the same type.
- Insert the bulb cover.
- Insert the mains plug or switch on the fuse again.
Replacing filament bulbs
- Lift the bulb cover slightly and push towards the outside of the appliance.
- Unscrew the bulb and replace it with a bulb of the same type.
- Insert the bulb cover.
- Insert the mains plug or switch on the fuse again.
After-sales service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
E no. FD no.
After-sales service
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
After-sales contact details for all countries can be found in the attached after-sales service directory.

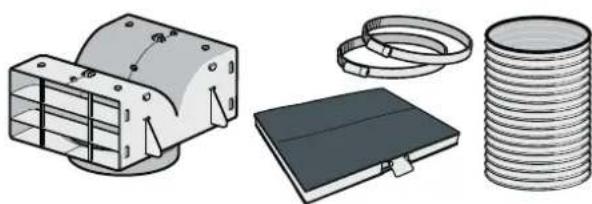

Accessories for circulating-air mode
(not included in the delivery)
Basic equipment
1
Throw-away filter
2
1VVZ52V40
2705431
INSTALLATION INSTRUCTIONS

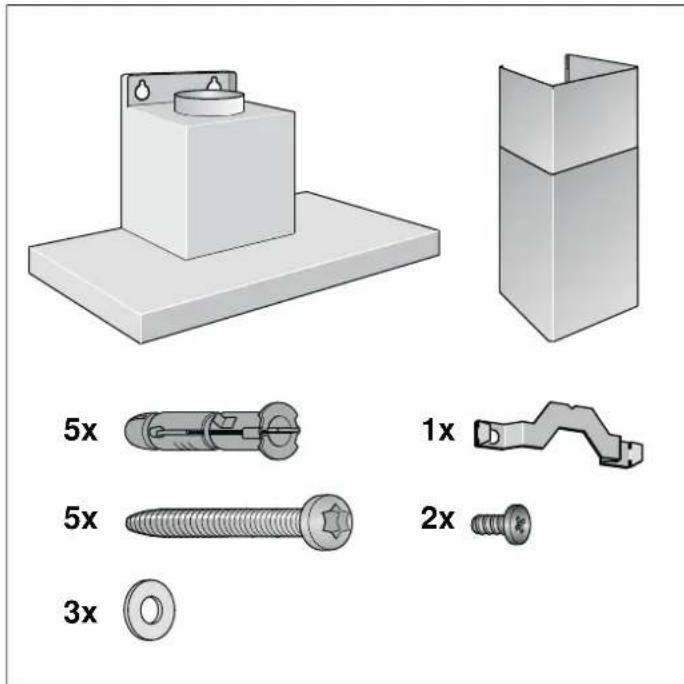

This appliance is installed on the wall.
- Follow the enclosed installation instructions for additional special accessories (e.g. for circulating-air mode).
The surfaces of the appliance are sensitive. Avoid damaging them during installation.
Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
The width of the extractor hood must correspond at least with the width of the hob.
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.

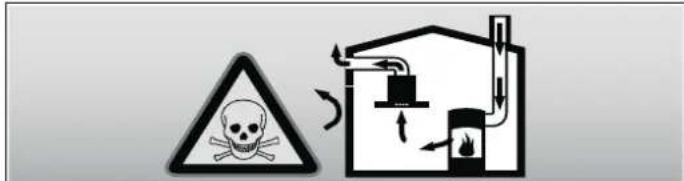

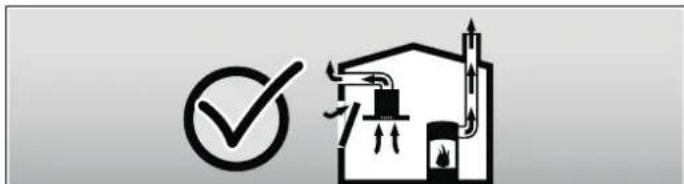

Danger of death!
Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney).
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.
- Adequate incoming air must therefore always be ensured.
An incoming/exhaust air wall box alone will not ensure compliance with the limit.
Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/ exhaust air wall boxes or by other technical means.
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Danger of death!
Risk of poisoning from flue gases that are drawn back in. If installing a ventilation system in a room with a heat-producing appliance connected to a chimney/flue, the electricity supply to the hood must be equipped with a suitable safety switch.
Risk of fire!
Grease deposits in the grease filter may catch fire. The specified safety distances must be observed in order to prevent an accumulation of heat. Observe the specifications for your cooking appliance. If gas and electric hobs are operated together, the largest specified distance applies.

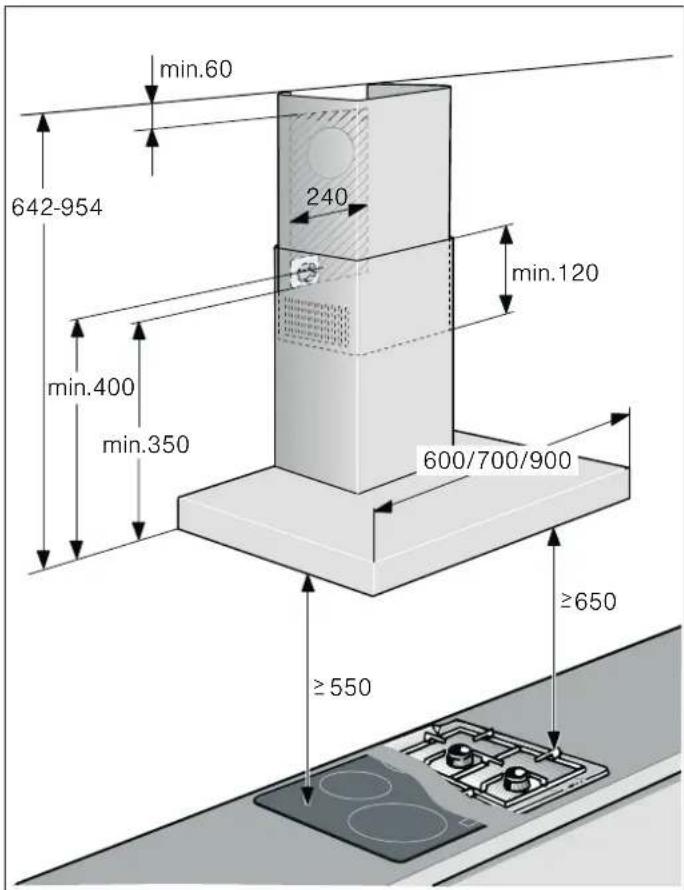

Only one side of the appliance may be installed directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50~mm .
Risk of injury!
- Components inside the appliance may have sharp edges. Wear protective gloves.
The appliance may fall from the wall if it is not attached properly. All fastening components must be fixed firmly and securely in place.
The appliance is heavy. To move the appliance, 2 people are required. Use only suitable tools and equipment.
Risk of electric shock!
Components inside the appliance may have sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
General information
Exhaust air mode
Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances.
Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
Exhaust duct
Note: The appliance manufacturer does not assume any warranty for complaints attributable to the pipe section.
The appliance achieves its optimum performance by means of a short, straight exhaust air pipe and as large a pipe diameter as possible.
Because of long rough exhaust air pipes, many of which are pipe bends or have diameters smaller than 150~mm , the optimum extraction performance is not achieved and fan noise is increased.
The pipes or hoses for laying the exhaust duct must consist of non-combustible material.
Round pipes
An inner diameter of 150~mm but at least 120~mm is recommended.
Flat ducts
The inner cross-section must correspond to the diameter of the round pipes.
0 150 mm approx. 177 cm²
0 120 mm approx. 113 cm²
Flat ducts should have no sharp deflections.
Use sealing strip for deviating pipe diameters.
Checking the wall
The wall must be level, vertical and adequately load-bearing.
The depth of the bore holes must be the same length as the screws. The wall plugs must have a secure grip.
The enclosed screws and wall plugs are suitable for solid brickwork. Suitable fasteners must be used for other structures (e.g. plasterboard, porous concrete, poroton bricks).
The max. weight of the extractor hood is 40kg
Electrical connection
Risk of electric shock!
Components inside the appliance may have sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
Length of the cable: approx. 1.30m
This appliance complies with the EC interference suppression regulations.
This appliance may be connected to a correctly installed earthed socket only.
Attach the earthed socket preferably inside the flue duct.
The earthed socket should be connected via its own circuit.
If the earthed socket is no longer accessible following installation of the appliance, a disconnecter must be fitted as for a permanent connection.
If a permanent connection is required, the installation must feature an all-pole disconnecter (circuit breakers, fuses and contactors) with a min. 3 mm contact opening. The permanent connection may be installed by an electrician only.
Installation
Preparing for installation
Caution!
Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made.

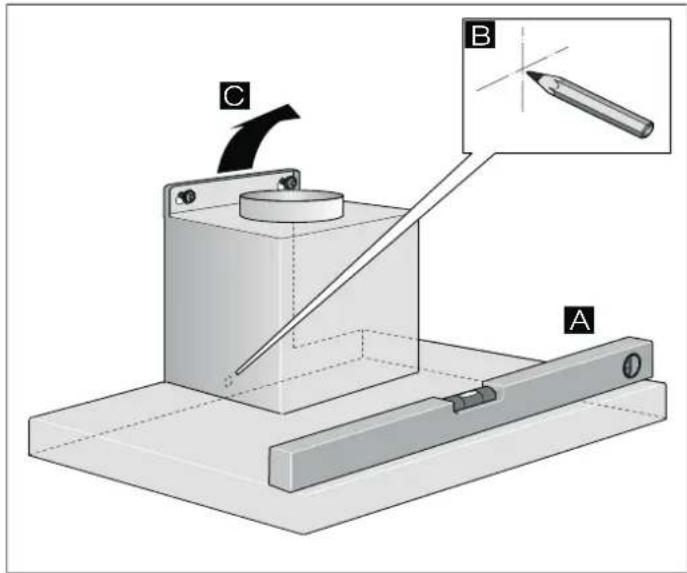

- Mark a vertical centre line on the wall from the ceiling to the lower edge of the extractor hood.
2.Mark the positions for the screws and the contour of the attachment area.

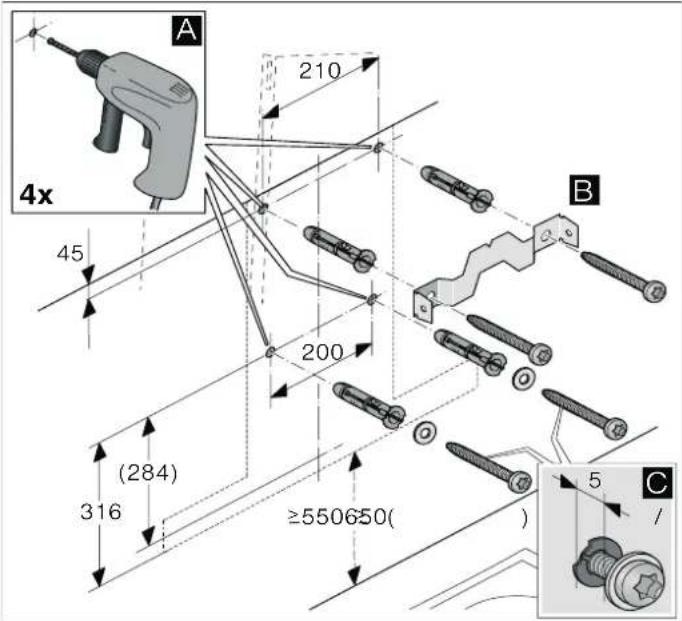

3.Drill 8 mm holes to a depth of 80~mm and press the wall plugs flush with the wall. A
4.Screw on the fixing bracket for the flue duct. B
5.Screw in 2 securing screws with washers to approx. 5mm
Installation
- Attaching and aligning the appliance. A
2.Mark the hole for the safety screw. B
3.Remove the appliance once more. C
Finishing installation of the appliance

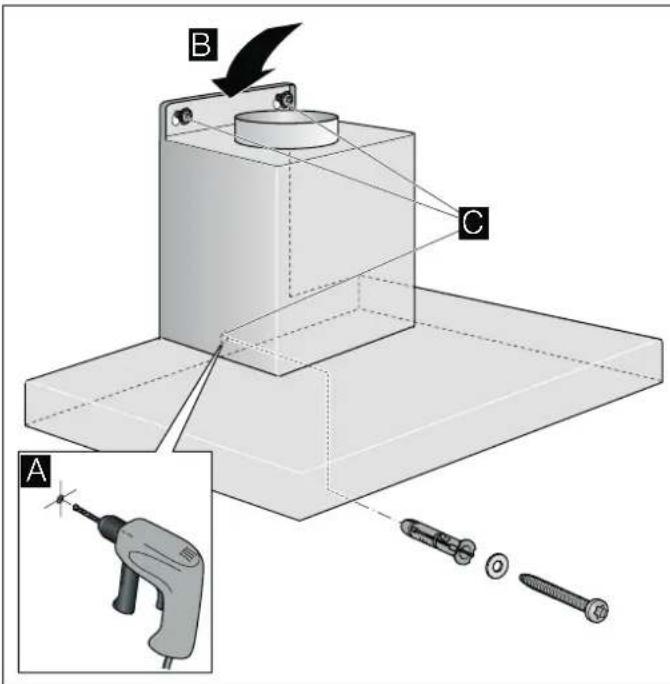

- Drill an 8 mm hole to a depth of 80 mm for the safety screw and press the wall plug flush into the wall. A
- Initially remove the protective foil from the back of the appliance and, following installation, remove the foil completely.
- Attach the appliance. B
- Screw in the safety screw - and washer - and tighten all the screws.
Connecting the appliance to the power supply
Connecting the air extractor
Note: If using an aluminium pipe, smooth the connection area beforehand.
- Attach the air extractor pipe directly to the air-pipe connector.
- Connect to air extractor opening.
- Seal the joints appropriately.
Connect the power supply
- Plug the mains plug into the earthed socket.
- If a fixed connection is required, please follow the instructions in the Electrical Connection section.
Attaching the flue duct
Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
- Separate the flue ducts.
To do this, remove the adhesive tape. - Remove the protective foil from both flue ducts.
- Push one flue duct into the other.
Notes
To prevent scratches, lay paper over the edges of the outer flue duct to protect the surface.
- Slots of the inner flue duct point downwards.
- Place the flue ducts on the appliance.

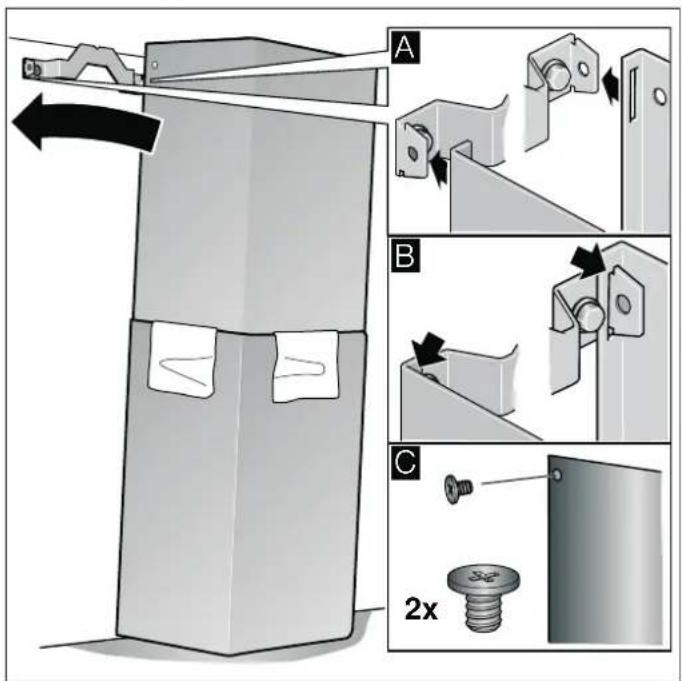

- Push the inner flue duct upwards and attach it to the fixing brackets on the left and right. A
- Press the flue duct downwards until it engages. B
- Screw the flue duct to the sides of the fixing bracket using two screws.
Table des matieres
NOTICE D'UTILISATION 22
