USER MANUAL DXDPF7 Dynex

Setting up your digital picture frame 3

Using your digital picture frame. 3

Maintaining your digital picture frame 4

Troubleshooting. 5

Specifications 5

90 Day Limited Warranty. 7

Francais 9

Espanol 15

Introduction

Congratulations on your purchase of a high-quality Dynex product. Your DX-DPF7 represents the state of the art in digital picture frame design, and is designed for reliable and trouble-free performance.

Safety information

Always follow these basic safety precautions when using your digital picture frame. This will reduce the risk of fire, electric shock, and injury.

Warning: To reduce the risk of fire or shock hazard, do not expose the digital picture frame to rain or moisture.

Warning: To prevent the risk of electric shock, do not remove the cover. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.

Power and Power Cord—Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the digital picture frame.

Only use the AC adapter included with the digital picture frame. Using any other power adapter will void your warranty.

Unplug the power cord from the outlet when the digital picture frame is not in use.

Placement—To prevent fire or electric shock, do not expose this digital picture frame to rain or moisture. To prevent it from falling do not place it on an unstable cart, stand, tripod, bracket or table. Keep it away from strong magnets, heat sources, direct sunlight, and excessive dust.

Installation—Make sure that the frame is used in accordance with the instructions and illustrations provided in this manual.

Objects and Liquids—Do not push objects of any kind into the frame through openings; do not spill or spray liquid of any kind on or into the frame (this may result in a fire or electric shock). Do not place anything heavy on the unit. To ensure proper ventilation and proper operation, never cover or block the slots and openings with a cloth or other material.

Disassembly—Do not attempt to disassemble the cabinet. There is a risk of electric shock. Contact qualified service personnel if your frame is in need of repair.

Cleaning you frame—When cleaning, make sure the frame is unplugged from the power source. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the frame only.

Features

The digital picture frame includes these key features:

• A 7" LCD (Liquid Crystal Display) 16:9 aspect ratio display.
• Compatible memory cards include SD, MMC, MS, XD, and CF cards, as well as USB memory devices.

What's In the Box

• 7" Digital Picture Frame (1)
• A C t o D C P o w e r A d p a t e r
• User's Guide
• Remote Control with battery (CR2025)

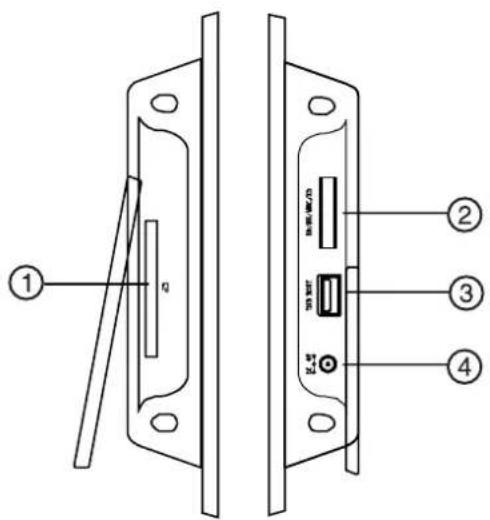

Left and right side view

#	D	e	s	c	r	i	p	t	i
1 CF card slot
2 SD, MS/MMC, XD card slot
3	U	S	B	p	o	r	t
4	D	C	9	V	p	o	r	t

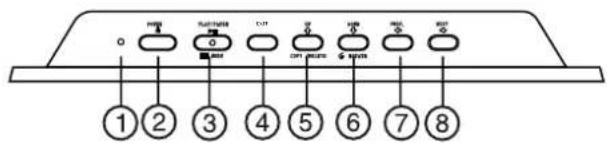

Top view

#	Item	Description
1	Power LED	Lights when the power is on.
2	POWER button	Press to turn on the frame. Press again to turn off the frame.
3	PLAY/PAUSE/MODE button	Press to confirm a selection, pause a slide show, or change modes (Slide Show, Browse, Thumbsail).
4	EXIT button	Press to enter the Main screen. On the Main screen, press to enter the Card Selection screen.
5	UP COPY/COPY button	Press to navigate the on-screen menus, to copy a photo, or to delete a photo (the options are displayed when the button is pressed).
6	DOWN /ROTATE button	Press to navigate the on-screen menus or to rotate a photo.
7	PREV button	Press to navigate the on-screen menus or to view the previous photo.
8	NEXT button	Press to navigate the on-screen menus or to view the next photo.

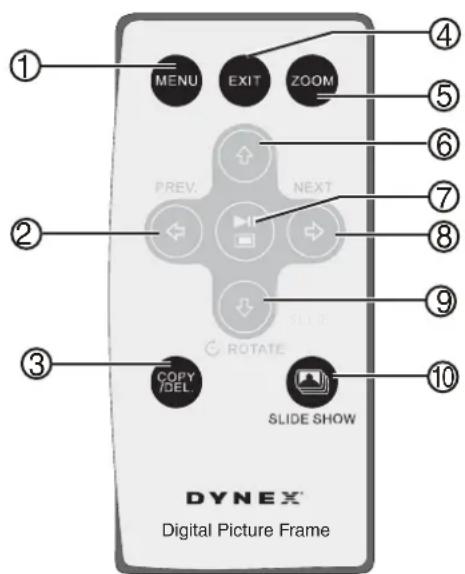

Remote control

# Button Action
1	MENU	Press to enter the Setup Menu.
2	PREV	Press to move the cursor to the left or to access the previous photo.
3 COPY/DEL. Press to copy a photo into frame memory or to delete a photo from the frame.
4 EXIT Press to return to the Main menu or to enter the card selection screen when the Main Menu is displayed.
5	ZOOM	Press to enlarge the displayed photo by 100%, 117%, 133%, 150%, or 200%.
6	UP	Press to move the cursor up.
7 PLAY/PAUSE/MODEII		Press to confirm a selection, pause a slide show, or change modes (Slide Show, Browse, Thumbsail).
8	NEXT	Press to go to the next photo.
9	DOWN /ROTATE
10	SLIDE SHOW	Press to enter Slide Show mode.

Setting up the remote control

Note: Pull the plastic tab sticking out of the remote control. It protects the battery. The remote control cannot work unless it is removed.

To install or replace the remote control battery:

1 Hold the remote control with the control buttons facing downward.

2 While pressing down on the ridged area of the battery cover, pull the tray out.
3 Remove the old battery, if necessary.
4 Place a CR2025 lithium battery on the tray with the positive + end facing toward you.
5 Close the tray.

Setting up your digital picture frame

To set up your digital picture frame:

1 Extend the stand from the back of your digital picture frame.
2 Rotate the stand to position the frame either vertically or horizontally.
3 Place your digital picture frame on a flat surface.
4 Plug one end of the AC power adapter into your digital picture frame.
5 Plug the other end of the AC power adapter into a wall outlet.
6 Insert a memory card or USB device into the appropriate slot. Note: The card only fits in one direction. Do not force it. The card should fit snugly when correctly inserted.
7 Press the POWER button on the top of your digital picture frame to turn it on.

Using your digital picture frame

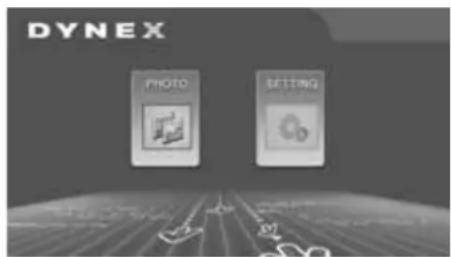

To turn on your frame and select a photo:

1 Press POWER on the top of your digital picture frame, your frame turns on.
2 Insert a card into one of the card slots or insert a USB memory device into the USB slot. The photos display automatically.
3 Press EXIT. The Main Menu opens.

4 Press EXIT again to enter the Card Selection screen, then press the PREV or NEXT button to select the card you want.
5 Press PLAY/PAUSE/MODE to enter the Slide Show mode. This displays photos, based on the Transition Mode settings.
6 Press PLAY/PAUSE/MODE again to enter the Browse mode. Your frame displays a single picture.
7 Press PREV or NEXT to select a photo.
8 Press PLAY/PAUSE/MODE a third time to enter Thumbnail mode. The thumbnail images appear on the screen in a table.
9 Press PREV , NEXT , UP , or DOWN to select a thumbnail, then press PLAY/PAUSE/MODE▶| to show the picture.

To copy photos to your frame:

1 Press POWER on the top of your digital picture frame, the frame turns on.
2 If your frame is in slide show mode, press EXIT. The Main Menu opens. If the Main Menu is already open, go to the next step.

3 Insert a card into one of the card slots, or insert a USB memory device into the USB slot.
4 Press PLAY/PAUSE/MODE one or more times to enter the Slide Show mode or Browse mode.
5 Select the photo you want to copy, then press UP/COPY/DELETE. The frame will ask you if you want to copy the photo.
6 Press PREV or NEXT to select YES, then press PLAY/PAUSE/MODE. The photo is copied.

The frame can copy as many as 40 photos to memory.

Note: While in Slideshow mode you can rotate the photo in your frame by pressing DOWN/ROTATE.

To delete photos from your frame's memory:

1 Remove the SD/MMC/MS/XD card, CF card, or USB memory device from the frame.
2 Press POWER on the top of your digital picture frame, the frame turns on.
3 Press PREV or NEXT to select the photo you want to delete.
4 Press UP/COPY/DELETE. Your frame will ask you if you want to delete the photo.
5 Press PREV or NEXT to select YES, then press PLAY/PAUSE/MODE. The photo is deleted.

Note: The Delete function only deletes photos from the frame's memory. It will not delete photos from a card or USB memory device.

To select the photo source:

1 Press POWER on the top of your digital picture frame, the frame turns on.
2 Press EXIT on the remote control to enter the source selection screen. (With the Main Menu displayed, press EXIT once. In slide show mode press EXIT twice.)
3 Press PREV or NEXT to select the source you want to use, then press PLAY/PAUSE/MODE to enter Slide Show mode and view the photos.

Note: You cannot select a card that has not been inserted in your frame.

Configuring your digital picture frame

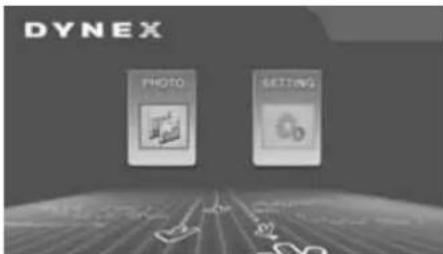

To configure your digital picture frame:

1 Press POWER on the top of your digital picture frame, the frame turns on.
2 If your frame is in slide show mode, press EXIT. The Main Menu opens. If the Main Menu is already open, go to the next step.

3 Press PREV or NEXT to select SETTING, then press PLAY/PAUSE/MODE. The Setup Menu opens.

4 Press PLAY/PAUSE/MODE to select one of the six submenus to open, then press NEXT to enter thesubmenu.
5 Press UP , or DOWN to make your selection in the submenu, then press PLAY/PAUSE/MODE to confirm.
6 Press MENU to return to the previous menu.

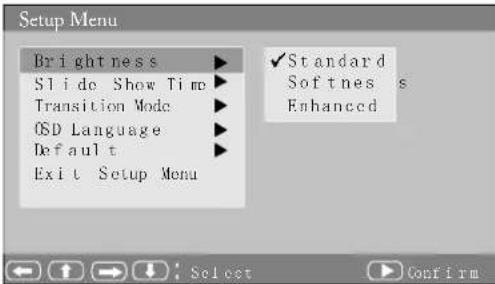

The following table lists all the submenus and submenu options:

Submenu Settings
Brightness	• S t a n d a r d • S o f t n e s s • Enhanced
Slide Show Time	• 5 s e c. • 10 sec. • 30 sec. • 15 min. • 1 hour
Transition Mode	• R a n d o m • No Effect • C over U p • C over D o w n • C over L e f t • C over R i g h t
OSD Language	• E n g l i s h • F r e n c h • S p a n i s h
Default	• Reset
Exit Setup Menu	Press PLAY/PAUSE/MODE or EXIT to exit the Setup Menu.

Maintaining your digital picture frame

Cleaning the LCD Screen

Be very careful when you clean the LCD screen. The screen is made of glass and can be scratched or broken.

To clean fingerprints or dust from the LCD screen, we recommend using the cloth provided or a soft, non-abrasive cloth such as a camera lens cloth.

If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD screen. Clean the LCD screen with the cleaning cloth moistened with the liquid.

Cleaning your digital picture frame

Clean the outer surface of your digital picture frame (excluding the screen) with a soft cloth dampened with water.

Troubleshooting

Problem Solution
Your digital picture frame won't turn on.	The adapter is not securely connected to your picture frame or the power switch is not on.
A memory card is inserted in your digital picture frame but you cannot view your photos.	Make sure that the memory card is one of the supported formats and that the files on the card are JPEG images files. Turn your digital picture frame off and make sure that the memory card is Inserted all the way into the card slot and is Inserted correctly. Turn the frame on. After a couple of seconds, you should see your first photo. Note: Some digital cameras save images in formats other than JPEG. Refer to your camera's manual if your photos are not JPEG files.
The frame displays some pictures slower and some pictures faster.	Higher resolution pictures load more slowly. Try using lower resolution pictures or down sampling your images. See your camera's operating manual for details on down sampling your photos.

Specifications

Photo format JPEG
Memory card formats Secure Digital™, MultiMedia Card™, CompactFlash™, xD Memory Stick™,and USB Flash Drives
Panel size 7" diagonal
Power source AC to DC adapter (9 V DC )
Power consumption FCC/PSE (Adapter)
Operating temperature 41~90°F (5~35°C)
Weight 1.04 lb. (.47 kg)
Dimensions (W×H×D) 9.6	× 6.8 × 1.2 inches(235 × 167 × 30 mm)

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

DHHS and FDA safety certification

This product is made and tested to meet safety standards of the FCC, requirements and compliance with safety performance of the U.S. Department of Health and Human Services, and also with FDA Radiation Performance Standards 21 CFR Subchapter J.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian ICES-003.

RSS 310 statement

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Copyright

© 2007 Dynex. DYNEX® is a registered trademark of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

For service and support call (For customer service please call 1-800-305-2204.

Image Use Restrictions

Use of the images pre-loaded on your digital picture frame is limited to personal, non-commercial use. Consumer may not modify, duplicate, distribute, retransmit, republish, reproduce, or create derivative works from the pre-loaded images.

90 Day Limited Warranty

Dynex Products ("Dynex") warrants to you, the original purchaser of this new DX-DPF7 ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of 90 days from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Dynex brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Dynex during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for 90 days from the date you purchased the Product. The purchase date is printed on the receipt you received with the product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Dynex-approved repair person dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the Product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
• Installation
• Setup adjustments
  Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Acci dent
• Misuse
• Abuse
• Negligence
  Commercial use
• Modification of any part of the Product
• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Dynex to service the Product
• Products sold as is or with all faults

• Consumables, such as fuses or batteries

• Products where the factory applied serial number has been altered or removed REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTYES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTYES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTYES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Dynex:

For customer service please call 1-800-305-2204

www.dynexproducts.com

DYNEX is a registered trademark of Best Buy Enterprise Services, Inc. Distributed by Best Buy Purchasing, LLC.

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
