USER MANUAL ORS 255 R Orima

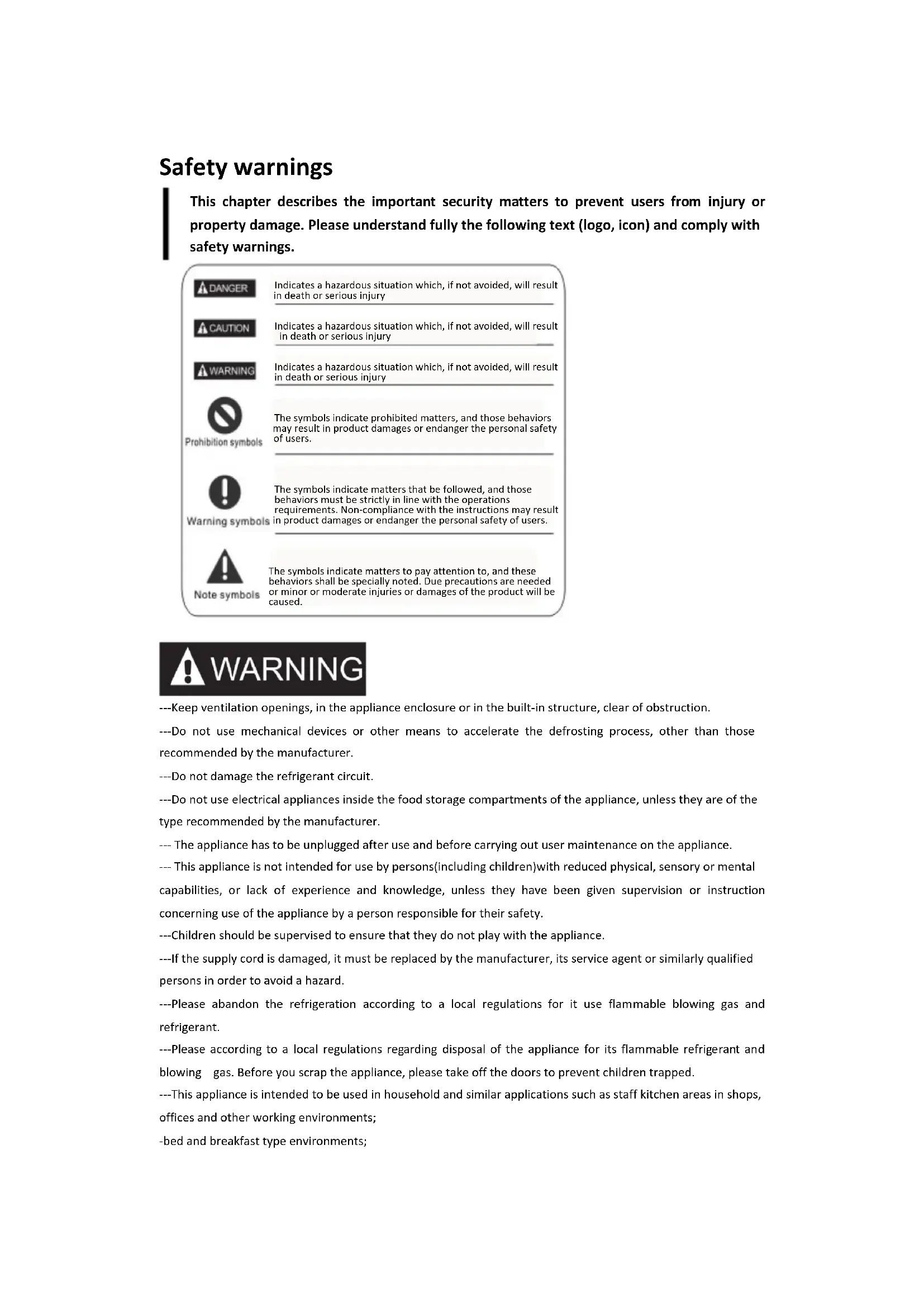

Safety warnings Safety warnings…………………………………………………………………1 Installation Instruction Placement Start……………………………………………………………..5 Placement Start……………………………………………………………..6 Temperature Control Thermostat………………………………………………………………………7 Refrigerator Features Names of components………………………………………………………8 Refrigerating chamber………………………………………………………8 Maintenance of refrigerators Cleaning……………………………………………………………………………9 Stop using…………………………………………………………………………9 Frequently asked questions………………………………….10Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo, icon) and comply with safety warnings. Indicates a hazardous situation which, if not avoided, will result in death or serious injury

Indicates a hazardous situation which, if not avoided, will result in death or serious injury

Indicates a hazardous situation which, if not avoided, will result in death or serious injury

The symbols indicate prohibited matters, and those behaviors may result in product damages or endanger the personal safety of users.

The symbols indicate matters that be followed, and those behaviors must be strictly in line with the operations requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

---Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ---Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ---Do not damage the refrigerant circuit. ---Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. --- The appliance has to be unplugged after use and before carrying out user maintenance on the appliance. --- This appliance is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ---Children should be supervised to ensure that they do not play with the appliance. ---If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ---Please abandon the refrigeration according to a local regulations for it use flammable blowing gas and refrigerant. ---Please according to a local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped. ---This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; -bed and breakfast type environments;-catering and similar non-retail applications, ---Do not store explosive substances such as aerosol with flammable propellant in this appliance. Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo, icon) and comply with safety warnings.

Electricity related warnings Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly. Do not damage the power cord under any condition so as to ensure safety use. Do not use when the power cord is damaged or the plug is worn. Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations. Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances. The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that grounding electrode of the power socket is equipped with reliable grounding line. The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations over the range of 220-240

10V will cause malfunction or even damage. Pl Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire. To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances at the top of the refrigerator, those recommended by the manufacture are not included. Do not use electrical appliances in the food panty.Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo, icon) and comply with safety warnings. Related warnings for use Authorized demolition or renovation of the refrigerator is not prohibited. It is forbidden to damage the refrigerant Lines and the repair and maintenance of the refrigerator must be carried out by professionals. Damaged power cord must be replaced by the its maintenance department or related professionals in order to avoid danger. The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained. The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the refrigerator door to avoid falling articles. Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite. Do not allow children to enter or climb the refrigerator to prevent that children are sealed in the refrigerator or children are injured by the falling refrigerator. Do not spray or wash the refrigerator; do not put the refrigerator in moist place easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator. Do not place heavy objects on the top of the refrigerator considering that objectives may fall when switching the door, and accidental injuries might be caused. Please pull of the plug in case of the power failure or cleaning. Do not connect the freezer to power supply withinfive minutes to prevent damages to the compressor due to successive starts. Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo, icon) and comply with safety warnings. warnings related placing items

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents. Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerator and shall be only suitable for the storage of the foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products. Do not store or place dry ice in the refrigerator.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

warnings related to disposalInstallation Instruction Placement Start

The refrigerator is placed in a Well-ventilated indoor place; the Ground shall be flat, and study (rotate left or right to adjust the wheel for leveling if unstable). Before using the refrigerator, remove all packing materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Please leave enough space to ensure feasible opening and drawer removal. Dimensions shown are for reference only.Installation Instruction Placement Start

1. Power off the refrigerator;

2. Disengage lampshade manually;

3. Disengage the bulb; the bulb is a thread-typed bulb, so it can be assembled or

disassembled by positive and negative rotation;

4. Install a new bulb into the lamp holder;

5. Assemble the lampshade after the installation and then confirm if the bulb is on by

powering it onTemperature Control Thermostat Controls for the refrigerator and freezer are located at the top shelf of the refrigerating compartment. Give your refrigerator time to cool down completely before adding food. It is best to wait 24 hours before adding food. The Thermostat knob controls the temperature. The temperature decreases with position “cool” being the warmest and position “cooler” being the coldest. When the thermostat control knob is set to OFF, the refrigerator is not running.Refrigerator Features Names of components

Refrigerating chamber

The Refrigerating Chamber is suitable for storage of a variety of fruits vegetables, beverages and other food consumpted in the short term. 2.Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature. 3.Foods are recommended to be sealed up before putting into the refrigerator. The glass shelves can be adjusted up or down for a reasonable amount of storage spaces and easy use.Maintenance of refrigerators Cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve cooling effect and energy saving.The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for netural drying before the power is turned on.

Do not use hard brushes, clean steel balls, wire brushes, Abrasives, such as toothpastes, organic solves (such as a

alcohol, acetone, banana oil, etc.) boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Do not rinse with water so as to affect the electrical insulation properties. Please use a dry cloth when cleaning lighting lamps, temperature control knob and electrical components.

Please unplug the refrigerator for defrost and cleaning

Stop using Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer. Please unplug the refrigerator left unused for a long time for cleaning. Keep the door open to avoid the bad odor. Before moving the refrigerator, please emove all items in the refrigerator and fasten the glass partitions, fruit and vegetable boxes, freezer drawers with taps lest the door opens during displacement; Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can not be greater than 45

Continuous operations is recommended when the refrigerator is stared. Please do not move the refrigerator under normal circumstances so as not to affect the refrigerator’s service lifeFrequently asked questions The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled. Whether the freezer is plugged and connected to power; Inoperation Low voltage; Failure power or tripping circuit

Odorous foods should closely wrapped; Odor whether foods are rotten Whether the interior shall be cleaning. Whether the thermostat is over adjusted; Foods in the refrigerating Whether foods containing water is put in inside the chamber are frozen glass partition. It is normal that refrigerator operates for longer time in Long-term operation summer when the ambient temperature is higher; of compressor Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of refrigerator door. Thick frost layer (defrost is needed) The refrigerator door The freezer door is stuck by food packages; can not be properly Too much food; closed. Tilt refrigerator. Whether the food is leveled, whether the refrigerator is Loud noises balanced; Whether the refrigerator parts are properly placed. Warm tips The refrigerator enclosure may emit heat during operation specially in sunmmer, this caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel. Airflow sound: refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz: Buzz will be generated by running compressor specially when starting up or shutting down. Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. The refrigerating chamber will periodically frost and defrost(water drops will be generated on the backside of the refrigerating chamber when defrosting)which are normal.Model ORS 255 R Total Gross Volume, L

Net Volume Fridge, L

Net Volume Freezer, L

The current consumption depends on how the appliance is used and its location Energy efficiency class

A + Energy consumption: kWh/year

Dimensions (H x W x D), mm

Check Rating Label Note: The manufacturer reserves the right to make future changes in specifications and Technical parameters.

Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.CONTENIDOS
