USER MANUAL ORCH 40 B Orima

Thank you very much for buying this product. Before using your new refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.9

Position your refrigerator so that the plug is accessible. 1, 2

Keep your refrigerator out of direct sunlight. 1, 3

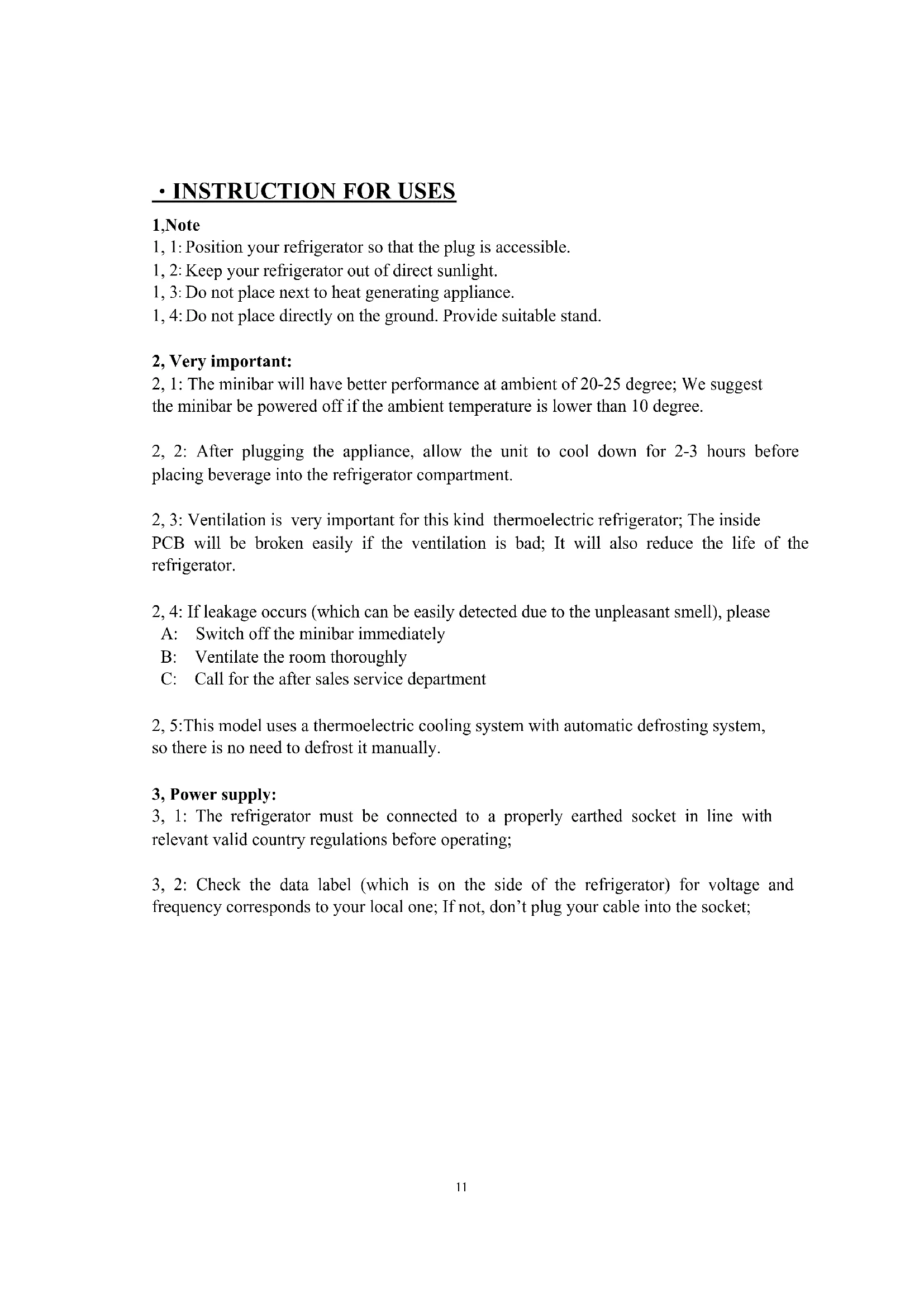

Do not place next to heat generating appliance. 1, 4: Do not place directly on the ground. Provide suitable stand. 2, Very important: 2, 1: The minibar will have better performance at ambient of 20-25 degree; We suggest the minibar be powered off if the ambient temperature is lower than 10 degree. 2, 2: After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment. 2, 3: Ventilation is very important for this kind thermoelectric refrigerator; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the refrigerator. 2, 4: If leakage occurs (which can be easily detected due to the unpleasant smell), please A: Switch off the minibar immediately B: Ventilate the room thoroughly C: Call for the after sales service department 2, 5:This model uses a thermoelectric cooling system with automatic defrosting system, so there is no need to defrost it manually. 3, Power supply: 3, 1: The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating; 3, 2: Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don’t plug your cable into the socket;12

VENTILATION When install a TE minibar, ventilation should be considered seriously, please refer to the following: 1, there should be left at least 200 cm³ for ventilation 2, the distance between wall and minibar side should be at least 20mm 3, the bottom should be left at least 50mm for air flowing 4, air passing through must not be preheated 5, entire cooling system should be considered in the ventilation 6, the following four pictures show four installation ways:13

Failure: poor cooling performance Possible reason Action High ambient temperature The room temperature is hotter than normal Poor instruction The door is opened too often Poor ventilation Install minibar according to our ventilation instruction Poor gasket Replace a new door gasket Poor silicone Change the silicone on the surface of the cooling module

Failure: noisy Possible reason Action Dust Clean the dust from the fan Fan broken Change to a new fan Poor heat pump Replace a new heat pump

Failure: frost or ice inside minibar Possible reason Action No defrost Stop minibar working for at least one hour, then restart it Low ambient temperature Adjust the air-conditioner to be around 25degree14

Model No. BCH-48 BCH-40B Gross Capacity (liters) 48 40 Voltage (V) 220-240V Frequency (Hz) 50 Rated Power (W) 83 65 The current consumption depends on how the appliance is used and it’s location Energy Class A+ A++ Consumption Kwh/year Noise Level, db(A) re 1pw Dimension (mm) 430x480x510 405*445*545 Packing (mm) 460x510x535 460*495*585 Net Weight (kg) 12.5 13.5 Gross Weight (kg) 13.5 14.5 Electrical Information See the product registration Note: The manufacturer reserves the right to make future changes in specifications and technical parameters

DISPOSAL Environmental Protection Waste electrical production should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.2
