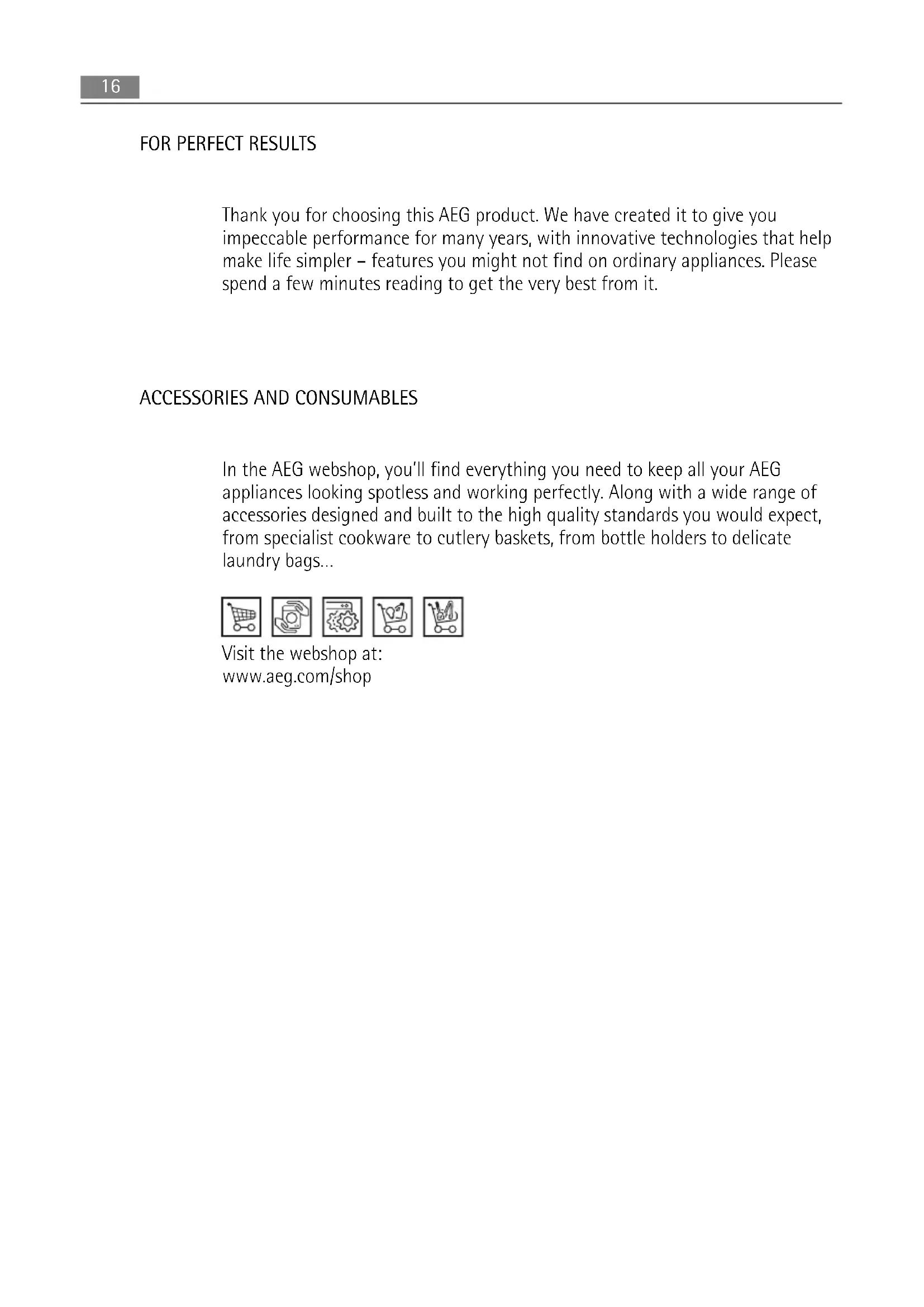

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.aeg.com/shop

CONTENTS

18 Safety information
19 Installation instructions
21 Product description
22 Operating instructions
25 Helpful hints and tips
27 Care and cleaning
27 What to do if...
28 Environment concerns

The following symbols are used in this user manual:

!

Important information concerning your personal safety and information on how to avoid damaging the appliance.

i

General information and tips

[Non-Text]

Environmental information

Subject to change without notice

SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

General safety

WARNING!

Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.
• Keep all packaging away from children. There is a risk of suffocation.
• Keep children away from the appliance when it is on.

WARNING!

Start the child safety device to prevent small children and pets from an accidental activation of the appliance.

Safety during operation

• Remove all packaging, stickers and layers from the appliance before the first use.
• Set the cooking zones to "off" after each use.
• Risk of burns! Do not put metallic objects, for example cutlery or saucepan lids, on the cooking surface, as they can become hot.
• Users with an implanted pacemaker must keep their upper body minimum 30 cm from induction cooking zones that are switched on.

WARNING!

Fire danger! Overheated fats and oils can catch fire very quickly.

Correct operation

• Always monitor the appliance during operation.
- Only use the appliance for domestic cooking tasks!
- Do not use the appliance as a work or a storage surface.
- Do not put or keep very flammable liquids and materials, or fusible objects (made of plastic or aluminium) on or near the appliance.
- Be careful when you connect the appliance to the near sockets. Do not let electricity bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.

How to prevent a damage to the appliance

- If the objects or cookware fall on the glass ceramic, the surface can be damaged.

• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if you move them on the surface.
• Do not let cookware boil dry to prevent the damage to cookware and glass ceramics.
• Do not use the cooking zones with empty cookware or without cookware.
• Do not cover the parts of the appliance with aluminium foil.

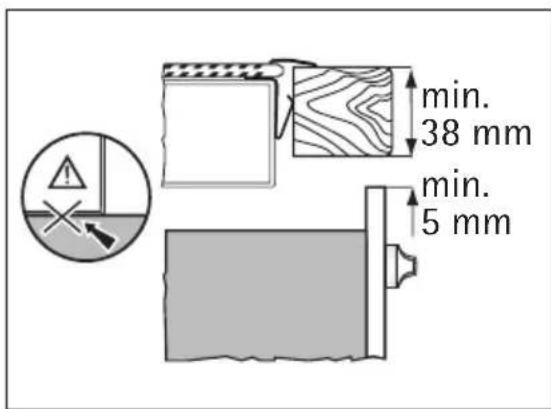

• Do not cover the ventilation space of 5 mm between the worktop and front of the unit below it.

WARNING!

If there is a crack on the surface, disconnect power supply to prevent the electric shock.

INSTALLATION INSTRUCTIONS

Before the installation, note down the serial number (Ser. Nr.) from the rating plate. The rating plate of the appliance is on its lower casing.

Modell HE634400XB Prod.Nr. 949 595 060 00 Typ 58 GAD C6 AU 220-240 V 50-60-Hz Induction 7,4 kW Made in Germany Ser.Nr. ........ 7,4 kW AEG

Safety instructions

WARNING!

You must read these!

Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)!

Only a qualified electrician must install the appliance!

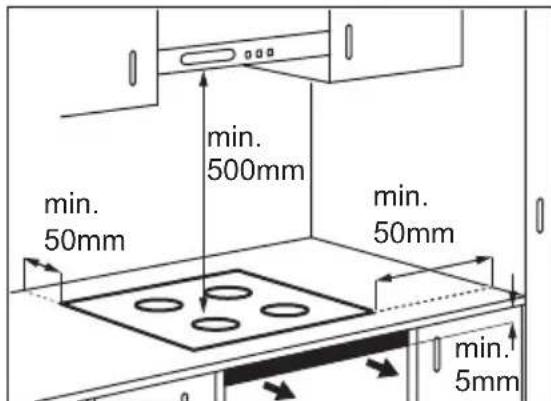

Keep the minimum distances to other appliances and units!

Install anti-shock protection, for example install the drawers only with a protective floor directly below the appliance!

Protect the cut surfaces of the worktop against moisture with a correct sealant!

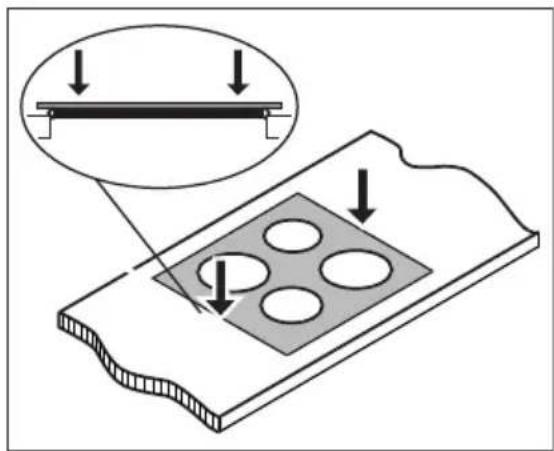

Seal the appliance to the work top with no space left with a correct sealant!

Protect the bottom of the appliance from steam and moisture, e.g. from a dishwasher or oven!

Do not install the appliance adjacent to doors and below windows! If not, hot cookware can be hit off the hob when you open doors or windows.

WARNING!

Risk of injury from electrical current.

The combination appliance is live.

• Observe electrical safety rules.
• Rated voltage of the combined appliances must match.
• Fit plug and socket connections together properly.
  • Install correctly to give anti-shock protection.

- Loose and incorrect plug and socket connections can make the terminal become too hot.

- A qualified electrician must install the clamping connections correctly.

The appliance must have the electrical installation which lets you disconnect the appliance from the mains at all poles with a contact opening width of minimum 3 mm.

You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

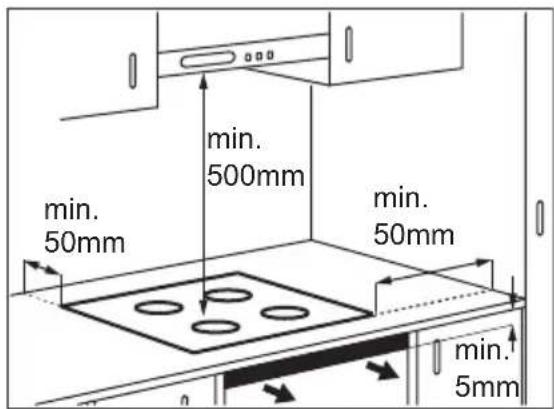

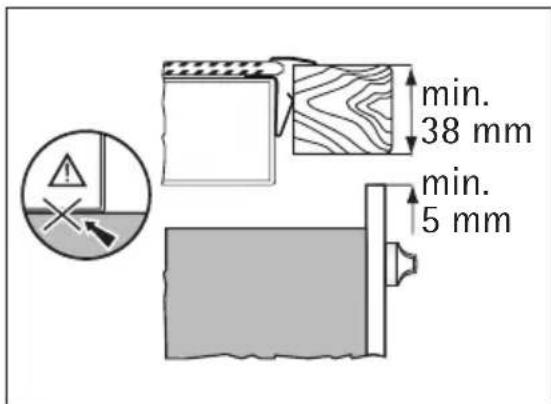

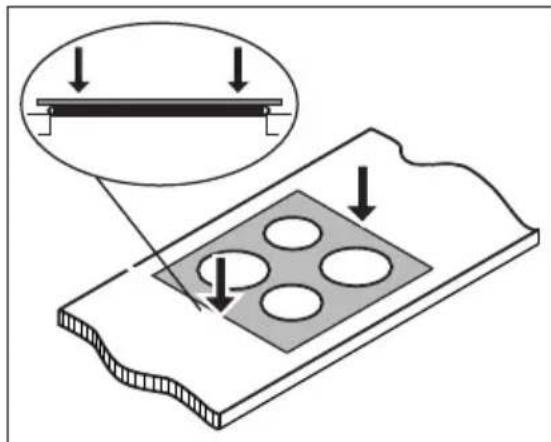

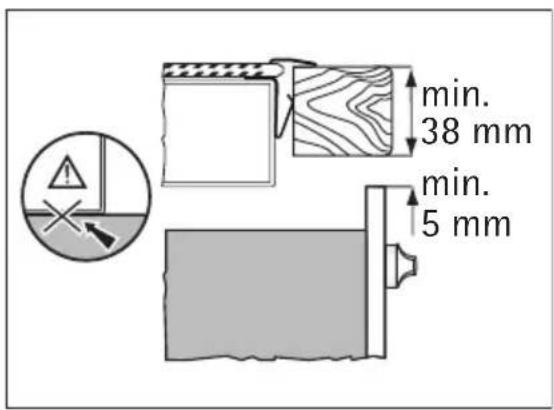

Assembly

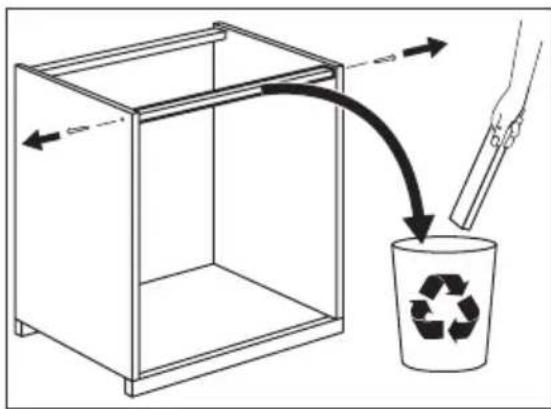

Diagram showing a hand pouring liquid into a recycling bin with a recycling symbol, illustrating a chemical or material process.

R 5mm 600mm 490+1mm 560+1mm

Diagram illustrating a structural assembly with labeled components and directional arrows indicating force or movement.

Cooking surface layout


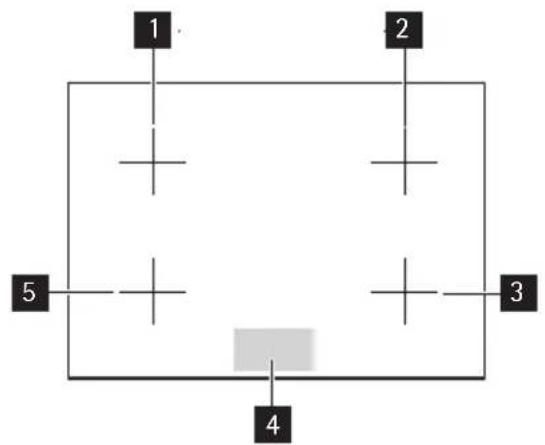

1 Induction cooking zone 2300W with power function 3200W
2 Induction cooking zone 2300W with power function 3200W
3 Induction cooking zone 2300W with power function 3200W
4 Control panel
5 Induction cooking zone 2300W with power function 3200W

Control panel layout

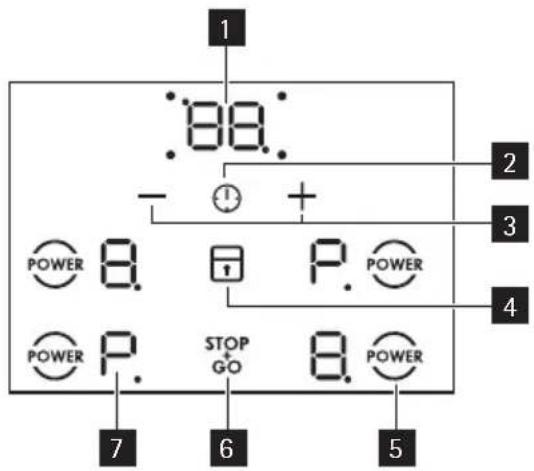

1 88. - + 2 3 4 POWER 8. P. POWER POWER P. STOP GO 8. POWER 7 6 5

Use the sensor fields to operate the appliance. Indicators, displays and sounds tell which functions operate.

sensor field function
1	the timer display shows the time in minutes
2		selects the cooking zone
3	+/-	increases or decreases the time
4	a lock	starts and stops the key lock or child lock
5		activates power function
6	STOP+GO	starts and stops STOP+GO
7	a heat setting display shows the heat setting

Heat setting displays

Display Description
	The cooking zone is off
1 - 9	The cooking zone operates
u	Keep Warm
R	The automatic heat-up function is on
P	Power function
E + digit	There is a malfunction
≡ / ⏻ ☐	OptiHeat Control (3 step Residual heat indicator): still cooking / keep warm / residual heat
L	Lock/Child safety function is on
F	Cookware unsuitable or too small or no cookware on the heating zone
-	The automatic switch off is on

OptiHeat Control (3 step Residual heat indicator)

WARNING!

☐ Risk of burns from residual heat!

OptiHeat Control indicates the level of the residual heat. The induction cooking zones make the heat necessary for cooking directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

OPERATING INSTRUCTIONS

You operate the hob with the knobs of the oven and control panel of the hob. The Operating Instructions chapter for the oven tells how to operate the knobs.

When a cooking zone operates, it hums for a short time. This is typical of all ceramic glass cooking zones and does not show that the appliance operates incorrectly.

Automatic Switch Off

The function stops the hob automatically if:

• all cooking zones are off ( ☐ ).
• you do not set the heat setting in less than 10 seconds after you start the hob.
• there is an object (a pan, a cloth, etc.) on the sensor field for longer than 10 seconds. The sound operates until you remove the object.
• the hob gets too hot (e.g. when a saucepan boils dry). Before you use the hob again, the cooking zone must be cool.
• you use incorrect cookware. F comes on in the display and after 2 minutes the cooking zone stops automatically.
• you do not stop a cooking zone or change the heat setting. After some time - comes on and the hob stops. See the table.

Automatic Switch Off times

Heat setting
Stops after	6 hours	5 hours	4 hours	1.5 hours

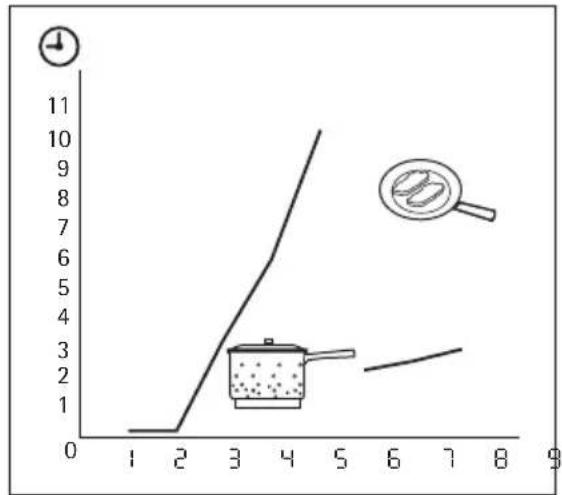

The automatic heat up

Automatic heat up function sets the highest heat setting for some time, and then decreases to the necessary level. To switch it on turn the cooking zone knob to the right until you see in the display. After that set the heat setting immediately.

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass highlighting food items at time 6.

Switching the Power function on and off

The Power function makes more power available to the induction cooking zones. The Power function is activated for 10 minutes at most. After that the induction cooking zone automatically switches back to heat setting 9. To switch on, select heat setting with knobs, than touch POWER , COMES ON. To switch off, change the heat setting.

Power management

The power management divides the power between two cooking zones in a pair (see the figure). The power function increases the power to the maximum level for one cooking zone in the pair and automatically decreases in the second cooking zone to a lower power level. The display for the reduced zone alternates.

Two vertical arrows with plus and minus signs, no text or symbols present

Timer

Count Down Timer

Use the Count Down Timer to set how long the cooking zone operates for only this one time.

Set the Count Down Timer after the selection of the cooking zone.

You can set the heat setting before or after you set the timer.

• To set the cooking zone: touch ⏻ again and again until the indicator of a necessary cooking zone comes on.
• To activate the Count Down Timer: touch + of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone start to flash slow, the time counts down.
• To see the remaining time: set the cooking zone with ⏻. The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.
• To change the Count Down Timer: set the cooking zone with ⏻. Touch + or .—
• To deactivate the timer: set the cooking zone with ⏻. Touch — The remaining time counts back to ☐. The indicator of the cooking zone goes out. To deactivate you can also touch + and — at the same time.

When the countdown comes to an end, the sound operates and flashes. The cooking zone deactivates.

- To stop the sound: touch ⏻

CountUp Timer (The count up timer)

Use the CountUp Timer to monitor how long the cooking zone operates.

• To set the cooking zone (if more than 1 cooking zone operate): touch ⏻ again and again until the indicator of a necessary cooking zone comes on.
• To activate the CountUp Timer: touch — of the timer UPomes on. When the indicator of the cooking zone starts to flash slow, the time counts up. The display switches between UP and counted time (minutes).
• To see how long the cooking zone operates: set the cooking zone with ⏻. The indicator of the cooking zone starts to flash quickly. The display shows the time that the cooking zone operates.
• To deactivate the CountUp Timer: set the cooking zone with ⏻ and touch +r to deactivate the timer. The indicator of the cooking zone goes out.

Minute Minder

You can use the timer as a Minute Minder while the appliance is activated and the cooking zones do not operate (the heat setting display shows ☐).

• To activate the Minute Minder: Touch ⏻. Touch or of the timer to set the time. The display of the cooking zones deactivates automatically after 10 seconds. When the time comes to an end, the sound operates and 00 flashes.
• To stop the sound: touch ⏻.
• To deactivate the Minute Minder: Activate and deactivate the left front cooking zone for a short time.

The Minute Minder function has no effect on the operation of the cooking zones.

STOP+GO

The STOP function sets all cooking zones that operate to the Keep Warm setting (☐). The STOP function does not stop the timer function.

• To activate this function touch STOP + GO. The symbol 📊 comes on.
• To deactivate this function touch + . The heat setting that you set before comes on.

When you change the heat settings, the function stops and the displays show the new heat settings.

Lock

You can lock the sensors on the hob when the cooking zones operate.

First set the heat setting.

To activate this function touch 📋. The symbol Ⓛcomes on for 4 seconds.

The Timer stays on.

To deactivate this function touch ☐. The heat setting that you set before comes on.

When you change the heat setting, you deactivate this function.

When you deactivate the appliance, you also deactivate this function.

The child safety device

This function prevents an accidental operation of the hob.

To activate the child safety device

• The appliance is deactivated.
- Touch ☐ for 4 seconds until the symbol @flashes.
- Touch +STOP in the time when symbol flashes, the symbol comes on for 4 seconds.

To deactivate the child safety device

• The appliance is deactivated.
- Touch 📋 until the symbol @flashes.
- Touch +STOP in the time when symbol flashes, the symbol comes on for 4 seconds.

Overriding the child safety device for one cooking session

• Activate the cooking zone. The symbol 📁 comes on. Touch 📋 until the symbol 📄 comes on.
• Set the heat setting from position ☐ in less than 4 seconds. You can operate the hob.
• The child safety operates after you deactivate the appliance.

Deactivation and activation of the sounds

Deactivate the appliance.

Touch ⏻ for 3 seconds, sound operates. Touch 📋, sound operates. Touch 📋 for 3 seconds. 📋 comes on, the sound is on. Touch + comes on, the sound is off.

Touch + again to activate the sounds.

When the sounds are off, you can hear sounds only when:

• the Minute Minder comes down
• The Count Down Timer comes down
- you put something on the control panel.

HELPFUL HINTS AND TIPS

Use the induction cooking zones with suitable cookware.

Put the cookware on the cross which is on the surface that you cook. Cover the cross fully. The magnetic part of the bottom of the cookware must be 125mm minimum. Induction cooking zones adapt to the dimension of the bottom of the cookware automatically. You can cook with the large cookware on two cooking zones at the same time.

Cookware for induction cooking zones

In induction cooking a powerful electromagnetic field generates an almost instant heat inside the cookware.

Cookware material

- correct: cast iron, steel, enamelled steel, stainless steel, a multi-layer bottom (marked as correct by a manufacturer). - not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is correct for an induction hob if ...

- ... some water boils very quickly on a zone set to the highest heat setting - ... a magnet pulls on to the bottom of the cookware.

The bottom of the cookware must be as thick and flat as possible.

Operating noises

If you can hear

• cracking noise: cookware is made of different materials (Sandwich construction).
• whistling: you use one or more cooking zones with high power levels and the cookware is made of different materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not refer to any defects.

Energy saving

• If possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.

Öko Timer (Eco Timer)

To save the energy, the heater of the cooking zone switches itself off earlier than count down timer signal. The heating time reduction depends on cooking level and cooking time.

The Power function is suitable for heating large quantities of water.

Information on acrylamides

According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

CARE AND CLEANING

Clean the appliance after each use.

Always use cookware with clean bottom.

WARNING!

Sharp objects and abrasive cleaning agents will damage the appliance.

For your safety, do not clean the appliance with steam blasters or high-pressure cleaners.

Scratches or dark stains on the glass ceramic have no effect on how the appliance operates.

To remove the dirt:

1. • Remove immediately:melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special scraper for the glass. Put the scraper on the glass surface at an acute angle and move the blade on the surface.

2. Remove after the appliance is sufficiently cool:limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

3. Clean the appliance with a moist cloth and some detergent.

4. At the end rub the appliance dry with a clean cloth.

WHAT TO DO IF...

Problem Possible cause and remedy
You cannot activate the appliance or operate it.	Activate the appliance again and set the heat setting in 10 seconds.You touched 2 or more sensor fields at the same time. Only touch one sensor field.The Stop+Go operates. See the chapter Operating instructions.There is water or fat stains on the control panel. Clean the control panel.
A Sound operates and the appliance deactivates.A sound operates when the appliance is deactivated.	You put something on one or more sensor fields. Remove the object from the sensor fields.
The residual heat indicator does not comes on.	The cooking zone is not hot because it operated only for a short time. If the cooking zone should be hot, speak to the service centre.
The Automatic Heat Up function does not operate.	The highest heat setting is set. The highest heat setting has the same power as the Automatic Heat Up function.
The heat setting changes between two levels.	The Power management is activated. See the section Power management.
The sensor fields become hot.	The cookware is too large or you out it too near to the controls. Put large cookware on the rear cooking zones if it is necessary.
There is no signal when you touch the panel sensor fields.	The signals are deactivated. Activate the signals (see OffSound Control).
flashes	The Automatic Switch Off operates. Deactivate the cooking zone and activate it again after 60 seconds.If after 60 seconds - comes on again speak to the service centre.
comes on	The Child Safety Device or the Lock operates. See the chapter Operating instructions.
comes on	No cookware on the cooking zone. Put cookware on the cooking zone.Not correct cookware. Use the correct cookware.The diameter of the bottom of the cookware is too small for the cooking zone. Use cookware with correct dimensions.The cookware do not cove the cross. Cover the cross fully.
and number comes on.	There is an error in the appliance.Disconnect the appliance from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect again. If E comes on again, speak to the service centre.
comes on	There is an error in the appliance, because a cookware boils dry. The protection against become too hot for the cooking zone operates. The Automatic Switch Off operates.Deactivate the appliance. Remove the hot cookware. After, approximately 30 seconds activate the cooking zone again.E4should go out of the display, residual heat indicator can stay. Let the cookware become sufficiently cool and check it with the section Cookware for the induction cooking zone.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the Customer Care Department. Give the data from the rating plate, three-digit-letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on.

If you operated the appliance incorrectly, the servicing by a customer service technician or dealer will not be free of charge, even during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

ENVIRONMENT CONCERNS

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

POUR DES RÉSULTATS PARFAITS

Diagram illustrating a recycling process with a container and labeled recycling symbol

R 5mm 600mm 490+1mm 560+1mm

Technical diagram showing a structural component with circular holes and an inset magnified view of a beam supported by fixed supports.

Two vertical arrows with plus and minus signs, no text or symbols present

Minuteur

Minuteur

Diagram illustrating a recycling process with a container and labeled recycling symbol

R 5mm 600mm 490+1mm 560+1mm

Technical diagram showing a structural component with circular holes and an inset magnified view of a beam supported by fixed supports.

Two vertical arrows with plus and minus signs, no text or symbols present

Uhr

Kurzzeitmesser
