USER MANUAL 68002 KFMN AEG-ELECTROLUX

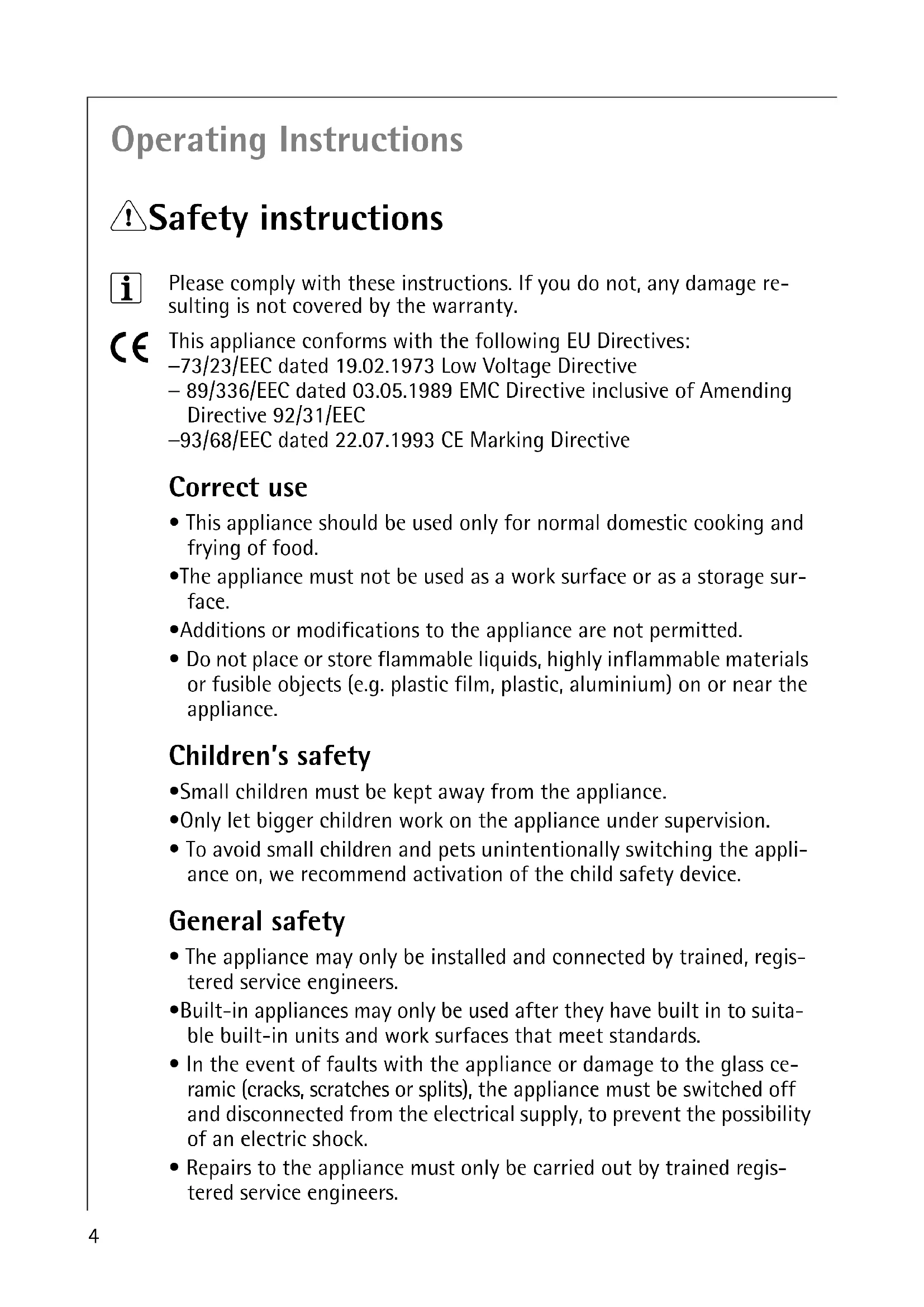

Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. 5 This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Correct use

• This appliance should be used only for normal domestic cooking and frying of food.

• The appliance must not be used as a work surface or as a storage sur- face.

• Additions or modifications to the appliance are not permitted.

• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance. Children’s safety

• Small children must be kept away from the appliance.

• Only let bigger children work on the appliance under supervision.

• To avoid small children and pets unintentionally switching the appli- ance on, we recommend activation of the child safety device. General safety

• The appliance may only be installed and connected by trained, regis- tered service engineers.

• Built-in appliances may only be used after they have built in to suita- ble built-in units and work surfaces that meet standards.

• In the event of faults with the appliance or damage to the glass ce- ramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.

• Repairs to the appliance must only be carried out by trained regis- tered service engineers.5 Safety during use

• Remove stickers and film from the glass ceramic.

• There is the risk of burns from the appliance if used carelessly.

• Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.

• Overheated fats and oils can ignite very quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended.

• Switch the cooking zones off after each use.

• Users with implanted pacemakers should keep their upper body at least 30 cm from induction cooking zones that are switched on.

• Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking surface, as they can get hot. Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.

• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted. How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.

• The edge of the glass ceramic can be damaged by being knocked by the cookware.

• Cookware made of cast iron, cast aluminium or with damaged bot- toms can scratch the glass ceramic if pushed across the surface.

• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.

• Do not use the cooking zones with empty cookware or without cook- ware.

• To avoid damaging cookware and glass ceramics, do not allow sauce- pans or frying pans to boil dry.

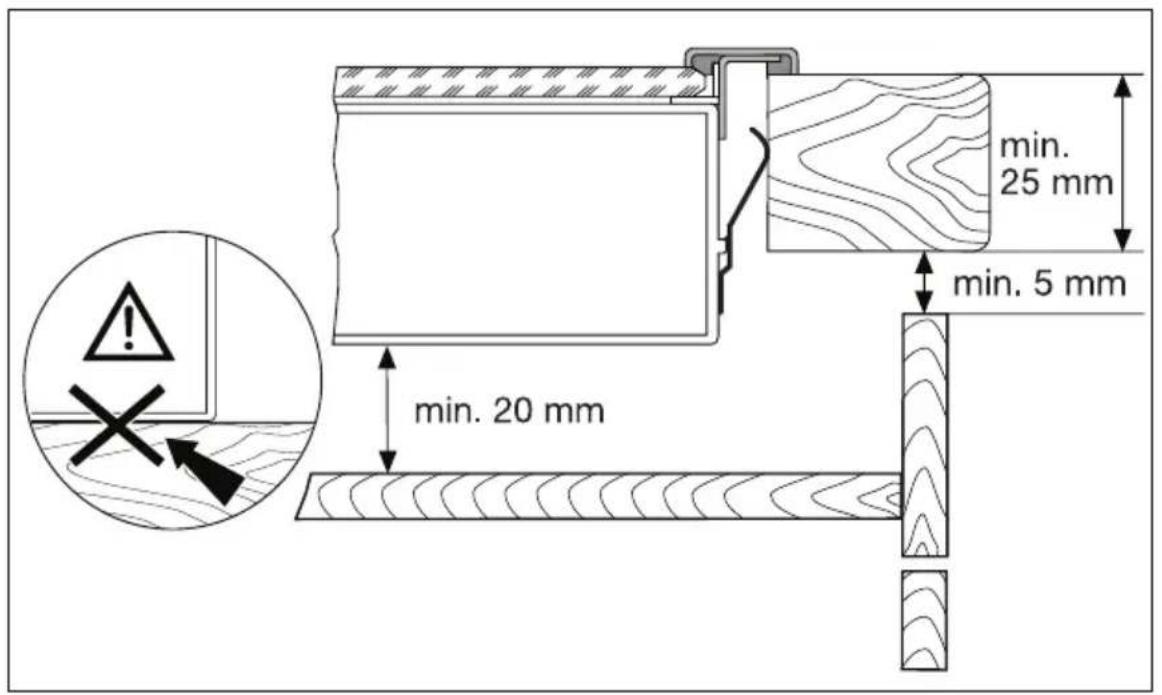

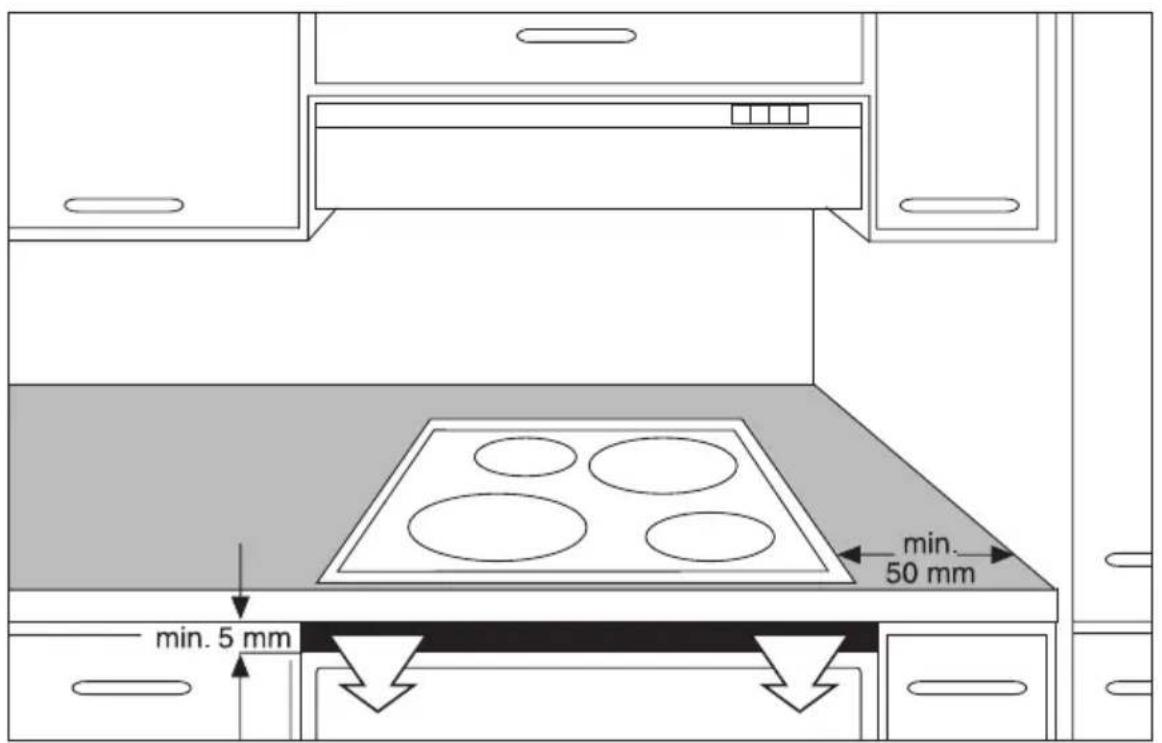

• The ventilation gap of 5mm between the worktop and front of the unit underneath it must not be covered.6 Description of the Appliance Cooking surface layout Control panel layout Induction cooking zone 2200 W with power function 2800 W Induction cooking zone 1800W Induction cooking zone 1400W Control panel Induction cooking zone 1800 W with power function 2800 W On/Off with power indicator Heat setting selection Lock Timer display Power function

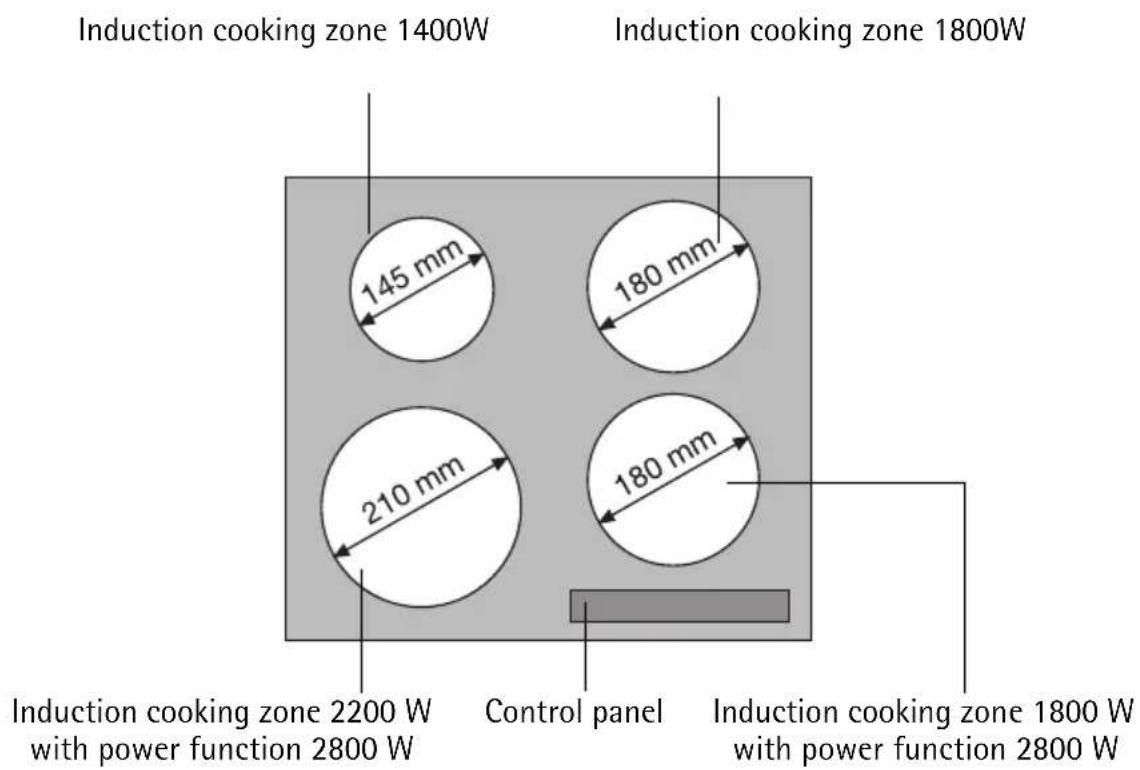

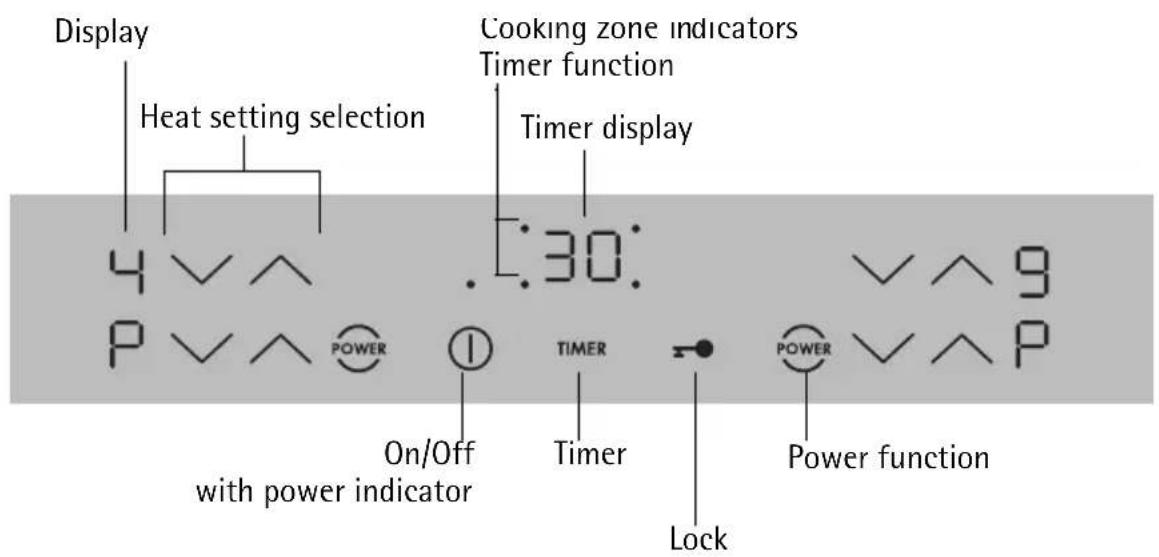

cators Timer function Display Timer7 Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Displays Sensor field Function On / Off To switch the appliance on and off Increase settings Increasing heat setting/time Decrease settings Decreasing heat setting/time Timer Timer selection Lock Locking/unlocking the control panel Power Switching the power function on and off Display Description Cooking zone is switched off - Heat settings Heat setting is set Fault Malfunction has occurred Pan detection Cookware is unsuitable or too small or no cookware has been placed on the cooking zone Residual heat Cooking zone is still hot Child safety device Lock/child safety device is en- gaged Power Power function is switched on Safety cut-out Safety cut-out has been activated8 Residual heat indicator 1 Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator

3 Residual heat can be used for melting and keeping food warm. The induction cooking zones create the heat required for cooking di- rectly in the base of the cookware. The glass ceramic is merely heated by the residual heat of the cookware. The cooling fan switches itself on and off depending upon the temper- ature of the electronics.9 Operating the appliance

Use the induction cooking zones with suitable cookware. Switching the appliance on and off 3 After switching on, within approx. 10 seconds a heat setting or a func- tion must be set, otherwise the appliance automatically switches itself off. Setting the heat setting Locking/unlocking the control panel The control panel, with the exception of the “On/Off” sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth. 3 When you switch the appliance off, the locking function is automati- cally switched off. Control panel Display Pilot light Switch on Touch for 2 seconds / lights up Switch off Touch for 1 second / none goes out Control panel Display Increase Touch to / Decrease Touch to Switch off Touch and at the same time Control panel Display Switch on Touch (for 5 seconds) Switch off Touch previously set heat setting10 Using the child safety device The child safety device prevents unintentional use of the appliance. Setting the child safety device Overriding the child safety device The child safety device can be released in this way for a single cooking session; it remains activated afterwards. Releasing the child safety device Step Control panel Display/Signal

1. Switch on the appliance

(Do not set a heat setting)

2. Touch until the signal sounds Acoustic signal

Appliance switches off. The child safety device is engaged. Step Control panel Display/Signal

1. Switch on the appliance

2. Touch and at the same time / acoustic signal

Until the appliance is next switched off, it can used as normal. Step Control panel Display/Signal

1. Switch on the appliance

2. Touch until the signal sounds Acoustic signal

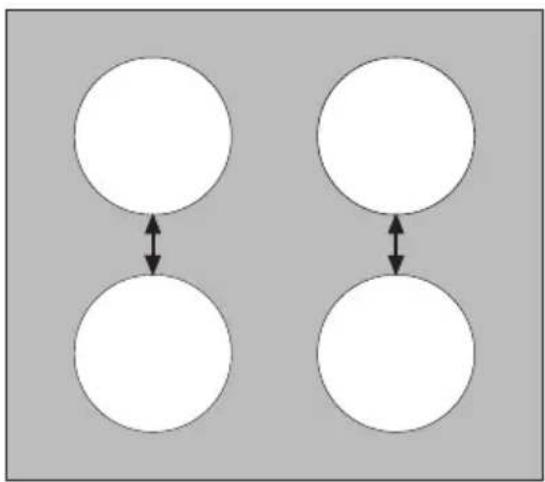

Appliance switches off. The child safety device is released.11 Switching the power function on and off The power function makes additional power available to the front induction cooking zones, e.g. to bring a large volume of water to the boil. The power function is activated for 8 minutes for the front left cooking zone and for 5 minutes for the front right cooking zone. After these times, the induction cooking zones automatically return to cooking level . 3 If the power function has ended, the cooking zones automatically switch back to the heat setting set previously. Power Management The cooking zones have a maximum power available to them. If this power range is exceeded by switching on the power function, Power Management reduces the heat setting of another cooking zone. The indicator for this cooking zone changes between the heat setting set and maximum possible heat set- ting for one minute. Thereafter the actual heat setting is displayed. Example: Control panel Display Switch on Touch Switch off Touch Touch Last cooking zone switched

Other cooking zone set heat setting set heat setting indicator actual heat setting p 9 6 alternating with 9 612 Using the timer All cooking zones can use each use one of the two timer functions at the same time. 3 If a cooking zone is switched off, the timer function set is also switched off. 3 If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed. Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal 00 flashes Cooking zone switches off Countdown timer cooking zones not in use acoustic signal 00 flashes13 Selecting a cooking zone 3 The heat setting indicator of the selected cooking zone goes out, as long as the timer time can be set. 3 If the pilot light is flashing more slowly, the heat setting indicator ap- pears again and the heat setting can be re-set or modified. 3 If other timer functions are set, after a few seconds the shortest re- maining time of all the timer functions is displayed and the corre- sponding pilot light flashes. Step Control panel Display

1. Touch once Pilot light of the first

cooking zone flashes

2. Touch once Pilot light of the second

cooking zone flashes

3. Touch once Pilot light of the third

cooking zone flashes

4. Touch once Pilot light of the fourth

cooking zone flashes14 Setting time Switching off the Timer function Changing the time Step Control panel Grill setting

ing zone Telltale of cooking zone selected flashes

the selected cooking zone 01 to 99 minutes

• the selected cooking zone for more than 4 seconds p. 5
• or (5-minute steps for easy setting) After a few seconds the power indicator flashes more slowly. The time is set. The time counts down. Step Control panel Display p. 95

ing zone Pilot light of the selected cooking zone flashes more quickly. Remaining time is displayed

cooking zone select-

The remaining time counts down to

The pilot light goes out. The Timer function for the selected cooking zone is switched off. Step Control panel field Display

zone Pilot light of the cooking zone select- ed flashes faster The time remaining is displayed

the cooking zone se- lected 01 to 99 minutes After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.15 Displaying the time remaining for a cooking zone Switching off the acoustic signal Step Control panel field Display

zone Pilot light of the cooking zone select- ed flashes faster The time remaining is displayed After a few seconds the pilot light flashes more slowly. Step Control panel field Acoustic signal

1. Touch Acoustic signal to acknowledge.

Acoustic signal stops.16 Safety cut-out Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface auto- matically switches itself off.

• If all cooking zones are switched off, the cooking surface automati- cally switches itself off after approx. 10 seconds. Induction cooking zones

• If cookware that is not suitable is used, lights up in the display and after 2 minutes the indicator for the cooking zone switches itself off.

• If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically. is displayed. Before being used again, the cook- ing zone must be set to 0. Heat setting Switches off after

Tips on Cooking and Frying

Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much. Cookware for induction cooking zones Cookware material 3 Cookware for induction cooking zones is labelled as suitable by the manufacturer. Suitability test Cookware is suitable for induction cooking, if …

• ... a little water on an induction cooking zone set to heat setting 9 is heated within a short time.

• ... a magnet sticks to the bottom of the cookware. 3 Certain cookware can make noises when being used on induction cook- ing zones. These noises are not a fault in the appliance and do not af- fect operation in any way. Bottom of the cookware The bottom of the cookware should be as thick and flat as possible. Pan size Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone. Cookware material Suitable Steel, enamelled steel yes Cast iron yes Stainless steel if appropriately labelled by the manufacturer Aluminium, copper, brass --- Glass, ceramic, porcelain ---18 3 The cookware must be placed centrally on the cooking zone. Tips on energy saving 2 Place cookware on the cooking zone before it is switched on. 2 If possible, always place a lid on the cookware. Diameter of cooking zone [mm] Minimum diameter of dish base [mm]

Examples of cooking applications The information given in the following table is for guidance only. The power function is suitable for heating large quantities of liquid. Heat set- ting Cooking- process suitable for Cooking time Tips/Hints 0 Off position

Keeping food warm Keeping cooked foods warm as required Cover 1-2 Melting Hollandaise sauce, melting butter, chocolate, gelatine 5-25 mins. Stir occasionally Solidi- fying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on 2-3 Simmer- ing on low heat Simmering rice and milk- based dishes Heating up ready-cooked meals 25-50 mins. Add at least twice as much liquid as rice, stir milk dishes part way through cooking 3-4 Steaming Braising Steaming vegetables, fish braising meat 20-45 mins. With vegetables add only a little liquid (a few tablespoons) 4-5 Boiling Steaming potatoes 20-60 mins. Use only a little liquid, e. g.: max. ¼ l water for 750 g potatoes Cooking larger quantities of food, stews and soups 60-150 mins. Up to 3 l liquid plus in- gredients 6-7 Gentle Frying Frying escalopes, veal cordon bleu, cutlets, ris- soles, sausages, liver, roux, eggs, pancakes, dough- nuts Steady frying Turn halfway through cooking 7-8 Heavy Frying Hash browns, loin steaks, steaks, Flädle (pancakes for garnishing soup) 5-15 mins. per pan Turn halfway through cooking

Boiling Searing Deep frying Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips20 Cleaning and Care

Take care! Risk of burns from residual heat. 1 Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. 1 Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. Cleaning the appliance after each use 1.Wipe the appliance with a damp cloth and a little washing up liquid. 2.Rub the appliance dry using a clean cloth. Removing deposits 1.Place a scraper on the glass ceramic surface at an angle. 2.Remove residues by sliding the blade over the surface. 3.Wipe the appliance with a damp cloth and a little washing up liquid. 4.Rub the appliance dry using a clean cloth. *Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops 3 Remove stubborn residues with a cleaner for glass ceramic or stainless steel. 3 Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance. Remove Type of dirt imme- diately when the appliance has cooled down using sugar, food containing sugar yes --- a scraper* plastics, tin foil yes --- limescale and water rings --- yes cleaner for glass ce- ramic or stainless steel* fat splashes --- yes shiny metallic discolouration --- yes21 What to do if … Problem Possible cause Remedy The appliance cannot be switched on or is not oper- ating More than 10 seconds have passed since the appliance was switched on Switch the appliance on again. The lock is switched on Switch off the lock (See the section “Locking/un- locking the control panel”) The child safety device is switched on Deactivate child safety de- vice (See the section “Child safety device”) Several sensor fields were touched at the same time Only touch one sensor field Safety cut-out has been triggered Remove any objects (pan, cloths, etc.) that are lying on the control panel. Switch the appliance on again The cooking zones auto- matically reduce the cook- ing level to The sensor fields are partly covered by a damp cloth or with liquid Remove the cloth or the liquid. Reset the cooking level re- quired. The residual heat indicator is not displaying anything The cooking zone was only on for a short time and is therefore not hot If the cooking zone is sup- posed to be hot, call the Customer Service Depart- ment. acoustic signal sounds, ap- pliance switches off One or more sensor fields have been covered for longer than 10 seconds Uncover sensor field Acoustic signal sounds and appliance switches itself on and after 10 seconds off again The On/Off sensor field has been covered up, e.g. by a cloth Do not place any objects on the control panel Display is switching be- tween two heat settings Power management is re- ducing the power of this cooking zone See the section “Switching the power function on and off”22 If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care De- partment. 1 Warning! Repairs to the appliance are only to be carried out by quali- fied service engineers. Considerable danger to the user may result from improper repairs. 3 If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period. lights up Unsuitable cookware Use suitable cookware No cookware on the cook- ing zone Place cookware on the cooking zone The diameter of the bot- tom of the cookware is too small for the cooking zone Move onto a smaller cook- ing zone Use suitable cookware is lit Overheating protection for the cooking zone has been triggered Switch off the cooking zone. Switch the cooking zone on again Safety cut-out has been triggered Switch off the cooking zone. Switch the cooking zone on again and number are dis- played Electronics fault Disconnect the appliance from the electrical supply for a few minutes (Take the fuse out of the house’s wir- ing system) If after switching on again, is displayed again, call the customer service de- partment Problem Possible cause Remedy23 Disposal

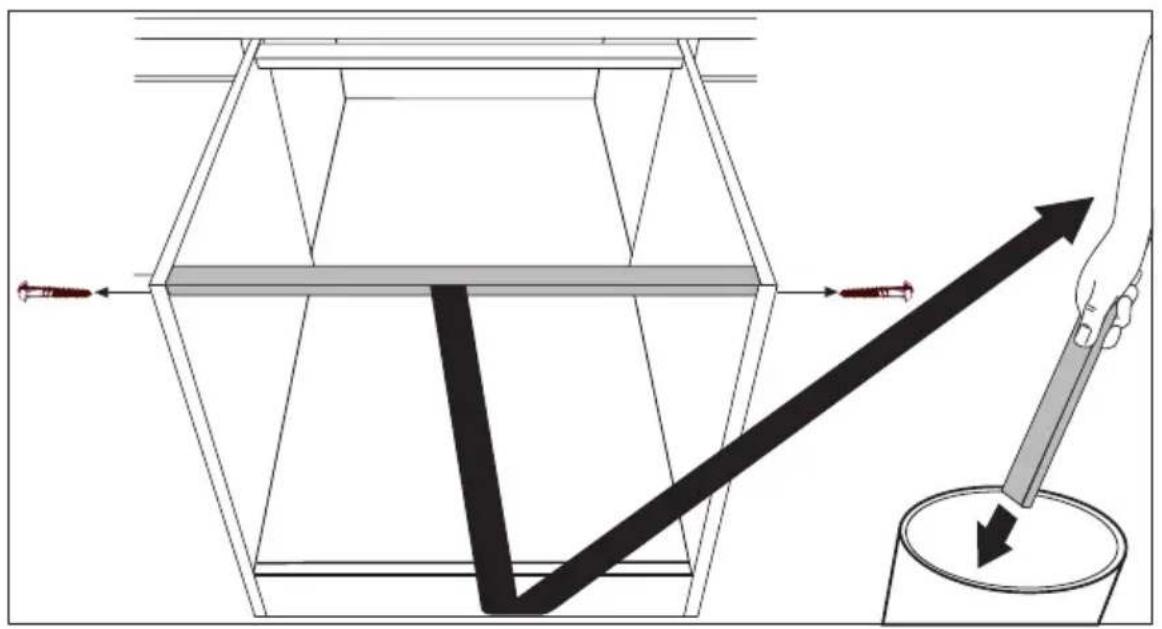

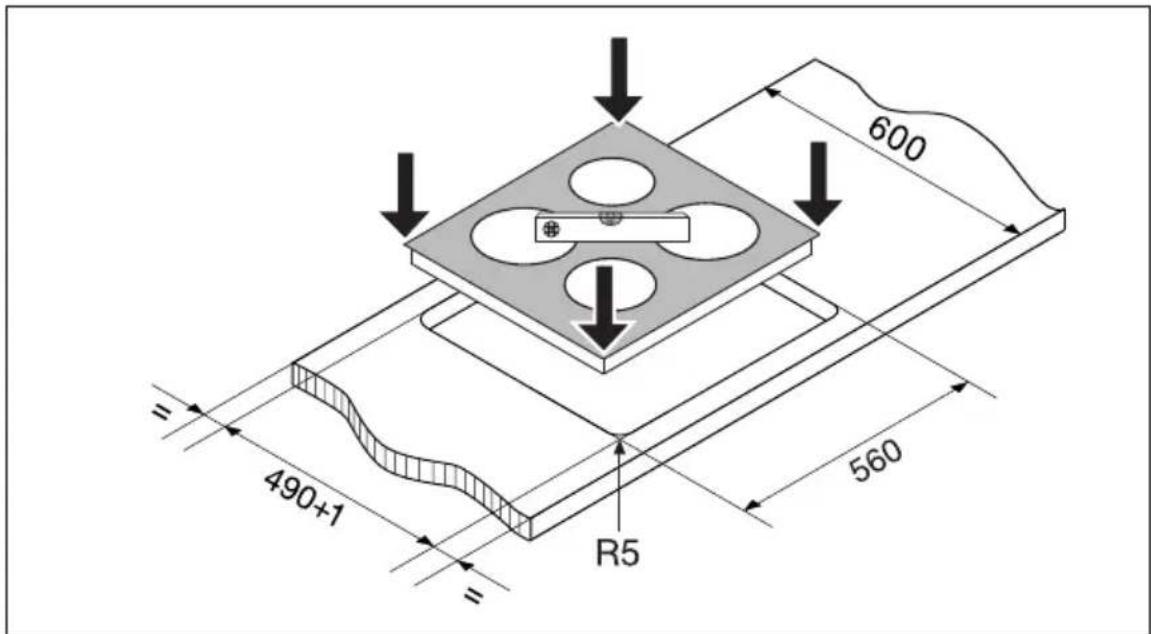

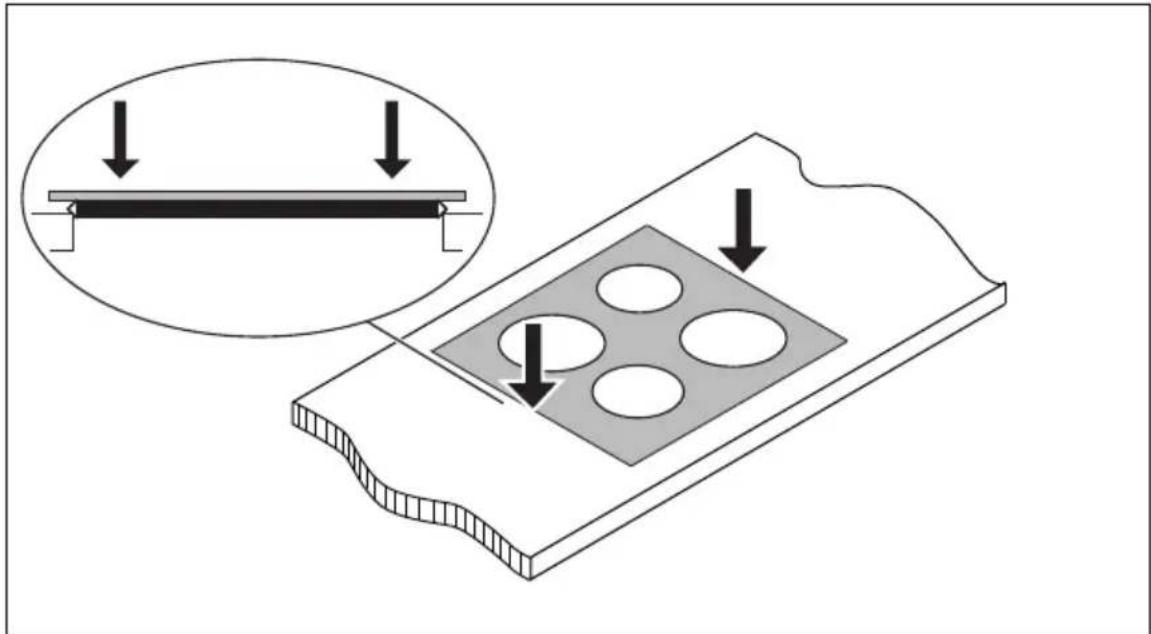

Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. 2 Old appliance The symbol W on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of elec- trical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed infor- mation about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.24 Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be ob- served. Anti-shock protection must be provided by the installation, for example drawers may only be installed with a protective floor directly under- neath the appliance. The cut surfaces of the worktop are to be protected against moisture using a suitable sealant. The sealant seals the appliance to the work top with no gap. Do not use silicon sealant between the appliance and the work top. When building in, protect the underside of the appliance from steam and moisture, e.g. from a dishwasher or oven. Avoid installing the appliance next to doors and under windows. Other- wise hot cookware may be knocked off the rings when doors and win- dows are opened. 1 WARNING! Risk of injury from electrical current.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Observe connection schematic.

• Observe electrical safety rules.

• Ensure anti-shock protection through correct installation by a quali- fied electrician.

• The appliance must be connected to the electrical supply by a quali- fied electrician. 1 IMPORTANT! Risk of injury from electrical current. Loose and inappropriate plug and socket connections can make the ter- minal overheat.

• Have the clamping joints correctly installed by a qualified electrician.

• Use strain relief clamp on cable.

• In the event of single-phase or two-phase connection, the appropri- ate mains cable of type H05BB-F Tmax 90°C(or higher) must be used.25

• If this appliance’s mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90°C; or higher). The latter is avail- able from the Customer Care Department.

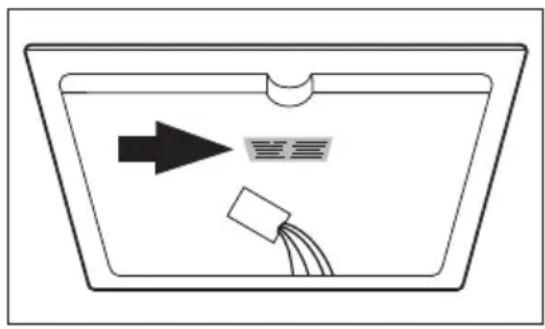

• This appliance’s mains cable is fixed directly to the board. If the mains cable is damaged, it must only be replaced by a qualified ecletrician or our Customer Care Department. A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.26 Guarantee/Customer Service Belgium DECLARATION OF GUARANTEE TERMS. Our appliances are produced with the greatest of care. However, a defect may still oc- cur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be re- duced as a result. This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms. This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free

of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user. These guarantee terms do not apply in the event of use for professional or equiva- lent purposes.

2. Performing the guarantee means that the appliance is returned to the condition it

was in before the defect occurred. Defective parts are replaced or repaired. Parts re- placed free of charge become our property.

3. So as to avoid more severe damage, the defect must be brought to our attention

4. Applying the guarantee is subject to the consumer providing proof of purchase

showing the purchase and/or delivery date.

5. The guarantee will not apply if damage caused to delicate parts, such as glass (vit-

reous ceramic), synthetic materials and rubber, is the result of inappropriate use.

6. The guarantee cannot be called on for minor faults that do not affect the value or

the overall reliability of the appliance.

7. The statutory warranty does not apply when defects are caused by:

– a chemical or electrochemical reaction caused by water, – abnormal environmental conditions in general, – unsuitable operating conditions, – contact with harsh substances.

8. The guarantee does not apply to defects due to transport which have occurred out-

side of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly in- structions or directions for use.

9. Defects that result from repairs or measures carried out by people who are not

qualified or expert or defects that result from the addition of non-original accesso- ries or spare parts are not covered by the guarantee. 10.Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.27 Address for our consumer services department: Belgium Luxembourg 11.If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user. 12.If, during the guarantee period, repairing the same defect repeatedly is not con- clusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value. In this event, we reserve the right to ask for a financial contribution calculated ac- cording to the length of time it has been used. 13.A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins. 14.We give a twelve month guarantee for repairs, limited to the same defect. 15.Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, com- pensation will not exceed the purchase price paid for the appliance. These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases. Our consumer services department is always at your disposal, even after the guaran- tee period has expired. Tel.: Fax.: Electrolux Home Products Belgium ELECTROLUX SERVICE Bergensesteenweg 719 1502 Lembeek Consumer services 02/363.04.44 02/363.04.00 02/363.04.60 E-mail: consumer.services@electrolux.be Tel.: Fax.: Grand-Duché de Luxembourg

ELECTROLUX HOME PRODUCTS

Rue de Bitbourg. 7 L-1273 Luxembourg-Hamm Consumer services 00 352 42 431-1 00 352 42 431-360 E-mail: consumer-service.luxembourg@electrolux.lu28 European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:

The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.

The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.

The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.

The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.

ELECTROLUX HOME PRODUCTS

ELECTROLUX HOME PRODUCTS
