BESCHRIJVING VAN HET PRODUCT

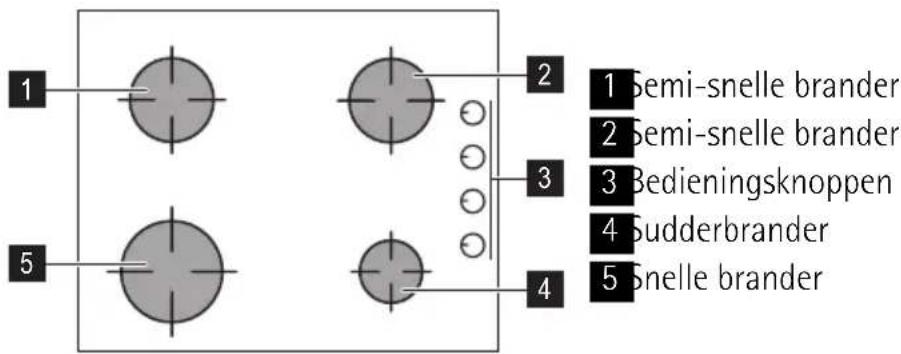

Indeling kookplaat

1 2 1 Semi-snelle brander 2 Semi-snelle brander 3 Bedieningsknoppen 4 Sudderbrander 5 Snelle brander

Bedieningsknoppen

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

CONTENTS

SAFETY INFORMATION 17

Disposal of the appliance 20

INSTALLATION 20

Gas Connection 20Injectors replacement 22Adjustment of minimum level 22Electrical connection 22Replacement of the connection cable 23

PRODUCT DESCRIPTION 24

Control knobs 25

OPERATION 25

Ignition of the burner 25
Turning the burner off 26

HELPFUL HINTS AND TIPS 26

Energy savings 26
CARE AND CLEANING	27
Cleaning of the spark plug	28
Periodic maintenance	28
WHAT TO DO IF...	28

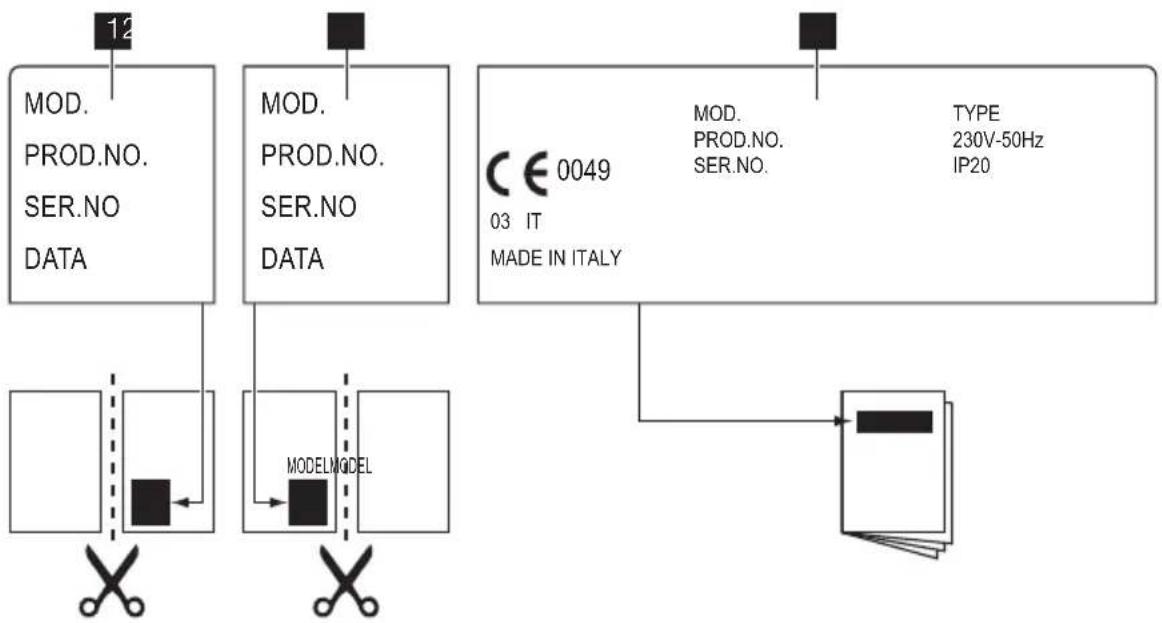

Labels supplied with the accessories bag	28
TECHNICAL DATA	29
ENVIRONMENT CONCERNS	30
Packaging material	31

Subject to change without notice

SAFETY INFORMATION

WARNING!

These instructions are only valid in the countries whose symbols appear on this booklet's cover.

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

General safety

WARNING!

Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.
• Keep all packaging away from children. There is a risk of suffocation and physical injury.
• Keep children away from the appliance during and after the operation, until the appliance is cold.

Use

• Remove all packaging, stickers and the protective layer of the stainless steel hob panel (if present) from the appliance before first use. Do not remove the rating plate. It can invalidate the guarantee.
• Set the cooking zones to the "off" position after each use.
• Burners and accessible part become hot during and after use. Do not put cutlery or saucepan lids on the cooking surface. Cookware and its contents can tip over. There is the risk of burns.
• Too hot fats and oils can ignite very quickly. There is the risk of fire.
• Do not leave the appliance unattended during operation.
• Always monitor the appliance during operation.
• Do not let the liquids overflow into the holes of the top of the hob
• Do not use the hob without cookware.
• The appliance is only for domestic use. Do not use the appliance for commercial and industrial use.
• Only use the appliance for domestic cooking tasks. This is to prevent physical injury to persons or prevent damage to property.
• Use only cookware with diameter applicable to the dimensions of burners. There is a risk of overheating and rupture of the glass plate (if applicable).
• Do not use a pan with diameter smaller than burner dimension - flames will heat up the pan handle.
• Pots must not enter the control zone.
• Do not use not stable cookware to prevent from tilt and accident.
• Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) and/or fabrics in, near or on the appliance. There is the risk of explosion or fire.
• Use only the accessories supplied with appliance.
• Be careful when you connect the appliance to the near sockets. Do not let electricity bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.
• If there is a crack on the surface, disconnect power supply to prevent the electric shock.

Installation

• You must read these instructions. The manufacturer is not responsible for any injury to persons and pets or damage to property caused by failure to obey these requirements.
• To prevent the risks of structural damage or physical injury, installation, connection of the appliance to the power supply and gas system, setting up and maintenance must only be done by qualified personnel in compliance with standards and local regulation force.

- Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If it is necessary, speak to the supplier.

- Only use built-in appliances after you assemble the appliance into correct built-in units and work surfaces that obey the standards.

- Do not install the hob over a domestic appliances if the installation instructions do not allow it.

• Install the appliance only on a worktop with flat surface.

- Do not change the specifications or modify this product. There is the risk of injury and damage to the appliance.

- Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)

- Keep the minimum distances to other appliances and units.

- Install anti-shock protection, for example install the drawers only with a protective panel directly below the appliance.

- Prevent damage of the cut surfaces of the worktop against moisture with a correct sealant.

- Seal the appliance to the worktop with no space left with a correct sealant.

- Prevent damage to the bottom of the appliance from steam and moisture, e.g. from a dishwasher or oven.

- Do not install the appliance adjacent to doors and below windows. Hot cookware can be hit off the hob when you open the doors or windows.

- Before installation, make sure that the local supply conditions (gas type and pressure) agree with the adjustment of appliance. The adjustment conditions for the appliance are on the rating plate, which you can find near the gas supply pipe.

- This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be given to the relevant requirements regarding ventilation.

- The use of a gas cooking appliance cause heat and moisture in the room in which it is installed. Make sure that the ventilation in the kitchen is good: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

- More ventilation (for example opening of a window or increasing the level of mechanical ventilation where present) is necessary when you operate the appliance with intensity for a long time.

- Carefully obey the instructions for electrical connections. There is the risk of injury from electrical current.

- Disconnect the appliance from the electrical supply, before you do the maintenance work or you clean it.

- The electrical mains terminal is live.

- Make electrical mains terminal free of voltage.

• Install correctly to give anti-shock protection.

- A loose and incorrect mains plug and socket connections can make the terminal become too hot.

- A qualified electrician must install the clamping connections correctly.

- Use a strain relief clamp on cable.

- Use the correct mains connection cable and replace the damaged mains cable with applicable cable. Speak to your local Service Force Centre.

• The appliance must have the electrical installation which lets you disconnect the appliance from the mains at all poles with a contact opening width of minimum 3 mm.
• If the fixing bracket is near to the terminal block, always make sure the connection cable does not come in contact with the edge of the bracket.
• You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), ground leakage trips and contactors.

Disposal of the appliance

- To prevent the risk of physical injury or damage

• Disconnect the appliance from the power supply.
• Cut off the mains cable where it connects with the appliance and discard it.
• Flat the external gas pipes if there are fitted.
• Speak to your local authorised facilities for disposal of your appliance.

INSTALLATION

WARNING!

The following instructions about installation and maintenance must be carried out by qualified personnel in compliance with the regulation force.

Gas Connection

It is necessary that the connection to the gas mains are carried out by means of an AGB tap. Choose fixed connections or use a flexible pipe in AGB (stainless steel) in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven.

The connection must be done according to regulation NBN D 51.003.

Make sure that the gas supply pressure of the appliance obeys the recommended values. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". All the components shown in the figure have already been assembled in the factory. The appliance, before leaving the factory, has been tested in order to give you the best results.

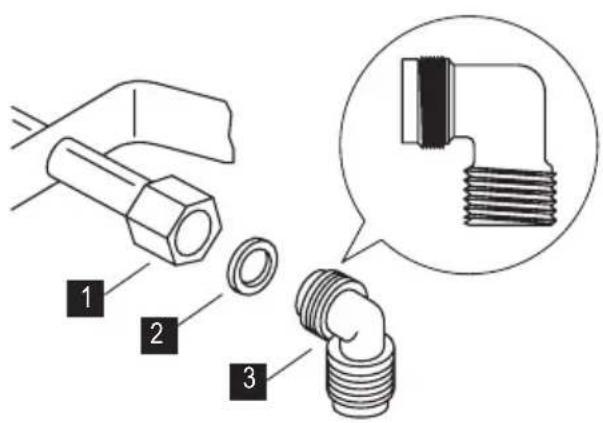

Technical diagram showing three labeled parts of a mechanical component, including a bolt, threaded pipe, and a magnified inset of a threaded component.

1 End of shaft with nut

2 Washer

3 Elbow

Flexible nonmetal pipes connection:

If it is possible to easily control the connection in its full area, you can use a flexible pipe. Tightly attach the flexible pipe by clamps.

Liquid gas: use the rubber pipe holder. Always engage the gasket. Then continue with the gas connection. The flexible pipe is prepared for apply when:

• it can not get hot more than room temperature, higher than 30°C;
• it is no longer than 1500 mm;
• it shows no throttles;
• it is not subject to traction or torsion;
• it does not get in touch with cutting edges or corners;
• it can be easily examined in order to check its condition.

The control of preservation of the flexible pipe consists in checking that:

• it does not show cracks, cuts, marks of burnings on the two ends and on its full length;
• the material is not hardened, but shows its correct elasticity;
• the fastening clamps are not rusted;
• expired term is not due.

If one or more defects are visible, do not repair the pipe, but replace it.

When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

Injectors replacement

1. Remove the pan supports.
2. Remove the caps and crowns of the burner.

3. With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type of gas you use (see table in Technical Data section).

4. Assemble the parts, follow the same procedure backwards.

5. Replace the rating label (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this label in the package supplied with the appliance.

If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

Adjustment of minimum level

To adjust the minimum level of the burners:

1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the control knob.
4. With a thin screwdriver, adjust the by-pass screw position. If you change from natural gas 20 mbar to liquid gas, fully tighten the adjustment screw in. If you change from liquid gas to natural gas 20 mbar, undo the by-pass screw approximately 1/4 of a turn.

Technical line drawing of a mechanical component with a circular base and cylindrical hole, no text or symbols present

1 Minimum adjustment screw

1. Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

Electrical connection

• Ground the appliance according to safety precautions.
• Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.
• This appliance is supplied with a mains cable. It has to be supplied with a correct plug, able to support the load marked on the identification plate. The plug has to be fitted in a correct socket.
• Any electrical component must be installed or replaced by the Service Force Centre technician or qualified service personnel.
• Always use a correctly installed shockproof socket.
• Make sure that there is an access to the mains plug after installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The appliance must not be connected with an extension cable, an adapter or a multiple connection (risk of fire). Check that the ground connection is in conformity with the standard and regulations force.

• The power cable must be placed in such a way that it does not touch any hot part.

• Connect the appliance to the mains with a device that lets to disconnect the appliance from the mains at all poles with a contact opening width of minimum 3 mm, eg. automatic line protecting cut-out, earth leakage trips or fuse.
• None of a parts of the connection cable can not get a temperature 90 °C. The blue neutral cable must be connected to the terminal block label with "N". The brown (or black) phase cable (fitted in the terminal block contact marked with "L") must always be connected to the live phase.

Replacement of the connection cable

To replace the connection cable use only H05V2V2-F T90 or equivalent type. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

Building In

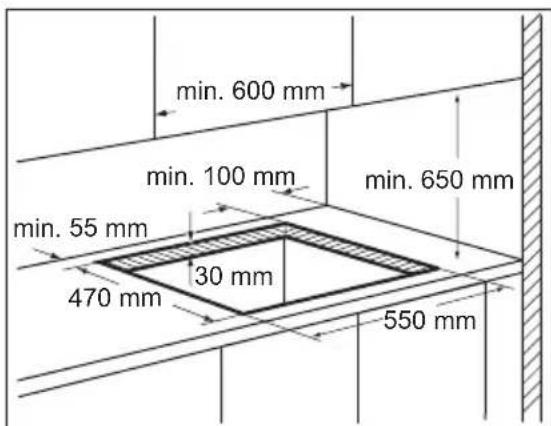

min. 600 mm min. 100 mm min. 650 mm min. 55 mm 470 mm 30 mm 550 mm

Diagram showing hands connecting a cable to a surface with an inset magnified view labeled 'A'

Technical diagram showing a mechanical assembly with labeled components A and B, including a magnified inset view.

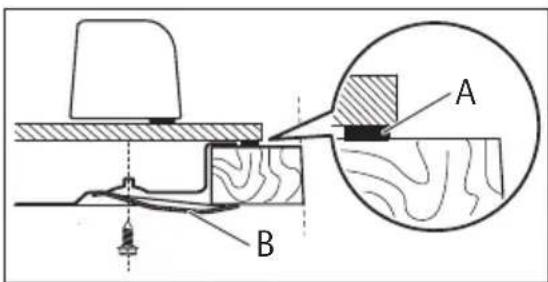

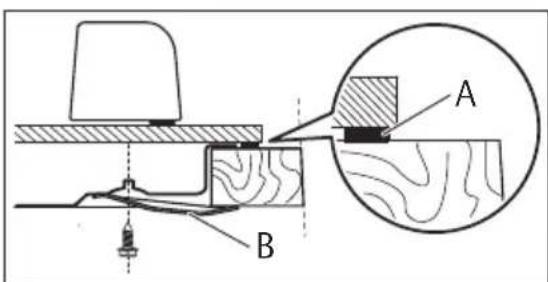

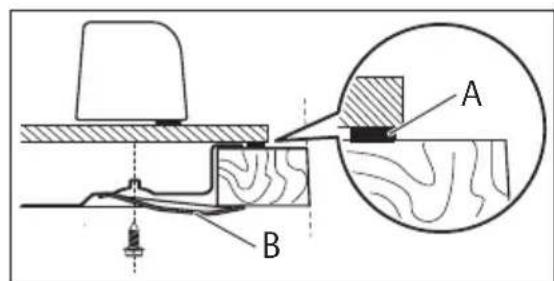

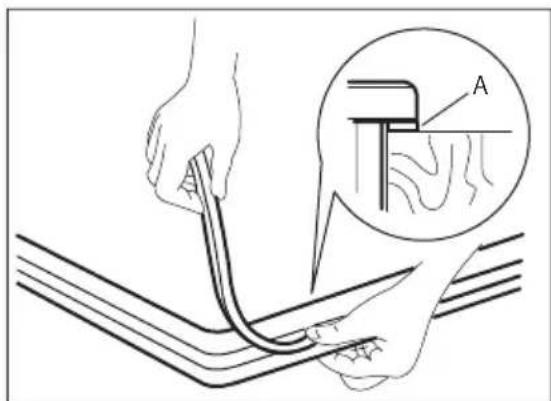

A) supplied seal
B) supplied brackets

Possibilities for insertion

Kitchen unit with door

The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary.

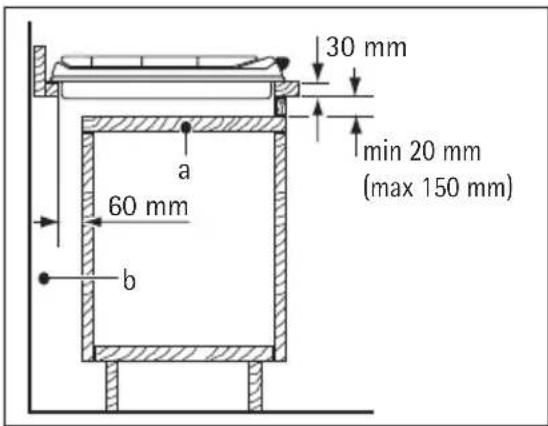

30 mm min 20 mm (max 150 mm) 60 mm a b

a) Removable panel
b) Space for connections

Kitchen unit with oven

The hob recess dimensions must obey the indication and the kitchen unit must be equipped with vents to let a continuous supply of air. The electrical connection of the hob and the oven must be installed separately for safety reasons and to let easy remove oven from the unit.

50 cm² 360 cm² 120 cm² 180 cm²

Cooking surface layout

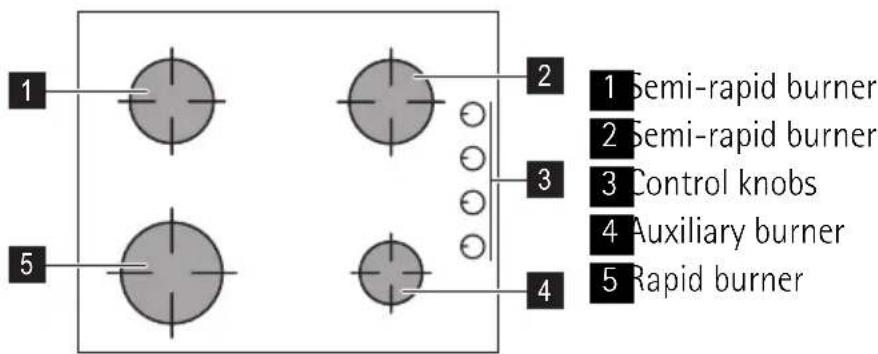

1 2 1 Semi-rapid burner 2 Semi-rapid burner 3 Control knobs 4 Auxiliary burner 5 Rapid burner

Control knobs

Symbol Description
●	no gas supply / off position
	ignition position / maximum gas supply
###	minimum gas supply

OPERATION

Ignition of the burner

WARNING!

Be very careful when you use open fire in kitchen environment. Manufacturer decline any responsibility in case misuse of the flame

Always light the burner before you put cookware.

To light the burner:

1. Turn the control knob counterclockwise to the maximum position ( ⚙️) and push it down.
2. Keep the control knob pushed for approximately 5 seconds; this will let thermocouple to warm up. If not, the gas supply will be interrupted.
3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions.

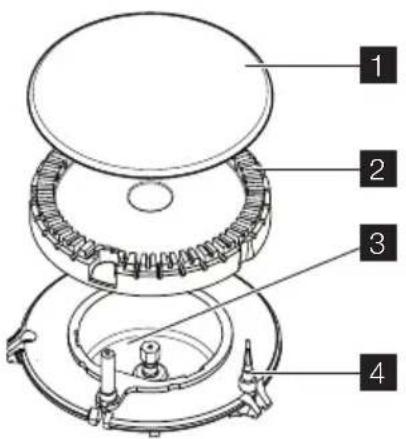

1 2 3 4

1 Burner cap
2 Burner crown
3 ignition candle
4 Thermocouple

WARNING!

If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.

In the absence of electricity you can ignite the burner without electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it counter-clockwise to maximum gas release position.

If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute.

The spark generator can start automatically when you switch on the mains, after installation or a power cut. It is normal.

Turning the burner off

To put the flame out, turn the knob to the symbol ●

WARNING!

Always turn the flame down or switch it off before you remove the pans of the burner.

HELPFUL HINTS AND TIPS

Energy savings

• If possible, always put the lids on the pans.
• When the liquid starts to boil, turn down the flame to barely simmer the liquid.

WARNING!

Use pots and pans with bottom applicable to the dimension of burner. Do not use cooking vessels on the hotplate that overlap its edges.

Burner Diameters of cookware

Rapid 160 - 240 mm

Semi-rapid 120 - 220 mm

Auxiliary 80 - 160 mm

WARNING!

Pots must not enter the control zone.

WARNING!

Make sure pot handles do not protrude over the front edge of the cooktop and that pots are centrally positioned on the rings in order to achieve maximum stability and to obtain lower gas consumption.

Do not place unstable or deformed pots on the rings to prevent from spill and injury.

WARNING!

Flame diffuser are not recommended.

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

CARE AND CLEANING

WARNING!

Switch the appliance off and let it cool down before you clean it. Disconnect the appliance from the electrical supply, before carrying out any cleaning or maintenance work.

WARNING!

For safety reasons, do not clean the appliance with steam cleaners or high-pressure cleaners.

WARNING!

Do not use abrasive cleaners, steel wool pads or acids, they can cause damage to the appliance.

Scratches or dark stains on the glass have no effect on how the appliance operates.

• You can remove the pan supports to easily clean the hob.
• To clean the enamelled parts, cap and crown, wash it with warm soapy water and dry it carefully before you put them back.
• Stainless steel parts wash with water, and then dry with a soft cloth.
• The pan supports are not dishwasher proof; they must be washed by hand.
• When you wash the pan supports by hand, take care when you dry them as the enamelling process occasionally leaves rough edges. If necessary, remove stubborn stains using a paste cleaner.
• Make sure you position the pan supports correctly after cleaning.
• To make burners work correctly, make sure that the arms of the pan supports are in the centre of the burner.
• Be very careful when you replace the pan supports to prevent the hob top from damage.

After cleaning, dry the appliance with a soft cloth.

Removing the dirt:

1. • Remove immediately: melting plastic, plastic foil, and food containing sugar.

2. Stop the appliance and let it cool down before you clean: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaner applicable for surface of hob.

3. Clean the appliance with a damp cloth and some detergent.

4. At the end rub the appliance dry with a clean cloth.

To keep the pan supports in the correct position, they are mounted on metal pins located in the rear sides of the hob. To ensure a better cleaning, pan supports can be removed from the hob. Lift up the pan supports keeping them in horizontal position.

WARNING!

Avoid lifting the pan supports at an angle, as this will put strain on the metal pins. This may damage the pins and cause them to break.

Cleaning of the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.

Periodic maintenance

Periodically speak your local Service Force Centre to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

WHAT TO DO IF...

Problem Possible cause Remedy
There is no spark when lighting the gas	· There is no electrical supply · Make sure that the unit is connected and the electrical supply is switched on.· Control the fuse. If the fuse is released more than one time, refer to a qualified electrician.
· Burner cap and crown are	placed uneven	· Make sure that the burner cap and crown are in correct positions.
The flame is blow out immediately after ignition	· Thermocouple is not heated sufficient	· After lightning the flame, keep the knob pushed for approximately 5 seconds.
The gas ring burns unevenly · Burner crown is blocked with food residues		· Make sure that the injector is not blocked and the burn-er crown is clear of food particles.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, speak your dealer or the local Service Force Centre.

If you operated the appliance incorrectly, or the installation was not carried out by a registered engineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

1 Stick it on Guarantee Card and send this part
2 Stick it on Guarantee Card and keep this part
3 Stick it on instruction booklet

These data are necessary to help you quickly and correctly. These data are available on the identification plate.

• Model description ....
• Product number (PNC) ....
• Serial Number (S.N.) ....

Use the original spare parts only. They are available at Service Force Centre and approved spare parts shops.

TECHNICAL DATA

Hob dimensions

Width: 580 mm
Length: 510 mm
Hob recess dimensions
Width: 550 mm
Length: 470 mm
Heat input
Rapid burner: 2.9 kW
Semi-rapid burner: 1.9 kW
Auxiliary burner: 1.0 kW
TOTAL POWER: G20/G25 (2E+) 20/25 mbar = 7.7 kW	G30 (3+) 28-30 mbar = 545 g/hG31 (3+) 37 mbar = 536 g/hG20 (2E) 20 mbar = 7.7 kW
Electric supply: 230 V ~ 50 Hz
Category: II2E+3+ (Belgium)	I2E (Luxembourg)
Gas connection: R 1/2"
Gas supply: G20/G25 (2E+) 20/25 mbar (Belgium)
Appliance class: 3

By-pass diameters

Burner ∅ By-pass in 1/100 mm.
Auxiliary 28
Semi-rapid 32
Rapid 42

Gas burners

BURNER	NORMAL POWER	NORMAL POWER
		NATURAL GASG20/G25 (2E+) 20/25 mbar (BE)G20 (2E) 20 mbar (LU)			LPG(Butane/Propane) (3+) 28-30/37mbar
	kW	inj. 1/100mm	G2020 mbar	G2525 mbar	inj. 1/100mm	G30 G31
			m^3/h m^3/h	g/h g/h
Auxiliary burner	1.0	70	0.095	0.111	50	73	71
Semi-rapid burner	1.9	96	0.181	0.210	71	138	136
Rapid burner	2.9 (natural gas)2.7 (LPG)	119	0.276	0.321	86	196	193

ENVIRONMENT CONCERNS

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

Technical diagram showing three labeled parts of a mechanical component: bolt, nut, and threaded pipe fitting.

Technical line drawing of a mechanical component with a circular base and central shaft (no text or symbols)

Diagram showing hands connecting wires with a magnified inset labeled 'A' highlighting a specific section.

Technical diagram showing a mechanical assembly with labeled components A and B, including a magnified inset view.

Technical diagram showing three labeled parts of a mechanical component: bolt, nut, and threaded pipe fitting.

Technical line drawing of a mechanical component with a circular base and internal features (no text or symbols)

Diagram illustrating a cable being inserted into a tube, with an inset showing the labeled component 'A'

Technical diagram showing a mechanical assembly with labeled components A and B, including a magnified inset view.

Four icon-based visualizations showing different consumer electronics: washing machine, gear, shopping cart, and shopping cart (no text or symbols)

CE
